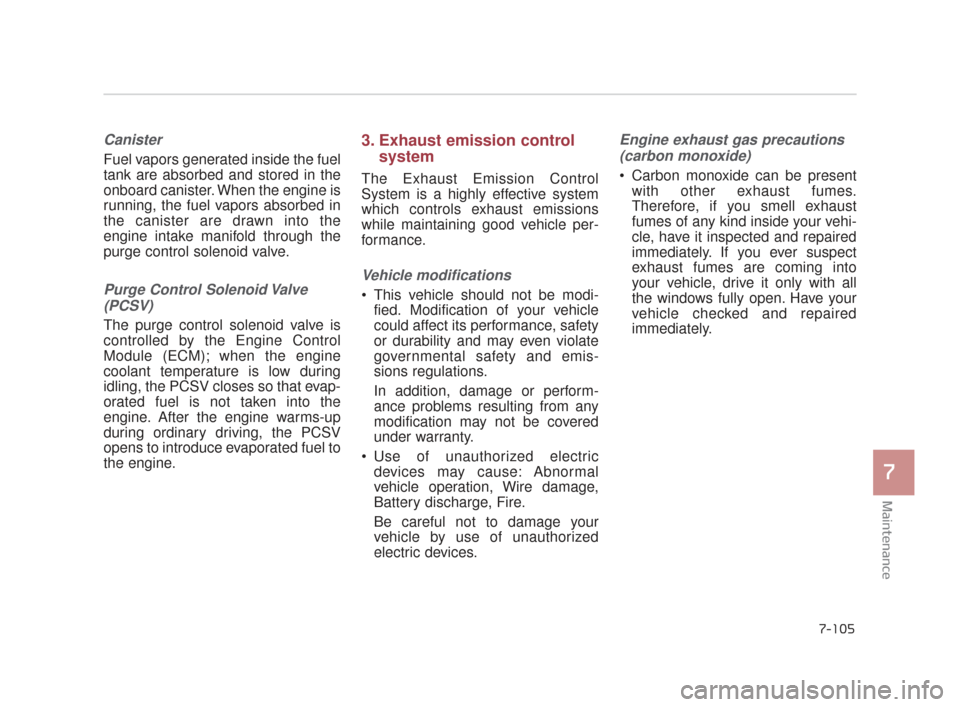

Maintenance
7
7-105
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the
engine intake manifold through the
purge control solenoid valve.
Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modi-
fied. Modification of your vehicle
could affect its performance, safety
or durability and may even violate
governmental safety and emis-
sions regulations.
In addition, damage or perform-
ance problems resulting from any
modification may not be covered
under warranty.
Use of unauthorized electric devices may cause: Abnormal
vehicle operation, Wire damage,
Battery discharge, Fire.
Be careful not to damage your
vehicle by use of unauthorized
electric devices.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.
KH CAN (ENG) 7:2015 3/26/2015 6:42 AM Page 105
Page 502 of 522

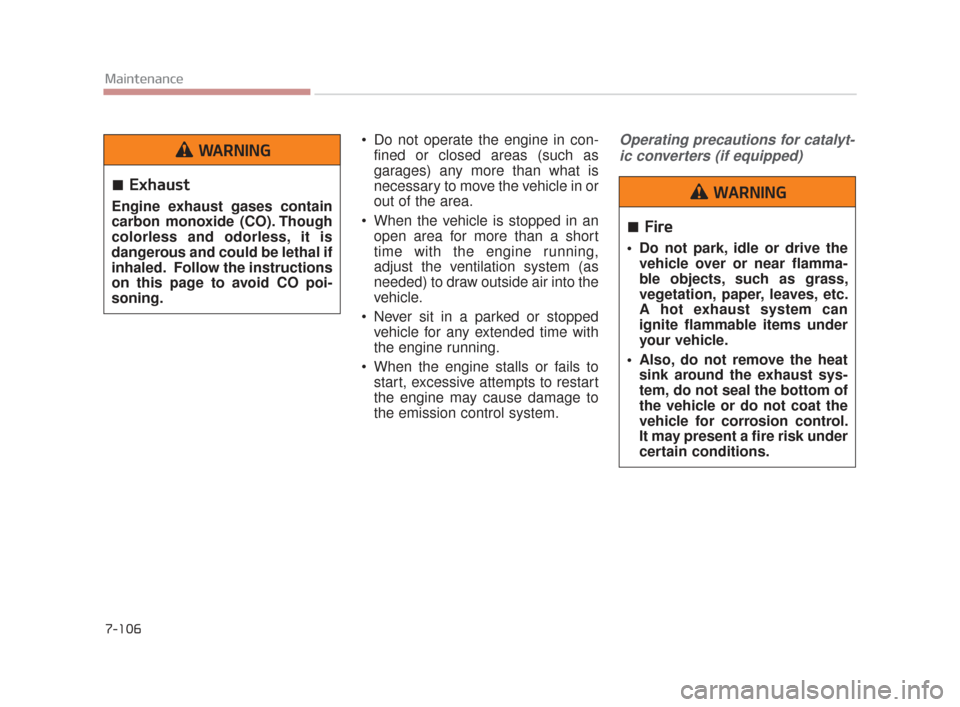

7-106
Maintenance
Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.
WARNING
Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
WARNING
KH CAN (ENG) 7:2015 3/26/2015 6:42 AM Page 106
Page 503 of 522
Maintenance
7
7-107

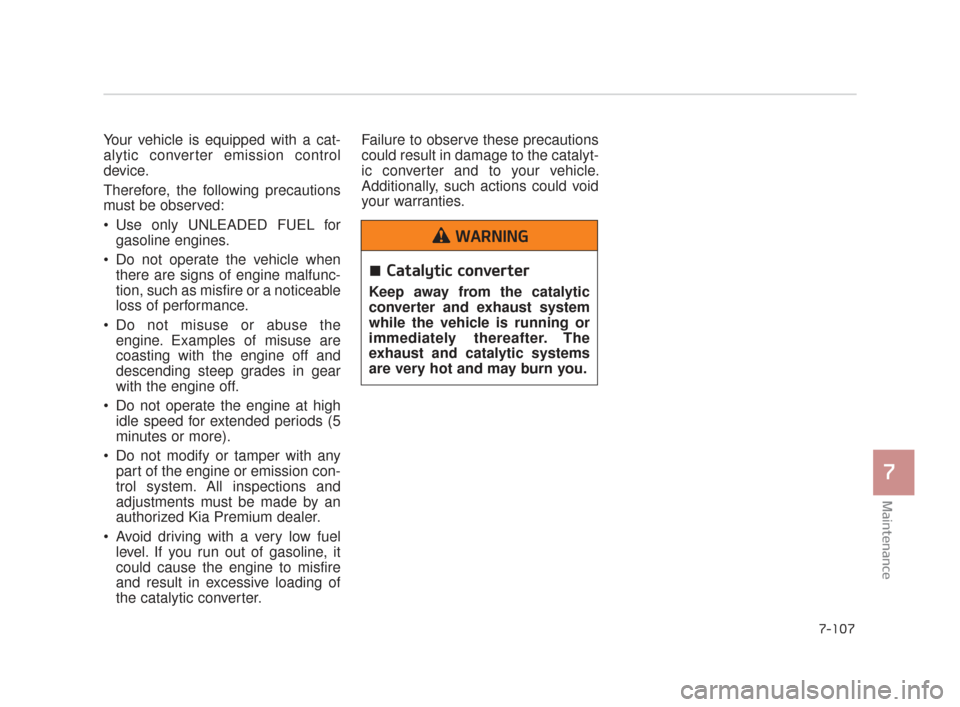

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia Premium dealer.
Avoid driving with a very low fuel level. If you run out of gasoline, it
could cause the engine to misfire
and result in excessive loading of
the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING
KH CAN (ENG) 7:2015 3/26/2015 6:42 AM Page 107
Page 504 of 522

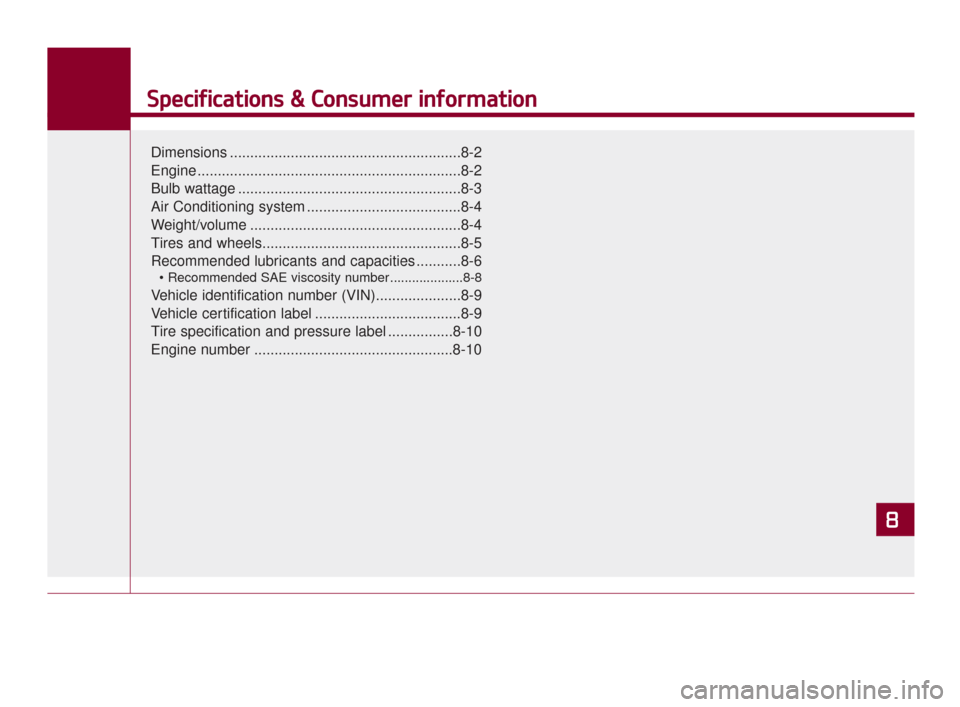

Specifications & Consumer information
Dimensions .........................................................8-2
Engine .................................................................8-2
Bulb wattage .......................................................8-3
Air Conditioning system ......................................8-4
Weight/volume ....................................................8-4
Tires and wheels.................................................8-5
Recommended lubricants and capacities ...........8-6
....................8-8
Vehicle identification number (VIN).....................8-9
Vehicle certification label ....................................8-9
Tire specification and pressure label ................8-10
Engine number .................................................8-10
8
KH CAN (ENG) 8:2015 3/26/2015 6:43 AM Page 1
Page 505 of 522
8-2
Specifications & Consumer information

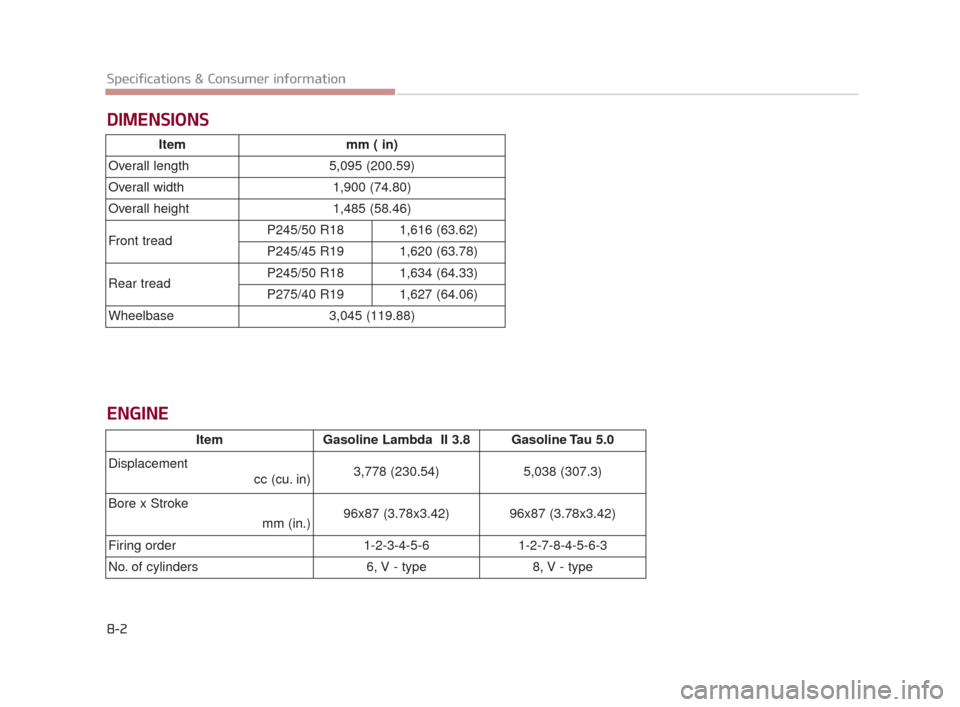

DIMENSIONS
Itemmm ( in)
Overall length 5,095 (200.59)
Overall width 1,900 (74.80)
Overall height 1,485 (58.46)
Front tread P245/50 R18 1,616 (63.62)
P245/45 R191,620 (63.78)
Rear tread P245/50 R18 1,634 (64.33)
P275/40 R191,627 (64.06)
Wheelbase 3,045 (119.88)
ItemGasoline Lambda II 3.8Gasoline Tau 5.0
Displacement cc (cu. in) 3,778 (230.54)
5,038 (307.3)
Bore x Stroke mm (in.)96x87 (3.78x3.42)
96x87 (3.78x3.42)
Firing order 1-2-3-4-5-6
1-2-7-8-4-5-6-3
No. of cylinders 6, V - type
8, V - type
ENGINE
KH CAN (ENG) 8:2015 3/26/2015 6:43 AM Page 2
Page 506 of 522

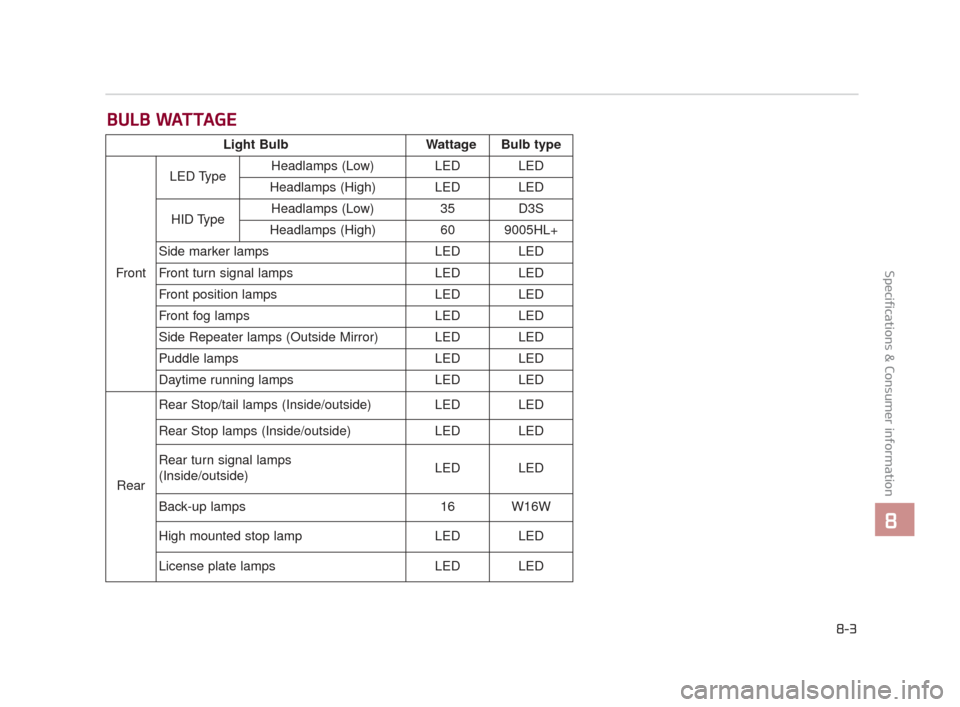

BULB WATTAGE
Specifications & Consumer information
8
8-3
Light BulbWattage Bulb type
Front LED Type
Headlamps (Low) LED LED
Headlamps (High) LED LED
HID Type Headlamps (Low)
35 D3S
Headlamps (High) 60 9005HL+
Side marker lamps LED LED
Front turn signal lamps LED LED
Front position lamps LED LED
Front fog lamps LED LED
Side Repeater lamps (Outside Mirror) LED LED
Puddle lamps LED LED
Daytime running lamps LED LED
Rear Rear Stop/tail lamps (Inside/outside) LED LED
Rear Stop lamps (Inside/outside)
LED LED
Rear turn signal lamps
(Inside/outside) LED LED
Back-up lamps 16 W16W
High mounted stop lamp LED LED
License plate lamps LED LED
KH CAN (ENG) 8:2015 3/26/2015 6:43 AM Page 3
Page 507 of 522
8-4

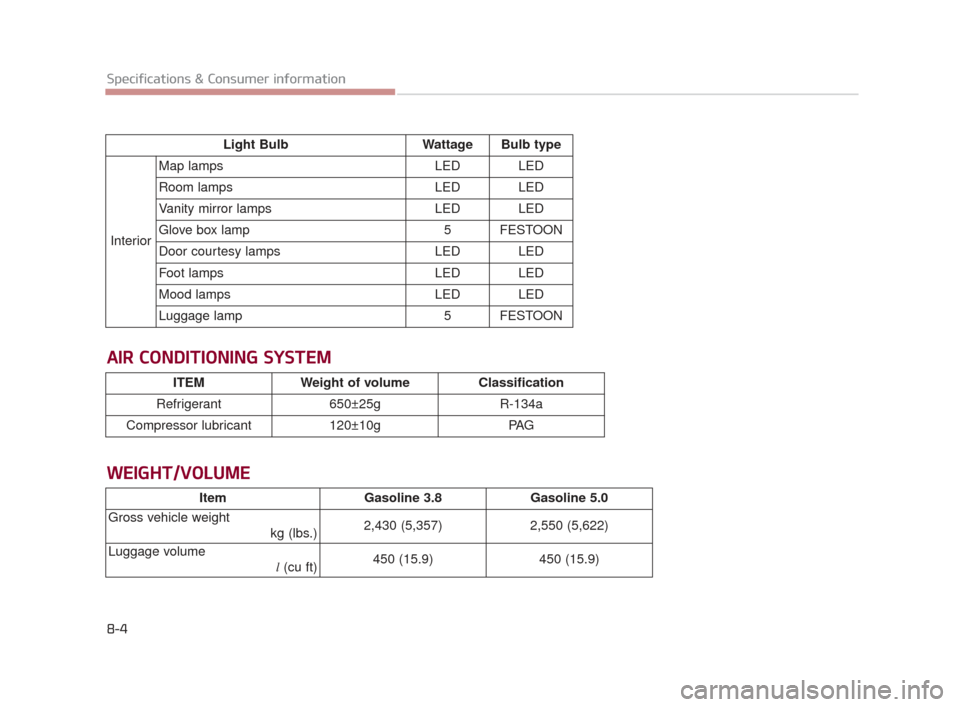

Specifications & Consumer informationLight Bulb Wattage Bulb type
Inter iorMap lamps
LED
LED
Room lamps LED LED
Vanity mirror lamps LED LED
Glove box lamp 5 FESTOON
Door courtesy lamps LED LED
Foot lamps LED LED
Mood lamps LED LED
Luggage lamp 5 FESTOON
ItemGasoline 3.8 Gasoline 5.0
Gross vehicle weight kg (lbs.)2,430 (5,357)
2,550 (5,622)
Luggage volume l(cu ft) 450 (15.9)
450 (15.9)
WEIGHT/VOLUME
ITEMWeight of volumeClassification
Refrigerant650±25gR-134a
Compressor lubricant120±10gPA G
AIR CONDITIONING SYSTEM
KH CAN (ENG) 8:2015 3/26/2015 6:43 AM Page 4
Page 508 of 522
Specifications & Consumer information
8
8-5

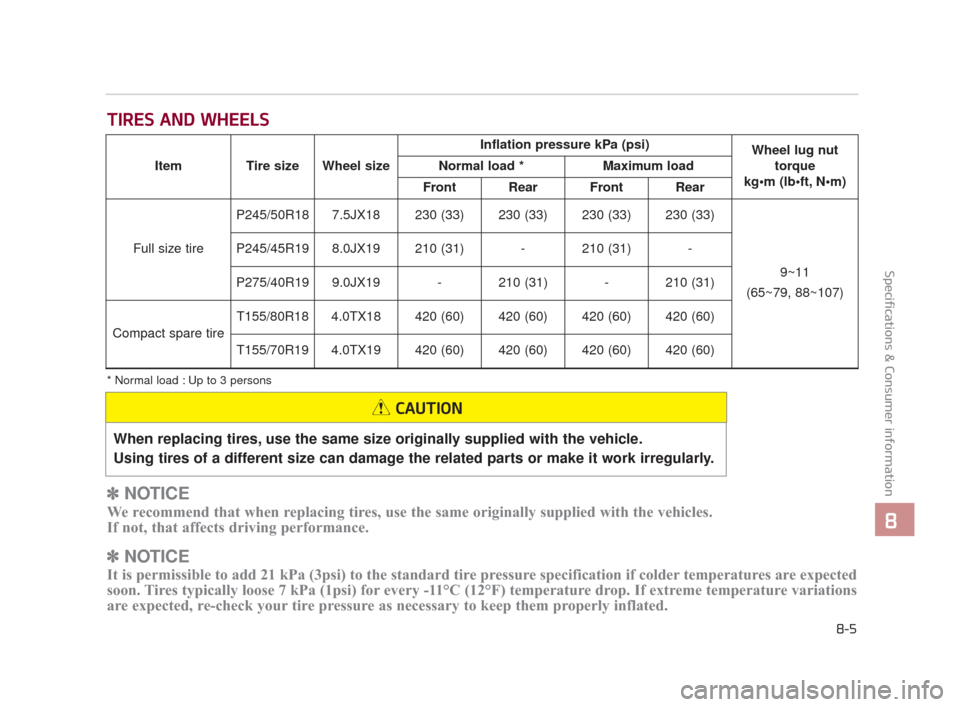

TIRES AND WHEELS
✽NOTICE
We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.
✽NOTICE
It is permissible to add 21 kPa (3psi) to the standard tire pressure specification if colder temperatures are expected
soon. Tires typically loose 7 kPa (1psi) for every -11°C (12°F) temperature drop. If extreme temperature variations
are expected, re-check your tire pressure as necessary to keep them properly inflated.
* Normal load : Up to 3 persons
Item Tire size Wheel size Inflation pressure kPa (psi)
Wheel lug nut
torque
kg
Normal load *
Maximum load
Front Rear Front Rear
Full size tire
P245/50R187.5JX18230 (33)230 (33)230 (33)230 (33)
9~11
(65~79, 88~107)
P245/45R19 8.0JX19 210 (31) - 210 (31) -
P275/40R19 9.0JX19 - 210 (31) - 210 (31)
Compact spare tire
T155/80R184.0TX18420 (60)420 (60)420 (60)420 (60)
T155/70R194.0TX19420 (60)420 (60)420 (60)420 (60)
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
CAUTION
KH CAN (ENG) 8:2015 3/26/2015 6:43 AM Page 5
Page 509 of 522
8-6
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1*2 (drain and refill)
Recommends (or equivalent)
3.8L6.1 l (6.45 US qt.)ACEA A5 or above
5.0L7.2 l(7.61 US qt.)ILSAC GF-4 or above
Automatic transmission fluid9.6 l (10.14 US qt.)ATF SP-IV-RR
Power steering fluid0.9 l (0.95 US qt.)Pentosin CHF 202
KH CAN (ENG) 8:2015 3/26/2015 6:43 AM Page 6
Page 510 of 522
Specifications & Consumer information
8
8-7
*1Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute
to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements
are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the ACEA A5 engine oil is not available in your country, you are able to use API service SL, ILSAC GF-3, ACEA
A3.

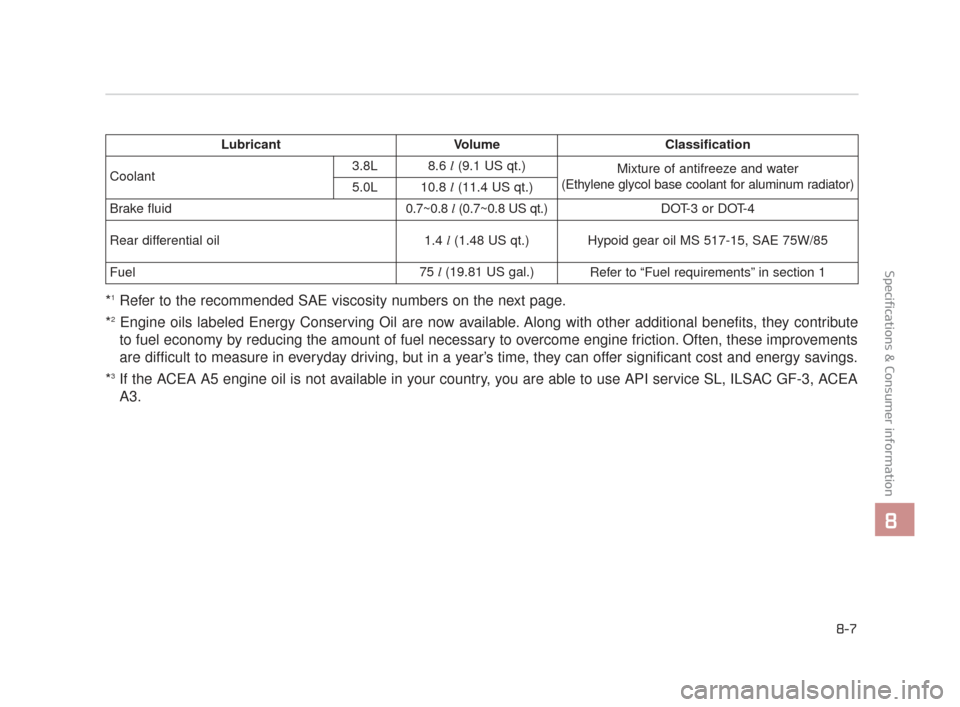

LubricantVolumeClassification
