Page 16 of 522

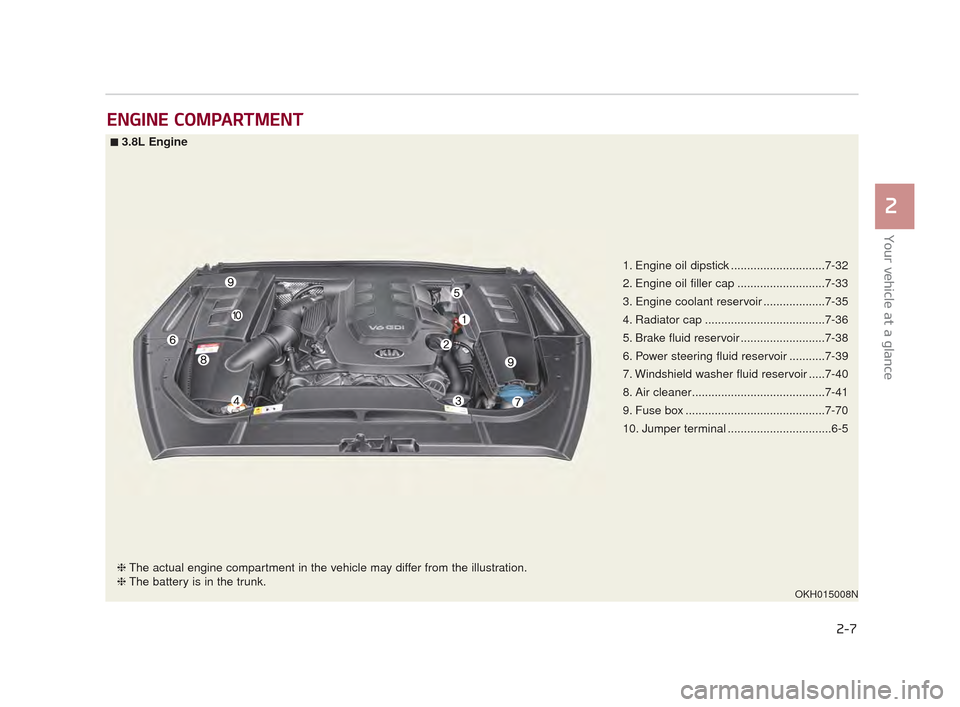

ENGINE COMPARTMENT
Your vehicle at a glance
2
2-7
1. Engine oil dipstick .............................7-32
2. Engine oil filler cap ...........................7-33
3. Engine coolant reservoir ...................7-35
4. Radiator cap .....................................7-36
5. Brake fluid reservoir ..........................7-38
6. Power steering fluid reservoir ...........7-39
7. Windshield washer fluid reservoir .....7-40
8. Air cleaner.........................................7-41
9. Fuse box ...........................................7-70
10. Jumper terminal ................................6-5
OKH015008N
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■3.8L Engine
KH CAN (ENG) 2:2015 3/24/2015 10:38 AM Page 7
Page 17 of 522

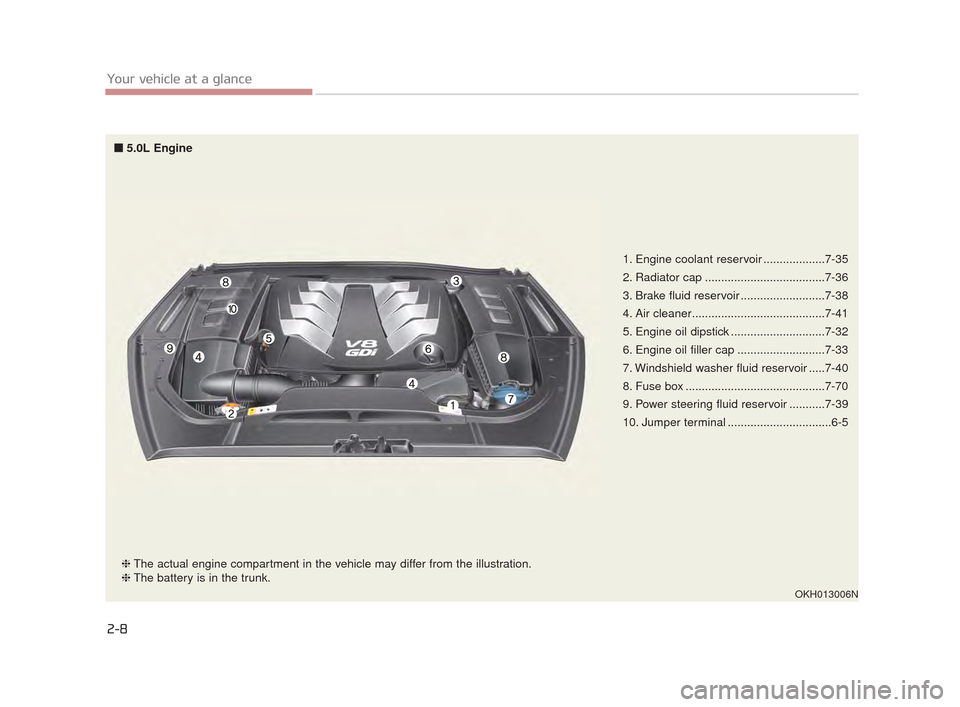

2-8
Your vehicle at a glance
OKH013006N
1. Engine coolant reservoir ...................7-35
2. Radiator cap .....................................7-36
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-41
5. Engine oil dipstick .............................7-32
6. Engine oil filler cap ...........................7-33
7. Windshield washer fluid reservoir .....7-40
8. Fuse box ...........................................7-70
9. Power steering fluid reservoir ...........7-39
10. Jumper terminal ................................6-5
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■
5.0L Engine
KH CAN (ENG) 2:2015 3/24/2015 10:38 AM Page 8
Page 62 of 522
Seat and safety features of your vehicle
3
3-45

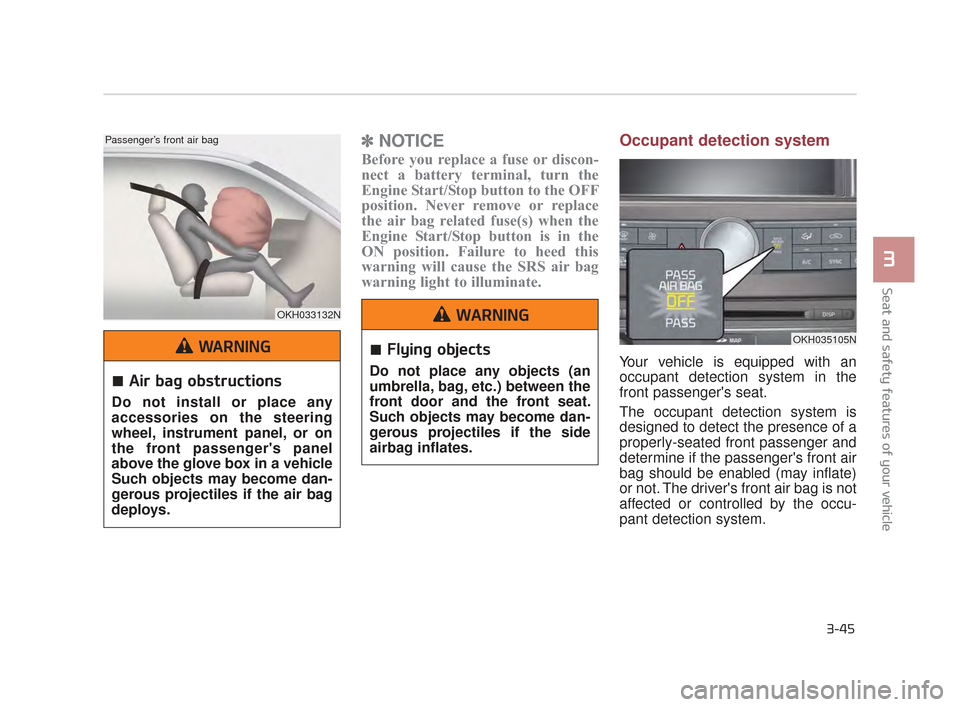

✽NOTICE
Before you replace a fuse or discon-
nect a battery terminal, turn the
Engine Start/Stop button to the OFF
position. Never remove or replace
the air bag related fuse(s) when the
Engine Start/Stop button is in the
ON position. Failure to heed this
warning will cause the SRS air bag
warning light to illuminate.
Occupant detection system
Your vehicle is equipped with an
occupant detection system in the
front passenger's seat.
The occupant detection system is
designed to detect the presence of a
properly-seated front passenger and
determine if the passenger's front air
bag should be enabled (may inflate)
or not. The driver's front air bag is not
affected or controlled by the occu-
pant detection system.
OKH033132N
Passenger’s front air bag
Air bag obstructions
Do not install or place any
accessories on the steering
wheel, instrument panel, or on
the front passenger's panel
above the glove box in a vehicle
Such objects may become dan-
gerous projectiles if the air bag
deploys.
WARNINGOKH035105NFlying objects
Do not place any objects (an
umbrella, bag, etc.) between the
front door and the front seat.
Such objects may become dan-
gerous projectiles if the side
airbag inflates.
WARNING
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 45
Page 104 of 522
Features of your vehicle
4
4-25
To Reset the Power Trunk
If the battery has been discharged or
disconnected, or if the related fuse
has been replaced or disconnected,
reset the power trunk as follows:
1. Move the shift lever to the P(Park)position.
2. Close the trunk manually.
If the power trunk doesn't work prop-
erly after performing the above pro-
cedure, have the system checked by
an authorized Kia Premium dealer.
Trunk Lid Control Button
When the trunk lid control button is
ON (depressed), the power trunk can
be controlled with the power trunk
main control button, power trunk
open, close button, and the smart key.
When this trunk lid control button is
OFF (not depressed), the power
trunk can be controlled using the
mechanical key of the smart key only.
Even though the trunk lid control but-
ton is OFF (not depressed), the trunk
will still be propelled upward by
mechanical force if the trunk is man-
ually opened more than 10 degrees
beyond the fully closed position. In addition, if the trunk is manually
closed to the secondary latch posi-
tion, the trunk will be electrically
moved to the fully latched position.
✽
NOTICE
Close the trunk, and keep the trunk
lid control button in the OFF (not
depressed) position before washing
the vehicle in an automatic car
wash.
OKH043022N
Always keep the Trunk Lid
Control Button in the OFF (not
depressed) position when not
in use. Serious injury or death
can result from unintentional
operation by a child.
Make sure heads, other body parts or other obstacles are
safely out of the way before
operating the power trunk.
WARNING
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 25
Page 113 of 522
Features of your vehicle
4-34
Power window lock button
The driver can disable the power
window switches on the rear passen-
gers’ doors by pressing the power
window lock switch. The indicator will
be illuminated.
When the power window lock switch
indicator is illuminated :
The driver’s master control canoperate all the power windows.
The front passenger’s control can operate the front passenger’s
power window.
The rear passenger’s control can- not operate the rear passenger’s
power window. Always double check to make sure
all arms, hands, head and other
obstructions are safely out of the way
before closing a window.
OKH043027N
Power windows
Do not allow children to play
with the power windows. Keep
the driver’s door power window
lock button in the LOCK posi-
tion (illuminated).
WARNING
Opening / closing Window
To prevent possible damage to
the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the fuse.
CAUTION
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 34
Page 123 of 522
Features of your vehicle
4-44

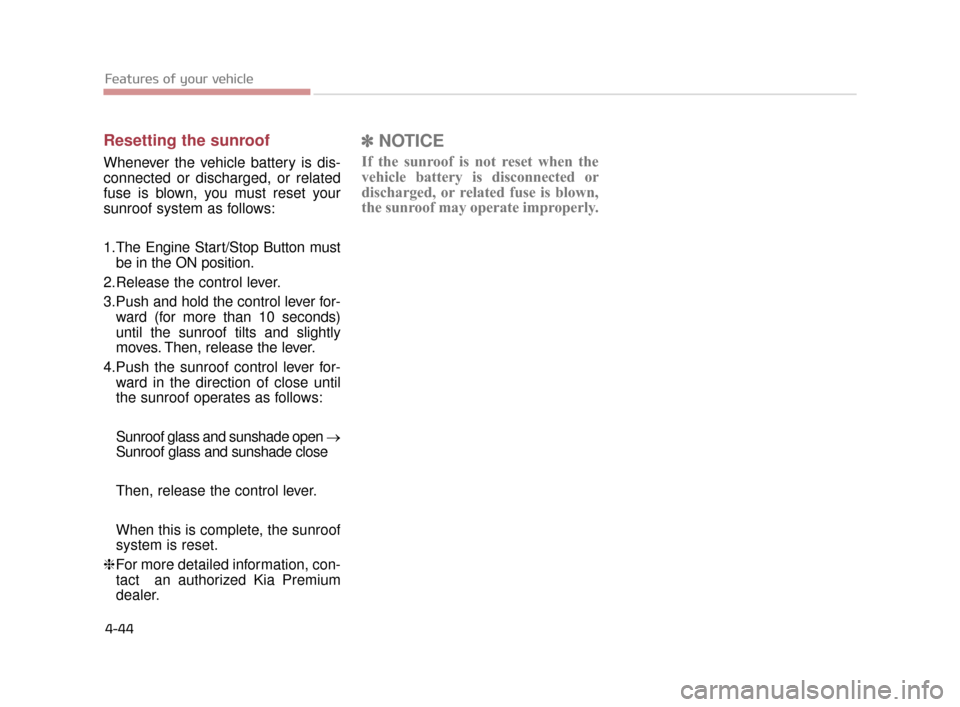

Resetting the sunroof
Whenever the vehicle battery is dis-
connected or discharged, or related
fuse is blown, you must reset your
sunroof system as follows:
1.The Engine Start/Stop Button mustbe in the ON position.
2.Release the control lever.
3.Push and hold the control lever for- ward (for more than 10 seconds)
until the sunroof tilts and slightly
moves. Then, release the lever.
4.Push the sunroof control lever for- ward in the direction of close until
the sunroof operates as follows:
Sunroof glass and sunshade open →
Sunroof glass and sunshade close
Then, release the control lever.
When this is complete, the sunroof
system is reset.
❈ For more detailed information, con-
tact an authorized Kia Premium
dealer.
✽ NOTICE
If the sunroof is not reset when the
vehicle battery is disconnected or
discharged, or related fuse is blown,
the sunroof may operate improperly.
KH CAN (ENG) 4:2015 3/26/2015 10:38 AM Page 44
Page 149 of 522
Features of your vehicle
4-70
Service interval OFF
If the service interval is not set,
"Service interval OFF" message is
displayed on the LCD display.
✽NOTICE
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
Tire Pressure
This mode displays the pressure sta-
tus of each tire.
You can change the tire pressure unit
in "User settings" mode.
❈For more details, refer to "User
Settings mode" in this chapter.
Warning Message
If one of followings occurs, warning
messages will be displayed on the
information mode for several sec-
onds.
- Malfunction of below systems
Blind Spot Detection (BSD)
Presafe Seat Belt (PSB)
Electronic Control Suspension
(ECS)
Tire Pressure Monitoring System
Advanced Smart Cruise Control
Low washer fluid
LED Headlamp (LED)
Active Air Flap(AAF)
OKH043403NOKH043405N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:40 AM Page 70
Page 160 of 522
Features of your vehicle
4
4-81
Check battery voltage
This warning message illuminatesif the battery voltage is abnormally
low, or the battery has poor per-
formance. In this case, have your
vehicle inspected by an authorized
Kia Premium dealer.
Check BRAKE SWITCH fuse
This warning message illuminatesif the brake switch fuse is discon-
nected.
It means that you should replace the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop Button for 10 seconds in
the ACC position.
Shift to P or N to start engine
This warning message illuminatesif you try to start the engine with
the shift lever not in the P (Park) or
N (Neutral) position.
OKH043515N
■Type A■Type B
OKH045932N
■Type A■Type B
OKH043933N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:40 AM Page 81
Page 163 of 522
Features of your vehicle
4-84
Turn on "FUSE SWITCH"
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
❈ For more details, refer to “Fuses” in
chapter 7.
Low Tire Pressure
This warning message illuminates
if the tire pressure is low with the
Engine Start/Stop button in ON
position.
❈ For more details, refer to "Tire
Pressure Monitoring System
(TPMS)" in chapter 6.
Align steering wheel
This warning message illuminates
if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
It means that you should turn the steering wheel and make the angle
of the steering wheel be less than
30 degrees.
OKH043937N
■Type A■Type B
OKH043938N
■Type A■Type B
OKH045415N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 84
Page 246 of 522
Features of your vehicle
4
4-167

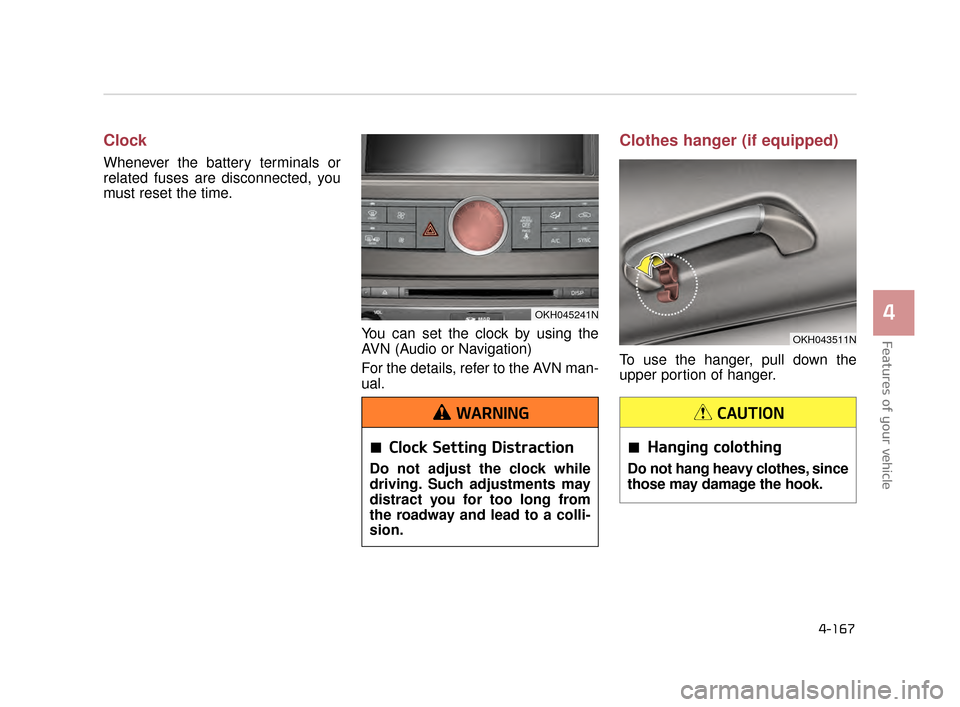

Clock
Whenever the battery terminals or
related fuses are disconnected, you
must reset the time.You can set the clock by using the
AVN (Audio or Navigation)
For the details, refer to the AVN man-
ual.
Clothes hanger (if equipped)
To use the hanger, pull down the
upper portion of hanger.
OKH045241N
Clock Setting Distraction
Do not adjust the clock while
driving. Such adjustments may
distract you for too long from
the roadway and lead to a colli-
sion.
WARNING
OKH043511N
Hanging colothing
Do not hang heavy clothes, since
those may damage the hook.
CAUTION
KH CAN (ENG) 4:2015 3/26/2015 10:48 AM Page 167
