reset sun roof KIA K900 2015 1.G Owner's Manual

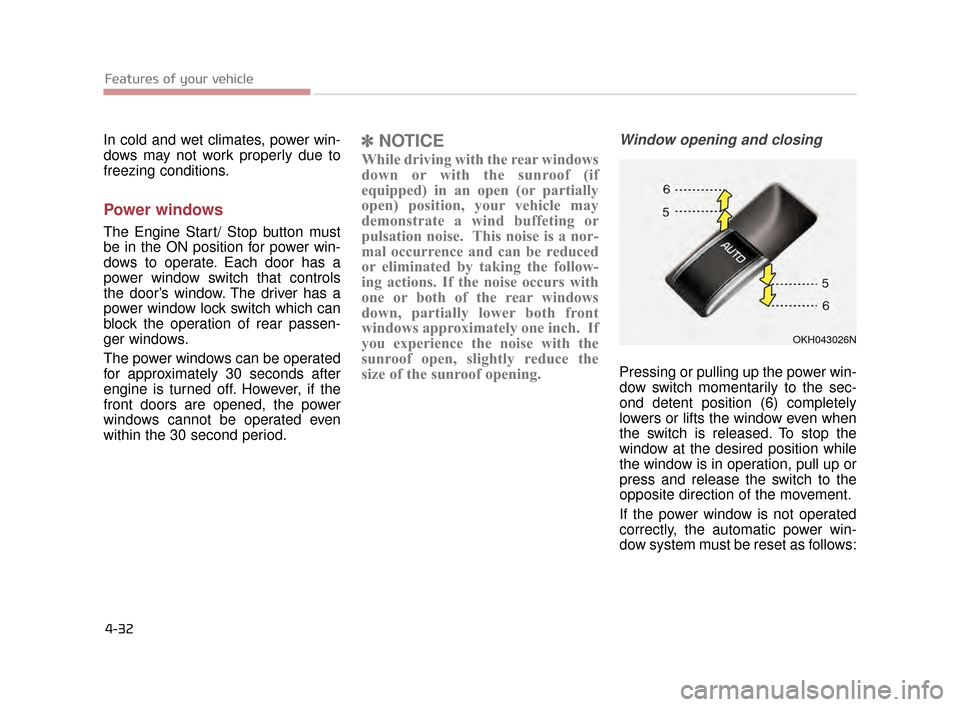

Features of your vehicle
4-32
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
Power windows
The Engine Start/ Stop button must
be in the ON position for power win-
dows to operate. Each door has a
power window switch that controls
the door’s window. The driver has a
power window lock switch which can
block the operation of rear passen-
ger windows.
The power windows can be operated
for approximately 30 seconds after
engine is turned off. However, if the
front doors are opened, the power
windows cannot be operated even
within the 30 second period.
✽NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open) position, your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch. If
you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening.
Window opening and closing
Pressing or pulling up the power win-
dow switch momentarily to the sec-
ond detent position (6) completely
lowers or lifts the window even when
the switch is released. To stop the
window at the desired position while
the window is in operation, pull up or
press and release the switch to the
opposite direction of the movement.
If the power window is not operated
correctly, the automatic power win-
dow system must be reset as follows:
OKH043026N
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 32

Features of your vehicle
4-44
Resetting the sunroof
Whenever the vehicle battery is dis-
connected or discharged, or related
fuse is blown, you must reset your
sunroof system as follows:
1.The Engine Start/Stop Button mustbe in the ON position.
2.Release the control lever.
3.Push and hold the control lever for- ward (for more than 10 seconds)
until the sunroof tilts and slightly
moves. Then, release the lever.
4.Push the sunroof control lever for- ward in the direction of close until
the sunroof operates as follows:
Sunroof glass and sunshade open →
Sunroof glass and sunshade close
Then, release the control lever.
When this is complete, the sunroof
system is reset.
❈ For more detailed information, con-
tact an authorized Kia Premium
dealer.
✽ NOTICE
If the sunroof is not reset when the
vehicle battery is disconnected or
discharged, or related fuse is blown,
the sunroof may operate improperly.
KH CAN (ENG) 4:2015 3/26/2015 10:38 AM Page 44

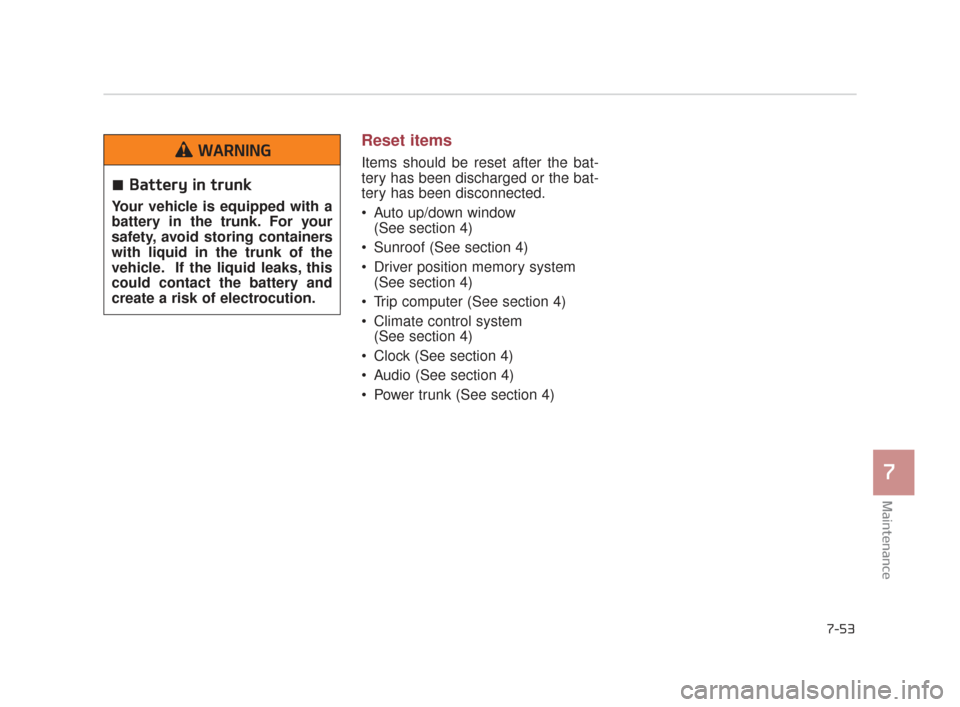

Maintenance
7
7-53
Reset items
Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
Auto up/down window (See section 4)
Sunroof (See section 4)
Driver position memory system (See section 4)
Trip computer (See section 4)
Climate control system (See section 4)
Clock (See section 4)
Audio (See section 4)
Power trunk (See section 4)
Battery in trunk
Your vehicle is equipped with a
battery in the trunk. For your
safety, avoid storing containers
with liquid in the trunk of the
vehicle. If the liquid leaks, this
could contact the battery and
create a risk of electrocution.
WARNING
KH CAN (ENG) 7:2015 3/26/2015 6:41 AM Page 53

I-6
Index
Turn by turn (TBT) mode .........................................4-68
User settings mode ....................................................4-71
Warning messages .....................................................4-78
Light bulbs .....................................................................7-9\
0 Front light bulb..........................................................7-91
High mounted stop light............................................7-94
Interior light bulb replacement..................................7-95
License plate lamp replacement ................................7-94
Rear combination light bulb replacement .................7-93
Side repeater light bulb replacement .......................7-93
Lighting........................................................................\
4-122 Battery saver function .............................................4-122
Daytime running light .............................................4-123
Front fog light .........................................................4-127
Headlight escort function ........................................4-122
Headlight leveling device ........................................4-128
High beam operation ...............................................4-125
Lighting control.......................................................4-123
Turn signals and lane change signals ......................4-126
Maintenance services .......................................................7-5 Owner maintenance precautions .................................7-6
Owner’s responsibility ................................................7-5
Mirrors ........................................................................\
...4-48 Inside rearview mirror ...............................................4-48
Outside rearview mirror ............................................4-56 Multimedia system.......................................................4-172
Antenna ...................................................................4-174\
Audio / Video / Navigation system (AVN) .............4-173
Aux, usb and ipod
®port .........................................4-172
Bluetooth
®Wireless Technology hands-free ..........4-174
Driver Information System (DIS) ...........................4-173
Steering wheel audio control .................................4-175
USB charger ............................................................4-172
Owner maintenance .........................................................7-8 Owner maintenance schedule ....................................7-8
Panoramic sunroof .........................................................4-40 Closing the sunroof ...................................................4-41
Resetting the sunroof ................................................4-44
Sliding the sunroof ....................................................4-41
Sunroof open warning ...............................................4-40
Sunshade....................................................................4-43\
Tilting the sunroof .....................................................4-42
Parking Assist System .................................................4-111 Non-operational conditions of Parking Assist
System .....................................................................4-1\
13
Operation of the Parking Assist System .................4-111
Self-diagnosis ..........................................................4-115
O
P
M
KH CAN (ENG) Index:PS USA Index.qxd 3/25/2015 3:33 PM Page 6
