Driving your vehicle
5
5-101

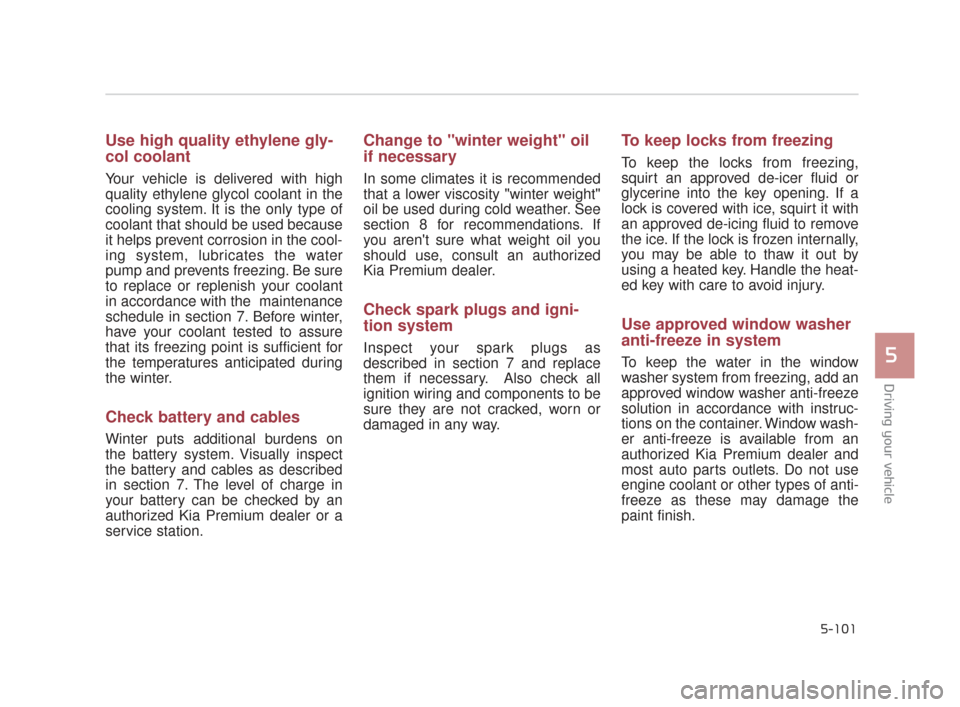

Use high quality ethylene gly-
col coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in section 7. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on
the battery system. Visually inspect
the battery and cables as described
in section 7. The level of charge in
your battery can be checked by an
authorized Kia Premium dealer or a
service station.
Change to "winter weight" oil
if necessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
section 8 for recommendations. If
you aren't sure what weight oil you
should use, consult an authorized
Kia Premium dealer.
Check spark plugs and igni-
tion system
Inspect your spark plugs as
described in section 7 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.
To keep locks from freezing
To keep the locks from freezing,
squirt an approved de-icer fluid or
glycerine into the key opening. If a
lock is covered with ice, squirt it with
an approved de-icing fluid to remove
the ice. If the lock is frozen internally,
you may be able to thaw it out by
using a heated key. Handle the heat-
ed key with care to avoid injury.
Use approved window washer
anti-freeze in system
To keep the water in the window
washer system from freezing, add an
approved window washer anti-freeze
solution in accordance with instruc-
tions on the container. Window wash-
er anti-freeze is available from an
authorized Kia Premium dealer and
most auto parts outlets. Do not use
engine coolant or other types of anti-
freeze as these may damage the
paint finish.
KH CAN (ENG) 5:2015 3/25/2015 10:55 AM Page 101

Maintenance
7
7-21
NORMAL MAINTENANCE SCHEDULE (CONT.)
156,000 km (97,500 miles) or 78 months
❑Rotate tires
❑ Inspect air cleaner filter
❑ Inspect fuel lines, fuel hoses and connections
❑ Inspect vapor hose and fuel filler cap
❑ Inspect fuel tank air filter
❑ Inspect vacuum hose
❑ Inspect power steering fluid
❑ Replace engine oil and filter
(156,000 km (97,500 miles) or 156 months)
❑ Add fuel additives *
1
(156,000 km (97,500 miles) or 156 months)
❑ Replace spark plugs (iridium coated)
168,000 km (105,000 miles) or 84 months
❑Rotate tires
❑ Inspect air cleaner filter
❑ Inspect vacuum hose
❑ Inspect air conditioning refrigerant
❑ Inspect brake hoses and lines
❑ Inspect drive shafts and boots
❑ Inspect exhaust pipe and muffler
❑ Inspect front brake disc/pads, calipers
❑ Inspect fuel lines, fuel hoses and connections
❑ Inspect fuel tank air filter
❑ Inspect propeller shaft
❑ Inspect rear brake disc/pads
❑ Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑ Inspect drive belts
(First, 96,000 km (60,000 miles) or 72 months
after every 24,000 km (15,000 miles) or 24 months) *
4
❑ Inspect power steering fluid
❑ Inspect EHPS (Electronic Hydraulic Power Steering) motor
pump and hoses
(Continued)
❈Inspect : Inspect and if necessary, adjust, correct, clean
or replace.
KH CAN (ENG) 7:2015 3/26/2015 6:40 AM Page 21

Maintenance
7
7-27
MAINTENANCE UNDER SEVERE USAGE CONDITIONS
The following items must be serviced more frequently on cars normally used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if nece\
ssary
MAINTENANCE ITEMMAINTENANCEOPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Engine oil and filterREvery 6,000 km (3,750 miles) or 6 monthsA, B, C, D, E,
F, G, H, I, J, K
Air cleaner filterIMore frequentlyC, E
Spark plugsRMore frequentlyA, B, H, I, K
Automatic transmission fluidREvery 96,000 km (60,000 miles) A, C, D, E, F, G, H, I
Front brake disc/pads, calipersIMore frequentlyC, D, G, H
Rear brake disc /padsIMore frequentlyC, D, G, H
Parking brakeIMore frequentlyC, D, G, H
KH CAN (ENG) 7:2015 3/26/2015 6:40 AM Page 27

Maintenance
7
7-29
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
Engine oil and filter
The engine oil and filter should be
changed at the intervals specified in
the maintenance schedule. If the car
is being driven in severe conditions,
more frequent oil and filter changes
are required.
Drive belts
Inspect all drive belts for evidence of
cuts, cracks, excessive wear or oil
saturation and replace if necessary.
Fuel filter
A clogged filter can limit the speed at
which the vehicle may be driven,
damage the emission system and
cause multiple issues such as hard
starting. If an excessive amount of
foreign matter accumulates in the
fuel tank, the filter may require
replacement more frequently.
After installing a new filter, run the
engine for several minutes, and
check for leaks at the connections.
Fuel filters should be installed by an
authorized Kia Premium dealer.
Fuel lines, fuel hoses and con-
nections
Check the fuel lines, fuel hoses and
connections for leakage and dam-
age. Have an authorized Kia
Premium dealer replace any dam-
aged or leaking parts immediately.
Vapor hose and fuel filler cap
The vapor hose and fuel filler cap
should be inspected at those inter-
vals specified in the maintenance
schedule. Make sure that a new
vapor hose or fuel filler cap is cor-
rectly replaced.
Air cleaner filter
A Genuine Kia air cleaner filter is
recommended when the filter is
replaced.
Spark plugs
Make sure to install new spark plugs
of the correct heat range.
KH CAN (ENG) 7:2015 3/26/2015 6:40 AM Page 29

Vehicle Break-In Process .................................................1-5
Vehicle certification label ................................................8-9
Vehicle data collection and event data recorders.............1-6
Vehicle identification number (VIN) ...............................8-9
Vehicle load limit .........................................................5-103Certification label ....................................................5-106
Tire and loading information label..........................5-103
Vehicle weight .............................................................5-108
Warning and indicator lights..........................................4-93 Indicator lights ........................................................4-102
Warning lights ...........................................................4-93
Washer fluid ...................................................................7-40 Checking the washer fluid level ................................7-40
Weight/volume .................................................................8-4
Welcome system ..........................................................4-121 Headlight .................................................................4-121
Interior light ............................................................4-121
Puddle lamp.............................................................4-121
Windows ........................................................................\
4-31 Power window lock button........................................4-34
Power windows .........................................................4-32
Windshield defrosting and defogging..........................4-151 Auto Defogging System ..........................................4-153
Auto defogging system ON/OFF ............................4-155
Defogging logic.......................................................4-152
To defog inside windshield .....................................4-151
To defrost outside windshield .................................4-152
Winter driving ..............................................................5-100 Carry emergency equipment ...................................5-102
Change to "winter weight" oil if necessary ............5-101
Check battery and cables ........................................5-101
Check spark plugs and ignition system ..................5-101
Don't let ice and snow accumulate underneath .......5-102
Don't let your parking brake freeze.........................5-102
Snowy or Icy conditions..........................................5-100
To keep locks from freezing....................................5-101
Use approved window washer anti-freeze in system5-101
Use high quality ethylene glycol coolant................5-101
Wiper blades ..................................................................7-46 Blade inspection ........................................................7-46
Blade replacement .....................................................7-46
Wipers and washers .....................................................4-129 Windshield wiper/washer ........................................4-129
360° camera monitoring system ..................................4-120
Index
I-9
I
V
W
ETC
KH CAN (ENG) Index:PS USA Index.qxd 3/25/2015 3:33 PM Page 9
