rear view mirror KIA K900 2017 Features and Functions Guide

1
TABLE OF CONTENTS
Videos & QR Codes ..........................02
Instrument Cluster
.......................03-06
Instrument Cluster Overview / Indicators & Warning Lights ...03
Active ECO System ...............................04
Fuel Economy ..................................04
Tire Pressure Monitoring System (TPMS) ...............05
LCD Instrument Cluster Modes .......................06
Trip Computer / Tripmeter ..........................06
Driver’s Panel
...........................0 7-14
Head-Up Display (HUD)* ...........................07
Instrument Panel Dimmer ..........................08
Electronic Stability Control (ESC) / Traction Control System ( TCS) ..08
Hill-Start Assist Control (HAC) .......................08
Blind Spot Detection (BSD) System* ...................09
Lane Departure Warning System (LDWS)* ...............10
Fuel Door Release Button ..........................10
Power Trunk Main Control Lever .....................10
Reverse Parking Aid Function .......................11
Parking Assist System .............................12
Parking Guide System (PGS) / Rear-Camera Display* .......12
Power Windows, Window Lock & Central Door Lock ........13
Power Folding Outside Mirrors .......................13
Heated Outside Mirrors ............................13
Auto Door Lock /Unlock ............................13
Engine Start /Stop Button ..........................14
Steering Wheel Controls
..................15 -21
Power Tilt/ Telescoping Steering Wheel .................15
Heated Steering Wheel* ...........................15
Headlights & High Beams ..........................16
Turn Signals & Fog Lights ..........................16
Windshield Wipers & Washers .......................17
LCD Controls and Modes ...........................17
Advanced Smart Cruise Control (ASCC)* ................18
Audio Controls ..................................19
Bluetooth® Wireless Technology ......................20
Center Panel
............................22-33
Driver Information System (DIS) Controls ................ 22
UVO Luxury Services with Premium Navigation
............24
Clock ........................................25
Aux/USB/iPod® Port & Power Outlets ..................25 Center Panel (Continued)
.................22-33
Automatic Climate Control System ....................26
Automatic Transmission (Shift by Wire) and Sport Mode .....28
Electric Parking Brake (EPB) ........................29
Auto Hold .....................................29
Drive Mode Integrated Control System .................30
Surround View Monitoring (SVM) System* ..............31
Front Blind Spot Monitoring System* ...................32
Power Rear Curtain ..............................33
Seating
.................................34-37
Seat Warmers / Ventilated Seats .....................34
Power Adjustable Driver’s Seat ......................35
Power Front Seat Headrest Adjustment* ................35
Driver Position Memory System ......................36
Power Reclining Rear Seats* ........................ 36
Rear Passenger’s Control System ..................... 37
Other Key Features
......................38 - 47
Smart Power Trunk ...............................38
Smart Key .....................................40
Map/Room Lamps ...............................42
Panoramic Sunroof Operation .......................43

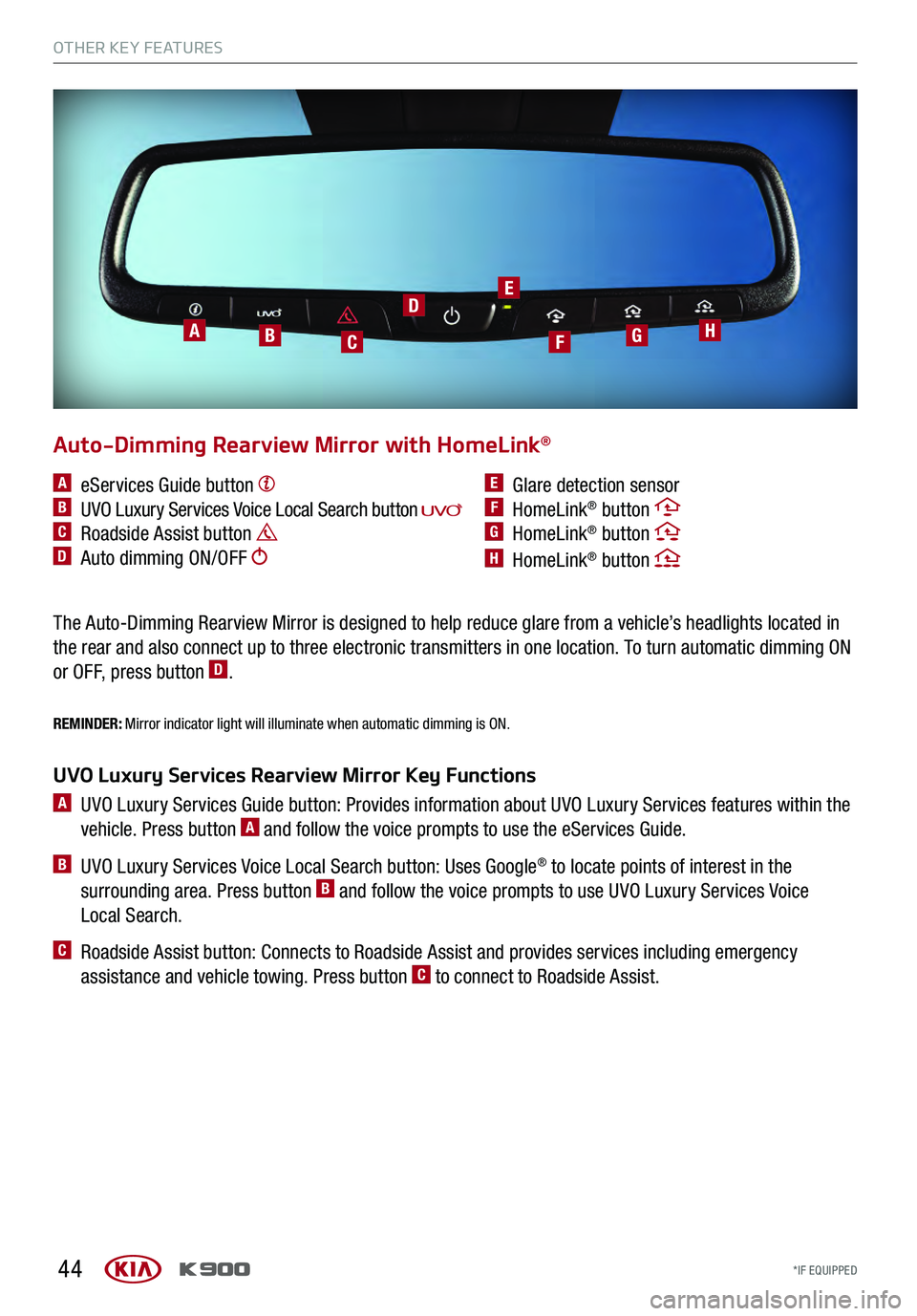

Auto-Dimming Rearview Mirror with HomeLink® .......... 44
Sunvisor ......................................46
Hood Release Lever and Latch .......................46
Fuel Cap/Malfunction Indicator (Check Engine Light) .......47
Child Safety Locks ...............................47
Safety Features
.........................48-49
Seat Belts .....................................48
Pre-Safe Seat Belt (PSB)* ........................... 48
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator
....................... 49
Normal Maintenance Schedule
................50
L ega l D i sc la ime r s (See Inside Back Cover)

Driving while distracted can result in a loss of vehicle control that may
lead to an accident, severe personal injury and death. The driver’s primary
responsibility is in the safe and legal operation of a vehicle, and use of any
handheld devices, other equipment or vehicle systems which take the driver’s
eyes, attention and focus away from the safe operation of a vehicle or that are
not permissible by law should never be used during operation of the vehicle.
Aux/USB/iPod® Port & Power Outlets .....................25
Advanced Smart Cruise Control (ASCC)* ...................18
Automatic Transmission (Shift by Wire) and Sport Mode ........ 28
UVO Luxury Services with Premium Navigation System ........24
Bluetooth® Wireless Technology .........................20
Climate Control ......................................26
Driver Information System (DIS) Controls ..................22
Power Front Seat Headrest Adjustment* ...................35 Head-Up Display (HUD)*
...............................07
Smart Trunk .........................................38
Rear Passenger’s Control System ........................37
Surround View Monitoring (SVM) System* ...................31
Steering Wheel Adjustment ..............................15
Smart Key ..........................................40
Tire Pressure Monitoring System (TPMS) ..................05
Windshield Wipers and Washers ..........................17
Essential Features
*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

9
www.KuTechVideos.com/kh13/2017
BLIND SPOT
DETECTION SYSTEM
VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
Blind Spot Detection (BSD) System*
The Blind Spot Detection (BSD) system uses radar sensors to
monitor surrounding areas and help alert the driver to nearby
vehicles before changing lanes. With the ENGINE START/
STOP button in the ON position, press the BSD button
B
to turn the system ON. The button light will illuminate.
The system will activate when the vehicle is traveling more
than 20 mph and will alert the driver if another vehicle is
detected by the radar sensor.
1st-stage alert: When another vehicle is detected within the
BSD system boundary, a yellow indicator will illuminate
A
on the outside rearview mirrors.
2nd-stage alert: When 1st stage alert is on and the
driver activates a turn signal, a flashing red indicator will
illuminate
A on the outside rearview mirrors and the
system will sound an alert.
Rear Cross Traffic Alert (RCTA)
If the Rear Cross Traffic Alert (RCTA) system sensors detect
vehicles approaching from the left or right side, the system
will sound an audible alert, the warning indicators on the
outside rearview mirror will illuminate and a message will
appear on the LCD screen, under these conditions:
§
When the vehicle is in Reverse
§
When the vehicle moves backwards from a parked position
§
When the vehicle is moving less than 6 mphREMINDER: The RCTA feature can be turned
OFF/ ON in User Settings .
A
B
Quick Tip
The BSD system will activate when:
1. The system is turned on
2. Vehicle speed is above approximately 20 mph
3. Other vehicles are detected on the rear sides of
the vehicle
REMINDERS:
- The BSD system will not issue a warning if the vehicle
speed is 6 mph or more above the surrounding vehicles
- When the BSD is ON and the ignition is cycled, the BSD
system returns to ON
(Buttons located on driver’s panel,
left of the steering wheel)
DRIVER’S PANEL
*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

11
REMINDER: When the buttons are not pressed , the Reverse Parking Aid Function will not operate and the outside
rearview mirrors will not rotate downward.
Reverse Parking Aid Function
When the gear shift lever is moved into R (Reverse) and the vehicle is moving backwards, the
outside rearview mirrors will rotate downward to aid in reverse parking.
To turn the Reverse Parking Aid Function ON, press the L (Left)
A or R (Right) B outside
rearview mirror button (LED lit).
To turn OFF, press button(s) again.
The outside rearview mirrors will automatically return to their original positions when:
§
The ENGINE START/STOP button is in the OFF position
§
The gear shift lever is moved out of R (Reverse)
§
The outside rearview mirror switch is in the middle position
A
B
(Button located on door panel)
DRIVER’S PANEL
*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

13
Power Folding Outside Mirrors
D Press the L or R buttons to select the mirror to adjust
E Press button arrows left /right or up/down to adjust
mirror position
F Toggle button left /right to unfold/fold the outside
rearview mirrors
F Toggle button to center to automatically fold/unfold
mirrors when:
§
Smart Key lock /unlock buttons are pressed
§
Outside door handle button is pressed
§
Driver approaches the vehicle with the Smart Key
A Pull/Press to operate driver’s window auto up/down
B Press to unlock /lock all doors
C Press to disable all passenger windows
REMINDERS:
- To automatically fold mirrors when exiting
vehicle, press the LOCK button twice on the
Smart Key
- To lock the mirror position , toggle button to the
neutral (center) position
Power Windows, Window Lock & Central Door Lock
Quick Tip
The mirrors will automatically unfold when the
Smart Key* is within close proximity to the vehicle.
Mirror heaters will operate when the rear defroster is activated.
Heated Outside Mirrors
Auto Door Lock/Unlock
Auto Door Lock /Unlock will engage when gear shift is moved in to or out of the P (Park)
position. Refer to the User Settings on how to turn Auto Door Lock /Unlock ON/OFF.
ABC
EDF
DRIVER’S PANEL
*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

28
Automatic Transmission (Shift by Wire) and Sport Mode
To shift into any gear from Park, depress the brake pedal,
then press the Unlock button A, located on the side of the
gear shift lever, and shift.
P: Park – To shift into Park from any gear, press the P button
B on the gear shift while vehicle is stationary and the brake
pedal is depressed.
R: Reverse – To shift into Reverse, depress brake pedal,
press the Unlock button
A, and move the shift lever forward
twice to skip over Neutral and into Reverse.
N: Neutral
D: Drive
[+]: Sport Mode Upshift
[–]: Sport Mode Downshift
Sport Shift Mode: With the gear shift in Drive, pull the lever
to the left for Sport mode.
§ To upshift [+] – move the shift lever forward
§ To downshift [-] – pull the shift lever rearward
Paddle Shifters*: Paddle shifting is operable when the shift
lever is in the Sport mode position.
REMINDERS:
- Paddle shifters can be operated when the vehicle speed is more than 6 mph
- When in Sport mode, pulling the left and right paddle shifters at the same
time will NOT shift gears
www.KuTechVideos.com/kh13/2017
AUTOMATIC
TRANSMISSION
( SHIFT BY WIRE)
AND SPORT MODE
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
B
A
Quick Tips
- Press the Unlock button A when shifting from P
(Park) to any gear
- The instrument cluster and the light on top of
the shift lever identifies the gear the vehicle is
currently in
REMINDERS:
- When in P (Park), if the Unlock button is not pressed while shifting, the transmission does
not shift
- If the vehicle is turned off while in Neutral without shifting into Park, it will remain in Neutral until
the driver’s door is opened. At that point it will
automatically shift into Park
- If going through a car wash, remind the attendant to keep the vehicle in Neutral (N) and keep the
engine running. Also, disable the power trunk
lid control using the button inside the glove
compartment, turn off the auto rain-sensing
wipers and fold in the mirrors
(Button located on center panel below the gear shift)
CD
CENTER PANEL
*IF EQUIPPED
CENTER PANEL
*IF EQUIPPED

36
Power Reclining Rear Seats*
The rear seats can be adjusted by using the control switches
located on the door.
Seatback & Seat Slide Adjustment:
§
Move the button C forward/backward to adjust the
seatback position
§
Move the button D forward/backward to adjust the
seat position
Easy Access (AUTO) Button – When opening the rear door, the
rear seats will automatically move rearward to provide
easier access for passengers. Press the AUTO button
E on
the door panel to turn the system ON (LED is lit) and OFF (LED
not lit).
REMINDERS:
- Keep hands and other objects away from seat
mechanisms while the seat is in motion
- Do not adjust the seat while wearing seat belts
- Do not operate the rear power seat while the child
seat is installed
- Do not operate two or more power seat control
switches at the same time. Doing so may result
in power seat motor or electrical component
malfunction
C
D
E
(Controls located on door panel)
The integrated system stores into memory the position of
the driver’s seat, outside rearview mirrors, Head-Up Display
(HUD)*, and steering wheel positions. To store positions into
memory, first place the gear shift into P (Park) while the
ENGINE START/STOP button is in the ON position. Then:
1. Adjust the driver’s seat, outside rearview mirrors, Head-
Up Display (HUD)* settings and steering wheel positions
2. Press the SET button A on the control panel. System will
beep once
3. Press one of the memory buttons 1 or 2 B within 5
seconds. The system will beep twice when memory has
been stored
Driver Position Memory System
(Buttons located on driver door panel)
B
A
S E AT I N G
*IF EQUIPPED
S E AT I N G
*IF EQUIPPED

44
ABC
DE
FGH
A eServices Guide button B UVO Luxury Services Voice Local Search button C Roadside Assist button D Auto dimming ON/OFF
E Glare detection sensorF HomeLink® button G HomeLink® button
H HomeLink® button
Auto-Dimming Rearview Mirror with HomeLink®
The Auto-Dimming Rearview Mirror is designed to help reduce glare from a vehicle’s headlights located in
the rear and also connect up to three electronic transmitters in one location. To turn automatic dimming ON
or OFF, press button
D.
UVO Luxury Services Rearview Mirror Key Functions
A UVO Luxury Services Guide button: Provides information about UVO Luxury Services features within the
vehicle. Press button A and follow the voice prompts to use the eServices Guide.
B UVO Luxury Services Voice Local Search button: Uses Google® to locate points of interest in the
surrounding area. Press button B and follow the voice prompts to use UVO Luxury Services Voice
Local Search.
C Roadside Assist button: Connects to Roadside Assist and provides services including emergency
assistance and vehicle towing. Press button C to connect to Roadside Assist.
REMINDER: Mirror indicator light will illuminate when automatic dimming is ON.
OTHER KEY FEATURES
*IF EQUIPPED
OTHER KEY FEATURES
*IF EQUIPPED

Sales Consultant:
Sales Manager:
Customer: Date:
Date:
Date:
K900 CUSTOMER DELIVERY CHECKLIST
Surround View Monitoring
(SVM) System* – page 31 Advanced Smart Cruise Control
(ASCC)* – page 18 Demonstrate operation
Key Feature Walkthrough
During Delivery Auto-Dimming Rearview Mirror
with HomeLink® – page 44
Aux/USB/iPod® Port – page 25
Blind Spot Detection (BSD)* – page 9
Clock Setup – page 25
Electric Parking Brake (EPB) /
Auto Hold* - pages 29
Engine S tar t / S top Button – page 14
Head-Up Display (HUD)* – page 7
Panoramic Sunroof Operation –
page 43
Parking Guide System (PGS)* –
page 12
Passenger Air Bag Off Indicator – page 49
Power Front Seat Headrest Adjustment* – page 35
Rear Passenger’s Control System – page 37
Seat Warmers/ Ventilated Seats – page 34
Smart Key – page 40
Sunvisor – page 46
Tire Pressure Monitoring System ( TPMS) – page 5
Explain first service process and schedule first service appointment
Tour Parts & Service departments, introduce staff and explain value of
Kia Parts and Service
Review recommended maintenance schedule and maintenance requirements to validate warranty
Review business hours and Customer 360° Care
Review the Kia 10-year/100,000-mile warranty program
Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle
Confirm time and best contact number for initial dealer follow-up
65mphCRUISE
Bluetooth® Wireless
Technology – pages 20-21
Demonstrate operation
Windshield Wipers &
Washers – page 17
