ii
1
2
3
4
5 6
7
8 I
IntroductionHow to use this manual / Fuel requirements / Vehicle break-in process /Vehicle data collection and event data recorders
Your vehicle at a glance
Exterior overview / Interior overview / Instrument panel overview / Engine compartment
Seat and safety features of your vehicle
Seats / Seat belts / Child restraint system / Air bag
Features of your vehicleSmart key / Door locks / Trunk / Windows / Hood / Fuel filler lid / Panoramic sunroof / Steering wheel / Mirrors /
Instrument cluster / Lighting / Wipers & Washers / Climate control system / Audio system / Etc.
Driving your vehicleBefore driving / Engine start/stop button / Transmission / Brake system /
Cruise control system / Advanced Smart Cruise Control system / Winter driving / Vehicle load limit / Etc.
What to do in an emergencyRoad warning / Emergency while driving / Emergency starting / Engine overheat / TPMS / Flat tire / Towing / Etc.
MaintenanceEngine compartment / Maintenance service / Engine oil / Engine coolant / Brake flui\
d / Washer fluid / Parking
brake / Air cleaner / Wiper blades / Battery / Tire and wheels / Fuses / Light bulbs / Etc.
Specifications, Consumer information and Reporting safety defects
Index
Table of contents
KH USA FOREWORD:2016 4/26/2016 9:50 AM Page 3
Page 17 of 542
ENGINE COMPARTMENT
Your vehicle at a glance
2
2-7
1. Engine oil dipstick .............................7-32
2. Engine oil filler cap ...........................7-33
3. Engine coolant reservoir ...................7-34
4. Radiator cap .....................................7-36
5. Brake fluid reservoir ..........................7-38
6. Power steering fluid reservoir ...........7-39
7. Windshield washer fluid reservoir .....7-46
8. Air cleaner.........................................7-41
9. Fuse box ...........................................7-70
10. Jumper terminal ................................6-5
OKH015008N
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■3.8L Engine
KH USA 2:2016 4/26/2016 9:55 AM Page 7
Page 18 of 542
2-8
Your vehicle at a glance
OKH013006N
1. Engine coolant reservoir ...................7-34
2. Radiator cap .....................................7-36
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-41
5. Engine oil dipstick .............................7-38
6. Engine oil filler cap ...........................7-33
7. Windshield washer fluid reservoir .....7-40
8. Fuse box ...........................................7-70
9. Power steering fluid reservoir ...........7-39
10. Jumper terminal ................................6-5
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■
5.0L Engine
KH USA 2:2016 4/26/2016 9:55 AM Page 8
Page 63 of 542
Seat and safety features of your vehicle
3
3-45
✽NOTICE
Before you replace a fuse or discon-
nect a battery terminal, turn the
Engine Start/Stop button to the OFF
position. Never remove or replace
the air bag related fuse(s) when the
Engine Start/Stop button is in the
ON position. Failure to heed this
warning will cause the SRS air bag
warning light to illuminate.
Occupant detection system
Your vehicle is equipped with an
occupant detection system in the
front passenger's seat.
The occupant detection system is
designed to detect the presence of a
properly-seated front passenger and
determine if the passenger's front air
bag should be enabled (may inflate)
or not. The driver's front air bag is not
affected or controlled by the occu-
pant detection system.
OKH033132N
Passenger’s front air bag
OKH035105N
Air bag obstructions
Do not install or place any
accessories on the steering
wheel, instrument panel, or on
the front passenger's panel
above the glove box in a vehicle
Such objects may become dan-
gerous projectiles if the air bag
deploys.
WARNINGFlying objects
Do not place any objects (an
umbrella, bag, etc.) between the
front door and the front seat.
Such objects may become dan-
gerous projectiles if the side
airbag inflates.
WARNING
KH USA 3:2016 12/2/2016 10:13 AM Page 45
Page 105 of 542
Features of your vehicle
4
4-25
To Reset the Power Trunk
If the battery has been discharged or
disconnected, or if the related fuse
has been replaced or disconnected,
reset the power trunk as follows:
1. Move the shift lever to the P(Park)position.
2. Close the trunk manually.
If the power trunk doesn't work prop-
erly after performing the above pro-
cedure, have the system checked by
an authorized K900 Kia dealer.
Trunk Lid Control Button
When the trunk lid control button is
ON (depressed), the power trunk can
be controlled with the power trunk
main control button, power trunk
open, close button, and the smart key.
When this trunk lid control button is
OFF (not depressed), the power
trunk can be controlled using the
mechanical key of the smart key only.
Even though the trunk lid control but-
ton is OFF (not depressed), the trunk
will still be propelled upward by
mechanical force if the trunk is man-
ually opened more than 10 degrees
beyond the fully closed position. In addition, if the trunk is manually
closed to the secondary latch posi-
tion, the trunk will be electrically
moved to the fully latched position.
✽
NOTICE
Close the trunk, and keep the trunk
lid control button in the OFF (not
depressed) position before washing
the vehicle in an automatic car
wash.
OKH043022N
Always keep the Trunk Lid
Control Button in the OFF (not
depressed) position when not
in use. Serious injury or death
can result from unintentional
operation by a child.
WARNING
KH USA 4:2015 12/2/2016 10:23 AM Page 25
Page 114 of 542
Features of your vehicle
4-34
Power window lock button
The driver can disable the power
window switches on the rear passen-
gers’ doors by pressing the power
window lock switch. The indicator will
be illuminated.
When the power window lock switch
indicator is illuminated :
The driver’s master control canoperate all the power windows.
The front passenger’s control can operate the front passenger’s
power window.
The rear passenger’s control can- not operate the rear passenger’s
power window. Always double check to make sure
all arms, hands, head and other
obstructions are safely out of the way
before closing a window.
If the window cannot be close
because it is blocked by objects,
remove the objects and close the
window.
OKH043027N
Power windows
Do not allow children to play
with the power windows. Keep
the driver’s door power win-
dow lock button in the LOCK
position (illuminated).
Do not extend a face or arms outside through the window
opening while driving.
WARNING
Opening / closing Window
To prevent possible damage to
the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the fuse.
CAUTION
KH USA 4:2015 12/2/2016 10:23 AM Page 34
Page 124 of 542
Features of your vehicle
4-44
Sunshade
To open the sunshade, pull thesunroof control lever backward to
the first detent position.
To close the sunshade when the sunroof glass is closed, push the
sunroof control lever forward.
To stop the sliding at any point, pull
or push the sunroof control lever
momentarily.
✽ NOTICE
It is normal for wrinkles to form on
the blind because of its material
characteristic.
Resetting the sunroof
Whenever the vehicle battery is dis-
connected or discharged, or related
fuse is blown, you must reset your
sunroof system as follows:
1. The Engine Start/Stop Button must
be in the ON position.
2. Release the control lever.
3. Push and hold the control lever for- ward (for more than 10 seconds)
until the sunroof tilts and slightly
moves. Then, release the lever.
4. Push the sunroof control lever for- ward in the direction of close until
the sunroof operates as follows:
Sunroof glass and sunshade open →
Sunroof glass and sunshade close
Then, release the control lever.
When this is complete, the sunroof
system is reset.
❈ For more detailed information, con-
tact an authorized K900 Kia deal-
er.
✽ NOTICE
If the sunroof is not reset when the
vehicle battery is disconnected or
discharged, or related fuse is blown,
the sunroof may operate improperly.
OKH043504N
KH USA 4:2015 12/2/2016 10:23 AM Page 44
Page 157 of 542
Features of your vehicle
4
4-77
Service interval OFF
If the service interval is not set,
"Service interval OFF" message is
displayed on the LCD display.
✽NOTICE
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
Tire Pressure
This mode displays the pressure sta-
tus of each tire.
You can change the tire pressure unit
in "User settings" mode.
❈For more details, refer to "User
Settings mode" in this chapter.
Warning Message
If one of followings occurs, warning
messages will be displayed on the
information mode for several sec-
onds.
- Malfunction of below systems
Blind Spot Detection (BSD)
Preactive Seat Belt (PSB)
Electronic Control Suspension
(ECS)
Tire Pressure Monitoring System
Advanced Smart Cruise Control
Low washer fluid
LED Headlamp (LED)
Active Air Flap(AAF)
OKH043403N
OKH043405N
■Type A■Type B
KH USA 4:2015 12/2/2016 10:25 AM Page 77
Page 168 of 542
Features of your vehicle
4-88

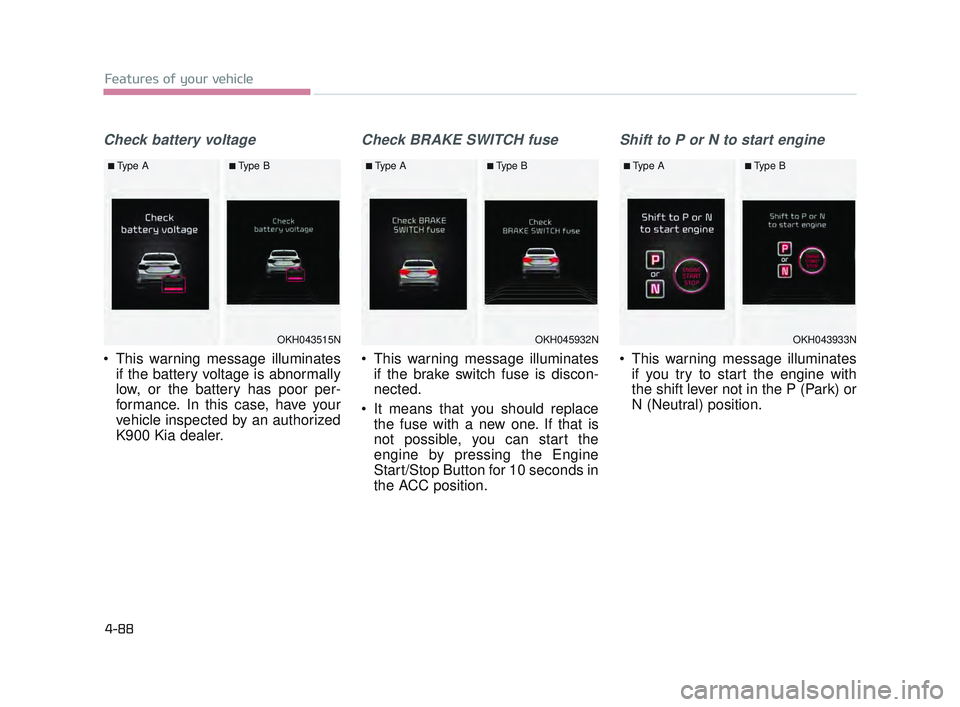

Check battery voltage
This warning message illuminatesif the battery voltage is abnormally
low, or the battery has poor per-
formance. In this case, have your
vehicle inspected by an authorized
K900 Kia dealer.
Check BRAKE SWITCH fuse
This warning message illuminatesif the brake switch fuse is discon-
nected.
It means that you should replace the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop Button for 10 seconds in
the ACC position.
Shift to P or N to start engine
This warning message illuminatesif you try to start the engine with
the shift lever not in the P (Park) or
N (Neutral) position.
OKH043515N
■Type A■Type B
OKH045932N
■Type A■Type B
OKH043933N
■Type A■Type B
KH USA 4:2015 12/2/2016 10:26 AM Page 88
Page 171 of 542
Features of your vehicle
4
4-91
Turn on "FUSE SWITCH"
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
❈ For more details, refer to “Fuses” in
chapter 7.
Low Tire Pressure
This warning message illuminates
if the tire pressure is low with the
Engine Start/Stop button in ON
position.
❈ For more details, refer to "Tire
Pressure Monitoring System
(TPMS)" in chapter 6.
Align steering wheel
This warning message illuminates
if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
It means that you should turn the steering wheel and make the angle
of the steering wheel be less than
30 degrees.
OKH043938N
■Type A■Type B
OKH045415N
■Type A■Type B
OKH043937N
■Type A■Type B
KH USA 4:2015 12/2/2016 10:26 AM Page 91
