KIA K900 2018 Owners Manual

Features of your vehicle
4-90

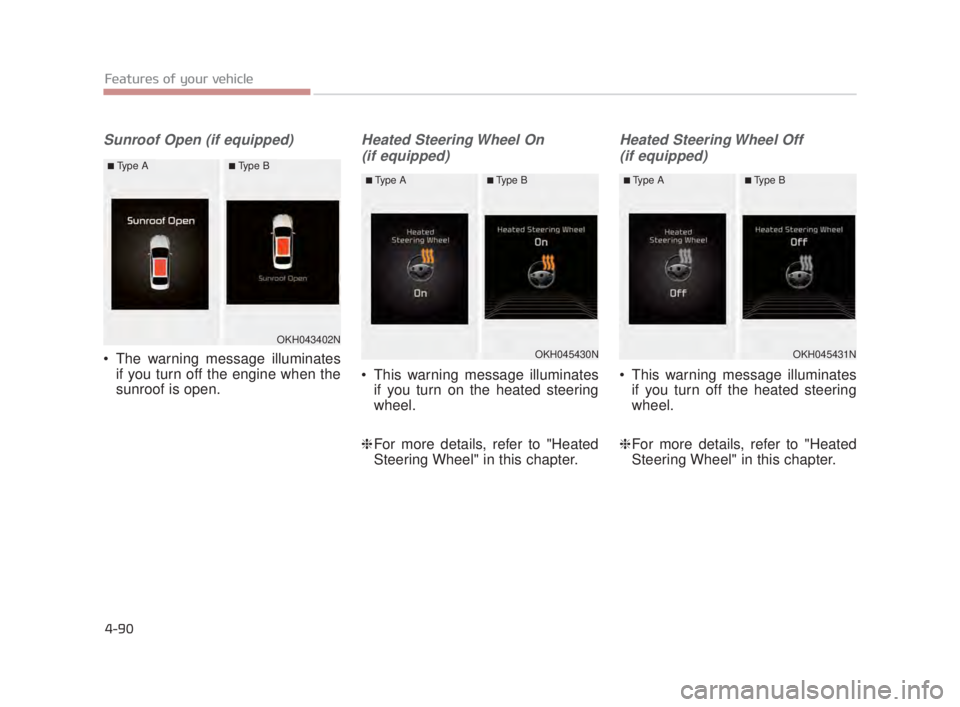

Sunroof Open (if equipped)
The warning message illuminatesif you turn off the engine when the
sunroof is open.
Heated Steering Wheel On
(if equipped)
This warning message illuminates if you turn on the heated steering
wheel.
❈ For more details, refer to "Heated
Steering Wheel" in this chapter.
Heated Steering Wheel Off
(if equipped)
This warning message illuminates if you turn off the heated steering
wheel.
❈ For more details, refer to "Heated
Steering Wheel" in this chapter.
OKH043402N
■Type A■Type B
OKH045430N
■Type A■Type B
OKH045431N
■Type A■Type B
KH USA 4:2018 4/18/2017 5:59 PM Page 90

Features of your vehicle
4
4-91

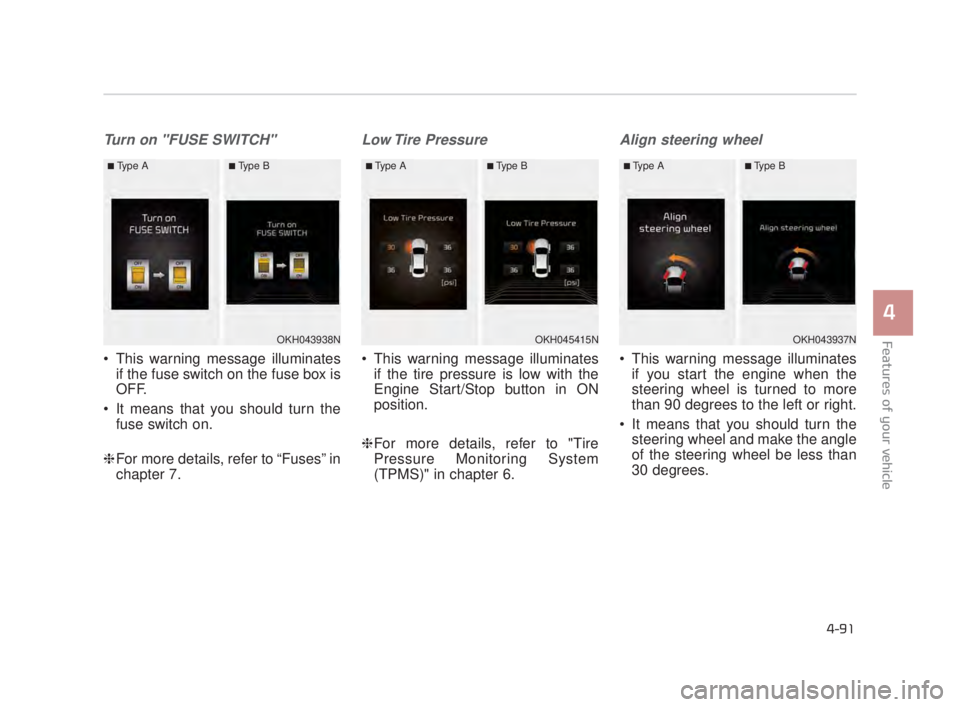

Turn on "FUSE SWITCH"
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
❈ For more details, refer to “Fuses” in
chapter 7.
Low Tire Pressure
This warning message illuminates
if the tire pressure is low with the
Engine Start/Stop button in ON
position.
❈ For more details, refer to "Tire
Pressure Monitoring System
(TPMS)" in chapter 6.
Align steering wheel
This warning message illuminates
if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
It means that you should turn the steering wheel and make the angle
of the steering wheel be less than
30 degrees.
OKH043938N
■Type A■Type B
OKH045415N
■Type A■Type B
OKH043937N
■Type A■Type B
KH USA 4:2018 4/18/2017 5:59 PM Page 91

Features of your vehicle
4-92

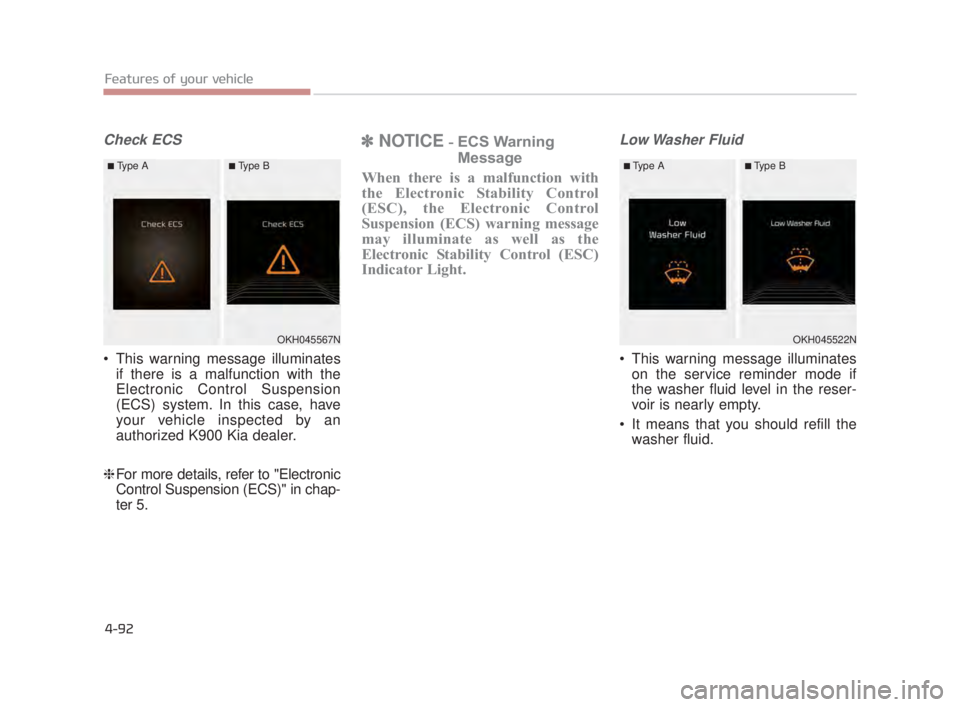

Check ECS
This warning message illuminatesif there is a malfunction with the
Electronic Control Suspension
(ECS) system. In this case, have
your vehicle inspected by an
authorized K900 Kia dealer.
❈ For more details, refer to "Electronic
Control Suspension (ECS)" in chap-
ter 5.
✽ NOTICE- ECS Warning
Message
When there is a malfunction with
the Electronic Stability Control
(ESC), the Electronic Control
Suspension (ECS) warning message
may illuminate as well as the
Electronic Stability Control (ESC)
Indicator Light.Low Washer Fluid
This warning message illuminates on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
It means that you should refill the washer fluid.
OKH045567N
■Type A■Type B
OKH045522N
■Type A■Type B
KH USA 4:2018 4/18/2017 5:59 PM Page 92

Features of your vehicle
4
4-93

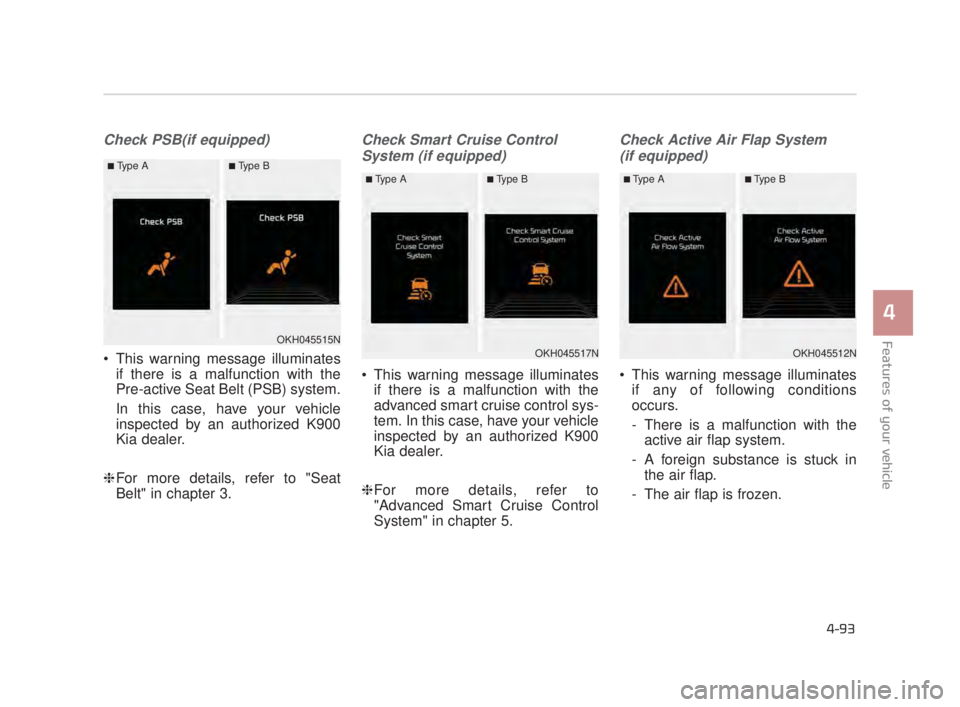

Check PSB(if equipped)
This warning message illuminatesif there is a malfunction with the
Pre-active Seat Belt (PSB) system.
In this case, have your vehicle
inspected by an authorized K900
Kia dealer.
❈ For more details, refer to "Seat
Belt" in chapter 3.
Check Smart Cruise Control
System (if equipped)
This warning message illuminates if there is a malfunction with the
advanced smart cruise control sys-
tem. In this case, have your vehicle
inspected by an authorized K900
Kia dealer.
❈ For more details, refer to
"Advanced Smart Cruise Control
System" in chapter 5.
Check Active Air Flap System
(if equipped)
This warning message illuminates if any of following conditions
occurs.
- There is a malfunction with theactive air flap system.
- A foreign substance is stuck in the air flap.
- The air flap is frozen.
OKH045515N
■Type A■Type B
OKH045517N
■Type A■Type B
OKH045512N
■Type A■Type B
KH USA 4:2018 4/18/2017 5:59 PM Page 93

Features of your vehicle
4-94

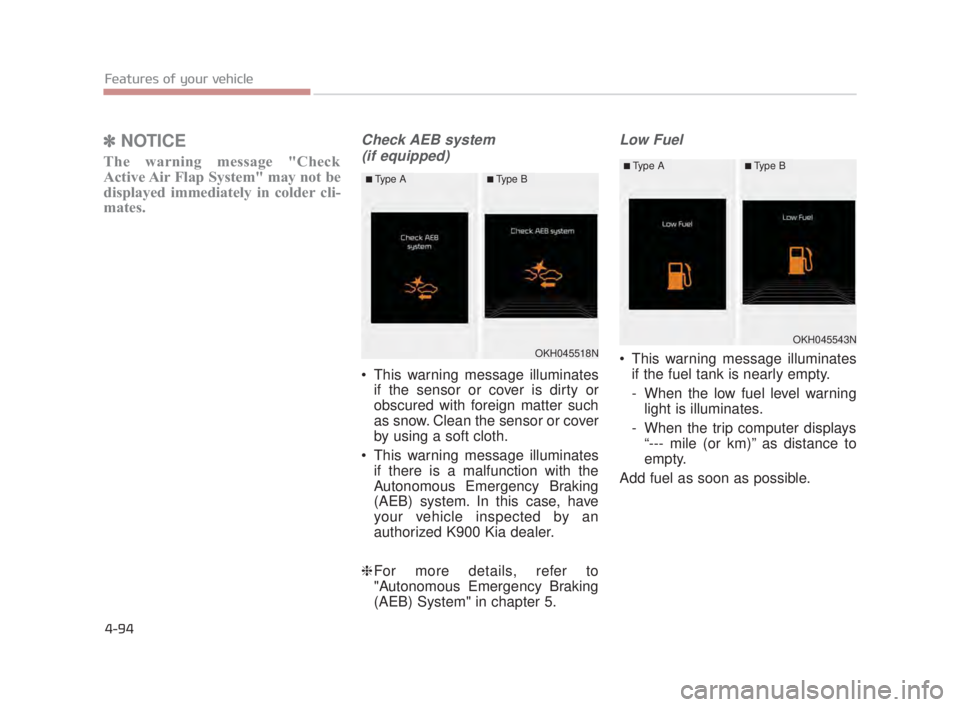

✽NOTICE
The warning message "Check
Active Air Flap System" may not be
displayed immediately in colder cli-
mates.
Check AEB system
(if equipped)
This warning message illuminates if the sensor or cover is dirty or
obscured with foreign matter such
as snow. Clean the sensor or cover
by using a soft cloth.
This warning message illuminates if there is a malfunction with the
Autonomous Emergency Braking
(AEB) system. In this case, have
your vehicle inspected by an
authorized K900 Kia dealer.
❈ For more details, refer to
"Autonomous Emergency Braking
(AEB) System" in chapter 5.
Low Fuel
This warning message illuminates
if the fuel tank is nearly empty.
- When the low fuel level warninglight is illuminates.
- When the trip computer displays “--- mile (or km)” as distance to
empty.
Add fuel as soon as possible.OKH045518N
■Type A■Type B
OKH045543N
■Type A■Type B
KH USA 4:2018 4/18/2017 5:59 PM Page 94

Features of your vehicle
4
4-95

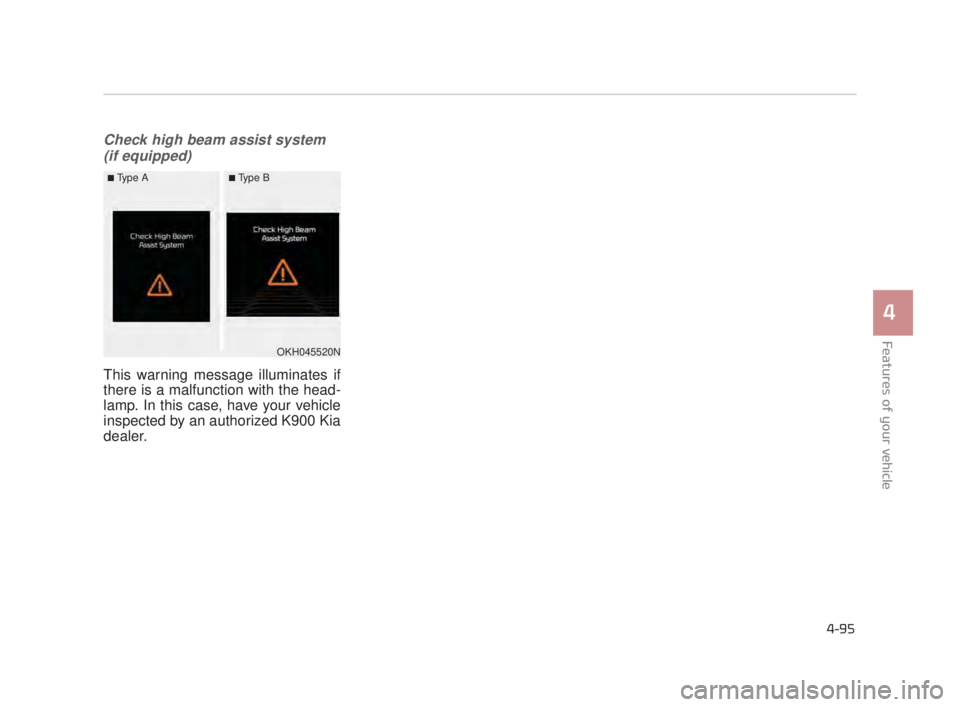

Check high beam assist system(if equipped)
This warning message illuminates if
there is a malfunction with the head-
lamp. In this case, have your vehicle
inspected by an authorized K900 Kia
dealer.
OKH045520N
■Type A■Type B
KH USA 4:2018 4/18/2017 5:59 PM Page 95

Features of your vehicle
4-96

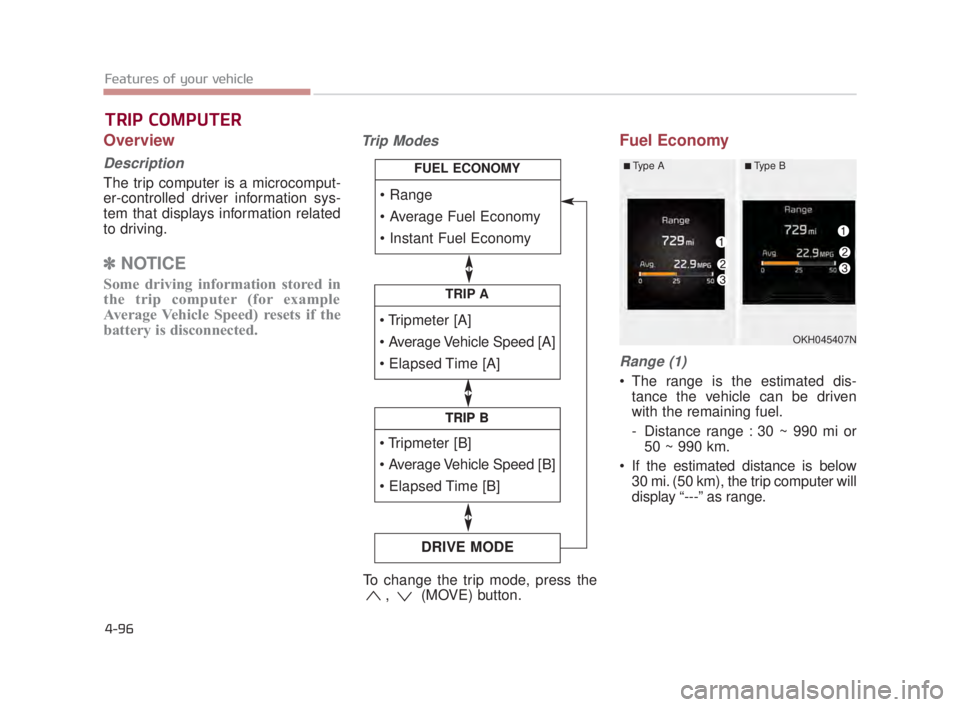

Overview
Description
The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
✽NOTICE
Some driving information stored in
the trip computer (for example
Average Vehicle Speed) resets if the
battery is disconnected.
Trip ModesFuel Economy
Range (1)
The range is the estimated dis-
tance the vehicle can be driven
with the remaining fuel.
- Distance range : 30 ~ 990 mi or50 ~ 990 km.
If the estimated distance is below 30 mi. (50 km), the trip computer will
display “---” as range.
TRIP COMPUTER



TRIP A



TRIP B
DRIVE MODE
TRIP B



FUEL ECONOMY
To change the trip mode, press the , (MOVE) button.
OKH045407N
■Type A■Type B
KH USA 4:2018 4/18/2017 6:00 PM Page 96

Features of your vehicle
4
4-97

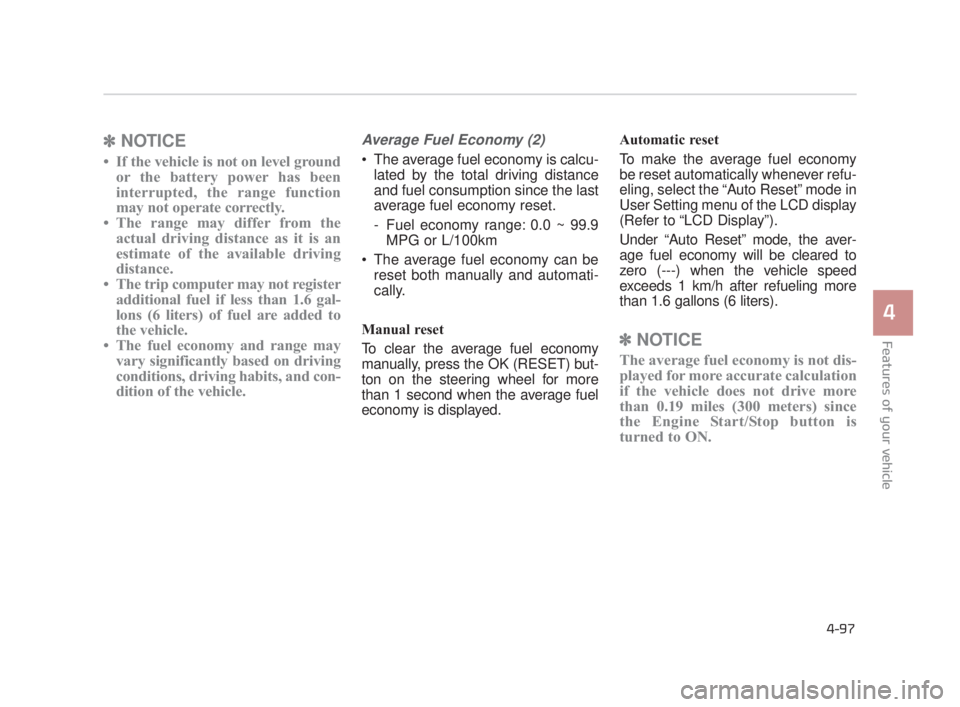

✽NOTICE
• If the vehicle is not on level ground
or the battery power has been
interrupted, the range function
may not operate correctly.
• The range may differ from the actual driving distance as it is an
estimate of the available driving
distance.
• The trip computer may not register additional fuel if less than 1.6 gal-
lons (6 liters) of fuel are added to
the vehicle.
• The fuel economy and range may vary significantly based on driving
conditions, driving habits, and con-
dition of the vehicle.
Average Fuel Economy (2)
The average fuel economy is calcu-
lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
- Fuel economy range: 0.0 ~ 99.9MPG or L/100km
The average fuel economy can be reset both manually and automati-
cally.
Manual reset
To clear the average fuel economy
manually, press the OK (RESET) but-
ton on the steering wheel for more
than 1 second when the average fuel
economy is displayed. Automatic reset
To make the average fuel economy
be reset automatically whenever refu-
eling, select the “Auto Reset” mode in
User Setting menu of the LCD display
(Refer to “LCD Display”).
Under “Auto Reset” mode, the aver-
age fuel economy will be cleared to
zero (---) when the vehicle speed
exceeds 1 km/h after refueling more
than 1.6 gallons (6 liters).
✽
NOTICE
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more
than 0.19 miles (300 meters) since
the Engine Start/Stop button is
turned to ON.
KH USA 4:2018 4/18/2017 6:00 PM Page 97

Features of your vehicle
4-98

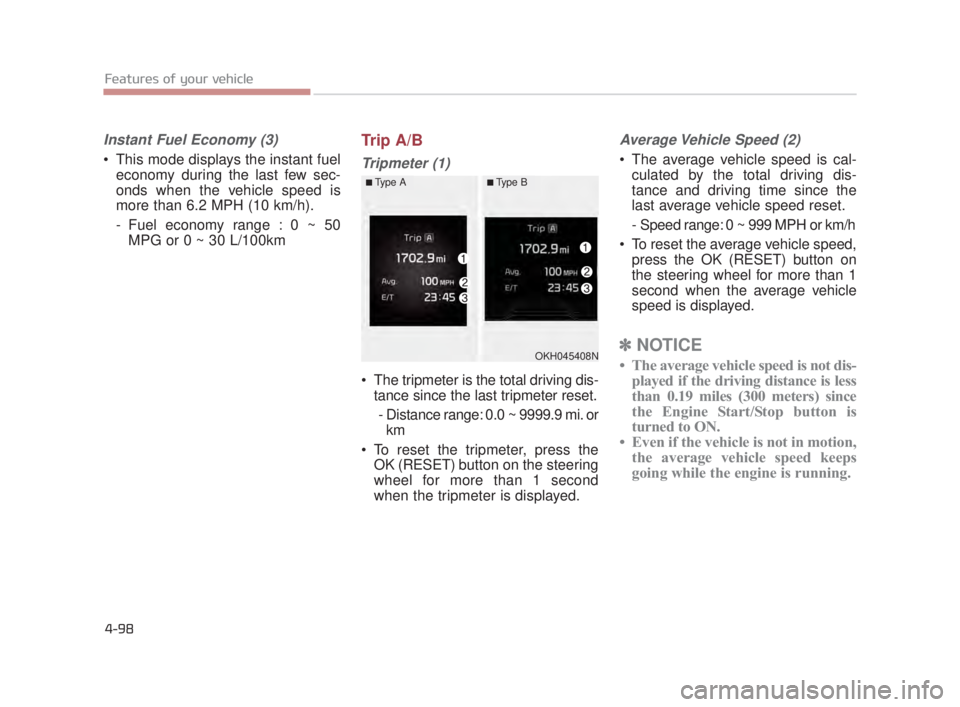

Instant Fuel Economy (3)
This mode displays the instant fueleconomy during the last few sec-
onds when the vehicle speed is
more than 6.2 MPH (10 km/h).
- Fuel economy range : 0 ~ 50MPG or 0 ~ 30 L/100km
Trip A/B
Tripmeter (1)
The tripmeter is the total driving dis-tance since the last tripmeter reset.
- Distance range: 0.0 ~ 9999.9 mi. or km
To reset the tripmeter, press the OK (RESET) button on the steering
wheel for more than 1 second
when the tripmeter is displayed.
Average Vehicle Speed (2)
The average vehicle speed is cal-culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range: 0 ~ 999 MPH or km/h
To reset the average vehicle speed, press the OK (RESET) button on
the steering wheel for more than 1
second when the average vehicle
speed is displayed.
✽ NOTICE
• The average vehicle speed is not dis-
played if the driving distance is less
than 0.19 miles (300 meters) since
the Engine Start/Stop button is
turned to ON.
• Even if the vehicle is not in motion, the average vehicle speed keeps
going while the engine is running.OKH045408N
■Type A■Type B
KH USA 4:2018 4/18/2017 6:00 PM Page 98

Features of your vehicle
4
4-99

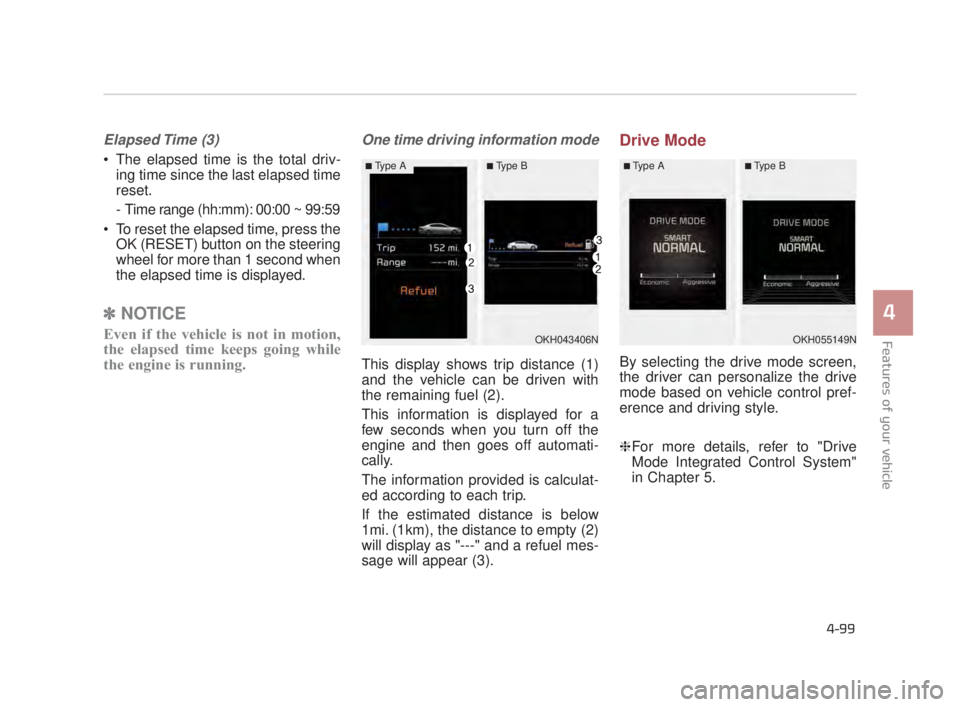

Elapsed Time (3)
The elapsed time is the total driv-ing time since the last elapsed time
reset.
- Time range (hh:mm): 00:00 ~ 99:59
To reset the elapsed time, press the OK (RESET) button on the steering
wheel for more than 1 second when
the elapsed time is displayed.
✽ NOTICE
Even if the vehicle is not in motion,
the elapsed time keeps going while
the engine is running.
One time driving information mode
This display shows trip distance (1)
and the vehicle can be driven with
the remaining fuel (2).
This information is displayed for a
few seconds when you turn off the
engine and then goes off automati-
cally.
The information provided is calculat-
ed according to each trip.
If the estimated distance is below
1mi. (1km), the distance to empty (2)
will display as "---" and a refuel mes-
sage will appear (3).
Drive Mode
By selecting the drive mode screen,
the driver can personalize the drive
mode based on vehicle control pref-
erence and driving style.
❈For more details, refer to "Drive
Mode Integrated Control System"
in Chapter 5.
OKH043406N
■Type A■Type B
OKH055149N
■Type A■Type B
KH USA 4:2018 4/18/2017 6:00 PM Page 99
