KIA K900 2019 Features and Functions Guide

39
Auto Hold
Auto Hold temporarily maintains the vehicle at a standstill
even if the brake pedal is not depressed after the driver
brings the vehicle to a complete stop by depressing the
brake pedal. Auto Hold can be turned On/Off using the AUTO
HOLD switch B on the center panel. Before Auto Hold will
operate, the driver’s door, engine hood and Trunk must be
closed and the driver’s seat belt must be fastened.
Depress the brake pedal, start the engine and then press
the AUTO HOLD switch B. The white Auto Hold indicator
will come on indicating the system is in standby.
The Auto Hold indicator, which is in the instrument cluster,
has four states:
White: Standby – With vehicle at a standstill, and AUTO
HOLD switch B turned ON, the indicator will illuminate
white. While driving the vehicle (vehicle is not at a
standstill), the Auto Hold indicator will remain white.
Green: Engaged – When coming to a complete stop by
depressing the brake pedal, the Auto Hold indicator changes
from white to green.
OFF (not illuminated) – The indicator will turn OFF when the
AUTO HOLD switch B is manually turned OFF or when the
EPB is manually turned ON.
Yellow: Malfunction – When the indicator is illuminated
yellow, there may be a system malfunction. Take your
vehicle to a local Kia dealer.
ELECTRIC PARKING BRAKE / AUTO HOLD VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to page 2 for more information.
REMINDER: To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
www.youtube.com/KiaFeatureVideos
DRIVEMODE AUTO
HOLD
B
CENTER PANEL
*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

CENTER PANEL
40*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
SU R ROUN D V IE W
MON IT O R IN G ( S V M )
SY STE M V ID EO
T o vie w a v id eo on y o u r
m ob il e d evic e , s n ap t h is
Q R C od e or vis it th e
listed we bsit e . R efe r
to pa ge 2 for more
i n fo rm atio n .
W hen i n Drive & N eu tr a l: When i n Reve rs e :
D is play s the f ro n t s id e a nd S VM i mag es
s imu lt a n eous ly o n the s cre en
D is play s the f ro n t s id e i mag e o n the s cre en
D is play s the f ro n t s id e a nd l eft s id e i mag es
s imu lt a n eous ly o n the s cre en
D is play s the f ro n t s id e a nd r ig h t s id e i mag es
s imu lt a n eous ly o n the s cre en
D is play s the r ea r v iew a nd A VM i mag es
s imu lt a n eous ly o n the s cre en
D is play s the r ea r s id e i mag e o n the s cre en
D is play s the r ea r a nd l eft s id e i mag es
s imu lt a n eous ly o n the s cre en
D is play s the r ea r a nd r ig h t s id e i mag es
s imu lt a n eous ly o n the s cre en
AUTO
HOLD
DRIVE MODE
OFF
OFF
VIEW
PA
R
EM IN DER : T he SVM ca m era is eq uip ped with
an opt ic a l le n s to pro vi de a wi der r an ge of visi on
an d m ay ap pear dif fe re nt fro m th e actu al d is tan ce.
T he Surro u n d Vie w Mon it or in g sys te m is on ly a
s u p ple m en ta l d evi ce . D riv e rs shou ld not re ly so le ly
on th e SVM in for mation when par kin g an d ba ck in g
u p. D riv ers shou ld alw ays pay atte nti on an d direc tly
c h ec k th e le ft /r igh t an d rear .

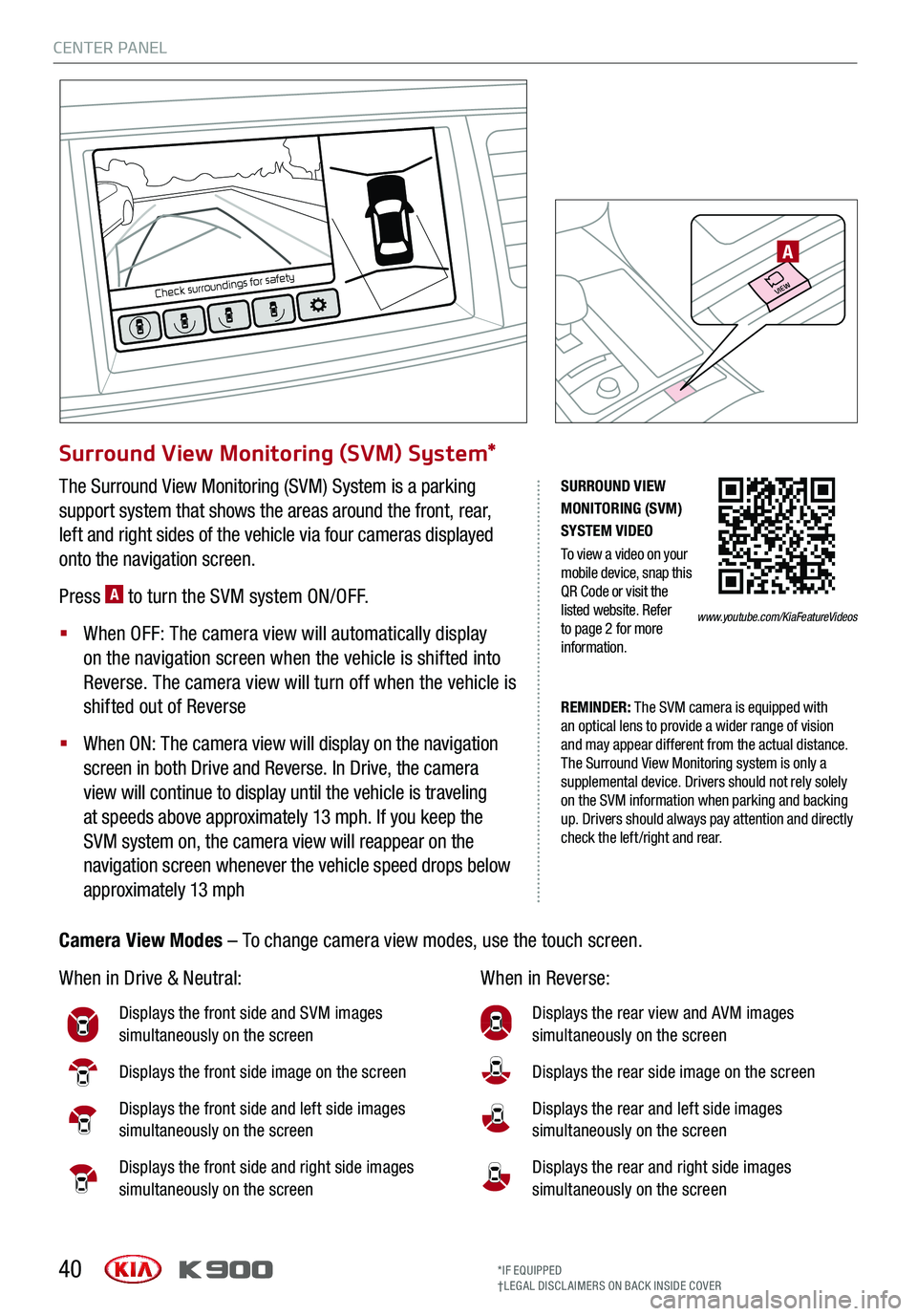

Su rrou nd V ie w M on it ori ng ( SV M ) S yste m *
The Surro un d V iew M on it ori ng (S VM ) S ys te m is a p ark in g
s u p po rt sy s te m th at sh ow s t h e are a s aro un d th e fro nt, re a r,
l ef t an d right sid es of th e ve h ic le via fo ur camera s d is p laye d
o nt o th e navig ati on sc re en
P re ss
A t o t urn t he S VM s ys te m O N/O FF.

When O FF: T he c ame ra v iew w ill auto ma tic a ll y d is pl ay
o n t he n avig atio n s creen w hen t he v eh icle i s shif te d i nto
R eve rs e . T he c ame ra v iew w ill turn o ff w hen t he v eh icle i s
s h if te d o ut o f R eve rs e

When ON: T he ca mera view will dis p la y on th e navig ati on
sc re en in bo th Dri ve an d Re ve rs e . In Drive , th e ca mera
v ie w w ill co nti nu e to dis p la y unti l th e ve h ic le is tr a ve li n g
a t speed s a bo ve appro xim ate ly 13 m ph. If yo u k e ep th e
S VM s y s te m on , th e ca mera vie w w ill re a p pea r on t
h e
n avig ati on sc re en wh ene ve r t h e ve h ic le spe ed dro ps b elo w
a ppro xim ate ly 13 m ph
C am era V ie w Mod es

CENTER PANEL
41ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
SE AT WARMERS AND V ENTIL ATED SE AT S VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to page 2 for more information.
Seat Warmers† 21 / Ventilated Seats*
Quick Tip
With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature.
Front Seats
Seat Warmers:
§ Press button A up once for high setting (3 LEDs lit).
§ Press button twice for medium setting (2 LEDs lit).
§ Press a third time for low setting (1 LED lit) and again to
turn OFF.
Ventilated Seats:
§ Press button B down once for high setting (3 LEDs lit).
§ Press twice for medium setting (2 LEDs lit).
§ Press a third time for low setting (1 LED lit) and again to
turn OFF.
REMINDER: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.
www.youtube.com/KiaFeatureVideos
The rear and side window curtains offer passenger protection
from direct sunlight.
While the ENGINE START/STOP button is in the ACC/ON position,
press the power rear curtain button C to raise/lower curtain.
REMINDER: Raising or lowering the rear curtain by hand may cause motor failure.
Power Rear Curtain
Quick Tips
- The power rear curtain will lower automatically when the gear shift is moved into the R (Reverse) position and raise automatically when the gear shift is moved from R (Reverse) into P (Park)
- When the gear shift is moved into D (Drive) and the vehicle is traveling at speeds greater than 12 mph, the power rear curtain will unfold automatically
BACKMENUHOME
OFFVIEW
DRIVE
MODE AUTO
HOLD
PC
AUTO OFFA/C
SYNC
PASSENGER
AIR BAGOFF
AABB

S E AT I N G
B
AD
E
C
SeatbackLumbarHeadrestSeatSeat Cushion
Power Adjustable Driver’s Seat*† 19
Move/Press controls to adjust Seat, Seat forward/backward, Seat Cushion tilt up/down, Seatback forward/
backward, Lumbar up/down/forward/backward or Headrest forward/backward/up/down.
REMINDER: Do not attempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.
42*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
A
A
B
B
C
C
D
D
E
E

S E AT I N G
Driver Position Memory System*
The integrated system stores into memory the position of
the driver’s seat, outside rearview mirrors, and steering
wheel positions. To store positions into memory, first place
the gear shift into P (Park) while the Engine Start /Stop
button is in the ON position. Then:
1.
Adjust the driver’s seat, outside rearview mirrors,
settings and steering wheel positions
2.
Press the SET button B on the control panel. System
will beep once
3.
Press one of the memory buttons 1 or 2 C within
4 seconds. The system will beep twice when memory
has been stored
(Located on driver’s door control panel)
(Located on side of seat cushion)
REMINDERS:
§
Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in an accident.
REMINDER: Do not attempt to operate the driver position memory system while the vehicle is moving. This could result in loss of control of the vehicle.
Power Front Seat Headrest Adjustment*† 10
Use the switch A to adjust the Power Headrest forward/backward
and up/down.
43ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
A
B
C

S E AT I N G
44*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
Power Reclining Rear Seats*
The rear seats can be adjusted by using the control switches
located on the door.
Seatback & Seat Slide Adjustment:
§ Move the button A forward/backward to adjust the
seatback position
§ Move the button B forward/backward to adjust the
seat position
Front Passenger Seat Adjustment – When opening the rear
door, the front seats can be adjusted by pressing the FRONT
button C then pressing the controls to adjust the Seatback A
and Seat Cushion B.
Rear Seat Relaxation System* – Press the Relax Mode
Control button D to adjust seats to relaxation positions. Press
the Relax Mode Return button E to return seat to normal.
REMINDERS:
- Keep hands and other objects away from seat mechanisms while the seat is in motion
-Do not adjust the seat while wearing seat belts
- Do not operate the rear power seat while the child seat is installed
- Do not operate two or more power seat control switches at the same time. Doing so may result in power seat motor or electrical component malfunction
Rear Seat Adjustment
To activate or deactivate the system, press the LOCK button F on the rear armrest console.
To control the rear seat lumbar support*, press the Lumbar
adjustment button G.
Front Passenger Seat Adjustment
To adjust the angle of the front passenger’s seat use the
rear seat control system buttons or the buttons on front
seatback H. Press button to angle the front seatback
forward/backward.
To adjust the position of front passenger’s seat use the
rear seat control system buttons or the buttons on the front
seatback I. Press the button to move the seat forward/
backward.
Quick Tip

Users can also activate/deactivate the rear passenger control system through the navigation system. Press the CLIMATE button on the center panel and deselect the Rear Climate option. If the rear climate controls have been deactivated through navigation system, they must be activated the same way.
REMINDER: The front passenger seat adjustments only operate when seat is not occupied.
ABG
DE
C
I
H
(Located on inner side of front seats)
LOCK
OFFAUTO
FRONTFRONTF

OTHER KEY FEATURES
45*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
LockUnlock
I
Driver’s Door Lock/Unlock Button G:
To unlock door(s):
§ Press button once to unlock driver’s door
§ Press again within 4 seconds to unlock all doors
To lock all doors:
§ Press again to lock all doors
Mechanical Key:
§ Use to unlock /lock driver’s door:
1. Remove door handle keyhole cover with
mechanical key by pressing up into slot
as shown H
2. Insert mechanical key I and turn right to
unlock driver’s door.
3. Insert mechanical key I and turn left to
lock driver’s door.
4. Return mechanical key to its original location.
§ Use to lock and unlock glove box
ENGINE STOP/START BUTTON & SMART KEY VIDEO
G
Smart Key†8
A Press to lock all doors
B Press to unlock driver’s door. Press twice within 4
seconds to unlock all doors
C Press and hold for more than 1 second to unlock Trunk
and open manually (or automatically if Smart Power
Tr unk )
REMINDERS:
§ Trunk lid will partially open. To fully open, lift up manually
§ The Trunk unlocks when the Smart Key is within close proximity of the vehicle
D Press and hold more than a half a second for panic
alarm. To turn off alarm, press any button
E Press to release mechanical key IQuick Tips
§ If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the Engine Start /Stop button (lock button side closest) and press to start engine
§
The Smart Key’s signal can be blocked by the normal operation of a cellular phone or smartphone. To help prevent this, store each device separately
§ When reinserting the mechanical key into the fob, make sure it is pushed all the way in until there is a click sound
REMINDER: Remote button configuration may vary depending on vehicle options.
A
BCDE
I
KIA KEY FOB VIDEO
To view videos on your mobile device, snap these QR Codes or visit the listed website. Refer to page 2 for more information.
www.youtube.com/KiaFeatureVideos
H

46
Smart Power Trunk*† 17
The Smart Power Trunk can be operated from several
controls to either open, close or lock the Trunk. The Smart
Power Trunk Lock button will close the Trunk, lock all doors
and Trunk and then arm the vehicle.
To turn the Smart Power Trunk features ON, go to User
Setting mode in the LCD Instrument Cluster Modes and
set to ON.
Opening from Inside the Vehicle:
Press the Smart Power Trunk Open/Close button* A to
automatically open/close the Trunk.
Opening from Outside the Vehicle:
To open Smart Power Trunk* automatically, press the
Trunk Release button B on exterior of the Trunk.
Automatically close by pressing Smart Power Trunk Close
button* C. Lock trunk by pressing the lock button D.
Quick Tip
During the Smart Trunk alert, the Smart Trunk can be deactivated with the Smart Key by pressing any button on the key fob.
(Button located on driver’s panel, left of the steering wheel)
(Button located on underside of trunk lid)
(Buttons located inside trunk lid)
CD
REMINDERS:
§ All doors are closed and locked after about 15 seconds
§ The Smart Power Trunk feature will not operate when the following occurs:
§ Doors are recently closed and locked
§ The Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
§ A door is not locked or closed
§ The Smart Key is in the vehicle
§ Pulling the Trunk upward by the handle or pressing the button a second time will interrupt the automatic opening of the Smart Power Trunk
§ Ensure obstacles and people are out of the way of the trunk
For more information on the Smart Power Trunk operation, please refer to the Owner’s Manual.
B
PULL
A
OTHER KEY FEATURES
*IF EQUIPPED
OTHER KEY FEATURES
*IF EQUIPPED

47
Smart Power Trunk* (Continued)
Opening with no-touch activation:
When the Smart Key fob is on your person and you are near
the back of the vehicle, within close proximity, the hazard
lights will blink and a chime will sound for about 3 seconds as
an alert that the Smart Power Trunk* is about to open.
Then the alert system will blink and chime two additional
times before opening the Smart Power Trunk*.
The Smart Power Trunk* feature is OFF by default. To
enable the Smart Power Trunk*, go to User Settings in
the LCD Instrument Cluster modes.
Smart Key:
To open the Smart Power Trunk*, press and hold the
Smart Key Trunk button D until the Trunk begins opening.
Press again and hold to close.
KIA KEY FOB VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to page 2 for more information.
Quick Tips
§ The Trunk must be unlocked before it can be opened by the Trunk Release button
§ The Trunk unlocks automatically and then can be opened manually when the Smart Key is within close proximity to the vehicle
REMINDERS:
§
Smart Power Trunk may be damaged if attempting to open or close manually
§ When not in use, keep the Trunk Lid Control button in the OFF position
§ If going through a car wash, remind the attendant to keep the vehicle in Neutral (N) and keep the engine running. Also, disable the Smart Power Trunk lid control using the button inside the glove compartment, turn off the auto rain-sensing wipers and fold in the mirrors
§ Ensure all obstacles are out of the way of the Trunk lid when operating the Smart Power Trunk
D
www.youtube.com/KiaFeatureVideos
OTHER KEY FEATURES
*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

48
Map/Room Lamps
Automatic Turn Off Function
The interior lights automatically turn off approximately 20
seconds after the Engine Start /Stop button is turned OFF.
Map/Room Lamp Operation
Map Lamps – These lights produce spot beams for
convenient use as map lamps or as personal lamps for the
driver or the front passenger. Press the buttons A to turn the
map lamps ON/OFF.
Front button – Press the button B to turn the front lamps
ON/OFF.
Room button – Press the button C to turn the front and rear
lamps ON/OFF.
Door button – When the Door button D is pressed the
front and rear lamps will turn ON as follows:
§ When a door is opened or doors are unlocked with the
Smart Key, the lamps will turn ON for approximately
30 seconds
§ If the Engine Start /Stop button is in the ACC/OFF
position and a door is open, the lamps will stay ON for
approximately 20 minutes
§ If the Engine Start /Stop button is in the ACC/ON position
and a door is open, the lamps will stay ON
The lamps will turn OFF immediately if the Engine Start /Stop
button is turned ON or all doors are locked.
REMINDER: When room lamp lens is pressed ON it will remain ON, even when the map lamp switch is in the OFF position.
Quick Tips
§ When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds
§ If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
§ Using interior lights for an extended period of time may cause battery discharge
AA
BDC
OTHER KEY FEATURES
*IF EQUIPPED
OTHER KEY FEATURES
*IF EQUIPPED
