KIA K900 2019 Features and Functions Guide

49
Sunroof Operation*
The sunroof and sunshade operation is controlled by a
multi-directional switch/lever A. The ignition needs to be in
the ON position to operate the sunroof/sunshade.
Slide the sunshade and sunroof:
Auto Open – Slide lever backward to the farthest position
and release.
Auto Close – Slide the lever forward to the farthest position
and release. (Sunroof only. Sunshade can be closed
manually).
Slide the sunshade:
Manually slide the sunshade open and closed.
Slide the sunroof (with sunshade open):
Auto Open – Slide the lever backward and release.
Auto Close – Slide the lever forward to the first detent
position or pull the lever downward.
Tilt the sunroof:
Raise – Press lever upward.
Lower – Push lever forward.
REMINDERS:
§
Sunshade must remain OPEN while sunroof is open and vehicle is moving.
§
If the ignition is turned off with the Sunroof not fully closed, the Instrument Cluster LCD will display a warning message and a chime will sound for a few seconds.
§
Do not adjust the sunroof or sunshade while driving. This could result in loss of control of the vehicle.
Quick Tip
To stop the sunroof/sunshade at any position, press or pull the sunroof control lever in any direction.
SUNROOF OPERATION VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to page 2 for more information.www.youtube.com/KiaFeatureVideos
A
OTHER KEY FEATURES
*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

OTHER KEY FEATURES
*IF EQUIPPED 50
EFABC
Auto-Dimming Rearview Mirror
Designed to help reduce glare from a vehicle’s headlights
located in the rear and also connect up to three electronic
transmitters in one location.
REMINDER: Mirror indicator light will illuminate when automatic dimming is ON.
HomeLink® Setup - How to Sync Transmitter
If programming for the first time, begin with Step 1 (repeating this step will delete all information).
To program non-rolling and rolling code garage door openers and other devices:
1. Press and hold the left A and center D buttons simultaneously until the indicator light C begins
to flash (to reprogram buttons, skip this step)
2. Press and hold the desired button A, B or D and hold the button on the transmitter while it is
approximately 1 to 3 inches away from the mirror. The HomeLink® Indicator light C will flash
rapidly once the frequency signal has been successfully programmed
To finish programming rolling code garage door
openers, complete these steps:
3. Locate the “learn” or “smart” button on the garage door’s
motor head unit. Press and release the button and complete
Step 4 within 30 seconds.
4. Firmly press and release the programmed HomeLink®
button up to three times.
Operating HomeLink®:
Press one of the programmed HomeLink® buttons.
Erasing programmed buttons:
Press and hold the left A and center D buttons
simultaneously for approximately 20 seconds, and
then release both buttons within 30 seconds.
HomeLink® with Auto-Dimming Rearview Mirror† 13
A Information button B UVO button C Emergency button D HomeLink® button
E HomeLink® button F HomeLink® button
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s HomeLink® system, you may need to purchase a HomeLink Repeater Kit. For more information, go to www.HomeLink.com or call (800) 355-3515.
For illustration purposes only. Your system buttons may vary. See the Owner’s Manual for more information.
Quick Tips
§ You can reprogram a single HomeLink® button by repeating Step 2
§ Erasing programmed buttons will delete all trained transmitters
HOMELINK REARVIEW MIRROR SETUP VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to page 2 for more information.www.youtube.com/KiaFeatureVideos
D

OTHER KEY FEATURES
51*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
Sunvisor† 24
Use the sunvisor to shield direct light through the front or
side windows.
Slide the sunvisor out and adjust as needed.
Hood Release Lever and Latch
Opening the Hood:
1.
Pull the hood release lever A to unlatch the hood
2.
In the front of the vehicle, lift the hood slightly, push the secondary latch B
inside of the hood’s center and lift the hood.
Closing the Hood:
Lower the hood about halfway and then press down to securely lock in place.
(Located on Driver side kick panel)(Located inside of Hood's center)
A
B
REMINDERS:
§ Sunvisor may not shield all direct light
§ Sunvisor may impair visibility if not adjusted properly
§
Be aware of seating position when adjusting or swinging sunvisor around to or from the front or side windows
§
Do not operate the vehicle if the sunvisor is impairing your visibility
E HomeLink® button F HomeLink® button
B

SAFETY FEATURES
*IF EQUIPPED 52
Fuel Cap / Malfunction Indicator (Check Engine Light)
Tighten for ONE CLICK to prevent malfunction indicator
from illuminating.
ONE-CLICK FUEL CAP VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to page 2 for more information.
REMINDERS:
§ The Fuel Filler Door Release button is located on the lower part of the driver’s door sill
§ It is normal operation when tightening to hear one click and then when Fuel Cap is released, it clicks back
Child-Protector Rear Door Lock
Located on the rear edge of the rear passenger doors, move the Child-Protector Rear Door
Lock to the lock position to disable the inner door handles from opening the rear doors.
REMINDER: Child-Protector Rear Door Lock is located on rear passenger door jamb.
www.youtube.com/KiaFeatureVideos

SAFETY FEATURES
53*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
A
C
B
A
Seat Belts† 2,20
To properly fasten your safety belts:
1.
Insert the belt tongue plate A into the buckle until it clicks
2.
Position the lap portion of the belt across your lap as
LOW ON THE HIPS as possible C. Adjust the belt to a
SNUG FIT by pulling up on the shoulder portion B
Seat Belt Retractor Locks
Retractor locks allow lap/shoulder safety belts to remain
unlocked during normal vehicle operation for freedom of
movement and increased comfort.
During a STRONG STOP, SUDDEN TURN OR CERTAIN
COLLISIONS, seat belt retractors will automatically lock
the belts to help reduce the risk of injury.
For more detailed information regarding your vehicle’s safety belts, please refer to your Owner’s Manual and the separate brochure titled “Understanding Your Safety Belt & Supplemental Restraint System.”
Quick Tip
The seat belt warning chime operates for the driver’s seat only.
REMINDER: For maximum protection, always wear your seatbelt
Pre-Safe Seat Belt (PSB)*
The Pre-Safe Seat Belt (PSB) will activate and pull the seat
belt into tighter contact against the occupant’s body if a
collision is detected or during certain driving maneuvers.
The PSB system operates as below:
§ The seat belt may tighten when:
- The vehicle senses a collision
- An emergency braking situation occurs
- There’s a loss of vehicle control
REMINDERS:

The Pre-Safe Seat Belt warning light will illuminate on LCD screen if there is a problem with the system. Have the system checked if:
-
The warning light does not turn on briefly when you turn the ENGINE START/STOP button to the ON position
-
The warning light stays on after illumination for approximately 3 seconds
-
The warning light comes on while the vehicle is in motion

SAFETY FEATURES
*IF EQUIPPED 54
Occupant Detection System (ODS) / Passenger Airbag Off Indicator† 2 ,1 6
ODS is designed to detect the presence and position of the front passenger and is designed to adjust or turn off
airbag deployment accordingly.
Depending on the situation and type of accident, the system may:
§ Deploy airbag (Adult)
§ Not deploy the airbag (Unoccupied)
If the system determines that the airbag should not be deployed, the “PASSENGER AIRBAG OFF” light will
illuminate D.
REMINDER: Do not allow an adult passenger to ride in the front seat when the Passenger Airbag Indicator is illuminated OFF because the airbag will not deploy in the event of a crash. The driver must instruct the passenger to reposition her/himself in the seat.
AUTOOFFA/C
SYNC
PASSENGER
AIR BAGOFF
D

NOTES
55ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

MAINTENANCE
56
K900 NORMAL MAINTENANCE SCHEDULE

MAINTENANCE
P=Perform • R=Replace • I=InspectB
Quick Tip
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO luxe account by logging into your UVO App or your account on MyUVO.com ( Vehicles equipped with UVO luxe only – See page 29 for setup information).
57ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
MAINTENANCE INTERVALS (MILES)
30,00036,00042,00048,00054,00060,000
PPPPPP
PPPPPP
RRRRRR
RRRRRR
IIIIII
IIIIII
IIIIII
IIIIII
IIIIII
IIIIII
IIIIII
IIIIII
IIIIII
IIIIII
IIIIII
IRI
III
III
III
III
III
I
I
R
I
R
I
I

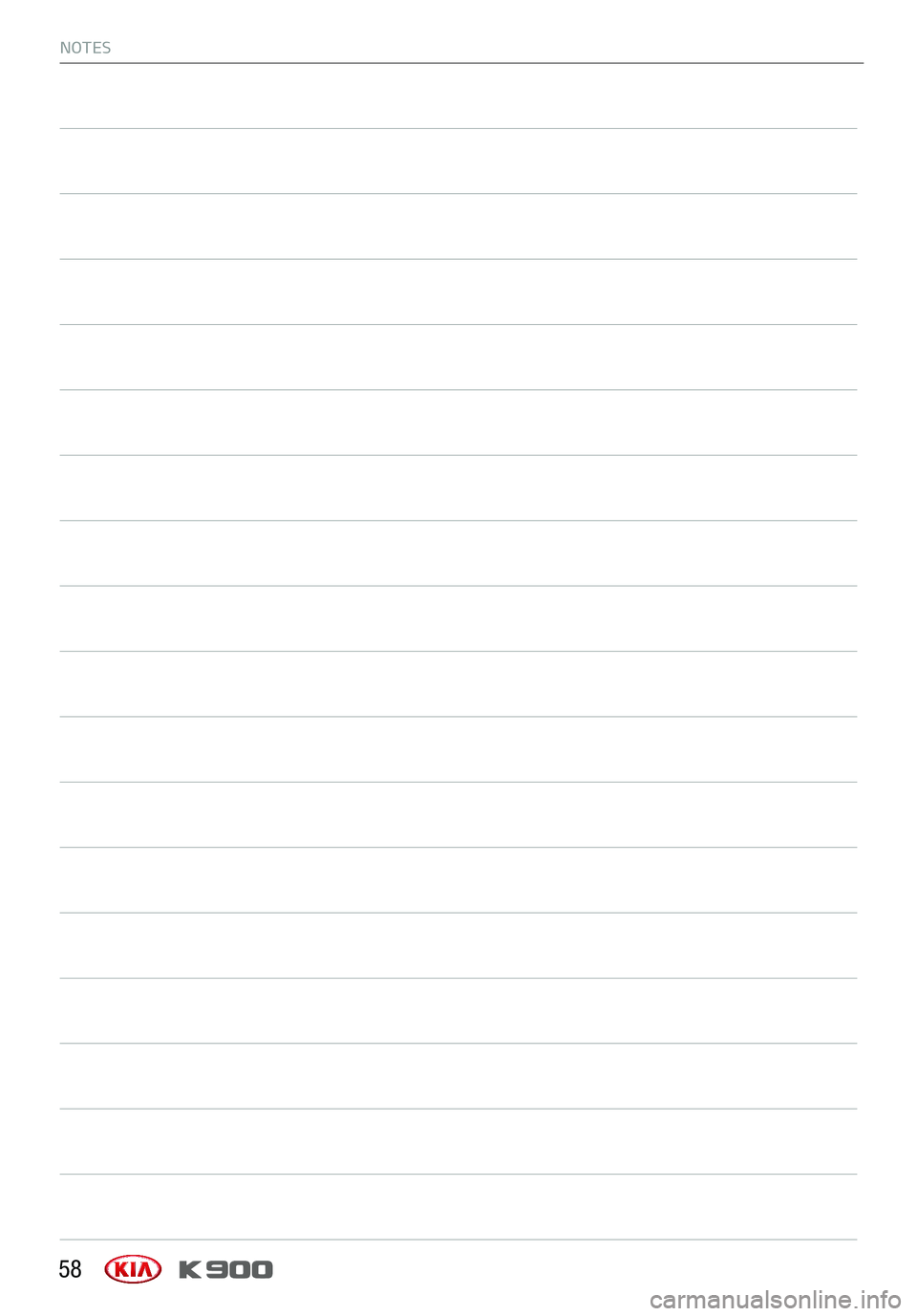

NOTES
58
