KIA K900 2019 Owners Manual

Specifications, Consumer information, Reporting safety defects
28

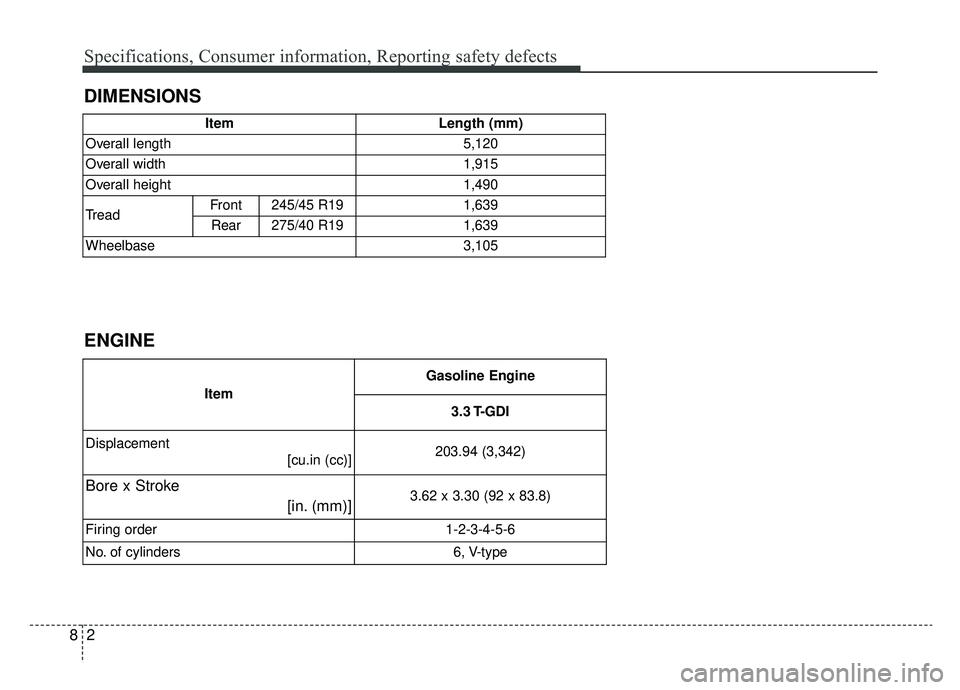

DIMENSIONS
ENGINE
ItemLength (mm)
Overall length5,120
Overall width1,915
Overall height1,490
TreadFront245/45 R191,639
Rear275/40 R191,639
Wheelbase3,105
ItemGasoline Engine
3.3 T-GDI
Displacement [cu.in (cc)]203.94 (3,342)
Bore x Stroke
[in. (mm)]3.62 x 3.30 (92 x 83.8)
Firing order 1-2-3-4-5-6
No. of cylinders 6, V-type

83
Specifications, Consumer information, Reporting safety defects

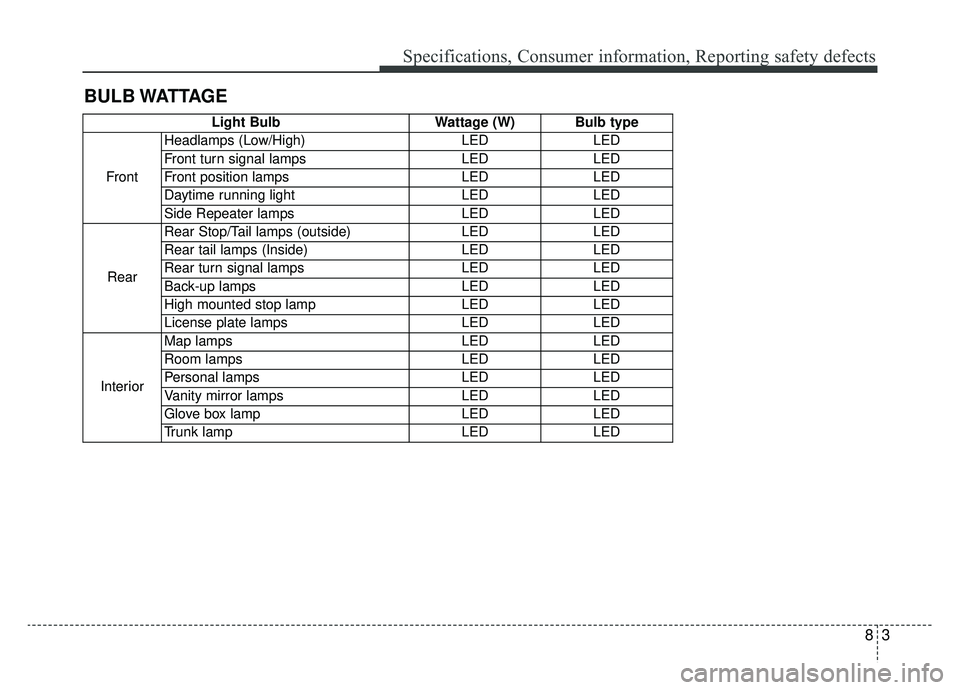

BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Headlamps (Low/High)
LEDLED
Front turn signal lamps LEDLED
Front position lamps LEDLED
Daytime running light LEDLED
Side Repeater lamps LEDLED
Rear Rear Stop/Tail lamps (outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps LEDLED
Back-up lamps LEDLED
High mounted stop lamp LEDLED
License plate lamps LEDLED
Interior Map lamps
LEDLED
Room lamps LEDLED
Personal lamps LEDLED
Vanity mirror lamps LEDLED
Glove box lamp LEDLED
Trunk lamp LEDLED

Specifications, Consumer information, Reporting safety defects
48

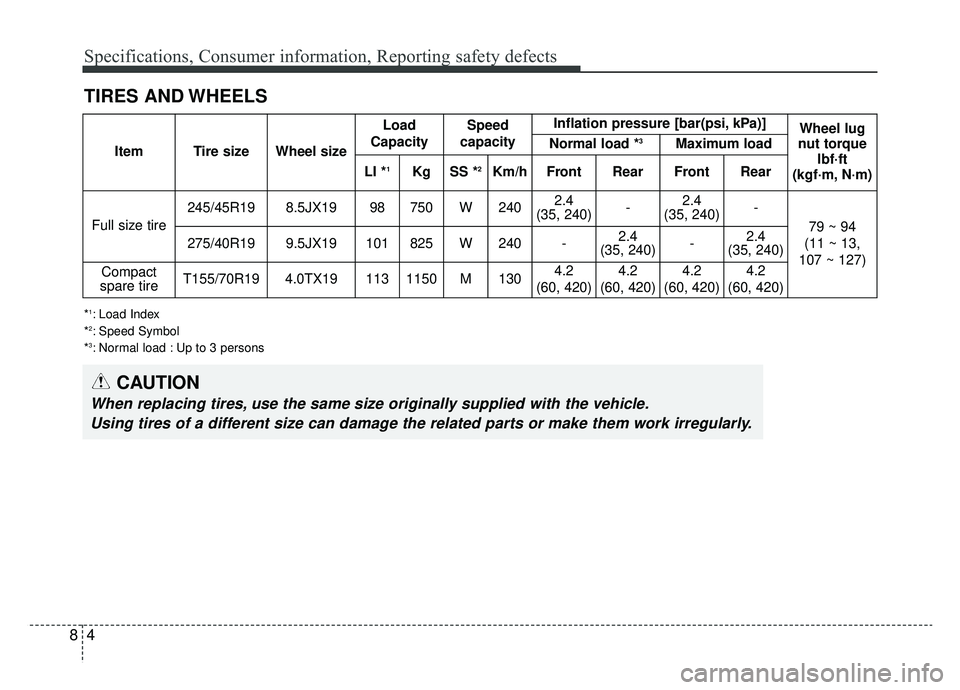

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make them work irregularly.
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [bar(psi, kPa)]Wheel lug
nut torque lbf·ft
(kgf·m, N·m)Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size tire
245/45R198.5JX1998750W2402.4
(35, 240)-2.4
(35, 240)-
79 ~ 94
(11 ~ 13,
107 ~ 127)
275/40R199.5JX19101825W240-2.4
(35, 240)-2.4
(35, 240)
Compact
spare tireT155/70R194.0TX191131150M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)

85
Specifications, Consumer information, Reporting safety defects

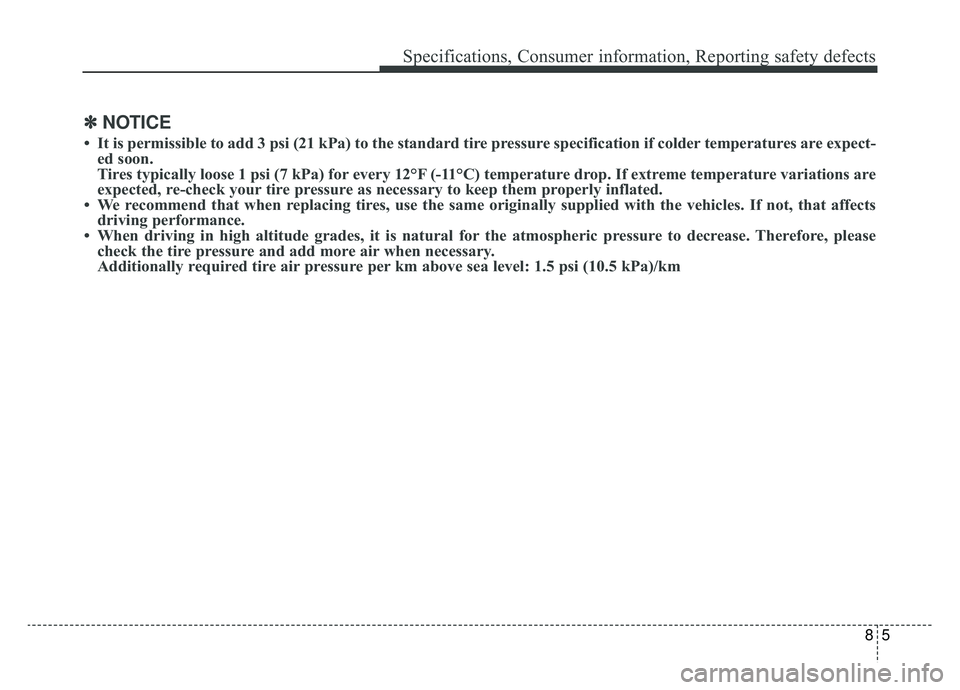

✽ ✽NOTICE
• It is permissible to add 3 psi (21 kPa) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1 psi (7 kPa) for every 12°F (-11°C) temperature drop. If extreme temperature variations are
expected, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5 psi (10.5 kPa)/km

Specifications, Consumer information, Reporting safety defects
68

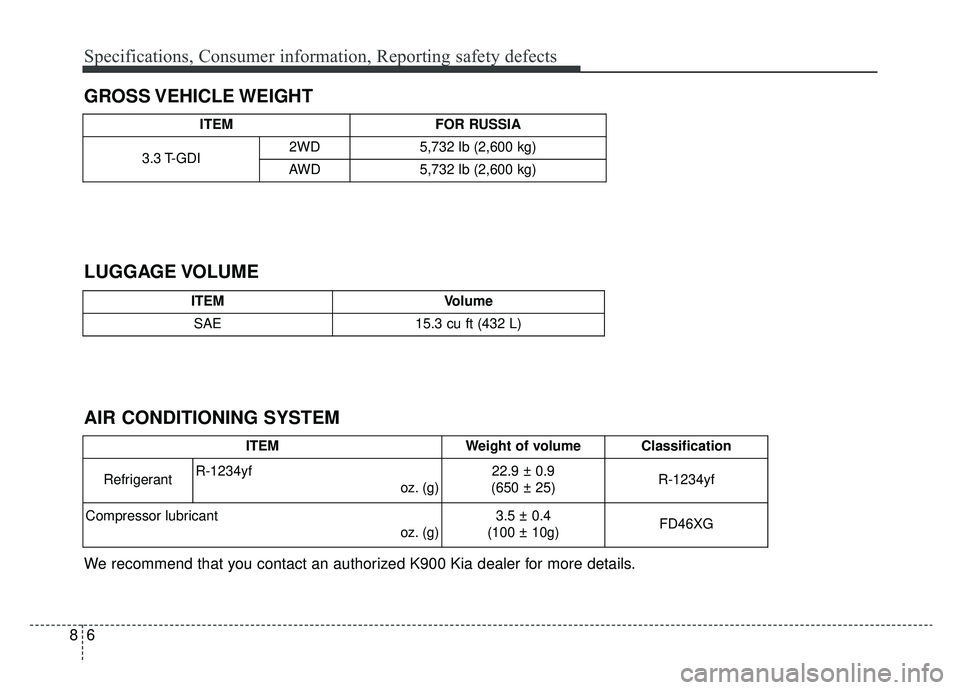

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized K900 Kia dealer for more details.
ITEMVolume
SAE15.3 cu ft (432 L)
ITEMFOR RUSSIA
3.3 T-GDI2WD5,732 lb (2,600 kg)
AWD5,732 lb (2,600 kg)
ITEMWeight of volumeClassification
RefrigerantR-1234yfoz. (g) 22.9 ± 0.9
(650 ± 25)R-1234yf
Compressor lubricant oz. (g) 3.5 ± 0.4
(100 ± 10g)FD46XG

87
Specifications, Consumer information, Reporting safety defects

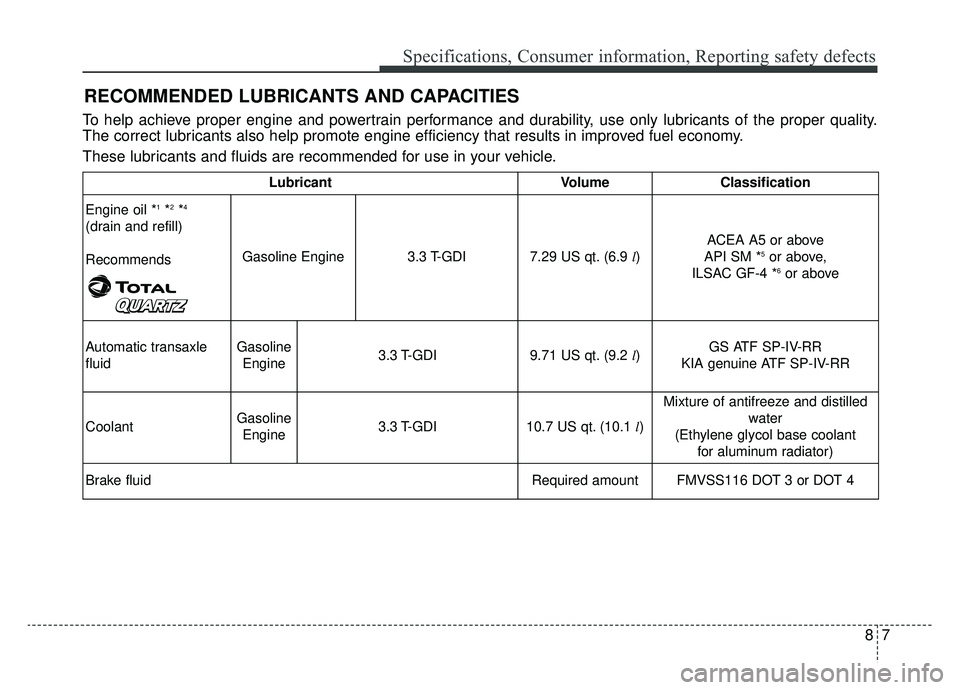

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil *1*2*4
(drain and refill)
Recommends
Gasoline Engine 3.3 T-GDI7.29 US qt. (6.9 l)
ACEA A5 or above
API SM *5or above,
ILSAC GF-4 *6or above
Automatic transaxle
fluidGasoline Engine 3.3 T-GDI9.71 US qt. (9.2 l)GS ATF SP-IV-RR
KIA genuine ATF SP-IV-RR
CoolantGasoline Engine3.3 T-GDI10.7 US qt. (10.1 l)
Mixture of antifreeze and distilled
water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluidRequired amountFMVSS116 DOT 3 or DOT 4

Specifications, Consumer information, Reporting safety defects
88

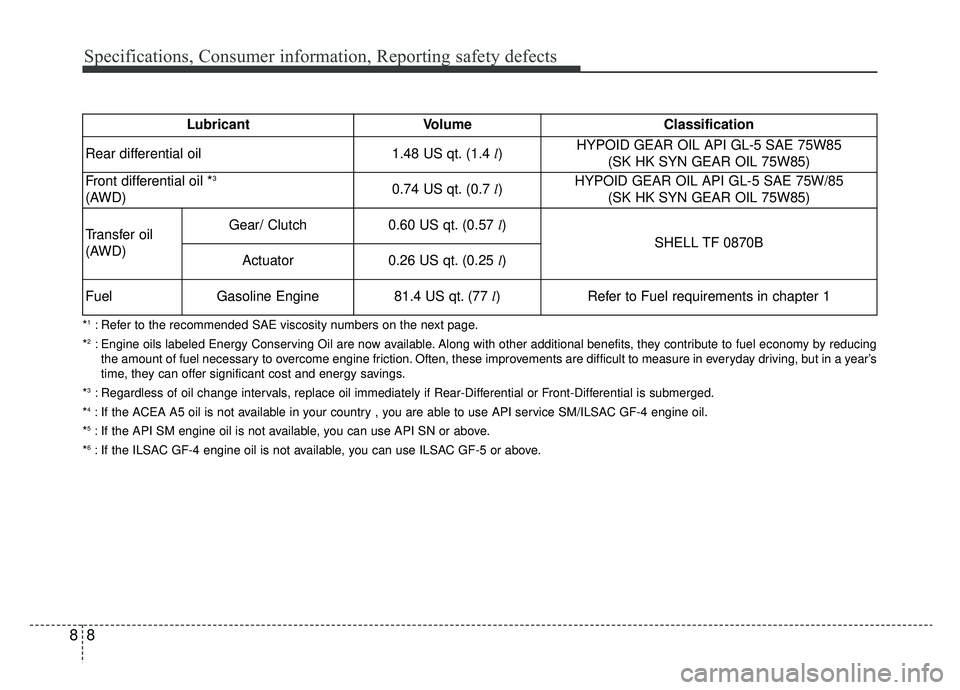

Lubricant VolumeClassification
Rear differential oil1.48 US qt. (1.4 l)HYPOID GEAR OIL API GL-5 SAE 75W85
(SK HK SYN GEAR OIL 75W85)
Front differential oil *3
(AWD)0.74 US qt. (0.7 l)HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN GEAR OIL 75W85)
Transfer oil
(AWD)Gear/ Clutch0.60 US qt. (0.57 l)
SHELL TF 0870B
Actuator0.26 US qt. (0.25 l)
FuelGasoline Engine81.4 US qt. (77 l)Refer to Fuel requirements in chapter 1
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3: Regardless of oil change intervals, replace oil immediately if Rear-Differential or Front-Differential is submerged.
*4: If the ACEA A5 oil is not available in your country , you are able to use API service SM/ILSAC GF-4 engine oil.
*5: If the API SM engine oil is not available, you can use API SN or above.
*6: If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above.

89
Specifications, Consumer information, Reporting safety defects

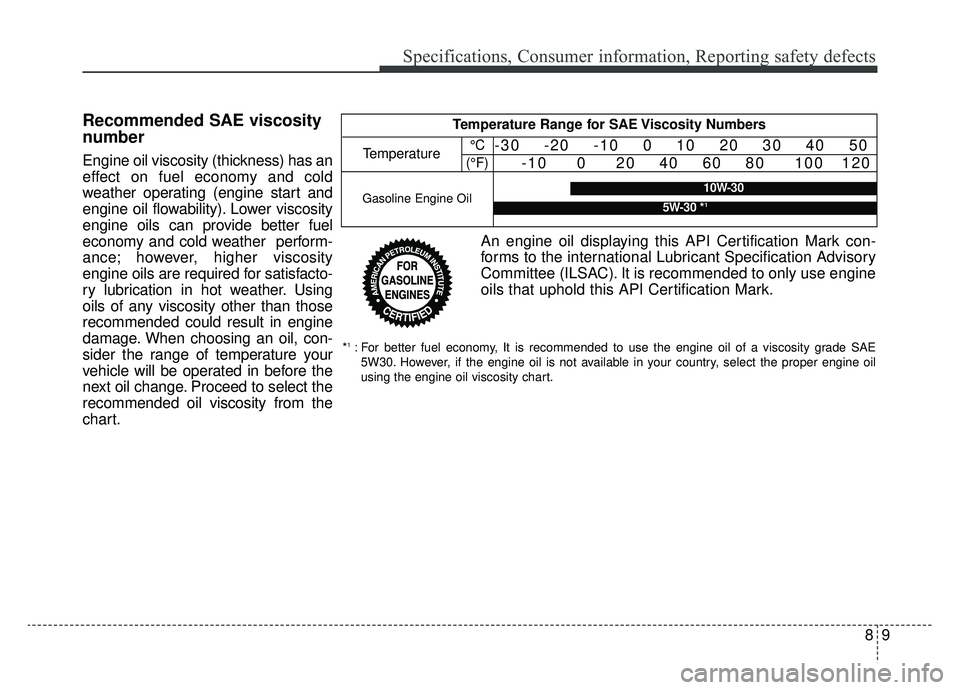

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfacto-
ry lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select the
recommended oil viscosity from the
chart.
An engine oil displaying this API Certification Mark con-
forms to the international Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine
oils that uphold this API Certification Mark.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gasoline Engine Oil10W-30
5W-30 *1
*1: For better fuel economy, It is recommended to use the engine oil of a viscosity grade SAE
5W30. However, if the engine oil is not available in your country, select the proper engine oil
using the engine oil viscosity chart.

Specifications, Consumer information, Reporting safety defects
10
8

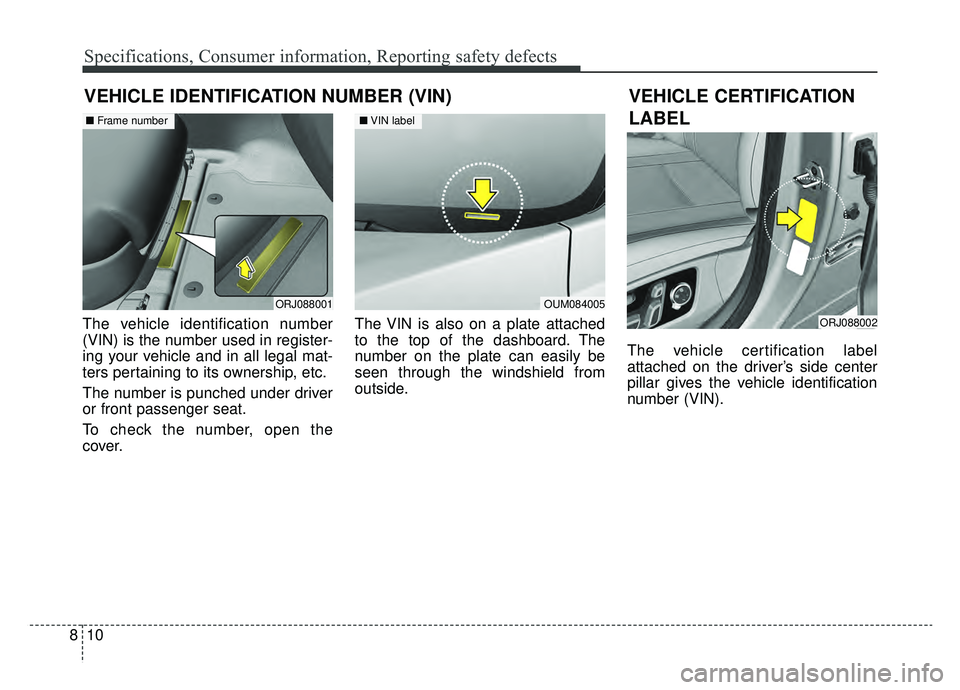

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched under driver
or front passenger seat.
To check the number, open the
cover. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
ORJ088001
■
Frame number
OUM084005
■VIN label
ORJ088002

811
Specifications, Consumer information, Reporting safety defects

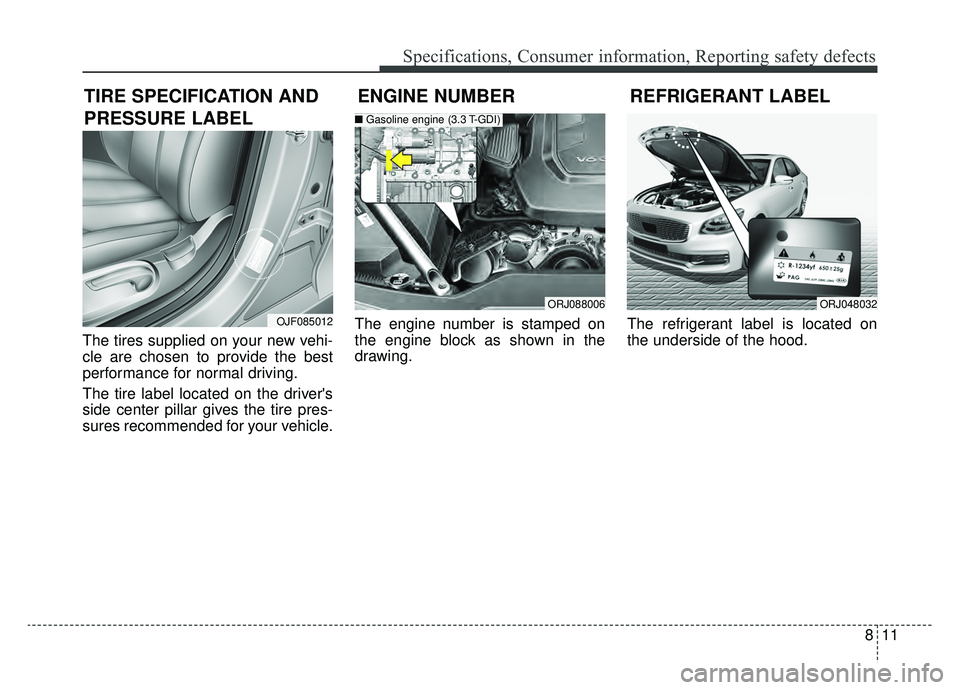

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown in the
drawing.
The refrigerant label is located on
the underside of the hood.
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL
OJF085012
REFRIGERANT LABEL
ORJ048032ORJ088006
■ Gasoline engine (3.3 T-GDI)
