KIA K900 2019 Owners Manual

767
Maintenance

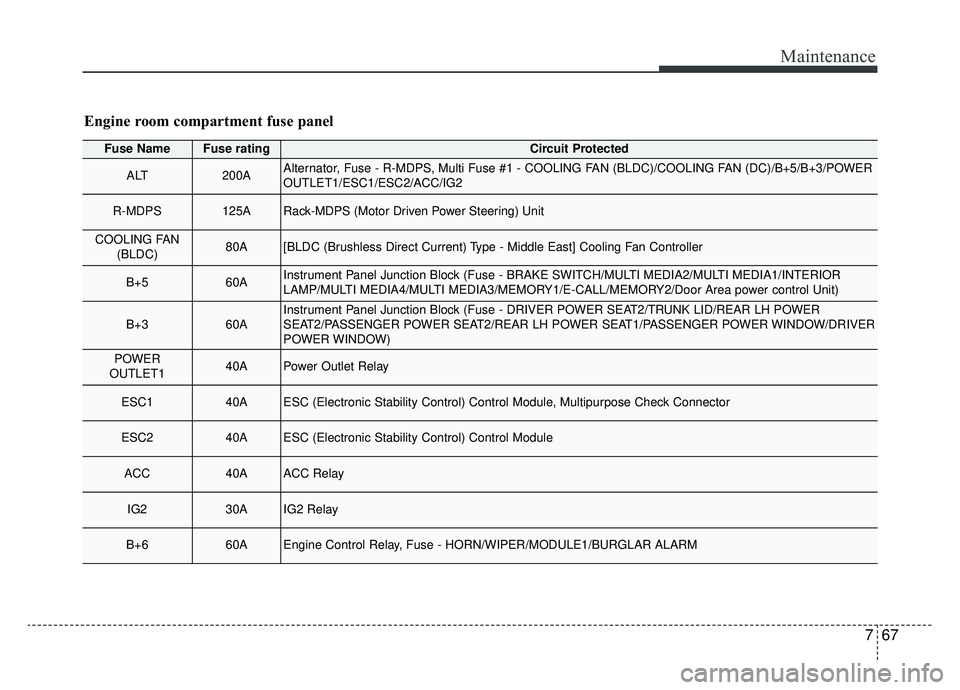

Fuse NameFuse ratingCircuit Protected
ALT200AAlternator, Fuse - R-MDPS, Multi Fuse #1 - COOLING FAN (BLDC)/COOLING FAN (DC)/B+5/B+3/POWER
OUTLET1/ESC1/ESC2/ACC/IG2
R-MDPS125ARack-MDPS (Motor Driven Power Steering) Unit
COOLING FAN(BLDC)80A[BLDC (Brushless Direct Current) Type - Middle East] Cooling Fan Controller
B+560AInstrument Panel Junction Block (Fuse - BRAKE SWITCH/MULTI MEDIA2/MULTI MEDIA1/INTERIOR
LAMP/MULTI MEDIA4/MULTI MEDIA3/MEMORY1/E-CALL/MEMORY2/Door Area power control Unit)
B+360AInstrument Panel Junction Block (Fuse - DRIVER POWER SEAT2/TRUNK LID/REAR LH POWER
SEAT2/PASSENGER POWER SEAT2/REAR LH POWER SEAT1/PASSENGER POWER WINDOW/DRIVER
POWER WINDOW)
POWER
OUTLET140APower Outlet Relay
ESC140AESC (Electronic Stability Control) Control Module, Multipurpose Check Connector
ESC240AESC (Electronic Stability Control) Control Module
ACC40AACC Relay
IG230AIG2 Relay
B+660AEngine Control Relay, Fuse - HORN/WIPER/MODULE1/BURGLAR ALARM
Engine room compartment fuse panel

Maintenance
68
7

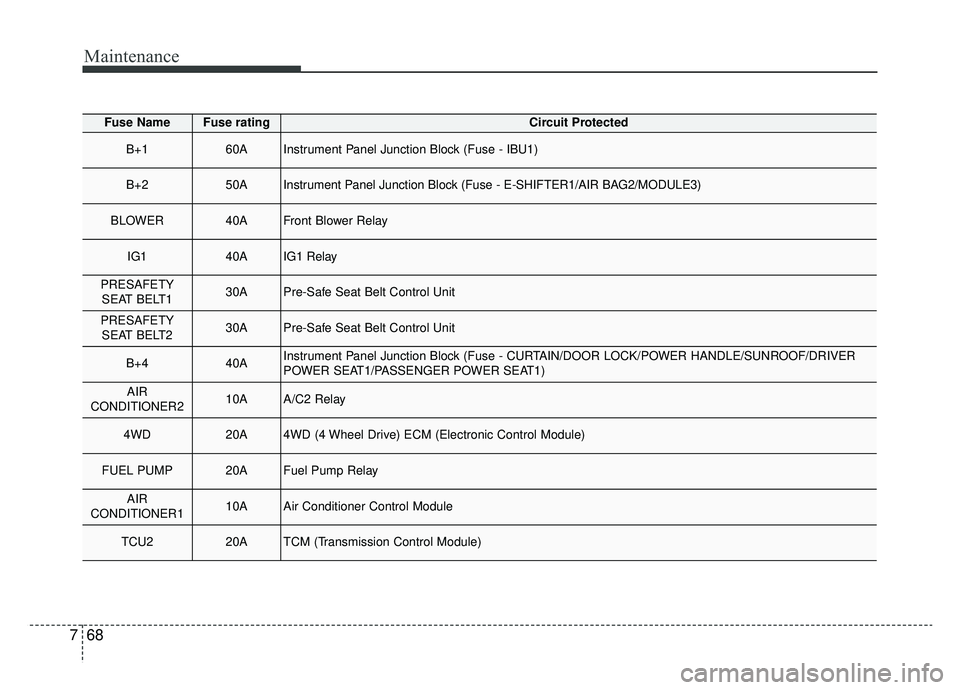

Fuse NameFuse ratingCircuit Protected
B+160AInstrument Panel Junction Block (Fuse - IBU1)
B+250AInstrument Panel Junction Block (Fuse - E-SHIFTER1/AIR BAG2/MODULE3)
BLOWER40AFront Blower Relay
IG140AIG1 Relay
PRESAFETY
SEAT BELT130APre-Safe Seat Belt Control Unit
PRESAFETYSEAT BELT230APre-Safe Seat Belt Control Unit
B+440AInstrument Panel Junction Block (Fuse - CURTAIN/DOOR LOCK/POWER HANDLE/SUNROOF/DRIVER
POWER SEAT1/PASSENGER POWER SEAT1)
AIR
CONDITIONER210AA/C2 Relay
4WD20A4WD (4 Wheel Drive) ECM (Electronic Control Module)
FUEL PUMP20AFuel Pump Relay
AIR
CONDITIONER110AAir Conditioner Control Module
TCU220ATCM (Transmission Control Module)

769
Maintenance

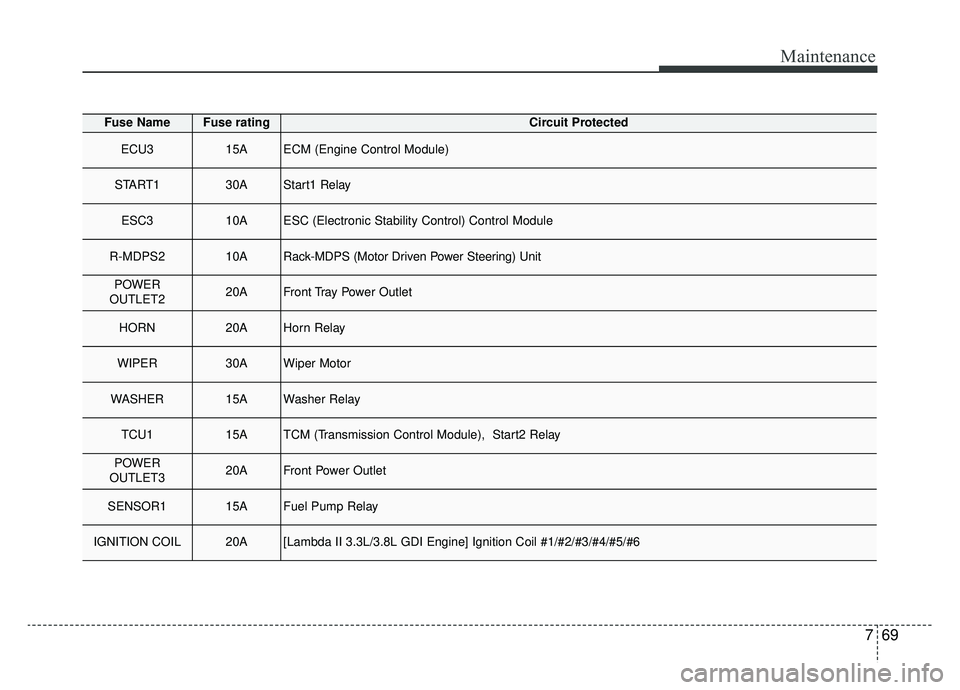

Fuse NameFuse ratingCircuit Protected
ECU315AECM (Engine Control Module)
START130AStart1 Relay
ESC310AESC (Electronic Stability Control) Control Module
R-MDPS210ARack-MDPS (Motor Driven Power Steering) Unit
POWER
OUTLET220AFront Tray Power Outlet
HORN20AHorn Relay
WIPER30AWiper Motor
WASHER15AWasher Relay
TCU115ATCM (Transmission Control Module), Start2 Relay
POWER
OUTLET320AFront Power Outlet
SENSOR115AFuel Pump Relay
IGNITION COIL20A[Lambda II 3.3L/3.8L GDI Engine] Ignition Coil #1/#2/#3/#4/#5/#6

Maintenance
70
7

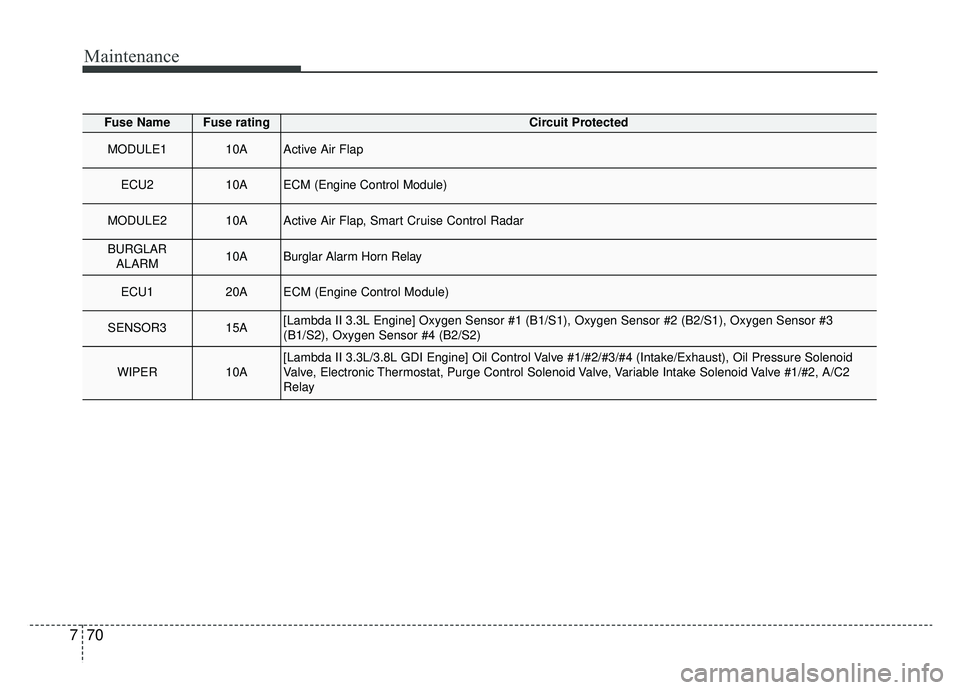

Fuse NameFuse ratingCircuit Protected
MODULE110AActive Air Flap
ECU210AECM (Engine Control Module)
MODULE210AActive Air Flap, Smart Cruise Control Radar
BURGLAR
ALARM10ABurglar Alarm Horn Relay
ECU120AECM (Engine Control Module)
SENSOR315A[Lambda II 3.3L Engine] Oxygen Sensor #1 (B1/S1), Oxygen Sensor #2 (B\
2/S1), Oxygen Sensor #3
(B1/S2), Oxygen Sensor #4 (B2/S2)
WIPER10A[Lambda II 3.3L/3.8L GDI Engine] Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Oil Pressure Solenoid
Valve, Electronic Thermostat, Purge Control Solenoid Valve, Variable Intake Solenoid Valve #1/#2, A/C2
Relay

771
Maintenance

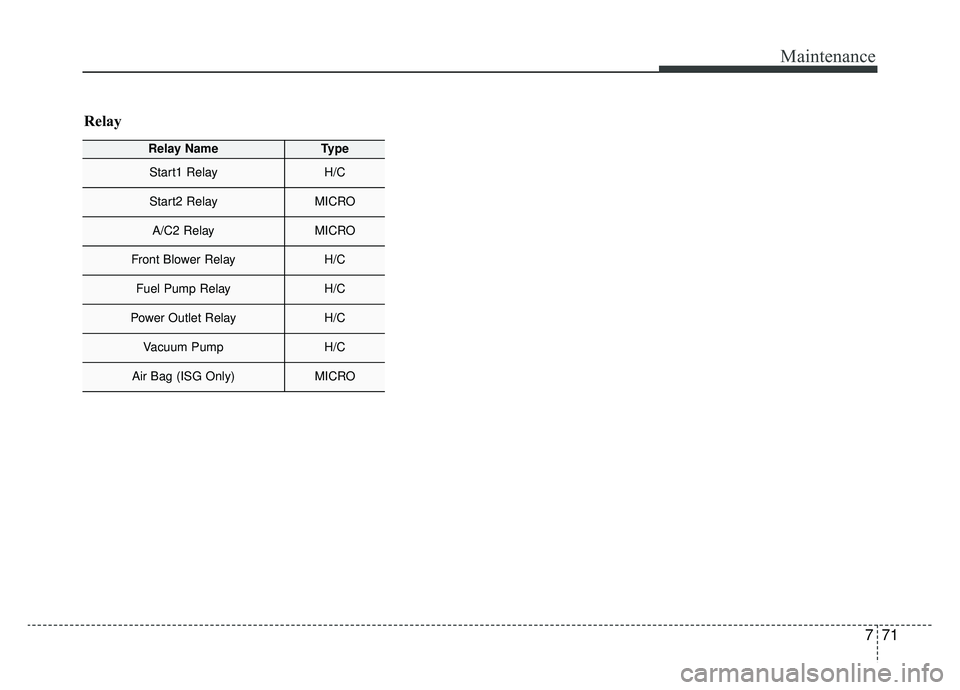

Relay NameType
Start1 RelayH/C
Start2 RelayMICRO
A/C2 RelayMICRO
Front Blower RelayH/C
Fuel Pump RelayH/C
Power Outlet RelayH/C
Vacuum PumpH/C
Air Bag (ISG Only)MICRO
Relay

Maintenance
72
7

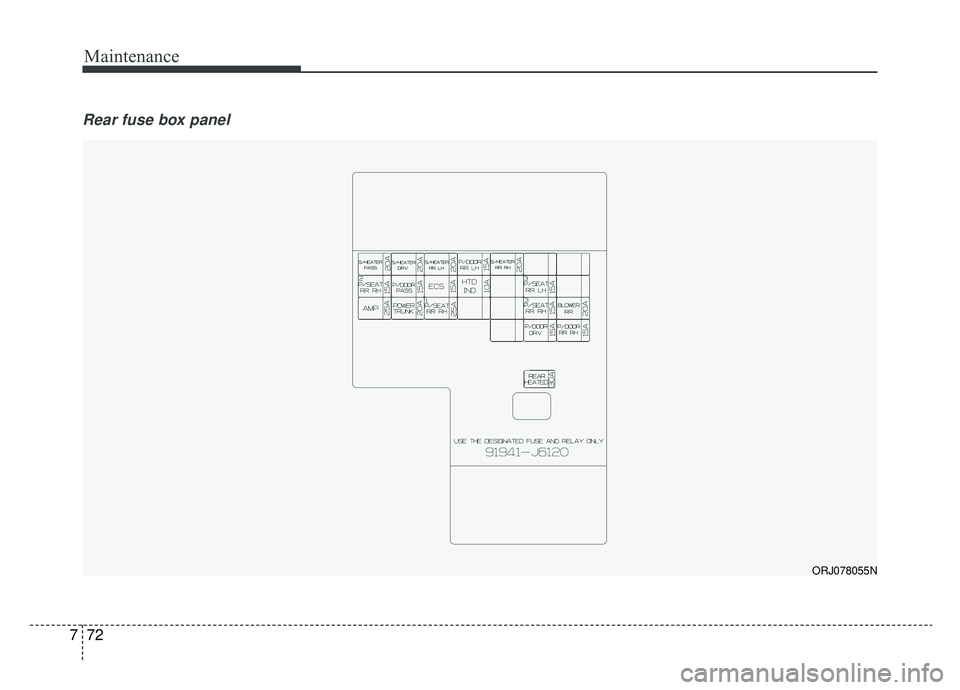

Rear fuse box panel
ORJ078055N

773
Maintenance

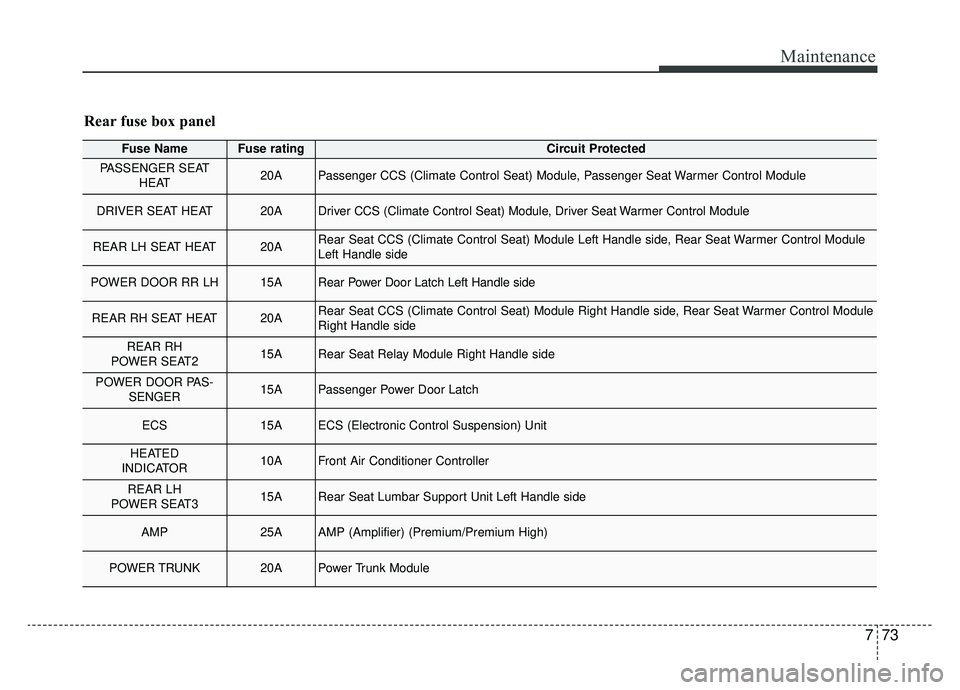

Fuse NameFuse ratingCircuit Protected
PASSENGER SEATHEAT20APassenger CCS (Climate Control Seat) Module, Passenger Seat Warmer Control Module
DRIVER SEAT HEAT20ADriver CCS (Climate Control Seat) Module, Driver Seat Warmer Control Module
REAR LH SEAT HEAT20ARear Seat CCS (Climate Control Seat) Module Left Handle side, Rear Seat Warmer Control Module
Left Handle side
POWER DOOR RR LH15ARear Power Door Latch Left Handle side
REAR RH SEAT HEAT20ARear Seat CCS (Climate Control Seat) Module Right Handle side, Rear Seat Warmer Control Module
Right Handle side
REAR RH
POWER SEAT215ARear Seat Relay Module Right Handle side
POWER DOOR PAS- SENGER15APassenger Power Door Latch
ECS15AECS (Electronic Control Suspension) Unit
HEATED
INDICATOR10AFront Air Conditioner Controller
REAR LH
POWER SEAT315ARear Seat Lumbar Support Unit Left Handle side
AMP25AAMP (Amplifier) (Premium/Premium High)
POWER TRUNK20APower Trunk Module
Rear fuse box panel

Maintenance
74
7

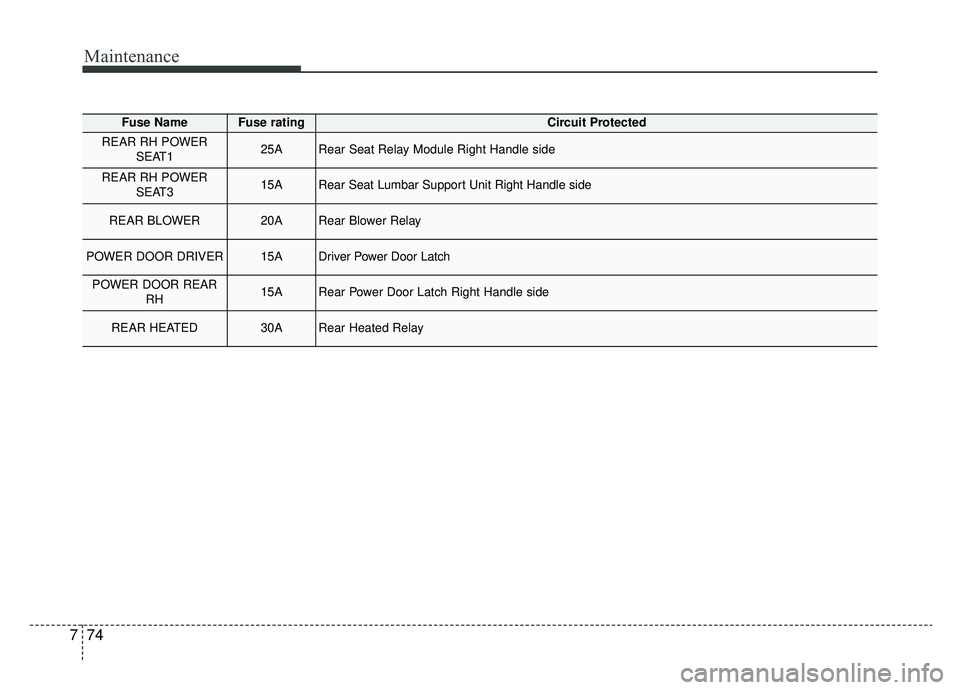

Fuse NameFuse ratingCircuit Protected
REAR RH POWER
SEAT125ARear Seat Relay Module Right Handle side
REAR RH POWERSEAT315ARear Seat Lumbar Support Unit Right Handle side
REAR BLOWER20ARear Blower Relay
POWER DOOR DRIVER15ADriver Power Door Latch
POWER DOOR REAR RH15ARear Power Door Latch Right Handle side
REAR HEATED30ARear Heated Relay

775
Maintenance

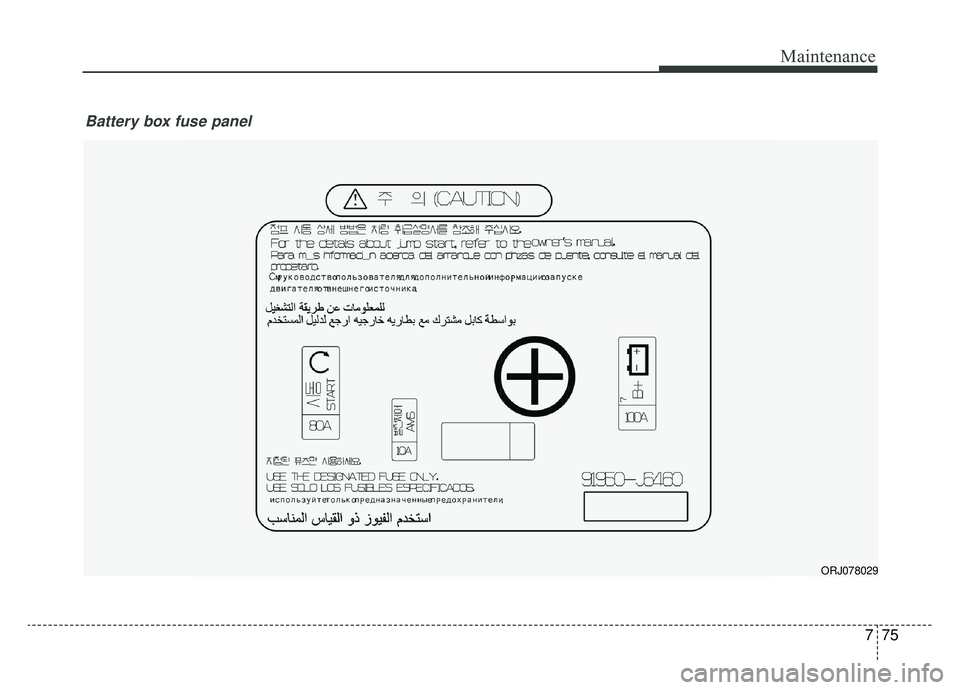

Battery box fuse panel
ORJ078029

Maintenance
76
7

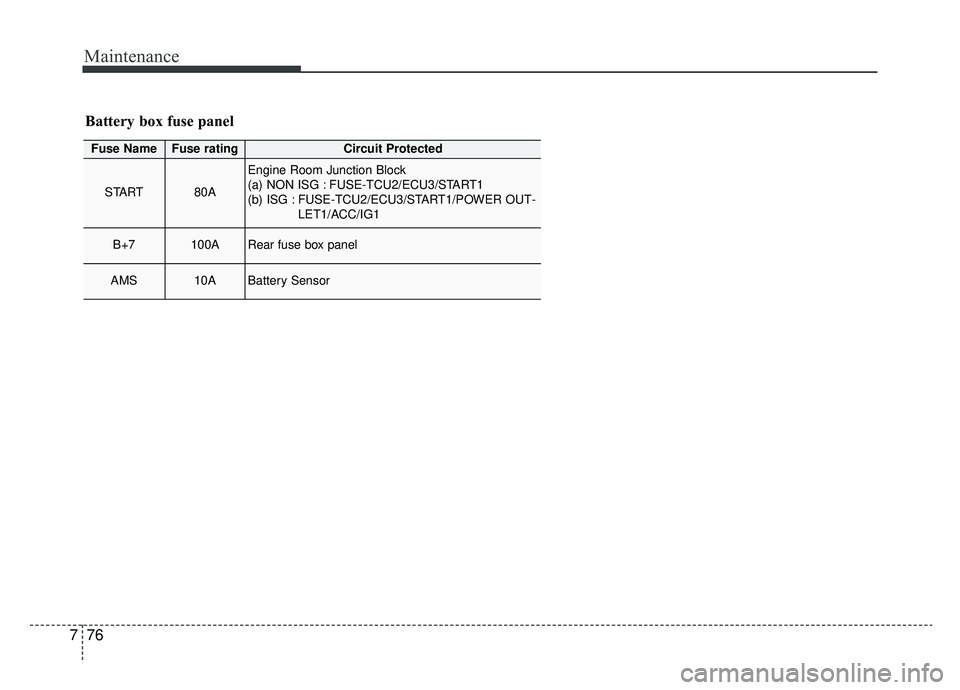

Fuse NameFuse ratingCircuit Protected
START80A
Engine Room Junction Block
(a) NON ISG : FUSE-TCU2/ECU3/START1
(b) ISG : FUSE-TCU2/ECU3/START1/POWER OUT-
LET1/ACC/IG1
B+7100ARear fuse box panel
AMS10ABattery Sensor
Battery box fuse panel
