Page 14 of 417

Your vehicle at a glance
2
2
INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-15
2. Outside rearview mirror folding
button*...............................................4-46
3. Outside rearview mirror control switch ................................................4-45
4. Central door lock switch....................4-15
5. Power window lock button ................4-23
6. Power window switches ....................4-20
7. Air vent ..............................................4-90
8. Instrument panel illumination control knob* or Head lamp leveling device*.................................................4-49, 4-75
9. ESP OFF button* .............................5-33
10. DBC button* ....................................5-37
11. Power adjustable pedal control switch* or Heated steering wheel button*................................................4-36,4-38
12. ALS control switch* .........................5-41
13. 4WD transfer shift knob* .................5-19
14. Steering wheel tilt control* ..............4-38
15. Heated steering wheel button* .......4-38
16. Steering wheel ................................4-37
17. Driver position memory system button* ................................4-33
18. Fuel filler lid release lever ...............4-26
19. Hood release lever ..........................4-24
20. Brake pedal .....................................5-28
21. Accelerator pedal ..............................5-8
22. Fuse box .........................................7-46
23. Seat...................................................3-2
* : if equipped OHM013001L
B010000CHM-EE
â– Type A
â– Type B
Page 16 of 417

Your vehicle at a glance
4
2
ENGINE COMPARTMENT
B030000AHM-EE
1. Engine coolant reservoir .................7-20
2. Engine oil filler cap..........................7-18
3. Brake fluid reservoir ........................7-22
4. Air cleaner .......................................7-26
5. Fuse box .........................................7-45
6. Negative battery terminal ................7-32
7. Positive battery terminal .................7-32
8. Radiator cap....................................7-21
9. Engine oil dipstick ...........................7-18
10. Power steering fluid reservoir .......7-23
11. Windshield washer fluid reservoir .7-24 OHM018005N/OHM018004N
* The actual engine room in the vehicle may differ from the illustration.
â–
â–
Gasoline Engine (3.8L)
â– â– Gasoline Engine (4.6L)
Page 17 of 417

25
Your vehicle at a glance

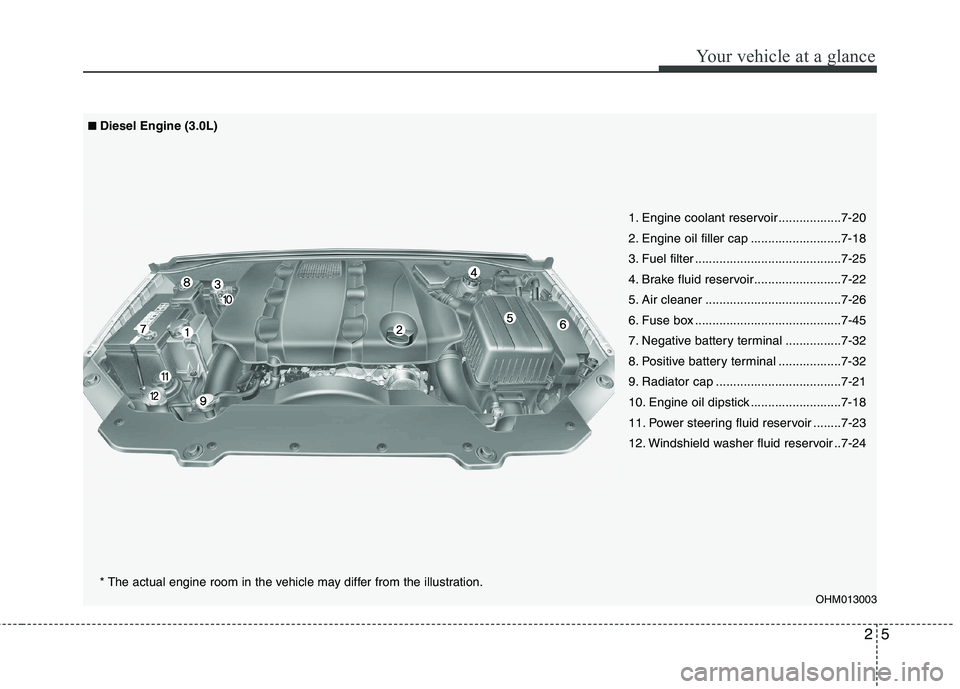

OHM013003
1. Engine coolant reservoir ..................7-20
2. Engine oil filler cap ..........................7-18
3. Fuel filter ..........................................7-25
4. Brake fluid reservoir.........................7-22
5. Air cleaner .......................................7-26
6. Fuse box ..........................................7-45
7. Negative battery terminal ................7-32
8. Positive battery terminal ..................7-32
9. Radiator cap ....................................7-21
10. Engine oil dipstick ..........................7-18
11. Power steering fluid reservoir ........7-23
12. Windshield washer fluid reservoir ..7-24
â– â– Diesel Engine (3.0L)
* The actual engine room in the vehicle may differ from the illustration.
Page 64 of 417

347
Safety features of your vehicle
WARNING
Do not install or place any acces- sories (drink holder, cassette
holder, sticker, etc.) on the front
passenger's panel above the
glove box in a vehicle with a pas-
senger's air bag. Such objects
may become dangerous projec-
tiles and cause injury if the pas-
senger's air bag inflates.
When installing a container of liq- uid air freshener inside the vehi-
cle, do not place it near the
instrument cluster nor on the
instrument panel surface.
It may become a dangerous pro-
jectile and cause injury if the pas-
senger's air bag inflates.
B240B05L

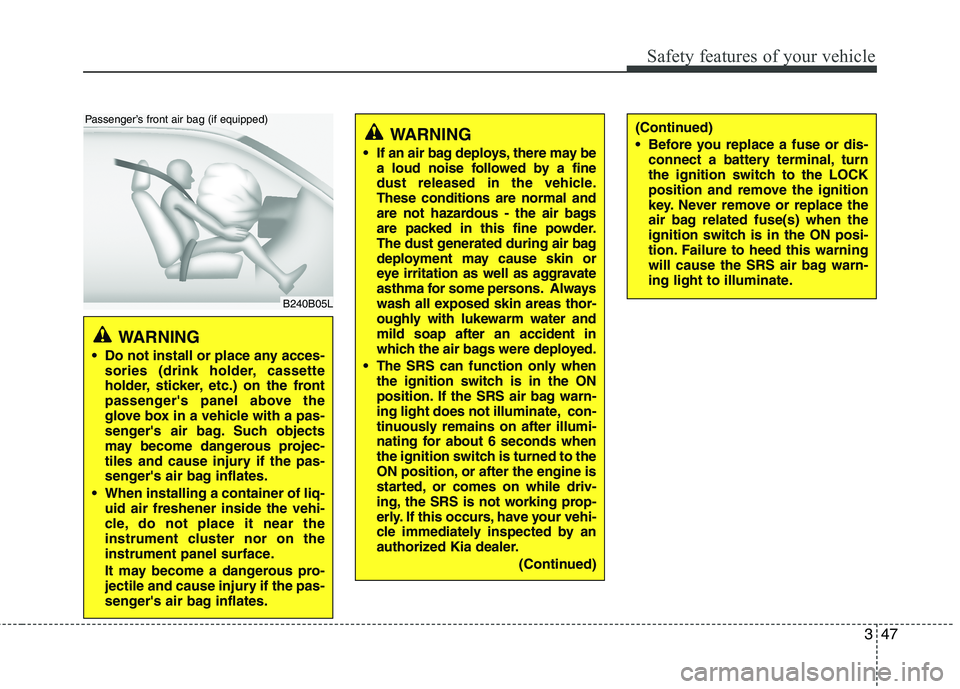

Passenger’s front air bag (if equipped)
WARNING
If an air bag deploys, there may be a loud noise followed by a fine
dust released in the vehicle.These conditions are normal and
are not hazardous - the air bags
are packed in this fine powder.
The dust generated during air bag
deployment may cause skin or
eye irritation as well as aggravate
asthma for some persons. Always
wash all exposed skin areas thor-
oughly with lukewarm water andmild soap after an accident in
which the air bags were deployed.
The SRS can function only when the ignition switch is in the ON
position. If the SRS air bag warn-
ing light does not illuminate, con-
tinuously remains on after illumi-
nating for about 6 seconds when
the ignition switch is turned to the
ON position, or after the engine is
started, or comes on while driv-
ing, the SRS is not working prop-
erly. If this occurs, have your vehi-
cle immediately inspected by an
authorized Kia dealer.
(Continued)(Continued)
Before you replace a fuse or dis-connect a battery terminal, turn
the ignition switch to the LOCK
position and remove the ignition
key. Never remove or replace the
air bag related fuse(s) when the
ignition switch is in the ON posi-
tion. Failure to heed this warning
will cause the SRS air bag warn-
ing light to illuminate.
Page 329 of 417

Maintenance
2
7

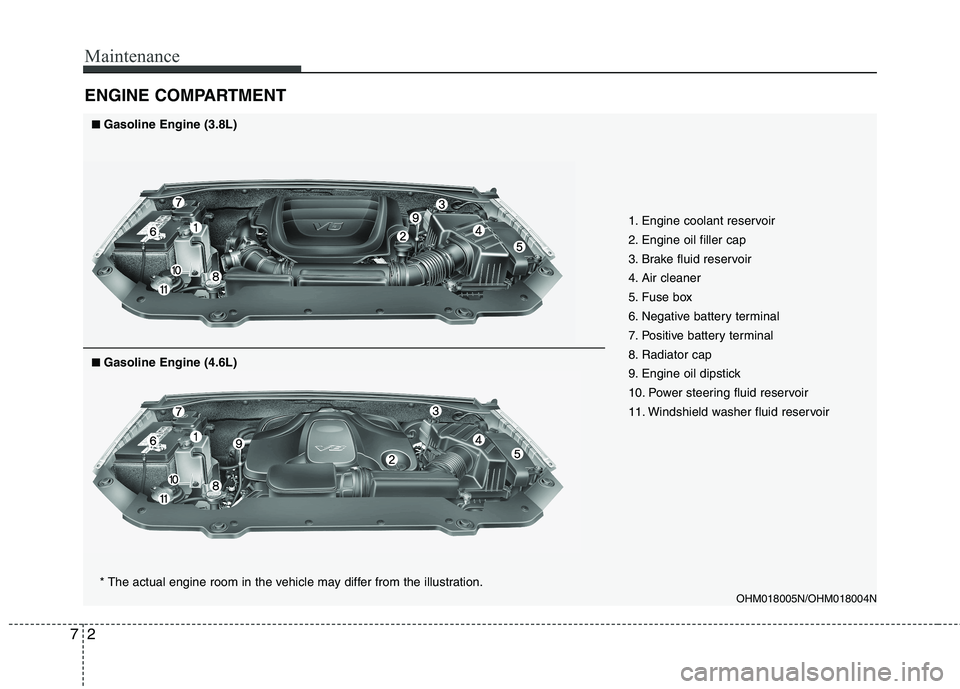

ENGINE COMPARTMENT
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Power steering fluid reservoir
11. Windshield washer fluid reservoir
OHM018005N/OHM018004N
* The actual engine room in the vehicle may differ from the illustration.
â–
â–
Gasoline Engine (3.8L)
â– â– Gasoline Engine (4.6L)
Page 330 of 417

73
Maintenance

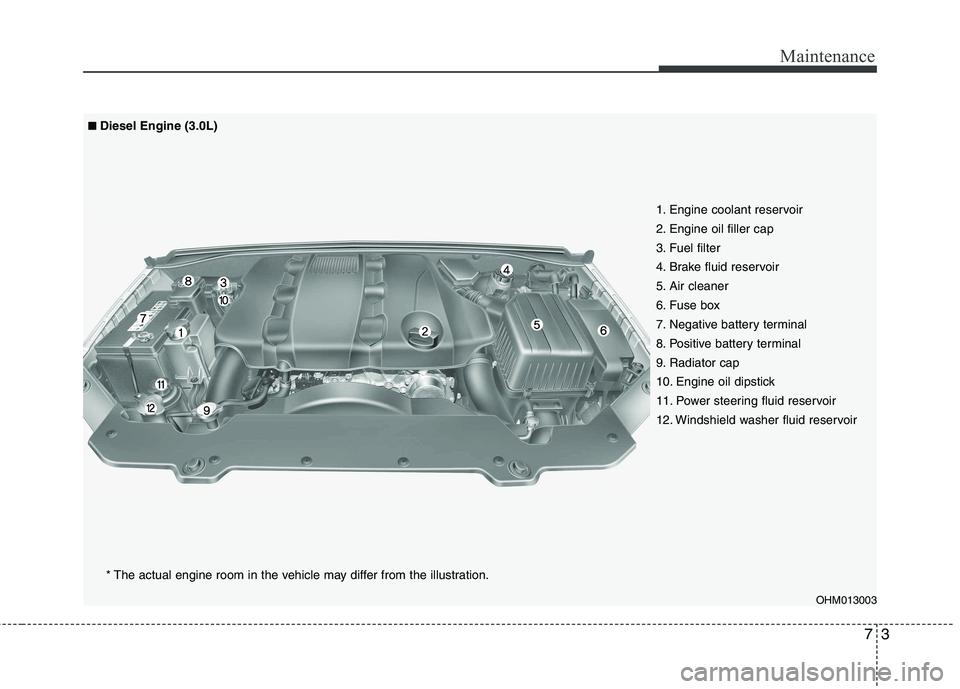

OHM013003
1. Engine coolant reservoir
2. Engine oil filler cap
3. Fuel filter
4. Brake fluid reservoir
5. Air cleaner
6. Fuse box
7. Negative battery terminal
8. Positive battery terminal
9. Radiator cap
10. Engine oil dipstick
11. Power steering fluid reservoir
12. Windshield washer fluid reservoir
â– â–
Diesel Engine (3.0L)
* The actual engine room in the vehicle may differ from the illustration.
Page 373 of 417

Maintenance
46
7

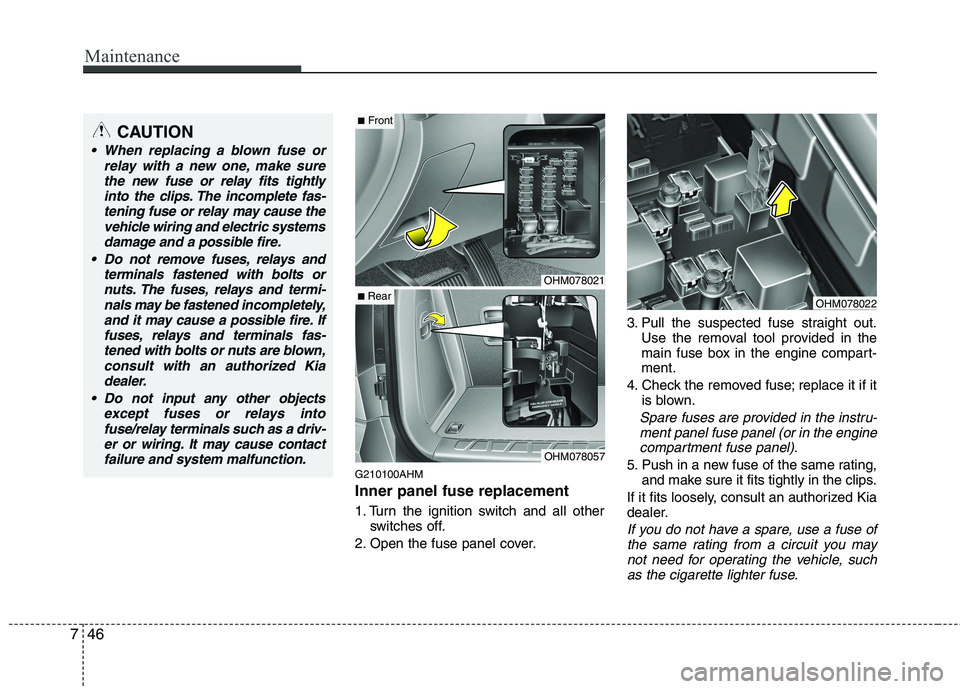

G210100AHM Inner panel fuse replacement
1. Turn the ignition switch and all other
switches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight out.
Use the removal tool provided in the
main fuse box in the engine compart-ment.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in the instru-
ment panel fuse panel (or in the engine compartment fuse panel).
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, consult an authorized Kia
dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.
OHM078022
OHM078021
OHM078057
â– Front
â– Rear
CAUTION
When replacing a blown fuse or
relay with a new one, make surethe new fuse or relay fits tightlyinto the clips. The incomplete fas-tening fuse or relay may cause the vehicle wiring and electric systemsdamage and a possible fire.
Do not remove fuses, relays and terminals fastened with bolts ornuts. The fuses, relays and termi-nals may be fastened incompletely, and it may cause a possible fire. Iffuses, relays and terminals fas-tened with bolts or nuts are blown,consult with an authorized Kia dealer.
Do not input any other objects except fuses or relays intofuse/relay terminals such as a driv-er or wiring. It may cause contactfailure and system malfunction.
Page 380 of 417

753
Maintenance
Engine compartment main fuse panel
Description Fuse ratingProtected component
FRT/RR WASHER 10A Front/Rear Washer Motor Relay, Washer Motor
STOP LAMP 20A Stop Lamp Switch, DBC Relay
KEY SW 1 25A Ignition Switch, PDM Relay Box(IG1 Relay , ACC Relay )
STOP SIGNAL 7.5A ABS Control Module, ESP Control Module, ECM, Smart Key Control Module
A/C COMP 7.5A A/C Comp Relay
FRT DEICER 15A Front Deicer Relay
HORN 15A Horn Relay
ECU 1 10A ECM, Mass Air Flow Sensor, Immobilizer Module, A/C Comp Relay
O2 DN 10A Oxygen Sensor #3,#4
ECU 2 15A Oil Control Valve, ECM, Variable Intake Manifold Valve, Purge Control Solenoid Valve
O2 UP 10A Oxygen Sensor #1,#2
IGN COIL 20A Ignition Coil #1~6, Condenser #1,#2
INJECTOR 15A ECM, Injector #1~#6
P/TRAIN 7.5A ECM, Main Relay, Relay Box (Burglar Horn Relay)
FUEL PUMP 15A Fuel Pump Relay
ATM 15A TCM
A/SUSP 15A Air Suspension Control Module
B/A HORN 10A Relay Box (Burglar Horn Relay)
Page 381 of 417

Maintenance
54
7

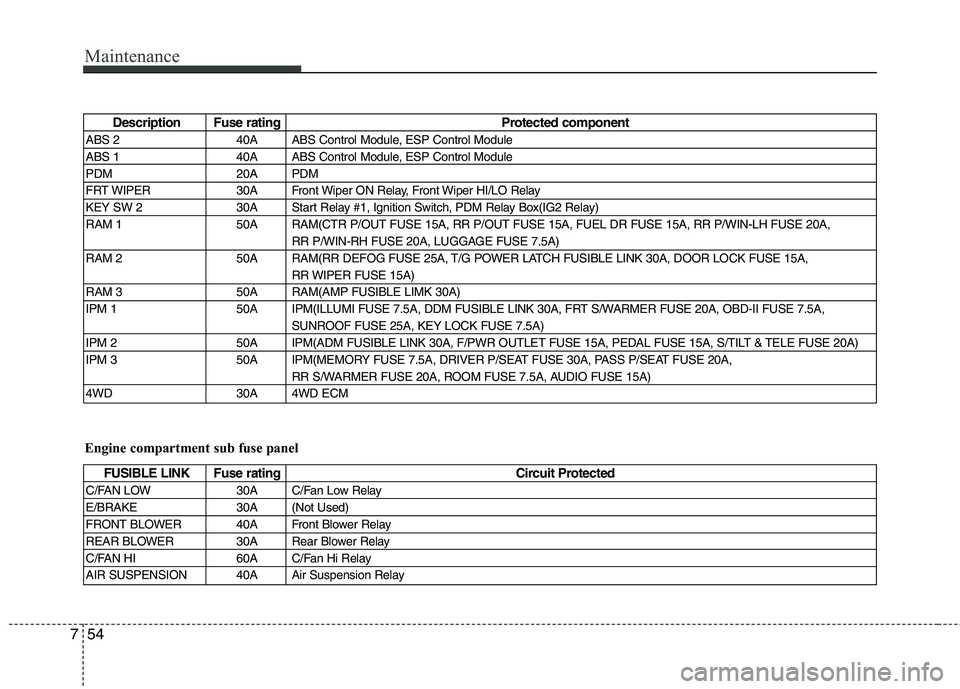

Description Fuse rating Protected component
ABS 2 40A ABS Control Module, ESP Control Module
ABS 1 40A ABS Control Module, ESP Control Module
PDM 20A PDM
FRT WIPER 30A Front Wiper ON Relay, Front Wiper HI/LO Relay
KEY SW 2 30A Start Relay #1, Ignition Switch, PDM Relay Box(IG2 Relay)
RAM 1 50A RAM(CTR P/OUT FUSE 15A, RR P/OUT FUSE 15A, FUEL DR FUSE 15A, RR P/WIN-LH FUSE 20A, RR P/WIN-RH FUSE 20A, LUGGAGE FUSE 7.5A)
RAM 2 50A RAM(RR DEFOG FUSE 25A, T/G POWER LATCH FUSIBLE LINK 30A, DOOR LOCK FUSE 15A, RR WIPER FUSE 15A)
RAM 3 50A RAM(AMP FUSIBLE LIMK 30A)
IPM 1 50A IPM(ILLUMI FUSE 7.5A, DDM FUSIBLE LINK 30A, FRT S/WARMER FUSE 20A, OBD-II FUSE 7.5A, SUNROOF FUSE 25A, KEY LOCK FUSE 7.5A)
IPM 2 50A IPM(ADM FUSIBLE LINK 30A, F/PWR OUTLET FUSE 15A, PEDAL FUSE 15A, S/TILT & TELE FUSE 20A)
IPM 3 50A IPM(MEMORY FUSE 7.5A, DRIVER P/SEAT FUSE 30A, PASS P/SEAT FUSE 20A, RR S/WARMER FUSE 20A, ROOM FUSE 7.5A, AUDIO FUSE 15A)
4WD 30A 4WD ECM
Engine compartment sub fuse panel
FUSIBLE LINK Fuse rating Circuit Protected
C/FAN LOW 30A C/Fan Low Relay
E/BRAKE 30A (Not Used)
FRONT BLOWER 40A Front Blower Relay
REAR BLOWER 30A Rear Blower Relay
C/FAN HI 60A C/Fan Hi Relay
AIR SUSPENSION 40A Air Suspension Relay
Page 412 of 417

I5
Index
Jack and tools ·····························································6-7
Removing and storing the spare tire ··························6-8
Floor mat anchor(s) ·····················································4-121Fluid Washer fluid ·····························································7-24
Brakes fluid ······························································7-22
Power steering fluid ··················································7-23
Folding the rear seat ······················································3-17
Four wheel drive (4WD) ················································5-18
Front fog light bulb replacement ··························7-55, 7-57Front seat adjustment - manual ········································3-4
Front seat adjustment - power ·······································3-11
Fuel filler lid ··································································4-26
Fuel filter(for diesel) ······················································7-25
Fuel gauge ······································································4-51
Fuel requirements ····························································1-2Fuses ··············································································7-45 Fuse/relay panel description ····································7-49
Main fuse···································································7-48
Memory fuse ·····························································7-47
Gauge Engine temperature gauge ·········································4-50
Fuel gauge ································································4-51
Glassroof, see panorama sunroof····································4-29
Glove box ·····································································4-114 Hazard warning flasher ··················································4-70
Hazardous driving conditions ········································5-50
Headlight bulb replacement ·································7-55, 7-57
Headlight leveling device ··············································4-75
Headlight washer ····························································4-76
Headrest ··································································3-5, 3-14
Heating and air conditioning ·········································4-88High mounted stop light replacement ····························7-60
Highway driving ····························································5-53
Hill-start assist control (HAC) ········································5-36Hood ···············································································4-24Horn ···············································································4-39
How to use this manual ···················································1-2
ISOFIX system ······························································3-39
Immobilizer system ·························································4-4
Indicators and warnings ·················································4-55
Indicator symbols on the instrument cluster ····················1-6
Inside rearview mirror ····················································4-40
Instrument cluster ··························································4-47
Engine temperature gauge ········································4-50
Fuel gauge ································································4-51
Instrument panel illumination ··································4-49Odometer ··································································4-52
G
I
H
