311
Safety features of your vehicle
C010108AHM
Seatback pocket
C010200AHM
Front seat adjustment - power (if equipped)
The front seat can be adjusted by using
the control switches located on the out-
side of the seat cushion. Before driving,adjust the seat to the proper position so as
to easily control the steering wheel, ped-
als and switches on the instrument panel.
WARNING- Seatback
pockets
Do not put heavy or sharp objects in
the seatback pockets. In an accident
they could come loose from the
pocket and injure vehicle occupants.
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the vehicle.
WARNING
Passengers should use extreme
caution when using the climate
control seat to warm due to the
possibility of excess heating or
burns. The occupants must be able
to feel if the seat is becoming toowarm and to turn the seat warmer
off. In particular, the driver must
exercise extreme care for the fol-
lowing types of passengers:
1. Infants, children, elderly or dis- abled persons, or hospital outpa- tients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills, cold
tablets, etc.)
OXM039015
â– Type BOHM038010
â– Type A

Driving your vehicle
60
5

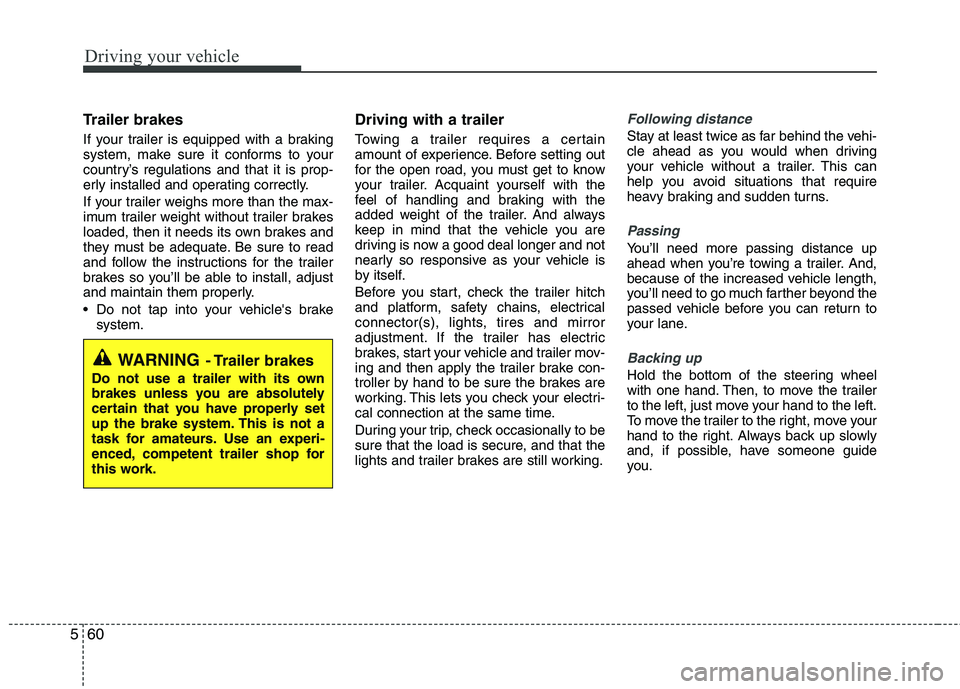

Trailer brakes
If your trailer is equipped with a braking
system, make sure it conforms to your
country’s regulations and that it is prop-
erly installed and operating correctly.
If your trailer weighs more than the max-
imum trailer weight without trailer brakes
loaded, then it needs its own brakes and
they must be adequate. Be sure to read
and follow the instructions for the trailer
brakes so you’ll be able to install, adjust
and maintain them properly.
Do not tap into your vehicle's brake
system. Driving with a trailer
Towing a trailer requires a certain
amount of experience. Before setting out
for the open road, you must get to know
your trailer. Acquaint yourself with the
feel of handling and braking with the
added weight of the trailer. And always
keep in mind that the vehicle you are
driving is now a good deal longer and not
nearly so responsive as your vehicle is
by itself.
Before you start, check the trailer hitch
and platform, safety chains, electrical
connector(s), lights, tires and mirror
adjustment. If the trailer has electric
brakes, start your vehicle and trailer mov-
ing and then apply the trailer brake con-
troller by hand to be sure the brakes are
working. This lets you check your electri-
cal connection at the same time.
During your trip, check occasionally to be
sure that the load is secure, and that the
lights and trailer brakes are still working.Following distance
Stay at least twice as far behind the vehi-
cle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
heavy braking and sudden turns.
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer. And,
because of the increased vehicle length,
you’ll need to go much farther beyond the
passed vehicle before you can return to
your lane.
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, just move your hand to the left.
To move the trailer to the right, move your
hand to the right. Always back up slowly
and, if possible, have someone guide
you.WARNING
- Trailer brakes
Do not use a trailer with its own
brakes unless you are absolutely
certain that you have properly set
up the brake system. This is not a
task for amateurs. Use an experi-
enced, competent trailer shop for
this work.

I5
Index
Jack and tools ·····························································6-7
Removing and storing the spare tire ··························6-8
Floor mat anchor(s) ·····················································4-121Fluid Washer fluid ·····························································7-24
Brakes fluid ······························································7-22
Power steering fluid ··················································7-23
Folding the rear seat ······················································3-17
Four wheel drive (4WD) ················································5-18
Front fog light bulb replacement ··························7-55, 7-57Front seat adjustment - manual ········································3-4
Front seat adjustment - power ·······································3-11
Fuel filler lid ··································································4-26
Fuel filter(for diesel) ······················································7-25
Fuel gauge ······································································4-51
Fuel requirements ····························································1-2Fuses ··············································································7-45 Fuse/relay panel description ····································7-49
Main fuse···································································7-48
Memory fuse ·····························································7-47
Gauge Engine temperature gauge ·········································4-50
Fuel gauge ································································4-51
Glassroof, see panorama sunroof····································4-29
Glove box ·····································································4-114 Hazard warning flasher ··················································4-70
Hazardous driving conditions ········································5-50
Headlight bulb replacement ·································7-55, 7-57
Headlight leveling device ··············································4-75
Headlight washer ····························································4-76
Headrest ··································································3-5, 3-14
Heating and air conditioning ·········································4-88High mounted stop light replacement ····························7-60
Highway driving ····························································5-53
Hill-start assist control (HAC) ········································5-36Hood ···············································································4-24Horn ···············································································4-39
How to use this manual ···················································1-2
ISOFIX system ······························································3-39
Immobilizer system ·························································4-4
Indicators and warnings ·················································4-55
Indicator symbols on the instrument cluster ····················1-6
Inside rearview mirror ····················································4-40
Instrument cluster ··························································4-47
Engine temperature gauge ········································4-50
Fuel gauge ································································4-51
Instrument panel illumination ··································4-49Odometer ··································································4-52
G
I
H
