ABS KIA NIRO 2017 Navigation System Quick Reference Guide
[x] Cancel search | Manufacturer: KIA, Model Year: 2017, Model line: NIRO, Model: KIA NIRO 2017Pages: 92, PDF Size: 2.77 MB
Page 23 of 92
20
USB
USB Music Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
• When a track in the file tab on the list screen is selected:
Displays folder, file, title, artist, album info
• When a track in the other tabs on the list screen is selected: Displays artist, title, album info
List Moves to the list screen
Previous File If button is pressed (less than 0.8 seconds): Moves to the previous file
or play the current file from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track
Play/Pause Plays/pauses the current file
Next File• If button is pressed (less than 0.8 seconds): Moves to the next file
• If button is pressed (more than 0.8 seconds): It fast-forwards
the track
Repeat Repeats the current file
• Select the song in the file tab on the list screen: Select the
Repeat button to switch between repeating one song ,
repeating folder , and turning repeat off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Repeat button to switch
between repeating one song and turning repeat off
Back Button Converts to basic mode screen
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 24 of 92
21

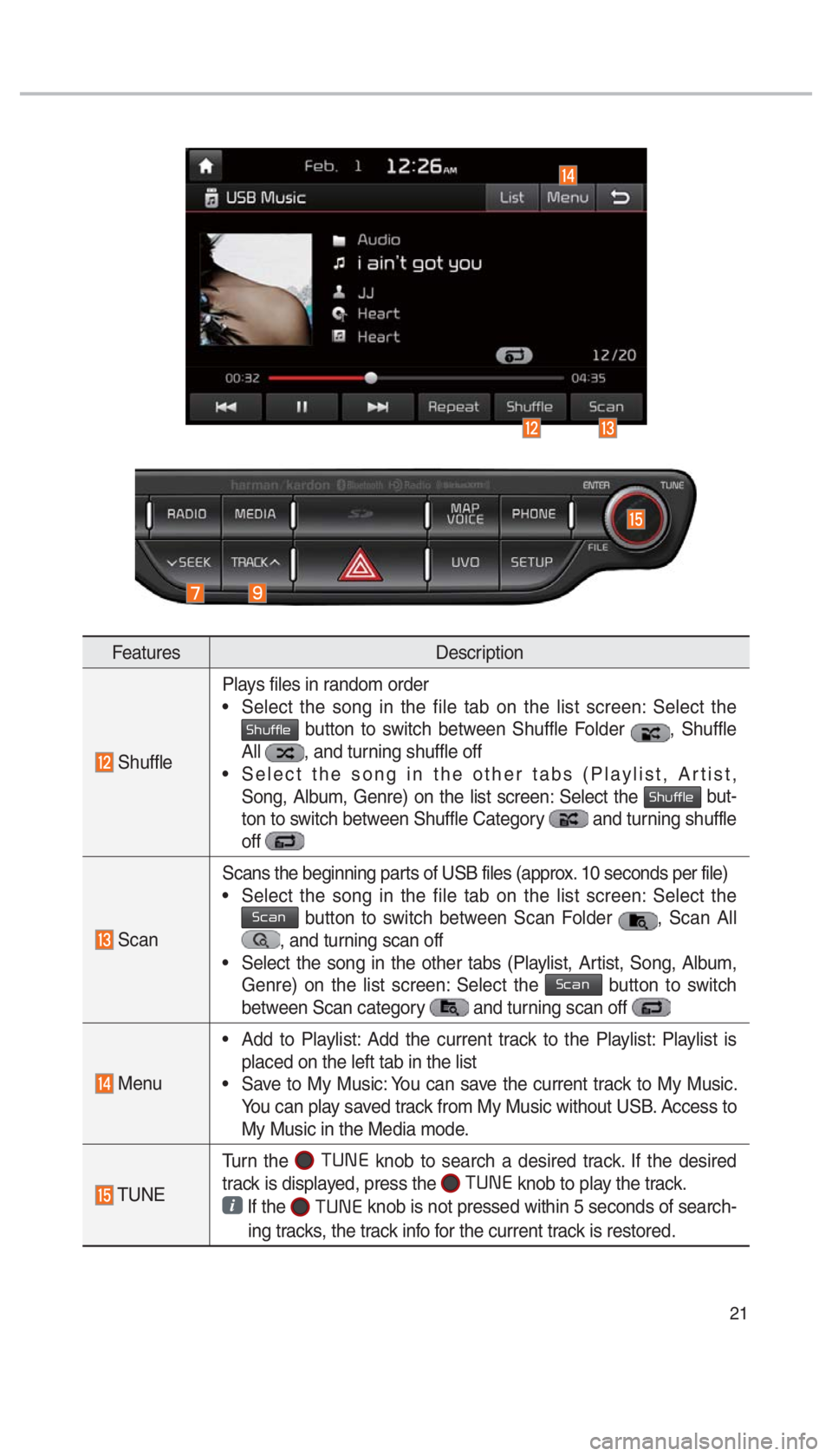

FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Select the
Shuffle button to switch between Shuffle Folder , Shuffle
All , and turning shuffle off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Shuffle but-
ton to switch between Shuffle Category and turning shuffle
off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen: Select the
Scan button to switch between Scan Folder , Scan All , and turning scan off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Scan button to switch
between Scan category and turning scan off
Menu • Add to Playlist: Add the current track to the Playlist: Playlist is
placed on the left tab in the list
• Save to My Music: You can save the current track to My Music. You can play saved track from My Music without USB. Access to
My Music in the Media mode.
TUNE Turn the
TUNE
knob to search a desired track. If the desired
track is displayed, press the
TUNE knob to play the track.
If the TUNE
knob is not pressed within 5 seconds of search-
ing tracks, the track info for the current track is restored.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 30 of 92
27
My Music
My Music Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information about the current track
• When a track in the file tab on the list screen is selected:
Displays file, artist, title, album info
• When a track in the other tab on the list screen is selected: Displays artist, title, album info
List Moves to the list screen
Previous File If button is pressed (less than 0.8 seconds): Moves to the previ-
ous file or play the current file from the beginning (Depends on
the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track
Play/Pause Plays/pauses the current file
Next File • If button is pressed (less than 0.8 seconds): Moves to the next file
• If button is pressed (more than 0.8 seconds): It fast-forwards
the track
Repeat Repeats the current file
• If select the song in the file tab on the list screen: Select the
Repeat button to switch between repeating one song
and turning repeat off.
• If select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Repeat button to switch
between repeating one song and turning repeat off
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 31 of 92
28
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Select the
Shuffle button to switch between shuffle and turning
shuffle off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Shuffle button
to switch between shuffle and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds
per file)
• Select the song in the file tab on the list screen: Select the Scan button to switch between scan and turning
scan off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Scan button
to switch between scan and turning scan off
Menu • Add to Playlist: Adds the current song to the Playlist: Playlist
is placed on the left tab in the list
• Delete Current File: Deletes the current track from My Music.
TUNE Turn the
TUNE knob to search a desired track. If the desired
track is displayed, press the TUNE knob to play the track.
If the TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is restored.
My Music
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
