KIA NIRO 2019  Owners Manual 857
Maintenance

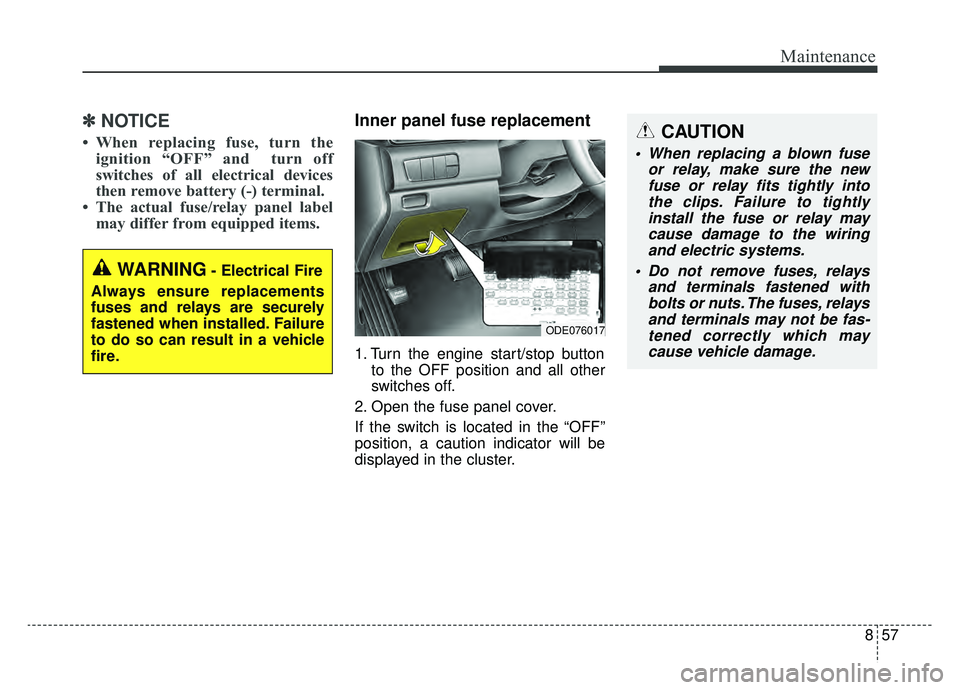

✽ ✽NOTICE
• When replacing fuse, turn the
ignition “OFF” and  turn off
switches of all electrical devices
then remove battery (-) terminal.
• The actual fuse/relay panel

Page 532 of 611

KIA NIRO 2019  Owners Manual Maintenance
58
8

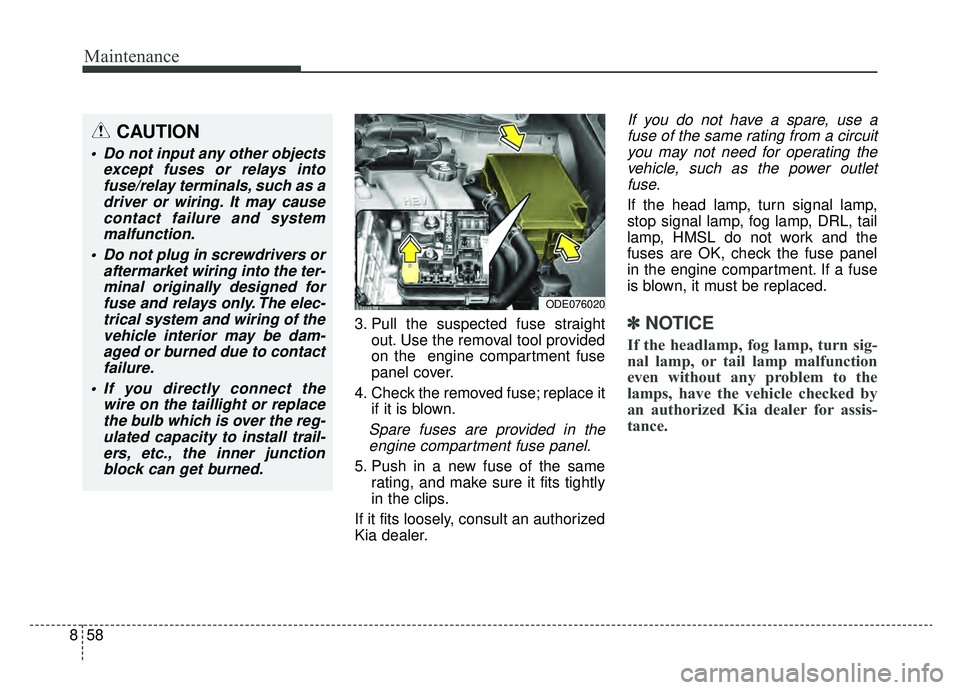

3. Pull the suspected fuse straight
out. Use the removal tool provided
on the  engine compartment fuse
panel cover.
4. Check the removed fuse; replace it if it is blown.
Spare fuses a

Page 533 of 611

KIA NIRO 2019  Owners Manual 859
Maintenance

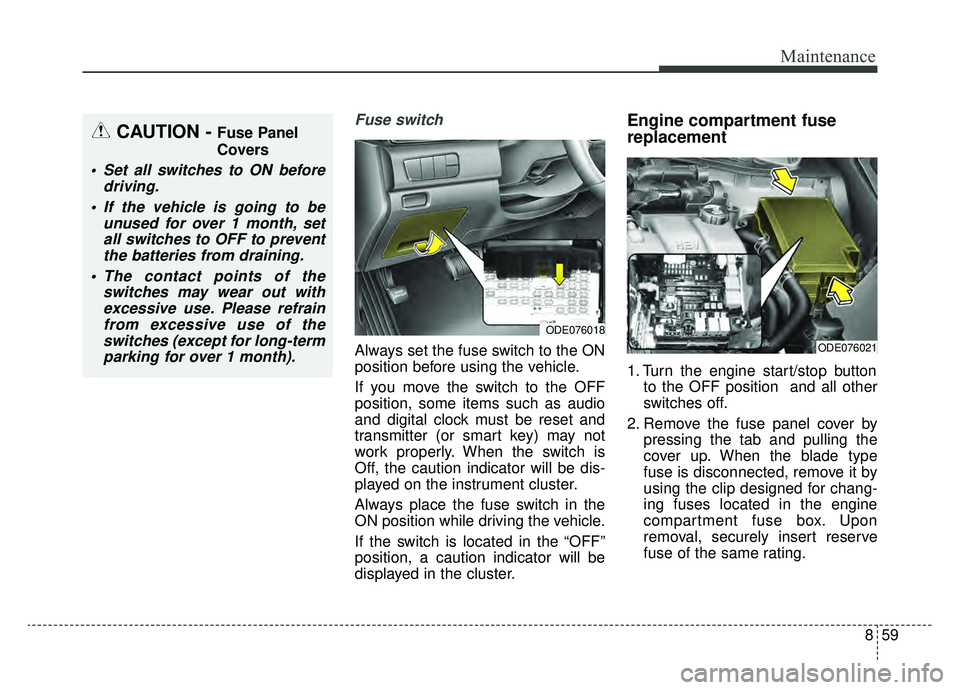

Fuse switch
Always set the fuse switch to the ON
position before using the vehicle.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset

Page 534 of 611

KIA NIRO 2019  Owners Manual Maintenance
60
8

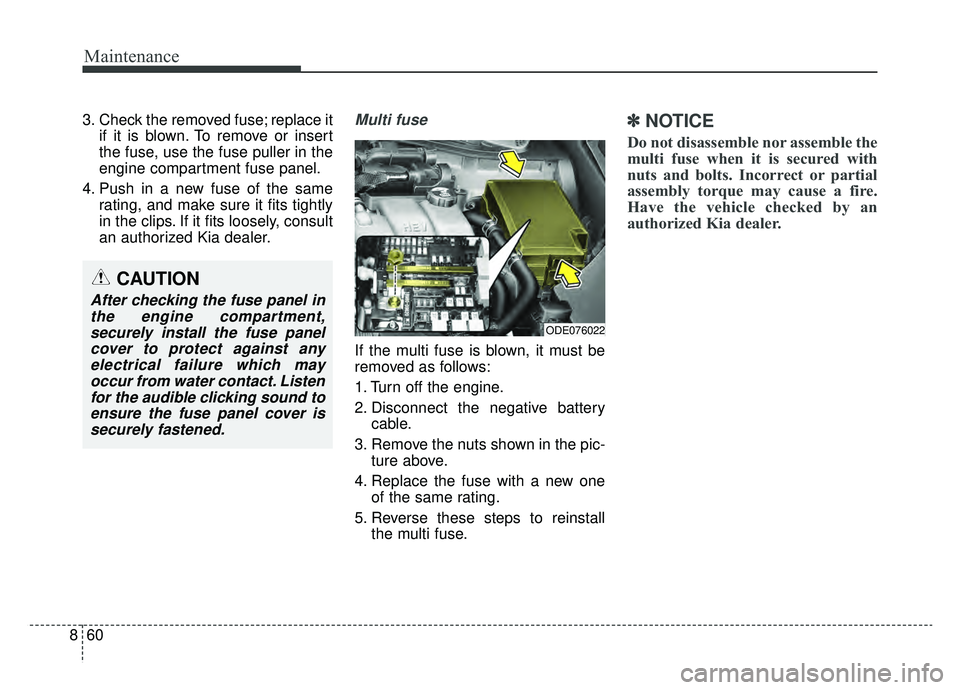

3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same rating,

Page 535 of 611

KIA NIRO 2019  Owners Manual 861
Maintenance

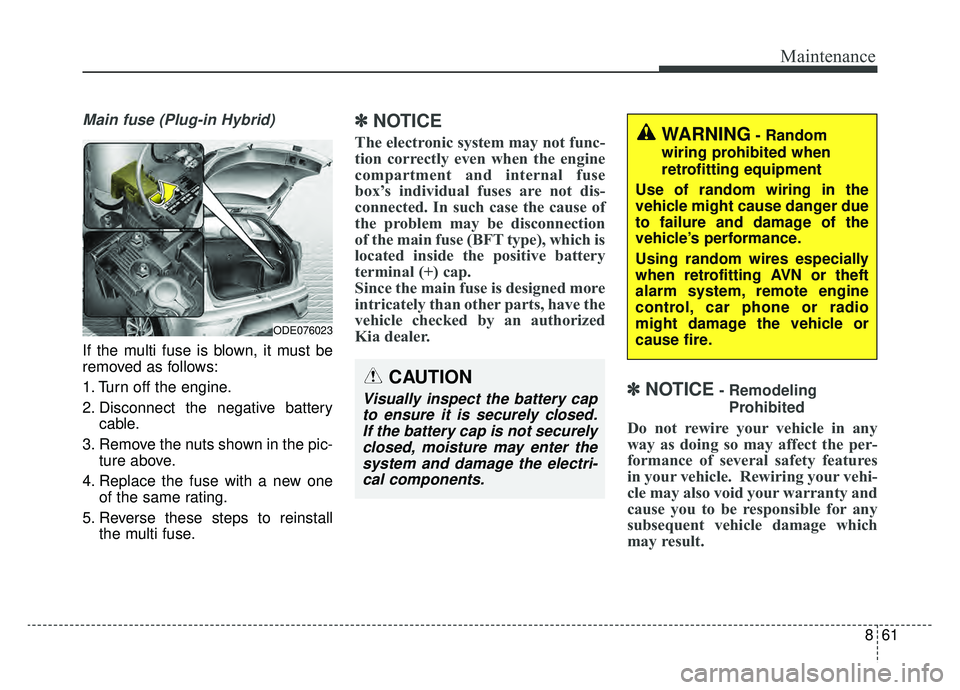

Main fuse (Plug-in Hybrid)
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative batterycable.
3. Remove the nuts shown in the p

Page 536 of 611

KIA NIRO 2019  Owners Manual Maintenance
62
8

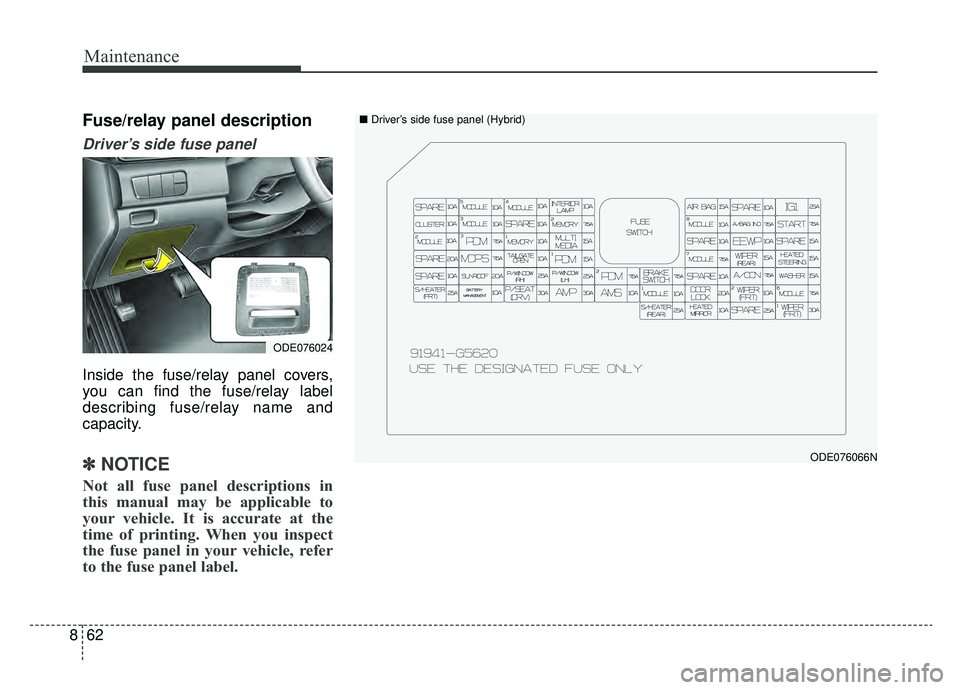

Fuse/relay panel description
Driver’s side fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ ✽
NOTICE

Page 537 of 611

KIA NIRO 2019  Owners Manual 863
Maintenance

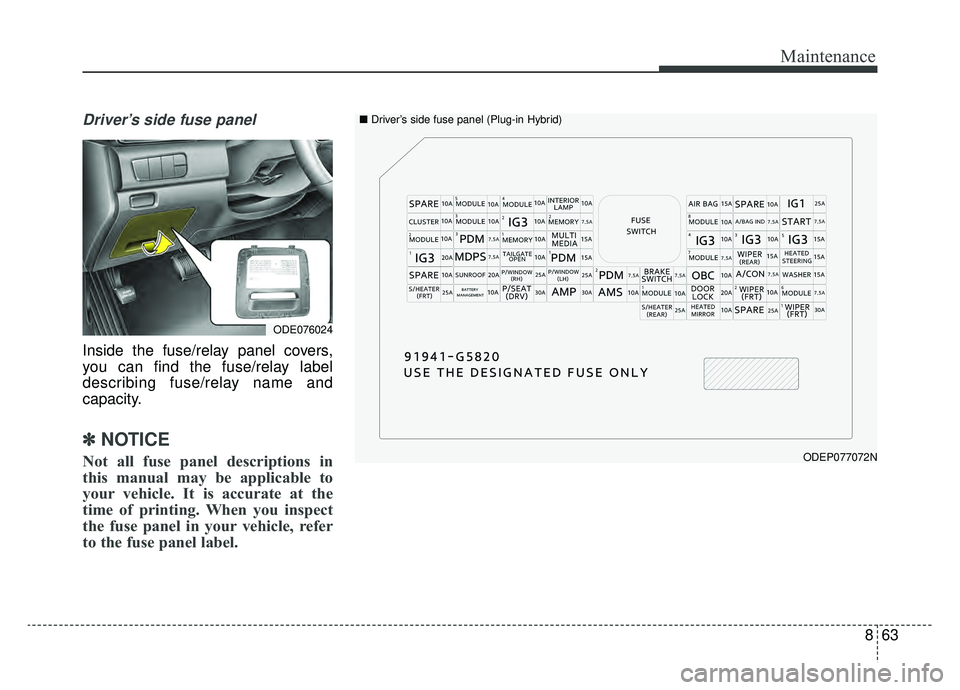

Driver’s side fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ ✽NOTICE
Not all fuse panel descriptions

Page 538 of 611

KIA NIRO 2019  Owners Manual Maintenance
64
8
Instrument panel (Driver’s side fuse panel) (Hybrid)

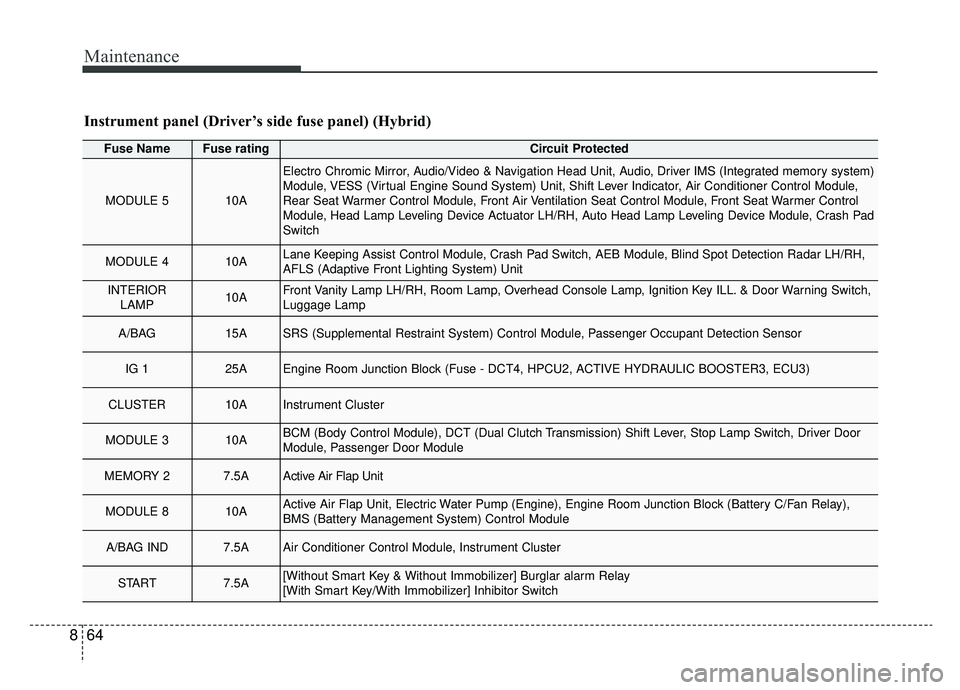

Fuse NameFuse ratingCircuit Protected
MODULE 510A
Electro Chromic Mirror, Audio/Video & Navigation Head Unit, Audio, Driver IMS

Page 539 of 611

KIA NIRO 2019  Owners Manual 865
Maintenance
Fuse NameFuse ratingCircuit Protected

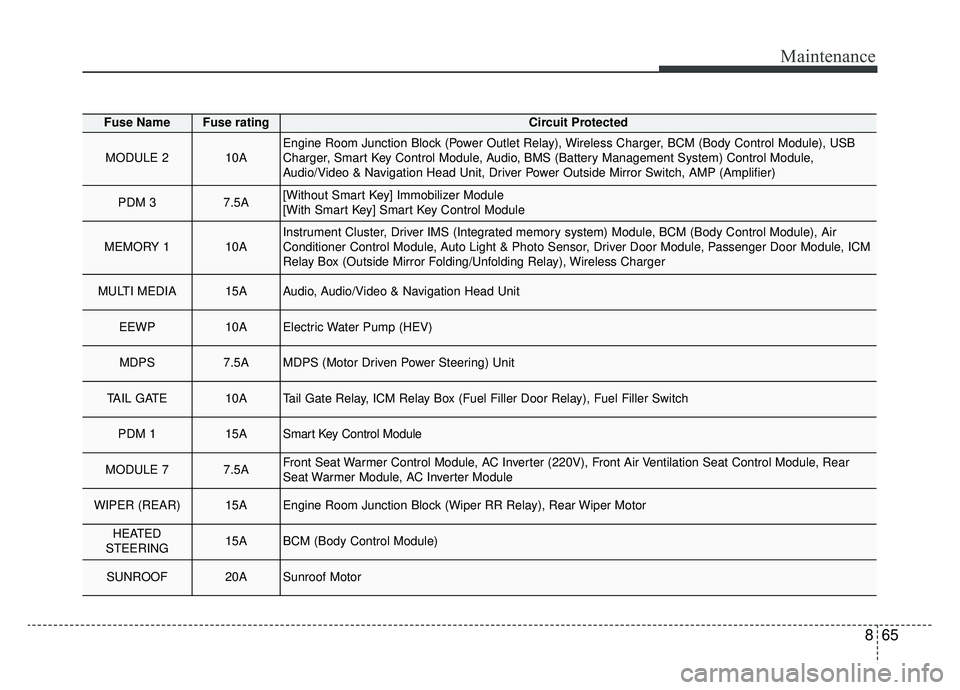

MODULE 210AEngine Room Junction Block (Power Outlet Relay), Wireless Charger, BCM (Body Control Module), USB
Charger, Smart Key Control Module, Au

Page 540 of 611

KIA NIRO 2019  Owners Manual Maintenance
66
8
Fuse NameFuse ratingCircuit Protected

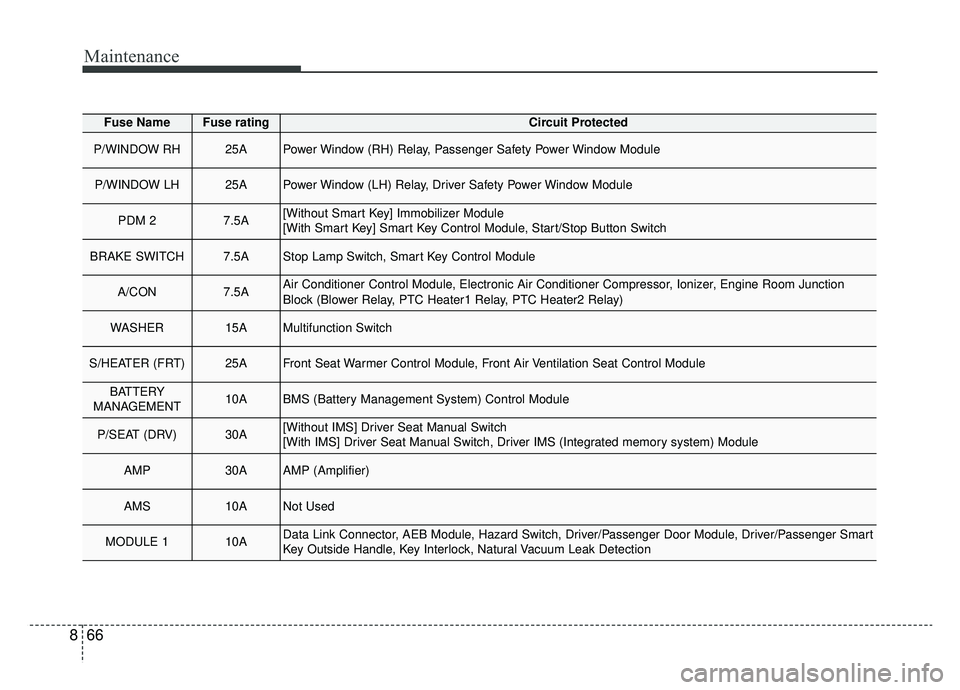

P/WINDOW RH25APower Window (RH) Relay, Passenger Safety Power Window Module
P/WINDOW LH25APower Window (LH) Relay, Driver Safety Power Window Mod
