KIA NIRO 2019  Owners Manual 877
Maintenance

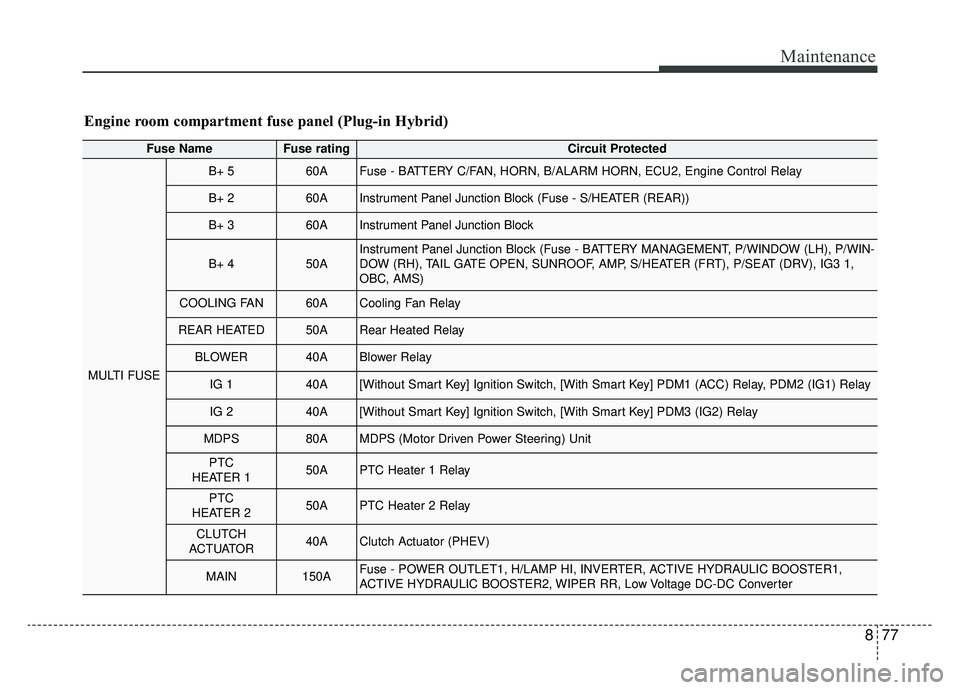

Engine room compartment fuse panel (Plug-in Hybrid)
Fuse NameFuse ratingCircuit Protected
MULTI FUSE
B+ 560AFuse - BATTERY C/FAN, HORN, B/ALARM HORN, ECU2, Engine Control Relay
B+ 260A

Page 552 of 611

KIA NIRO 2019  Owners Manual Maintenance
78
8
Fuse NameFuse ratingCircuit Protected
FUSE
POWER
OUTLET 320APower Outlet #2
POWER
OUTLET 220APower Outlet #1
DCT 315ATCM (Transmission Control Module)
HPCU 110AHPCU (Hybrid Power Cont

Page 553 of 611

KIA NIRO 2019  Owners Manual 879
Maintenance
Fuse NameFuse ratingCircuit Protected
FUSE
ACTIVE
HYDRAULIC BOOTER 230AIntegrated Brake Actuation Unit
INVERTER30AAC Inverter Module
POWER
OUTLET 140APower Outlet Relay
B/UP LAMP10AEle

Page 554 of 611

KIA NIRO 2019  Owners Manual Maintenance
80
8

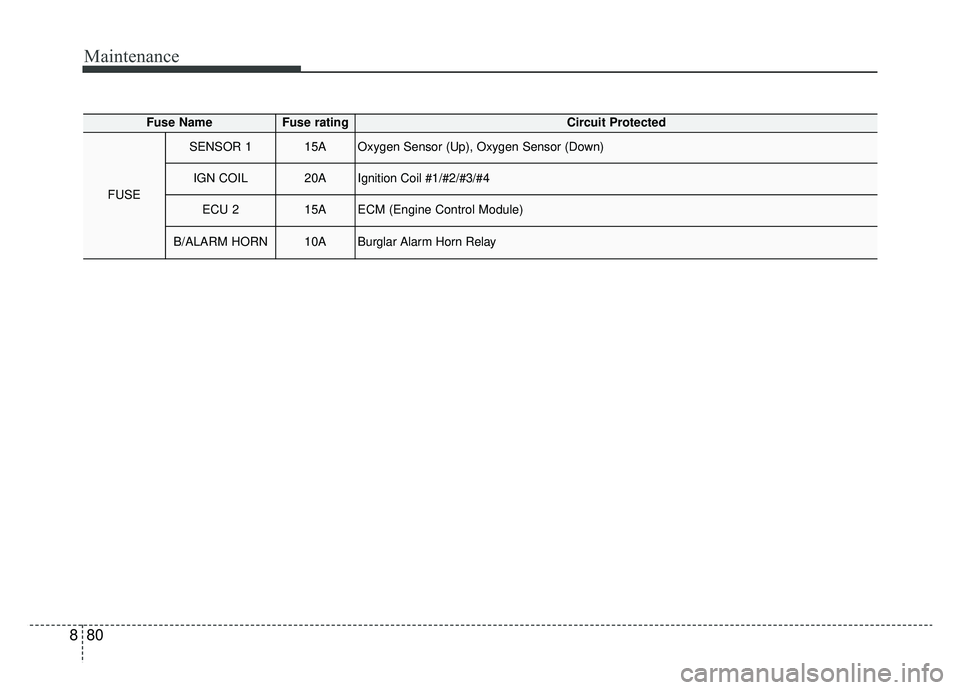

Fuse NameFuse ratingCircuit Protected
FUSE
SENSOR 115AOxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL20AIgnition Coil #1/#2/#3/#4
ECU 215AECM (Engine Control Module)
B/ALARM HORN10A

Page 555 of 611

KIA NIRO 2019  Owners Manual 881
Maintenance

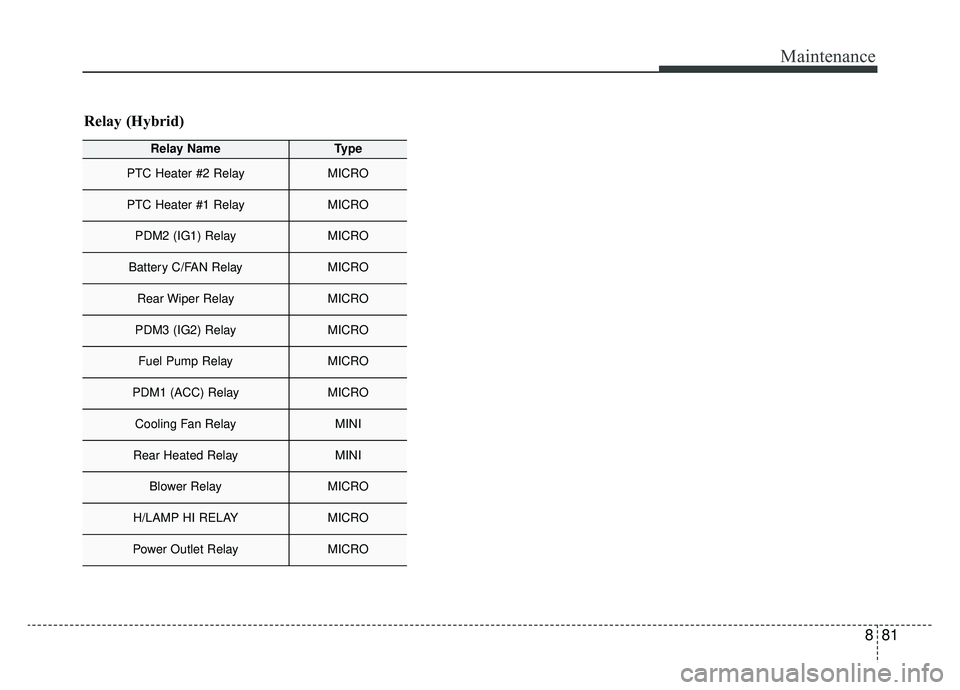

Relay (Hybrid)
Relay NameType
PTC Heater #2 RelayMICRO
PTC Heater #1 RelayMICRO
PDM2 (IG1) RelayMICRO
Battery C/FAN RelayMICRO
Rear Wiper RelayMICRO
PDM3 (IG2) RelayMICRO
Fuel Pump Rel

Page 556 of 611

KIA NIRO 2019  Owners Manual Maintenance
82
8

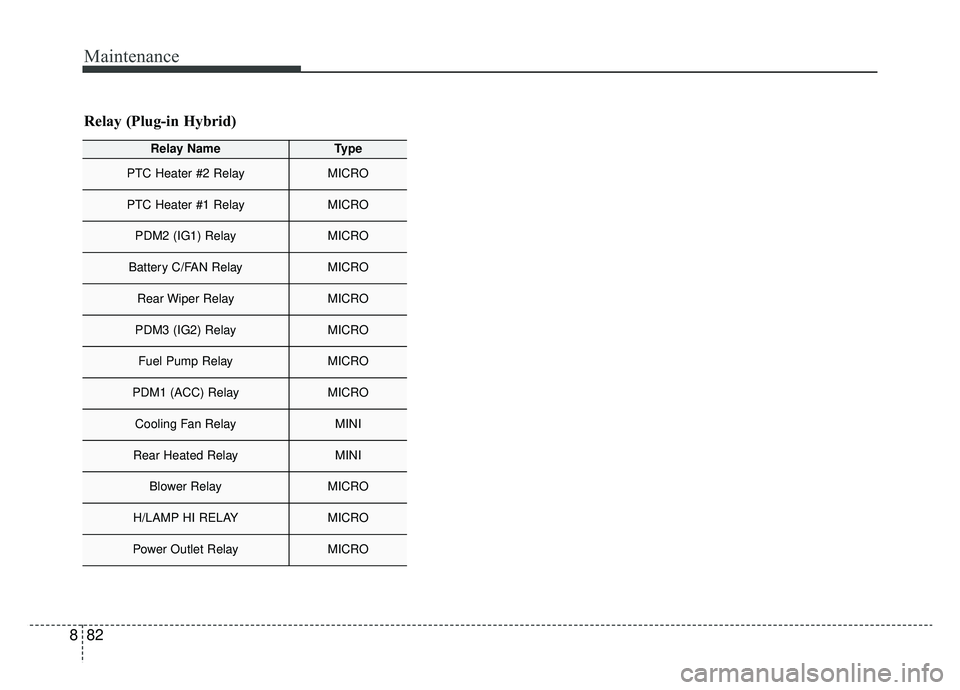

Relay (Plug-in Hybrid)
Relay NameType
PTC Heater #2 RelayMICRO
PTC Heater #1 RelayMICRO
PDM2 (IG1) RelayMICRO
Battery C/FAN RelayMICRO
Rear Wiper RelayMICRO
PDM3 (IG2) RelayMICRO
Fuel

Page 557 of 611

KIA NIRO 2019  Owners Manual 883
Maintenance

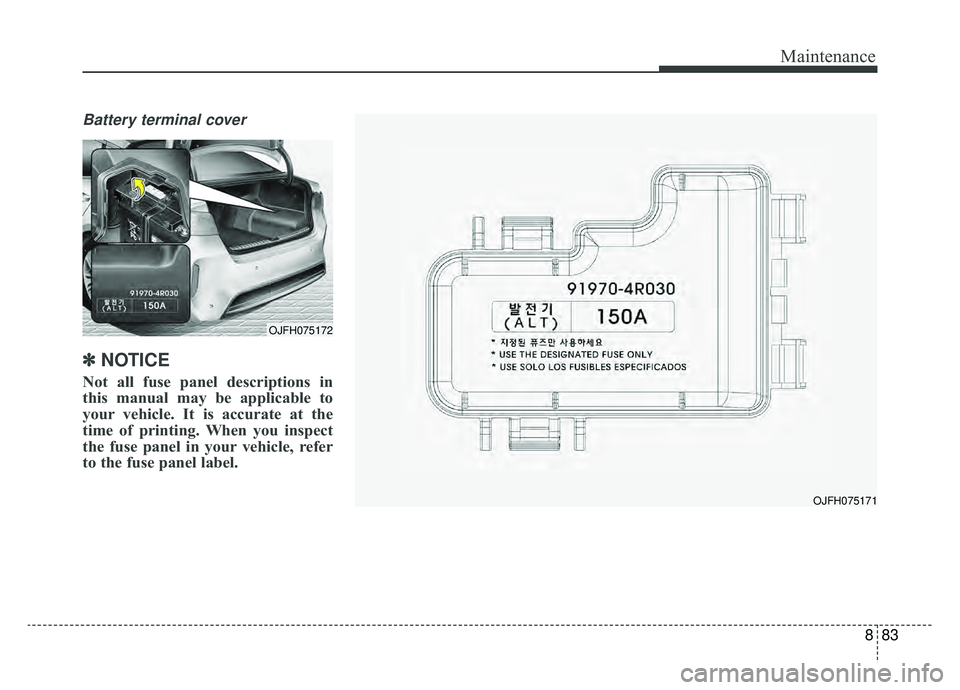

Battery terminal cover
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse

Page 558 of 611

KIA NIRO 2019  Owners Manual Maintenance
84
8
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 9.
When changi

Page 559 of 611

KIA NIRO 2019  Owners Manual 885
Maintenance

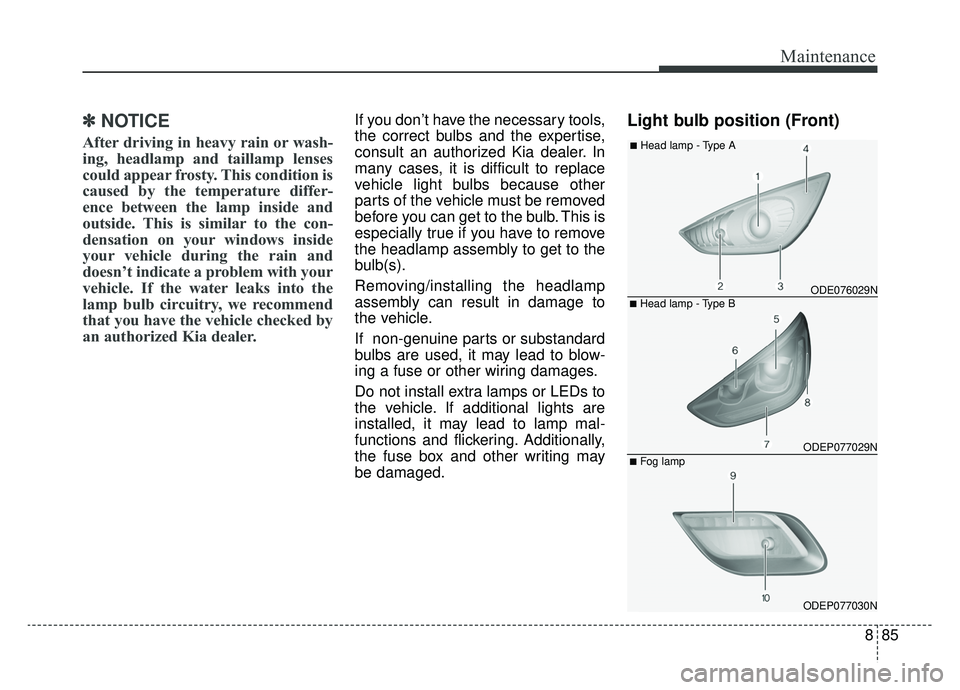

✽ ✽NOTICE
After driving in heavy rain or wash-
ing, headlamp and taillamp lenses
could appear frosty. This condition is
caused by the temperature differ-
ence between the lamp insi

Page 560 of 611

KIA NIRO 2019  Owners Manual Maintenance
86
8

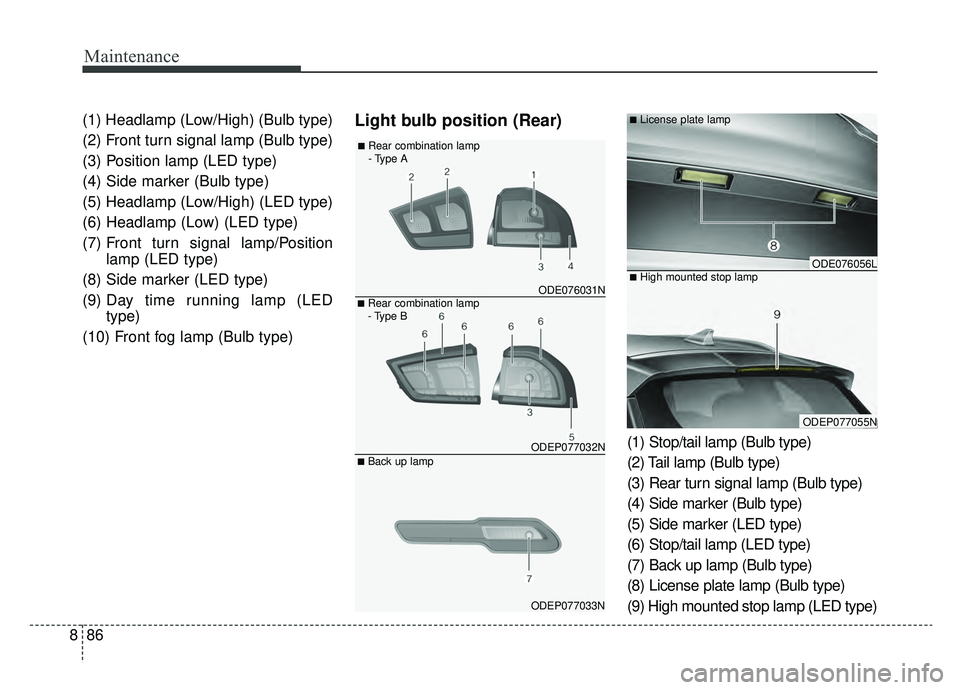

(1) Headlamp (Low/High) (Bulb type)
(2) Front turn signal lamp (Bulb type)
(3) Position lamp (LED type)
(4) Side marker (Bulb type)
(5) Headlamp (Low/High) (LED type)
(6) Headlamp (Lo
