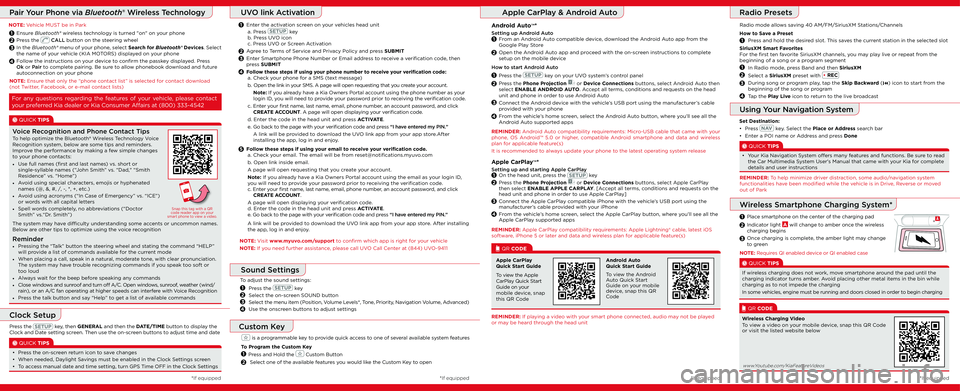

set clock KIA NIRO 2020 Quick Start Guide with UVO link

How to Save a Preset
Press and hold the desired slot. This saves the current station in the selected slot
Pair Your Phone via Bluetooth® Wireless Technology
NOTE: Vehicle MUST be in Park
1
2
3
Ensure Bluetooth® wireless technology is turned "on" on your phone
Press the CALL button on the steering wheel
In the Bluetooth® menu of your phone, select Search for Bluetooth® Devices. Select the name of your vehicle (KIA MOTORS) displayed on your phone
Follow the instructions on your device to confirm the passkey displayed. Press Ok or Pair to complete pairing. Be sure to allow phonebook download and future autoconnection on your phone
To adjust the sound settings:
Press the key
Select the on-screen SOUND button
Select the menu item (Position, Volume Levels*, Tone, Priority, Navigation Volume, Advanced)
Use the onscreen buttons to adjust settings
Radio Presets
To help optimize the Bluetooth® Wireless Technology Voice Recognition system, below are some tips and reminders. Improve the performance by making a few simple changes to your phone contacts:
• Use full names (first and last names) vs. short or single-syllable names (“John Smith” vs. “Dad," “Smith Residence” vs. “Home”)
• Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc.)
• Avoid using acronyms (“In Case of Emergency” vs. “ICE”) or words with all capital letters
• Spell words completely, no abbreviations (“Doctor Smith” vs.“Dr. Smith”)
Voice Recognition and Phone Contact Tips
Snap this tag with a QR code reader app on your smart phone to view a video.
*If equipped*If equipped
4
NOTE: Ensure that only the “phone contact list” is selected for contact download (not Twitter, Facebook, or e-mail contact lists)
Radio mode allows saving 40 AM/FM/SiriusXM Stations/Channels
1
*If equipped
Sound Settings
Place smartphone on the center of the charging pad
Indicator light A will change to amber once the wireless charging begins
Once charging is complete, the amber light may change to green
2
3
1A
If wireless charging does not work, move smartphone around the pad until the charging indicator turns amber. Avoid placing other metal items in the bin while charging as to not impede the charging
In some vehicles, engine must be running and doors closed in order to begin charging
To view a video on your mobile device, snap this QR Code or visit the listed website below
Wireless Charging Video
www.Youtube.com/KiaFeatureVideos
NOTE: Requires QI enabled device or QI enabled case
Wireless Smartphone Charging System*
Apple CarPlay & Android Auto
• Your Kia Navigation System offers many features and functions. Be sure to read the Car Multimedia System User's Manual that came with your Kia for complete details and user instructions
Set Destination:
• Press key. Select the Place or Address search bar
• Enter a POI name or Address and press Done
Using Your Navigation System
2
3
4
1
Press the key, then GENERAL and then the DATE/TIME button to display the Clock and Date setting screen. Then use the on-screen buttons to adjust time and date
Clock Setup
• Press the on-screen return icon to save changes
• When needed, Daylight Savings must be enabled in the Clock Settings screen
• To access manual date and time setting, turn GPS Time OFF in the Clock Settings
SiriusXM Smart FavoritesFor the first ten favorite SiriusXM channels, you may play live or repeat from the beginning of a song or a program segment
In Radio mode, press Band and then SiriusXM
Select a SiriusXM preset with • REC During song or program play, tap the Skip Backward (I7) icon to start from the beginning of the song or program
Tap the Play Live icon to return to the live broadcast
1
2
3
4
QR CODE
Custom Key
is a programmable key to provide quick access to one of several available system features
To Program the Custom Key
Press and Hold the Custom Button
Select one of the available features you would like the Custom Key to open2
1
• Pressing the “Talk” button the steering wheel and stating the command “HELP” will provide a list of commands available for the current mode
• When placing a call, speak in a natural, moderate tone, with clear pronunciation. The system may have trouble recognizing commands if you speak too soft or too loud
• Always wait for the beep before speaking any commands
• Close windows and sunroof and turn off A/C. Open windows, sunroof, weather (wind/rain), or an A/C fan operating at higher speeds can interfere with Voice Recognition
• Press the talk button and say “Help” to get a list of available commands
Reminder
The system may have difficulty understanding some accents or uncommon names. Below are other tips to optimize using the voice recognition
REMINDER: To help minimize driver distraction, some audio/navigation system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
For any questions regarding the features of your vehicle, please contact
your preferred Kia dealer or Kia Consumer Affairs at (800) 333-4542
*If equipped
Apple CarPlay™*
Setting up and starting Apple CarPlay1 On the head unit, press the key
2 Press the Phone Projection or Device Connections buttons, select Apple CarPlay then select ENABLE APPLE CARPLAY. [Accept all terms, conditions and requests on the head unit and phone in order to use Apple CarPlay]
3 Connect the Apple CarPlay compatible iPhone with the vehicle’s USB port using the manufacturer’s cable provided with your iPhone
4 From the vehicle’s home screen, select the Apple CarPlay button, where you’ll see all the Apple CarPlay supported apps
Android Auto™*
Setting up Android AutoFrom an Android Auto compatible device, download the Android Auto app from the Google Play Store
Open the Android Auto app and proceed with the on-screen instructions to complete setup on the mobile device
How to start Android Auto
Press the key on your UVO system’s control panel
Press the Phone Projection or Device Connections buttons, select Android Auto then select ENABLE ANDROID AUTO. Accept all terms, conditions and requests on the head unit and phone in order to use Android Auto
Connect the Android device with the vehicle’s USB port using the manufacturer’s cable provided with your phone
From the vehicle’s home screen, select the Android Auto button, where you’ll see all the Android Auto supported apps
Apple CarPlay Quick Start Guide
To view the Apple CarPlay Quick Start Guide on your mobile device, snap this QR Code
QR CODE
Android Auto Quick Start Guide
To view the Android Auto Quick Start Guide on your mobile device, snap this QR Code
2
1
2
3
4
1
REMINDER: Apple CarPlay compatibility requirements: Apple Lightning® cable, latest iOS software, iPhone 5 or later and data and wireless plan for applicable feature(s)
REMINDER: If playing a video with your smart phone connected, audio may not be played or may be heard through the head unit
REMINDER: Android Auto compatibility requirements: Micro-USB cable that came with your phone, OS Android™ 5.0 or higher, compatible Android smartphone and data and wireless plan for applicable feature(s)
It is recommended to always update your phone to the latest operating system release
UVO link Activation
NOTE: Visit www.myuvo.com/support to confirm which app is right for your vehicle
NOTE: If you need further assistance, please call UVO Call Center at (844) UVO-9411
Enter the activation screen on your vehicles head unit
a. Press keyb. Press UVO iconc. Press UVO or Screen Activation
Agree to Terms of Service and Privacy Policy and press SUBMIT
Enter Smartphone Phone Number or Email address to receive a verification code, then press SUBMIT
Follow these steps if using your phone number to receive your verification code:a. Check your phone for a SMS (text message)
b. Open the link in your SMS. A page will open requesting that you create your account.
Note: If you already have a Kia Owners Portal account using the phone number as your login ID, you will need to provide your password prior to receiving the verification code.
c. Enter your first name, last name, email, phone number, an account password, and click CREATE ACCOUNT. A page will open displaying your verification code.
d. Enter the code in the head unit and press ACTIVATE.
e. Go back to the page with your verification code and press “I have entered my PIN.”
A link will be provided to download the UVO link app from your app store.After installing the app, log in and enjoy.
Follow these steps if using your email to receive your verification code. a. Check your email. The email will be from [email protected]
b. Open link inside email.
A page will open requesting that you create your account.
Note: If you already have a Kia Owners Portal account using the email as your login ID, you will need to provide your password prior to receiving the verification code.c. Enter your first name, last name, email, phone number, an account password, and click CREATE ACCOUNT.
A page will open displaying your verification code.d. Enter the code in the head unit and press ACTIVATE.e. Go back to the page with your verification code and press “I have entered my PIN.”
A link will be provided to download the UVO link app from your app store. After installing the app, log in and enjoy.
2
3
4
1
5
