KIA NIRO HYBRID EV 2022 Owners Manual

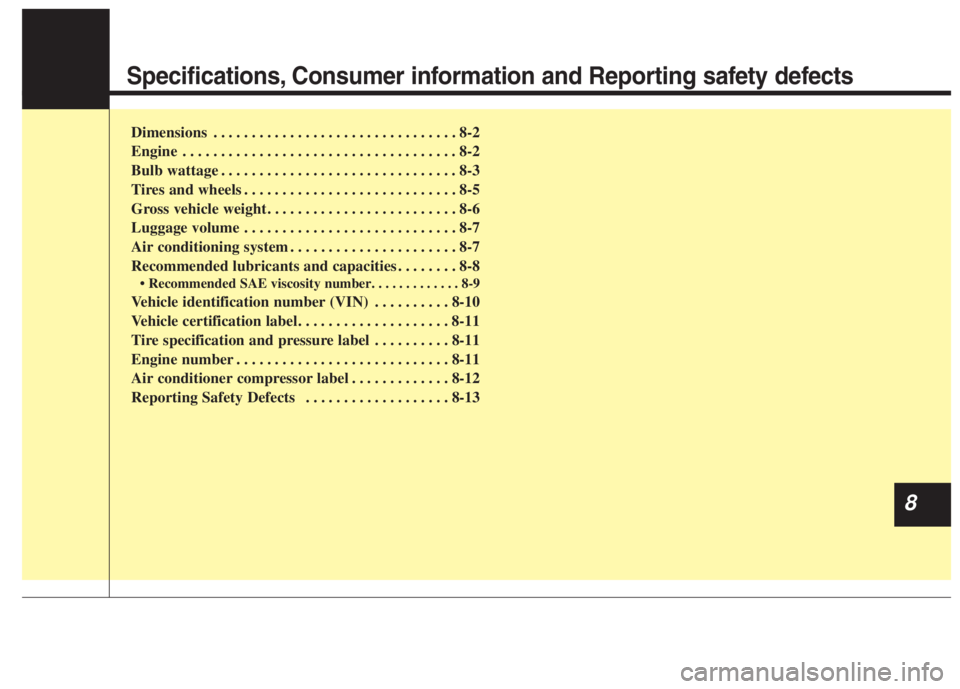

Specifications, Consumer information and Reporting safety defects
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-7
Recommended lubricants and capacities . . . . . . . . 8-8
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-9
Vehicle identification number (VIN) . . . . . . . . . . 8-10
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 8-11
Tire specification and pressure label . . . . . . . . . . 8-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Air conditioner compressor label . . . . . . . . . . . . . 8-12
Reporting Safety Defects . . . . . . . . . . . . . . . . . . . 8-13
8

2 8

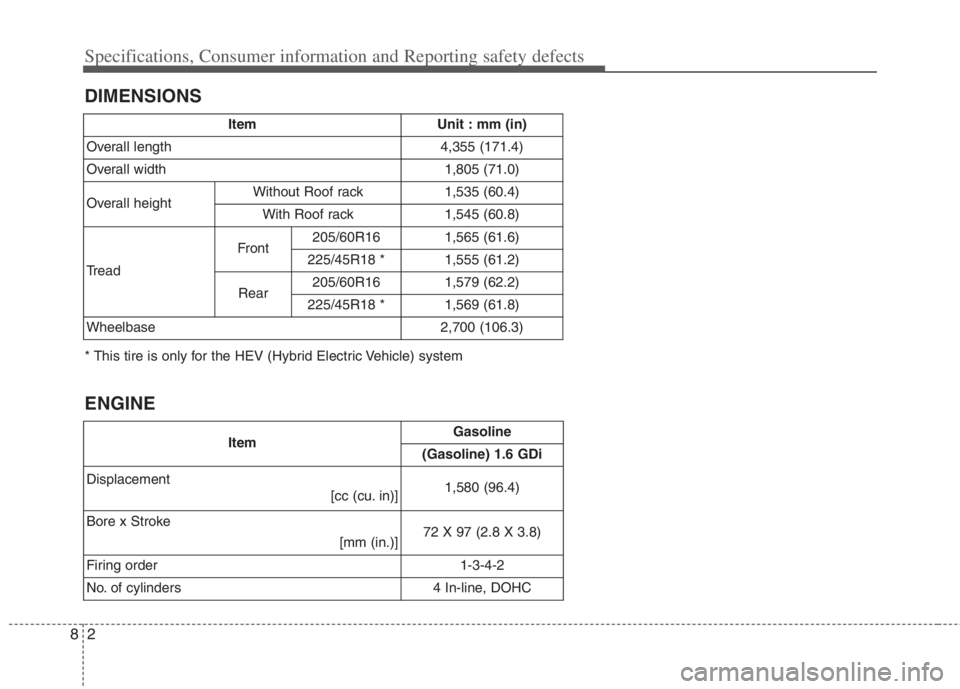

DIMENSIONS Specifications, Consumer information and Reporting safety defects
ENGINE
ItemUnit : mm (in)
Overall length4,355 (171.4)
Overall width1,805 (71.0)
Overall heightWithout Roof rack1,535 (60.4)
With Roof rack1,545 (60.8)
Tread
Front205/60R161,565 (61.6)
225/45R18 *1,555 (61.2)
Rear205/60R161,579 (62.2)
225/45R18 *1,569 (61.8)
Wheelbase2,700 (106.3)
ItemGasoline
(Gasoline) 1.6 GDi
Displacement
[cc (cu. in)]
1,580 (96.4)
Bore x Stroke
[mm (in.)]
72 X 97 (2.8 X 3.8)
Firing order
1-3-4-2
No. of cylinders
4 In-line, DOHC
* This tire is only for the HEV (Hybrid Electric Vehicle) system

83

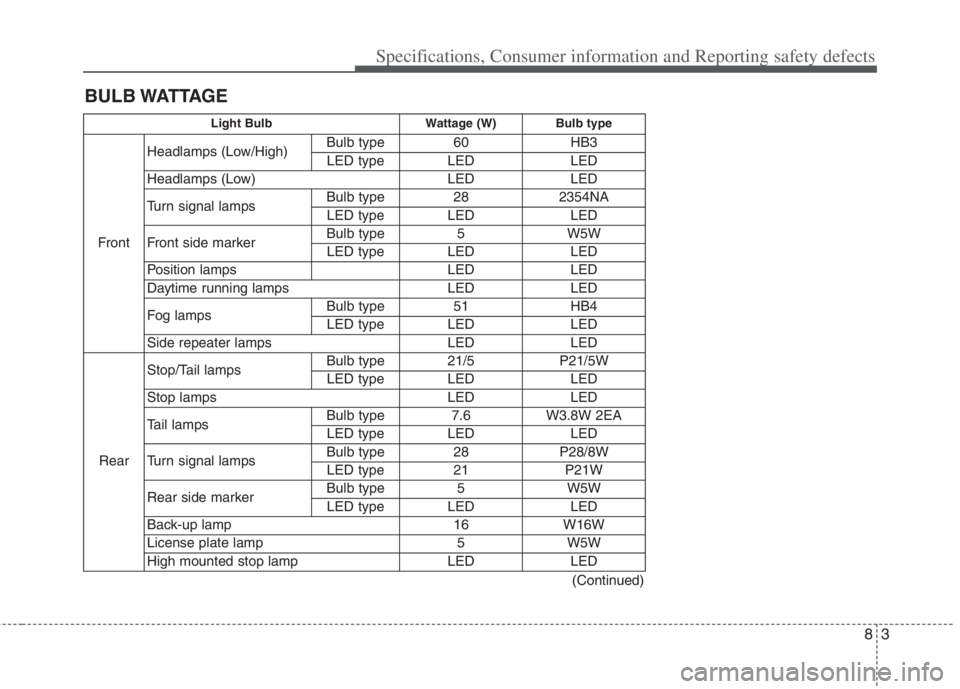

BULB WATTAGESpecifications, Consumer information and Reporting safety defects
(Continued)
Light Bulb Wattage (W) Bulb type
FrontHeadlamps (Low/High)Bulb type 60 HB3
LED type LED LED
Headlamps (Low) LED LED
Turn signal lampsBulb type 28 2354NA
LED type LED LEDFront side markerBulb type5W5W
LED typeLEDLED
Position lampsLEDLED
Daytime running lamps LED LED
Fog lampsBulb type 51 HB4
LED type LED LED
Side repeater lamps LED LED
RearStop/Tail lampsBulb type 21/5 P21/5W
LED type LED LED
Stop lamps LED LED
Tail lampsBulb type 7.6 W3.8W 2EA
LED type LED LED
Turn signal lampsBulb type 28 P28/8W
LED type 21 P21W
Rear side markerBulb type 5 W5W
LED type LED LED
Back-up lamp 16 W16W
License plate lamp 5 W5W
High mounted stop lamp LED LED

4 8
Specifications, Consumer information and Reporting safety defects

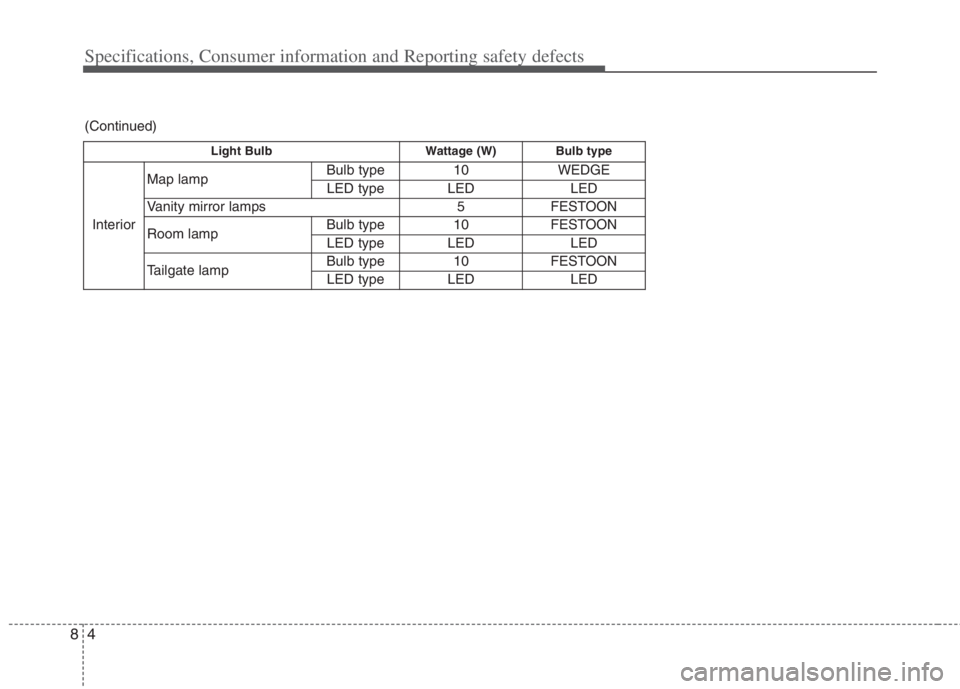

Light Bulb Wattage (W) Bulb type
InteriorMap lampBulb type 10 WEDGE
LED type LED LED
Vanity mirror lamps5FESTOON
Room lampBulb type10FESTOON
LED typeLEDLED
Tailgate lampBulb type10FESTOON
LED typeLEDLED
(Continued)

85

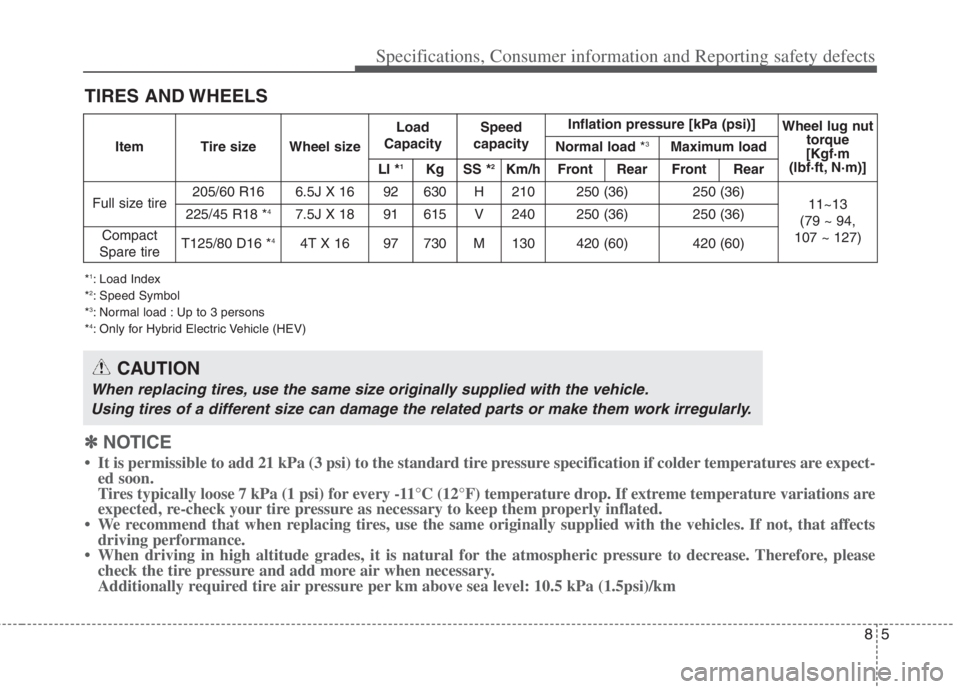

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
*4: Only for Hybrid Electric Vehicle (HEV)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make them work irregularly.
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [kPa (psi)]Wheel lug nut
torque
[Kgf·m
(lbf·ft, N·m)]
Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size tire205/60 R16 6.5J X 1692630H210250 (36)250 (36)11~13
(79 ~ 94,
107 ~ 127)225/45 R18 *47.5J X 1891615V240250 (36)250 (36)
Compact
Spare tireT125/80 D16 *44T X 1697730M130420 (60)420 (60)
Specifications, Consumer information and Reporting safety defects
✽ ✽
NOTICE
• It is permissible to add 21 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 7 kPa (1 psi) for every -11°C (12°F) temperature drop. If extreme temperature variations are
expected, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that affects
driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please
check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10.5 kPa (1.5psi)/km

6 8
Specifications, Consumer information and Reporting safety defects

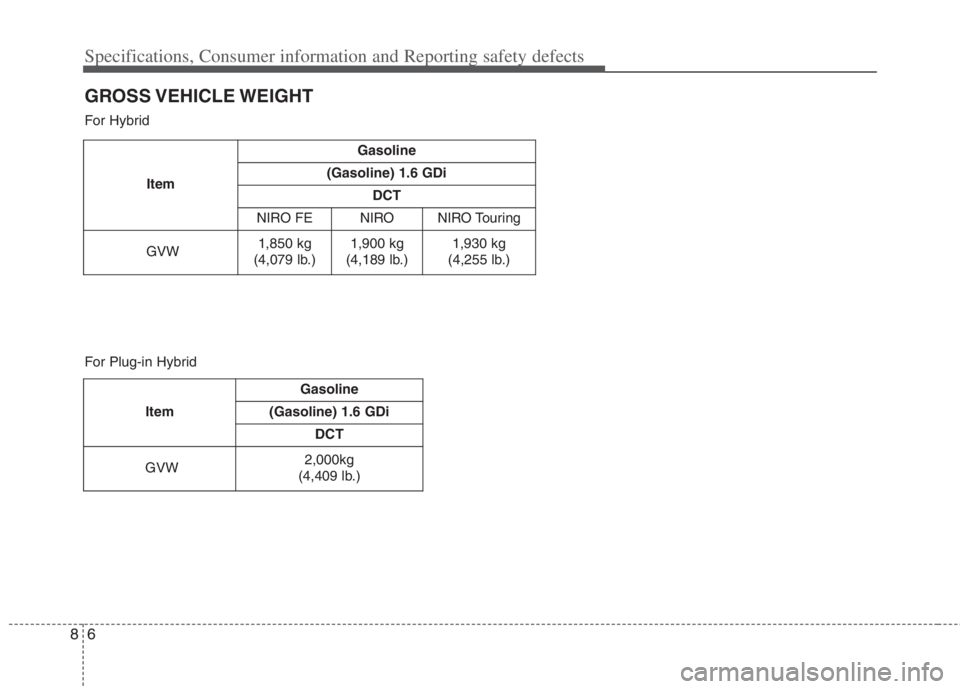

GROSS VEHICLE WEIGHT
Item
Gasoline
(Gasoline) 1.6 GDi
DCT
NIRO FENIRONIRO Touring
GVW1,850 kg
(4,079 lb.)1,900 kg
(4,189 lb.)1,930 kg
(4,255 lb.)
For Hybrid
For Plug-in Hybrid
Item
Gasoline
(Gasoline) 1.6 GDi
DCT
GVW2,000kg
(4,409 lb.)

87
Specifications, Consumer information and Reporting safety defects

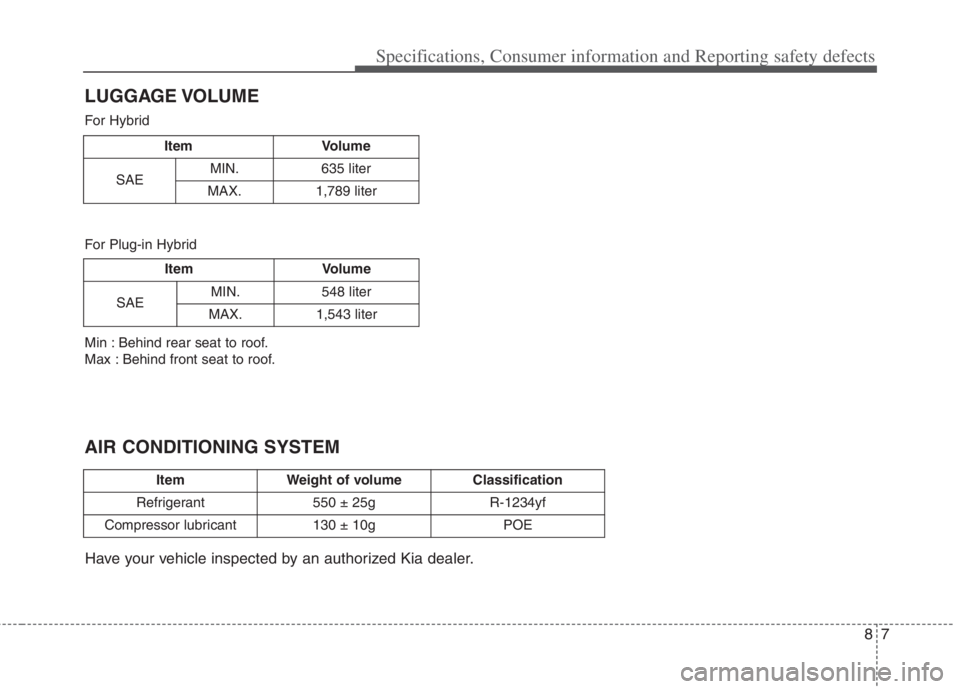

LUGGAGE VOLUME
Have your vehicle inspected by an authorized Kia dealer.
ItemWeight of volumeClassification
Refrigerant550 ± 25gR-1234yf
Compressor lubricant130 ± 10gPOE
AIR CONDITIONING SYSTEM
Min : Behind rear seat to roof.
Max : Behind front seat to roof.
ItemVolume
SAEMIN.635 liter
MAX.1,789 liter
ItemVolume
SAEMIN.548 liter
MAX.1,543 liter
For Plug-in Hybrid For Hybrid

88
Specifications, Consumer information and Reporting safety defects
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: To maintain your vehicle’s best brake and ABS/ESC performance, use Kia genuine brake fluid as in the specification.
Lubricant VolumeClassification
Engine oil *1
(drain and refill)
3.8 liter (4.01 US qt.)Full synthetic SAE 0W-20, API Latest(ILSAC Latest) or ACEA C5
Dual Clutch Transmission Fluid1.6 ~ 1.7 liter
(1.69 ~ 1.79 US qt.)API GL-4, SAE 70W
HK D DCTF TGO-10 PLUS (SK)
SPIRAX S6 GHDE 70W DCTF PLUS (H.K.SHELL)
Coolant5.98 liter (6.31 US qt.)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Inverter coolant2.43 liter (2.56 US qt.)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid *2402.6 ± 24.4 cc
(0.425 ± 0.025 US qt.)SAE J1704 DOT-4 LV, ISO4925 CLASS-6, FMVSS116 DOT-4
Engine clutch actuator fluid100 ± 20 cc
(0.105 ± 0.021 US qt.)DOT 3 or DOT 4
FuelHEV45 liter (11.9 gal)Refer to Fuel requirements in chapter 1.PHEV43 liter (11.4 gal)

89
Specifications, Consumer information and Reporting safety defects
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfacto-
ry lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select the
recommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
(Gasoline) 1.6 GDi0W-20
An engine oil displaying this API Certification Mark conforms
to the international Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.

10 8
Specifications, Consumer information and Reporting safety defects

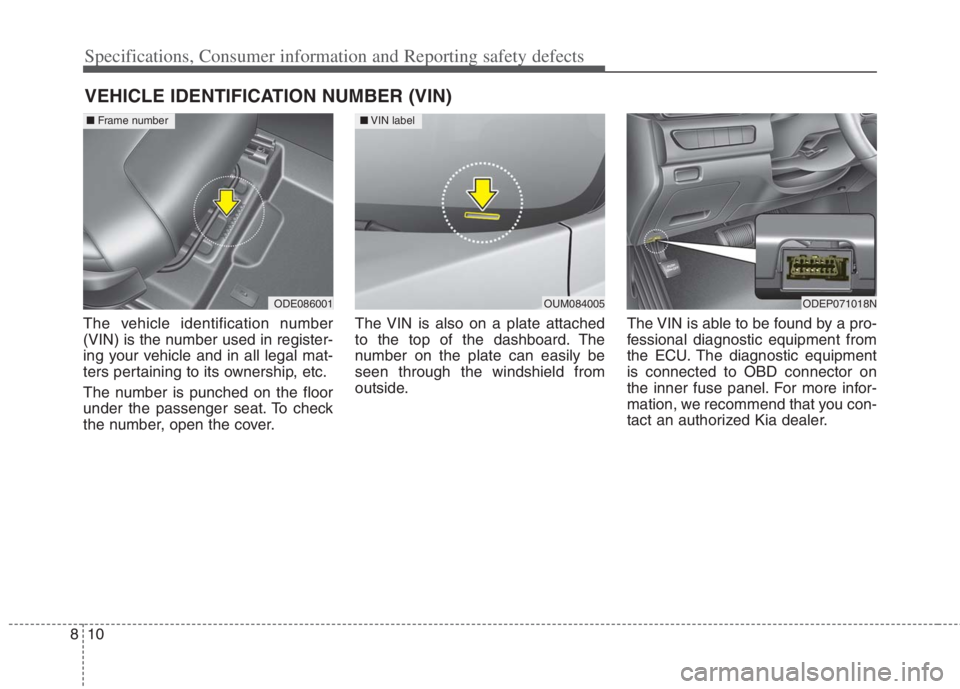

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The VIN is able to be found by a pro-
fessional diagnostic equipment from
the ECU. The diagnostic equipment
is connected to OBD connector on
the inner fuse panel. For more infor-
mation, we recommend that you con-
tact an authorized Kia dealer.
ODE086001
■Frame number
OUM084005
■VIN label
ODEP071018N
