FOREWORD
Dear Customer,
Thank you for selecting your new Kia vehicle.
As a global car manufacturer focused on building high-quality vehicles w\
ith exceptional value, Kia is dedicated to providing you
with a customer service experience that exceeds your expectations.
If you need technical assistance, visit an authorized Kia dealership whe\
re factory-trained technicians, recommended special too ls,
and genuine Kia replacement parts can be provided.
This Owner's Manual will acquaint you with the operation of features and\
equipment that are either standard or optional on this
vehicle, along with the maintenance needs of this vehicle. Therefore, you may find some descriptions and illustrations not appl i-
cable to your vehicle. You are advised to read this publication carefully and follow the instruc\
tions and recommendations. Plea se
always keep this manual in the vehicle for your, and any subsequent owner's, reference.
All information contained in this Owner's Manual was accurate at the tim\
e of publication. However, as Kia continues to make
improvements to its products, the company reserves the right to make cha\
nges to this manual or any of its vehicles at any time
without notice and without incurring any obligations.
Please drive safely, and enjoy your Kia vehicle!
© 2021 Kia Canada Inc.
All rights reserved. Reproduction by any means, electronic or
mechanical, including photocopying, recording, or by any
information storage and retrieval system or translation in whole
or part is not permitted without written authorization from Kia
Canada Inc..
Printed in Korea
Page 2 of 684

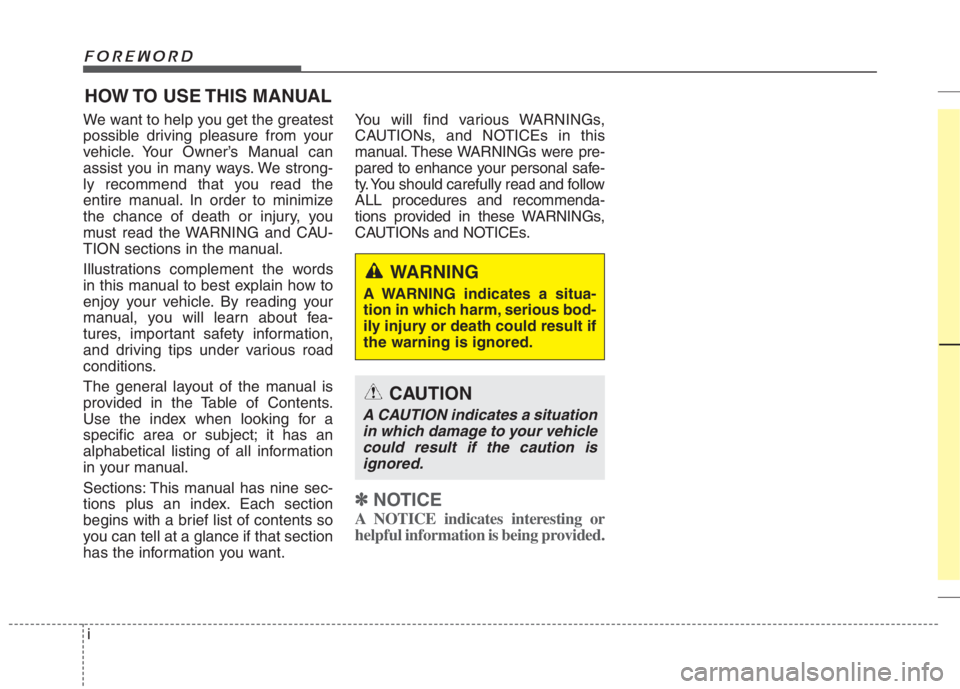

We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways. We strong-
ly recommend that you read the
entire manual. In order to minimize
the chance of death or injury, you
must read the WARNING and CAU-
TION sections in the manual.
Illustrations complement the words
in this manual to best explain how to
enjoy your vehicle. By reading your
manual, you will learn about fea-
tures, important safety information,
and driving tips under various road
conditions.
The general layout of the manual is
provided in the Table of Contents.
Use the index when looking for a
specific area or subject; it has an
alphabetical listing of all information
in your manual.
Sections: This manual has nine sec-
tions plus an index. Each section
begins with a brief list of contents so
you can tell at a glance if that section
has the information you want.You will find various WARNINGs,
CAUTIONs, and NOTICEs in this
manual. These WARNINGs were pre-
pared to enhance your personal safe-
ty. You should carefully read and follow
ALL procedures and recommenda-
tions provided in these WARNINGs,
CAUTIONs and NOTICEs.
✽ ✽
NOTICE
A NOTICE indicates interesting or
helpful information is being provided.
HOW TO USE THIS MANUAL
WARNING
A WARNING indicates a situa-
tion in which harm, serious bod-
ily injury or death could result if
the warning is ignored.
CAUTION
A CAUTION indicates a situation
in which damage to your vehicle
could result if the caution is
ignored.
i
Foreword
Page 3 of 684

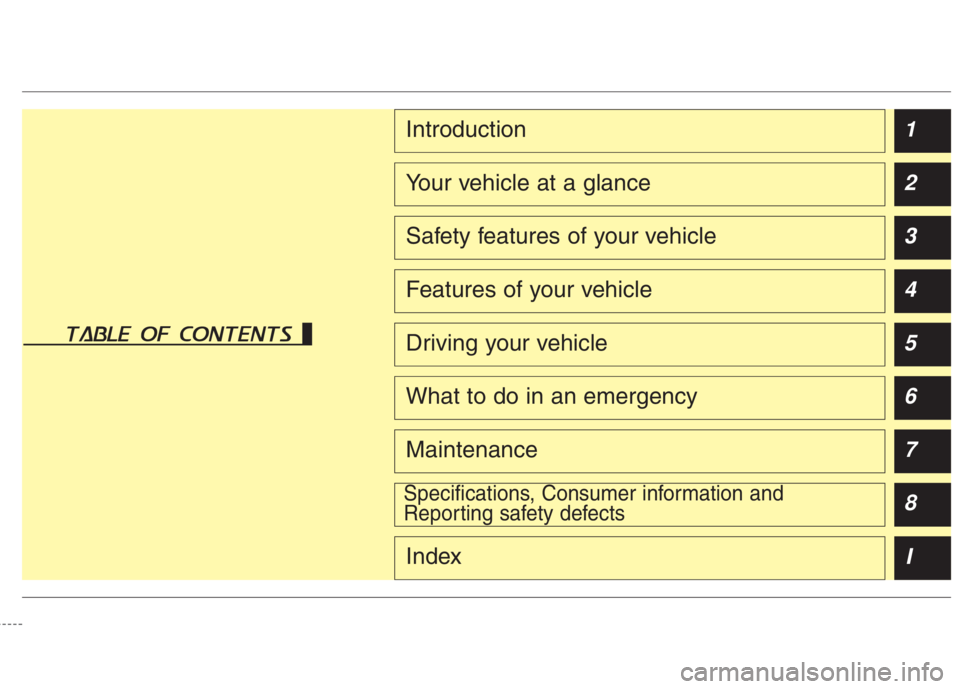

table of contents
1
2
3
4
5
6
7
8
I
Introduction
Your vehicle at a glance
Safety features of your vehicle
Features of your vehicle
Driving your vehicle
What to do in an emergency
Maintenance
Specifications, Consumer information and
Reporting safety defects
Index
Page 4 of 684
HEV (HYBRID ELECTRIC VEHICLE) SYSTEM / H2
PHEV (PLUG-IN ELECTRIC VEHICLE) SYSTEM / H3
CHARGING THE PLUG-IN HYBRID VEHICLE / H4
DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE / H28
ENERGY FLOW / H36
PLUG-IN HYBRID ENERGY FLOW / H38
STARTING THE HYBRID/PLUG-IN HYBRID VEHICLE (SMART KEY) / H40
COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE / H42
Hybrid System Overview
Page 5 of 684
H2

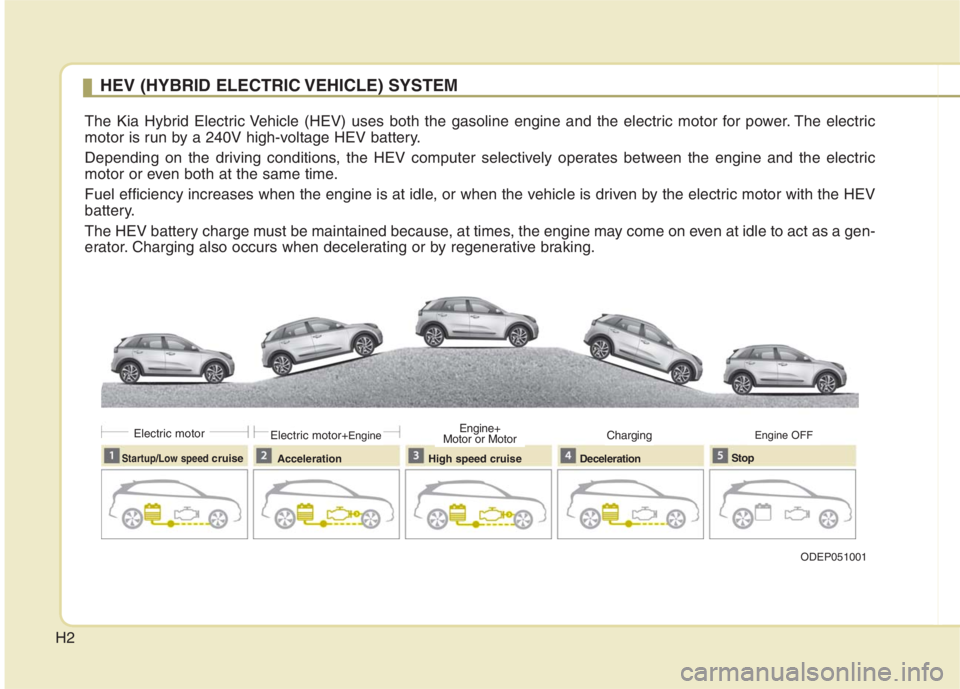

HEV (HYBRID ELECTRIC VEHICLE) SYSTEM
The Kia Hybrid Electric Vehicle (HEV) uses both the gasoline engine and the electric motor for power. The electric
motor is run by a 240V high-voltage HEV battery.
Depending on the driving conditions, the HEV computer selectively operates between the engine and the electric
motor or even both at the same time.
Fuel efficiency increases when the engine is at idle, or when the vehicle is driven by the electric motor with the HEV
battery.
The HEV battery charge must be maintained because, at times, the engine may come on even at idle to act as a gen-
erator. Charging also occurs when decelerating or by regenerative braking.
ODEP051001
Startup/Low speed cruise
Acceleration High speed cruiseDecelerationStop
Electric motorElectric motor+EngineEngine+
Motor or MotorChargingEngine OFF
Page 6 of 684
H3

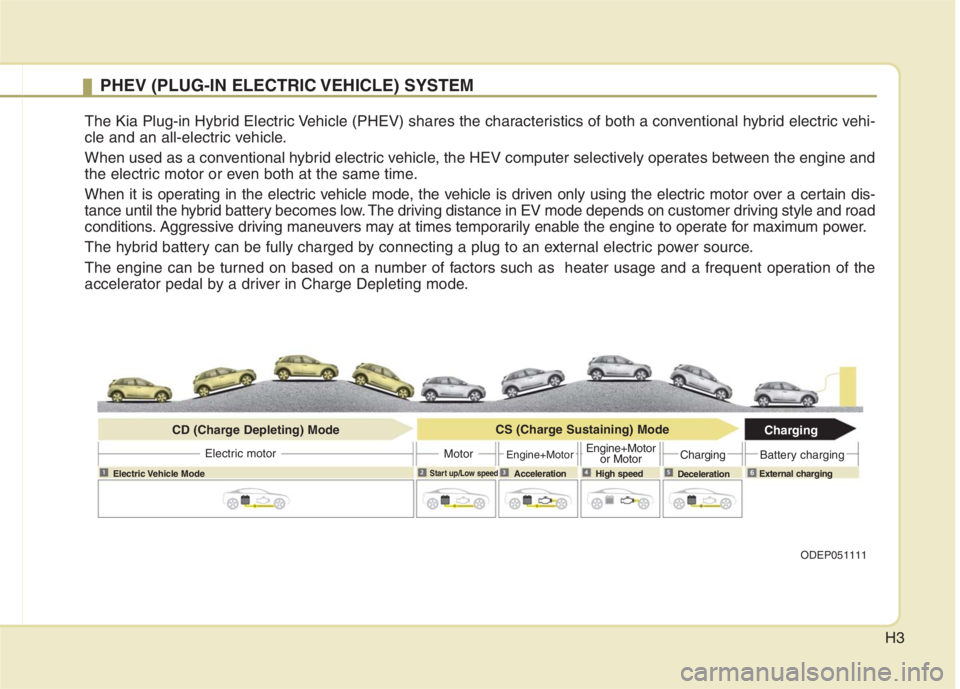

PHEV (PLUG-IN ELECTRIC VEHICLE) SYSTEM
The Kia Plug-in Hybrid Electric Vehicle (PHEV) shares the characteristics of both a conventional hybrid electric vehi-
cle and an all-electric vehicle.
When used as a conventional hybrid electric vehicle, the HEV computer selectively operates between the engine and
the electric motor or even both at the same time.
When it is operating in the electric vehicle mode, the vehicle is driven only using the electric motor over a certain dis-
tance until the hybrid battery becomes low. The driving distance in EV mode depends on customer driving style and road
conditions. Aggressive driving maneuvers may at times temporarily enable the engine to operate for maximum power.
The hybrid battery can be fully charged by connecting a plug to an external electric power source.
The engine can be turned on based on a number of factors such as heater usage and a frequent operation of the
accelerator pedal by a driver in Charge Depleting mode.
ODEP051111
Electric Vehicle ModeStart up/Low speedAcceleration High speed
DecelerationExternal charging
Electric motor
CD (Charge Depleting) ModeCS (Charge Sustaining) ModeCharging
MotorEngine+MotorEngine+Motor
or MotorChargingBattery charging
6
Page 7 of 684
H4

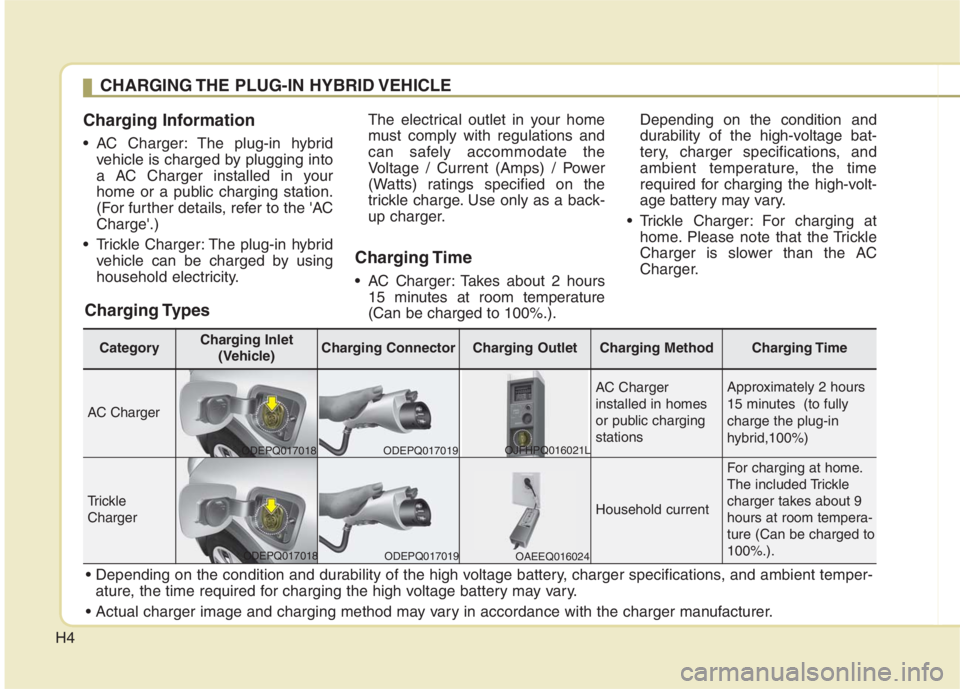

Charging Information
• AC Charger: The plug-in hybrid
vehicle is charged by plugging into
a AC Charger installed in your
home or a public charging station.
(For further details, refer to the 'AC
Charge'.)
Trickle Charger: The plug-in hybrid
vehicle can be charged by using
household electricity.The electrical outlet in your home
must comply with regulations and
can safely accommodate the
Voltage / Current (Amps) / Power
(Watts) ratings specified on the
trickle charge. Use only as a back-
up charger.
Charging Time
AC Charger: Takes about 2 hours
15 minutes at room temperature
(Can be charged to 100%.).Depending on the condition and
durability of the high-voltage bat-
tery, charger specifications, and
ambient temperature, the time
required for charging the high-volt-
age battery may vary.
Trickle Charger: For charging at
home. Please note that the Trickle
Charger is slower than the AC
Charger.
CHARGING THE PLUG-IN HYBRID VEHICLE
Charging Types
ature, the time required for charging the high voltage battery may vary.
CategoryCharging Inlet
(Vehicle)Charging ConnectorCharging OutletCharging Method Charging Time
AC Charger
AC Charger
installed in homes
or public charging
stations Approximately 2 hours
15 minutes (to fully
charge the plug-in
hybrid,100%)
Trickle
ChargerHousehold current
For charging at home.
The included Trickle
charger takes about 9
hours at room tempera-
ture (Can be charged to
100%.).
ODEPQ017018
ODEPQ017019
ODEPQ017019
OAEEQ016024 OJFHPQ016021L
ODEPQ017018
Page 8 of 684
H5

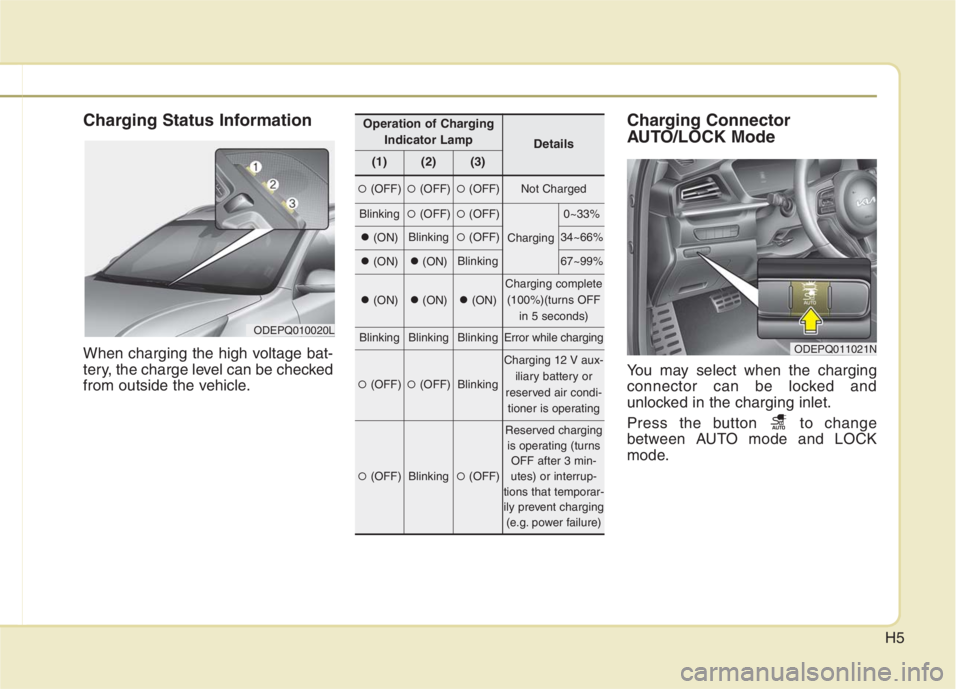

Charging Status Information
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
Charging Connector
AUTO/LOCK Mode
You may select when the charging
connector can be locked and
unlocked in the charging inlet.
Press the button to change
between AUTO mode and LOCK
mode.
ODEPQ011021N
Operation of Charging
Indicator Lamp
Details
(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~99%
(ON)(ON)(ON)
Charging complete
(100%)(turns OFF
in 5 seconds)
BlinkingBlinkingBlinkingError while charging
(OFF)(OFF)Blinking
Charging 12 V aux-
iliary battery or
reserved air condi-
tioner is operating
(OFF)Blinking(OFF)
Reserved charging
is operating (turns
OFF after 3 min-
utes) or interrup-
tions that temporar-
ily prevent charging
(e.g. power failure)
ODEPQ010020L
Page 9 of 684
H6

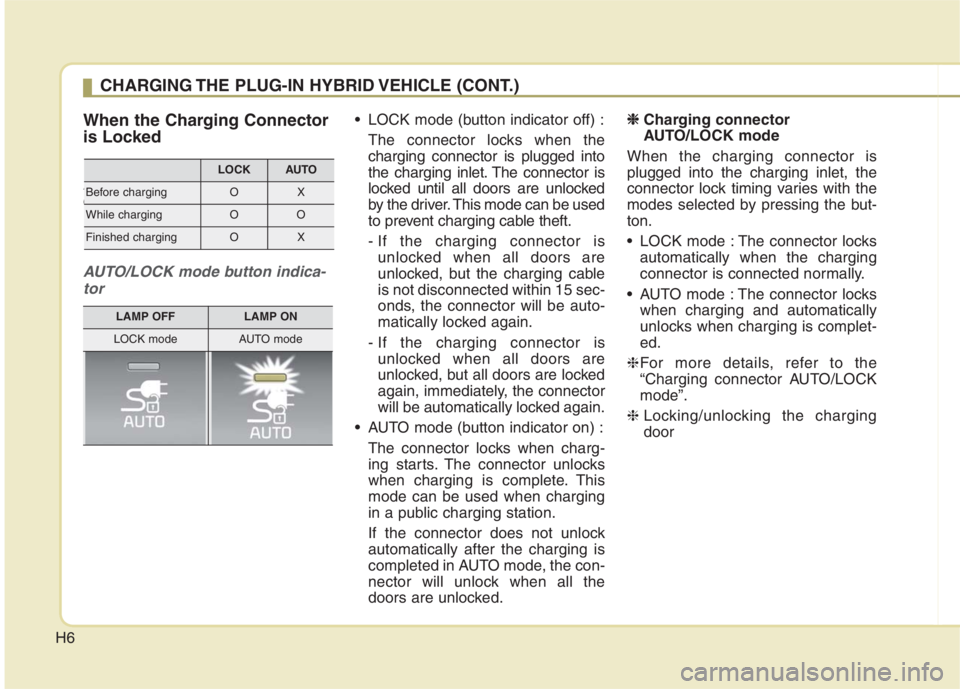

When the Charging Connector
is Locked
AUTO/LOCK mode button indi-
cator
AUTO/LOCK mode button indica-
tor
LOCK mode (button indicator off) :
The connector locks when the
charging connector is plugged into
the charging inlet. The connector is
locked until all doors are unlocked
by the driver. This mode can be used
to prevent charging cable theft.
- If the charging connector is
unlocked when all doors are
unlocked, but the charging cable
is not disconnected within 15 sec-
onds, the connector will be auto-
matically locked again.
- If the charging connector is
unlocked when all doors are
unlocked, but all doors are locked
again, immediately, the connector
will be automatically locked again.
AUTO mode (button indicator on) :
The connector locks when charg-
ing starts. The connector unlocks
when charging is complete. This
mode can be used when charging
in a public charging station.
If the connector does not unlock
automatically after the charging is
completed in AUTO mode, the con-
nector will unlock when all the
doors are unlocked.❈ ❈
Charging connector
AUTO/LOCK mode
When the charging connector is
plugged into the charging inlet, the
connector lock timing varies with the
modes selected by pressing the but-
ton.
LOCK mode : The connector locks
automatically when the charging
connector is connected normally.
AUTO mode : The connector locks
when charging and automatically
unlocks when charging is complet-
ed.
❈For more details, refer to the
“Charging connector AUTO/LOCK
mode”.
❈Locking/unlocking the charging
door
CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)
LOCKAUTO
Before chargingOX
While chargingOO
Finished chargingOX
LAMP OFFLAMP ON
LOCK modeAUTO mode
Page 10 of 684
H7
The charging door lock/unlock func-
tion works only when the following
conditions are satisfied with the
charging door closed.
If the unlock function does not work,
use the emergency charging door
unlock method to unlock the charg-
ing door. (For more details, refer to
the “Unlock charging door in emer-
gency”)1. Conditions for lock :
➀: When locking doors from out-
side the vehicle with the
charging door closed.
➁: When locking the driver’s door
using a mechanical key
➂: When locking doors using a
smart key
➃: When pressing the door
lock/unlock button on the front
door outside handle while the
smart key is detected and
doors are unlocked
➄: When locking all vehicle doors
with the charging door closed.
(When locking doors with
functions such as spare key,
smart key, door lock button on
the outside door handle, cen-
tral door lock switch, auto door
lock.)2. Conditions for unlock :
➀: When unlocking doors from
outside the vehicle with the
charging door closed.
➁: When unlocking the driver’s
door using a mechanical key
➂: When unlocking doors using a
smart key
➃: When pressing the door
lock/unlock button on the front
door outside handle while the
smart key is detected and
doors are locked
➄: When unlocking all vehicle
doors with the charging door
closed. (When unlocking doors
with functions such as spare
key, smart key, door lock but-
ton on the outside door han-
dle, central door lock switch,
auto door lock.)
