KIA NIRO PHEV 2022 Features and Functions Guide

59*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
•The Tire Mobilit y Kit is a temporar y fix and is to be used for one tire only; the tire should be inspected as soon as possible
•The kit should only be used for sealing/inflating passenger car tires; do not use for inflating any other t ype of tires
•Some damaged tires cannot be sealed completely; do not use the kit if it appears a tire is damaged beyond repair
QUICK TIPS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tire Mobility Kit Video
QR CODE
Locate these locks on the rear edge of the rear passenger doors Move the Child-Protector Rear Door Lock, with the mechanical ignition key, to the lock position to disable the inner door handles from opening the rear doors
REMINDER: Child-Protector Rear Door Lock is located on rear passenger ’s door jamb
Tire Mobility Kit
REMINDERS:
•
The above images are for illustration purposes only and may not reflect actual operation
•
After tire is properly sealed, drive cautiously at a maximum speed of 50 mph for a maximum distance of up to 120 miles
Refer to section 3 in the Owner ’s Manual for more information
Refer to section 6 in the Owner ’s Manual for more information
The Tire Mobility Kit is designed to temporarily seal certain types of tire damage
For operational information, please refer to the Owner ’s Manual
A Sealant Bottle
B Compressor
Child-Protector Rear Door Locks (Manual)
OTHER KEY FEATURES
OTHER KEY F E AT U R E S
A
B

60†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDESAFETYF E AT U R E S

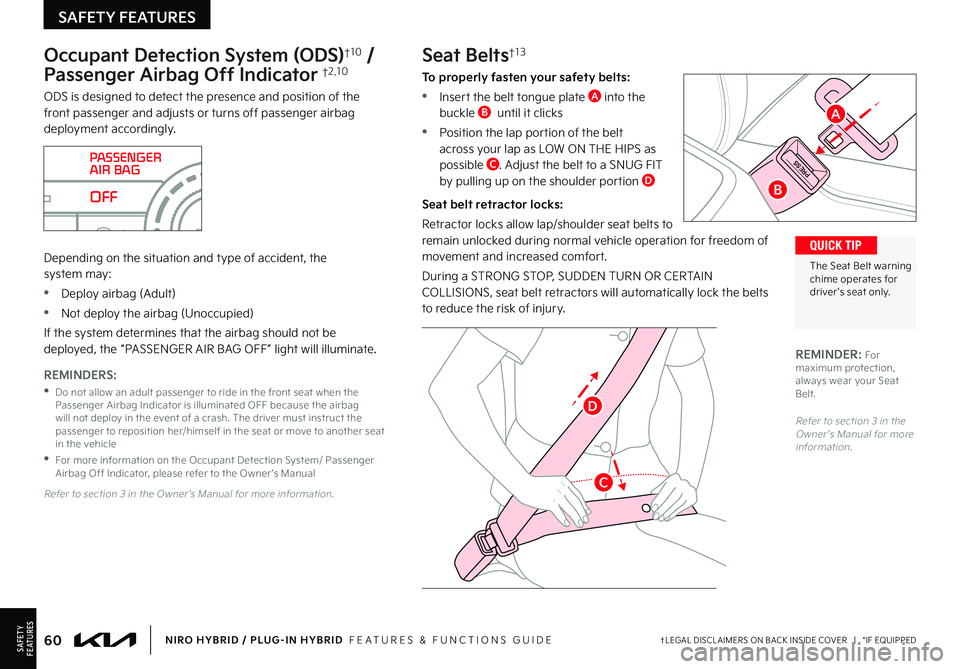

SAFETY FEATURES
Seat Belts†13
To properly fasten your safety belts:
•
Insert the belt tongue plate A into the buckle B until it clicks
•
Position the lap portion of the belt across your lap as LOW ON THE HIPS as possible C Adjust the belt to a SNUG FIT by pulling up on the shoulder portion D
Seat belt retractor locks:

Retractor locks allow lap/shoulder seat belts to remain unlocked during normal vehicle operation for freedom of movement and increased comfort
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS, seat belt retractors will automatically lock the belts to reduce the risk of injury
PRESS
Occupant Detection System (ODS)†1 0 /
Passenger Airbag Off Indicator †2 ,1 0
ODS is designed to detect the presence and position of the front passenger and adjusts or turns off passenger airbag deployment accordingly
Depending on the situation and type of accident, the system may:
•Deploy airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the airbag should not be deployed, the “PASSENGER AIR BAG OFF” light will illuminate
The Seat Belt warning chime operates for driver ’s seat only
QUICK TIP
REMINDER: For maximum protection, always wear your Seat Belt
REMINDERS:
•
Do not allow an adult passenger to ride in the front seat when the Passenger Airbag Indicator is illuminated OFF because the airbag will not deploy in the event of a crash The driver must instruct the passenger to reposition her/himself in the seat or move to another seat in the vehicle
•
For more information on the Occupant Detection System/ Passenger Airbag Off Indicator, please refer to the Owner ’s Manual
OFF
PASSENGER
AIR BAG
Refer to section 3 in the Owner ’s Manual for more information
Refer to section 3 in the Owner ’s Manual for more information
B
A
C
D

LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury or death. The driver’s primary responsibility is in the safe and legal operation of a vehicle. Handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law, should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.1.
UVO link: Purchase/lease of certain 2022 and newer Kia vehicles with UVO link includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year UVO link subscription expires, continued access to the full suite of UVO link services available on your Kia will require a paid subscription at the then-current subscription rate or your use of certain UVO link features may immediately terminate. Use of UVO is subject to agreement to the UVO Privacy Policy (available at owners.kia.com/us/en/privacy-policy.html) and Terms of Service (available at owners.kia.com/us/en/terms-of-service.html). Complimentary UVO link subscription is transferable to subsequent owner during the original UVO link service term. Only use UVO link when safe to do so. UVO Link may currently be unavailable for Model Year 2022 and newer vehicles sold or purchased in Massachusetts; please see the Kia Owners Portal for updates on availability. Kia Access with UVO link app is available from the Apple® App Store® or Google Play Store™. Kia America, Inc. reserves the right to change or discontinue UVO link at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. UVO link features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit www.kia.com or your authorized Kia dealer. Apple® and App Store® are registered trademarks of Apple Inc. Google™ and its logos are trademarks of Google LLC.
2. Airbags: For maximum protection, always wear your seat belt.3. Android Auto™, Apple CarPlay®, Bluetooth® Wireless Technology, Google Play™ Store, iPhone, SiriusXM®, Sportmatic®, HomeLink®: Fair Use of Trademark – The commentary reference to trademarked material is for educational purposes only and not an endorsement by or of the holder of the mark. 4. Driver Assist Features – Forward Collision-Avoidance Assist (FCA), Lane Keeping Assist (LKA), Blind-Spot Collision-Avoidance Assist (BCA), Leading Vehicle Departure Alert (LVDA), Cruise Control (CC), Smart Cruise Control (SCC) with Stop & Go, Navigation-based Smart Cruise Control (NSCC), Lane Following Assist (LFA), Highway Driving Assist (HDA), Rear View Monitor (RVM), Surround View Monitor (SVM), Rear Occupant Alert (ROA) with Ultrasonic Sensors, Blind-Spot Collision Warning (BCW)” and “Reverse Parking Distance Warning (PDW): These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.5. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.6. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-Start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.7. Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the shift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.8. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.9. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.10. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model. Children age 12 and under should always be seated in the REAR seats. ODS is not a substitute for one’s attention and may not detect all occupants within the vehicle. Always check the vehicle interior when exiting the vehicle.11. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.
12. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.13. Seat belts: For maximum protection, always wear your seatbelt.14. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.15. SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2021 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.16. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.17. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.18. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.19. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.20. Power Liftgate / Smart Liftgate: Driving with the liftgate open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for improved ventilation.

Multimedia USB Por t, Charger

Por ts & Power Outlets – page 45
Cruise Control – page 23 Demonstrate operation Standard Audio System - Value* / Value with UVO link – pages 41-42 For fur ther operational information, refer to the Car Infotainment System Quick Reference Guide.
Android Auto
™ / Apple CarPlay
®
Setup* – page 38 UVO link Activation / UVO Assistance* – page 39
Walk customer through

the registration/

activation process

for UVO link
UVO link* & UVO link with

Navigation* – pages 43-44 For further operational information, refer to the Car Infotainment System

Quick Reference Guide.
AUX USB
12V 180W
12V 180W
Bluetooth
® Wireless Technology –
page 36 Demonstrate operation, and pair customer’s phone.
ENTER
PWR VOLFILE
TUNE
RADIOMEDIA SEEKTRACK SETUP
ENTER
PWR VOLFILE
TUNE
MAPN AV RADIOMEDIA SETUP
SEEK
TRACK
Blind-Spot Collision Avoidance-Assist (BCA)* - page 22 Clock Setup - page 45 Engine Start/Stop Button - page 31 Lane Keeping Assist (LK A)* - page 20 Passenger Airbag Off Indicator - page 60 Sunroof Operation* - page 56 Rear View Monitor (RVM) - page 28
Seat Warmers* - page 50 Smart Key - page 55 Sunvisor - page 57 Tire Pressure Monitoring System (TPMS)

- page 05
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-upKEY FEATURE WALKTHROUGHDURING DELIVERY
Demonstrate the following with the customer:
Sales Consultant:
____________________________________________________________________________________
Date:
___________________________
Sales Manager:
_______________________________________________________________________________________
Date:
___________________________
Customer:
____________________________________________________________________________________________
Date:
___________________________
*IF EQUIPPED
NIRO HYBRID / PLUG-IN HYBRID
DELIVERY CHECKLIST
CNCLRES
CRUISE
SET
CNCLRES
CRUISE
SET
MODE

OFF
LO
HI
Climate Control System* – page 47

Demo Defrost and Defog Windshield

Hybrid/Plug-In Hybrid Displays on the

audio control unit – page 12
Instrument Cluster / Hybrid / Plug-In Hybrid Displays

– pages 3-6
Windshield/Rear Wipers & Washers – page 34 Windshield: Move lever Up/Down to change Wiper modes. Rotate lever to adjust Intermit tent Wipe Speed.
Pull to spray and wipe.
WindshieldMIST: Single wipeOFF: Wipe offINT: Intermittent wipeLO: Slow wipeHI: Fast wipe
220200
20
20 12 0
1 40
40
10 0
60
80
180
40 160
60 140
80 120
100
E
FAUTO
120miles
Type B shownType A shown
mi
Owner ’s Name:
VIN:
Mileage:

Dealership Name:
Sales Consultant:
Date:
BEFORE DELIVERY Test and confirm “Good Battery” using a Kia battery tester and affix Results Label Verify all tire pressures are to spec (see driver ’s door label) LF

LR

RF

RR

Verify proper operation of Remote Keyless Entry and Smart Key lock/unlock Ensure floor mats are snapped into place (if applicable) Verify vehicle is clean (interior and exterior), in good condition and free of chips and scratches Ensure all key documents are in the vehicle (Owner ’s Manual, Warranty and Consumer Information booklet, Tire Warranty booklet and Features & Functions Guide and any Audio System User ’s Manual)KEY FEATURE WALKTHROUGH
NIRO HYBRID / PLUG-IN HYBRID
DELIVERY CHECKLIST
*IF EQUIPPED

(up to 64,000 miles)AMAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS8,00016,00024,00032,00040,00048,00056,00064,000
Add fuel additiveCPPPPPPPPRotate tiresPPPPPPPPEngine oil and filter RRRRRRRRClimate control air filterIRIRIRIRSteering gear box, linkage & bootsIIIIIIIISuspension ball jointsIIIIIIIIAir conditioner refrigerantIIIIIIIIExhaust pipe and mufflerIIIIIIIIAir cleaner filterIIRIIRIIEngine clutch actuator fluidIRIRIRIRHSG beltDIIIIIIIRBrake fluidIIIIIRIIBrake lines, hoses and connectionsIIIIIIIIFront brake discs/pads, calipersIIIIIIIIEngine clutch actuator hose and linesIIIIIIIIBattery ConditionIIIIIIIIVacuum hoseIIIIIIIDrive shafts and bootsIIIIFuel tank air filterEIIIIParking brakeIIIIFuel tank and fuel filler capIIIIRear brake discs/padsIIIIFuel lines, fuel hoses and connectionsIIIICooling SystemIIIDual clutch transmission fluidII
A . See the Owner ’s Manual for complete maintenance schedule.B. And, if necessar y, adjust, correct, clean or replace.C . If TOP TIER detergent gasoline is not available, one bot tle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.D. Inspect HSG belt for evidence of cuts, cracks, excessive wear or oil saturation and replace if necessar y. If HSG belt noise occurred, readjust HSG belt tension before replaceE. Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel qualit y being used. However, periodic inspection is recommended. If your vehicle is having issues like fuel flow restriction, power surging, loss of power, difficult y star ting, etc., replace the fuel filter immediately and consult an authorized Kia dealer for ser vice.See your Owner ’s Manual for more details and complete maintenance information, including severe maintenance schedule. Warrant y may be voided if maintenance schedule is not followed.
NIRO HYBRID / PLUG-IN HYBRID NORMAL MAINTENANCE SCHEDULE P=Per form R=Replace I=InspectB
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO link* account by logging into UVO link App or your account on ht tps://owners.Kia.com (See page 39 for setup information)
QUICK TIP
© 2021 Kia America, Inc. All rights reserved.Consumer - Roadside Assistance†16: 1-800-333-4KIA (4542)Part Number: DE220-PS-004
‡ If equipped†LEGAL DISCL AIMERS ON BACK INSIDE COVER
