KIA Optima 2011 3.G Owner's Manual

Specifications, Consumer information, Reporting safety defects
28
Itemmm (in.)
Overall length 4845 (190.7)
Overall width 1830 (72.0)
Overall height 1455 (57.3)
Front tread 1601 (63.0)*
1/1595 (62.8)*2/1591 (62.6)*3
Rear tread 1601 (63.0)*1/1595 (62.8)*2/1591 (62.6)*3
Wheelbase 2795 (110.0)
BULB WATTAGE
* : If equipped
*1: with R16 tire
*2: with R17 tire
*3: with R18 tire

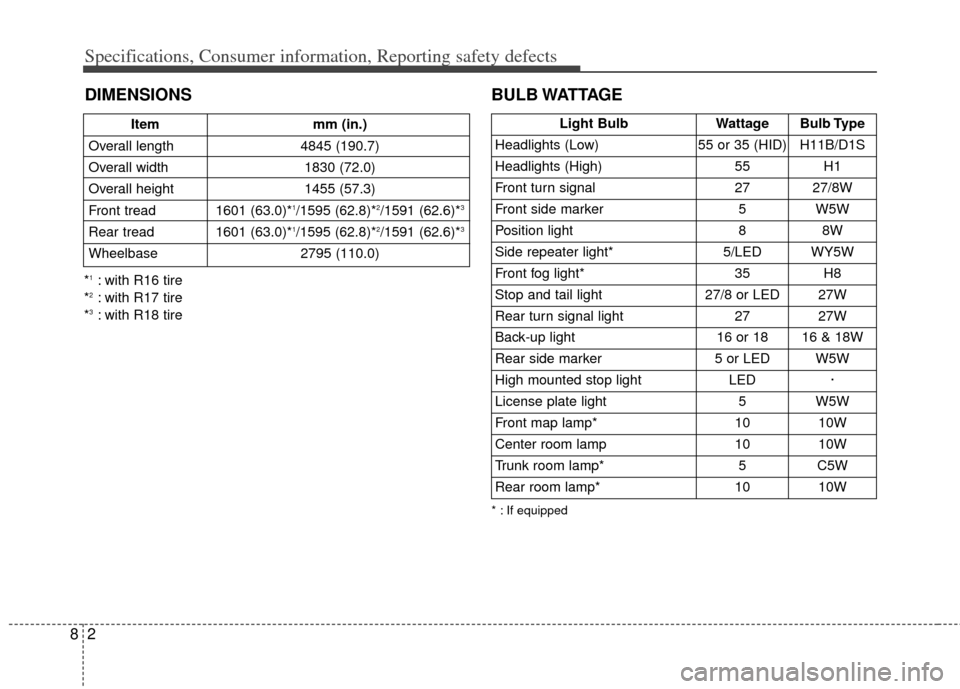

DIMENSIONS
Light BulbWattageBulb Type
Headlights (Low)55 or 35 (HID)H11B/D1S
Headlights (High)55H1
Front turn signal2727/8W
Front side marker5W5W
Position light88W
Side repeater light* 5/LEDWY5W
Front fog light*35H8
Stop and tail light27/8 or LED27W
Rear turn signal light 2727W
Back-up light16 or 1816 & 18W
Rear side marker5 or LEDW5W
High mounted stop lightLED·
License plate light5W5W
Front map lamp*1010W
Center room lamp1010W
Trunk room lamp*5C5W
Rear room lamp*1010W

83
Specifications, Consumer information, Reporting safety defects

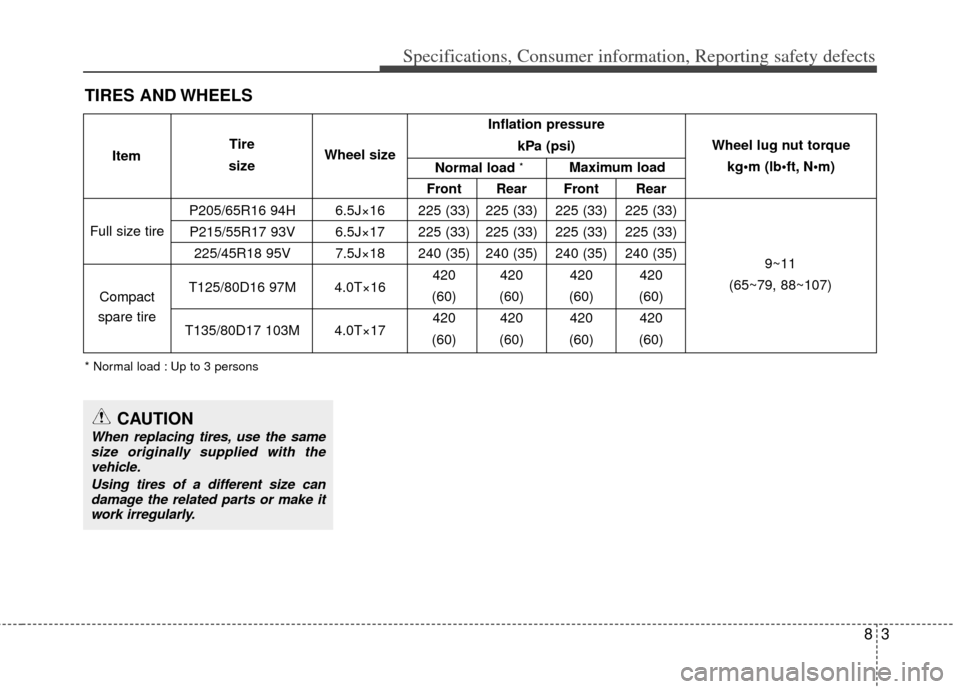

TIRES AND WHEELS
CAUTION
When replacing tires, use the samesize originally supplied with thevehicle.
Using tires of a different size candamage the related parts or make itwork irregularly.
* Normal load : Up to 3 persons
Inflation pressure
kPa (psi)
Front Rear Front Rear
P205/65R16 94H 6.5J×16 225 (33) 225 (33) 225 (33) 225 (33) P215/55R17 93V 6.5J×17 225 (33) 225 (33) 225 (33) 225 (33) 225/45R18 95V 7.5J×18 240 (35) 240 (35) 240 (35) 240 (35)
T125/80D16 97M 4.0T×16 420 420 420 420
(60) (60) (60) (60)
T135/80D17 103M 4.0T×17 420 420 420 420
(60) (60) (60) (60)
Full size tire
Compact
spare tire Wheel lug nut torque
kg•m (lb N
9~11
(65~79, 88~107)
Item
Tire
size Wheel size
Normal load
*Maximum load

Specifications, Consumer information, Reporting safety defects
48

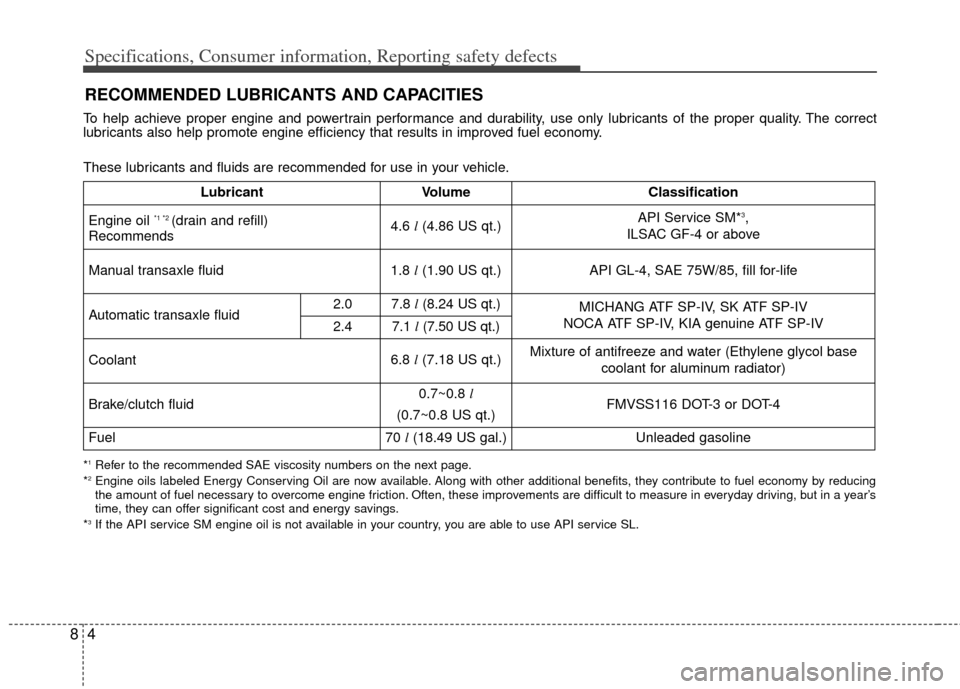

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends4.6 l(4.86 US qt.)API Service SM*3,
ILSAC GF-4 or above
Manual transaxle fluid1.8 l(1.90 US qt.)API GL-4, SAE 75W/85, fill for-life
Automatic transaxle fluid2.07.8 l(8.24 US qt.)MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, KIA genuine ATF SP-IV
2.47.1 l(7.50 US qt.)
Coolant 6.8 l(7.18 US qt.)Mixture of antifreeze and water (Ethylene glycol base
coolant for aluminum radiator)
Brake/clutch fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel70 l(18.49 US gal.)Unleaded gasoline

85
Specifications, Consumer information, Reporting safety defects
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used on unpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil
(2.4 GDI) *
1
Engine Oil
(2.0 TGDI) °C
(°F)
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
10W-30
5W-20, 5W-30
5W-30, 5W-40
*1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.

Specifications, Consumer information, Reporting safety defects
68

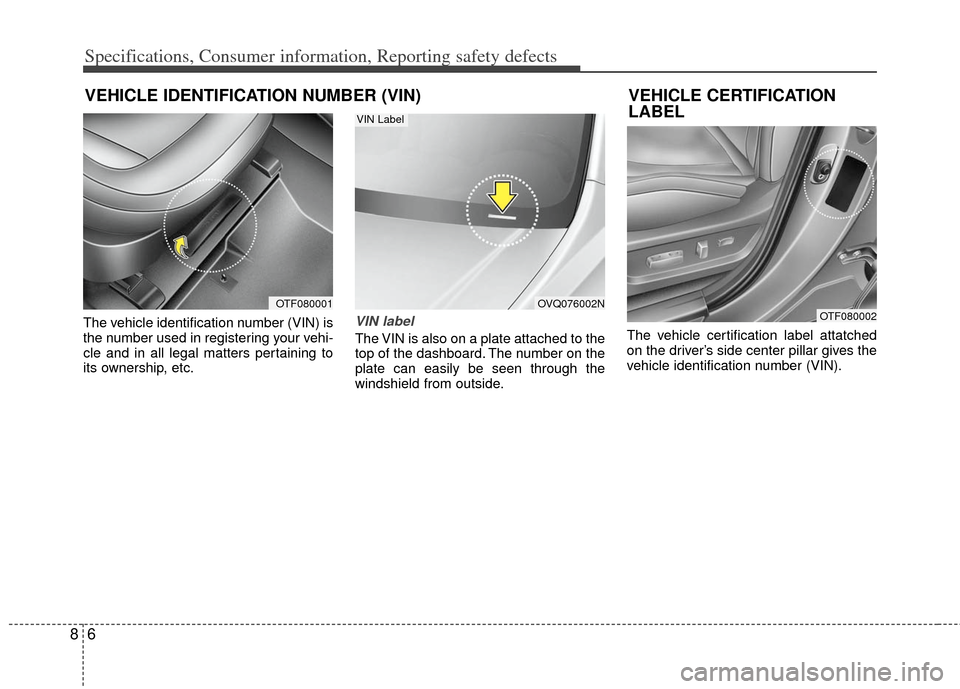

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.VIN label
The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.The vehicle certification label attatched
on the driver’s side center pillar gives the
vehicle identification number (VIN).
OTF080002
VEHICLE CERTIFICATION
LABEL
OVQ076002N
VIN Label
VEHICLE IDENTIFICATION NUMBER (VIN)
OTF080001

87
Specifications, Consumer information, Reporting safety defects
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-

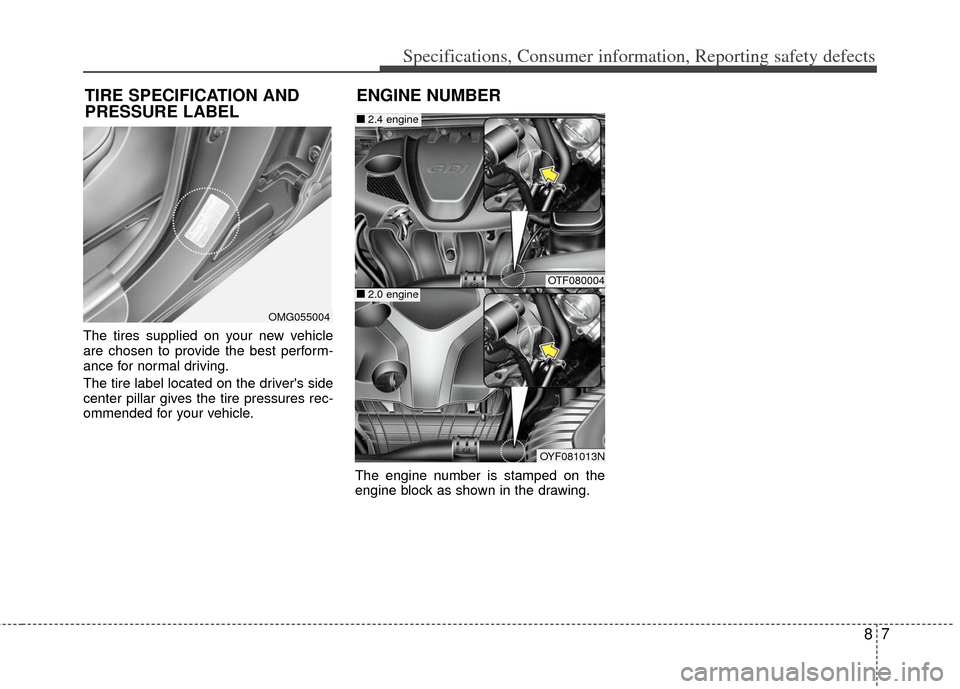

ommended for your vehicle.The engine number is stamped on the
engine block as shown in the drawing.
OMG055004
ENGINE NUMBERTIRE SPECIFICATION AND
PRESSURE LABEL
OTF080004
OYF081013N
â–
â–

2.4 engine
â–
â–

2.0 engine
