Inner Fuse panel
Description Fuse RatingProtected Component
MULTIMEDIA 15A ISG LDC AUDIO,AUDIO_UVO, AUDIO(PA30A,B), NAVI1.5, NAVI_3.0, NAVI_4.0, TMU
PDM 1 25A Smart Key Control Module (With Smart Key)
SPARE 10A -
PDM2 10A SMK UNIT, BUTTON START SW
P/SEAT(PASS) 20A Passenger Seat Manual Switch AMP 30A AMP
P/SEAT(DRV) 30A Driver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch (2WAY) MEMORY 2 7.5A PIC_RF_RECEIVER
TRUNK 10A Trunk Lid Relay, Trunk Room Lamp
MODULE 7 10A SPORT_MODE_SW, RR POWER WINDOW SW
DR LOCK 20A Door Lock/Unlock Relay, Dead Lock Relay (RHD), Turn Signal Lamp Sound Relay
S/HEATER(RR) 20A Rear Seat Warmer Relay LH/RH
P/WDW(RH) 25ADriver Safety Power Window Module (RHD), Passenger Safety Power Window Module (LHD),
Rear Safety Power Window Module RH, Power Window RH Relay
P/WDW(LH) 25ADriver Safety Power Window Module (LHD), Passenger Safety Power Window Module (RHD),
Rear Safety Power, Window Module LH, Power Window LH Relay
MODULE 2 10A BCM, Panorama Sunroof, Rain Sensor

Maintenance
86
7
Ty p e B
If the light (LED) does not operate,
have the vehicle checked by an
authorized Kia dealer.
Stop and tail light / Rear turn sig-
nal light
1.Turn off the engine.
2.Open the trunk.
3.Open the service cover. 4.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
7.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Install the service cover by pulling it into the service hole.
OTF070031
OTF070032
Stop and tail light / Rear turn signal light

787
Maintenance
Backup light/Tail light (if equipped)
1.Turn off the engine.
2.Open the trunk.
3.Loosen the retaining screw of the trunk lid cover and then remove the
cover. 4.Disconnect the cable and then
remove the nuts by turning the nuts
counter clockwise.
5.Take the light assembly out.
6.Insert a new bulb by inserting it intothe socket.
7.Install the light assembly to the trunk.
8.Reinstall the nuts and connector and then the trunk lid cover by
pushing in the screw.
OTF070033
OTF074052
Backup light
OTF074054
OTF074055
Backup light-1
Backup light-2

Maintenance
88
7

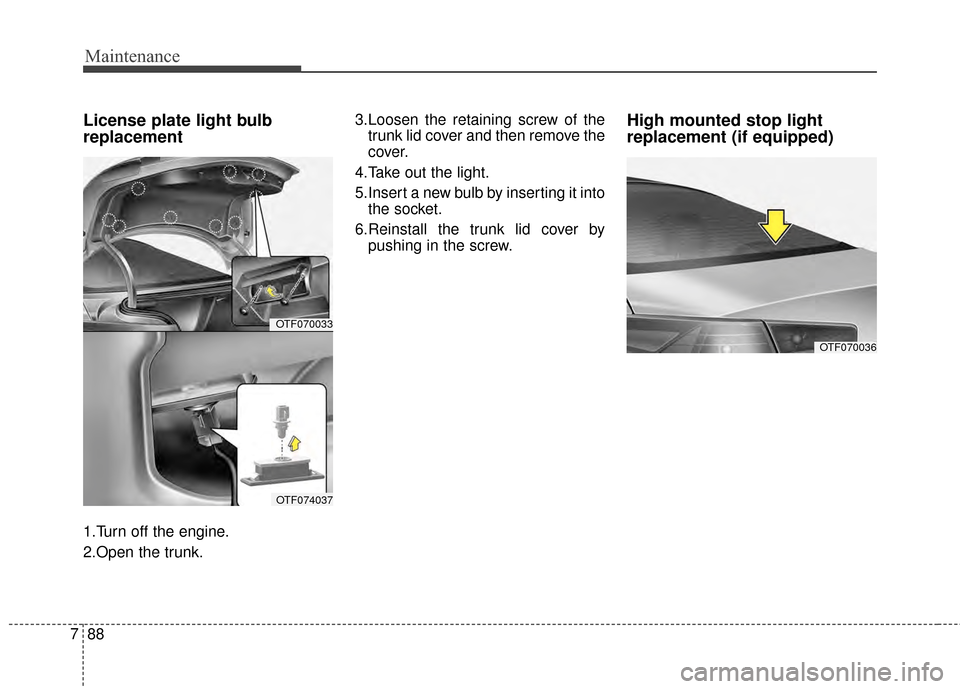

License plate light bulb
replacement
1.Turn off the engine.
2.Open the trunk. 3.Loosen the retaining screw of the
trunk lid cover and then remove the
cover.
4.Take out the light.
5.Insert a new bulb by inserting it into the socket.
6.Reinstall the trunk lid cover by pushing in the screw.
High mounted stop light
replacement (if equipped)
OTF070036
OTF070033
OTF074037

48
Specifications & Consumer information
BULB WATTAGE
* : if equipped
Light BulbWattage Bulb type
Front Headlamps (Low)
55H118B
Headlamps (Low) - HID type* 35D1S
Headlamps (High) 55H1L/H7L
Front turn signal lamps 28P28/8W
Front position lamps 8/LED P28/8W/LED
Front fog lamps* 35/LEDH8L/LED
Side Repeater lamps* 5/LEDWY5W/LED
Smart cornering lamp* 5555
Side marker LEDLED
Rear Rear fog lamps*
21P21W
Bulb type Rear Stop/Tail lamps (outside) 28/8
P28/8W
Rear tail lamps (Inside) 27/8, 28/8 P27/8W, P28/8W
LED type Rear Stop/Tail lamps (outside) LED
LED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps 21/27P21W/P27W
Back-up lamps 16#921
High mounted stop lamp* LEDLED
License plate lamps 5W5W
Interior Map lamps
10W10W
Room lamps 10C10W
Vanity mirror lamps5C5W
Glove box lamp5C5W
Trunk lamp 5C5W
