clock setting KIA Optima 2014 3.G Owner's Manual

4161

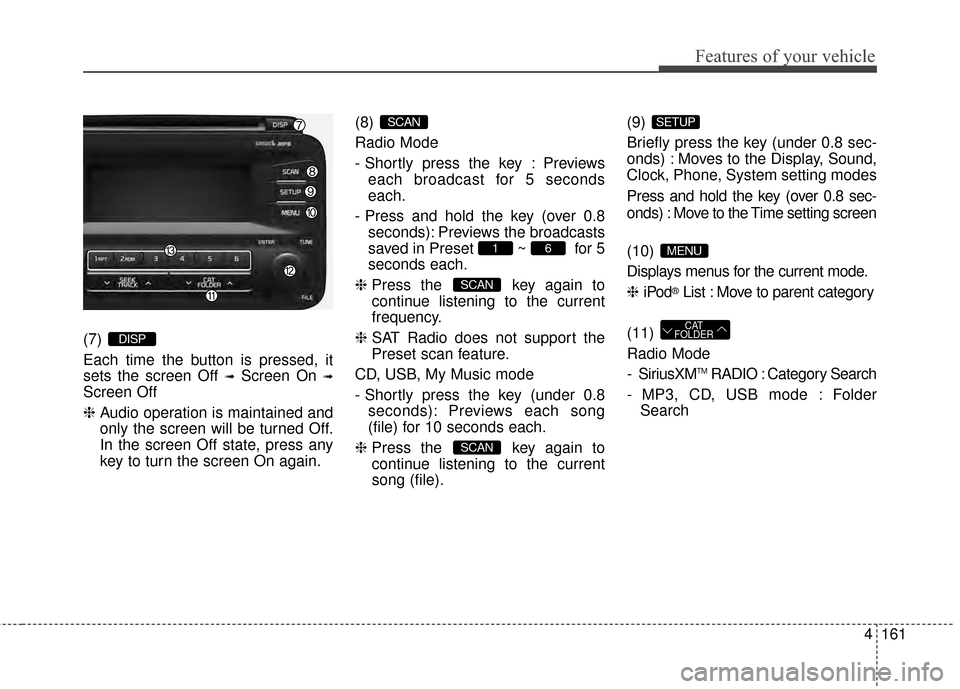

Features of your vehicle
(7)
Each time the button is pressed, it
sets the screen Off
➟Screen On ➟
Screen Off
❈Audio operation is maintained and
only the screen will be turned Off.
In the screen Off state, press any
key to turn the screen On again. (8)
Radio Mode
- Shortly press the key : Previews
each broadcast for 5 seconds
each.
- Press and hold the key (over 0.8 seconds): Previews the broadcasts
saved in Preset ~ for 5
seconds each.
❈ Press the key again to
continue listening to the current
frequency.
❈ SAT Radio does not support the
Preset scan feature.
CD, USB, My Music mode
- Shortly press the key (under 0.8 seconds): Previews each song
(file) for 10 seconds each.
❈ Press the key again to
continue listening to the current
song (file). (9)
Briefly press the key (under 0.8 sec-
onds) : Moves to the Display, Sound,
Clock, Phone, System setting modes
Press and hold the key (over 0.8 sec-
onds) : Move to the Time setting screen
(10)
Displays menus for the current mode.
❈
iPod
®List : Move to parent category
(11)
Radio Mode
- SiriusXM
TMRADIO : Category Search
- MP3, CD, USB mode : Folder Search
CAT
FOLDER
MENU
SETUP
SCAN
SCAN
61
SCAN
DISP

I5
Index
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22
Using the Tire Mobility Kit . . . . . . . . . . . . . . . . . . . 6-20
In case of an emergency while driving . . . . . . . . . . . . . . 6-3 If engine stalls while driving . . . . . . . . . . . . . . . . . . . 6-3
If the engine stalls at a crossroad or crossing . . . . . . 6-3
If you have a flat tire while driving . . . . . . . . . . . . . . 6-3
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
57
Instrument Cluster Control. . . . . . . . . . . . . . . . . . . . 4-56
LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . 4-56
Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . 4-60
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139 Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Navigation system . . . . . . . . . . . . . . . . . . . . . . . . . 4-144
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105 Automatic turn off function . . . . . . . . . . . . . . . . . . 4-105
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . 5-6
Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . 5-6
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 4-4 Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61 LCD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
User Settings Mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-79\
Front light replacement . . . . . . . . . . . . . . . . . . . . . . 7-79
High mounted stop light bulb replacement . . . . . . . 7-88
Interior light bulb replacement. . . . . . . . . . . . . . . . . 7-91
License plate light bulb replacement . . . . . . . . . . . . 7-88
Rear combination light bulb replacement . . . . . . . . 7-85
Side repeater light bulb replacement . . . . . . . . . . . . 7-83
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-96 Battery saver function . . . . . . . . . . . . . . . . . . . . . . . 4-96
Daytime running light . . . . . . . . . . . . . . . . . . . . . . . 4-97
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
Headlight escort function . . . . . . . . . . . . . . . . . . . . . 4-96K
L
