KIA OPTIMA 2014 Features and Functions Guide

19
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED
Voice Recognition and Phone
Contact Tips
The Kia Voice Recognition System
may have difficulty understanding
some accents or uncommon names.
When using Voice Recognition to
place a call, speak in a moderate tone,
with clear pronunciation.
To maximize the use of Voice
Recognition, consider these guidelines
when storing contacts:
• Do not store single-name entries
(e.g., “Bob”, “Mom”, etc.). Instead,
always use full names (including
first and last names) for these
contacts
• Do not use special characters
(e .g . , ‘@’, ‘-’, ‘ * ’, ‘&’, etc .)
• Do not use abbreviations (i.e.,
use “Lieutenant ” instead of “Lt.”)
or acronyms (i.e., use “County
Finance Department” instead of “C. F. D.”)
• Be sure to say the name exactly as it is entered in the
contacts list
Bluetooth
® Wireless Technology
Pairing a Phone
For instructions on how to pair a phone, refer to
the audio system’s user’s guide.

How to Place a Call
When using the voice command feature, wait for
the system BEEP before speaking the command.
There are two options for placing a call:
Navigation System
• Option 1: Press the Receive/Place Call button
D (displays the phone screen with number
keypad)
• Option 2: Press the Talk button
C. Then say
the command “Call Name” or “Dial Number,”
followed by phonebook name or number
During the pairing process, be sure to accept the
connection requests on the phone for phonebook
download and to allow acceptance of all future
Bluetooth
® connection requests.
QUICK TIPS


Bluetooth® Wireless
Technology Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014
STEERING WHEEL CONTROLS

OPTIMA
FEATURES & FUNCTIONS GUIDE
20
*IF EQUIPPED
Cruise Control* Audio Controls*
•
• Cruise Control is designed to function above approximately
25 mph
• The cruise control system will not activate until the brake
pedal has been depressed at least once after ignition ON or
engine starting
QUICK TIPS
Pressing the Audio Mode button for more than 1 second will
turn Audio Mode ON/OFF.
QUICK TIPS
A Audio Mode button: Press to cycle through FM1-2 / AM
/ SAT 1-3 / CD / USB / AUX / iPod
®
B
Seek/Preset button
Radio Mode: Press to advance through Preset Stations.
Press and hold to AUTO SEEK
CD / USB / iPod
® Mode: Press to move TRACK UP/
DOWN. Press & hold to FF/REW
C Vo l u m e b u t to n: Press up/down to raise/lower volumeD Mute button: Press to mute all audio
E
Cruise Control ON/OFF: Press to turn the
Cruise Control ON/OFFF Resume Cruising Speed: Press to resume or increase
Cruising SpeedF Set Cruising Speed button: Press to set or decrease
Cruising SpeedG Cruise Control Cancel button: To cancel Cruise
Control setting, do one of the following:
• Press the brake pedal
• Press the CANCEL button
G
VOL VOL
MUTEMODE
CRUISECANCEL OK
RESSET
D
AB
C
E
FG
For further audio system operations, refer to pages 16-24 . REMINDER: Your vehicle’s steering wheel buttons may differ from
those in the illustrations. See your Owner’s Manual for more details.
REMINDER: Driving while distracted is dangerous and should be
avoided. Drivers should remain attentive to driving and always exercise
caution when using the steering-wheel-mounted controls while driving.
STEERING WHEEL CONTROLS

21
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED AUDIO SYSTEM
DISP
RADIO
MEDIA
PHONESCAN
SETUP
MENU
ENTER TUNE
FILE POWER
PUSH
VOL
Bluetooth
®
12
34
56RPT RDM
SEEK
TRACKCAT
FOLDER
REMINDER: Sirius™ service not available in AK or HI.For further audio system operations, refer to pages 21-24 .Standard Audio System Overview/Operation — AM/FM/Sirius™
Satellite Radio/CD/iPod
®/A u x
Audio System Setup Options
Press the SETUP button, then use the TUNE knob to cycle through the available settings for each equipped audio option.
Press the Tune Knob to adjust the audio option selected. Audio options may include the following:
• Display Settings
• Sound Settings• Phone Settings
• System Settings


Standard Audio System
Videos

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
http://kutechvideos.com/audio/base_ system
Press to move Up/Down
one Category/File folderPress to scan stations.
Songs will play for 5
seconds. To cancel
SCAN play, press again
Press to enter Setup mode
Press to enter Menu mode Press to turn Display
OFF/ON
Rotate to change Radio/
Sirius™ Station/
CD/MP3 filePress to select
previous/next Radio
Station /CD track Press to Power
ON/OFF. Rotate to
adjust volume
Press Preset buttons (1-
6) to select Radio/Sirius™
stations. Press and hold
to save Radio/Sirius™
stations Press to select Aux/
USB/iPod
® mode Press to select

AM/FM/Sirius™ modes
REMINDER: Yo u r v e h i c l e ’s
audio system may differ from
that in the illustration. See
your Owner’s Manual for more
details.

OPTIMA
FEATURES & FUNCTIONS GUIDE
22
*IF EQUIPPED
AUDIO SYSTEM
DISP
RADIO
MEDIA
PHONESCAN
SETUP
MENU
ENTER TUNE
FILE POWER
PUSH
VOL
Bluetooth
®
12
34
56RPT RDM
SEEK
TRACKCAT
FOLDER
Standard Audio System Operation — CD/Aux/USB/iPod
®*
Insert CD
Press to Scan CD/AUX/
USB/iPod
® Tr a c k Press to turn Display ON/OFF
Press to enter Setup mode
Press to enter Menu mode Press to eject CD
Press to select CD/AUX /
USB/iPod® track Press to power ON/OFF.
Rotate to adjust volume
Press button to select
Random playback. Press
and hold button to select
Random playback of all
songs in CD/file/folder
Press to select Repeat
playback. Press and hold
button to select Repeat
playback of all songs in
CD /file/folder Press to display CD/MP3/
AUX/USB/iPod
® modeIndicates that a CD is inserted
Rotate to browse songs.
Press to select song
Press to move Up/Down
one Category/File folder
For further audio system operations, refer to pages 21-24 .REMINDER: Sirius™ service not available in AK or HI. REMINDER: Your vehicle’s audio system may differ from that in the
illustration. See your Owner’s Manual for more details.

23
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED AUDIO SYSTEM REMINDER: Sirius™ service not available in AK or HI.
For further navigation system operation, refer to the Digital Navigation
System User's Manual.
For further audio system operations, refer to pages 21-24 .
•
ProlongeduseoftheNavigationsysteminACCmodemaydrain
the vehicle’s battery. A warning screen may appear periodically
to remind users that the Navigation System should be operated
with the engine running to prevent battery discharge.
QUICK TIPS
When using the voice command feature, wait for
the system BEEP before speaking the command.
QUICK TIPS
Navigation System with AM/FM/CD/MP3/Sirius - Sirius Traffic*
MAP
Press to Power ON/OFF.
Rotate to adjust Volume
Press to enter Phone ModePress to select FM/
AM modes Press to select
Sirius™ mode
Press to display the
eSERVICES/INFO/
SETTINGS modes Press to select CD/MP3/
USB/iPod
®/A u x m o d e Indicates that a CD has
been inserted
Press to change Radio/
Sirius™ Stations/CD/
MP3/USB/iPod
® files Press to display the Map
screen for the current
position/Voice mode
Press to display the

Destination menu screen
Press to display the

Route menu screen Press to eject CD
Press to access Clock
Display. Press and hold
to enter Clock Setup
Press to select previous/next Radio/
Sirius™ stations /CD tracks/MP3/USB/
iPod
® files. Press and hold to move
quickly through stations/tracks/files
Insert CD


Navigation Audio
System Videos

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODEhttp://kutechvideos.com/audio/
nav_eServices
REMINDER: Your vehicle’s audio system may differ from that in the
illustration. See your Owner’s Manual for more details.
Rotate to change Radio/
Sirius™ Station/
CD/MP3 file

OPTIMA
FEATURES & FUNCTIONS GUIDE
24
*IF EQUIPPED
AUDIO SYSTEM
DISP
FM/AM
SAT
MEDIAeServices
PHONE
SETUP
ENTER TUNE
FILE POWER
PUSH
VOL
Bluetooth
®
SEEK
TRACKCATEGORY
UVO System*REMINDER: Sirius service not available in AK or HI. For further audio system operations, refer to pages 21-24 .
Press to eject CD
Press to turn
Display OFF/ON
Press to display
PHONE mode
Press to display
SETUP mode Press to display
eServices mode
In Sirius mode,
press to move to
the previous/next
category Press to select next/previous
station/track/channel/song/file.
Press and hold to move quickly
through the stations/tracks/
channels/songs/filesPress knob to turn
Power On/Off.
Rotate knob to
adjust Volume
Up/Down
Press to select
MEDIA mode. Then
press FM/AM button
to toggle through
the Media modesPress to select
Sirius modePress to select
FM/AM mode
In Radio/Sirius/
MEDIA/JUKEBOX
modes, rotate
knob to search for
stations/ channels/
tracks/songs/
files. Press knob to
receive the selected
station/channel/
track/song/file Insert CD


UVO System Videos

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODEhttp://kutechvideos.com/audio/
UVO_eServices
REMINDER: Yo u r v e h i c l e ’s
audio system may differ from
that in the illustration. See your
Owner’s Manual for more details.
•
• When using the voice command feature, wait for the system
BEEP before speaking the command
• Only MP3 or WMA files may be played or copied to Jukebox.
Commercial CDs or CDs with a CDDA audio format (compact
disc digital audio) cannot be copied to Jukebox
• At any time you can interrupt UVO System Command
Feedback by pressing the TALK button
• Prolonged use of the UVO system in ACC mode may drain the
vehicle’s battery
QUICK TIPS

25
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED Standard Audio System Clock Setup:
Press the H button
A to advance the time by one hour.
Press the M button B to advance the time by one minute.
UVO System Clock Setup:
Press the CLOCK button to display the Clock setting
screen. Then use the on-screen buttons to navigate
through setup.Navigation System Clock Setup:
Press the Info/Settings key on the Audio Control Unit. Then
press the on-screen Setup button and select the Clock icon.
Aux/USB/iPod
® Port* & Power Outlets*
12V12V
AUXUSB

Kia USB Port Video
To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014
Press and hold both for more than 5 seconds to switch from 12
to 24 hour formats.
QUICK TIPS
Press the DONE button* on the Navigation screen to ensure
changes are saved.
Digital Clock
H
MH
MAB
QUICK TIPS
The power outlets are inactive when ignition
is in the OFF position
QUICK TIPS
CENTER PANEL

OPTIMA
FEATURES & FUNCTIONS GUIDE
26
*IF EQUIPPED

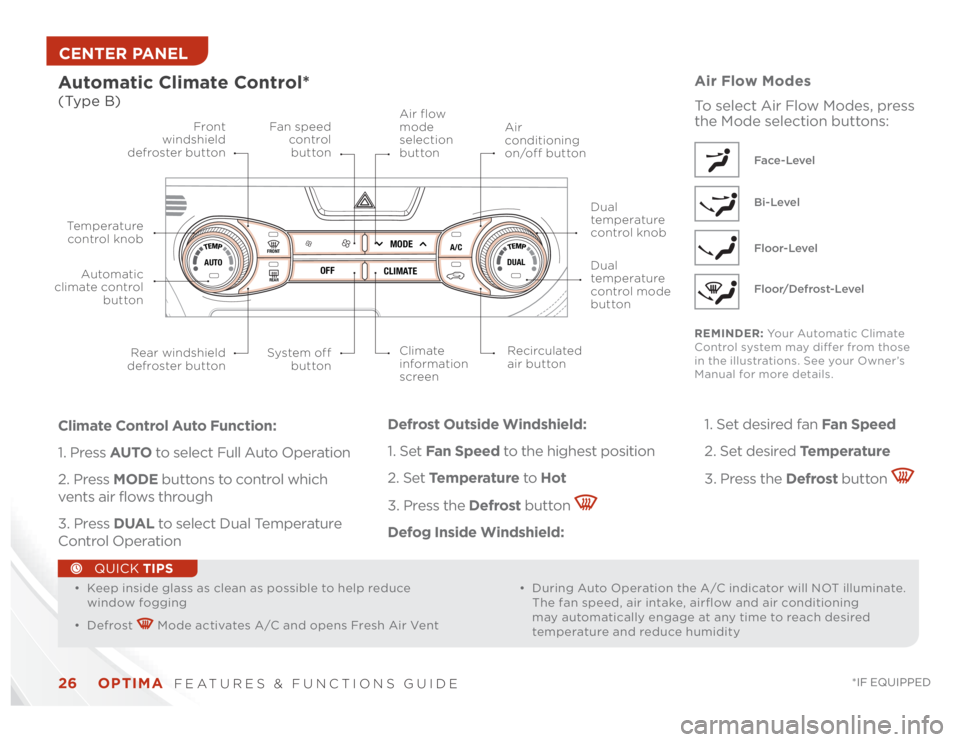

Automatic Climate Control* (Type B)
Defrost Outside Windshield:
1. Set Fan Speed to the highest position
2. Set Te m p e r a t u r e to Hot
3. Press the Defrost button
Defog Inside Windshield:1. Set desired fan Fan Speed
2. Set desired Te m p e r a t u r e
3. Press the Defrost button
•
• Keep inside glass as clean as possible to help reduce
window fogging
• Defrost
Mode activates A/C and opens Fresh Air Vent
• During Auto Operation the A/C indicator will NOT illuminate.
The fan speed, air intake, airflow and air conditioning
may automatically engage at any time to reach desired
temperature and reduce humidity
QUICK TIPS
REMINDER: Yo u r A u t o m a t i c C l i m a t e
Control system may differ from those
in the illustrations. See your Owner’s
Manual for more details.








Air Flow Modes
To select Air Flow Modes, press
the Mode selection buttons:
Face - Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Climate Control Auto Function:
1. Press AUTO to select Full Auto Operation
2. Press MODE buttons to control which
vents air flows through
3. Press DUAL to select Dual Temperature
Control Operation
Fan speed
control
button Front
windshield
defroster button
System off
button Rear windshield
defroster buttonAir flow
mode
selection
buttonAir
conditioning
on/off button
Climate
information
screenRecirculated
air buttonDual
temperature
control mode
button Dual
temperature
control knob Te m p e r a t u r e
control knob
Automatic
climate control
button
CENTER PANEL

27
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.

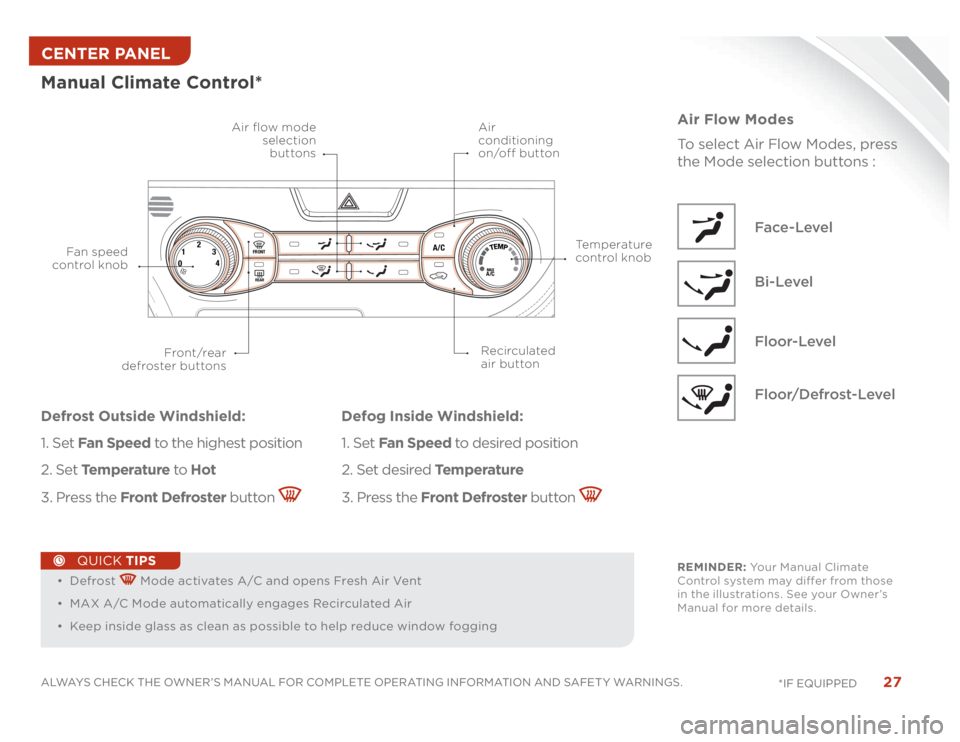

*IF EQUIPPED Manual Climate Control*Defrost Outside Windshield:
1. Set Fan Speed to the highest position
2. Set Te m p e r a t u r e to Hot
3. Press the Front Defroster button
Defog Inside Windshield:
1. Set Fan Speed to desired position
2. Set desired Te m p e r a t u r e
3. Press the Front Defroster button

•
• Defrost
Mode activates A/C and opens Fresh Air Vent
• MAX A/C Mode automatically engages Recirculated Air
• Keep inside glass as clean as possible to help reduce window fogging
QUICK TIPS







REMINDER: Your Manual Climate
Control system may differ from those
in the illustrations. See your Owner’s
Manual for more details.Air Flow Modes
To select Air Flow Modes, press
the Mode selection buttons :
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Front/rear
defroster buttonsAir flow mode
selection
buttonsAir
conditioning
on/off button
Recirculated
air buttonTe m p e r a t u r e
control knob Fan speed
control knob
CENTER PANEL

OPTIMA
FEATURES & FUNCTIONS GUIDE
28
*IF EQUIPPED
P: Park
R: Reverse
N: Neutral
D: Drive
[+]: Sport Mode Upshift
[–]: Sport Mode Downshift
Sport Mode: To enter Sport Mode, move shift
lever from D to lef t gate
Sport Mode Shifting: Move shift lever up [+] to
Upshift or down [ -] to Downshift
Paddle Shifters are operable when the shift lever is
in the D position or in Sport Mode.
Paddle Shifting: Pull the [+] or [-] paddle shifter
once to shift up or down one gear.REMINDER: The Paddle Shifters can be operated when the
vehicle speed is more than 6 mph.
REMINDER: When in Sportmatic Mode, pulling the left and
right paddle shifters at the same time will NOT shift gears.Automatic Gear Shift with Sportmatic Shifting*
Paddle Shifters*
• Press brake pedal and depress release button to move gear shift from N to P, N to R or from P to any gear
• Sport Mode downshifts are made automatically when the vehicle slows down. When the vehicle
stops, 1st gear is automatically selected
QUICK TIPS


Kia Sportmatic
® Shifting
Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
Paddle Shifters Video

QR
P
R
N
D
VOL VOLMUTEMODE
CRUISE
RESSET
www.KuTechVideos.com/qf13/2014
www.KuTechVideos.com/qf13/2014
CENTER PANEL
