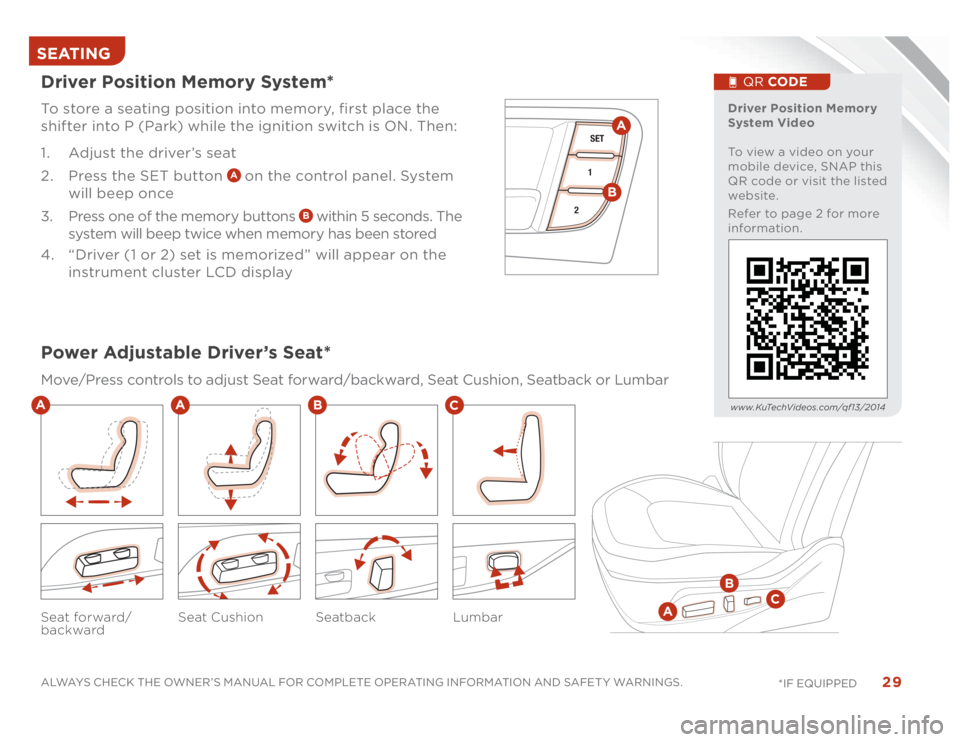

KIA OPTIMA 2014 Features and Functions Guide

29
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED SEATING
Seatback Lumbar Seat forward/
backwardSeat Cushion
Driver Position Memory System*To store a seating position into memory, first place the
shifter into P (Park) while the ignition switch is ON. Then:
1. Adjust the driver’s seat
2. Press the SET button
A on the control panel. System
will beep once
3. Press one of the memory buttons
B within 5 seconds. The
system will beep twice when memory has been stored
4. “Driver (1 or 2) set is memorized” will appear on the
instrument cluster LCD display
Power Adjustable Driver’s Seat*Move/Press controls to adjust Seat forward/backward, Seat Cushion, Seatback or Lumbar
B
C
A
A
B
C
A
SET
1
2
AB


Driver Position Memory
System Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014

OPTIMA
FEATURES & FUNCTIONS GUIDE
30
*IF EQUIPPED
SEATING
• With the seat
warmer switch in
the ON position,
the heating
system in the seat
turns OFF or ON
automatically
depending on the
seat temperature
• System defaults to
the OFF position
whenever the
ignition switch is
turned ON
QUICK TIPS
Seat Warmers* Press button once for high
setting (2 LEDs lit), again
for low setting (1 LED lit)
and again to turn OFF.
Seat Warmers — Press
top of button once for high
setting (2 LEDs lit), again for
low setting (1 LED lit) and
again to turn OFF.
Ventilated Seats — Press
bottom of button once
for high setting (2 LEDs
lit), again for low setting
(1 LED lit) and again
to turn OFF.
RR
Ye l l o w C o l o r :
Warming Ye l l o w C o l o r :
Warming
Blue Color:
Ventilating
Seat Warmers/
Ventilated Seats*


Seat Warmers Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014
C
B
A
6-Way Manual Adjustable Driver’s SeatPull lever
A to slide Seat forward/backward
Pull/press lever
B to adjust Seat Height
Pull lever
C to adjust Seatback Recline

31
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED SEATING
To raise headrest: Pull headrest up.
To lower headrest: Press lock, then press the
headrest down.
PRESS
Front Seat Headrest AdjustmentTo adjust headrest forward*: Pull headrest forward
at an upward angle to one of three positions.
To adjust headrest back*: Pull headrest completely
forward at an upward angle, then release.
When adjusting the headrest back, you may need to raise
headrest to allow space for the headrest to fully adjust backward.
QUICK TIPS

OPTIMA
FEATURES & FUNCTIONS GUIDE
32
*IF EQUIPPED
Smart Key Fob:A Press to lock All DoorsB Press to unlock Driver’s Door. Press twice
in 4 seconds to unlock All DoorsC Press and hold to unlock Trunk and manually
open
REMINDER: The Trunk unlocks when the Smart Key fob is
within close proximity of the vehicle.D Press and hold more than 1 second for Panic
Alarm. To turn off Alarm, press any buttonE Press to release Mechanical Key
Smart Key*
HOLD
D
A
B
E
CF
G
Driver’s Door Lock/Unlock button
G:
• Press button once to unlock driver’s door
• Press again within 4 seconds to unlock all doors
• Press again to lock all doors


Kia Engine Start/Stop
Button & Smart Key Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014The Smart Key’s signal
can be blocked by the
normal operation of a cell
or smart phone. To help
prevent this, store each
device separately.
REMINDER: Remote button
configuration may vary
depending on vehicle options.
Mechanical Key
F:
• Use to unlock driver’s door
• Use to turn Child Safety Locks (page 39)
• Use to lock glove box
QUICK TIPS
OTHER KEY FEATURES

33
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED
HOLD
DABC
A Press to Lock All DoorsB Press to unlock Driver’s
Door: Press twice in 4
seconds to unlock All
Doors and Rear HatchC Press and hold to unlock
rear hatchD Press and hold more than
1 second for Panic Alarm.
To turn OFF Alarm, press
any button
REMINDER: Remote button
configuration may vary
depending on vehicle options.
REMINDER: The Fuel Filler Door Release button is located on the lower
part of the driver’s door panel.Remote Keyless Entry (Folding Key)*
CLICK!
Fuel Cap / Malfunction
Indicator (Check
Engine Light)Tighten for ONE CLICK to
prevent Malfunction Indicator
from illuminating.


Kia One Click
Fuel Cap Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
LockUnlock
Double-Turn Lock / Unlock All*• Turn clockwise once to unlock Driver’s Door
• Turn clockwise again within 4 seconds to unlock All Doors
• Turn counterclockwise once to Lock All Doors
www.KuTechVideos.com/qf13/2014
OTHER KEY FEATURES

OPTIMA
FEATURES & FUNCTIONS GUIDE
34
*IF EQUIPPED
•
• You can reprogram a single HomeLink
® button by repeating Step 2
• Erasing programmed buttons will delete all trained transmitters
QUICK TIPS
The Auto-Dimming Rearview Mirror is designed to reduce
glare from a vehicle’s headlights located in the rear and also
connect up to three electronic transmitters in one location.
To turn automatic dimming ON or OFF, press button
F
HomeLink
® with Auto-Dimming
Rearview Mirror*
How to Sync Transmitter with HomeLink
®*
Erasing programmed buttons:
A HomeLink
® button
B HomeLink
® button
C Indicator lightD HomeLink
® button

E Glare detection sensor F Automatic dimming ON/OFF G Compass control buttonH Compass displayIf programming for the first time, begin with Step 1
(repeating this step will delete all information).
To program non-rolling and rolling code garage door
openers and other devices:
1. Press and hold the left
A and center
D buttons
simultaneously until the indicator light C begins to
flash (to reprogram buttons, skip this step)
2. Press and hold the desired button
A B D and hold
the button on the transmitter while it is approximately
1 to 3 inches away from the mirror. The HomeLink
®
Indicator light
C will flash rapidly once the frequency
signal has been successfully programmed
To finish programming rolling code garage door openers,
complete these steps:
3. Locate the “learn” or “smart ” button on the garage
door’s motor head unit. Press and release the button
and complete Step 4 within 30 seconds
4. Firmly press, hold for two seconds, and release the
programmed HomeLink
® button up to three times
Press and hold the left
A and center
D buttons
simultaneously for approximately 20 seconds,
and then release both buttons within 30 seconds.Operating HomeLink
®:
Press one of the programmed HomeLink
® buttons.
REMINDER: Mirror indicator light
C will illuminate when automatic
dimming is ON.
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s HomeLink
® system, you may need to
purchase a HomeLink Repeater Kit. For more information, go to www.HomeLink.com or call (800) 355-3515 .
A
B
C
D
E
F
G
H
OTHER KEY FEATURES

35
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED Map / Room LampsAutomatic turn off function*
The interior lights automatically turn off approximately 30 seconds after
the Engine System Start/Stop button is OFF.
Map / Personal Lamp
Push the lens
A to turn the Map Lamp ON/OFF. This light produces a spot
beam for convenient use as a Map Lamp or Personal Lamp for the driver or
front passenger.
Dome Lamp
B
OFF: In the OFF position, the lamp is OFF even if the door is opened.
DOOR: In the DOOR position, the lamp turns ON when any door is opened.
ON: In the ON position, the lamp stays on continuously.
SunvisorUse the Sunvisor to shield direct light
through the front or side windows. Slide
the Sunvisor out and adjust as needed.
•
• When doors are unlocked by the Smart Key*, the lamp turns ON for
approximately 30 seconds
• If your vehicle is equipped with the theft alarm system, the interior lights
automatically turn off approximately 3 seconds after the system is in the
armed stage
• Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
B
A
B
A
A
REMINDER: Sunvisor may not shield all direct light.
REMINDER: The Sunvisor may impair visibility if not
adjusted properly.
(Type A) (Type B)
OTHER KEY FEATURES

OPTIMA
FEATURES & FUNCTIONS GUIDE
36
*IF EQUIPPED
•
• To stop the Sunroof/Sunshade at any position, push or pull
the sunroof control lever in any direction
QUICK TIPS
Panoramic Sunroof Operation*The sunroof and sunshade operation is controlled through
a multidirectional switch/lever and the ignition needs to
be in the ON position to operate the sunroof/sunshade.
Slide the Sunshade and Sunroof:• Auto Open: Slide lever
A
backward to the farthest
position and release.
• Auto Close: Slide the lever

A
forward to the
farthest position and release.
Slide the Sunshade:• Open: Slide the lever
A
partially backward to the first detent position.
• Auto Close: Slide the lever
A forward to the farthest
position.
Warning! Check your surroundings for safety
Rear-Camera Display*The Rear-Camera Display system is not a safety device.
It is a supplemental system that displays
the view behind the vehicle through the Navigation* or
UVO* screen while the vehicle is in Reverse.
The Rear- Camera Display activates when the:
• Engine Start/Stop* button is in the ON position
(G re e n L ig ht)
• Gear Shift Lever is in the R (Reverse) position
A
REMINDER:
• The Rear-Camera Display is not a substitute for proper and safe backing-
up procedures. The Rear-Camera Display may not display every object
behind the vehicle. Always drive safely and use caution when backing up
• While camera is active, only the volume controls on the Audio System can
be operated. REMINDER: Sunshade needs to remain OPEN while Sunroof is open and
vehicle is moving.Slide the Sunroof (with sunshade open):• Open: Slide the lever
A backward and release.
• Close: Slide the lever A partially forward to
the first detent position or pull the lever downward.
Tilt the Sunroof:• Raise: Push lever
A upward.
• Lower: Pull lever
A downward.
• Auto Close: Slide the lever
A forward to the
farthest position.
OTHER KEY FEATURES

37
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED REMINDER: If the vehicle is moving at speeds over 3 mph, the
system may not activate correctly.
REMINDER: When more than two objects are sensed at the same
time, the closest one will be recognized first.
REMINDER: The Back-Up Warning System is not a substitute for
proper and safe backing-up procedures. Always drive safely and
use caution when backing up. The Back-Up Warning System may
not detect every object behind the vehicle.The Back-Up Warning System is not a safety device.
The Back-Up Warning System is a supplemental
system that assists the driver by chiming if any object is
detected within the sensing area to the rear and side of
the vehicle when backing up. When the ignition is ON,
the system is activated. Back-Up Warning System (Rear
Parking Assist System)*
Located underneath the Trunk lid. With Trunk
unlocked, press the Trunk Release button
A and
pull the Trunk lid up by the handle to open.
Trunk Release Button
A
(Trunk Release
Button
A)
•
• The Trunk must be unlocked before it can be opened by the
Tr u n k R e l e a s e B u t t o n
• The Trunk unlocks automatically and then can be opened
manually when the Smart Key is within close proximity to the
vehicle
QUICK TIPS
OTHER KEY FEATURES

OPTIMA
FEATURES & FUNCTIONS GUIDE
38
*IF EQUIPPED
Tire Mobility Kit*The Tire Mobility Kit may temporarily seal certain types of tire damage.
For operational information, please refer to section 6 of your Owner’s Manual.A Sealant BottleB Compressor
A
B
•
• The Tire Mobility Kit is a temporary fix and is to be used for one tire only; the tire should be inspected as soon as possible
• The kit should only be used for sealing/inflating passenger car tires; do not use for inflating any other type of tires
• Some damaged tires cannot be sealed completely; do not use the kit if a tire is damaged beyond repair
QUICK TIPS


Kia Tire Mobility Kit
Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014
REMINDER: After tire is properly sealed, drive cautiously at a maximum speed of 50 mph for a maximum distance of up to 120 miles.OTHER KEY FEATURES
