tires KIA OPTIMA 2014 Features and Functions Guide

5
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED
The TPMS indicator
functions as both Low Tire
Pressure Light and TPMS Malfunction Indicator.
The Low Tire Pressure Position Indicator
A is displayed on
the LCD screen in the Instrument Cluster.
The TPMS and the Low Tire Pressure Position indicators will
illuminate if one or more tires is significantly underinflated,
the vehicle has a spare tire without TPMS or the temperature
changes (cold).
• Inflate tire(s) to specifications to turn off indicators using an accurate digital tire pressure
gauge. See front driver’s door jamb for PSI specification
• The TPMS Malfunction Indicator
will illuminate after it blinks for approximately one
minute when there is problem with the TPMS. See dealer for service
Tire Pressure Monitoring System (TPMS)
•
• Even with TPMS, tire pressure should be checked at least once a month. Only adjust Tire Pressure
on “cold tires”
• For proper maintenance, safety, and optimal fuel economy, maintain recommended tire inflation
pressures and stay within the load limits and weight distribution recommended for your vehicle
• In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the
recommended tire inflation pressure during warm weather
QUICK TIPS
REMINDER: Consult your dealer for service if Low Tire Pressure Light remains illuminated after inflating your tire(s).


Kia Tire Pressure
Monitoring System
Video
To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.


QR CODE
www.KuTechVideos.com/qf13/2014
(Type B Cluster)
A
INSTRUMENT CLUSTER

OPTIMA
FEATURES & FUNCTIONS GUIDE
6
*IF EQUIPPED
Fuel EfficiencyThere are several factors that
contribute to your vehicle’s
fuel efficiency, including
maintenance of your vehicle,
driving style, environmental
conditions, vehicle weight
and vehicle aerodynamics.
Below are tips on how to help
improve fuel efficiency:REMINDER: See Owner’s Manuals for
safety information.• Keep your vehicle in good
condition with regular
maintenance
• Don’t let the engine idle
longer than necessary
• Drive at a moderate speed,
accelerating smoothly and at a moderate rate
• Keep tires inflated to the recommended pressure
• Travel lightly, without carrying unnecessary weight in
your vehicles
• Avoid placing large or heavy items on roof racks
• Avoid hilly, winding or poorly maintained roadsREMINDER: Driving range can vary depending on your vehicle’s fuel
tank size, e.g. 12-gal. vs. 24-gal., even though the MPG may be the same.
Instant Fuel Consumption Mode*
For more information on Fuel Economy, you can snap the QR code
above to view a video or refer to the brochure “GET TING MORE OUT
OF E VERY GALLON, FUEL-SAVING TIPS TO DRIVE BY ” available at your
local dealership.


Fuel Economy Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014
Press the MENU/MODE button
A to cycle to the Instant Fuel
Consumption Mode to calculate fuel consumption during the past few
seconds.
1. Keep your vehicle in good condition with regular maintenance
2. Travel lightly, without carrying unnecessary weight in your vehicles
3. Don’t let the engine idle longer than necessary
REMINDER: Not to be used in calculating or as a reference for AVER AGE fuel economy.
REMINDER: If the vehicle speed exceeds 1 MPH ( 1.6 km/h) after being refueled with more
than 1.6 gallons (6 liters), the average fuel economy will be cleared to zero (----).
(Type B Cluster)
REMINDER: Appearance of Tripmeter display may differ as equipped.
REMINDER: All stored driving information (except Odometer and Range)
is reset if the battery is disconnected.Trip Computer / Tripmeter The Trip Computer is a driver
information system that displays
information related to driving when
the Engine Start/Stop button is in
the ON position.
To cycle through the LCD Display
modes, press the MENU/MODE
button
A.
When in the TRIP COMPUTER
mode, press the SELECT button
B to cycle through the screens.
When displaying TRIP A or TRIP
B screens, press and hold the
ENTER/RESET button
C to reset
the Tripmeter to zero.
.
Range
.
Average MPG
.
Instant MPG.
Trip A
.
Average MPH
.
Elapsed Time (E/T ).
Trip B
.
Average MPH
.
Elapsed Time (E/T )Trip Computer First Screen:RANGE
256mi.30
20 10
Avg.0
27.4MPG
CRUISECANCEL OK
RESSET
AC
B
(located on Steering Wheel)
INSTRUMENT CLUSTER

7
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS.
*IF EQUIPPED
Active ECO System*The Active ECO system helps improve fuel
efficiency by controlling several vehicle
components. When activated, it optimizes
drivetrain operations such as engine power
and transmission for better fuel economy.
To turn ON, press the ECO button
B. The
button light will turn on and the green
ECO indicator light
C
in the instrument
cluster will illuminate (indicating that you
are getting optimal fuel efficiency). The
Active ECO System will remain on even
when the engine is turned off and restarted.
To turn the Active ECO System OFF, press
ECO button
B again.
CANCEL OKECO
B


Optima Active ECO
Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014•
To help improve your
fuel efficiency:
• Drive at a moderate
speed, accelerating
smoothly and at a
moderate rate
• Keep tires inflated to
the recommended
pressure
• Be sure the wheels are
properly aligned
For more information on Active ECO, refer to your
Owner’s Manual or contact your local dealership.
C
CANCEL OK
SET
ECO
Drive Mode Integrated
Control System*Drive Mode:
The Drive Mode may
be selected depending on driver’s
preferences and road conditions.
To scroll through the different Drive
Modes, press the DRIVE MODE button A. The Instrument Cluster will display
SPORT or ECO when selected. When in
Normal mode, it will not display in the
Instrument Cluster.
REMINDER: The system is turned ON and to
Normal Mode when ignition is in the ON position
A
(located on Steering Wheel)
(located on Steering Wheel)
(located on Instrument Cluster)
QUICK TIPS
INSTRUMENT CLUSTER

OPTIMA
FEATURES & FUNCTIONS GUIDE
38
*IF EQUIPPED

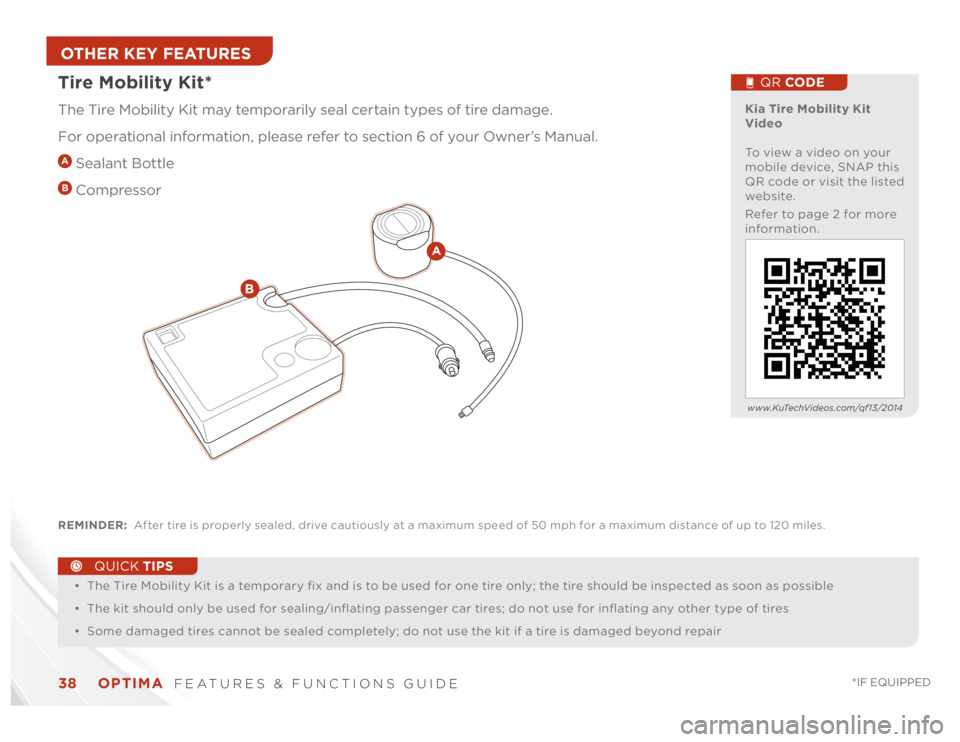

Tire Mobility Kit*The Tire Mobility Kit may temporarily seal certain types of tire damage.
For operational information, please refer to section 6 of your Owner’s Manual.A Sealant BottleB Compressor
A
B
•
• The Tire Mobility Kit is a temporary fix and is to be used for one tire only; the tire should be inspected as soon as possible
• The kit should only be used for sealing/inflating passenger car tires; do not use for inflating any other type of tires
• Some damaged tires cannot be sealed completely; do not use the kit if a tire is damaged beyond repair
QUICK TIPS


Kia Tire Mobility Kit
Video

To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/qf13/2014
REMINDER: After tire is properly sealed, drive cautiously at a maximum speed of 50 mph for a maximum distance of up to 120 miles.OTHER KEY FEATURES

A
Inspect* — Vacuum hose
Replace — Engine oil and oil filter (2.4L GDI)
1
Perform — Rotate tires; add fuel additive
2
B
Inspect* — Air cleaner filterC
Inspect* — Air conditioner refrigerant and performance; brake lines, hoses and connections; drive shaft and boots;
exhaust pipe and muffler; front disc brakes, calipers and rotors; rear disc brakes/pads; parking brake; steering gear
box, linkage and boots/lower arm ball join and upper arm ball joint; and, suspension mounting boltsD Replace* — Climate control air filter (for evaporator and blower unit)E
Inspect* — Fuel filter
3 and fuel tank air filter
3; fuel lines, fuel hoses and connections; vapor hose and fuel filler cap;
brake/clutch fluid**
Replace — Air cleaner filter
F Inspect* — Drive belt
4
G
Inspect* — Manual transaxle fluid**H Inspect* — Valve clearance
5
I Replace — Spark plugs (iridium coated), 2.0L TGDIJ Replace — Spark plugs (iridium coated), 2.4L GDIK Replace — Engine coolant
6,7
NORMAL MAINTENANCE SCHEDULE
When your vehicle requires service, remember that your dealer knows your vehicle best. Your dealer has factory-trained technicians,
recommended special tools, genuine Kia replacement parts, and is dedicated to your complete satisfaction. For expert advice and quality
service, see your authorized Kia dealer.Optima
Features & Functions Guide
INTERVAL MAINTENANCE CHART 7,500 miles
A
B
15,000 miles
A
B
C
22,500 miles
A
B
30,000 miles
A
C
D
E
37,500 miles
A
B
G
45,000 miles
A
B
C
D
I
52,500 miles
A
B
60,000 miles
A
C
D
E
F
H
67,500 miles
A
B
75,000 miles
A
B
C
D
F
G
82,500 miles
A
B
90,000 miles
A
C
D
E
F
I
97,500 miles
A
B
105,000 miles

A
B
C
D
F
J
112,500 miles
A
B
G
120,000 miles
A
C
D
E
F
H
K
* and, if necessary, adjust, clean, replace or correct
** If equipped
***
Check and adjust level and check for leaks. Inspect regularlyCheck tire pressure once a month or more.
Transfer case oil and rear differential oil should be changed anytime
they have been submerged in water.1 Engine oil (2.0L TGDI): At first, replace at 3,000 miles or 6 months, af ter that,
every 5,000 miles or 6 months.2 If TOP TIER Detergent Gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer along
with information on how to use them. Do not mix other additives.3 Fuel filter & Fuel tank air filter are considered to be maintenance free but
periodic inspection is recommended for this maintenance schedule depends on fuel quality. If there are some important safety matters like fuel flow restriction,
surging, loss of power, hard starting problem etc., replace the fuel filter
immediately regardless of maintenance schedule and consult an authorized Kia
dealer for details.
4 The drive belt should be replaced when cracks occur or tension is reduced
excessively.5 Inspect for excessive tappet noise and/or engine vibration and adjust if
necessary.6When replacing coolant, use only deionized water or sof t water for your vehicle
and never mix hard water in the coolant filled at the factory. An improper
coolant mixture can result in serious malfunction or engine damage.7For your convenience, it can be replaced prior to it ’s interval when you do
maintenance of other items.
See your owner’s manual for more details and complete maintenance information, including severe maintenance schedule.
Warranty may be voided if maintenance schedule is not followed.
