sensor KIA Optima 2015 4.G Owner's Guide

767
Maintenance
Inner Fuse panel
Description Fuse RatingProtected Component
MULTIMEDIA 15A ISG LDC AUDIO,AUDIO_UVO, AUDIO(PA30A,B), NAVI1.5, NAVI_3.0, NAVI_4.0, TMU
PDM 1 25A Smart Key Control Module (With Smart Key)
SPARE 10A -
PDM2 10A SMK UNIT, BUTTON START SW
P/SEAT(PASS) 20A Passenger Seat Manual Switch AMP 30A AMP
P/SEAT(DRV) 30A Driver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch (2WAY) MEMORY 2 7.5A PIC_RF_RECEIVER
TRUNK 10A Trunk Lid Relay, Trunk Room Lamp
MODULE 7 10A SPORT_MODE_SW, RR POWER WINDOW SW
DR LOCK 20A Door Lock/Unlock Relay, Dead Lock Relay (RHD), Turn Signal Lamp Sound Relay
S/HEATER(RR) 20A Rear Seat Warmer Relay LH/RH
P/WDW(RH) 25ADriver Safety Power Window Module (RHD), Passenger Safety Power Window Module (LHD),
Rear Safety Power Window Module RH, Power Window RH Relay
P/WDW(LH) 25ADriver Safety Power Window Module (LHD), Passenger Safety Power Window Module (RHD),
Rear Safety Power, Window Module LH, Power Window LH Relay
MODULE 2 10A BCM, Panorama Sunroof, Rain Sensor

Maintenance
68
7
Description Fuse Rating Protected Component
BRAKE SWITCH 10A Smart Key Control Module, Start Stop Button Switch, FOB Holder, Stop Lamp Switch
MEMORY 1 10ASEAT EXTN (IMS), DR_TRIM_EXTN (FOLD’G), CLUSTER, A/CON, ECM, AUTO FOLDING RLY,
TPMS, POWER OUTLET, A_L_PHOTO_SNSR, MUT
SUNROOF 20A Panorama Sunroof
S/HEATER(FRT)
SEAT VERNT(FRT) 20A SEAT_EXTN (HEAT/VENT)
SPARE 10A -
A/BAG IND 10A Instrument Cluster
MODULE 3 10A Sport Mode Switch, Key Solenoid (W/O Smart Key)
MODULE 4 10ADriver/Passenger CCS Control Module (With CCS), Driver/Passenger Seat Warmer Module (W/O
CCS), Front Seat Warmer & CCS Switch, Oil Pump Inverter, ISG Low DC-DC Converter, Tire Pressure
Monitoring Module
A/BAG 15A A/BAG UNIT IG1 , WCS_PASS IG1
INTERIOR LAMP 10A Driver/Passenger Smart Key Outside Handle (With Smart Key), Driver/Passenger Door Lamp, A/C
Control Module, Ignition Key ILL. & Door Warning Switch (W/O Smart Key), RF Receiver (With Smart
Key), Driver IMS Module, BCM, Data Link Connector, Driver/Passenger Door Scuff Lamp, Power
Outside Mirror Switch, Auto Light & Photo Sensor (W/O B/Alarm), Lamp Auto Cut Relay, Instrument
Cluster
CLUSTER 10A CLUSTER (IGN1)
MDPS 7.5ACrash Pad Switch, EPS Control Module (With MDPS), Steering Angle Sensor (W/O MDPS),
ATM Lever Indicator, EPB Switch, EPB Control Module
PDM 3 7.5A Smart Key Control Module (With Smart Key)

769
Maintenance
Description Fuse RatingProtected Component
EPB10AEPB
SPARE20A-
IG 125AE/R BOX IG1
SPARE 10A -
POWER OUTLET 20A Front Power Outlet
MODULE 1 10A Auto Head Lamp Leveling Device Module (Auto HLLD), Head Lamp Leveling Device Switch (Manual
HLLD), Head Lamp Leveling Device Actuator LH/RH, BCM, Front Smart Parking Assist Sensor Module,
Instrument Cluster, Electro Chromic Mirror, A/C Control Module, Driver IMS Module, Rear Parking
Assist Buzzer, Lane Keeping Assist Module
START 7.5A B/ALARM RLY
HTD STRG 15A Steering Wheel Heater
MODULE 5 7.5A Smart Key Control Module (With Smart Key), Rear Seat, Warmer Relay LH/RH, E/R Fuse & Relay Box
(RLY.2), Diesel Box (Fuel Filter Relay)
A/CON 7.5A A/C Control Module, E/R Fuse & Relay Box (RLY.14)
SPARE 15A -
WIPER 25A E/R BOX WIPER RLY
C/LIGHTER 20A Cigarette Lighter MODULE 6 7.5A PANORAMA SUNROOF (IG2), IONIZER, DSL_BOX, RR_SEAT_WARMER HTD MIRR 10A Driver/Passenger Power Outside Mirror

771
Maintenance

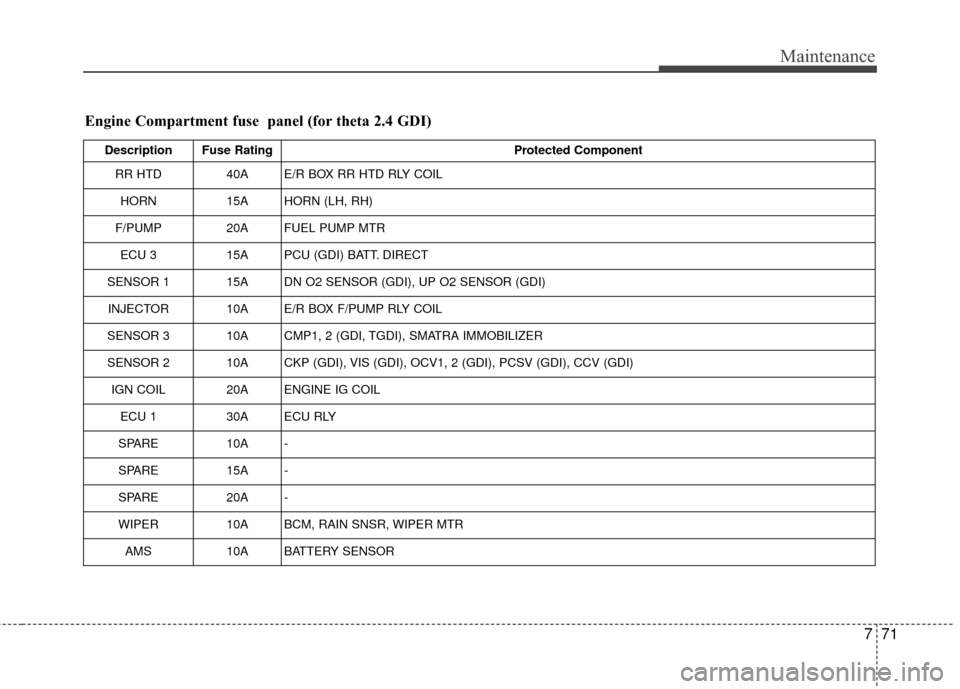

Engine Compartment fuse panel (for theta 2.4 GDI)
Description Fuse RatingProtected Component
RR HTD 40A E/R BOX RR HTD RLY COIL
HORN 15A HORN (LH, RH)
F/PUMP 20A FUEL PUMP MTR
ECU 3 15A PCU (GDI) BATT. DIRECT
SENSOR 1 15A DN O2 SENSOR (GDI), UP O2 SENSOR (GDI) INJECTOR 10A E/R BOX F/PUMP RLY COIL
SENSOR 3 10A CMP1, 2 (GDI, TGDI), SMATRA IMMOBILIZER
SENSOR 2 10A CKP (GDI), VIS (GDI), OCV1, 2 (GDI), PCSV (GDI), CCV (GDI) IGN COIL 20A ENGINE IG COIL ECU 1 30A ECU RLY
SPARE 10A -
SPARE 15A -
SPARE 20A -
WIPER 10A BCM, RAIN SNSR, WIPER MTR
AMS 10A BATTERY SENSOR

775
Maintenance
Description Fuse RatingProtected Component
RR HTD - E/R BOX RR HTD RLY COIL
HORN 15A HORN (LH, RH)
F/PUMP 20A FUEL PUMP MTR
ECU 3 15A PCU (TGDI) BATT. DIRECT
SENSOR 1 15A DN O2 SENSOR (TGDI), UP O2 SENSOR (TGDI), COOLING FAN RLY COIL (TGDI) INJECTOR 10A E/R BOX F/PUMP RLY COIL
SENSOR 3 10A CMP1, 2 (TGDI), SMATRA IMMOBILIZER
SENSOR 2 10A CKP (TGDI), VIS (GDI), OCV1, 2 (TGDI), PCSV (TGDI), RCV (TGDI) IGN COIL 20A ENGINE IG COIL ECU 1 30A ECU RLY
SPARE 10A -
SPARE 15A -
SPARE 20A -
WIPER 10A BCM, RAIN SNSR, WIPER MTR
VACUUM PUMP 20A BRAKE VACUUM PUMP IG1 AMS 10A BATTERY SENSOR

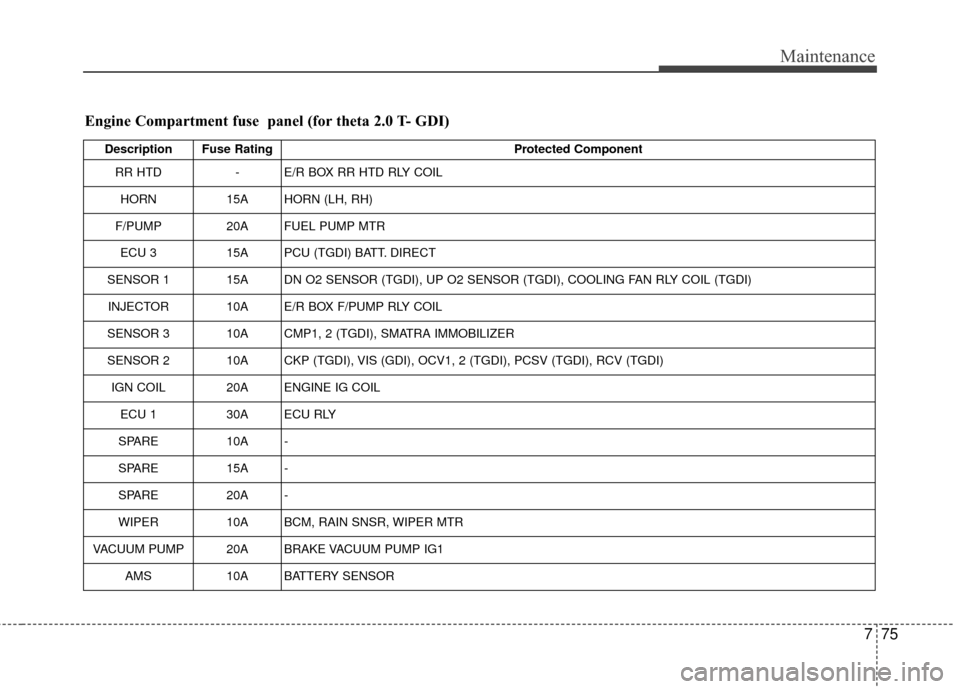

Engine Compartment fuse panel (for theta 2.0 T- GDI)
