KIA OPTIMA 2015 Navigation System Quick Reference Guide

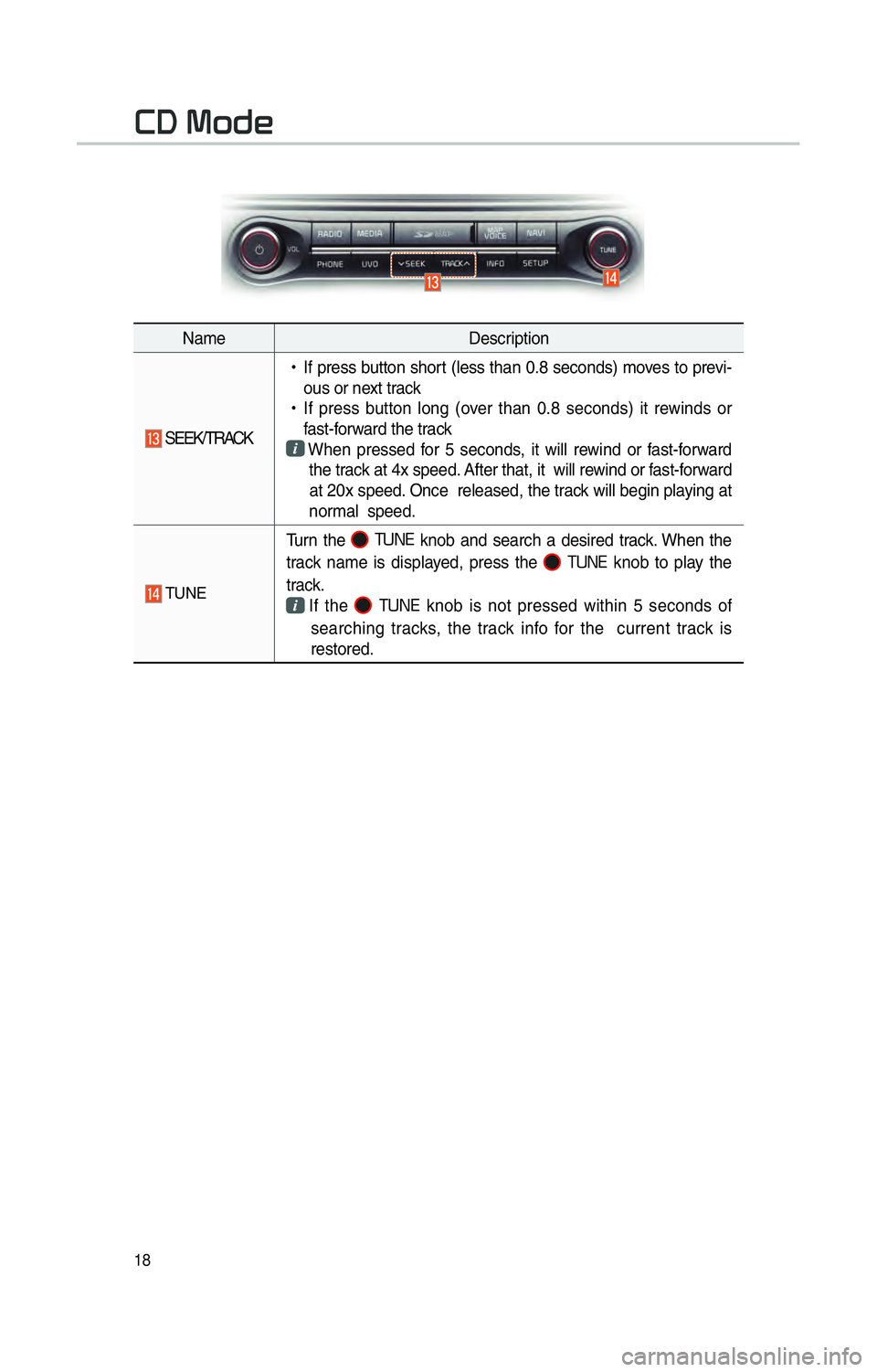

18
NameDescription
SEEK/TRACK
!Ÿ
If press button short (less than 0.8 seconds) moves to previ-
ous or next track

!Ÿ
If press button long (over than 0.8 seconds) it rewinds or
fast-forward the track When pressed for 5 seconds, it will rewind or fast-forward
the track at 4x speed. After that, it will rewind or fast-forward
at 20x speed. Once released, the track will begin playing at
normal speed.
TUNE
Turn the
TUNE knob and search a desired track. When the
track name is displayed, press the

TUNE knob to play the
track.
If the

TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
0026002700030030005200470048

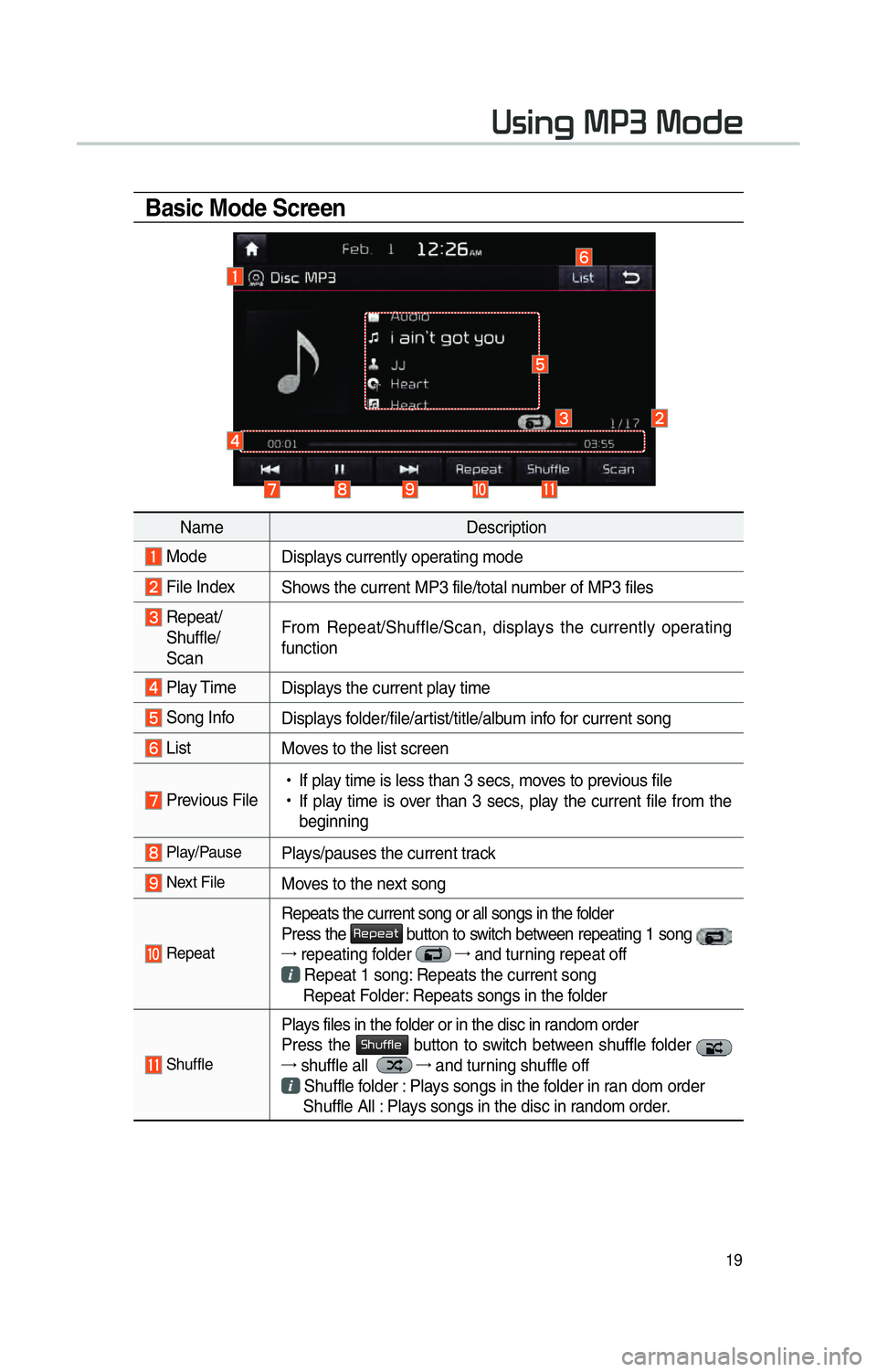

19
Basic Mode Screen

00380056004C0051004A000300300033001600030030005200470048
NameDescription
Mode
Displays currently operating mode
File IndexShows the current MP3 file/total number of MP3 files
Repeat/
Shuffle/
Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time
Song InfoDisplays folder/file/artist/title/album info for current song
ListMoves to the list screen
Previous File
!Ÿ
If play time is less than 3 secs, moves to previous file

!Ÿ
If play time is over than 3 secs, play the current file from the
beginning
Play/PausePlays/pauses the current track
Next FileMoves to the next song
Repeat
Repeats the current song or all songs in the folder
Press the 003500480053004800440057 button to switch between repeating 1 song
ª repeating folder ª
and turning repeat off Repeat 1 song: Repeats the current song
Repeat Folder: Repeats songs in the folder
Shuffle
Plays files in the folder or in the disc in random order
Press the 0036004B005800490049004F0048 button to switch between shuffle folder
ª shuffle all
ª
and turning shuffle off Shuffle folder : Plays songs in the folder in ran dom order
Shuffle All : Plays songs in the disc in random order.

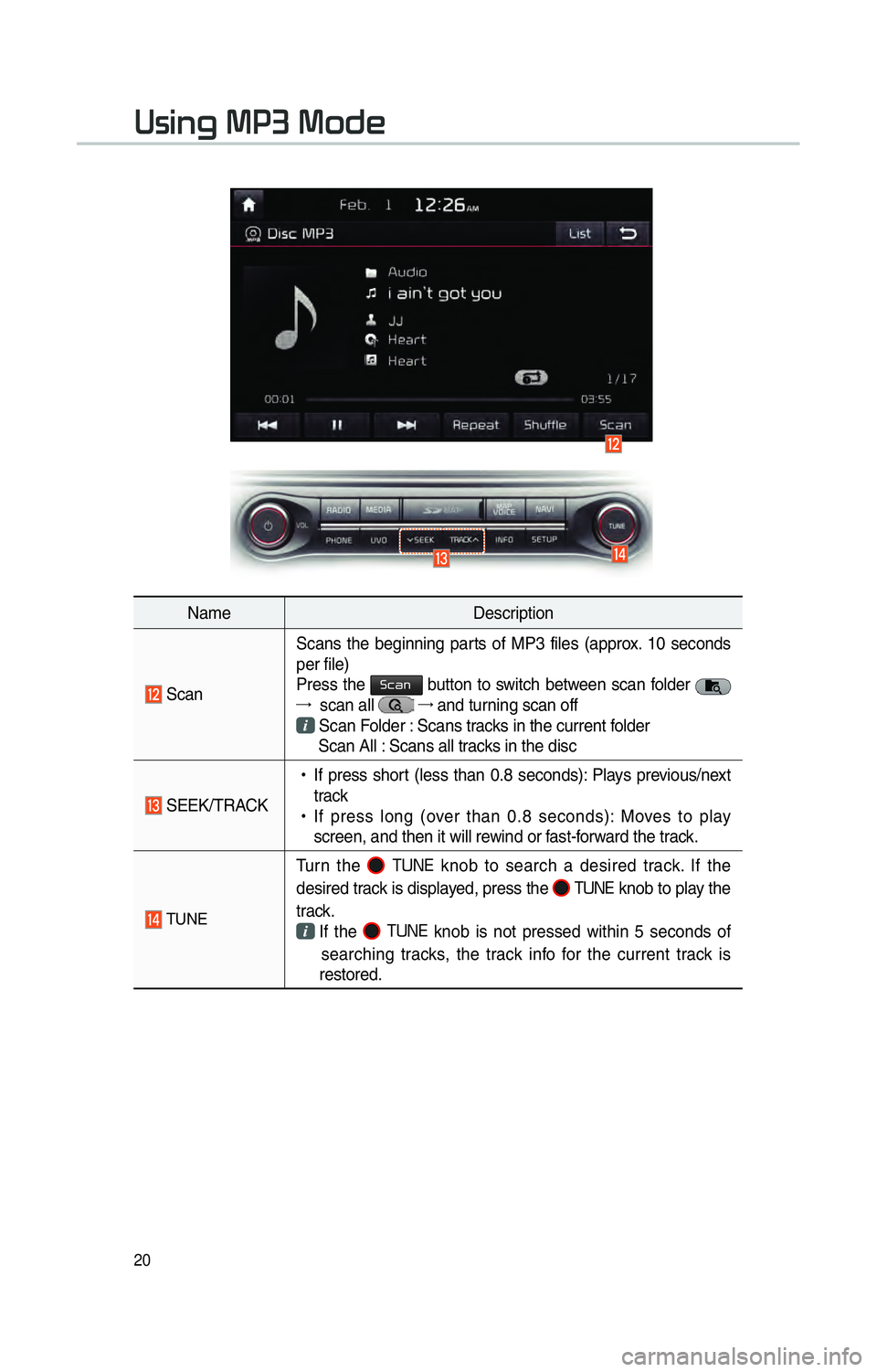

20
NameDescription
Scan Scans the beginning parts of MP3 files (approx. 10 seconds
per file)
Press the 0036004600440051 button to switch between scan folder
ª scan all ª
and turning scan off Scan Folder : Scans tracks in the current folder
Scan All : Scans all tracks in the disc
SEEK/TRACK
!Ÿ
If press short (less than 0.8 seconds): Plays previous/next
track

!Ÿ
If press long (over than 0.8 seconds): Moves to play
screen, and then it will rewind or fast-forward the track.
TUNE
Turn the
TUNE knob to search a desired track. If the
desired track is displayed, press the

TUNE knob to play the
track.
If the

TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
00380056004C0051004A000300300033001600030030005200470048

21
0038003600250003003000580056004C0046
USB Music
FeaturesDescription
Mode
Displays currently operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track

!Ÿ
When a track in the file tab on the list screen is selected :
Displays folder, file, title, artist, album info

!Ÿ
When a track in the other tabs on the list screen is selected :
Displays artist, title, album info
List Moves to the list screen
Previous
File If press button short (less than 0.8 seconds) : Moves to the pre-
vious file or play the current file from the beginning (Depends
on the play time)

!Ÿ
If play time is less than 3 seconds, moves to previous file

!Ÿ
If play time is over than 3 seconds, play the current file from
the beginning
If press button long (over than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If press button short (less than 0.8 seconds) : Moves to the next file

!Ÿ
If press button long (over than 0.8 seconds) : It fast-forwards the track
Repeat
Repeats the current file

!Ÿ
If select the song in the file tab on the list screen : Press the 003500480053004800440057
button to switch between repeating one song
, repeating folder , and turning repeat off

!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the
003500480053004800440057 button to switch between
repeating one song and turning repeat off
Back Button Converts to basic mode screen

22
FeaturesDescription
ShufflePlays files in random order

!Ÿ
If select the song in the file tab on the list screen : Press the
0036004B005800490049004F0048
button to switch between Shuffle Folder , Shuffle All , and
turning shuffle off

!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album, Genre)
on the list screen : Press the
0036004B005800490049004F0048 button to switch between Shuffle
Category and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10seconds per file)

!Ÿ
If select the song in the file tab on the list screen : Press the 0036004600440051 button to
switch between Scan Folder , Scan All , and turning scan off

!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album, Genre)
on the list screen : Press the 0036004600440051 button to switch between Scan cat-
egory and turning scan off
Menu
!Ÿ
Add to Playlist : Add the current track to the Playlist Playlist is placed
on the left tab in the list

!Ÿ
Save to My Music: You can save the current track to My Music. You
can play saved track from My Music without USB. Access to My
Music in the Media mode.
SEEK/
TRACK If press button short (less than 0.8 seconds) moves to previous/next file
or play the current track from the beginning

!Ÿ
If play time is less than 3 seconds, moves to previous/next file

!Ÿ
If play time is over than 3 seconds, play the current file from the beginning
If press button long (over than 0.8 seconds) it will rewind/fast-forward the track
TUNE Turn the
00370038003100280003
knob to search a desired track. If the desired track is
displayed, press the 00370038003100280003
knob to play the track.

0038003600250003003000580056004C0046

23
0038003600250003002C00500044004A0048
USB Image
FeaturesDescription
Mode
Displays currently operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image

24
iPod
FeaturesDescription
Mode
Displays currently operating mode
Song IndexShows the current song/total songs
Repeat/ShuffleFrom Repeat/Shuffle, displays the currently operating function
Play Time Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
Previous FileIf press button short (less than 0.8 seconds) : Moves to the pre-
vious file or play the current file from the beginning (Depends on
the play time)

!Ÿ
If play time is less than 3 seconds, moves to previous file

!Ÿ
If play time is over than 3 seconds, play the current file from the
beginning
If press button long (over than 0.8 seconds) it rewinds the track.
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If press button short(less than 0.8 seconds), Moves to the next file

!Ÿ
If press button long(over than 0.8 seconds), it does fast-forward
the track.
Repeat Repeats the current file
Press the 003500480053004800440057 button to switch between repeating 1 track ,
and turning repeat off
Shuffle Plays files in random order
When pressing 0036004B005800490049004F0048 button, it changes to shuffle category
→
deactivate Shuffle then repeat
!Ÿ
Shuffle Category : Shuffle song in the current category
Back Button Move to home/previous mode screen
004C003300520047

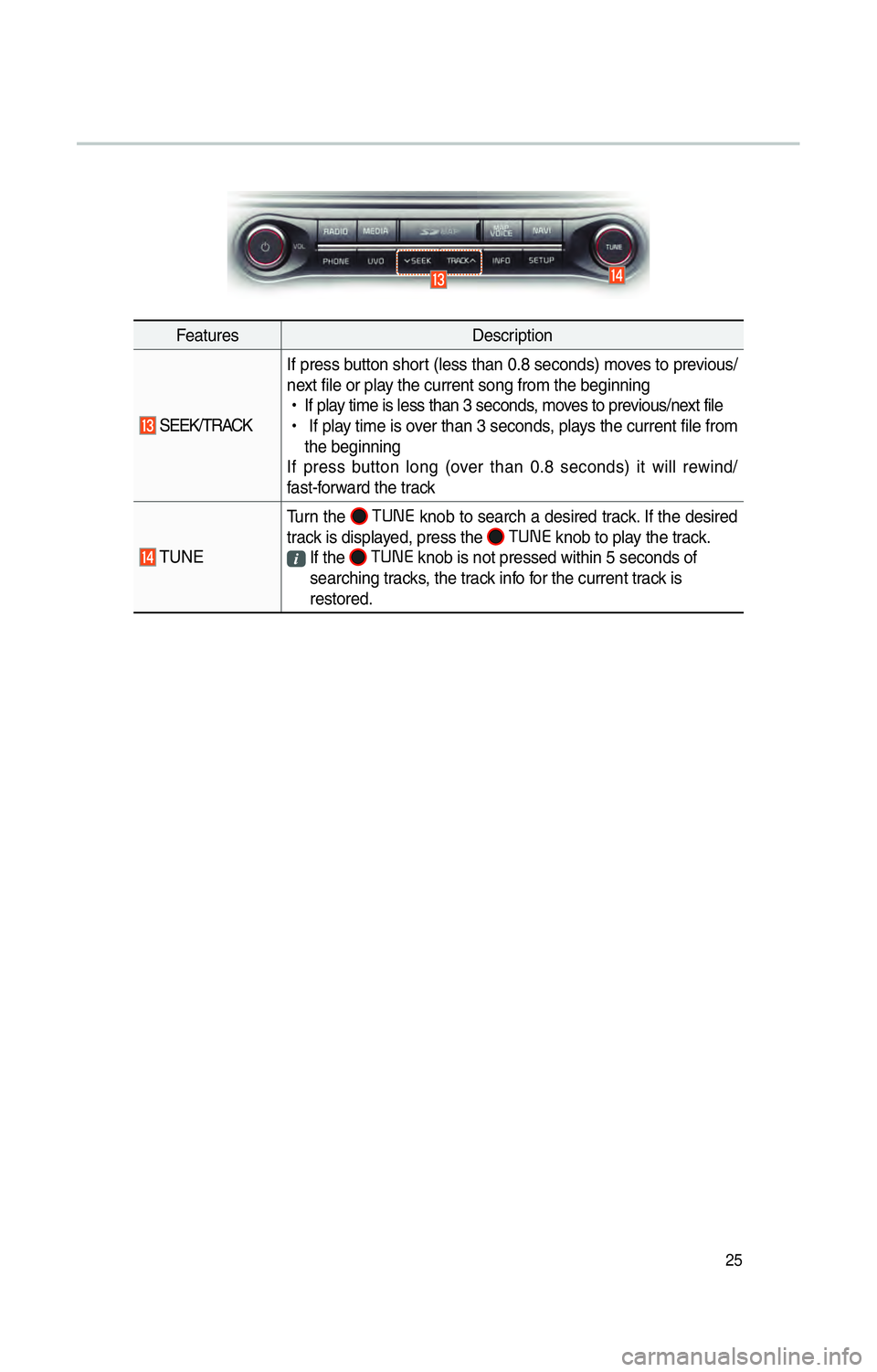

25
FeaturesDescription
SEEK/TRACKIf press button short (less than 0.8 seconds) moves to previous/
next file or play the current song from the beginning

!Ÿ
If play time is less than 3 seconds, moves to previous/next file

!Ÿ
If play time is over than 3 seconds, plays the current file from
the beginning
If press button long (over than 0.8 seconds) it will rewind/
fast-forward the track
TUNE Turn the

00370038003100280003
knob to search a desired track. If the desired
track is displayed, press the 00370038003100280003
knob to play the track.
If the 00370038003100280003
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.

26
00240038003B
Connecting an External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
!Ÿ
AUX mode can be used only when
an external audio player (camcorder,
car VCR, etc.) has been connected.

!Ÿ
The AUX volume can also be
controlled separately through the
connected device.

/05*$&
• If only cable connected to the AUX
without an exter
nal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
• When the external device power is
connected to the po w

er jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
$8;L3RG86%

27
Bluetooth Audio
i Information
• Artist info and Title may not supported by mobile phone
0025004F005800480057005200520057004B00710003002400580047004C005200030030005200470048
FeaturesDescription
Mode
Displays currently operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous
File
!Ÿ
If play time is less than 3 seconds, moves to the previous file

!Ÿ
If play time is over than 3 seconds, plays the current file from
the beginning
This function may differ depending on the model of mobile
phone
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
ConnectionsMoves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s)
SEEK/TRACK
Plays the previous/next file
TUNE 00370038003100280003
is not supported.
