Page 401 of 623

KIA Optima 2016 4.G Owners Manual 645
Driving your vehicle
ESC operation
ESC ON condition When the ignition is turnedON, ESC and ESC OFF
indicator lights illuminate for
approximately 3 seconds,
then ESC is turned on.
 ton for at least

Page 402 of 623

KIA Optima 2016 4.G Owners Manual Driving your vehicle
46
6
 ESC off state 1
To cancel ESC operation, press the
ESC OFF button (ESC OFF  )
shortly (ESC OFF indicator light
(ESC OFF  ) illuminates). At this
state, the engine control fu

Page 403 of 623

KIA Optima 2016 4.G Owners Manual 647
Driving your vehicle

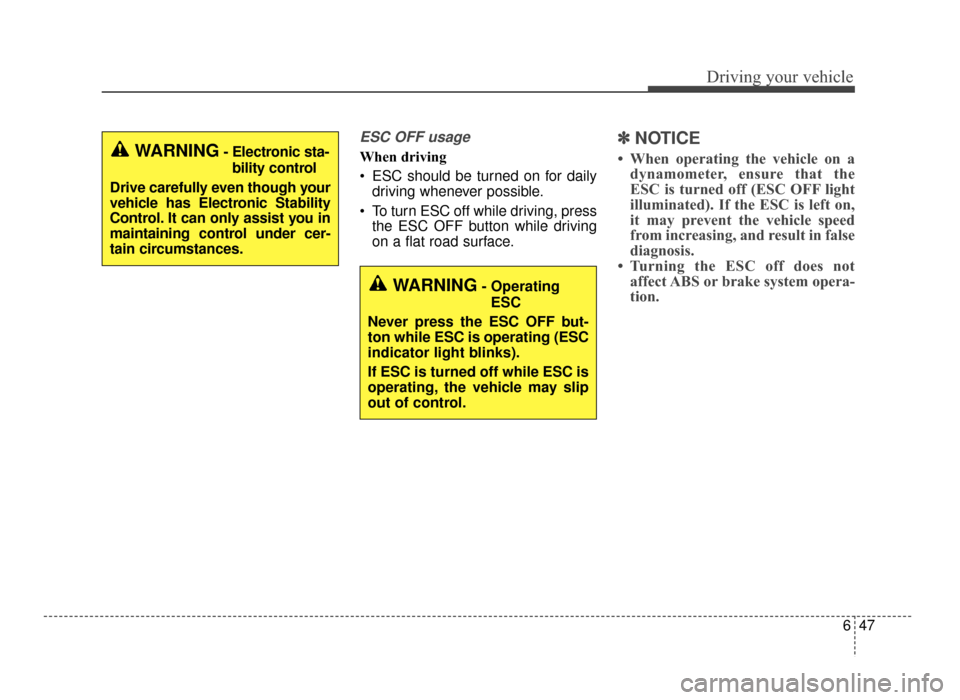

ESC OFF usage
When driving
 ESC should be turned on for dailydriving whenever possible.
 To turn ESC off while driving, press the ESC OFF button while driving
on a flat road s

Page 404 of 623

KIA Optima 2016 4.G Owners Manual Driving your vehicle
48
6
Vehicle stability management
(VSM) (if equipped)
This system provides further
enhancements to vehicle stability
and steering responses when a vehi-
cle is driving on a slippe

Page 405 of 623

KIA Optima 2016 4.G Owners Manual 649
Driving your vehicle
Malfunction indicator
The VSM can be deactivated even if
you don’t cancel the VSM operation
by pressing the ESC OFF button. It
indicates that a malfunction has
been detected

Page 406 of 623

KIA Optima 2016 4.G Owners Manual Driving your vehicle
50
6
Good braking practices
 Check to be sure the parking brake
is not engaged and the parking
brake indicator light is out before
driving away.
 Driving through water may get the

Page 407 of 623

KIA Optima 2016 4.G Owners Manual 651
Driving your vehicle
The AEB system is to reduce or to
avoid accident risk. It recognizes the
distance from the vehicle ahead or
the pedestrian through the sensors
(i.e. radar and camera), and, if

Page 408 of 623

KIA Optima 2016 4.G Owners Manual Driving your vehicle
52
6

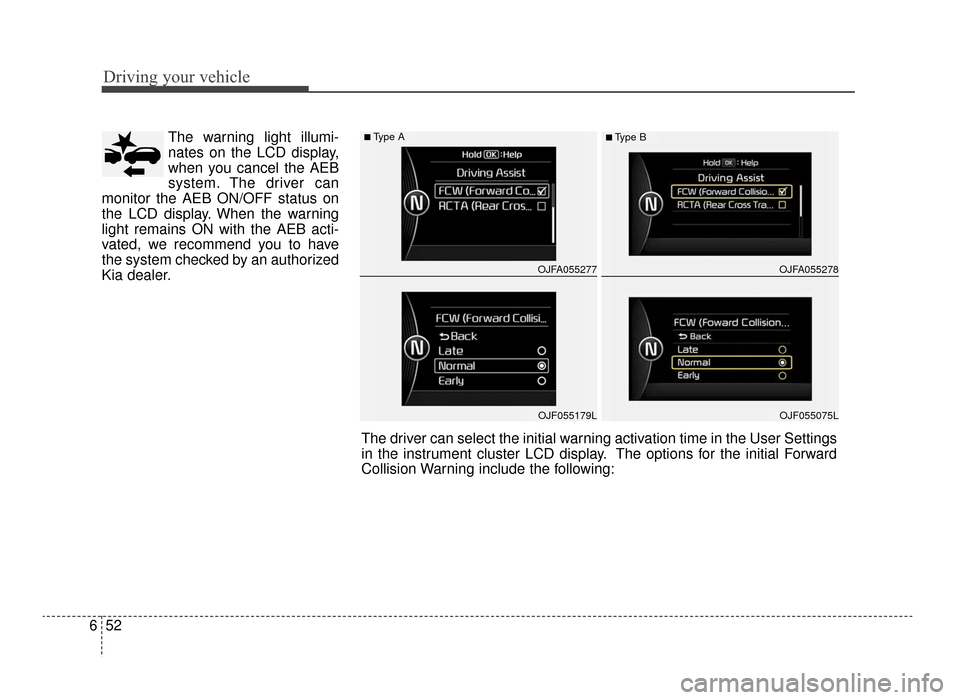

The warning light illumi-
nates on the LCD display,
when you cancel the AEB
system. The driver can
monitor the AEB ON/OFF status on
the LCD display. When the warning
light re

Page 409 of 623

KIA Optima 2016 4.G Owners Manual 653
Driving your vehicle

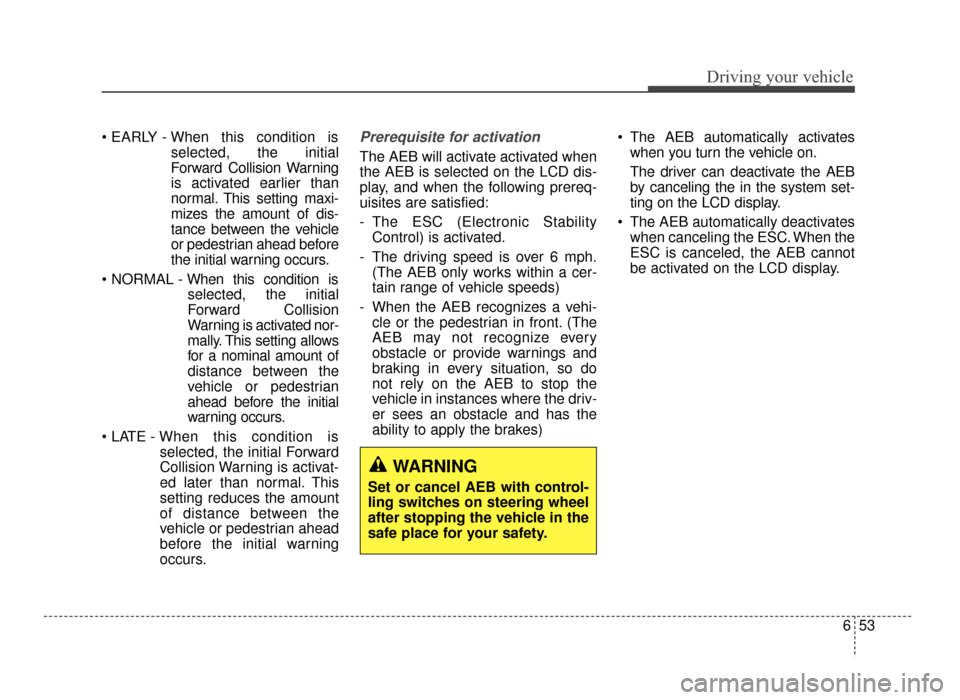

selected, the initial
Forward Collision Warning
is activated earlier than
normal. This setting maxi-
mizes the amount of dis-
tance between the vehicle
or pedestrian ahead bef

Page 410 of 623

KIA Optima 2016 4.G Owners Manual Driving your vehicle
54
6
AEB warning message and
system control
The AEB produces warning mes-
sages, warning alarms, and emer-
gency braking based on the level of
risk of a frontal collision, such as
