KIA OPTIMA 2017 Owners Manual

Specifications & Consumer information
49

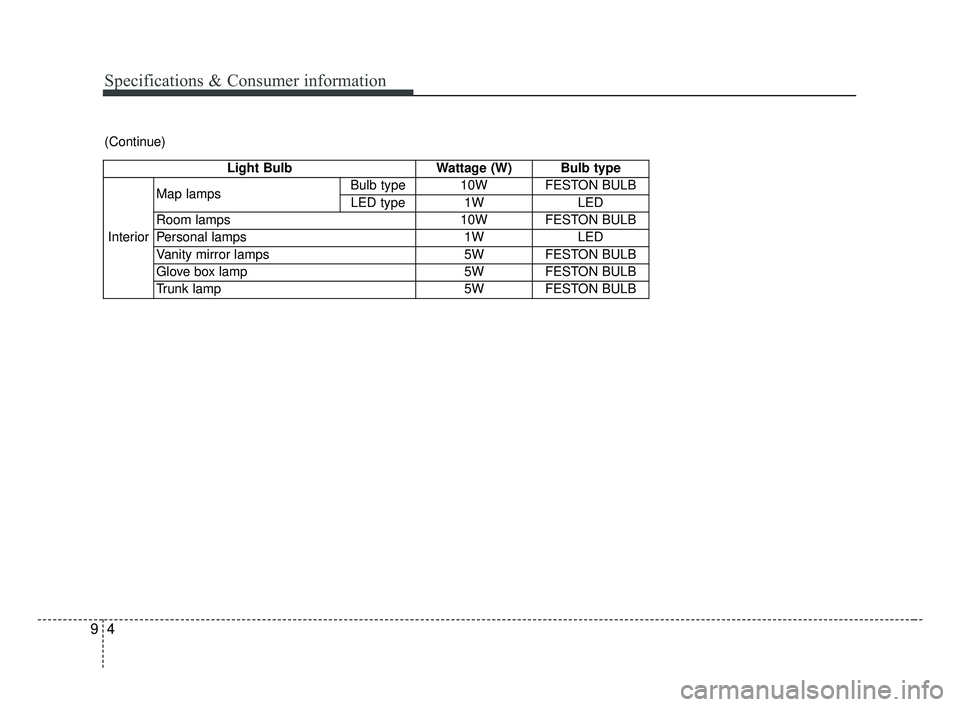

Light BulbWattage (W) Bulb type
Interior Map lamps
Bulb type 10W FESTON BULB
LED type 1W LED
Room lamps 10W FESTON BULB
Personal lamps 1WLED
Vanity mirror lamps 5W FESTON BULB
Glove box lamp 5W FESTON BULB
Trunk lamp 5W FESTON BULB
(Continue)
JF CAN (ENG) 9.qxp 8/29/2016 6:20 PM Page 4

95
Specifications & Consumer information

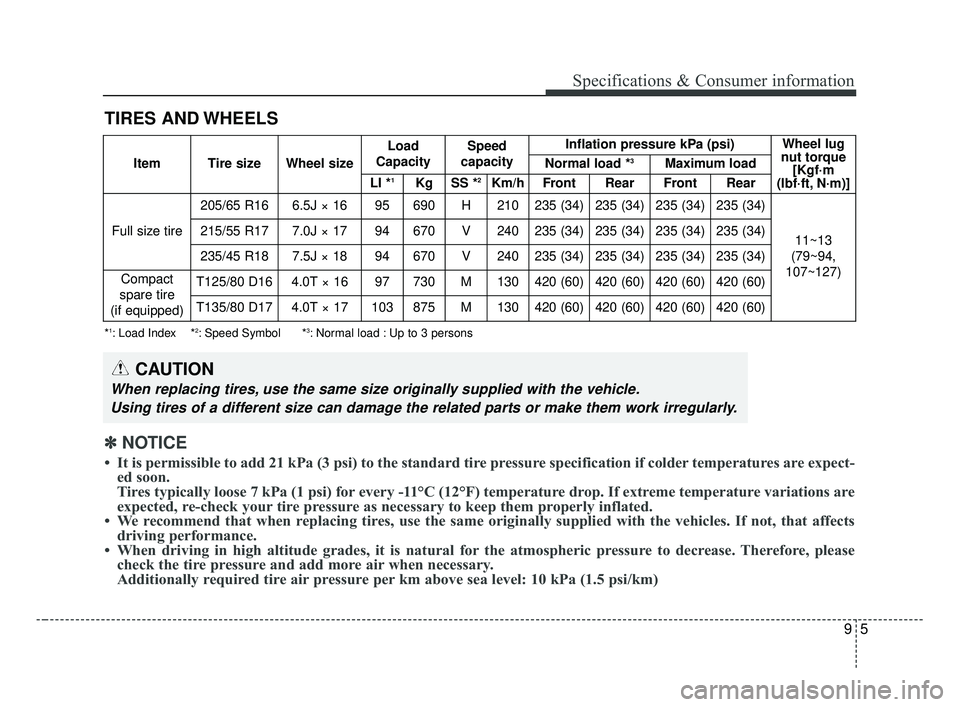

TIRES AND WHEELS
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure kPa (psi)Wheel lug
nut torque [Kgf·m
(lbf·ft, N·m)]
Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size tire
205/65 R166.5J × 1695690H210235 (34)235 (34)235 (34)235 (34)
11~13
(79~94,
107~127)215/55 R177.0J × 1794670V240235 (34)235 (34)235 (34)235 (34)
235/45 R187.5J × 1894670V240235 (34)235 (34)235 (34)235 (34)
Compact
spare tire
(if equipped)T125/80 D164.0T × 1697730M130420 (60)420 (60)420 (60)420 (60)
T135/80 D174.0T × 17103875M130420 (60)420 (60)420 (60)420 (60)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make them work irregularly.
*1: Load Index *2: Speed Symbol *3: Normal load : Up to 3 persons
✽ ✽ NOTICE
• It is permissible to add 21 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 7 kPa (1 psi) for every -11°C (12°F) temperature drop. If extreme temperature variations are
expected, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10 kPa (1.5 psi/km)
JF CAN (ENG) 9.qxp 8/29/2016 6:20 PM Page 5

Specifications & Consumer information
69

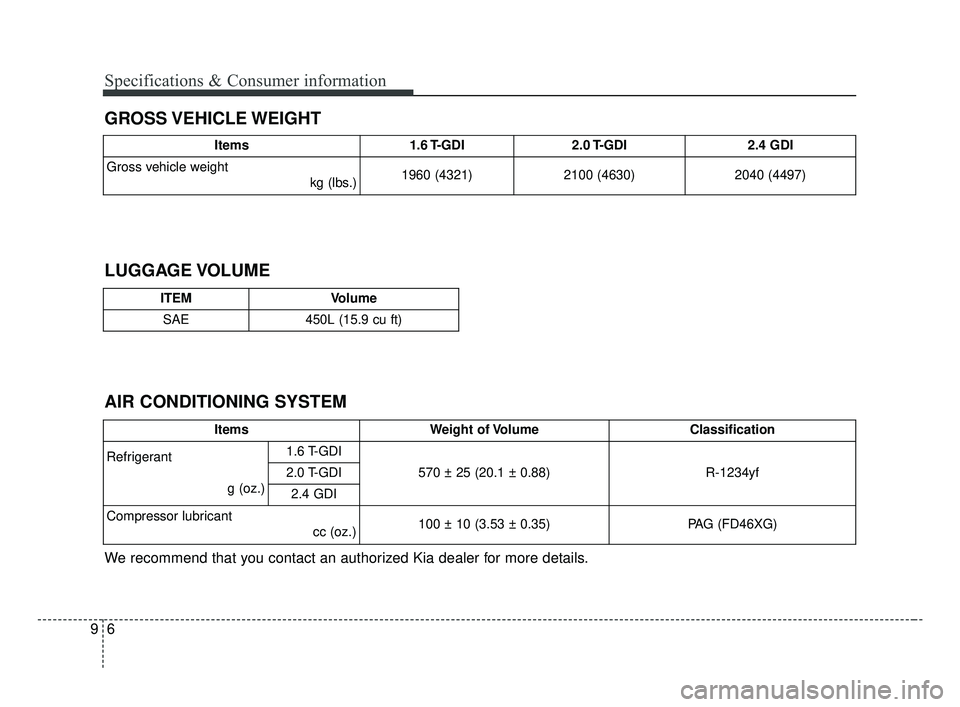

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details.
Items1.6 T-GDI2.0 T-GDI2.4 GDI
Gross vehicle weightkg (lbs.)1960 (4321)2100 (4630)2040 (4497)
ITEMVolume
SAE450L (15.9 cu ft)
ItemsWeight of VolumeClassification
Refrigerant
g (oz.) 1.6 T-GDI
570 ± 25 (20.1 ± 0.88)R-1234yf2.0 T-GDI
2.4 GDI
Compressor lubricant cc (oz.) 100 ± 10 (3.53 ± 0.35)PAG (FD46XG)
JF CAN (ENG) 9.qxp 8/29/2016 6:20 PM Page 6

97
Specifications & Consumer information

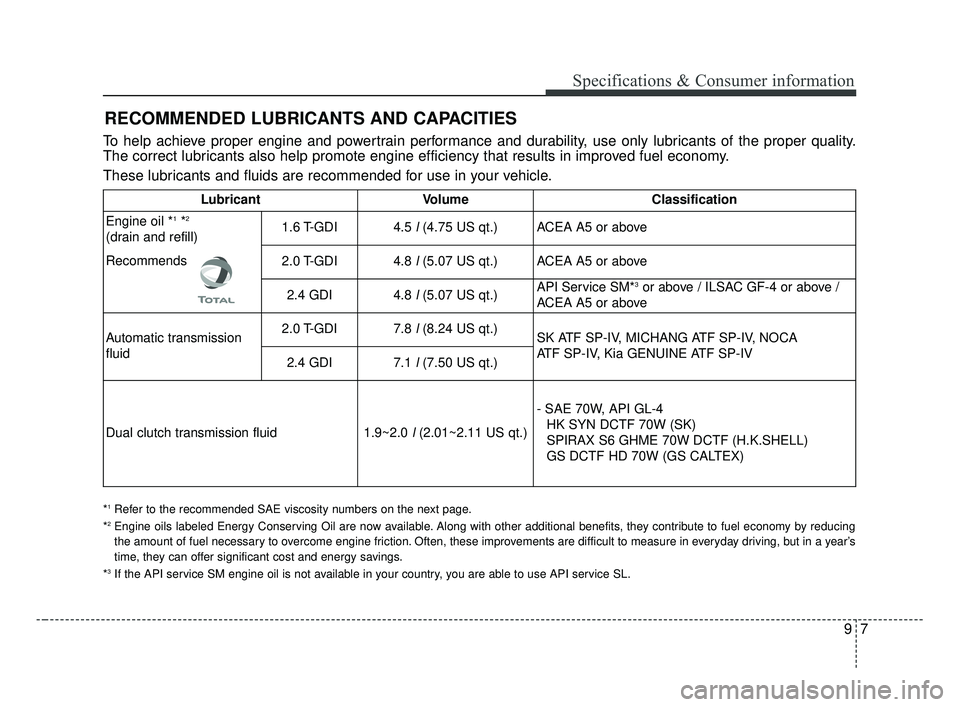

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolume Classification
Engine oil *
1*2
(drain and refill)
Recommends 1.6 T-GDI4.5l(4.75 US qt.) ACEA A5 or above
2.0 T-GDI
4.8l(5.07 US qt.) ACEA A5 or above
2.4 GDI4.8 l(5.07 US qt.)API Service SM*3or above / ILSAC GF-4 or above /
ACEA A5 or above
Automatic transmission
fluid 2.0 T-GDI
7.8l(8.24 US qt.)
SK ATF SP-IV, MICHANG ATF SP-IV, NOCA
ATF SP-IV, Kia GENUINE ATF SP-IV
2.4 GDI
7.1l(7.50 US qt.)
Dual clutch transmission fluid
1.9~2.0l (2.01~2.11 US qt.) - SAE 70W, API GL-4
HK SYN DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF (H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
JF CAN (ENG) 9.qxp 8/29/2016 6:20 PM Page 7

Specifications & Consumer information
89
LubricantVolumeClassification

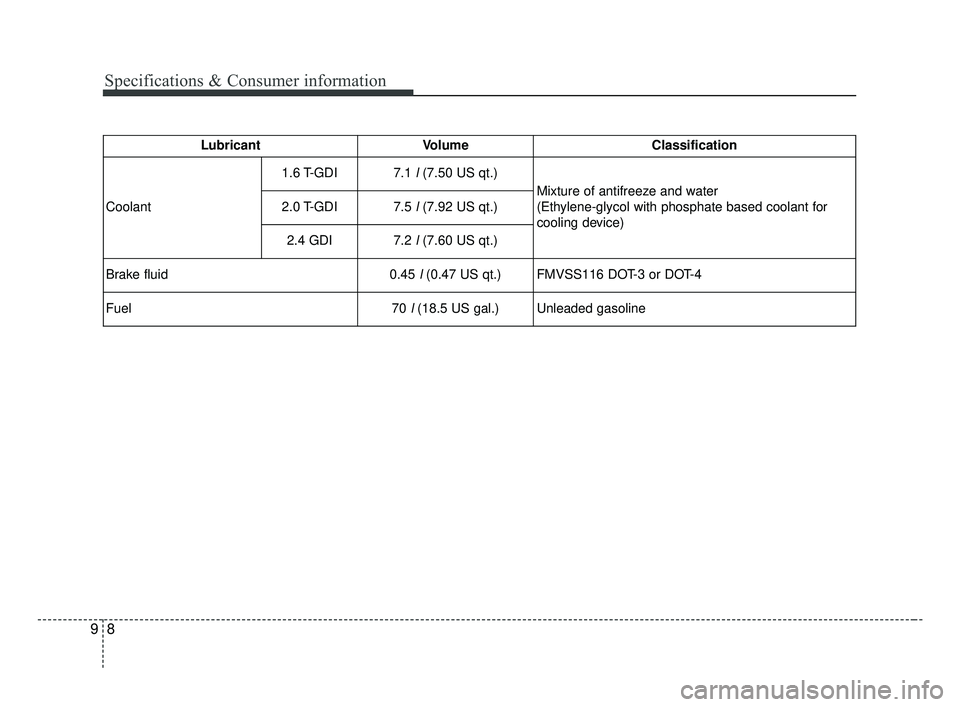

Coolant 1.6 T-GDI
7.1l(7.50 US qt.)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate based coolant for
cooling device)
2.0 T-GDI
7.5 l(7.92 US qt.)
2.4 GDI
7.2l(7.60 US qt.)
Brake fluid
0.45 l(0.47 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel70l (18.5 US gal.)Unleaded gasoline
JF CAN (ENG) 9.qxp 8/29/2016 6:20 PM Page 8

99
Specifications & Consumer information

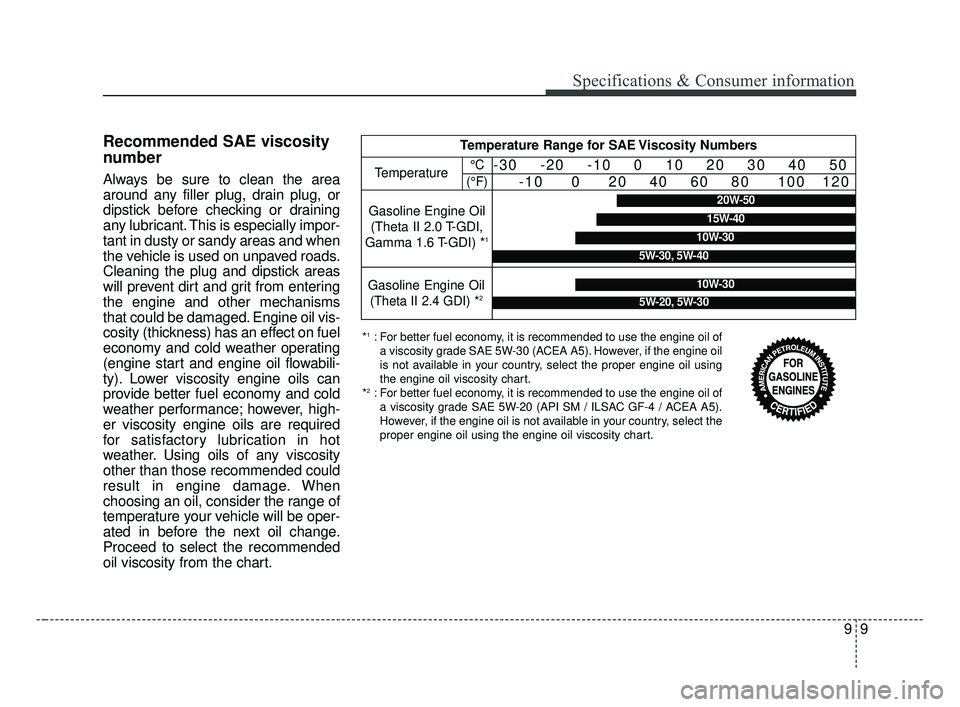

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially impor-
tant in dusty or sandy areas and when
the vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms
that could be damaged. Engine oil vis-
cosity (thickness) has an effect on fuel
economy and cold weather operating
(engine start and engine oil flowabili-
ty). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance; however, high-
er viscosity engine oils are required
for satisfactory lubrication in hot
weather. Using oils of any viscosity
other than those recommended could
result in engine damage. When
choosing an oil, consider the range of
temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gasoline Engine Oil
(Theta II 2.0 T-GDI,
Gamma 1.6 T-GDI) *
1
20W-50
10W-30
15W-40
5W-30, 5W-40
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-30 (ACEA A5). However, if the engine oil
is not available in your country, select the proper engine oil using
the engine oil viscosity chart.
*
2: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4 / ACEA A5).
However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
Gasoline Engine Oil(
Theta II 2.4 GDI) *210W-30
5W-20, 5W-30
JF CAN (ENG) 9.qxp 8/29/2016 6:20 PM Page 9

Specifications & Consumer information
10
9

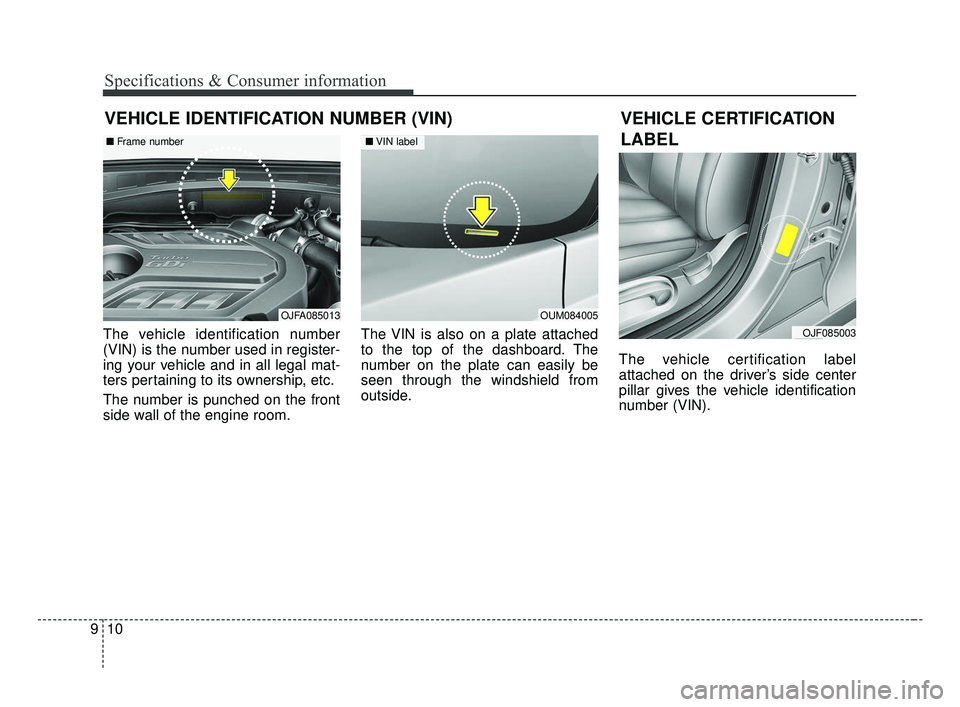

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the front
side wall of the engine room. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
OJFA085013
■
Frame number
OUM084005
■VIN label
OJF085003
JF CAN (ENG) 9.qxp 8/29/2016 6:21 PM Page 10

911
Specifications & Consumer information
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-

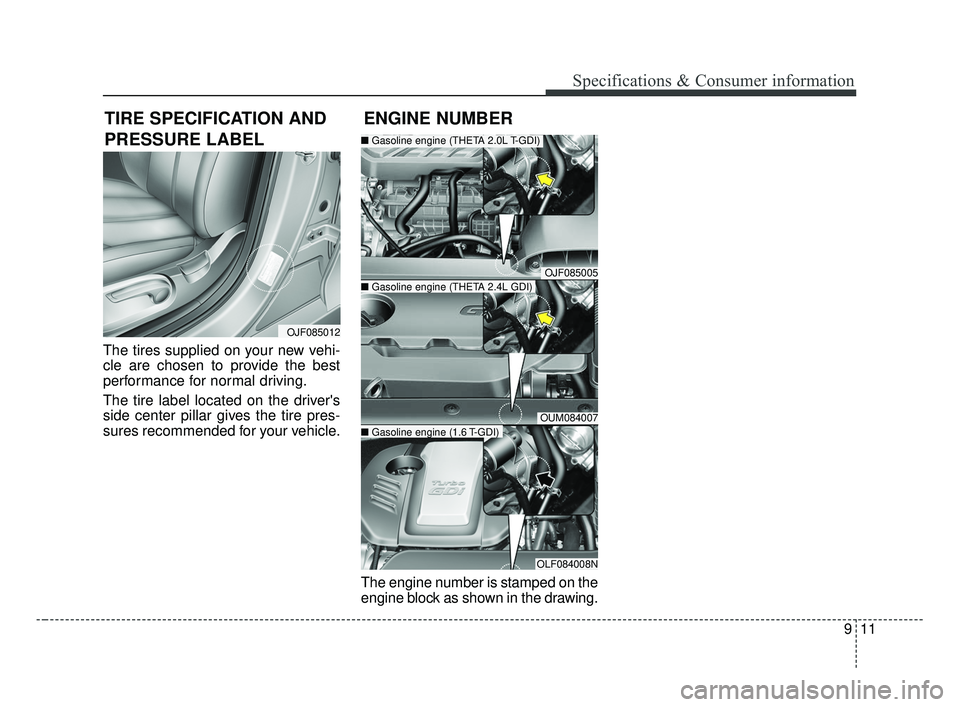

sures recommended for your vehicle.The engine number is stamped on the
engine block as shown in the drawing.
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL
OJF085012
OJF085005
OUM084007
OLF084008N
■ Gasoline engine (THETA 2.4L GDI)
■Gasoline engine (THETA 2.0L T-GDI)
■Gasoline engine (1.6 T-GDI)
JF CAN (ENG) 9.qxp 8/29/2016 6:21 PM Page 11
