KIA OPTIMA 2017 Owners Manual

Maintenance
78
8

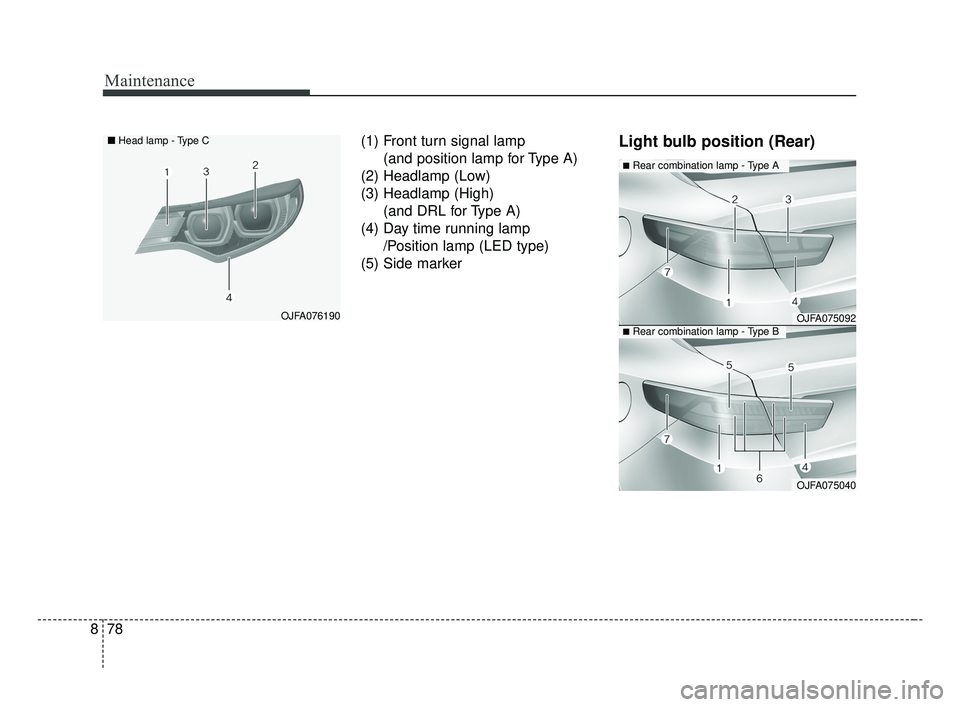

(1) Front turn signal lamp
(and position lamp for Type A)
(2) Headlamp (Low)
(3) Headlamp (High) (and DRL for Type A)
(4) Day time running lamp /Position lamp (LED type)
(5) Side markerLight bulb position (Rear)
OJFA075092
OJFA075040
■Rear combination lamp - Type A
■Rear combination lamp - Type B
OJFA076190
■
Head lamp - Type C
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 78

879
Maintenance

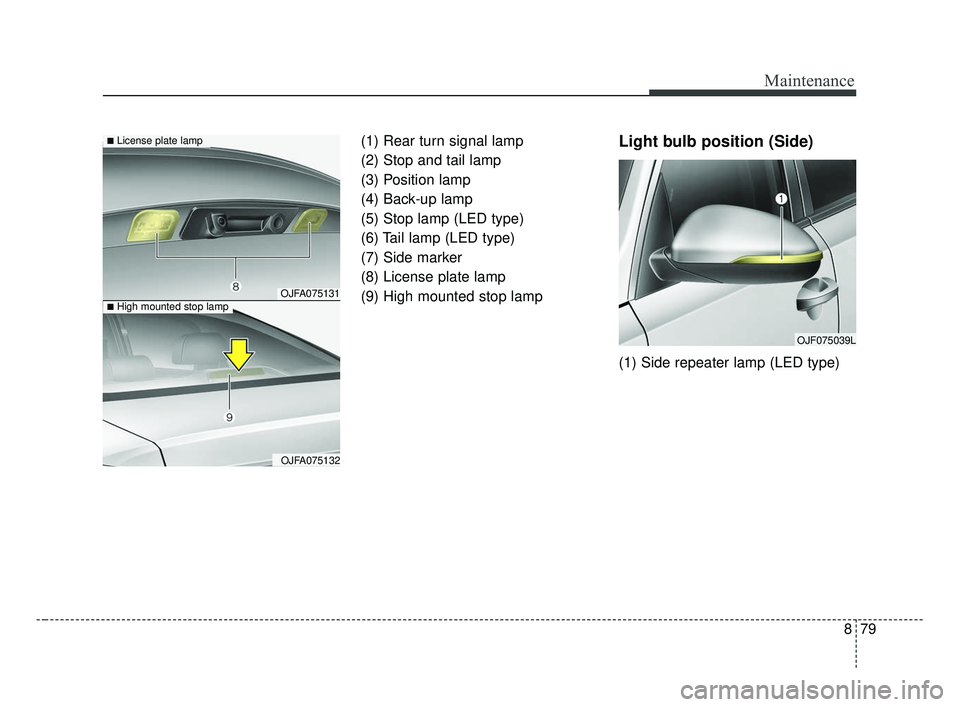

(1) Rear turn signal lamp
(2) Stop and tail lamp
(3) Position lamp
(4) Back-up lamp
(5) Stop lamp (LED type)
(6) Tail lamp (LED type)
(7) Side marker
(8) License plate lamp
(9) High mounted stop lampLight bulb position (Side)
(1) Side repeater lamp (LED type)
OJF075039L
OJFA075131
OJFA075132
■License plate lamp
■High mounted stop lamp
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 79

Maintenance
80
8

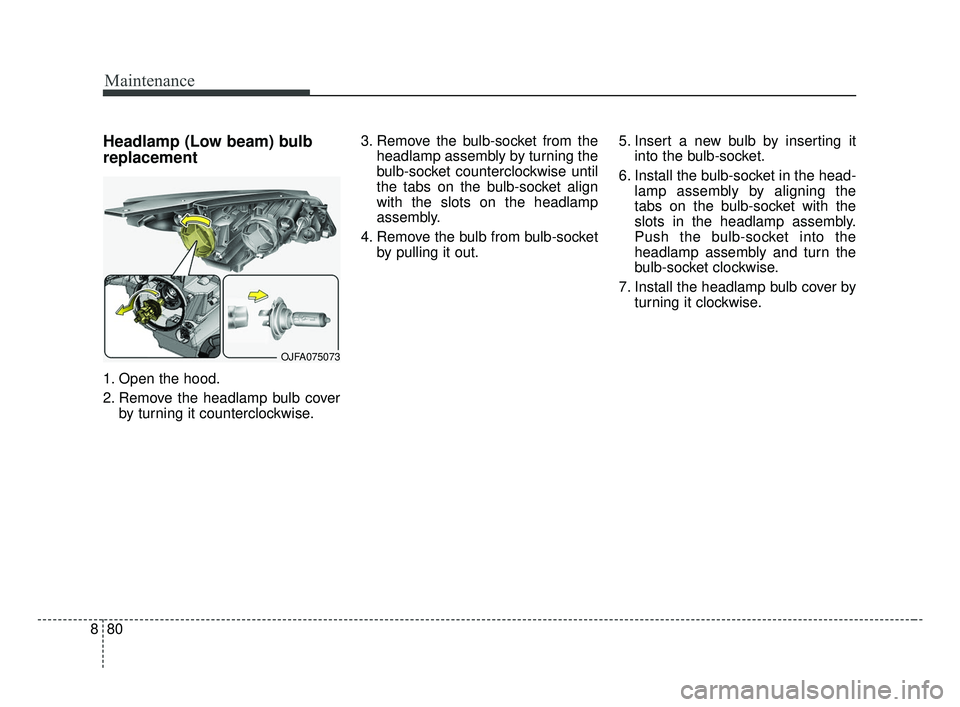

Headlamp (Low beam) bulb
replacement
1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise. 3. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
4. Remove the bulb from bulb-socket by pulling it out. 5. Insert a new bulb by inserting it
into the bulb-socket.
6. Install the bulb-socket in the head- lamp assembly by aligning the
tabs on the bulb-socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
7. Install the headlamp bulb cover by turning it clockwise.
OJFA075073
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 80

881
Maintenance

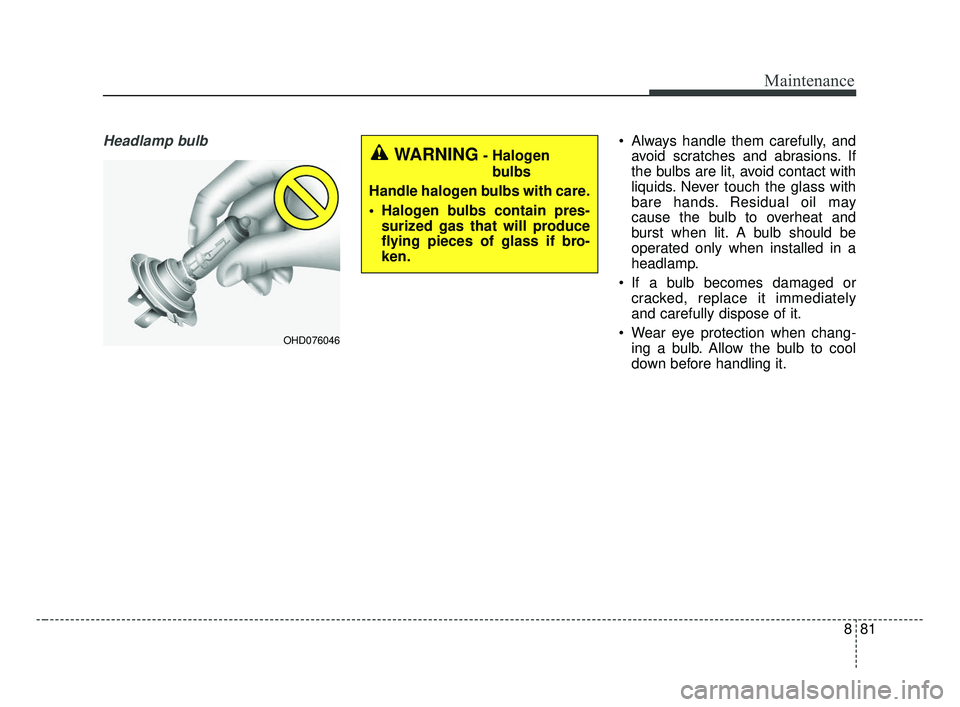

Headlamp bulb Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
OHD076046
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 81

Maintenance
82
8

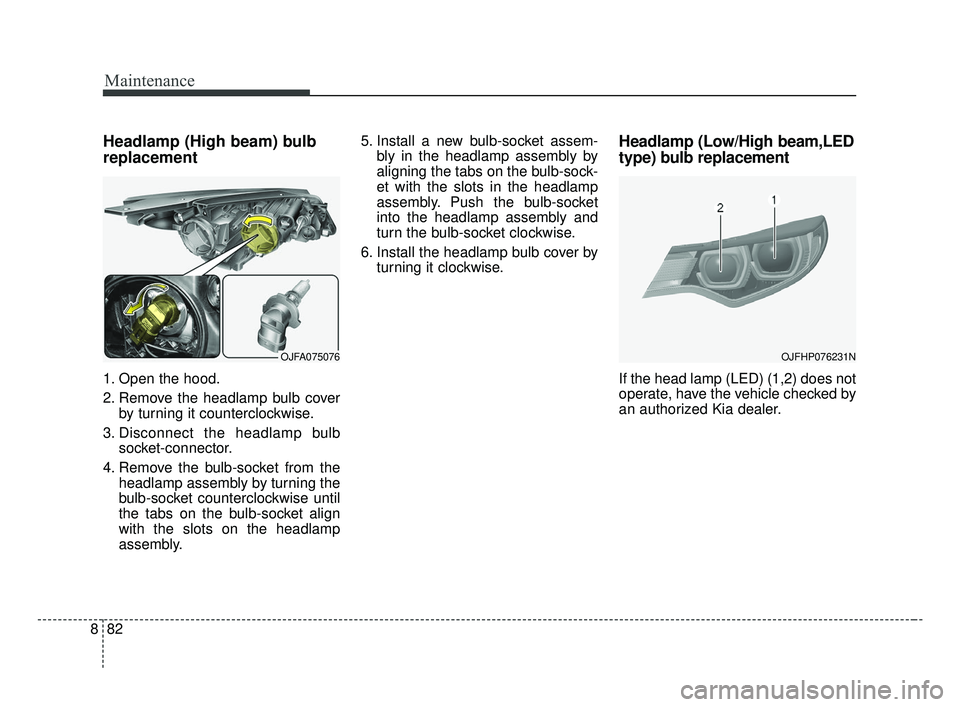

Headlamp (High beam) bulb
replacement
1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly. 5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
Headlamp (Low/High beam,LED
type) bulb replacement
If the head lamp (LED) (1,2) does not
operate, have the vehicle checked by
an authorized Kia dealer.
OJFA075076OJFHP076231N
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 82

883
Maintenance

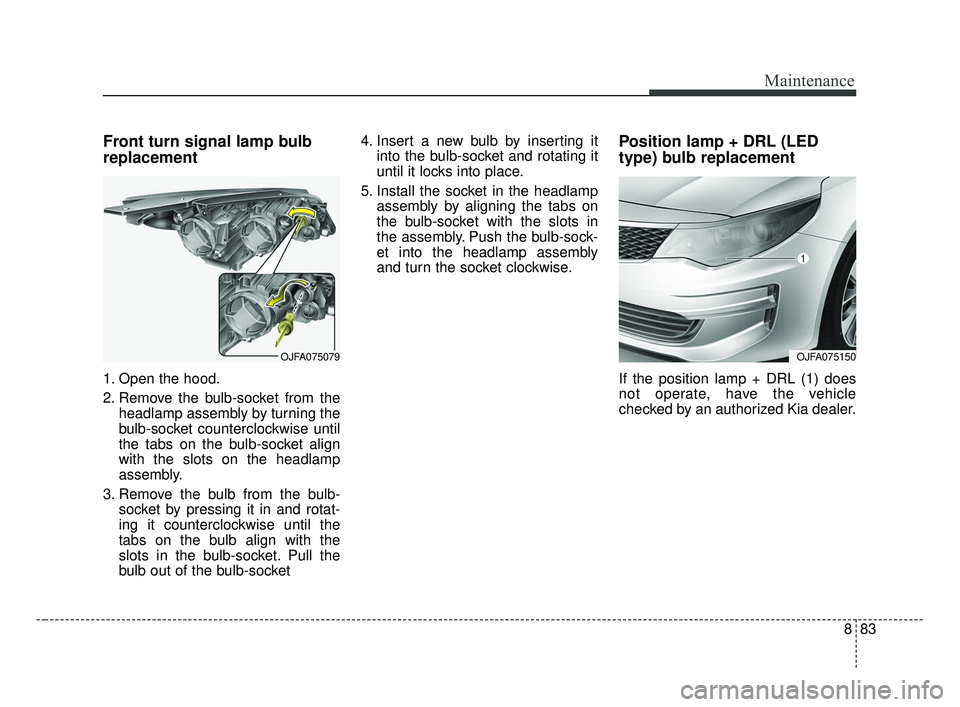

Front turn signal lamp bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.
OJFA075079OJFA075150
JF CAN (ENG) 8.qxp 2016-09-23 10:25 Page 83

Maintenance
84
8

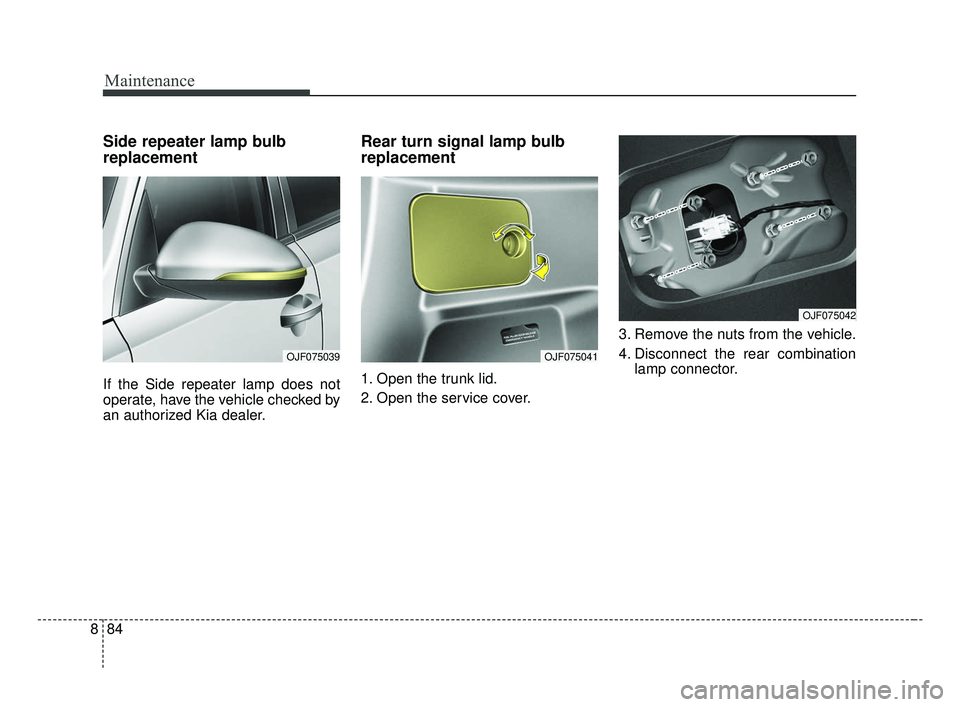

Side repeater lamp bulb
replacement
If the Side repeater lamp does not
operate, have the vehicle checked by
an authorized Kia dealer.
Rear turn signal lamp bulb
replacement
1. Open the trunk lid.
2. Open the service cover. 3. Remove the nuts from the vehicle.
4. Disconnect the rear combination
lamp connector.
OJF075041OJF075039
OJF075042
JF CAN (ENG) 8.qxp 2016-09-23 10:25 Page 84

885
Maintenance
5. Remove the rear combinationlamp assembly from the body of
the vehicle.
6. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 7. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp assembly to the body of the vehi-
cle.
11. Install the service cover by put- ting it into the service hole.

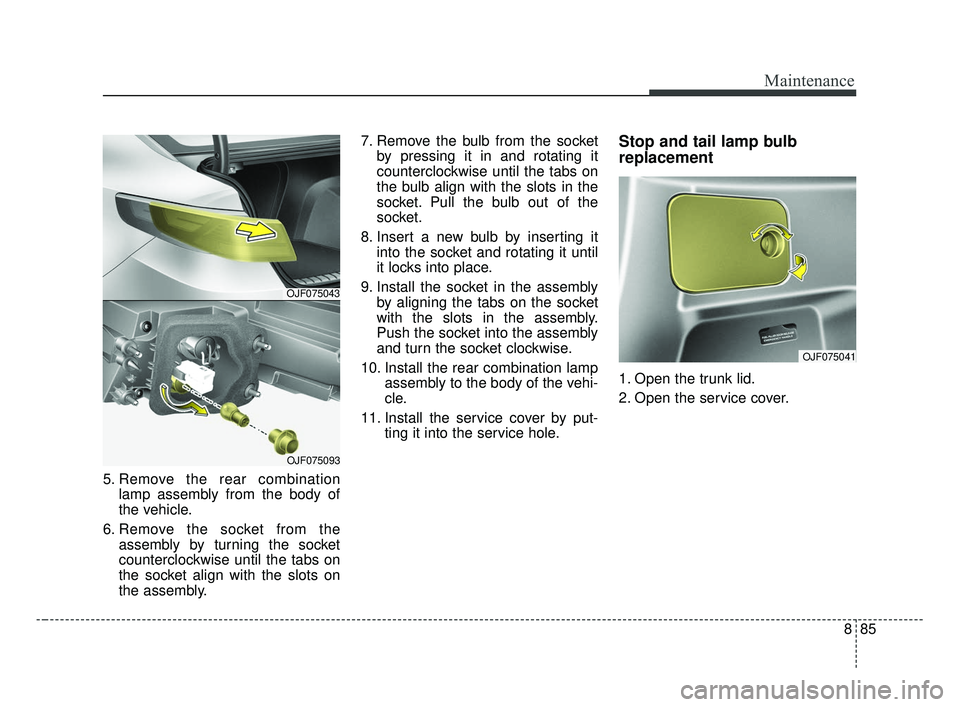

Stop and tail lamp bulb
replacement
1. Open the trunk lid.
2. Open the service cover.
OJF075043
OJF075093
OJF075041
JF CAN (ENG) 8.qxp 2016-09-23 10:25 Page 85

Maintenance
86
8

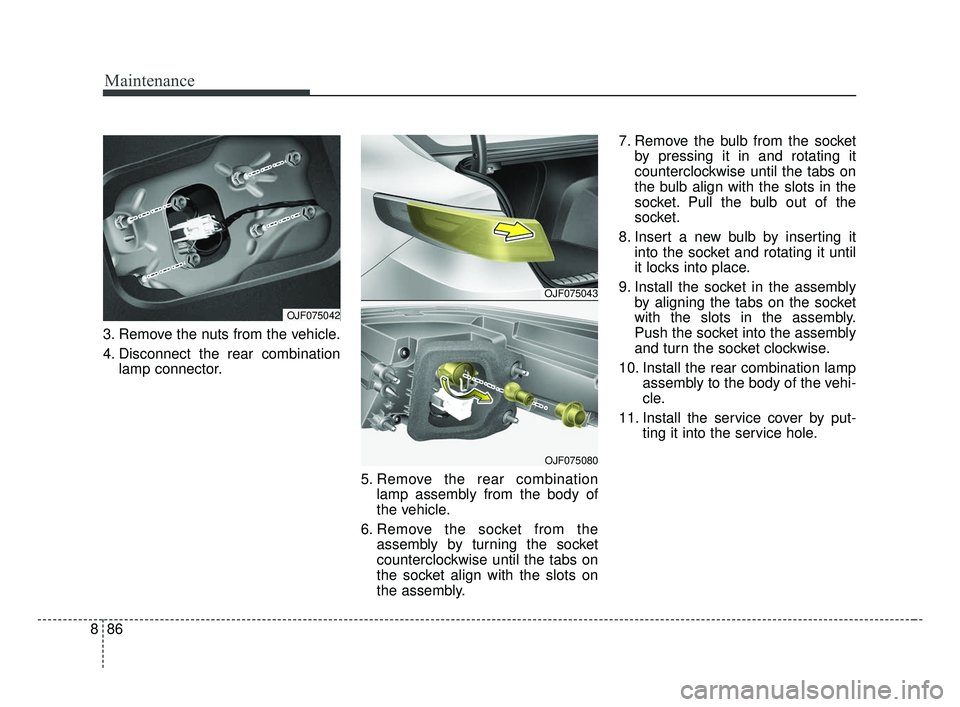

3. Remove the nuts from the vehicle.
4. Disconnect the rear combination
lamp connector.
5. Remove the rear combinationlamp assembly from the body of
the vehicle.
6. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 7. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp assembly to the body of the vehi-
cle.
11. Install the service cover by put- ting it into the service hole.
OJF075042
OJF075043
OJF075080
JF CAN (ENG) 8.qxp 2016-09-23 10:25 Page 86

887
Maintenance

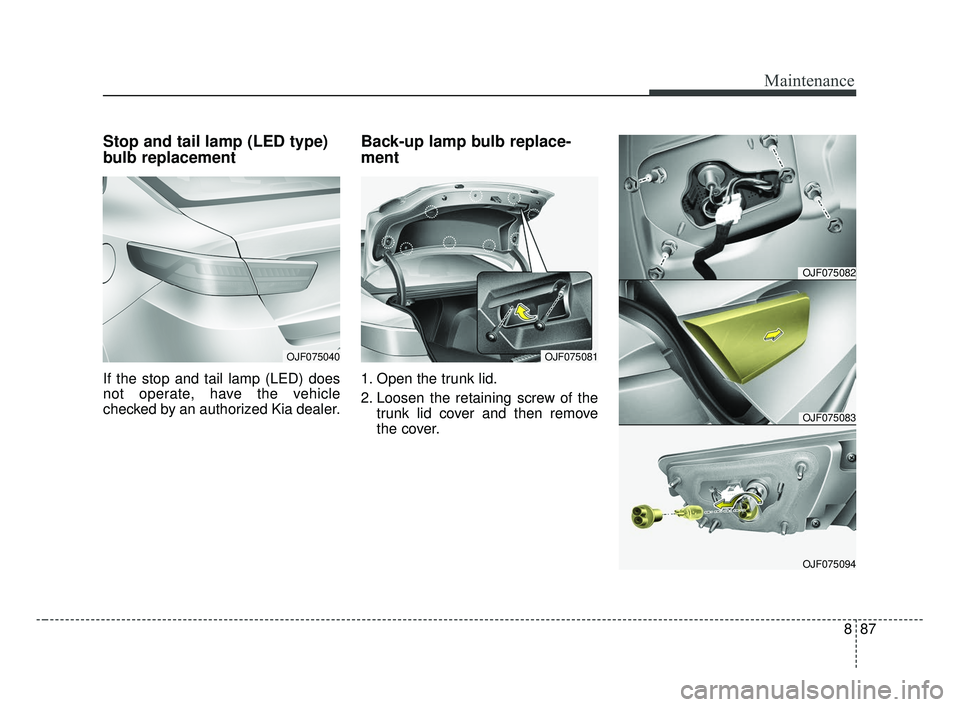

Stop and tail lamp (LED type)
bulb replacement
If the stop and tail lamp (LED) does
not operate, have the vehicle
checked by an authorized Kia dealer.
Back-up lamp bulb replace-
ment
1. Open the trunk lid.
2. Loosen the retaining screw of thetrunk lid cover and then remove
the cover.
OJF075040OJF075081
OJF075082
OJF075083
OJF075094
JF CAN (ENG) 8.qxp 2016-09-23 10:25 Page 87
