13ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER

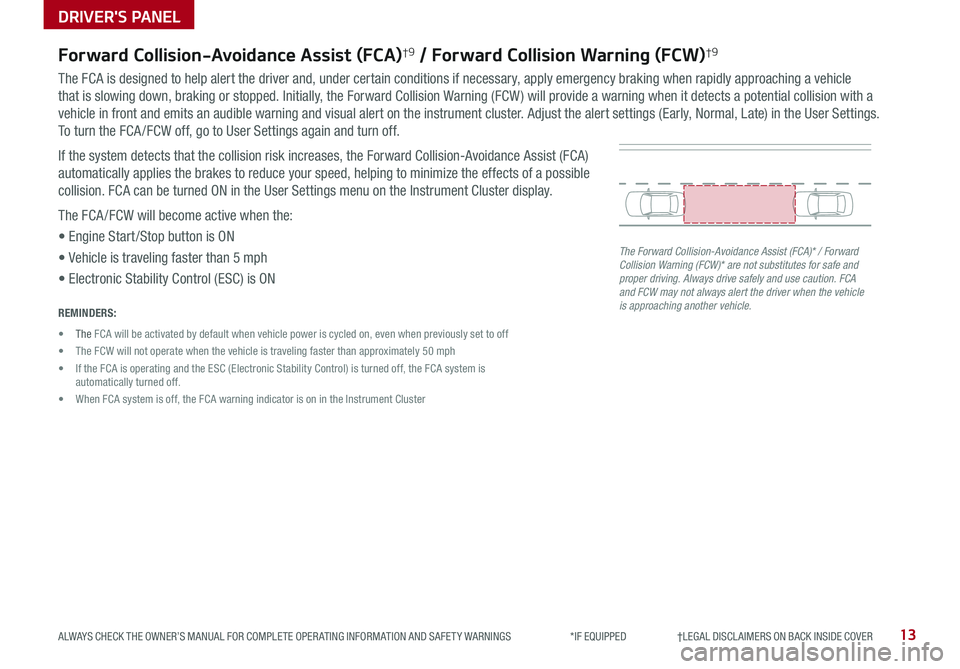

Forward Collision-Avoidance Assist (FCA)†9 / Forward Collision Warning (FCW)†9
The FCA is designed to help alert the driver and, under certain conditions if necessary, apply emergency braking when rapidly approaching a vehicle
that is slowing down, braking or stopped . Initially, the Forward Collision Warning (FCW ) will provide a warning when it detects a potential collision with a
vehicle in front and emits an audible warning and visual alert on the instrument cluster . Adjust the alert settings (Early, Normal, Late) in the User Settings .
To turn the FCA /FCW off, go to User Settings again and turn off .
If the system detects that the collision risk increases, the Forward Collision-Avoidance Assist (FCA)
automatically applies the brakes to reduce your speed, helping to minimize the effects of a possible
collision . FCA can be turned ON in the User Settings menu on the Instrument Cluster display .
The FCA /FCW will become active when the:
• Engine Start /Stop button is ON
• Vehicle is traveling faster than 5 mph
• Electronic Stability Control (ESC) is ON
The Forward Collision-Avoidance Assist (FCA)* / Forward Collision Warning (FCW)* are not substitutes for safe and proper driving. Always drive safely and use caution. FCA and FCW may not always alert the driver when the vehicle is approaching another vehicle.REMINDERS:
• The FCA will be activated by default when vehicle power is cycled on, even when previously set to off
• The FCW will not operate when the vehicle is traveling faster than approximately 50 mph
• If the FCA is operating and the ESC (Electronic Stability Control) is turned off, the FCA system is automatically turned off .
• When FCA system is off, the FCA warning indicator is on in the Instrument Cluster
DRIVER'S PANEL

15ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
A
B
C
D
F
E
Power Windows, Window Lock
& Central Door Lock
A Pull/Press to operate Driver’s and Front Passenger’s Windows
Auto-Up/Down*
B Press to Unlock /Lock All Doors
C Press to disable Rear Passenger Windows
REMINDER: When pressed C, window controls for the Rear Passenger Windows are disabled
Automatic Door Lock/Unlock
Auto Door Lock /Unlock will engage when the gear shift is moved into
or out of the P (Park) position . Refer to the User Settings in the LCD
Instrument Cluster modes on how to turn Auto Door Lock /Unlock ON/OFF .
Power/Heated Outside Mirrors
Mirror heaters controlled with Rear Defroster . Use mirror to defog/deice
side mirrors .
Power Folding Outside Mirrors*
Press L (left) or R (right) buttons D left or right to select mirror . Then
press arrows E left /right or up/down to adjust mirror position .
To both fold and unfold the outside rearview mirror, press the folding
mirror button F as pictured:
– Left: The mirrors will unfold
– Right: The mirrors will fold
Toggle button F to center to automatically fold/unfold mirrors when:
• Smart Key* lock /unlock buttons are pressed
• Outside door handle button is pressed
• Driver approaches the vehicle with the Smart Key*
REMINDERS:
• When mirror button F is in the center, press the Lock button on the Smart Key to automatically fold the mirrors
• To lock position of mirrors, toggle switch to the neutral (center) position
To automatically fold mirrors when exiting vehicle, press the LOCK button once on the key fob or Smart Key* .
QUICK TIP
Press button again to stop Auto-Up/Down function .
QUICK TIP
Button configuration may vary depending on vehicle model.
DRIVER'S PANEL

OPTIMA FEATURES & FUNCTIONS GUIDE16*IF EQUIPPED
Daytime Running Lights (DRL)* -
DRL may help others to see the front of your
vehicle during the day . The lights will be on
automatically when the ignition or Engine Start /
Stop button is ON and the headlight switch is in
the AUTO position, unless one of the following occurs:
• Headlights are on
• Parking brake is applied
• Engine is turned off
• Switch is in the DRL OFF positionA
Headlight position
Parking light position
AUTO*Auto Light / HBA* / AFS-H*
DRL OFFOFF position
Headlights & High Beams
To o p e r a t e :
•Rotate lever to change the Headlight function
•Push lever to turn High Beams ON
•Pull lever to flash Headlights/High Beams
Turn Signals
& Fog Lights*
To o p e r a t e :
• Turn signals - Move lever Up/
Down for Right /Left Turn Signal
• Fog Lights - Press switch A up/
down to turn Fog Lights ON/OFF
REMINDER: Headlights must be ON for fog light operation .
One-Touch Lane Change Signal is
activated by moving the Turn Signal
Lever slightly for less than 1 second
and then releasing . The lane change
signal will blink 3 times .
To change how many times the Lane
Change Signal blinks (3/5/7), go to
User Settings Mode in the LCD
Instrument Cluster modes .
Adaptive Front-Lighting System-Height (AFS-H) Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
REMINDERS:
• DRL only operates during the daytime
• When the AFS-H indicator illuminates on the instrument cluster, the AFS-H is not working properly . See an authorized Kia dealer for service
• HBA will operate when vehicle speed exceeds 25 mph
• If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously . If the lever is pulled toward you while HBA is operational, HBA will turn off
• If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuously
DRL
OFF
DRLOFF
One-Touch Lane Change Signal
DRLOFF
DRLOFF
For more information on the User Settings Mode, please refer to your Owner’s Manual.
AUTO Light position – When the light switch is in the AUTO Light
position, the taillights and headlights will turn ON/OFF automatically
depending on the amount of light outside the vehicle .
Adaptive Front-Lighting System-Height (AFS-H)* – The AFS-H can
help improve visibility during nighttime driving by aiming the low beam
headlights toward the direction the vehicle is moving . AFS-H controls the
aiming direction based on steering angle and speed . When the headlight
switch is in the AUTO Light position, the AFS-H will activate .
REMINDER: When the AFS-H indicator illuminates on the instrument cluster, the AFS-H is not working properly . See an authorized Kia dealer for service .
High Beam Assist (HBA)* – High Beam Assist is designed to
automatically adjust the headlight range by switching between high and
low beams based on light detected from other vehicles and road conditions .
To enable HBA, toggle the light switch to the AUTO Light position
and turn on the high beams by pushing the lever away from you .
The High Beam Assist indicator will illuminate .
STEERING WHEEL CONTROLS

OPTIMA FEATURES & FUNCTIONS GUIDE20*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Smart Cruise Control (SCC) with Stop & Go Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
A
B
CF
Smart Cruise Control
canceled
E
D
G
Smart Cruise Control (SCC) with Stop & Go*†6,22
The Smart Cruise Control (SCC) with Stop & Go system is designed to maintain a predetermined
distance from vehicles detected ahead by automatically adjusting the driving speed as needed .
To set/adjust the SCC speed:
•Push the CRUISE button A to turn system ON . The CRUISE indicator will illuminate
on the instrument cluster
•Accelerate/decelerate to the desired speed and press button B down to set speed
•Press the RES+/SET- button B up/down to increase/decrease the set speed . The SET
indicator light, set speed and vehicle-to-vehicle distance will illuminate on the instrument
cluster's LCD screen
To set the vehicle-to-vehicle distance: Press the SCC button C on the steering wheel .
The images on the LCD screen D and the Instrument Cluster E will change when scrolling
through the settings . Each time the button is pressed, the vehicle-to-vehicle distance changes .
To cancel SCC operation: Press the CANCEL button F or press the brake pedal . The LCD
screen will display a message that the SCC operation is canceled .
To turn SCC system OFF: Press the CRUISE button A . The CRUISE indicator on the
instrument cluster will turn OFF .
To change the SCC mode to standard Cruise Control press the C button for more than two seconds . Hold button again to return to SCC .
For the SCC System to operate: •When no vehicle is in front, you must be traveling at a minimum speed of 20 mph •When following a vehicle, there is no minimum speed requirement
When following a vehicle, the system can automatically adjust your cruise speed based on the vehicle in front . It will even bring the vehicle to a complete stop if necessary . If the vehicle detected stops for more than 3 seconds, the system will disable .
QUICK TIPS
REMINDERS:
•
The SCC is also canceled when the driver’s door is opened, gear shift is changed out of D (Drive), EPB is activated and various other conditions . See Owner’s Manual for other conditions
•CRUISE button must be pressed ON in order to turn SCC ON
•
SCC system is activated when ignition is turned on . Speed will need to be reset when ignition is cycled
•
The distance settings are approximations and may vary depending on factory settings at the time . See Owner’s Manual for more information
•
If the SCC system is left on, it can be activated inadvertently . Keep the system off when not in use to avoid setting a speed which the driver is not aware of
The SCC system is a supplemental system and is not a substitute for safe driving. It is the responsibility of the driver to always check the speed and distance to the vehicle ahead.
17 2 f t13 0 f t
82ft
10 6 f t
(Distances are approximate and vary according to vehicle speed
D
STEERING WHEEL CONTROLS

OPTIMA FEATURES & FUNCTIONS GUIDE30*IF EQUIPPED
Auto Hold temporarily maintains the vehicle
at a standstill even though the brake pedal
is not depressed after the driver brings the
vehicle to a complete stop by depressing the
brake pedal . Auto Hold can be turned On/
Off using the AUTO HOLD button B on the
center panel below gear shift . Before Auto
Hold will operate, the driver’s door, engine
hood and trunk must be closed .
The AUTO HOLD indicator on the
Instrument Cluster has four states:
White: Standby - With vehicle at a
standstill, when the AUTO HOLD button B
is pressed on, the indicator will illuminate
white . While driving the vehicle (vehicle is
not at a standstill), the Auto Hold indicator
will remain white .
Green: Engaged - When coming to a complete stop by depressing the
brake pedal, the Auto Hold indicator changes from white to green .
Off (not illuminated) - The indicator will turn Off when the AUTO HOLD
button B is manually pressed Off or when the EPB is manually turned On .
Yellow: Malfunction - When the indicator is illuminated yellow, there may
be a system malfunction . Take your vehicle to a local Kia dealer .
REMINDERS:
• Auto Hold only operates when vehicle is in Drive or Neutral
• To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle .
Refer to page 4 for location of Instrument Cluster indicators.
Electric Parking Brake (EPB) Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
A
B
(Located below gear shift)
Electric Parking Brake (EPB)*
The Electric Parking Brake (EPB) system utilizes
an electric motor to engage the parking brake .
Applying the Parking Brake
Depress the brake pedal and pull up the EPB
switch . Ensure that the indicator light is
illuminated on the instrument cluster .
Releasing the Parking Brake
The EPB will automatically release when the
shifter is placed in Reverse or Drive .
To release EPB manually, depress the brake pedal, then press the EPB
switch A, with the ignition switch in the ON position . Ensure that the
indicator light is OFF .
Auto Hold*

•When leaving your keys with parking lot attendants or valet, make sure to inform them how to operate the EPB •Pull up and hold EPB switch for 3 seconds to increase brake pressure if parked on a decline or incline
QUICK TIPS
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
CENTER PANEL

OPTIMA FEATURES & FUNCTIONS GUIDE32*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Dual Clutch Transmission*
Some Kia vehicles are equipped with Dual Clutch
Transmission (DCT ) for automatic transmissions .
The following are unique driving tips of the Dual Clutch
Transmission:
• To hold the vehicle stationary on an incline, the service
brake or parking brake MUST be used or the gear shift
MUST be in the (P) Park position . If the vehicle is held
stationary by applying the accelerator pedal on a slope, the
clutch/transmission may overheat, resulting in damage
• Avoid aggressive launches on steep grades as this may
result in an overheated clutch and transmission
• A slight time lag may be experienced at takeoff from stand
still during aggressive acceleration maneuvers
If the clutch is overheating an amber warning light will
be displayed in the instrument cluster . Should this condition
occur, pull over and place the vehicle in Park and idle
the engine.
Refer to the Owner’s Manual for additional information on DCT operation or call Kia Consumer Affairs for additional information.
Yellow Color:
Warming
Blue Color:
Ventilating
Heated and Ventilated Seats Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
Yellow Color:
Warming
(Buttons located below gear shift)
(Buttons located below gear shift)
Seat Warmers*†19
Press button once for high setting (3 LEDs lit), again
for medium setting (2 LEDs lit), again for low setting
(1 LED lit) and again to turn OFF .
Seat Warmers / Ventilated Seats*†19
Seat Warmers - Press top of button once for
high setting (3 LEDs lit), again for medium setting
(2 LEDs lit), again for low setting (1 LED lit) and
again to turn OFF .
Ventilated Seats - Press setting (3 again for
medium LEDs lit), bottom of button once for high
setting (2 LEDs lit), again for low setting (1 LED lit)
and again to turn OFF .

•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature •System is OFF by default . To turn system ON again, press the Heated Steering Wheel button .
QUICK TIPS
REMINDER: Use extreme caution when using the seat warmers to avoid burns . Refer to the Owner’s Manual for more information .
CENTER PANEL

33
SEATING
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Buttons located on Driver's Door Panel)
SET
1
2B
C
A
SeatbackLumbarSeatSeat Cushion
DDEF
DEF
Front Seat Headrest Adjustment†1 0
To raise headrest: Pull headrest up to the desired position .
To lower headrest: Press lock A, then press the headrest down .
REMINDERS:
• Button may be hard to see if headrest is in its lowest position
• Do not operate the vehicle with the headrests removed . Headrests can provide critical neck and head support in an accident
Driver Position Memory System*
The integrated system stores into memory the position of the Driver’s
Seat and the Outside Rearview Mirrors .
To store a seating position into memory, first place the shifter into P
(Park) while the ignition is ON . Then:
1 . Adjust the driver’s seat and outside mirrors
2 . Press the SET button B on the control panel .
System will beep once
3 . Press one of the memory buttons C within
5 seconds . The system will beep twice when
memory has been stored
4 . “Driver (1 or 2) set is memorized” will appear
on the instrument cluster LCD screen
Power Adjustable Driver’s Seat*†17
Move/Press controls to adjust Seat forward/backward, Seat Cushion
tilt up/down, Seatback forward/backward or Lumbar up/down/
forward/backward
REMINDER: Do not attempt to adjust the seat while the vehicle is moving . This could result in loss of control of the vehicle .
REMINDER: Do not attempt to operate the driver position memory system while the vehicle is moving . This could result in loss of control of the vehicle .

37ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Driver Attention Warning (DAW)*†6
The DAW system is designed to detect a drowsy or fatigued driver and, in certain situations, can give
a warning signal to take a break if needed .
The DAW System is set to OFF by default . To turn the DAW System ON, turn the ignition on and then
select User Settings in the LCD Display on the Instrument Cluster . Then go to Driving Assist and select
Driver Attention Warning . Set the DAW System to Normal or High Sensitivity .
Driver Attention Warning (DAW) System modes:
OFF: The Driver Attention Warning system is deactivated A
Normal Sensitivity: The Driver Attention Warning system alerts the driver of his/her fatigue level
or inattentive driving practices
High Sensitivity: The Driver Attention Warning system alerts the driver of his/her fatigue level or
inattentive driving practices faster than in Normal mode
If the DAW System is activated, the DAW information will appear on the LCD Display B when you select
the ASSIST mode .
A message, “Consider taking a break,” appears on the LCD display and a warning sounds to advise the
driver to take a break when the driver’s attention level is below one bar C .
REMINDERS:
•The setup of the DAW System will be maintained, as selected, when the ignition is cycled
•
When activated, the DAW System does not display “Consider taking a break” message when the total trip driving time is less than 10 minutes
•
The DAW System will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Attention Alert
System Off
Level Time ——:——Attention Level
LOW HIGH
Level Time 05:27 Attention Level
LOW
HIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
Attention Alert System Off
Level Time ——:——Attention Level
LOW HIGH
Level Time 05:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
Attention Alert System Off
Level Time ——:—— Attention Level
LOW
HIGH
Level Time 05:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4 °C4025km
BCA
Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.
OTHER KEY FEATURES

39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
(Buttons located on Driver's Panel left of Steering Wheel)
AB
C
Fuel Filler Lid and Trunk Release
Press the button A to release the fuel door .
Press the button B to open the trunk .
Trunk Release Button (Exterior)
Located underneath
the Trunk lid . With
Trunk unlocked, press
the Trunk Release
button C and pull the
Trunk lid up by the
handle to open .
Smart Power Trunk*†15
When the Smart Key fob is on your person and you are near the back of the
vehicle, within close proximity, the hazard warning lights will blink and a chime
will sound for about 3 seconds as an alert that the Smart Trunk is about to open .
Then the alert system will blink and chime two additional times before opening
the Smart Power Trunk .
The Smart Power Trunk feature is OFF by default . To enable the Smart Power
Trunk, go to User Settings in the LCD Instrument Cluster modes .
During the Smart Power Trunk alert, the Smart Power Trunk can be deactivated with the Smart Key by pressing any button on the key fob .
QUICK TIPS

•The Trunk must be unlocked before it can be opened by the Trunk Release Button •Smart Key* - The Trunk unlocks automatically, and can then be opened manually, when the Smart Key fob* is within close proximity to the vehicle
QUICK TIPS
REMINDERS:
•
The Smart Key must be outside of the vehicle for the Smart Power Trunk to operate
•All doors are closed and locked after about 15 seconds
•
The Smart Power Trunk feature will not operate when the doors are recently closed and locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed or the Smart Key is in the vehicle
•
Press any button on the Smart Key fob during the Detect and Alert stage to deactivate the Smart Power Trunk function
•
When ignition is on, the Smart Power Trunk will only operate with the gear shift in the Park (P) position
•Ensure obstacles and people are out of the way of the Trunk
For more information on the Smart Power Trunk operation, please refer to the Owner's Manual.
OTHER KEY FEATURES
