ESSENTIAL FEATURES
OPTIMA FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Climate Control . . . . . . . . . . . .28
Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . 22
Audio System – Standard Audio System* . . . . . . . . .23
Audio System – UVO link* . . . . . . . . . . . . . . . . . 24
Audio System – UVO link with Navigation* . . . . . . . . . 25
Audio System – UVO link Activation* . . . . . . . . . . . 22
Aux/USB/iPod®* Port* & Power Outlets . . . . . . . . . 27
Bluetooth® Wireless Technology . . . . . . . . . . . . .18
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 21
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 27
ECO Mode (Active ECO)* . . . . . . . . . . . . . . . . .09
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 42
Service Interval Mode . . . . . . . . . . . . . . . . . . 08
Smart Cruise Control (SCC) with Stop & Go* . . . . . . . 20
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . 35
Tire Mobility Kit* . . . . . . . . . . . . . . . . . . . . .41
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Trip Modes / Trip Computer . . . . . . . . . . . . . . . 06
User Settings . . . . . . . . . . . . . . . . . . . . . . . 08
Windshield Wipers & Washers . . . . . . . . . . . . . .17
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . 02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . 04Tire Pressure Monitoring System (TPMS) . . . . . . . . . 05LCD Instrument Cluster Modes . . . . . . . . . . . . . . . 06Trip Modes / Trip Computer . . . . . . . . . . . . . . . . . 06Instant Fuel Consumption Mode* . . . . . . . . . . . . . . 07Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . 07User Settings . . . . . . . . . . . . . . . . . . . . . . . . 08Service Interval Mode . . . . . . . . . . . . . . . . . . . 08Drive Mode Integrated Control System* . . . . . . . . . . 09ECO Mode (Active ECO)* . . . . . . . . . . . . . . . . . . 09
DRIVER’S PANEL
Blind-Spot Collision Warning (BCW ) w/ RCCW* . . . . . . 10Instrument Cluster Control* . . . . . . . . . . . . . . . . 11Electronic Stability Control (ESC) . . . . . . . . . . . . . . 11Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . 11Lane Keeping Assist (LK A)* . . . . . . . . . . . . . . . . 12Forward Collision-Avoidance Assist (FCA) / Forward Collision Warning (FCW ) . . . . . . . . . . . . 13Engine Start/Stop Button* . . . . . . . . . . . . . . . . . 14Power Windows, Window Lock & Central Door Lock* . . . 15Automatic Door Lock /Unlock . . . . . . . . . . . . . . . . 15Power/Heated Outside Mirrors . . . . . . . . . . . . . . . 15Power Folding Outside Mirrors* . . . . . . . . . . . . . . 15
STEERING WHEEL CONTROLS
Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . 16Headlights & High Beams . . . . . . . . . . . . . . . . . . 16Windshield Wipers & Washers . . . . . . . . . . . . . . . 17Heated Steering Wheel Button* . . . . . . . . . . . . . . . 17Tilt/ Telescoping Steering Wheel . . . . . . . . . . . . . . 17Bluetooth® Wireless Technology . . . . . . . . . . . . . . 18Smart Cruise Control (SCC) with Stop & Go . . . . . . . . 20Audio Controls . . . . . . . . . . . . . . . . . . . . . . . 21Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 21
AUDIO SYSTEMSAndroid Auto™ / Apple CarPlay® Setup . . . . . . . . . . . 22UVO link Activation* . . . . . . . . . . . . . . . . . . . . 22Standard Audio System* . . . . . . . . . . . . . . . . . . 23UVO link* . . . . . . . . . . . . . . . . . . . . . . . . . . 24UVO link with Navigation* . . . . . . . . . . . . . . . . . 25
LEGAL DISCLAIMERS . . . . . . . . . . Inside Back Cover
CENTER PANEL
Surround View Monitoring (SVM) System* . . . . . . . . . 26 Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . 27Aux/USB/iPod® Port & Power Outlets . . . . . . . . . . . 27USB Charger* . . . . . . . . . . . . . . . . . . . . . . . . 27Wireless Smartphone Charging System* . . . . . . . . . . 27Automatic Climate Control* . . . . . . . . . . . . . . . . 28Manual Climate Control* . . . . . . . . . . . . . . . . . . 29Electric Parking Brake (EPB)* . . . . . . . . . . . . . . . 30Auto Hold* . . . . . . . . . . . . . . . . . . . . . . . . . 30Automatic Gear Shift with Sportmatic® Shifting . . . . . . 31Paddle Shifters* . . . . . . . . . . . . . . . . . . . . . . 31Dual Clutch Transmission* . . . . . . . . . . . . . . . . . 32Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . 32
S E AT I N G
Front Seat Headrest Adjustment . . . . . . . . . . . . . . 33Driver Position Memory System* . . . . . . . . . . . . . . 33Power Adjustable Driver’s Seat* . . . . . . . . . . . . . . 336-Way Manual Adjustable Driver’s Seat* . . . . . . . . . . 34
OTHER KEY FEATURES
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . 35Remote Keyless Entry (Folding Key)* . . . . . . . . . . . . 36Double-Turn Lock /Unlock All . . . . . . . . . . . . . . . . 36Fuel Cap / Malfunction Indicator (Check Engine Light) . . . 36Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . 36Driver Attention Warning (DAW)* . . . . . . . . . . . . . . 37Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . 38Panoramic Sunroof with Power Sunshade . . . . . . . . . 38Fuel Filler Lid and Trunk Release . . . . . . . . . . . . . . 39Trunk Release Button (Exterior) . . . . . . . . . . . . . . 39Smart Power Trunk* . . . . . . . . . . . . . . . . . . . . 39Hood Release Lever and Latch . . . . . . . . . . . . . . . 40Child-Protector Rear Door Locks . . . . . . . . . . . . . . 40Parking Distance Warning-Reverse* . . . . . . . . . . . . 40Rear-Camera Display* . . . . . . . . . . . . . . . . . . . 41Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . 41
SAFETY FEATURES
Occupant Detection System (ODS) /Passenger Airbag Off Indicator . . . . . . . . . . . . . . . 42Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . 42Seat Belt Retractor Locks . . . . . . . . . . . . . . . . . 42
TURBO MAINTENANCE CHART . . . . . . . . . . . . 44
NON-TURBO MAINTENANCE CHART . . Back Cover
*IF EQUIPPED

OPTIMA FEATURES & FUNCTIONS GUIDE8*IF EQUIPPED
To view a video on your mobile device, snap these QR Codes or visit the listed website .
Refer to page 2 for more information .
LCD Display Video
LCD Display: Maintenance Video
www.youtube.com/KiaFeatureVideos
www.youtube.com/KiaFeatureVideos
QR CODESUser SettingsService Interval Mode
To enter the User Settings mode in the
LCD Instrument Cluster Modes, press the
Mode button A when the vehicle is at a
standstill and with the ignition switch or
the Engine Start /Stop button* in the ON
position, and select User Settings .
You can navigate the selections on the display by pressing the
Select /Reset (OK ) button B up and down, and then selecting the
item by pressing the OK button B again .
( Type B; Located on Steering Wheel)
A
B
Driving Assistance*: •Highway Auto Speed* •Driver Attention Warning* •Lane Safety* •Rear Cross-Traffic Collision Warning (RCCW )* •Forward Collision Warning (FCW )* •Forward Collision-Avoidance Assist (FCA)* •Blind-Spot Collision Warning* •Smart Cruise Control Reaction*
Door/Trunk: •Automatically Lock •Automatically Unlock •Smart Power Trunk* •Two-Press Unlock •Horn Feedback
Convenience: •Seat-Easy Access* •Welcome Mirror/Light* •Wireless Charging System* •Wiper/Light Display* •Gear Position Pop-Up* •Icy-Road Warning*
Lights: •Ambient Light Brightness* •Ambient Light Color* •One-Touch Turn Signal* •Headlamp Delay •Welcome Light*
Sound: •Parking Distance Warning-Reverse* System Volume* •Welcome Sound*
Service Interval: •Enable Service Interval •Adjust Interval •Reset
Language: •Choose the language
Other Features: •Fuel Economy Auto Reset •Fuel Economy Unit •Temperature Unit •Tire Pressure Unit*
Reset: •Reset User Setting menus
To enter Service Interval mode, press the Mode
button A, scroll using the OK button B to User
Settings and press the OK button B to enter .
Then scroll to Service Interval and press OK button
again B . System will display number of miles
remaining until next service is due, as well as
type of service .
When service is required,
the following will be
displayed: Service
Required .
To reset the Service Interval
mode system, press and
hold the OK button B for
more than 1 second .
To turn Service In OFF,
go to User Settings .
Service Interval Setting
To set the service interval
when in User Settings
mode:
•Press the OK button B up/down and scroll to
Service Interval . Press the OK button B again
to enter
•Press the OK button B and toggle to ON, then
press the OK button B again to set . Then press
the Move button B up/down to scroll and select
the desired miles or months for your next service
•Press the OK button B again to enter
Service in
Off
Service Required
-200mi -8days
Service in
1500mi 365days
(Type B cluster)
INSTRUMENT CLUSTER

15ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
A
B
C
D
F
E
Power Windows, Window Lock
& Central Door Lock
A Pull/Press to operate Driver’s and Front Passenger’s Windows
Auto-Up/Down*
B Press to Unlock /Lock All Doors
C Press to disable Rear Passenger Windows
REMINDER: When pressed C, window controls for the Rear Passenger Windows are disabled
Automatic Door Lock/Unlock
Auto Door Lock /Unlock will engage when the gear shift is moved into
or out of the P (Park) position . Refer to the User Settings in the LCD
Instrument Cluster modes on how to turn Auto Door Lock /Unlock ON/OFF .
Power/Heated Outside Mirrors
Mirror heaters controlled with Rear Defroster . Use mirror to defog/deice
side mirrors .
Power Folding Outside Mirrors*
Press L (left) or R (right) buttons D left or right to select mirror . Then
press arrows E left /right or up/down to adjust mirror position .
To both fold and unfold the outside rearview mirror, press the folding
mirror button F as pictured:
– Left: The mirrors will unfold
– Right: The mirrors will fold
Toggle button F to center to automatically fold/unfold mirrors when:
• Smart Key* lock /unlock buttons are pressed
• Outside door handle button is pressed
• Driver approaches the vehicle with the Smart Key*
REMINDERS:
• When mirror button F is in the center, press the Lock button on the Smart Key to automatically fold the mirrors
• To lock position of mirrors, toggle switch to the neutral (center) position
To automatically fold mirrors when exiting vehicle, press the LOCK button once on the key fob or Smart Key* .
QUICK TIP
Press button again to stop Auto-Up/Down function .
QUICK TIP
Button configuration may vary depending on vehicle model.
DRIVER'S PANEL

27ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
CENTER PANEL
Wireless Charging Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
12V 12V180W
AUX USB180W
12V180W
DBB
A
C
(Rear of Center Console shown)
(Located in front of Gear Shift)
REMINDER: When needed, Daylight Savings must be enabled in the Clock Settings screen
A Use the Aux port to connect audio devices and the USB port to
connect USB audio devices, smartphones and iPod® devices . If
equipped, additional power outlets are located inside the center console
B Use the power outlets for mobile phones and other devices
designed to operate on a 12V (180W max) power outlet
REMINDERS:
• Using the power outlet (accessory plug) for prolonged periods of time with the Engine Start /Stop button in the ACC position (Engine OFF ) and AC Inverter for prolonged periods of time with the Engine Start /Stop button in the IGN Position (Engine OFF ) could cause the battery to discharge
• Use manufacturer cables only that came with your device . Third party cables may cause damage to device
For more information on the Aux/USB/iPod® Port & Power Outlets, refer to the Owner's Manual.
Digital Clock*
Press the SETUP key, then the DATE / TIME button to display the Clock
setting screen . Then use the on-screen buttons to navigate through
setup . To access manual date and time setting, turn GPS time OFF in
the Clock Settings (UVO link with Navigation*) .
Aux/USB/iPod®†12 Port & Power Outlets
The power outlets are inactive when ignition is in the OFF position .
QUICK TIP
USB Charger*
The USB charger is located
inside the Center Console and
on rear of the Center Console C .
Wireless Smartphone
Charging System*
1 . Slide open tray cover
2 . Place compatible smartphone on the center of the charging pad
3 . Indicator light D will change to amber once the wireless charging begins
4 . Once charging is complete, the amber light
will change to green
REMINDERS:
•
The smartphone must be a compatible phone with QI function available
•
Avoid placing other metal items in the bin while charging as to not impede the charging area
•
This vehicle is equipped with wireless charging technology which allows for a device to be charged using inductive charging, however, device compatibility varies . See your Owner’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through cable . As a result, higher device operating temperatures may be experienced during use
•
Charging Performance – Device position on the wireless charging system can affect charging performance . Other factors that may affect the charging rate include foreign objects, such as coins or pens, and phone case thickness

•Wireless charging must be enabled in user settings
•For wireless charging to occur, all doors (excluding rear hatch) must be closed & the Smart Key Fob must be detected inside the vehicle
•For best results, place smart-phone on the center of the charging pad
• If wireless charging does not work, move smartphone around the pad until the charging indicator turns amber . Avoid placing other metal items in the bin while charging as to not impede the charging area .
QUICK TIPS

33
SEATING
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Buttons located on Driver's Door Panel)
SET
1
2B
C
A
SeatbackLumbarSeatSeat Cushion
DDEF
DEF
Front Seat Headrest Adjustment†1 0
To raise headrest: Pull headrest up to the desired position .
To lower headrest: Press lock A, then press the headrest down .
REMINDERS:
• Button may be hard to see if headrest is in its lowest position
• Do not operate the vehicle with the headrests removed . Headrests can provide critical neck and head support in an accident
Driver Position Memory System*
The integrated system stores into memory the position of the Driver’s
Seat and the Outside Rearview Mirrors .
To store a seating position into memory, first place the shifter into P
(Park) while the ignition is ON . Then:
1 . Adjust the driver’s seat and outside mirrors
2 . Press the SET button B on the control panel .
System will beep once
3 . Press one of the memory buttons C within
5 seconds . The system will beep twice when
memory has been stored
4 . “Driver (1 or 2) set is memorized” will appear
on the instrument cluster LCD screen
Power Adjustable Driver’s Seat*†17
Move/Press controls to adjust Seat forward/backward, Seat Cushion
tilt up/down, Seatback forward/backward or Lumbar up/down/
forward/backward
REMINDER: Do not attempt to adjust the seat while the vehicle is moving . This could result in loss of control of the vehicle .
REMINDER: Do not attempt to operate the driver position memory system while the vehicle is moving . This could result in loss of control of the vehicle .

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER35
OTHER KEY FEATURES
( Type B handle shown)
HOLD
A
B
C
D
F
E
I
Smart Key*†8
Smart Key Fob:
A Press to lock All Doors
B Press to unlock Driver’s Door . Press twice in 4 seconds
to unlock All Doors
C Press and hold to open Trunk . Then lift by the handle
REMINDER: The Trunk unlocks when the Smart Key fob is within close proximity to the vehicle .
D Press and hold more than 1 second for Panic Alarm .
To turn off Alarm, press any button
E Press to release Mechanical Key (on reverse side of fob)
F Mechanical Key
Driver’s Door Lock/Unlock button G:
•
Press button once to unlock Driver’s Door
•Press again within 4 seconds to unlock All Doors
•Press again to lock All Doors
Mechanical Key: Use to unlock /lock Driver’s Door:
1 . Pull out door handle
2 . Remove door handle keyhole cover with Mechanical Key by pressing up
into slot as shown H
3 . Insert Mechanical Key I and turn right to Unlock Driver’s Door
4 . Turn twice within 4 seconds to Unlock all doors
5 . Insert Mechanical Key and turn left to Lock Driver’s Door
6 . Return keyhole cover to its original position
Use to unlock trunk, lock glove box and to turn Child Protector Rear-Door Locks

•If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the Engine Start /Stop button (Lock button side closest) and press to start engine •The Smart Key’s signal can be blocked by the normal operation of a cell phone or smartphone . To help prevent this, store each device separately
QUICK TIPS
REMINDER: When reinserting the mechanical key, make sure it is pushed all the way in until there is a click sound
REMINDER: Remote button configuration may vary depending on vehicle options
G
H
To view videos on your mobile device, snap these QR Codes or visit the listed website . Refer to page 2 for more information .
Engine Start/Stop Button & Smart Key Video
Key Fob Video
www.youtube.com/KiaFeatureVideos
QR CODES

OPTIMA FEATURES & FUNCTIONS GUIDE36*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
One-Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
HOLD
B
A
C
D
E
QR CODE
Lock
Unlock
Remote Keyless Entry (Folding Key)*Fuel Cap / Malfunction
Indicator (Check Engine Light)
Tighten for ONE
CLICK to prevent
Malfunction Indicator
from illuminating .
REMINDERS:
•
The Fuel Filler Door Release button is located on the lower part of the driver’s door panel
•
It is normal operation when tightening to hear one click, and then when Fuel Cap is released, it clicks back
A Press to release Folding Key
B Press to lock All Doors
C Press to unlock Driver’s Door .
Press twice in 4 seconds to
unlock All Doors
D Press and hold to unlock Trunk
and manually open
E Press and hold more than 1
second for Panic Alarm . To turn
off Alarm, press any button
Remote button configuration may vary depending on vehicle options.
Double-Turn Lock/Unlock All
•Turn clockwise once to unlock Driver’s Door
•Turn clockwise again within 4 seconds to unlock All Doors
•Turn counterclockwise once to lock All Doors
Sunvisor†12
Use the Sunvisor to shield
direct light through the
front or side windows .
Slide the Sunvisor out and
adjust as needed .
REMINDERS:
•The Sunvisor may impair visibility if not adjusted properly
•Sunvisor may not shield all direct light
•
Do not operate the vehicle if Sunvisor is impairing your visibility
•
Be aware of your seating position when adjusting or swinging Sunvisor around from the front or side windows
OTHER KEY FEATURES

OPTIMA FEATURES & FUNCTIONS GUIDE38*IF EQUIPPED
Automatic turn off function*
The interior lights automatically
turn off approximately 30 seconds
after the ignition or Engine Start /
Stop button* is OFF .

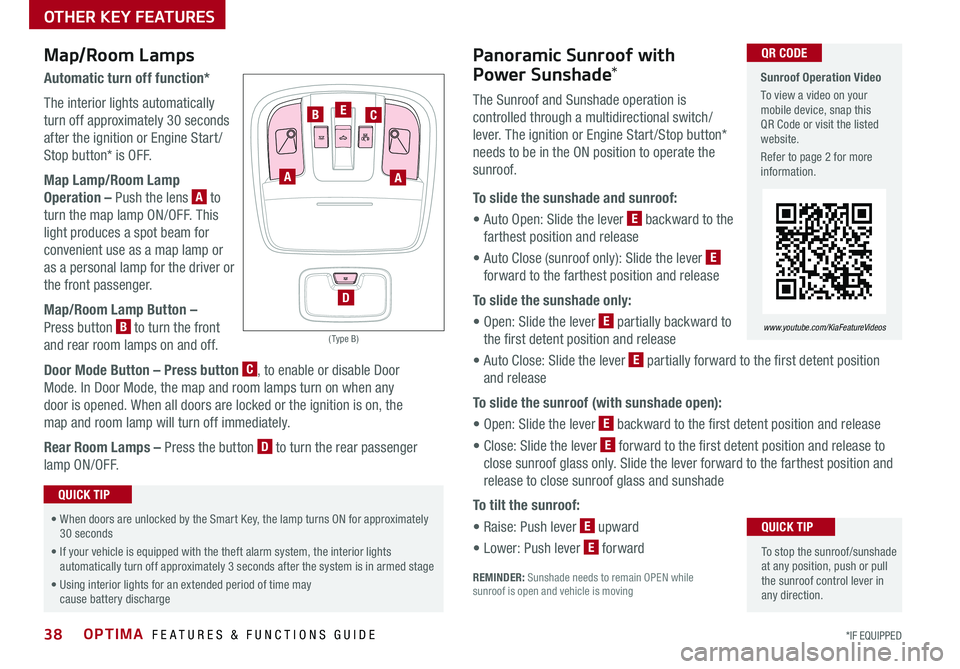

Map Lamp/Room Lamp
Operation – Push the lens A to
turn the map lamp ON/OFF . This
light produces a spot beam for
convenient use as a map lamp or
as a personal lamp for the driver or
the front passenger .
Map/Room Lamp Button –
Press button B to turn the front
and rear room lamps on and off .
Door Mode Button – Press button C, to enable or disable Door
Mode . In Door Mode, the map and room lamps turn on when any
door is opened . When all doors are locked or the ignition is on, the
map and room lamp will turn off immediately .
Rear Room Lamps – Press the button D to turn the rear passenger
lamp ON/OFF .
Panoramic Sunroof with
Power Sunshade*
The Sunroof and Sunshade operation is
controlled through a multidirectional switch/
lever . The ignition or Engine Start /Stop button*
needs to be in the ON position to operate the
sunroof .
To slide the sunshade and sunroof:
• Auto Open: Slide the lever E backward to the
farthest position and release
• Auto Close (sunroof only): Slide the lever E
forward to the farthest position and release
To slide the sunshade only:
• Open: Slide the lever E partially backward to
the first detent position and release
• Auto Close: Slide the lever E partially forward to the first detent position
and release
To slide the sunroof (with sunshade open):
• Open: Slide the lever E backward to the first detent position and release
• Close: Slide the lever E forward to the first detent position and release to
close sunroof glass only . Slide the lever forward to the farthest position and
release to close sunroof glass and sunshade
To tilt the sunroof:
• Raise: Push lever E upward
• Lower: Push lever E forward
• When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds
• If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
• Using interior lights for an extended period of time may cause battery discharge
QUICK TIP
To stop the sunroof/sunshade at any position, push or pull the sunroof control lever in any direction .
QUICK TIP
REMINDER: Sunshade needs to remain OPEN while sunroof is open and vehicle is moving
AA
BCE
D
( Type B)
Map/Room Lamps Sunroof Operation Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
OTHER KEY FEATURES

39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
(Buttons located on Driver's Panel left of Steering Wheel)
AB
C

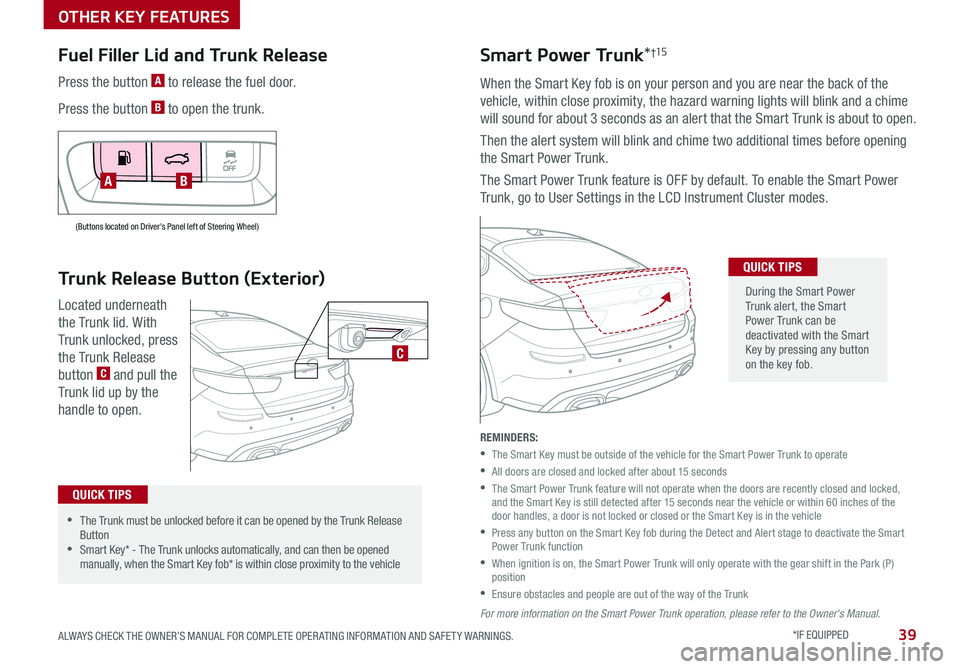

Fuel Filler Lid and Trunk Release
Press the button A to release the fuel door .
Press the button B to open the trunk .
Trunk Release Button (Exterior)
Located underneath
the Trunk lid . With
Trunk unlocked, press
the Trunk Release
button C and pull the
Trunk lid up by the
handle to open .
Smart Power Trunk*†15
When the Smart Key fob is on your person and you are near the back of the
vehicle, within close proximity, the hazard warning lights will blink and a chime
will sound for about 3 seconds as an alert that the Smart Trunk is about to open .
Then the alert system will blink and chime two additional times before opening
the Smart Power Trunk .
The Smart Power Trunk feature is OFF by default . To enable the Smart Power
Trunk, go to User Settings in the LCD Instrument Cluster modes .
During the Smart Power Trunk alert, the Smart Power Trunk can be deactivated with the Smart Key by pressing any button on the key fob .
QUICK TIPS

•The Trunk must be unlocked before it can be opened by the Trunk Release Button •Smart Key* - The Trunk unlocks automatically, and can then be opened manually, when the Smart Key fob* is within close proximity to the vehicle
QUICK TIPS
REMINDERS:
•
The Smart Key must be outside of the vehicle for the Smart Power Trunk to operate
•All doors are closed and locked after about 15 seconds
•
The Smart Power Trunk feature will not operate when the doors are recently closed and locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed or the Smart Key is in the vehicle
•
Press any button on the Smart Key fob during the Detect and Alert stage to deactivate the Smart Power Trunk function
•
When ignition is on, the Smart Power Trunk will only operate with the gear shift in the Park (P) position
•Ensure obstacles and people are out of the way of the Trunk
For more information on the Smart Power Trunk operation, please refer to the Owner's Manual.
OTHER KEY FEATURES

OPTIMA FEATURES & FUNCTIONS GUIDE40*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Located on Driver side kick panel)(Located inside of Hood's center) (Images shown are for illustration purposes only . Actual operation may vary)
A
B
OTHER KEY FEATURES
Hood Release Lever and Latch
Opening the Hood:
1 . Pull the Hood Release Lever A to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, push the secondary
Latch B to the left inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood about halfway and then press down to securely
lock in place .
Child-Protector Rear Door Locks
Locate these locks on the rear edge
of the rear passenger doors . Turn the
Child-Protector Rear Door Lock to the
LOCK position to disable the inner door
handles from opening the rear doors .
REMINDER: Child-Protector Rear Door Locks are located on rear passenger’s door jamb .
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake .
Parking Distance Warning-Reverse*†6
The Parking Distance Warning-Reverse is a supplemental system that is
designed to assist the driver by chiming if any object is detected within
the sensing area to the rear and side of the vehicle when backing up .
When the ignition is ON, the system is activated .
REMINDERS:
•
If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than two objects are sensed at the same time, the closest one will be recognized first

The Parking Distance Warning-Reverse is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Parking Distance Warning-Reverse may not detect every object behind the vehicle.
