KIA OPTIMA HYBRID 2016 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2016, Model line: OPTIMA HYBRID, Model: KIA OPTIMA HYBRID 2016Pages: 92, PDF Size: 3.01 MB
Page 11 of 92
8
00360048005700580053
Setup is the screen to control sys-
tem settings of the AVN.
To enter the screen, select the
00360028003700380033 key of the device or the
00360048005700580053 button in All menus.
Features Description
NavigationProvides Normal/
Screen/Guidance/
Route/Safety Setting.
SoundProvides the sound
control options for
Position, Bass, Mid,
Treble, Volume, Ratio
and Advanced settings.
Display
Provides the Adjust/
Mode settings.
PhoneProvides the Bluetooth
Connection/Auto
Connection Priority/
Ringtone/System
Bluetooth Information
settings.
UVO
eServices Provides the Activation/
Phone Ringtone/
Traffic
Announcement/
Modem Information
settings.
Features Description
Voice
Recognition Provides the
Guidance and Priority
settings.
Clock
Provides the Time
and View settings.
Wi-FiProvides the Wi-Fi
On and Network
Connection settings.
Language
Provides the Change
Language settings.
KeyboardProvides the Clock
None settings.
Downloaded
Apps Provides the removal
settings for down-
loaded and installed
apps.
Screen Saver
Provides the Clock/
None settings.
System InfoProvides software
and storage space
information.
Display OffProvides the Display
Off (touch activation)
function.
, @ 5 ' & @ ( < & / > 2 3 ( J O E E
< & / > 2 3 ( J O E E ß
1
Page 12 of 92
9
002B0052005000480003003600460055004800480051
Controls Menu Confi guration for the Home Screen
Information Display on the Status Bar
Displays the date and time, along with the system status shown by the various
icons to the right of the clock.
The icons in the following table indicate the various types of system status
details and events.
FeaturesDescription
Navigation
Widget
!Ÿ
Provides a brief view of the navigation map and the route screen.
!Ÿ
Touch any area on the screen to move to the navigation screen.
AV Widget
!Ÿ
Shows brief information on the radio media currently playing.
!Ÿ
Touch the area to move to the mode for what you are listening to.
All Menus Shows all of the items in the system menu.
PlacesDirectly moves to the screen where you can search for your destination.
My Menu
!Ÿ
You can add and save up to eight menu items.
!Ÿ
Add your favorite menu items to have quick and easy access to them.
AV-Mute Navigation-
Mute Making a call and Bluetooth connection Wi-Fi
ICON
Description Mute AV
sound Mute
Navogation sound Bluetooth
phone
remaining battery Handsfree
connection Making a
call using
BT phone Bluetooth phone
reception
sensitivity Wi-Fi is connected
ICON
Description Connecting to
music stream Connecting to Wi-Fi
ICON
Description Handsfree+
streaming
connection Mute
Bluetooth phone
microphone
ICON
Description Downloading
contacts/
recent calls
, @ 5 ' & @ ( < & / > 2 3 ( J O E E < & / > 2 3 ( J O E E ß
1
Page 13 of 92
10

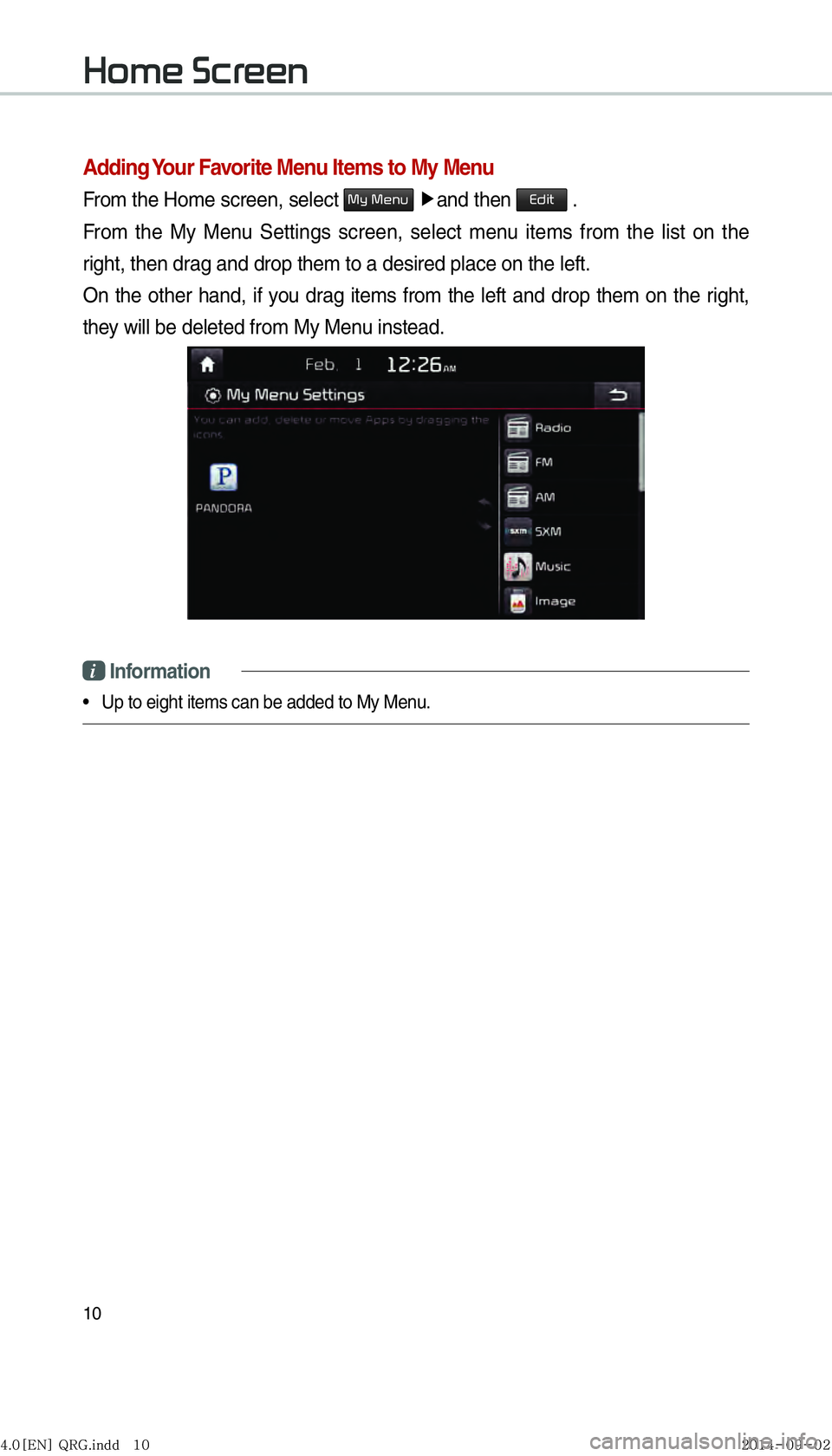

Adding Your Favorite Menu Items to My Menu
From the Home screen, select 0030005C00030030004800510058 Ü
and then 00280047004C0057 .
From the My Menu Settings screen, select menu items from the list on the
right, then drag and drop them to a desired place on the left.
On the other hand, if you drag items from the left and drop them on the right,
they will be deleted from My Menu instead.
i Information
• Up to eight items can be added to My Menu.
002B0052005000480003003600460055004800480051
, @ 5 ' & @ ( < & / > 2 3 ( J O E E < & / > 2 3 ( J O E E ß
1
Page 14 of 92
11
00290030001200240030
Accessing FM/AM Mode
You can access the radio player either by pressing the 003500240027002C0032 hard key or by
selecting the Radio menu option from All Menus on the Home screen.
i Information
• If you press the 003500240027002C0032 hard key when the power is off, then the power will turn on
and a radio broadcast will be tuned up.
• If you are in the FM/AM mode, select the FM/AM radio widget from the Home screen to access the radio player.
Features Description
Mode Display
!Ÿ
Displays currently operating mode
!Ÿ
If select wanted mode tap, it will change to selected mode in
Radio.
Preset
!Ÿ
Shows saved presets for user selection
!Ÿ
After selecting frequency →
press and hold (over 0.8 sec-
onds) the preset button. A 'beep' will sound and the fre-
quency is saved to the selected preset button.
A total of 24 frequencies with 12 preset frequencies each
for FM/AM modes can be saved.
Frequency Bar
!Ÿ
Flick the frequency bar left/right to search for available radio
channels to the left or right of the current channel.
!Ÿ
Dragging: Drag the frequency bar to the left/right to find the
radio channel that you want.
Frequency Displays the current frequency
Broadcast
station Displays the current broadcast station name.
Scan
Plays frequencies with superior reception for 5 seconds each
HD RadioUsed to set whether to turn HD Radio™ reception On/Off.
, @ 5 ' & @ ( < & / > 2 3 ( J O E E < & / > 2 3 ( J O E E ß
1
Page 15 of 92
12
FeaturesDescription
InfoTurns the Radio Text information on and off
!Ÿ
If the ON Text On button is displayed (Text off state), infor-
mation will not be displayed even if there is information being
transmitted from the broadcast station.
!Ÿ
If the Off Text Off button is displayed (Text on state), then
broadcast information will be displayed. Information may not
be displayed if there is no information being transmitted from
the broadcast station.
Menu
!Ÿ
Autostore - Saves frequencies with superior reception to
Preset buttons
While Auto Store is operating, pressing the Auto Store button
again will cancel the function and play the previous
frequency.
!Ÿ
Preset Scan - Plays preset frequencies for 5 or 10 secodes each
!Ÿ
HD on : 10 seconds
!Ÿ
HD off : 5 seconds
Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto Scan/Preset
Scan modes.
SEEK/
TRA CK
!Ÿ
Pressing this button briefly (less than 0.8 seconds) : Seeks
the previous/next frequency.
!Ÿ
Pressing and holding this button (longer than 0.8 seconds)
: Moves quickly through all of the frequencies. From the
moment that you release the button, the system will seek the
next available frequency.
TUNETurn the 00370038003100280003
knob to manually seek available frequencies.
!Ÿ
FM : Increment/decrement by 200 kHz
!Ÿ
AM : Increment/decrement by 10 kHz
00290030001200240030
, @ 5 ' & @ ( < & / > 2 3 ( J O E E < & / > 2 3 ( J O E E ß
1
Page 16 of 92
13
Basic Mode Screen (HD Radio™ reception ON)
NameDescription
HDRadio™
Reception
&Channel buttons Displays main HD Radio™ channels and used to
directly select the currently available channels
As HD Radio™ reception is included within
Radio mode, the methods of moving between
channels, saving presets, searching, or methods of
searching frequencies are identical. However, while
the HD Radio™ related icon display will become
active when within regions where an HD Radio™
signal can be received.
HD Channel Number
HD Channel number saved in preset
Broadcast Info Displays detailed information about the current broad-
cast
HD RadioUsed to set whether to turn HD Radio™ reception
On/Off.
002400450052005800570003002B00270003003500440047004C0052043000030037
, @ 5 ' & @ ( < & / > 2 3 ( J O E E
< & / > 2 3 ( J O E E ß
1
Page 17 of 92
14
SiriusXM™ Mode Hard Key Controls
You can access the radio player either by pressing the 003500240027002C0032 hard key or by
selecting the Radio menu option from All Menus on the Home screen. Select
the SiriusXM™ tab from the radio player.
i Information
• If you press the 003500240027002C0032 hard key when the power is off, then the power will turn on and a
radio broadcast will be tuned up.
• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home screen to access the radio player.
• When the power is off, pressing the
003500240027002C0032 key will turn the power on and play a
SiriusXM™ Radio broadcast.
0036004C0055004C00580056003B0030043000030030005200470048
, @ 5 ' & @ ( < & / > 2 3 ( J O E E < & / > 2 3 ( J O E E ß
1
Page 18 of 92
15
SiriusXM™ Mode Display Controls
FeaturesDescription
Mode DisplayDisplays currently operating mode.
If select wanted mode tap, it will change to selected mode in Radio.
PresetShows saved presets for user selection
After selecting frequency
→
press and hold (over 0.8 seconds)
the preset button. A 'beep' will sound and the frequency is
saved to the selected preset button.
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo
Channel Info Displays the current channel number and name
Contents InfoDisplays the artist, title and other informationabout the current
playing song
Category Info
Displays the current playing category
ScanPlays all receivable channels for 10 seconds each
Direct TuneUsed to search for channels by entering channel numbers
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons
Used to select the previous/next category
, @ 5 ' & @ ( < & / > 2 3 ( J O E E < & / > 2 3 ( J O E E ß
1
Page 19 of 92
16
FeaturesDescription
Play Live
It will change to listening live broadcast mode.
Skip
Backward Repeats the previously broadcasted program.
!Ÿ
Holding for less than 0.8 seconds : Moves to the previous
segment
!Ÿ
Holding for longer than 0.8 seconds: Moves to the previous 5
seconds
Play Pause Pauses/plays the currently broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For more details,
see Section 2.5. Viewing Menu.)
!Ÿ
Featured Favorite
Theme channels recommended by SiriusXM™. (For more
details, see Section 2.5. Viewing Menu.)
!Ÿ
Preset Scan
Plays preset frequencies for 5 seconds each.
SEEK/
TRACK When key is pressed shortly.(under 0.8 seconds) Plays
the previ-
ous/next channelWhen key is pressed and held.(over 0.8 seconds) Continuously changes
the channel until the key is released and plays the current channel
TUNE Changes the channel
0036004C0055004C00580056003B0030043000030030005200470048
, @ 5 ' & @ ( < & / > 2 3 ( J O E E < & / > 2 3 ( J O E E ß
1
Page 20 of 92
17

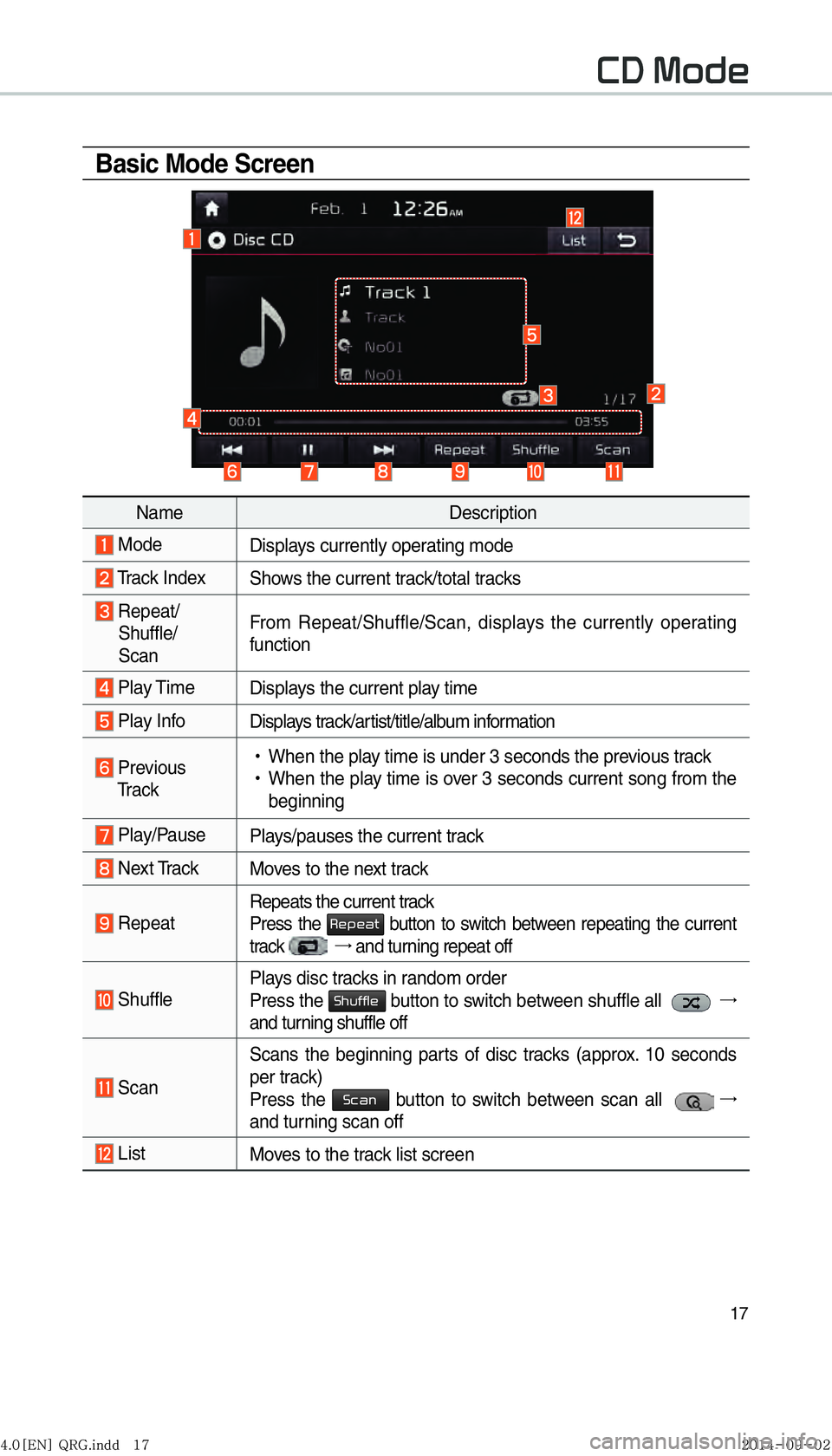

Basic Mode Screen
NameDescription
Mode
Displays currently operating mode
Track IndexShows the current track/total tracks
Repeat/
Shuffle/
Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time
Play InfoDisplays track/artist/title/album information
Previous
Tr a c k
!Ÿ
When the play time is under 3 seconds the previous track
!Ÿ
When the play time is over 3 seconds current song from the
beginning
Play/Pause Plays/pauses the current track
Next Track Moves to the next track
RepeatRepeats the current track
Press the 003500480053004800440057 button to switch between repeating the current
track ª
and turning repeat off
Shuffle Plays disc tracks in random order
Press the 0036004B005800490049004F0048 button to switch between shuffle all
ª
and turning shuffle off
Scan Scans the beginning parts of disc tracks (approx. 10 seconds
per track)
Press the 0036004600440051 button to switch between scan all
ª
and turning scan off
List Moves to the track list screen
0026002700030030005200470048
, @ 5 ' & @ ( < & / > 2 3 ( J O E E < & / > 2 3 ( J O E E ß
1
