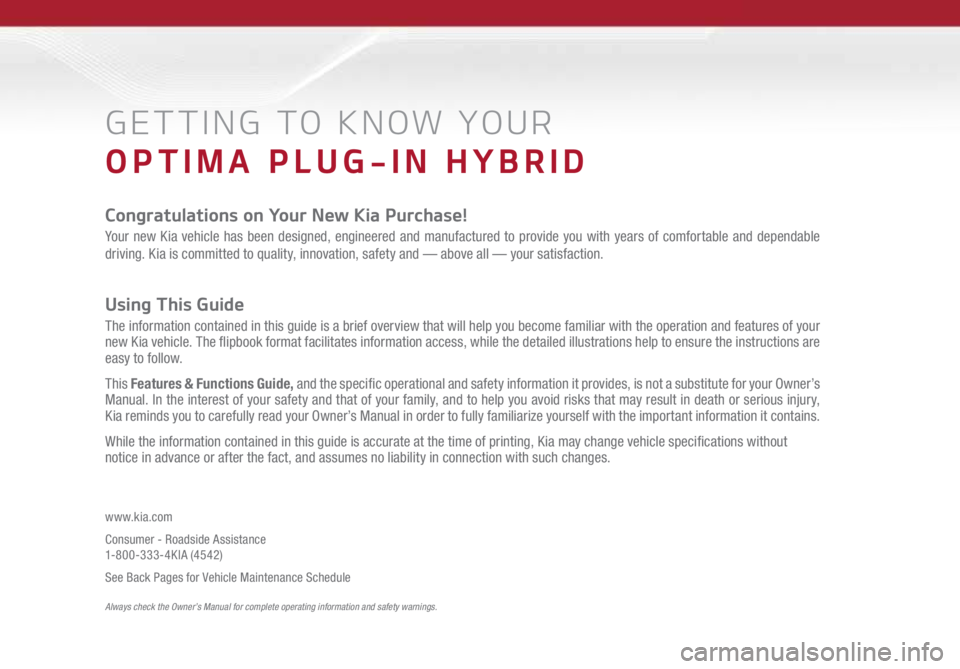

KIA OPTIMA PHEV 2017 Features and Functions Guide

Features & Functions Guide

GETTING TO KNOW YOUR
OPTIMA PLUG-IN HYBRID
Congratulations on Your New Kia Purchase!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable
driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.

Using This Guide
The information contained in this guide is a brief overview that will help you become familiar with the operation and features of your
new Kia vehicle. The flipbook format facilitates information access, while the detailed illustrations help to ensure the instructions are
easy to follow.
This Features & Functions Guide, and the specific operational and safety information it provides, is not a substitute for your Owner’s
Manual. In the interest of your safety and that of your family, and to help you avoid risks that may result in death or serious injury,
Kia reminds you to carefully read your Owner’s Manual in order to fully familiarize yourself with the important information it contains.
While the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without
notice in advance or after the fact, and assumes no liability in connection with such changes.
www.kia.com
Consumer - Roadside Assistance
1-800-333-4KIA (4542)
See Back Pages for Vehicle Maintenance Schedule

Always check the Owner’s Manual for complete operating information and safety warnings.

VIDEOS & QR CODES . . . . . . . . . . . . . . . . .02
INSTRUMENT CLUSTER Instrument Cluster Overview . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Plug-In Hybrid Indicators at Startup . . . . . . . . . . . 06
LCD Instrument Cluster Modes . . . . . . . . . . . . . . 07
Trip Modes / Trip Computer . . . . . . . . . . . . . . . . 07
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . 08
User Settings . . . . . . . . . . . . . . . . . . . . . . . 09
Service Mode . . . . . . . . . . . . . . . . . . . . . . . 09
Drive Mode Integrated Control System* . . . . . . . . . 10
ECO Mode (Active ECO) . . . . . . . . . . . . . . . . . . 10
Plug-In Hybrid Modes . . . . . . . . . . . . . . . . . . . 10
PLUG-IN HYBRID SYSTEM UVO eServices with Premium Navigation* . . . . . . . . 11
Instrument Cluster - Energy Flow . . . . . . . . . . . . . 12
Charging Your Plug-In Hybrid . . . . . . . . . . . . . . . 14
DRIVER’S PANEL Blind Spot Detection System* . . . . . . . . . . . . . . 16
Lane Departure Warning System (LDWS)* . . . . . . . . 17
Autonomous Emergency Braking (AEB) /
Front Collision Warning System* . . . . . . . . . . . . 17
Instrument Panel Dimmer . . . . . . . . . . . . . . . . 18
Electronic Stability Control (ESC) . . . . . . . . . . . . . 18
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . 18
Engine Start/Stop Button . . . . . . . . . . . . . . . . . 19
Power Windows, Window Lock & Central Door Lock . . . 20
Automatic Door Lock /Unlock . . . . . . . . . . . . . . . 20
Power/Heated Outside Mirrors* . . . . . . . . . . . . . 20
Power Folding Mirrors* . . . . . . . . . . . . . . . . . . 20
STEERING WHEEL CONTROLS Headlights & High Beams . . . . . . . . . . . . . . . . . 21
High Beam Assist* . . . . . . . . . . . . . . . . . . . . 21
Turn Signals & Fog Lights . . . . . . . . . . . . . . . . 21
Windshield Wipers & Washers . . . . . . . . . . . . . . 22
Heated Steering Wheel Button* . . . . . . . . . . . . . . 22
Audio Controls . . . . . . . . . . . . . . . . . . . . . . 23
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 23
Bluetooth
® Wireless Technology . . . . . . . . . . . . . 24
Advanced Smart Cruise Control (ASCC)* . . . . . . . . . 26
Tilt/ Telescoping Steering Wheel . . . . . . . . . . . . . 27AUDIO SYSTEMS
UVO eServices Setup . . . . . . . . . . . . . . . . . . . 28
UVO eServices with Premium Navigation . . . . . . . . 29
CENTER PANEL Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 30
Aux/USB/iPod
® Port & Power Outlets . . . . . . . . . . 30
USB Charger* . . . . . . . . . . . . . . . . . . . . . . . 30
Wireless Smartphone Charging System* . . . . . . . . . 31
Automatic Climate Control . . . . . . . . . . . . . . . . 32
Automatic Gear Shift with Sportmatic
® Shifting . . . . . 33
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . 33
Electric Parking Brake (EPB)* . . . . . . . . . . . . . . 34
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . 34
S E AT I N G Driver Position Memory System* . . . . . . . . . . . . . 35
Front Seat Headrest Adjustment . . . . . . . . . . . . . 35
Power Adjustable Driver’s Seat* . . . . . . . . . . . . . 36
6-Way Manual Adjustable Driver’s Seat* . . . . . . . . . 36
OTHER KEY FEATURES Smart Key . . . . . . . . . . . . . . . . . . . . . . . . 37
Double-Turn Lock /Unlock All . . . . . . . . . . . . . . . 37
Smart Trunk* . . . . . . . . . . . . . . . . . . . . . . . 38
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . 39
Panoramic Sunroof Operation* . . . . . . . . . . . . . . 39
Hood Release Lever and Latch . . . . . . . . . . . . . . 40
Fuel Door and Trunk Release . . . . . . . . . . . . . . . 40
Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . 40
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear Parking Assist System* . . . . . . . . . . . . . . . 41
Rear-Camera Display* . . . . . . . . . . . . . . . . . . 41
Plug-In Hybrid Battery Vent (Air Intake) . . . . . . . . . . . . 42
Child-Protector Rear Door Lock . . . . . . . . . . . . . 43
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . 43
SAFETY FEATURES Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 44
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . 44
Seat Belt Retractor Locks . . . . . . . . . . . . . . . . 44
NORMAL MAINTENANCE SCHEDULE . . . . 45
LEGAL DISCLAIMERS . . (See Back Inside Cover Page)
ESSENTIAL FEATURES
OPTIMA PLUG-IN HYBRID FE ATURES & FUNCTIONS GUIDE*IF EQUIPPED
Air Conditioning / Climate Control . . . . . . . . . . . . . 32
Audio System – UVO eServices System* . . . . . . . . . .28
Audio System – UVO eServices / Premium Navigation* . . 29
Aux/USB/iPod
® Port & Power Outlets . . . . . . . . . . . . 30
Bluetooth
® Wireless Technology . . . . . . . . . . . . . . 24
Charging of the E V Battery . . . . . . . . . . . . . . . . . 14
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . 23
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . 30
ECO Mode (Active ECO) . . . . . . . . . . . . . . . . . . . 10
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . 08
Plug-In Hybrid Displays – UVO eServices /
Premium Navigation* . . . . . . . . . . . . . . . . . . . . 11
Instrument Cluster / Plug-In Hybrid Displays . . . . . . . .12
Passenger Airbag Off Indicator . . . . . . . . . . . . . . .44
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . 43
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . 05
Windshield Wipers & Washers . . . . . . . . . . . . . . . 22
Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe personal injury and
death. The driver’s primary responsibility is in the safe and
legal operation of a vehicle, and use of any handheld devices,
other equipment or vehicle systems which take the driver’s
eyes, attention and focus away from the safe operation of a
vehicle or that are not permissible by law should never be
used during operation of the vehicle.

OPTIMA PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE2*IF EQUIPPED


1 . If you’re having trouble scanning codes, check the following:

•The code should be centered and focused in your mobile device’s camera screen
•Consider moving your device closer to or farther away from the code
•The code should be well lit, without significant shadow
2 . After scanning, if a “connecting” message appears and then nothing happens or there’s a “connection error” message, this typically indicates that your device is having trouble
connecting to the Internet
QUICK TIPS
VIDEOS & QR CODES - SMARTPHONES, TABLETS AND COMPUTERS


One Click Fuel Cap Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website .
www.KuTechVideos.com/jf23/2017
QR CODEKia provides a number of video resources at your disposal to assist you with becoming familiar with the features and
functions found in your Kia vehicle . You can access these resources by snapping the QR Codes with your smartphone/tablet
(mobile devices) or by visiting the following website: www.KuTechVideos.com/jf23/2017 . Continue reading for a more
in-depth look at QR Codes and for instructions on how to use them .
What are QR Codes?
A QR Code is a square, 2-dimensional barcode that can be
read by mobile devices loaded with an appropriate barcode
or QR Code Reader App . The app reads the barcode image
and then launches/uploads the specific information the
code contains, such as URLs, text, photos, videos and so
much more .
How to Use QR Codes
If you have a mobile device with a QR Code Reader App, you
can snap the code with your phone and you’ll be provided a
video with additional information pertaining to the topic . For
example, in the Fuel Cap section, if you would like additional
information, just snap the code with your mobile device to
view the selected Kia Features & Functions Video .How to Snap a QR Code
1
. With your mobile device, download a QR Code Reader
App . With many devices, you can do this through an app
store or marketplace
2 . Open the QR Code Reader App on your mobile device
3 . The app will utilize your device’s camera . Center the code
in the camera viewing area:

• With some apps, as soon as the app recognizes the
code, it will launch the corresponding video

• With other apps, you will have to snap or take a
picture of the code . The app will then launch the
corresponding video

• For operation specifics, refer to the instructions that
come with the QR Code Reader App

•
Avoid scanning from a significant angle
•Confirm that the device’s app supports 2D QR Code scanning
•Try another QR Code Reader App; not all apps are created equal
REMINDER: When accessing videos
on your mobile device, standard
cellular data rates may apply .

3*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
A Hybrid System Gauge
B Battery State of Charge (SOC) Gauge
C Turn Signal Indicators
D Gear Shift Position Indicator
E Indicator and Warning Lights
F Speedometer
G Fuel Gauge324025km-12°C
026 0
20
24 0
40
220
2
0 0
60 1
80
80 1
0 0 160
1
20 140
HEVCHG
A
G
F
B
E
E
D
CC
Instrument Cluster Overview
Your vehicle’s instrument cluster & indicator light locations may differ from those in the
illustrations. For more information on the instrument cluster, the LCD Warning Messages
and the function of all indicator and warning lights, please refer to the Owner’s Manual.
INSTRUMENT CLUSTER

4*IF EQUIPPED OPTIMA PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
324025km-12°C
0260
20
240
40
220
200
60 180
80 100 160
120 140
Indicators & Warning Lights
High Beam Assist Indicator*
High Beam Indicator
Tail Light Indicator
Front Fog Light Indicator*
Master Warning Light*
Autonomous Emergency Braking (AEB)*
Lane Departure Warning System (LDWS)
On/Off Indicator Light
Electronic Brake Force (EBD) System Warning Light ( Two separate indicators on Instrument Cluster lit at same time)
Immobilizer Indicator*
READY Indicator
EVE V Mode Indicator
Active ECO Indicator
Plug-In Hybrid System Warning Light
Engine Coolant Temperature Warning Light*
Engine Oil Pressure Warning Light
12V Charging System Warning Light
Seat Belt Warning Light
Malfunction Indicator
Low Tire Pressure Light / Tire Pressure Monitoring
System (TPMS) Malfunction Indicator
Electronic Stability Control (ESC) Indicator / ESC
Malfunction Indicator
Electronic Stability Control (ESC) OFF Indicator
Parking Brake & Brake Fluid Warning Light
Electronic Power Steering (EPS) System Warning Light*
Airbag Warning Light
Parking Brake Light
Anti-lock Braking System (ABS) Warning Light
Electronic Parking Brake Indicator
Low Fuel Level Warning Light
Cruise ON/OFF Indicator*
Trunk Open Warning Light
Auto Hold Indicator
Door Ajar Warning Light
(red color) (yellow
color) Regenerative Brake Warning Light ( Two separate indicators on Instrument Cluster lit at same time)
Your vehicle’s instrument cluster & indicator
light locations may differ from those in the
illustrations. For more information on the
instrument cluster, the LCD Warning Messages
and the function of all indicator and warning
lights, please refer to the Owner’s Manual.
INSTRUMENT CLUSTER

5*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
25
3232
32
A


Tire Pressure Monitoring
System Video


To view a video on your
mobile device, snap this
QR Code or visit the listed
website .
Refer to page 2 for more
information .QR CODE
www.KuTechVideos.com/jf23/2017
Tire Pressure Monitoring System (TPMS)
The TPMS indicator functions as both Low Tire Pressure Light
and TPMS Malfunction Indicator . The indicator
will illuminate
if one or more tires is significantly underinflated, the vehicle has a
spare tire installed without TPMS or the outside temperature becomes
significantly lower .
The LCD screen in the instrument cluster will display the Low Tire Pressure
indicator
A showing which tire(s) are underinflated . Inflate tire(s) to
specifications using an accurate digital tire pressure gauge to turn off Low
Tire Pressure Light
. See front driver’s door jamb for PSI specification .
When there is a problem with the TPMS, the TPMS Malfunction Indicator
will blink for approximately one minute then illuminate - See dealer
for service .

•Even with TPMS, tire pressure should be checked manually at least once a
month . Only adjust tire pressure on “cold tires”

•For proper maintenance and optimal fuel economy, maintain recommended
tire inflation pressures and stay within the load limits and weight distribution
recommended for your vehicle

•In winter or cold weather, the TPMS light may illuminate if the tire pressure was
adjusted to the recommended tire inflation pressure during warm weather
QUICK TIP
REMINDER: Consult your dealer for service if Low Tire Pressure Light remains illuminated
after inflating your tire(s) .
INSTRUMENT CLUSTER

6*IF EQUIPPED OPTIMA PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Plug-In Hybrid Indicators at Startup
A ECO Guide — Indicates how economically the vehicle is being driven .

• Blue zone: High-efficiency range

• Green zone: Normal-efficiency range

• Gray zone: Low-efficiency range
B EV Mode — Illuminates when the electric motor is powering the vehicle .
C Ready — Illuminates when the Plug-In Hybrid system is operational . Even
if the engine is off, the vehicle can be driven .
D State of Charge (SOC) — Displays the Plug-In Hybrid battery charge
status .
E Active ECO — Turn system ON/OFF using the Drive Mode (Active ECO)
button below the shift lever . When activated, Active ECO is on each time
vehicle is started .

• Active ECO ON (Eco indicator illuminated): Adjusts the engine,
transaxle and A /C system to conserve fuel

• Active ECO OFF (Eco indicator not illuminated): Provides more power
when driving up steep roads or carrying heavy loads
F Service Indicator — Illuminates when a malfunction occurs in the
vehicle’s Plug-In Hybrid system . Have an authorized Plug-In Hybrid Kia
dealer address the concern as soon as possible .


If Active ECO is turned off, switch back to Active ECO as soon as
possible for maximum fuel ef ficiency and to restore the ECO ON
center display .
324025km-12

7*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Trip Modes / Trip Computer
The Trip Computer is a driver information system that displays information
related to driving . It appears on the display when the Engine Start /Stop
button is in the ON position .
To cycle through the Trip modes, press the Mode button
A .
When in the Trip Computer mode
, press the Select /Reset button B
to cycle through the screens . When displaying TRIP A or TRIP B screens,
press and hold the Select /Reset button
B to reset the Tripmeter to zero .
LCD Instrument Cluster Modes
Press Mode button A to scroll through different LCD Instrument Cluster
Modes .
Trip Computer Mode: Displays driving information for tripmeter,
fuel economy, etc .
Turn-by-Turn Mode*: Displays the state of the navigation
ASCC/LDWS* Mode: Displays the state of the Advanced Smart
Cruise Control (ASCC) and the Lane Departure Warning System
(LDWS)
A/V Mode*: Displays the state of the A / V System
Service Modes: Informs on upcoming service intervals, tire
pressure status, warning messages related to TPMS, BSD
malfunction and when any door is not securely closed .
User Settings Mode: Change settings of the doors, lamps and
other features
Your vehicle’s steering wheel buttons may differ from those in the illustrations. REMINDERS:

• Appearance of Trip Computer display may differ
as equipped

• All stored driving information (except Odometer and
Range) is reset if the battery is disconnected
INSTRUMENT CLUSTER
MODE
RES
CRUISE
CAN CELOKSET
MODE
RES
CRUISE
CAN CELOKSET
MODE
FUEL ECONOMY• Range• Average MPG• Instant MPG
TRIP A/B• Tripmeter• Average MPG• Elapsed Time (E/T)
DIGITAL SPEEDOMETER
DRIVING STYLE
ENERGY FLOW
Total Range
Elec tric
Dasoline
Hold OK : Reset
184 mi 64 mi
120 miN
(Buttons located on Steering Wheel – Type A shown)
A
B

8*IF EQUIPPED OPTIMA PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE


Fuel Economy Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website .
Refer to page 2 for more
information .QR CODE
www.KuTechVideos.com/jf23/2017
Fuel Economy
There are several factors that contribute to your vehicle’s fuel
economy, including maintenance of your vehicle, driving style,
environmental conditions, vehicle weight and vehicle aerodynamics .
Below are tips on how to help improve fuel economy:

• Keep your vehicle in good condition with regular maintenance

• Don’t let the engine idle longer than necessary

• Drive at a moderate speed, accelerating smoothly and at a
moderate rate

• Keep tires inflated to the recommended pressure

• Travel lightly, without carrying unnecessary weight in your vehicles

• Avoid placing large or heavy items on roof racks

• Avoid hilly, winding or poorly maintained roads
REMINDER: Driving range can vary depending on your vehicle’s fuel tank size,
e .g ., 12-gal . vs . 24-gal ., even though the MPG may be the same
For more information on Fuel Economy, you can snap the QR C ode above to view a video
or refer to the Owner's Manual .
INSTRUMENT CLUSTER
When the Instrument Cluster LCD screen is in
the Trip Computer mode, the screen displays fuel
economy information related to the driving range
and average fuel economy .
To change modes, go to User Settings in the LCD
Instrument Cluster modes .
Range - Estimates how far you can go before
refueling is required .
Average Fuel Consumption - Calculates
average* fuel consumption from the distance
driven and amount of fuel injected into the
engine / total fuel used .
FUEL ECONOMY
• Range
• Average MPG
• Instant MPG
TRIP A/B
• Tripmeter
• Average MPG
• Elapsed Time (E/T)
DIGITAL SPEEDOMETER
DRIVING STYLE ENERGY FLOW
Range
Average
Hold OK : Reset
1729mi
24.8MPG
