airbag KIA OPTIMA PHEV 2017 Features and Functions Guide

VIDEOS & QR CODES . . . . . . . . . . . . . . . . .02
INSTRUMENT CLUSTER Instrument Cluster Overview . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Plug-In Hybrid Indicators at Startup . . . . . . . . . . . 06
LCD Instrument Cluster Modes . . . . . . . . . . . . . . 07
Trip Modes / Trip Computer . . . . . . . . . . . . . . . . 07
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . 08
User Settings . . . . . . . . . . . . . . . . . . . . . . . 09
Service Mode . . . . . . . . . . . . . . . . . . . . . . . 09
Drive Mode Integrated Control System* . . . . . . . . . 10
ECO Mode (Active ECO) . . . . . . . . . . . . . . . . . . 10
Plug-In Hybrid Modes . . . . . . . . . . . . . . . . . . . 10
PLUG-IN HYBRID SYSTEM UVO eServices with Premium Navigation* . . . . . . . . 11
Instrument Cluster - Energy Flow . . . . . . . . . . . . . 12
Charging Your Plug-In Hybrid . . . . . . . . . . . . . . . 14
DRIVER’S PANEL Blind Spot Detection System* . . . . . . . . . . . . . . 16
Lane Departure Warning System (LDWS)* . . . . . . . . 17
Autonomous Emergency Braking (AEB) /
Front Collision Warning System* . . . . . . . . . . . . 17
Instrument Panel Dimmer . . . . . . . . . . . . . . . . 18
Electronic Stability Control (ESC) . . . . . . . . . . . . . 18
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . 18
Engine Start/Stop Button . . . . . . . . . . . . . . . . . 19
Power Windows, Window Lock & Central Door Lock . . . 20
Automatic Door Lock /Unlock . . . . . . . . . . . . . . . 20
Power/Heated Outside Mirrors* . . . . . . . . . . . . . 20
Power Folding Mirrors* . . . . . . . . . . . . . . . . . . 20
STEERING WHEEL CONTROLS Headlights & High Beams . . . . . . . . . . . . . . . . . 21
High Beam Assist* . . . . . . . . . . . . . . . . . . . . 21
Turn Signals & Fog Lights . . . . . . . . . . . . . . . . 21
Windshield Wipers & Washers . . . . . . . . . . . . . . 22
Heated Steering Wheel Button* . . . . . . . . . . . . . . 22
Audio Controls . . . . . . . . . . . . . . . . . . . . . . 23
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 23
Bluetooth
® Wireless Technology . . . . . . . . . . . . . 24
Advanced Smart Cruise Control (ASCC)* . . . . . . . . . 26
Tilt/ Telescoping Steering Wheel . . . . . . . . . . . . . 27AUDIO SYSTEMS
UVO eServices Setup . . . . . . . . . . . . . . . . . . . 28
UVO eServices with Premium Navigation . . . . . . . . 29
CENTER PANEL Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 30
Aux/USB/iPod
® Port & Power Outlets . . . . . . . . . . 30
USB Charger* . . . . . . . . . . . . . . . . . . . . . . . 30
Wireless Smartphone Charging System* . . . . . . . . . 31
Automatic Climate Control . . . . . . . . . . . . . . . . 32
Automatic Gear Shift with Sportmatic
® Shifting . . . . . 33
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . 33
Electric Parking Brake (EPB)* . . . . . . . . . . . . . . 34
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . 34
S E AT I N G Driver Position Memory System* . . . . . . . . . . . . . 35
Front Seat Headrest Adjustment . . . . . . . . . . . . . 35
Power Adjustable Driver’s Seat* . . . . . . . . . . . . . 36
6-Way Manual Adjustable Driver’s Seat* . . . . . . . . . 36
OTHER KEY FEATURES Smart Key . . . . . . . . . . . . . . . . . . . . . . . . 37
Double-Turn Lock /Unlock All . . . . . . . . . . . . . . . 37
Smart Trunk* . . . . . . . . . . . . . . . . . . . . . . . 38
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . 39
Panoramic Sunroof Operation* . . . . . . . . . . . . . . 39
Hood Release Lever and Latch . . . . . . . . . . . . . . 40
Fuel Door and Trunk Release . . . . . . . . . . . . . . . 40
Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . 40
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear Parking Assist System* . . . . . . . . . . . . . . . 41
Rear-Camera Display* . . . . . . . . . . . . . . . . . . 41
Plug-In Hybrid Battery Vent (Air Intake) . . . . . . . . . . . . 42
Child-Protector Rear Door Lock . . . . . . . . . . . . . 43
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . 43
SAFETY FEATURES Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 44
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . 44
Seat Belt Retractor Locks . . . . . . . . . . . . . . . . 44
NORMAL MAINTENANCE SCHEDULE . . . . 45
LEGAL DISCLAIMERS . . (See Back Inside Cover Page)
ESSENTIAL FEATURES
OPTIMA PLUG-IN HYBRID FE ATURES & FUNCTIONS GUIDE*IF EQUIPPED
Air Conditioning / Climate Control . . . . . . . . . . . . . 32
Audio System – UVO eServices System* . . . . . . . . . .28
Audio System – UVO eServices / Premium Navigation* . . 29
Aux/USB/iPod
® Port & Power Outlets . . . . . . . . . . . . 30
Bluetooth
® Wireless Technology . . . . . . . . . . . . . . 24
Charging of the E V Battery . . . . . . . . . . . . . . . . . 14
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . 23
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . 30
ECO Mode (Active ECO) . . . . . . . . . . . . . . . . . . . 10
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . 08
Plug-In Hybrid Displays – UVO eServices /
Premium Navigation* . . . . . . . . . . . . . . . . . . . . 11
Instrument Cluster / Plug-In Hybrid Displays . . . . . . . .12
Passenger Airbag Off Indicator . . . . . . . . . . . . . . .44
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . 43
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . 05
Windshield Wipers & Washers . . . . . . . . . . . . . . . 22
Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe personal injury and
death. The driver’s primary responsibility is in the safe and
legal operation of a vehicle, and use of any handheld devices,
other equipment or vehicle systems which take the driver’s
eyes, attention and focus away from the safe operation of a
vehicle or that are not permissible by law should never be
used during operation of the vehicle.

4*IF EQUIPPED OPTIMA PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
324025km-12°C
0260
20
240
40
220
200
60 180
80 100 160
120 140
Indicators & Warning Lights
High Beam Assist Indicator*
High Beam Indicator
Tail Light Indicator
Front Fog Light Indicator*
Master Warning Light*
Autonomous Emergency Braking (AEB)*
Lane Departure Warning System (LDWS)
On/Off Indicator Light
Electronic Brake Force (EBD) System Warning Light ( Two separate indicators on Instrument Cluster lit at same time)
Immobilizer Indicator*
READY Indicator
EVE V Mode Indicator
Active ECO Indicator
Plug-In Hybrid System Warning Light
Engine Coolant Temperature Warning Light*
Engine Oil Pressure Warning Light
12V Charging System Warning Light
Seat Belt Warning Light
Malfunction Indicator
Low Tire Pressure Light / Tire Pressure Monitoring
System (TPMS) Malfunction Indicator
Electronic Stability Control (ESC) Indicator / ESC
Malfunction Indicator
Electronic Stability Control (ESC) OFF Indicator
Parking Brake & Brake Fluid Warning Light
Electronic Power Steering (EPS) System Warning Light*
Airbag Warning Light
Parking Brake Light
Anti-lock Braking System (ABS) Warning Light
Electronic Parking Brake Indicator
Low Fuel Level Warning Light
Cruise ON/OFF Indicator*
Trunk Open Warning Light
Auto Hold Indicator
Door Ajar Warning Light
(red color) (yellow
color) Regenerative Brake Warning Light ( Two separate indicators on Instrument Cluster lit at same time)
Your vehicle’s instrument cluster & indicator
light locations may differ from those in the
illustrations. For more information on the
instrument cluster, the LCD Warning Messages
and the function of all indicator and warning
lights, please refer to the Owner’s Manual.
INSTRUMENT CLUSTER

SAFETY FEATURES
44*IF EQUIPPED OPTIMA PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE

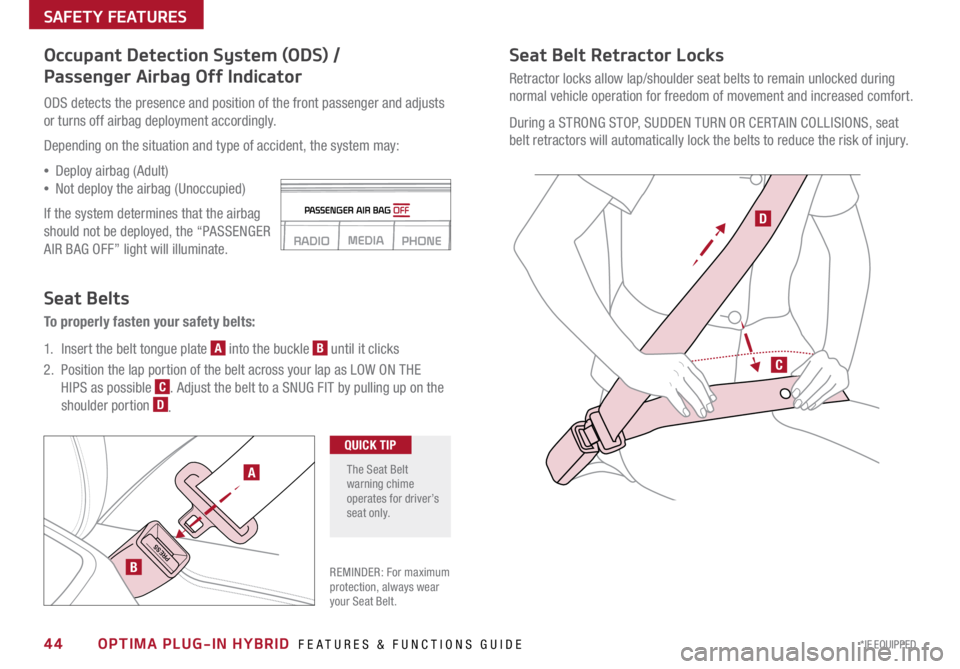

Occupant Detection System (ODS) /
Passenger Airbag Off Indicator
ODS detects the presence and position of the front passenger and adjusts
or turns off airbag deployment accordingly .
Depending on the situation and type of accident, the system may:
• Deploy airbag (Adult)

• Not deploy the airbag (Unoccupied)
If the system determines that the airbag
should not be deployed, the “PASSENGER
AIR BAG OFF” light will illuminate .
Seat Belts
To properly fasten your safety belts:
1 . Insert the belt tongue plate
A into the buckle B until it clicks
2 .
Position the lap portion of the belt across your lap as LOW ON THE
HIPS as possible
C . Adjust the belt to a SNUG FIT by pulling up on the
shoulder portion
D .
PRESS
A
B
Seat Belt Retractor Locks
Retractor locks allow lap/shoulder seat belts to remain unlocked during
normal vehicle operation for freedom of movement and increased comfort .
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS, seat
belt retractors will automatically lock the belts to reduce the risk of injury .
D
C


The Seat Belt
warning chime
operates for driver’s
seat only .QUICK TIP
REMINDER: For maximum
protection, always wear
your Seat Belt .

Sales Consultant: ______________________________________________________________ Date: ____________________
Sales Manager: ________________________________________________________________ Date: ____________________
Customer: _____________________________________________________________________ Date: ____________________LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Airbags: For maximum protection, always wear your seat belt.
Android Auto: Android Auto is a trademark of Google, Inc.. Android™ is a registered trademark of Google, Inc. Distracted
driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away
from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the
accuracy of the information.
Apple CarPlay
®: Apple CarPlay® a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle
control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.
Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
Apps: All information contained herein was based upon the latest available information at the time of appstore
registration. Descriptions are believed to be correct, and Kia Motors Corporation (KMC) makes every effort to ensure
accuracy, however, accuracy cannot be guaranteed. From time to time, KMC may need to update or make changes to
the vehicle features and other vehicle information reported in this app. KMC, by the publication and dissemination of this
material, does not create any warranties, either express or implied, to any Kia products. Contact your local Kia dealer for
the most current information.
Autonomous Emergency Braking System (AEB) / Forward Collision Warning System: These systems are not
substitutes for safe driving, and may not detect all objects in front of vehicle. Always drive safely and use caution.
Bluetooth
® Wireless Technology: A compatible Bluetooth® wireless technology-enabled cell phone is required to use
Bluetooth® wireless technology. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective
owners. A Bluetooth
® enabled cell phone is required to use Bluetooth® wireless technology.
Driver Assist Features - Advanced Smart Cruise Control (ASCC), Rear Parking Assist System, Blind Spot Detection
(BSD) with Lane Change Assist, Rear Cross Traffic Alert (RCTA), Lane Departure Warning System, Rear-Camera
Display: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive
safely and use caution.
Electronic Stability Control, Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for
all driver error and/or driving conditions. Always drive responsibly.
Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off.
However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine
off to the ACC position by pressing the Start/Stop button for more than 3 seconds o\
r 3 times in succession. If the vehicle
is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the
engine off, power assist for steering and braking will be disabled, and the vehicle will be more difficult to control.
Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
Google Play
™ Store is a trademark of Google, Inc. © 2016 Google Inc. All rights reserved. Google and the Google Logo
are registered trademarks of Google Inc.
iPod
®/iPhone® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately, and connectivity
requires the Kia accessory cable.
Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a handheld
device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes
only, and Kia does not make any warranties about the accuracy of the information.
Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
Pandora® internet radio: Pandora® is a registered trademark of Pandora Media, Inc.
Power Trunk / Smart Trunk: Driving with the trunk open may be unlawful and can draw dangerous exhaust fumes into
your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.
Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may
lead to additional injury in an accident.
Seat Belts / Airbags: For maximum protection, always wear your seatbelt.
Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more
information.
SiriusXM
®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold
separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your
trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call
1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other
fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of
receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware.
Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current
Conditions may not be available in all locations. Images above are for representative purposes only and are not real
products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible
for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price
and daily delta of around 7,000 actively reported securities traded on t\
he NYSE
®, NASDAQ® and AMEX®. The service is
delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48
contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout
our satellite service area and in AK and HI. © 2016 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are
trademarks of SiriusXM Radio Inc.
Sportmatic
® is a registered trademark of Kia Motors America.
Steering Wheel Controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and
be cautious when using steering-wheel-mounted controls while driving.
Sunvisor: Sunvisor may not shield all direct light. Do not operate the vehicle if Sunvisor is impairing your visibility.
Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
TPMS: Even with the Tire-Pressure Monitoring System (TPMS), always check your tire pressure on a regular basis.
UVO eServices: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system
that takes your focus away from safe vehicle operation.
UVO eServices app: App uses your smartphone data service. Normal cellular service rates will apply.
UVO eServices with Premium Navigation: Distracted driving can result in a loss of vehicle control. Never use a
handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information
purposes only, and Kia does not make any warranties about the accuracy of the information.

Sales Consultant: ______________________________________________________________ Date: ____________________
Sales Manager: ________________________________________________________________ Date: ____________________
Customer: _____________________________________________________________________ Date: ____________________ Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff & explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours & Customer 360° Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up
OPTIMA PLUG-IN HYBRID CUSTOMER DELIVERY CHECKLIST
...continued
KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System ( TPMS) – page 5 Trip Modes / Trip Computer – page 7 Fuel Economy – page 8 ECO Mode (Active ECO) – page 10 Engine Start /Stop Button – page 19 Audio Controls – page 23 Digital Clock – page 30 Seat Warmers/ Ventilated Seats* – page 33
Smart Key – page 37 Panoramic Sunroof Operation* – page 39 Sunvisor – page 40 Back-up Warning System* – page 41 Rear-Camera Display* – page 41 Tire Mobility Kit – page 43 Passenger Airbag Off Indicator – page 44
*IF EQUIPPED
Aux/USB/iPod
® Port – page 30

Cruise Control – page 23 Demonstrate operation
UVO eServices Setup – page 28Walk customer through the registration/activation
process for UVO eServices.
UVO eServices with Premium -
Navigation* – page 29

For further operational information, refer to
the Car Multimedia System User’s Manual.
Bluetooth
® Wireless
Technology – page 24

Demonstrate operation, and pair
customer’s phone.
