navigation system KIA OPTIMA PHEV 2017 Features and Functions Guide

VIDEOS & QR CODES . . . . . . . . . . . . . . . . .02
INSTRUMENT CLUSTER Instrument Cluster Overview . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Plug-In Hybrid Indicators at Startup . . . . . . . . . . . 06
LCD Instrument Cluster Modes . . . . . . . . . . . . . . 07
Trip Modes / Trip Computer . . . . . . . . . . . . . . . . 07
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . 08
User Settings . . . . . . . . . . . . . . . . . . . . . . . 09
Service Mode . . . . . . . . . . . . . . . . . . . . . . . 09
Drive Mode Integrated Control System* . . . . . . . . . 10
ECO Mode (Active ECO) . . . . . . . . . . . . . . . . . . 10
Plug-In Hybrid Modes . . . . . . . . . . . . . . . . . . . 10
PLUG-IN HYBRID SYSTEM UVO eServices with Premium Navigation* . . . . . . . . 11
Instrument Cluster - Energy Flow . . . . . . . . . . . . . 12
Charging Your Plug-In Hybrid . . . . . . . . . . . . . . . 14
DRIVER’S PANEL Blind Spot Detection System* . . . . . . . . . . . . . . 16
Lane Departure Warning System (LDWS)* . . . . . . . . 17
Autonomous Emergency Braking (AEB) /
Front Collision Warning System* . . . . . . . . . . . . 17
Instrument Panel Dimmer . . . . . . . . . . . . . . . . 18
Electronic Stability Control (ESC) . . . . . . . . . . . . . 18
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . 18
Engine Start/Stop Button . . . . . . . . . . . . . . . . . 19
Power Windows, Window Lock & Central Door Lock . . . 20
Automatic Door Lock /Unlock . . . . . . . . . . . . . . . 20
Power/Heated Outside Mirrors* . . . . . . . . . . . . . 20
Power Folding Mirrors* . . . . . . . . . . . . . . . . . . 20
STEERING WHEEL CONTROLS Headlights & High Beams . . . . . . . . . . . . . . . . . 21
High Beam Assist* . . . . . . . . . . . . . . . . . . . . 21
Turn Signals & Fog Lights . . . . . . . . . . . . . . . . 21
Windshield Wipers & Washers . . . . . . . . . . . . . . 22
Heated Steering Wheel Button* . . . . . . . . . . . . . . 22
Audio Controls . . . . . . . . . . . . . . . . . . . . . . 23
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 23
Bluetooth
® Wireless Technology . . . . . . . . . . . . . 24
Advanced Smart Cruise Control (ASCC)* . . . . . . . . . 26
Tilt/ Telescoping Steering Wheel . . . . . . . . . . . . . 27AUDIO SYSTEMS
UVO eServices Setup . . . . . . . . . . . . . . . . . . . 28
UVO eServices with Premium Navigation . . . . . . . . 29
CENTER PANEL Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 30
Aux/USB/iPod
® Port & Power Outlets . . . . . . . . . . 30
USB Charger* . . . . . . . . . . . . . . . . . . . . . . . 30
Wireless Smartphone Charging System* . . . . . . . . . 31
Automatic Climate Control . . . . . . . . . . . . . . . . 32
Automatic Gear Shift with Sportmatic
® Shifting . . . . . 33
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . 33
Electric Parking Brake (EPB)* . . . . . . . . . . . . . . 34
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . 34
S E AT I N G Driver Position Memory System* . . . . . . . . . . . . . 35
Front Seat Headrest Adjustment . . . . . . . . . . . . . 35
Power Adjustable Driver’s Seat* . . . . . . . . . . . . . 36
6-Way Manual Adjustable Driver’s Seat* . . . . . . . . . 36
OTHER KEY FEATURES Smart Key . . . . . . . . . . . . . . . . . . . . . . . . 37
Double-Turn Lock /Unlock All . . . . . . . . . . . . . . . 37
Smart Trunk* . . . . . . . . . . . . . . . . . . . . . . . 38
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . 39
Panoramic Sunroof Operation* . . . . . . . . . . . . . . 39
Hood Release Lever and Latch . . . . . . . . . . . . . . 40
Fuel Door and Trunk Release . . . . . . . . . . . . . . . 40
Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . 40
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear Parking Assist System* . . . . . . . . . . . . . . . 41
Rear-Camera Display* . . . . . . . . . . . . . . . . . . 41
Plug-In Hybrid Battery Vent (Air Intake) . . . . . . . . . . . . 42
Child-Protector Rear Door Lock . . . . . . . . . . . . . 43
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . 43
SAFETY FEATURES Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 44
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . 44
Seat Belt Retractor Locks . . . . . . . . . . . . . . . . 44
NORMAL MAINTENANCE SCHEDULE . . . . 45
LEGAL DISCLAIMERS . . (See Back Inside Cover Page)
ESSENTIAL FEATURES
OPTIMA PLUG-IN HYBRID FE ATURES & FUNCTIONS GUIDE*IF EQUIPPED
Air Conditioning / Climate Control . . . . . . . . . . . . . 32
Audio System – UVO eServices System* . . . . . . . . . .28
Audio System – UVO eServices / Premium Navigation* . . 29
Aux/USB/iPod
® Port & Power Outlets . . . . . . . . . . . . 30
Bluetooth
® Wireless Technology . . . . . . . . . . . . . . 24
Charging of the E V Battery . . . . . . . . . . . . . . . . . 14
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . 23
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . 30
ECO Mode (Active ECO) . . . . . . . . . . . . . . . . . . . 10
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . 08
Plug-In Hybrid Displays – UVO eServices /
Premium Navigation* . . . . . . . . . . . . . . . . . . . . 11
Instrument Cluster / Plug-In Hybrid Displays . . . . . . . .12
Passenger Airbag Off Indicator . . . . . . . . . . . . . . .44
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . 43
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . 05
Windshield Wipers & Washers . . . . . . . . . . . . . . . 22
Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe personal injury and
death. The driver’s primary responsibility is in the safe and
legal operation of a vehicle, and use of any handheld devices,
other equipment or vehicle systems which take the driver’s
eyes, attention and focus away from the safe operation of a
vehicle or that are not permissible by law should never be
used during operation of the vehicle.

7*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Trip Modes / Trip Computer
The Trip Computer is a driver information system that displays information
related to driving . It appears on the display when the Engine Start /Stop
button is in the ON position .
To cycle through the Trip modes, press the Mode button
A .
When in the Trip Computer mode
, press the Select /Reset button B
to cycle through the screens . When displaying TRIP A or TRIP B screens,
press and hold the Select /Reset button
B to reset the Tripmeter to zero .
LCD Instrument Cluster Modes
Press Mode button A to scroll through different LCD Instrument Cluster
Modes .
Trip Computer Mode: Displays driving information for tripmeter,
fuel economy, etc .
Turn-by-Turn Mode*: Displays the state of the navigation
ASCC/LDWS* Mode: Displays the state of the Advanced Smart
Cruise Control (ASCC) and the Lane Departure Warning System
(LDWS)
A/V Mode*: Displays the state of the A / V System
Service Modes: Informs on upcoming service intervals, tire
pressure status, warning messages related to TPMS, BSD
malfunction and when any door is not securely closed .
User Settings Mode: Change settings of the doors, lamps and
other features
Your vehicle’s steering wheel buttons may differ from those in the illustrations. REMINDERS:

• Appearance of Trip Computer display may differ
as equipped

• All stored driving information (except Odometer and
Range) is reset if the battery is disconnected
INSTRUMENT CLUSTER
MODE
RES
CRUISE
CAN CELOKSET
MODE
RES
CRUISE
CAN CELOKSET
MODE
FUEL ECONOMY• Range• Average MPG• Instant MPG
TRIP A/B• Tripmeter• Average MPG• Elapsed Time (E/T)
DIGITAL SPEEDOMETER
DRIVING STYLE
ENERGY FLOW
Total Range
Elec tric
Dasoline
Hold OK : Reset
184 mi 64 mi
120 miN
(Buttons located on Steering Wheel – Type A shown)
A
B

11*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .

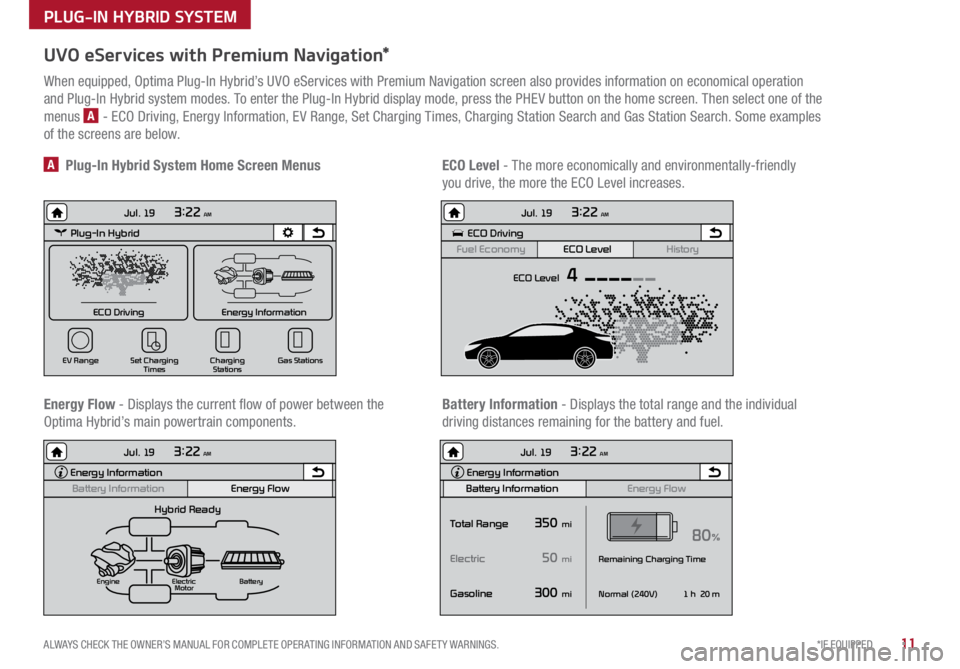

UVO eServices with Premium Navigation*
When equipped, Optima Plug-In Hybrid’s UVO eServices with Premium Navigation screen also provides information on economical operation
and Plug-In Hybrid system modes . To enter the Plug-In Hybrid display mode, press the PHEV button on the home screen . Then select one of the
menus
A - ECO Driving, Energy Information, EV Range, Set Charging Times, Charging Station Search and Gas Station Search . Some examples
of the screens are below .
Energy Flow - Displays the current flow of power between the
Optima Hybrid’s main powertrain components . ECO Level
- The more economically and environmentally-friendly
you drive, the more the ECO Level increases .
A Plug-In Hybrid System Home Screen Menus
Battery Information - Displays the total range and the individual
driving distances remaining for the battery and fuel .
Plug-In Hybrid
ECO Driving
Jul. 193:22 AM
Energy Information
Charging
Stations
Set Charging
Times
EV Range
Gas Stations
ECO Driving
ECO Level
Fuel Economy History
Jul. 19
3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor Battery
Battery InformationJul. 19
3:22 AM
Energy Information
Energy Flow
Battery Information Jul. 19
3:22 AM
Total Range
Electric
Remaining Charging Time
GasolineNormal (240V)
1 h 20 m
35080%
50
300
mi
mi
mi
Plug-In Hybrid
ECO Driving
Jul. 193:22 AM
Energy Information
Charging Stations
Set Charging
Times
EV Range
Gas Stations
ECO Driving
ECO Level
Fuel Economy History
Jul. 19
3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor Battery
Battery InformationJul. 19
3:22 AM
Energy Information
Energy Flow
Battery Information Jul. 19
3:22 AM
Total Range
Electric
Remaining Charging Time
GasolineNormal (240V)
1 h 20 m
35080%
50
300
mi
mi
mi
Plug-In Hybrid
ECO Driving
Jul. 193:22 AM
Energy Information
Charging Stations
Set Charging
Times
EV Range
Gas Stations
ECO Driving
ECO Level
Fuel Economy History
Jul. 19
3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor Battery
Battery InformationJul. 19
3:22 AM
Energy Information
Energy Flow
Battery Information Jul. 19
3:22 AM
Total Range
Electric
Remaining Charging Time
GasolineNormal (240V)
1 h 20 m
35080%
50
300
mi
mi
mi
Plug-In Hybrid
ECO Driving
Jul. 193:22 AM
Energy Information
Charging Stations
Set Charging
Times
EV Range
Gas Stations
ECO Driving
ECO Level
Fuel Economy History
Jul. 19
3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor Battery
Battery InformationJul. 19
3:22 AM
Energy Information
Energy Flow
Battery Information Jul. 19
3:22 AM
Total Range
Electric
Remaining Charging Time
GasolineNormal (240V)
1 h 20 m
35080%
50
300
mi
mi
mi
PLUG-IN HYBRID SYSTEM

18*IF EQUIPPED OPTIMA PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Electronic Stability Control (ESC)
The ESC system is designed to help stabilize the vehicle during cornering
maneuvers . It is a good idea to keep the ESC turned ON for daily driving
whenever possible .
Press ESC OFF button
B to disable Traction Control in ESC (ESC OFF
indicator will illuminate) .
To turn both Traction Control and Stability Control off, press and hold ESC
OFF button
B (ESC OFF indicator will illuminate, and an alert sounds) .
REMINDERS:

•ESC is active by default at vehicle start-up

• The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in
operation
For more information on Electronic Stability Control (ESC) and its specific features and
operations, please refer to your Owner’s Manual.
(Located left of Steering Wheel)
Instrument Panel Dimmer
Toggle switch A up or down to
adjust display brightness of the
instrument panel illumination .
REMINDER: The Instrument Panel
Dimmer does not adjust brightness
on the UVO eServices System or
the UVO eServices with Premium
Navigation System screens; use the
system’s setup menu to adjust
brightness on the screens .
Hill-Start Assist Control (HAC)
HAC helps prevent the vehicle from rolling backward when accelerating
from a stop while on a steep incline .
The HAC automatically activates whether the ESC is OFF or ON but does
NOT activate when the ESC has malfunctioned .
REMINDERS:

•The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .

•In the event of HAC system malfunction, see Authorized Kia Dealer for service .

•

•When HAC is active (e .g ., accelerating from a stop on an incline), you may
notice that the brakes will momentarily remain engaged after you depress the
accelerator

•HAC provides a 2-second delay before the vehicle may start rolling backward
QUICK TIPS
A
B
DRIVER'S PANEL

29*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
AUDIO SYSTEM


UVO eServices with
Premium Navigation
Videos

To view a video on your
mobile device, snap this
QR Code or visit the listed
website .
Refer to page 2 for more
information .QR CODE
www.KuTechVideos.com/audio/avn4
UVO eServices with Premium Navigation
– FM/AM/SiriusXM
®/Media (USB, iPod®, Aux, Bluetooth® Audio, My Music, Pandora®)


•Prolonged use of the UVO eServices with Navigation system in ACC mode may drain the vehicle’s
battery . A warning screen may appear periodically to remind users that the UVO eServices with Premium
Navigation System should be operated when the engine is running to prevent battery discharge

•At any time, you can interrupt UVO eServices System Command Feedback by pressing the TALK button
•When using the voice command feature, wait for the system BEEP before speaking the command
QUICK TIPS
Your audio system may differ from those in the illustrations.
For further UVO eServices with Premium Navigation* operations,
refer to the Car Multimedia System User's Manual. For further
audio system operations, refer to page 28.
Sound Settings
To adjust the UVO eServices System with Navigation sound settings
(Position, Tone, Priority, Advanced):
1 . Press the SETUP key on the audio control unit
2 . Select the on-screen SOUND button
3 . Select the menu item (Position, Tone, Advanced, Default)
4 . Use the onscreen buttons to adjust settings
5 . Press the return button
to save settings
REMINDER: To help minimize driver distraction,
some audio system functionalities have been
modified while the vehicle is in Drive, Reverse
or moved out of Park .
Press to Power ON/OFF .
Rotate to adjust Volume
Press to enter Phone Mode
Press to select FM/AM /
SiriusXM
® modes
Press to select MEDIA
mode
Press to display SE TUP/
Settings mode
Press to change Radio/SiriusXM®
Stations/Media tracks/files
Press to display the Map screen for
the current position/ Voice mode
Press to select UVO eServices modePress to select previous/next
Radio/SiriusXM® stations/Media
tracks / files . Press and hold to
move quickly through stations/ tracks/files
Rotate to change Radio/SiriusXM
®
Station/Media tracks / files
Press and hold to reset the system settings

30*IF EQUIPPED OPTIMA PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE


The power outlets are inactive when ignition is in the OFF position .
UVO eServices with Premium Navigation*
Clock Setup:
Press the SETUP key, then the CLOCK button to display the Clock
setting screen . Then use the on-screen buttons to navigate through
setup and return
to exit . To access manual date and time setting,
turn GPS time OFF in the Clock Settings (UVO eServices with Premium
Navigation System*)
Digital Clock*
12V180WA
Aux/USB/iPod® Port & Power Outlets
QUICK TIP
REMINDER: Using the power outlet (accessory plug) for prolonged periods of time with the
engine off could cause the battery to discharge .
For more information on the Aux/USB/iPod
® Port & Power Outlets, refer to the Owner's Manual.
USB Charger*
The USB charger is located inside the Center Console and on rear
of the Center Console A .
(Rear of Center Console shown)
Use the Aux port to connect audio devices and the USB port to connect
USB audio devices, smartphones and iPod® devicesREMINDER: When needed, Daylight Savings must be enabled in the Clock
Settings screen
CENTER PANEL

41*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Rear Parking Assist System*
The Rear Parking Assist System* is not a safety device . The Rear Parking
Assist System* is a supplemental system that assists the driver by chiming
if any object is detected within the sensing area to the rear and side of the
vehicle when backing up . When the ignition is ON, the system is activated .
REMINDERS:

•If the vehicle is moving at speeds over 3 mph, the system may not activate correctly

• When more than two objects are sensed at the same time, the closest one will be
recognized first
REMINDER: The above images are for illustration purposes only and may not reflect
actual operation
The Rear Parking Assist System* is not a substitute for proper and safe backing-up
procedures. Always drive safely and use caution when backing up. The Rear Parking
Assist System* may not detect every object behind the vehicle
Rear-Camera Display*
The Rear-Camera Display system is not a safety device . It is a
supplemental system that displays the view behind the vehicle through
the rearview display mirror or the UVO eServices with Premium Navigation
System* screen while the vehicle is in Reverse .
The Rear-Camera Display activates when the:
• ENGINE START/STOP button is in the ON position (green light)

• Gear Shift Lever is in the R (Reverse) position
REMINDERS:

•The above images are for illustration purposes only and may not reflect actual operation

• While camera is active, only the Audio System can be operated on the Steering Wheel and
Audio Control Unit . Navigation features are disabled .
The Rear-Camera Display is not a substitute for proper and safe backing-up procedures.
The Rear-Camera Display may not display every object behind the vehicle. Always drive safely
and use caution when backing up
OTHER KEY FEATURES

Sales Consultant: ______________________________________________________________ Date: ____________________
Sales Manager: ________________________________________________________________ Date: ____________________
Customer: _____________________________________________________________________ Date: ____________________LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Airbags: For maximum protection, always wear your seat belt.
Android Auto: Android Auto is a trademark of Google, Inc.. Android™ is a registered trademark of Google, Inc. Distracted
driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away
from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the
accuracy of the information.
Apple CarPlay
®: Apple CarPlay® a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle
control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.
Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
Apps: All information contained herein was based upon the latest available information at the time of appstore
registration. Descriptions are believed to be correct, and Kia Motors Corporation (KMC) makes every effort to ensure
accuracy, however, accuracy cannot be guaranteed. From time to time, KMC may need to update or make changes to
the vehicle features and other vehicle information reported in this app. KMC, by the publication and dissemination of this
material, does not create any warranties, either express or implied, to any Kia products. Contact your local Kia dealer for
the most current information.
Autonomous Emergency Braking System (AEB) / Forward Collision Warning System: These systems are not
substitutes for safe driving, and may not detect all objects in front of vehicle. Always drive safely and use caution.
Bluetooth
® Wireless Technology: A compatible Bluetooth® wireless technology-enabled cell phone is required to use
Bluetooth® wireless technology. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective
owners. A Bluetooth
® enabled cell phone is required to use Bluetooth® wireless technology.
Driver Assist Features - Advanced Smart Cruise Control (ASCC), Rear Parking Assist System, Blind Spot Detection
(BSD) with Lane Change Assist, Rear Cross Traffic Alert (RCTA), Lane Departure Warning System, Rear-Camera
Display: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive
safely and use caution.
Electronic Stability Control, Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for
all driver error and/or driving conditions. Always drive responsibly.
Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off.
However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine
off to the ACC position by pressing the Start/Stop button for more than 3 seconds o\
r 3 times in succession. If the vehicle
is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the
engine off, power assist for steering and braking will be disabled, and the vehicle will be more difficult to control.
Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
Google Play
™ Store is a trademark of Google, Inc. © 2016 Google Inc. All rights reserved. Google and the Google Logo
are registered trademarks of Google Inc.
iPod
®/iPhone® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately, and connectivity
requires the Kia accessory cable.
Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a handheld
device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes
only, and Kia does not make any warranties about the accuracy of the information.
Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
Pandora® internet radio: Pandora® is a registered trademark of Pandora Media, Inc.
Power Trunk / Smart Trunk: Driving with the trunk open may be unlawful and can draw dangerous exhaust fumes into
your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.
Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may
lead to additional injury in an accident.
Seat Belts / Airbags: For maximum protection, always wear your seatbelt.
Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more
information.
SiriusXM
®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold
separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your
trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call
1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other
fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of
receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware.
Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current
Conditions may not be available in all locations. Images above are for representative purposes only and are not real
products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible
for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price
and daily delta of around 7,000 actively reported securities traded on t\
he NYSE
®, NASDAQ® and AMEX®. The service is
delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48
contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout
our satellite service area and in AK and HI. © 2016 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are
trademarks of SiriusXM Radio Inc.
Sportmatic
® is a registered trademark of Kia Motors America.
Steering Wheel Controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and
be cautious when using steering-wheel-mounted controls while driving.
Sunvisor: Sunvisor may not shield all direct light. Do not operate the vehicle if Sunvisor is impairing your visibility.
Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
TPMS: Even with the Tire-Pressure Monitoring System (TPMS), always check your tire pressure on a regular basis.
UVO eServices: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system
that takes your focus away from safe vehicle operation.
UVO eServices app: App uses your smartphone data service. Normal cellular service rates will apply.
UVO eServices with Premium Navigation: Distracted driving can result in a loss of vehicle control. Never use a
handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information
purposes only, and Kia does not make any warranties about the accuracy of the information.

Sales Consultant: ______________________________________________________________ Date: ____________________
Sales Manager: ________________________________________________________________ Date: ____________________
Customer: _____________________________________________________________________ Date: ____________________ Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff & explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours & Customer 360° Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up
OPTIMA PLUG-IN HYBRID CUSTOMER DELIVERY CHECKLIST
...continued
KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System ( TPMS) – page 5 Trip Modes / Trip Computer – page 7 Fuel Economy – page 8 ECO Mode (Active ECO) – page 10 Engine Start /Stop Button – page 19 Audio Controls – page 23 Digital Clock – page 30 Seat Warmers/ Ventilated Seats* – page 33
Smart Key – page 37 Panoramic Sunroof Operation* – page 39 Sunvisor – page 40 Back-up Warning System* – page 41 Rear-Camera Display* – page 41 Tire Mobility Kit – page 43 Passenger Airbag Off Indicator – page 44
*IF EQUIPPED
Aux/USB/iPod
® Port – page 30

Cruise Control – page 23 Demonstrate operation
UVO eServices Setup – page 28Walk customer through the registration/activation
process for UVO eServices.
UVO eServices with Premium -
Navigation* – page 29

For further operational information, refer to
the Car Multimedia System User’s Manual.
Bluetooth
® Wireless
Technology – page 24

Demonstrate operation, and pair
customer’s phone.
