CAUTION
•This system can only sense objects within the range and location of the sensors.It cannot detect objects in other areas where sensors are not installed. Also, small or slim objects, such as poles or ob‐jects located between sensors may not be detected by the sensors.Always visually check behind the vehicle when backing up.
•Be sure to inform any drivers of the vehicle that may be unfamiliar with the system regarding the systems capabilitiesand limitations.

Non-operational conditions of
parking assist system
Parking assist system may not
operate normally when:
1. Moisture is frozen to the sensor. (Itwill operate normally when mois‐
ture melts.)
2. Sensor is covered with foreign mat‐ ter, such as snow or water, or the
sensor cover is blocked. (It will op‐
erate normally when the material
is removed or the sensor is no lon‐
ger blocked.)
3. The parking assist button is off.
There is a possibility of parking
assist system malfunction when:
1. Driving on uneven road surfaces such as unpaved roads, gravel,
bumps, or gradient.
2. Objects generating excessive noise such as vehicle horns, loud motor‐
cycle engines, or truck air brakes
can interfere with the sensor.
3. Heavy rain or water spray.
4. Wireless transmitters or mobile phones present near the sensor.
5. Sensor is covered with snow.
Detecting range may decrease
when:
1. Outside air temperature is ex‐ tremely hot or cold. 2. Undetectable objects smaller than
1 m and narrower than 14 cm in di‐
ameter.
The following objects may not be
recognized by the sensor:
1. Sharp or slim objects such as ropes,chains or small poles.
2. Objects, which tend to absorb sen‐ sor frequency such as clothes,
spongy material or snow.
Features of your vehicle
5-92

NOTICE
1.The warning may not sound se‐
quentially depending on the
speed and shapes of the objects
detected.
2.The parking assist system may
malfunction if the vehicle bump‐
er height or sensor installation
has been modified. Any non-fac‐
tory installed equipment or ac‐
cessories may also interfere
with the sensor performance.
3.Sensor may not recognize ob‐
jects less than 30 cm from the
sensor, or it may sense an incor‐
rect distance. Use with caution.
4.When the sensor is frozen or
stained with snow or water, the
sensor may be inoperative until
the stains are removed using a
soft cloth.
5.Do not push, scratch or strike
the sensor with any hard objects
that could damage the surface
of the sensor. Sensor damage
could occur.
NOTICE
This system can only sense objects
within the range and location of the
sensors, it can not detect objects in
other areas where sensors are not
installed. Also, small or slim objects,
or objects located between sensors
may not be detected.
Always visually check in front and
behind the vehicle when driving. Be
sure to inform any drivers in the ve‐
hicle that may be unfamiliar with
the system regarding the systems
capabilities and limitations.
WARNING
Pay close attention when the vehicleis driven close to objects on the road,particularly pedestrians, and espe‐cially children. Be aware that someobjects may not be detected by thesensors, due to the objects distance,size or material, all of which can lim‐it the effectiveness of the sensor.Always perform a visual inspection
(Continued)
(Continued)
to make sure the vehicle is clear ofall obstructions before moving thevehicle in any direction.
Self-diagnosis
When you shift the gear to the R (Re‐
verse) position and if one or more of the below occurs you may have a mal‐
function in the rear parking assist sys‐
tem. • You don't hear an audible warning sound or if the buzzer sounds inter‐mittently.
•

CMJOLT
is displayed (if equipped).
If this occurs, we recommend that the
system be checked by an authorized Kia dealer.
WARNING
Your new vehicle warranty does notcover any accidents or damage to
(Continued)

5-93
5
Features of your vehicle

(Continued)
the vehicle or injuries to its occu‐pants related to a parking assistsystem. Always drive safely andcautiously.
Features of your vehicle
5-94

SMART PARKING ASSIST SYSTEM (SPAS) (IF EQUIPPED)
1BSBMMFM
QBSLJOH
0+'-
3FWFSTF
QBSLJOH
0+'-
1BSBMMFM
FYJU
0+'-
The Smart Parking Assist System helps
drivers park their vehicle by using sen‐ sors to measure parking spaces, control
the steering wheel to semi-automati‐
cally park the vehicle and provide in‐ struction on the LCD display to help
through parking.
Additionally, the system provides assis‐
tance when leaving (parallel exit) a parking space. ❈ The volume for the Smart Parking
Assist System can be adjusted. Re‐
fer to L

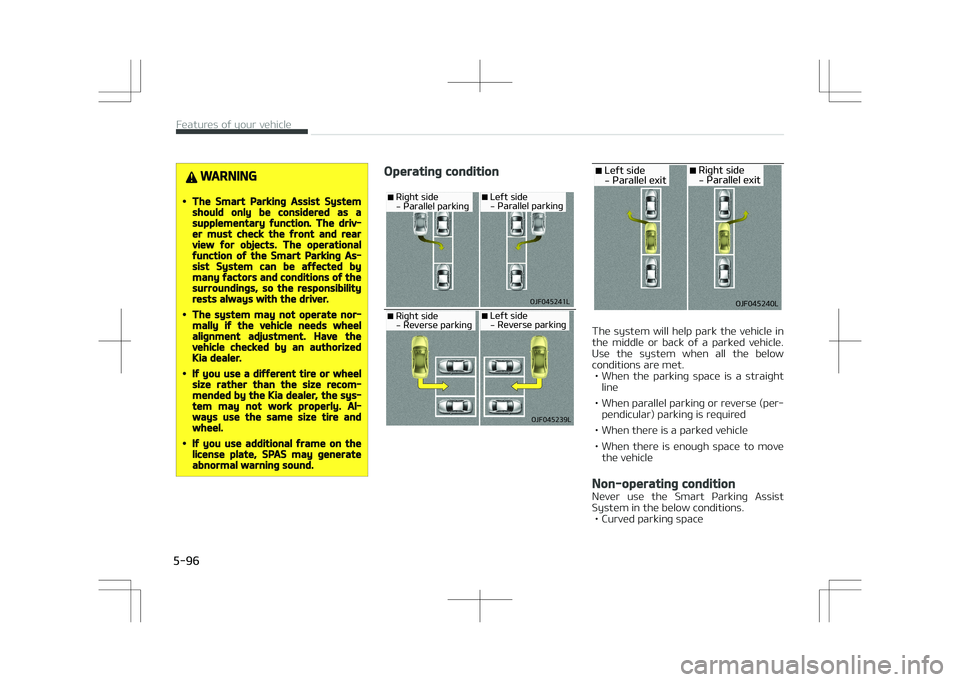

WARNING
•The Smart Parking Assist Systemshould only be considered as asupplementary function. The driv‐er must check the front and rearview for objects. The operationalfunction of the Smart Parking As‐sist System can be affected bymany factors and conditions of thesurroundings, so the responsibilityrests always with the driver.
•The system may not operate nor‐mally if the vehicle needs wheelalignment adjustment. Have thevehicle checked by an authorizedKia dealer.
•If you use a different tire or wheelsize rather than the size recom‐mended by the Kia dealer, the sys‐tem may not work properly. Al‐ways use the same size tire andwheel.
•If you use additional frame on thelicense plate, SPAS may generateabnormal warning sound.
Operating condition
3JHIU
TJEF

1BSBMMFM
QBSLJOH-FGU
TJEF


1BSBMMFM
QBSLJOH
0+'-
3JHIU
TJEF

3FWFSTF
QBSLJOH-FGU
TJEF


3FWFSTF
QBSLJOH
0+'-
-FGU
TJEF

1BSBMMFM
FYJU3JHIU
TJEF


1BSBMMFM
FYJU
0+'-
The system will help park the vehicle in
the middle or back of a parked vehicle. Use the system when all the below
conditions are met. • When the parking space is a straight line
• When parallel parking or reverse (per‐ pendicular) parking is required
• When there is a parked vehicle
• When there is enough space to move the vehicle
Non-operating condition
Never use the Smart Parking Assist
System in the below conditions. • Curved parking space
Features of your vehicle
5-96

• Inclined roads
• A vehicle loaded with longer or widercargo compared to the vehicle
• Diagonal parking space
• Heavy snow or rain
• Near a circular pillar or narrow pillar, or a pillar surrounded by objects suchas fire extinguisher, etc.
• The sensor is positioned incorrectly by an impact to the bumper
• Bumpy roads
• A vehicle equipped with a snow chain or spare tire
• Tire pressure lower or higher than the standard tire pressure
• A trailer connected to the vehicle
• Slippery or uneven road
• Big vehicles such as buses or trucks parked
• Sensor covered with foreign matter, such as snow or water
• Moisture frozen on the sensor
• A motorcycle or bicycle parked
• A obstacle such as a trash can, bicy‐ cle, shopping cart, etc. is near
• Heavy wind • Wheel changed to an unauthorized
size
• A problem with the wheel alignment
• An accessory installed on the detec‐ tive area the of sensors (such as
number plate holder)
• Vehicle leaned severely to one side
• Strong sunlight or very cold weather
• Ultrasonic interference from other vehicle's. Such as horn sounds of oth‐
er vehicles, motorcycle's engine noise,
air brake noise of heavy vehicles and
with the other vehicle's parking assist
system working.
WARNING
Do not use the Smart Parking AssistSystem in the following conditionsfor unexpected results may occurand cause a serious accident.
(Continued)
(Continued)
0+'-
1.Parking on inclinesThe driver must apply the accel‐erator and brake pedal whenparking on inclines. If the driveris unfamiliar with applying theaccelerator and brake pedal, avehicle accident may occur.
(Continued)

5-97
5
Features of your vehicle

(Continued)
0+'-

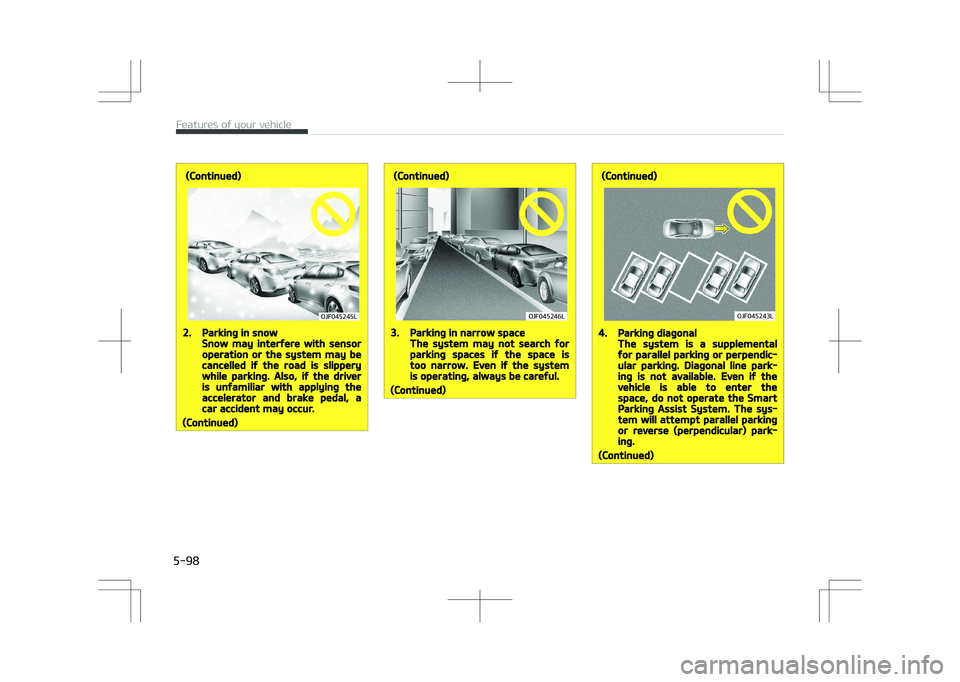

2.Parking in snowSnow may interfere with sensoroperation or the system may becancelled if the road is slipperywhile parking. Also, if the driveris unfamiliar with applying theaccelerator and brake pedal, acar accident may occur.
(Continued)
(Continued)
0+'-
3.Parking in narrow spaceThe system may not search forparking spaces if the space istoo narrow. Even if the systemis operating, always be careful.
(Continued)
(Continued)
0+'-
4.Parking diagonalThe system is a supplementalfor parallel parking or perpendic‐ular parking. Diagonal line park‐ing is not available. Even if thevehicle is able to enter thespace, do not operate the SmartParking Assist System. The sys‐tem will attempt parallel parkingor reverse (perpendicular) park‐ing.
(Continued)
Features of your vehicle
5-98

(Continued)
0+'-
5.Parking in uneven roadParking in uneven roads, thedriver needs to properly applythe pedal (clutch, accelerator orbrake). If not, the system maybe cancelled when the vehicleslips or an accident may occur.
(Continued)
(Continued)
0+'-

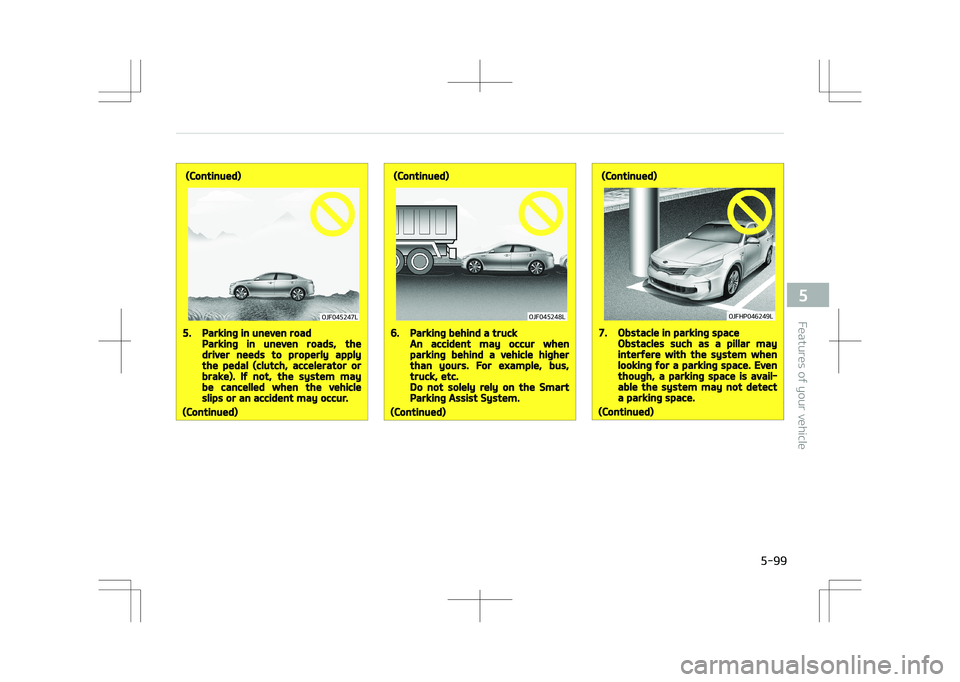

6.Parking behind a truckAn accident may occur whenparking behind a vehicle higherthan yours. For example, bus,truck, etc.Do not solely rely on the SmartParking Assist System.
(Continued)
(Continued)
0+')1-
7.Obstacle in parking spaceObstacles such as a pillar mayinterfere with the system whenlooking for a parking space. Eventhough, a parking space is avail‐able the system may not detecta parking space.
(Continued)

5-99
5
Features of your vehicle

(Continued)
0+'-
8.Leaving a parking space near awallWhen leaving a parking spacethat is narrow and near a wall,the system may not work prop‐erly. When leaving a parkingspace similar to the above pic‐ture, the driver must watch outfor obstacles while leaving.
How the system works (Parking
Mode)
1. Activate the Smart Parking AssistSystem
The shift lever should be placed in
D (Drive), N (Neutral, above
5 km/h). 2. Select parking mode
3. (Optional) Search for parking space
(slowly move forward.)
4. (Optional) Search complete (auto‐ matic search by sensor.)
5. Steering wheel control 1. Shift according to the instructionon the LCD display.
2. Drive slowly with the brake pedal applied.
6. Parking complete
7. If necessary, manually adjust posi‐ tion of vehicle.
If the system already recognized park‐ ing space before activating the Smart
Parking Assist System, you can proceed
from step 4 (Search complete).
NOTICE
•Before activating the system
check if the conditions are possible
to use the system.
•For your safety, always apply the
brake pedal except for when driv‐
ing.
1. Activate Smart Parking Assist
System
0+'-
• Press the Smart Parking Assist Sys‐ tem button (the button indicator will
illuminate).
• The Parking Assist System will be ac‐ tivated.
A warning sound will be heard if an
obstacle is detected.
• Press the Smart Parking Assist Sys‐ tem button
again for more than 2
seconds to turn off the system.
• The Smart Parking Assist System de‐ faults to the OFF position whenever
the ignition switch is turned on.
Features of your vehicle
5-100

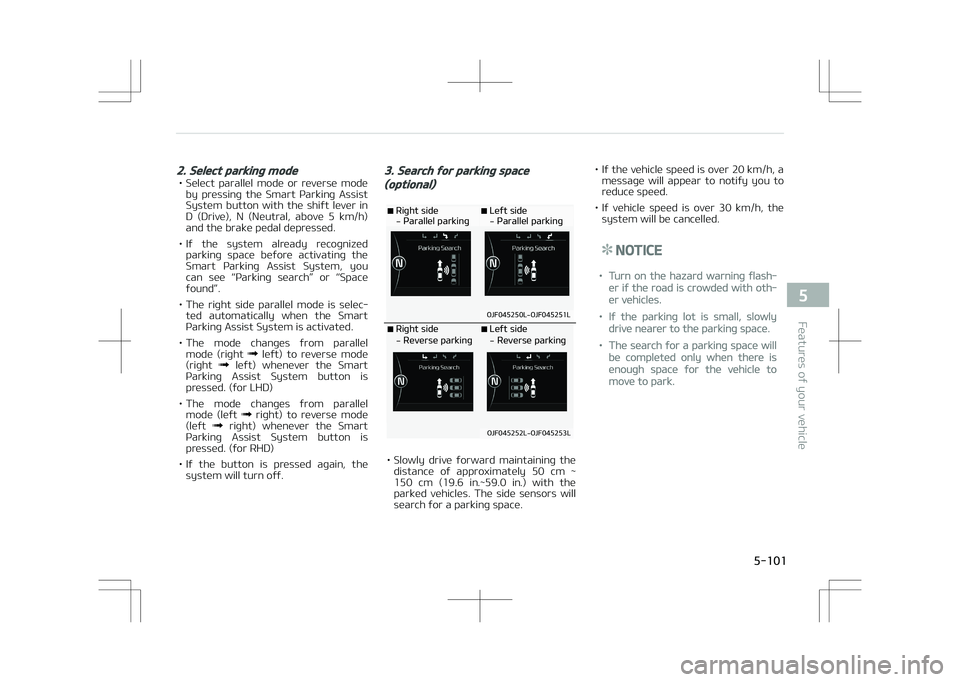

2. Select parking mode
• Select parallel mode or reverse modeby pressing the Smart Parking Assist
System button with the shift lever in
D (Drive), N (Neutral, above 5 km/h)
and the brake pedal depressed.
• If the system already recognized parking space before activating the
Smart Parking Assist System, you
can see L
