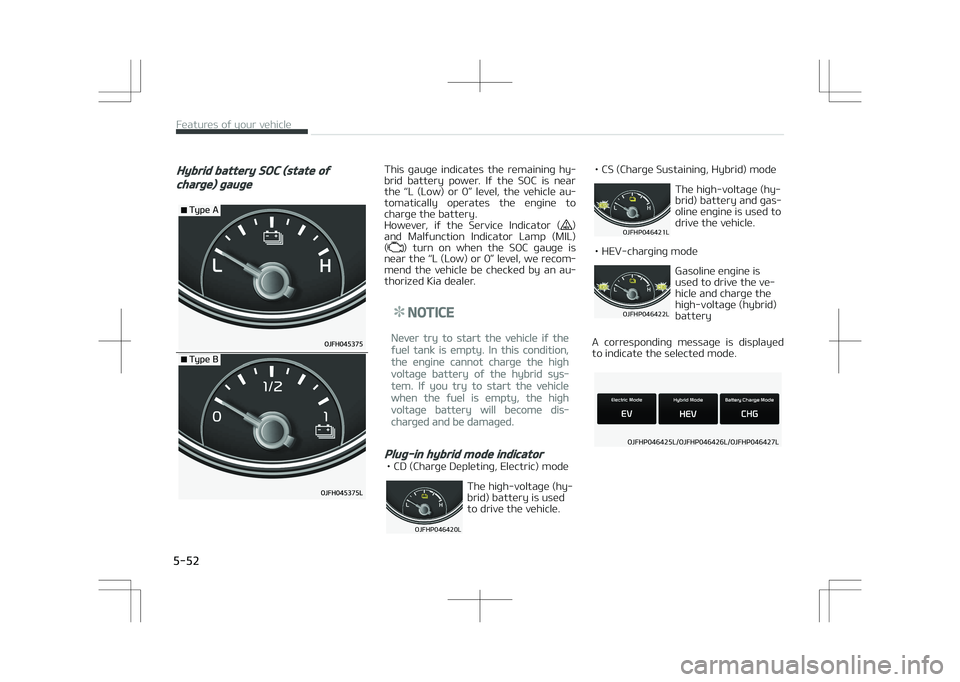

Hybrid battery SOC (state of
charge) gauge
5ZQF
"
5ZQF
#
This gauge indicates the remaining hy‐
brid battery power. If the SOC is near the L

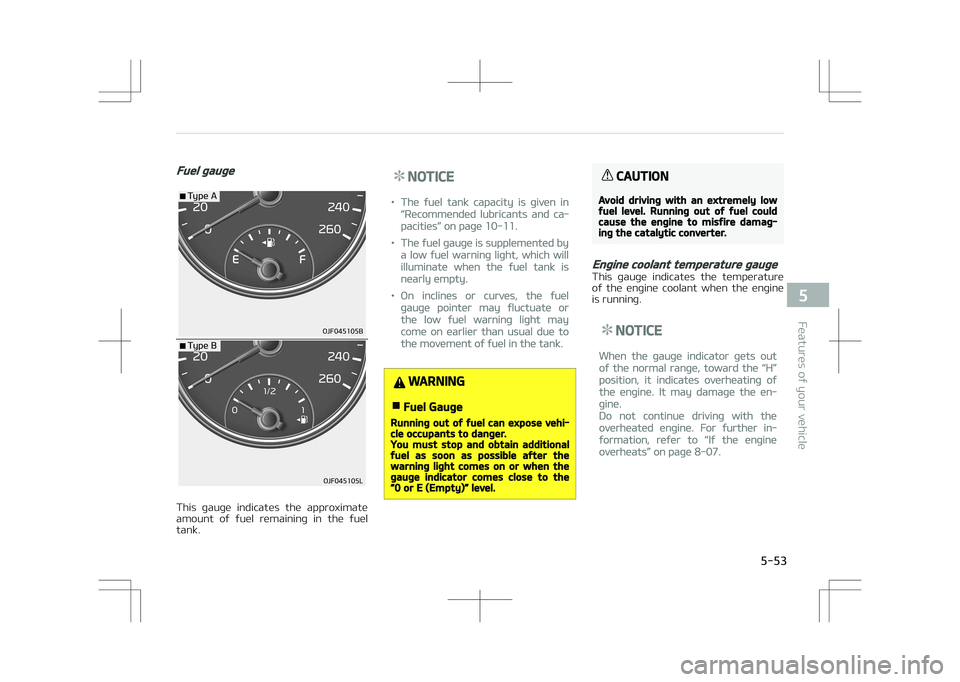

Fuel gauge
5ZQF
"
0+'#
5ZQF
#
0+'-
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
NOTICE
•The fuel tank capacity is given in
L

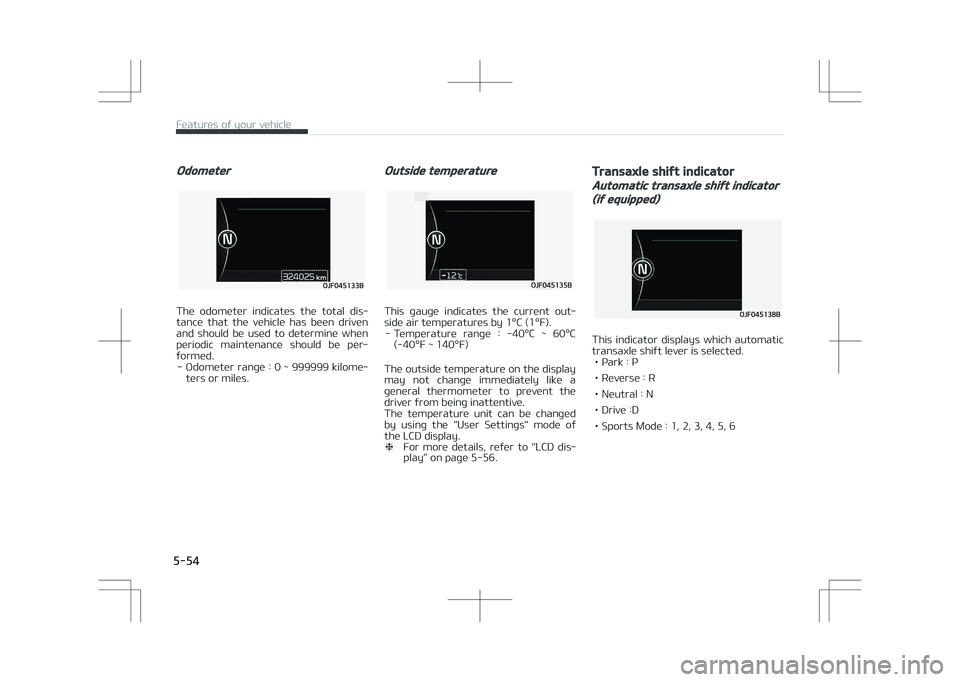

Odometer
The odometer indicates the total dis‐
tance that the vehicle has been driven and should be used to determine when
periodic maintenance should be per‐
formed. - Odometer range : 0 ~ 999999 kilome‐ ters or miles.
Outside temperature
This gauge indicates the current out‐
side air temperatures by 1°C (1°F). - Temperature range : -40°C ~ 60°C (-40°F ~ 140°F)
The outside temperature on the display
may not change immediately like a
general thermometer to prevent the driver from being inattentive.
The temperature unit can be changed
by using the "User Settings" mode of
the LCD display. ❈ For more details, refer to L

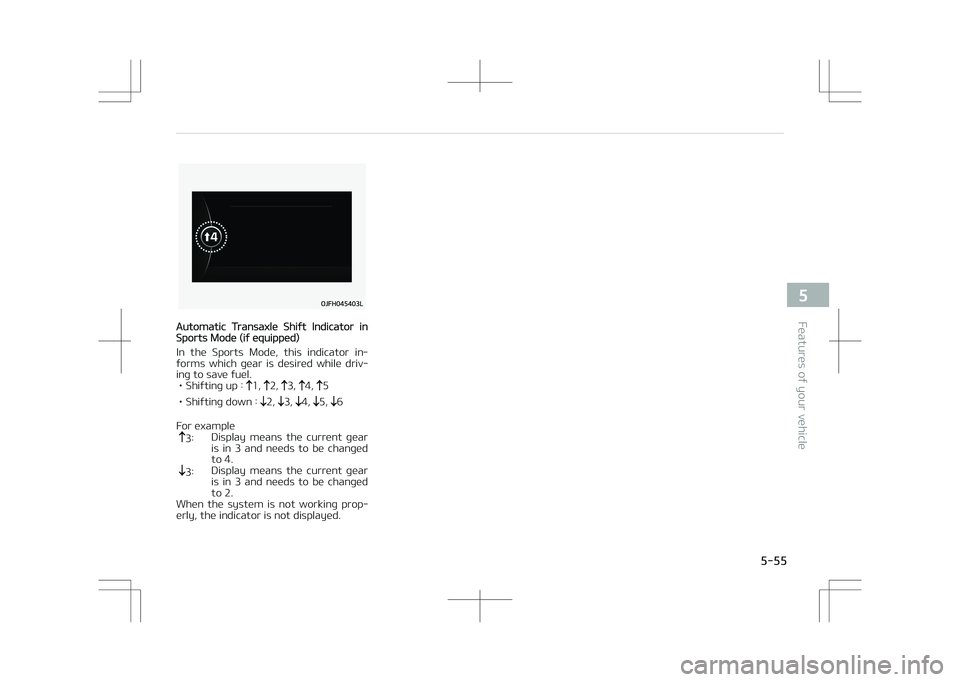

Automatic Transaxle Shift Indicator inSports Mode (if equipped)
In the Sports Mode, this indicator in‐
forms which gear is desired while driv‐
ing to save fuel. • Shifting up :
1, 2, 3, 4, 5
• Shifting down :
2, 3, 4, 5, 6
For example
3: Display means the current gear
is in 3 and needs to be changed
to 4.

3: Display means the current gear
is in 3 and needs to be changed
to 2.
When the system is not working prop‐
erly, the indicator is not displayed.

5-55
5
Features of your vehicle

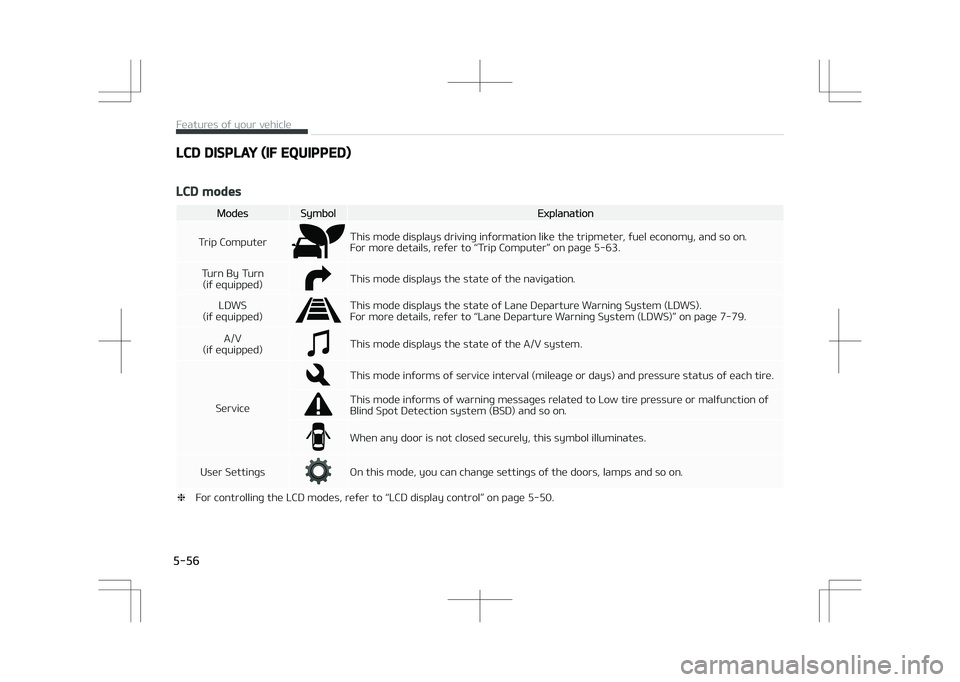

LCD DISPLAY (IF EQUIPPED)

LCD modes
ModesSymbolExplanation
Trip Computer
This mode displays driving information like the tripmeter, fuel economy, and so on.
For more details, refer to L

Service mode
Tire pressure (if equipped)
0+'-
This mode displays the pressure status
of each tire.
You can change the tire pressure unit in "User settings" mode. ❈ For more details, refer to L

Service in OFF
0+'-
If the service interval is not set, "Serv‐
ice in OFF" message is displayed on the LCD display.
NOTICE
If any of the following conditions oc‐
curs, the mileage and days may be
incorrect.
(Continued)
(Continued)
-The battery cable is disconnected.
-The fuse switch is turned off.
-The battery is discharged.
Master warning mode (if
equipped)
• This warning light informs the driver of the followingsituations: - Blind Spot Detection (BSD) mal‐ function (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction (if equipped)
- High Beam Assist (HBA) malfunc‐ tion (if equipped)
- Lamp malfunction
- Service reminder and so on.
The Master Warning Light illuminates if one or more of the above warning sit‐
uations occur. At this time, the LCD
Modes Icon will change from (
) to
().
If the warning situation is solved, the
master warning light will be turned off and the LCD Modes Icon will be changed
back to its previous icon (
).
User settings mode
Description
0+'-
On this mode, you can change setting
of the doors, lamps, and so on.
Features of your vehicle
5-58

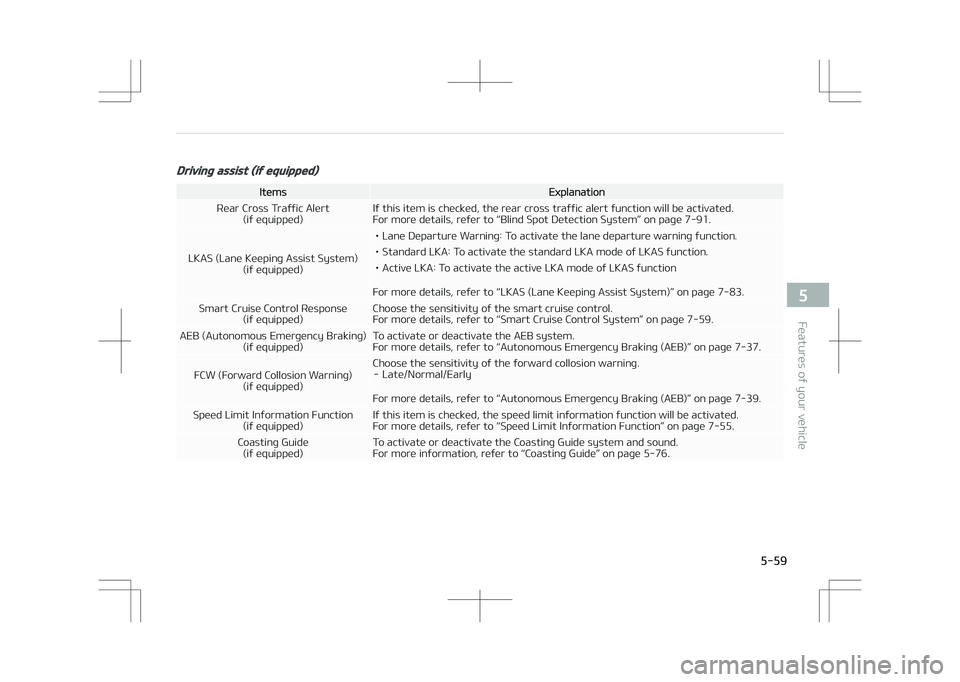

Driving assist (if equipped)
ItemsExplanation
Rear Cross Traffic Alert (if equipped) If this item is checked, the rear cross traffic alert function will be activated.
For more details, refer to L

Door/trunk
ItemsExplanation
Automatically Lock • Disable: The auto door lock operation will be deactivated.
• Enable on Speed: All doors will be automatically locked when the vehicle speed ex‐
ceeds 15 km/h (9.3 mph).
• Enable on Shift: All doors will be automatically locked if the automatic transaxle/ dual clutch transmission shift lever is shifted from the P (Park) position to the R(Reverse), N (Neutral), or D (Drive) position.
Automatically Unlock • Disable: The auto door unlock operation will be canceled.
• Vehicle Off/On key out: All doors will be automatically unlocked when the Engine
Start/Stop button is set to the OFF position.
• Driver Door Unlock: All doors will be automatically unlocked if the driver's door is unlocked.
On Shift to P: All doors will be automatically unlocked if the automatic transaxle/dual clutch transmission shift lever is shifted to the P (Park) position.
Door Lock Sound (if equipped) If this item checked, the door lock sound function will be activated when lockingdoors.
Smart Trunk (if equipped) To activate or deactivate the Smart Trunk system.
For more details, refer to L

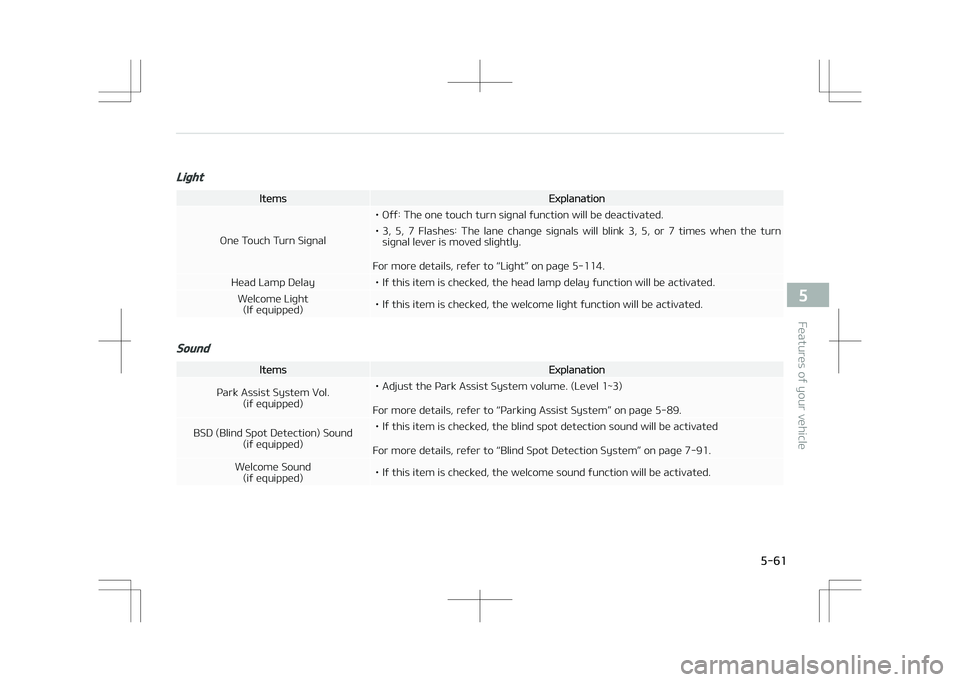

Light
ItemsExplanation
One Touch Turn Signal • Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes: The lane change signals will blink 3, 5, or 7 times when the turn
signal lever is moved slightly.
For more details, refer to L
