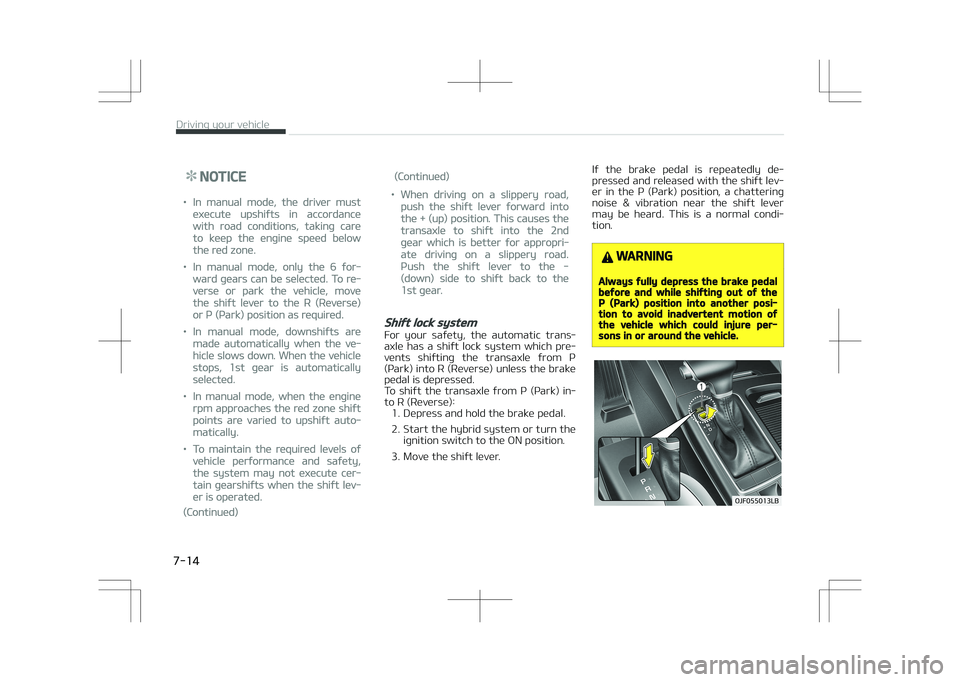

NOTICE
•In manual mode, the driver must
execute upshifts in accordance
with road conditions, taking care
to keep the engine speed below
the red zone.
•In manual mode, only the 6 for‐
ward gears can be selected. To re‐
verse or park the vehicle, move
the shift lever to the R (Reverse)
or P (Park) position as required.
•In manual mode, downshifts are
made automatically when the ve‐
hicle slows down. When the vehicle
stops, 1st gear is automatically
selected.
•In manual mode, when the engine
rpm approaches the red zone shift
points are varied to upshift auto‐
matically.
•To maintain the required levels of
vehicle performance and safety,
the system may not execute cer‐
tain gearshifts when the shift lev‐
er is operated.
(Continued)
(Continued)
•When driving on a slippery road,
push the shift lever forward into
the + (up) position. This causes the
transaxle to shift into the 2nd
gear which is better for appropri‐
ate driving on a slippery road.
Push the shift lever to the -
(down) side to shift back to the
1st gear.
Shift lock system
For your safety, the automatic trans‐
axle has a shift lock system which pre‐ vents shifting the transaxle from P
(Park) into R (Reverse) unless the brake
pedal is depressed.
To shift the transaxle from P (Park) in‐ to R (Reverse): 1. Depress and hold the brake pedal.
2. Start the hybrid system or turn the ignition switch to the ON position.
3. Move the shift lever. If the brake pedal is repeatedly de‐
pressed and released with the shift lev‐
er in the P (Park) position, a chattering noise & vibration near the shift lever
may be heard. This is a normal condi‐
tion.
WARNING
Always fully depress the brake pedalbefore and while shifting out of theP (Park) position into another posi‐tion to avoid inadvertent motion ofthe vehicle which could injure per‐sons in or around the vehicle.
0+'-#
Driving your vehicle
7-14

Shift-lock override
If the shift lever cannot be moved from
the P (Park) position into R (Reverse) position with the brake pedal de‐
pressed, continue depressing the brake,
then do the following: 1. Place the engine start/stop button switch in the LOCK/OFF position.
2. Apply the parking brake.
3. Carefully remove the cap (1) cover‐ ing the shift-lock release access
hole.
4. Insert a tool (e.g. flathead screw‐ driver) into the access hole andpress down on the tool.
5. Move the shift lever.
6. Remove the tool from the shift- lock override access hole then in‐
stall the cap.
7. We recommend that the system be inspected by an authorized Kia
dealer.
Good driving practices
• Never move the shift lever from P (Park) or N (Neutral) to any other po‐
sition with the accelerator pedal de‐ pressed. • Never move the shift lever into P
(Park) when the vehicle is in motion.
• Be sure the vehicle is completely stopped before you attempt to shift
into R (Reverse) or D (Drive).
• Never take the vehicle out of gear and coast down a hill. This may beextremely hazardous. Always leave
the vehicle in gear when moving.
• Do not "ride" the brakes. This can cause them to overheat and malfunc‐
tion. Instead, when you are driving
down a long hill, slow down and shift to a lower gear. When you do this,
engine braking will help slow down
the vehicle.
• Slow down before shifting to a lower gear. Otherwise, the lower gear maynot be engaged.
• Always use the parking brake. Do not depend on placing the transaxle in P
(Park) to keep the vehicle from mov‐
ing. • Exercise extreme caution when driv‐
ing on a slippery surface. Be especial‐ly careful when braking, accelerating
or shifting gears. On a slippery sur‐
face, an abrupt change in vehicle
speed can cause the drive wheels to
lose traction and the vehicle to go out of control.
• Optimum vehicle performance and economy is obtained by smoothly de‐
pressing and releasing the accelera‐
tor pedal.
WARNING
•Always buckle-up! In a collision, anunbelted occupant is significantlymore likely to be seriously injuredor killed than a properly belted oc‐cupant.
•Avoid high speeds when corneringor turning.
•Do not make quick steering wheelmovements, such as sharp lanechanges or fast, sharp turns.
•The risk of rollover is greatly in‐creased if you lose control of yourvehicle at highway speeds.
(Continued)

7-15
7
Driving your vehicle

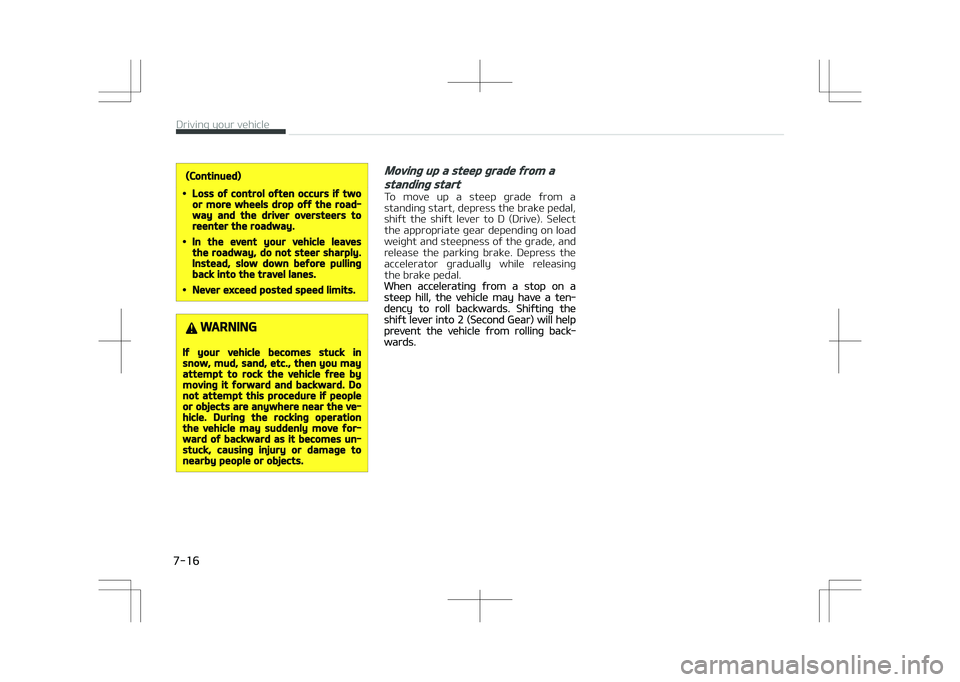

(Continued)
•Loss of control often occurs if twoor more wheels drop off the road‐way and the driver oversteers toreenter the roadway.
•In the event your vehicle leavesthe roadway, do not steer sharply.Instead, slow down before pullingback into the travel lanes.
•Never exceed posted speed limits.
WARNING
If your vehicle becomes stuck insnow, mud, sand, etc., then you mayattempt to rock the vehicle free bymoving it forward and backward. Donot attempt this procedure if peopleor objects are anywhere near the ve‐hicle. During the rocking operationthe vehicle may suddenly move for‐ward of backward as it becomes un‐stuck, causing injury or damage tonearby people or objects.
Moving up a steep grade from a
standing start
To move up a steep grade from a
standing start, depress the brake pedal,
shift the shift lever to D (Drive). Select
the appropriate gear depending on load weight and steepness of the grade, and
release the parking brake. Depress the
accelerator gradually while releasing the brake pedal.
When accelerating from a stop on asteep hill, the vehicle may have a ten‐dency to roll backwards. Shifting theshift lever into 2 (Second Gear) will helpprevent the vehicle from rolling back‐wards.
Driving your vehicle
7-16

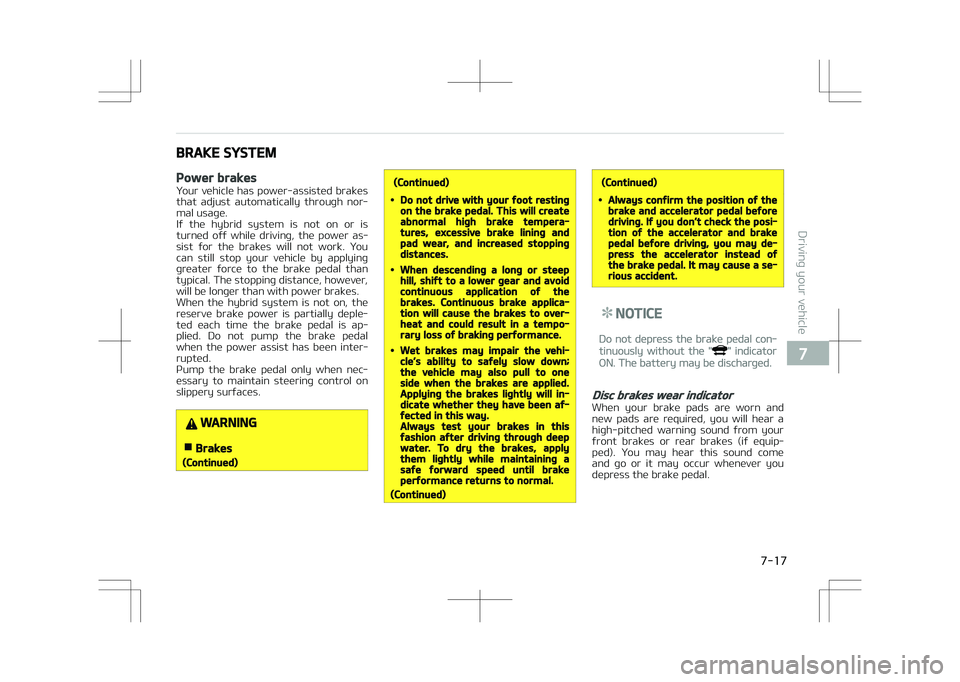

BRAKE SYSTEM
Power brakes
Your vehicle has power-assisted brakes
that adjust automatically through nor‐ mal usage.
If the hybrid system is not on or is
turned off while driving, the power as‐
sist for the brakes will not work. You can still stop your vehicle by applying
greater force to the brake pedal than
typical. The stopping distance, however,will be longer than with power brakes.
When the hybrid system is not on, the reserve brake power is partially deple‐
ted each time the brake pedal is ap‐
plied. Do not pump the brake pedal when the power assist has been inter‐
rupted.
Pump the brake pedal only when nec‐
essary to maintain steering control on slippery surfaces.
WARNING
nBrakes
(Continued)
(Continued)
•Do not drive with your foot restingon the brake pedal. This will createabnormal high brake tempera‐tures, excessive brake lining andpad wear, and increased stoppingdistances.
•When descending a long or steephill, shift to a lower gear and avoidcontinuous application of thebrakes. Continuous brake applica‐tion will cause the brakes to over‐heat and could result in a tempo‐rary loss of braking performance.
•Wet brakes may impair the vehi‐cle’s ability to safely slow down;the vehicle may also pull to oneside when the brakes are applied.Applying the brakes lightly will in‐dicate whether they have been af‐fected in this way.Always test your brakes in thisfashion after driving through deepwater. To dry the brakes, applythem lightly while maintaining asafe forward speed until brakeperformance returns to normal.
(Continued)
(Continued)
•Always confirm the position of thebrake and accelerator pedal beforedriving. If you don’t check the posi‐tion of the accelerator and brakepedal before driving, you may de‐press the accelerator instead ofthe brake pedal. It may cause a se‐rious accident.
NOTICE
Do not depress the brake pedal con‐
tinuously without the "" indicator
ON. The battery may be discharged.
Disc brakes wear indicator
When your brake pads are worn and
new pads are required, you will hear a high-pitched warning sound from your
front brakes or rear brakes (if equip‐
ped). You may hear this sound come and go or it may occur whenever you
depress the brake pedal.

7-17
7
Driving your vehicle

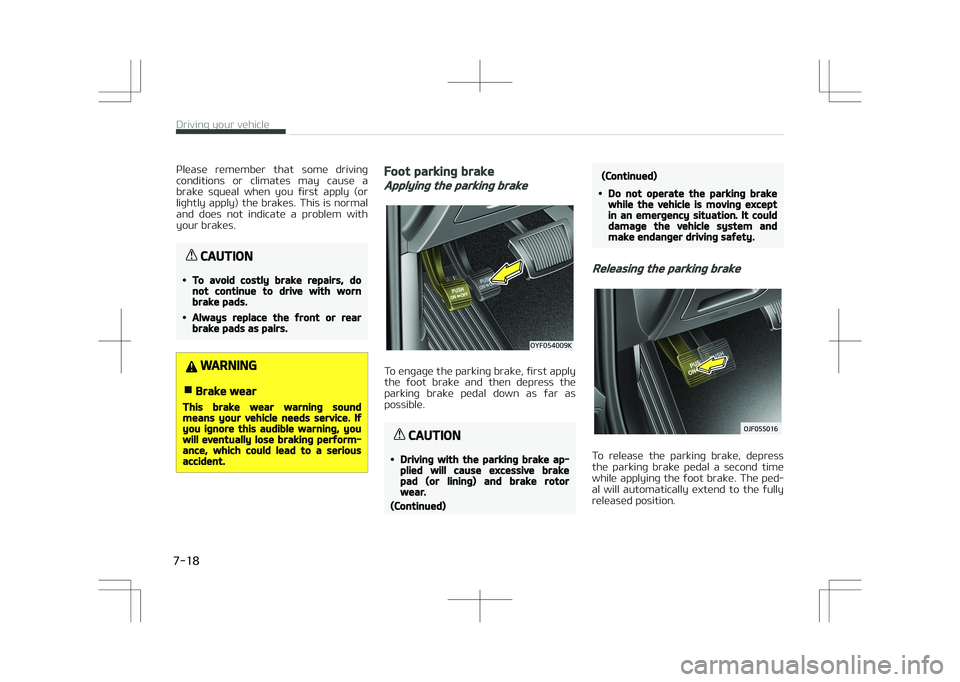

Please remember that some driving
conditions or climates may cause a brake squeal when you first apply (or
lightly apply) the brakes. This is normal
and does not indicate a problem with your brakes.
CAUTION
•To avoid costly brake repairs, donot continue to drive with wornbrake pads.
•Always replace the front or rearbrake pads as pairs.
WARNING
nBrake wear
This brake wear warning soundmeans your vehicle needs service. Ifyou ignore this audible warning, youwill eventually lose braking perform‐ance, which could lead to a seriousaccident.
Foot parking brake
Applying the parking brake
0:',
To engage the parking brake, first apply
the foot brake and then depress the
parking brake pedal down as far as possible.
CAUTION
•Driving with the parking brake ap‐plied will cause excessive brakepad (or lining) and brake rotorwear.
(Continued)
(Continued)
•Do not operate the parking brakewhile the vehicle is moving exceptin an emergency situation. It coulddamage the vehicle system andmake endanger driving safety.
Releasing the parking brake
To release the parking brake, depress
the parking brake pedal a second time while applying the foot brake. The ped‐
al will automatically extend to the fully
released position.
Driving your vehicle
7-18

WARNING
•Whenever leaving the vehicle orparking, always come to a com‐plete stop and continue to depressthe brake pedal. Move the shiftlever into the P (Park) position,then apply the parking brake, andplace the Engine Start/Stop buttonin the OFF position.Vehicles with the parking brakenot fully engaged are at risk formoving inadvertently and causinginjury to yourself or others.
•Never allow anyone who is unfa‐miliar with the vehicle to touch theparking brake. If the parking brakeis released unintentionally, seriousinjury may occur.
•All vehicles should always have theparking brake fully engaged whenparking to avoid inadvertentmovement of the vehicle whichcan injure occupants or pedes‐trians.
8,@5'
Check the brake warning light by press‐
ing engine start/stop button switch ON (do not start the hybrid system). This
light will be illuminated when the park‐
ing brake is applied with the engine start/stop button switch in the START
or ON position.
Before driving, be sure the parking
brake is fully released and the brake warning light is off.
If the brake warning light remains on
after the parking brake is released
while the hybrid system is on, there may be a malfunction in the brake sys‐
tem. Immediate attention is necessary. If at all possible, cease driving the vehi‐
cle immediately. If that is not possible, use extreme caution while operating
the vehicle and only continue to drive
the vehicle until you can reach a safe location or repair shop.
Electronic parking brake (EPB)
(if equipped)
Applying the parking brake
0+'-
To apply the EPB (Electronic ParkingBrake):
1. Depress the brake pedal.
2. Pull up the EPB switch.
Make sure the warning light comes on.

7-19
7
Driving your vehicle

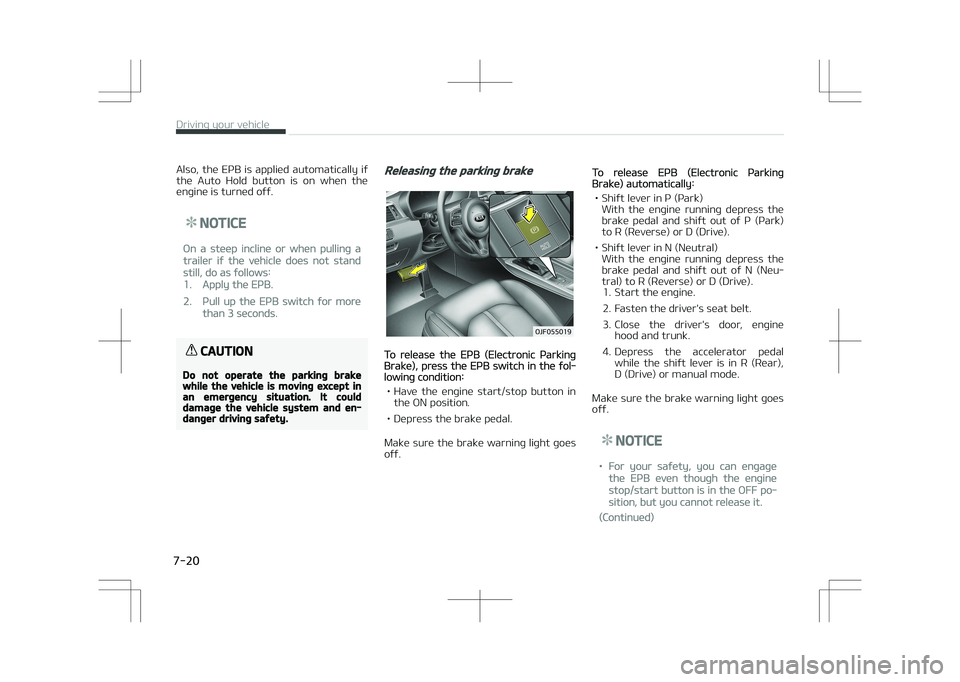

Also, the EPB is applied automatically if
the Auto Hold button is on when the engine is turned off.
NOTICE
On a steep incline or when pulling a
trailer if the vehicle does not stand
still, do as follows:
1.Apply the EPB.
2.Pull up the EPB switch for more
than 3 seconds.
CAUTION
Do not operate the parking brakewhile the vehicle is moving except inan emergency situation. It coulddamage the vehicle system and en‐danger driving safety.
Releasing the parking brake
0+'
To release the EPB (Electronic ParkingBrake), press the EPB switch in the fol‐lowing condition:
• Have the engine start/stop button in the ON position.
• Depress the brake pedal.
Make sure the brake warning light goes
off.
To release EPB (Electronic ParkingBrake) automatically:
• Shift lever in P (Park) With the engine running depress thebrake pedal and shift out of P (Park)
to R (Reverse) or D (Drive).
• Shift lever in N (Neutral) With the engine running depress the
brake pedal and shift out of N (Neu‐
tral) to R (Reverse) or D (Drive). 1. Start the engine.
2. Fasten the driver's seat belt.
3. Close the driver's door, engine hood and trunk.
4. Depress the accelerator pedal while the shift lever is in R (Rear),
D (Drive) or manual mode.
Make sure the brake warning light goes
off.
NOTICE
•For your safety, you can engage
the EPB even though the engine
stop/start button is in the OFF po‐
sition, but you cannot release it.
(Continued)
Driving your vehicle
7-20

(Continued)
•For your safety, depress the brake
pedal and release the parking
brake manually with the EPB
switch when you drive downhill or
when backing up the vehicle.
CAUTION
•If the parking brake warning lightis still on even though the EPB hasbeen released, we recommendthat the system be checked by anauthorized Kia dealer.
•Do not drive your vehicle with theEPB applied. It may cause exces‐sive brake pad and brake rotorwear.
EPB (Electronic Parking Brake) may beautomatically applied when:
• The EPB is overheated
• Requested by other systems
• The hybrid system is turned off with the EPB applied
NOTICE
If the driver turns the hybrid system
off while Auto Hold is operating, EPB
will be automatically applied. Howev‐
er, if you press the EPB switch with‐
in one second after the hybrid sys‐
tem is turned off, the EPB will not
be applied.
System warning
0+'-
• If you try to drive off depressing theaccelerator pedal with the EPB ap‐
plied, but doesn't release automati‐ cally, a warning will sound and a mes‐
sage will appear.
• If the driver's seat belt is not fas‐ tened and the engine hood or trunk is
opened, a warning will sound and a
message will appear.
• If there is a problem with the vehicle, a warning may sound and a message
may appear.
If the above situation occurs, depress
the brake pedal and release EPB by pressing the EPB switch.
WARNING
•To prevent unintentional move‐ment when stopped and leavingthe vehicle, do not use the shiftlever in place of the parking brake.Set the parking brake and makesure the shift lever is securelypositioned in P (Park).
(Continued)

7-21
7
Driving your vehicle

(Continued)
•Never allow anyone who is unfa‐miliar with the vehicle to touch theparking brake. If the parking brakeis released unintentionally, seriousinjury may occur.
•All vehicles should always have theparking brake fully engaged whenparking to avoid inadvertentmovement of the car which can in‐jure occupants or pedestrians.
CAUTION
•A click sound may be heard whileoperating or releasing the EPB, butthese conditions are normal andindicate that the EPB is function‐ing properly.
•When leaving your keys with aparking lot attendant or valet,make sure to inform him/her howto operate the EPB.
•The EPB may malfunction if youdrive with the EPB applied.
•When you automatically releaseEPB by depressing the acceleratorpedal, depress it slowly.
System warning
0+'-
5ZQF
"
5ZQF
#
0+'-
When the conversion from Auto Hold to
EPB is not working properly a warning will sound and a message will appear.
CAUTION
Depress the brake pedal when theabove message appears for the AutoHold and EPB may not activate.
Driving your vehicle
7-22

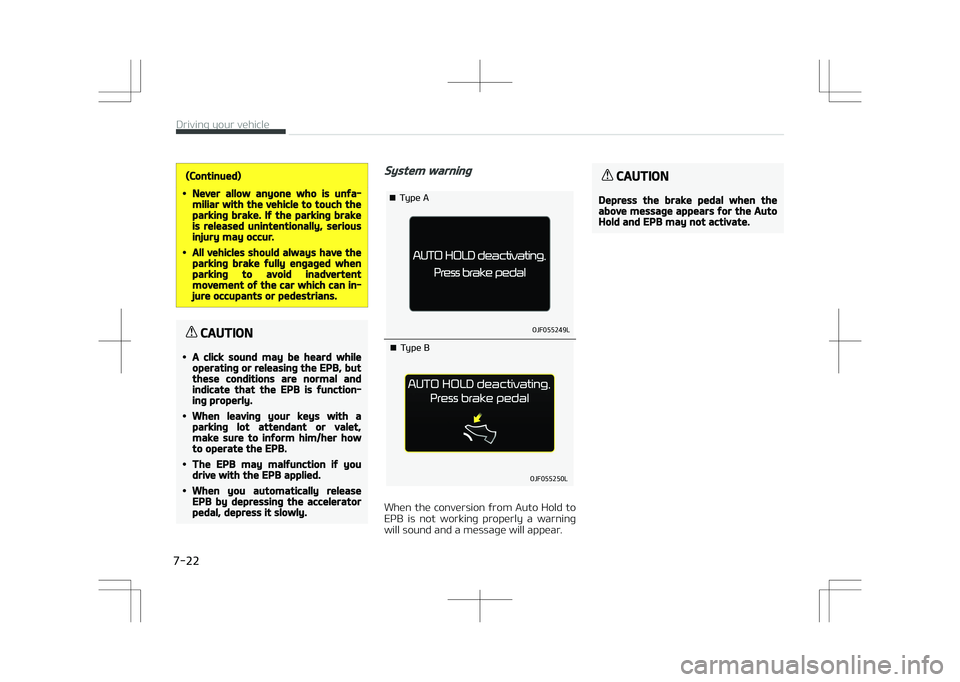

System warning
0+'-
5ZQF
"
0+'-
5ZQF
#
If the EPB is applied while Auto Hold is
activated because of ESC (Electronic Stability Control) signal, a warning will
sound and a message will appear.
EPB malfunction indicator (if
equipped)
0+'
This warning light illuminates if the en‐
gine start/stop button is changed to the ON position and goes off in approxi‐
mately 3 seconds if the system is oper‐
ation normally. If the EPB malfunction indicator re‐
mains on, comes on while driving, or
does not come on when the ignition
switch or the engine start/stop button is changed to the ON position, this indi‐
cates that the EPB may have malfunc‐
tioned.
If this occurs, we recommend that the system be checked by an authorized
Kia dealer.
The EPB malfunction indicator may illu‐
minate when the ESC indicator comes on to indicate that the ESC is not work‐
ing properly, but it does not indicate a
malfunction of the EPB.
CAUTION
•The EPB warning light may illumi‐nate if the EPB switch operatesabnormally. Shut the engine offand turn it on again after a fewminutes. The warning light will gooff and the EPB switch will oper‐ate normally. However, if the EPBwarning light is still on, we recom‐mend that the system be checkedby an authorized Kia dealer.
(Continued)

7-23
7
Driving your vehicle
