KIA OPTIMA PLUG-IN HYBRID 2017 Owners Manual

(Continued)
•If the parking brake warning lightdoes not illuminate or blinks eventhough the EPB switch was pulledup, the EPB is not applied.
•If the parking brake warning lightblinks when the EPB warning lightis on, press the switch, then pull itup. Once more press it back to itsoriginal position and pull it back up.If the EPB warning does not gooff, we recommend that the sys‐tem be checked by an authorizedKia dealer.
Emergency braking
If there is a problem with the brake
pedal while driving, emergency braking is possible by pulling up and holding the
EPB switch. Braking is possible only
while you are holding the EPB switch.
WARNING
Do not operate the parking brakewhile the vehicle is moving except inan emergency situation.
NOTICE
During emergency braking by the
EPB, the parking brake warning light
will illuminate to indicate that the
system is operating.
CAUTION
If you continuously notice a noise orburning smell when the EPB is usedfor emergency braking, we recom‐mend that the system be checkedby an authorized Kia dealer.
When the EPB (Electronic ParkingBrake) does not release
If the EPB does not release normally, we recommend that you contact an au‐
thorized Kia dealer by loading the vehi‐
cle on a flatbed tow truck and have the system checked.
AUTO HOLD (if equipped)
The Auto Hold maintains the vehicle in
a standstill even though the brake ped‐ al is not depressed after the driver
brings the vehicle to a complete stop by
depressing the brake pedal.
Set up
0+'-
1. With the driver's door, engine hood closed, fasten the driver's seat belt
or depress the brake pedal and
then press the Auto Hold button.
The white AUTO HOLD indicator will
come on and the system will be in
the standby position.
Driving your vehicle
7-24

0+'-
2. When you stop the vehicle com‐pletely by depressing the brake
pedal, the AUTO HOLD indicator
changes from white to green.
3. The vehicle will remain stationary even if you release the brake pedal.
4. If EPB is applied, Auto Hold will be released.
Leaving
If you press the accelerator pedal with the shift lever in D (Drive) or manual
mode, the Auto Hold will be released
automatically and the vehicle will start to move. The indicator changes from
green to white.
WARNING
When driving off from Auto Hold bydepressing the accelerator pedal, al‐ways check the surrounding areanear your vehicle.Slowly depress the accelerator pedalfor a smooth launch.
Cancel
0+'-
To cancel the Auto Hold operation,
press the Auto Hold switch. The AUTO HOLD indicator will go out. To cancel the Auto Hold operation when
the vehicle is at a standstill, press the
Auto Hold switch while depressing the brake pedal.
NOTICE
•The Auto Hold does not operate
when:
-The driver's seat belt is unfas‐
tened and driver's door is
opened
-The engine hood is opened
-The shift lever is in P (Park) or R
(Reverse)
-The EPB is applied
•For your safety, the Auto Hold au‐
tomatically switches to EPB in
such cases:
-The driver's seat belt is unfas‐
tened and driver's door is
opened
-The engine hood is opened
-The vehicle is in a standstill for
more than 10 minutes
(Continued)

7-25
7
Driving your vehicle

(Continued)
-The vehicle is standing on a
steep slope
-The vehicle moved several
times
In these cases, the brake warning
light comes on, the AUTO HOLD in‐
dicator changes from green to
white, and a warning sounds and a
message will appear to inform you
that EPB has been automatically
engaged. Before driving off again,
press foot brake pedal, check the
surrounding area near your vehicle
and release parking brake manual‐
ly with the EPB switch.
•If the AUTO HOLD indicator lights
up yellow, the Auto Hold is not
working properly. We recommend
that you contact an authorized Kia
dealer.
•While operating Auto Hold, you
may hear mechanical noise. How‐
ever, it is normal operation noise.
WARNING
•Press the accelerator pedal slowlywhen you start the vehicle.
•For your safety, cancel the AutoHold when you drive downhill orback up the vehicle or park the ve‐hicle.
CAUTION
If there is a malfunction with thedriver’s door, engine hood open de‐tection system, the Auto Hold maynot work properly.We recommend that you contact anauthorized Kia dealer.
Warning messages
Parking brake automatically locked
5ZQF
"
0+'-
5ZQF
#
0+'-
When the EPB is applied from Auto
Hold, a warning will sound and a mes‐ sage will appear.
Driving your vehicle
7-26

AUTO HOLD deactivating. Pressbrake pedal
5ZQF
"
0+'-
5ZQF
#
0+'-
When the conversion from Auto Hold to
EPB is not working properly a warning will sound and a message will appear.
NOTICE
When this message is displayed, the
Auto Hold and EPB may not operate.
For your safety, depress the brake
pedal.
Press brake pedal to deactivateAUTO HOLD
5ZQF
"
0+'-
5ZQF
#
0+'-
If you did not apply the brake pedal
when you release the Auto Hold by pressing the [AUTO HOLD] switch, a
warning will sound and a message will
appear.
AUTO HOLD conditions not met.Close door, hood, and fastenseatbelt
0+'-
When you press the [AUTO HOLD]
switch, if the driver’s door, engine hood are not closed or the driver’s seat belt
is unfastened, a warning will sound and
a message will appear on the LCD dis‐ play. At this moment, press the [AUTO
HOLD] button after closing the driver’s
door, engine hood and fastening the seat belt.

7-27
7
Driving your vehicle

Anti-lock brake system (ABS)
WARNING
ABS (or ESC) will not prevent acci‐dents due to improper or dangerousdriving maneuvers. Even though ve‐hicle control is improved duringemergency braking, always maintaina safe distance between you and ob‐jects ahead. Vehicle speeds shouldalways be reduced during extremeroad conditions.The braking distance for vehicleequipped with an anti-lock brakingsystem (or Electronic Stability Con‐trol) may be longer than for thosewithout it in the following road con‐ditions.During these conditions the vehicleshould be driven at reduced speeds:•Rough, gravel or snow-coveredroads.
•With tire chains installed.
•On roads where the road surface ispitted or has different surfaceheight.
(Continued)
(Continued)
The safety features of an ABS (orESC) equipped vehicle should not betested by high speed driving or cor‐nering. This could endanger thesafety of yourself or others.
The ABS continuously senses the speed
of the wheels. If the wheels are going to lock, the ABS system repeatedly
modulates the hydraulic brake pressure
to the wheels.
When you apply your brakes under conditions which may lock the wheels,
you may hear a L

8

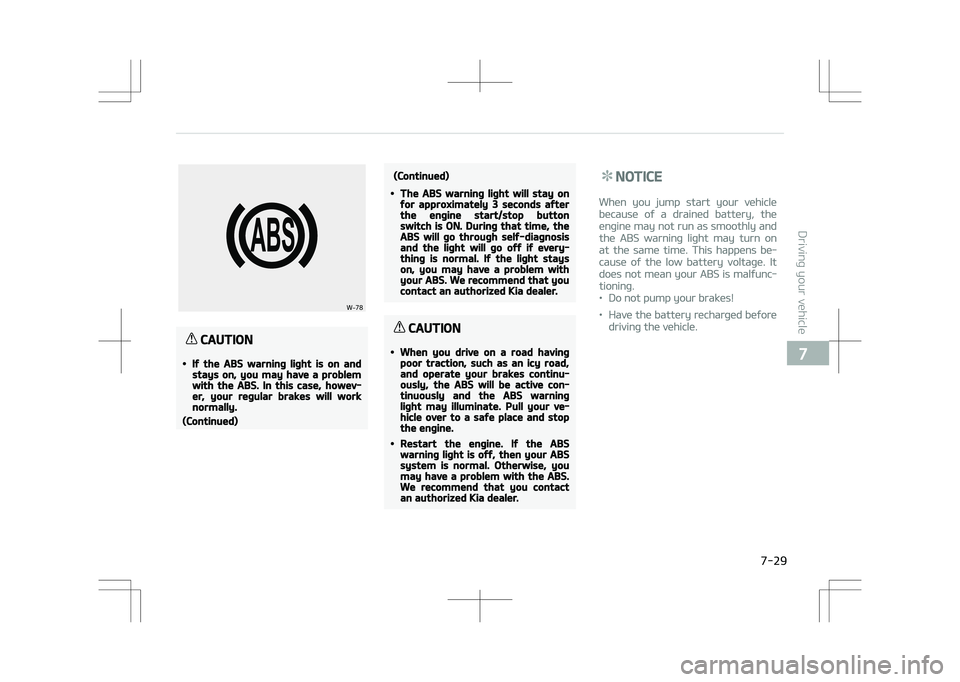

CAUTION
•If the ABS warning light is on andstays on, you may have a problemwith the ABS. In this case, howev‐er, your regular brakes will worknormally.
(Continued)
(Continued)
•The ABS warning light will stay onfor approximately 3 seconds afterthe engine start/stop buttonswitch is ON. During that time, theABS will go through self-diagnosisand the light will go off if every‐thing is normal. If the light stayson, you may have a problem withyour ABS. We recommend that youcontact an authorized Kia dealer.
CAUTION
•When you drive on a road havingpoor traction, such as an icy road,and operate your brakes continu‐ously, the ABS will be active con‐tinuously and the ABS warninglight may illuminate. Pull your ve‐hicle over to a safe place and stopthe engine.
•Restart the engine. If the ABSwarning light is off, then your ABSsystem is normal. Otherwise, youmay have a problem with the ABS.We recommend that you contactan authorized Kia dealer.
NOTICE
When you jump start your vehicle
because of a drained battery, the
engine may not run as smoothly and
the ABS warning light may turn on
at the same time. This happens be‐
cause of the low battery voltage. It
does not mean your ABS is malfunc‐
tioning.
•Do not pump your brakes!
•Have the battery recharged before
driving the vehicle.

7-29
7
Driving your vehicle

Electronic stability control (ESC)
(if equipped)
0+'
The electronic stability control (ESC)
system is designed to stabilize the ve‐ hicle during cornering maneuvers. ESC
checks where you are steering and
where the vehicle is actually going. ESC applies the brakes at individual wheels
and intervenes with engine manage‐
ment system to stabilize the vehicle.
WARNING
Never drive too fast for the roadconditions or too quickly when cor‐nering. Electronic stability control(ESC) will not prevent accidents. Ex‐cessive speed in turns, abrupt ma‐neuvers and hydroplaning on wetsurfaces can still result in serious ac‐cidents. Only a safe and attentivedriver can prevent accidents byavoiding maneuvers that cause thevehicle to lose traction. Even withESC installed, always follow all thenormal precautions for driving - in‐cluding driving at safe speed for theconditions.
The electronic stability control (ESC)
system is an electronic system de‐ signed to help the driver maintain vehi‐
cle control under adverse conditions. It
is not a substitute for safe driving practices. Factors including speed, road
conditions and driver steering input can
all affect whether ESC will be effective in preventing a loss of control. It is still
your responsibility to drive and corner
at reasonable speed and to leave a suf‐ ficient margin of safety. When you apply your brakes under
conditions which may lock the wheels,
you may hear a L

ESC operation
ESC ON condition
-• When the engine start/stopbutton is turned ON, ESC
and ESC OFF indicator lights
illuminate for approximate‐
ly 3 seconds, then ESC is turned on.
• Press the ESC OFF button for at least half a second
after turning the ignition
ON to turn ESC off. (ESC
OFF indicator will illumi‐
nate). To turn the ESC on, press the ESC OFF button
(ESC OFF indicator light will
go off).
• When starting the engine, you may hear a slight tick‐
ing sound. This is the ESC
performing an automatic
system self-check and does not indicate a problem.
When operating
When the ESC is in operation, ESC indicator light blinks. • When the Electronic Stabili‐ ty Control is operating
properly, you can feel a
slight pulsation in the vehi‐
cle. This is only the effect of brake control and indi‐
cates nothing unusual.
• When moving out of the mud or slippery road, the
engine rpm (revolution per
minute) may not increase
even if you press the accel‐ erator pedal deeply. This is
to maintain the stability
and traction of the vehicle
and does not indicate a
problem.
ESC operation off
ESC OFF state
This car has 2 kinds of ESC off states.If the engine stops when ESC
is off, ESC remains off. Upon
restarting the engine, the ESCwill automatically turn on
again.

7-31
7
Driving your vehicle

0+'-
5ZQF
"
0+'-
5ZQF
#

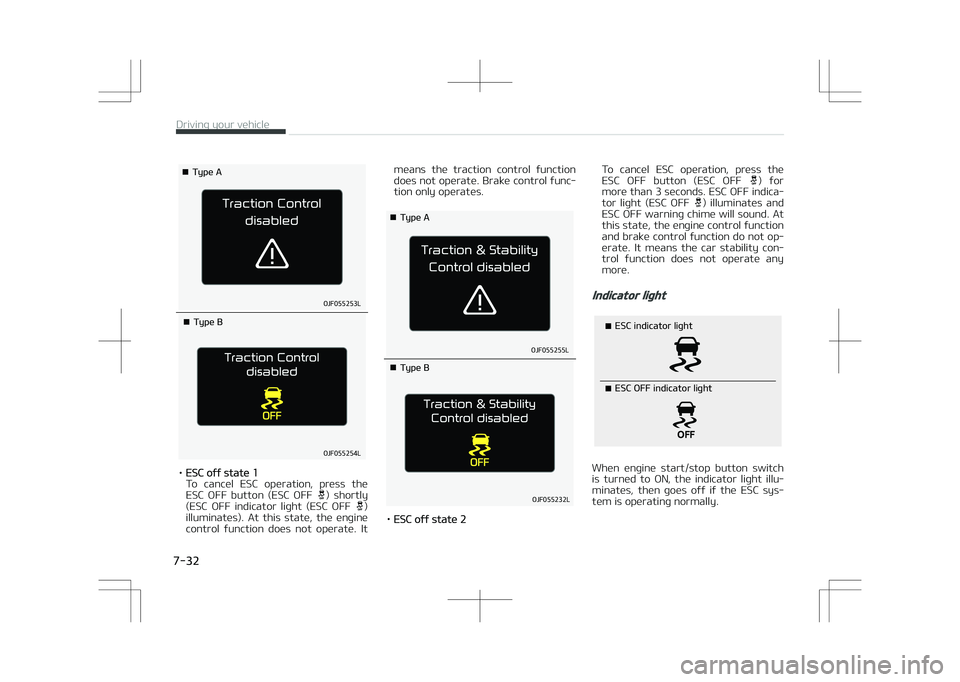

•ESC off state 1
To cancel ESC operation, press the
ESC OFF button (ESC OFF
) shortly
(ESC OFF indicator light (ESC OFF )
illuminates). At this state, the engine
control function does not operate. It means the traction control function
does not operate. Brake control func‐
tion only operates.
5ZQF
"
0+'-
0+'-
5ZQF
#
•ESC off state 2 To cancel ESC operation, press the
ESC OFF button (ESC OFF
) for
more than 3 seconds. ESC OFF indica‐
tor light (ESC OFF
) illuminates and
ESC OFF warning chime will sound. At
this state, the engine control function
and brake control function do not op‐
erate. It means the car stability con‐ trol function does not operate any
more.
Indicator light
&4$
JOEJDBUPS
MJHIU

&4$
0''
JOEJDBUPS
MJHIU

When engine start/stop button switch
is turned to ON, the indicator light illu‐ minates, then goes off if the ESC sys‐
tem is operating normally.
Driving your vehicle
7-32

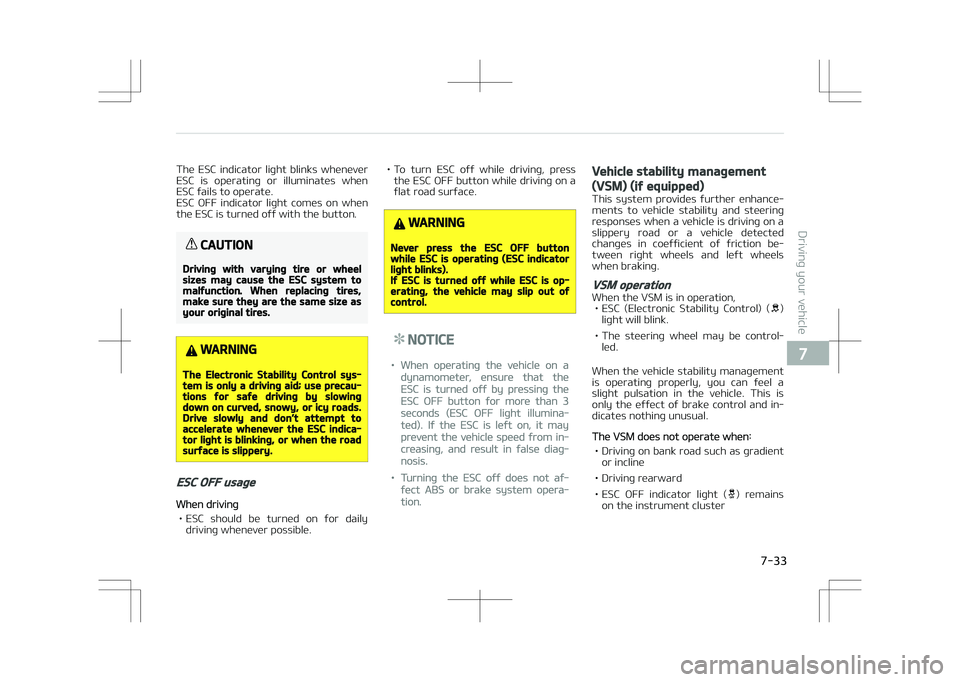

The ESC indicator light blinks whenever
ESC is operating or illuminates when ESC fails to operate.
ESC OFF indicator light comes on when
the ESC is turned off with the button.
CAUTION
Driving with varying tire or wheelsizes may cause the ESC system tomalfunction. When replacing tires,make sure they are the same size asyour original tires.
WARNING
The Electronic Stability Control sys‐tem is only a driving aid; use precau‐tions for safe driving by slowingdown on curved, snowy, or icy roads.Drive slowly and don’t attempt toaccelerate whenever the ESC indica‐tor light is blinking, or when the roadsurface is slippery.
ESC OFF usage
When driving
• ESC should be turned on for daily driving whenever possible. • To turn ESC off while driving, press
the ESC OFF button while driving on aflat road surface.
WARNING
Never press the ESC OFF buttonwhile ESC is operating (ESC indicatorlight blinks).If ESC is turned off while ESC is op‐erating, the vehicle may slip out ofcontrol.
NOTICE
•When operating the vehicle on a
dynamometer, ensure that the
ESC is turned off by pressing the
ESC OFF button for more than 3
seconds (ESC OFF light illumina‐
ted). If the ESC is left on, it may
prevent the vehicle speed from in‐
creasing, and result in false diag‐
nosis.
•Turning the ESC off does not af‐
fect ABS or brake system opera‐
tion.
Vehicle stability management
(VSM) (if equipped)
This system provides further enhance‐ments to vehicle stability and steering
responses when a vehicle is driving on a
slippery road or a vehicle detected changes in coefficient of friction be‐
tween right wheels and left wheels
when braking.
VSM operation
When the VSM is in operation, • ESC (Electronic Stability Control) ()
light will blink.
• The steering wheel may be control‐ led.
When the vehicle stability management is operating properly, you can feel a
slight pulsation in the vehicle. This is
only the effect of brake control and in‐ dicates nothing unusual.
The VSM does not operate when:
• Driving on bank road such as gradient or incline
• Driving rearward
• ESC OFF indicator light (
) remains
on the instrument cluster

7-33
7
Driving your vehicle
