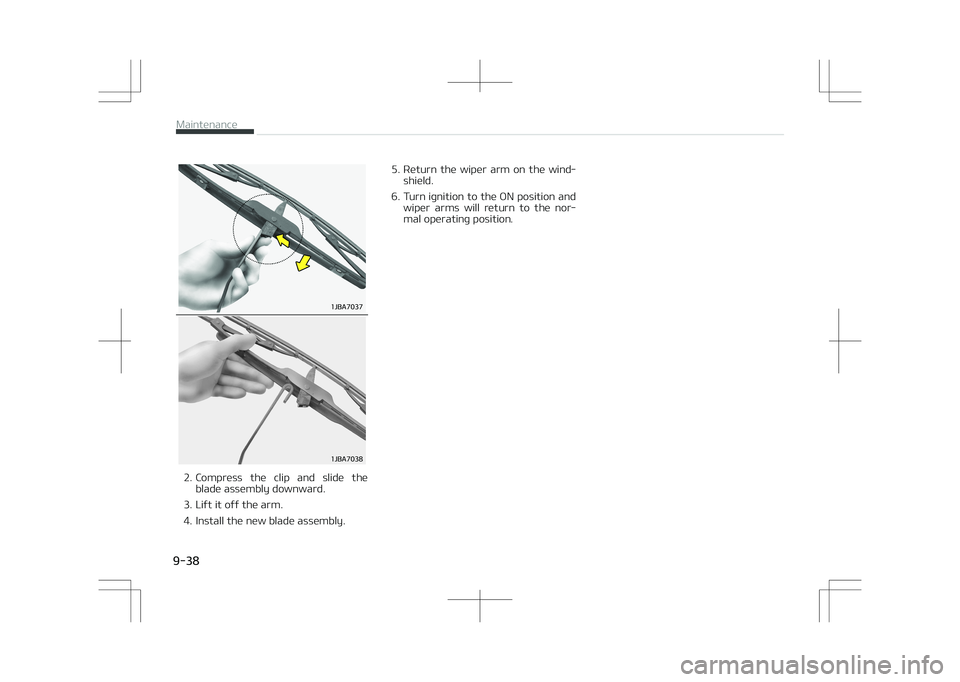

2. Compress the clip and slide theblade assembly downward.
3. Lift it off the arm.
4. Install the new blade assembly. 5. Return the wiper arm on the wind‐
shield.
6. Turn ignition to the ON position and wiper arms will return to the nor‐
mal operating position.
Maintenance
9-38

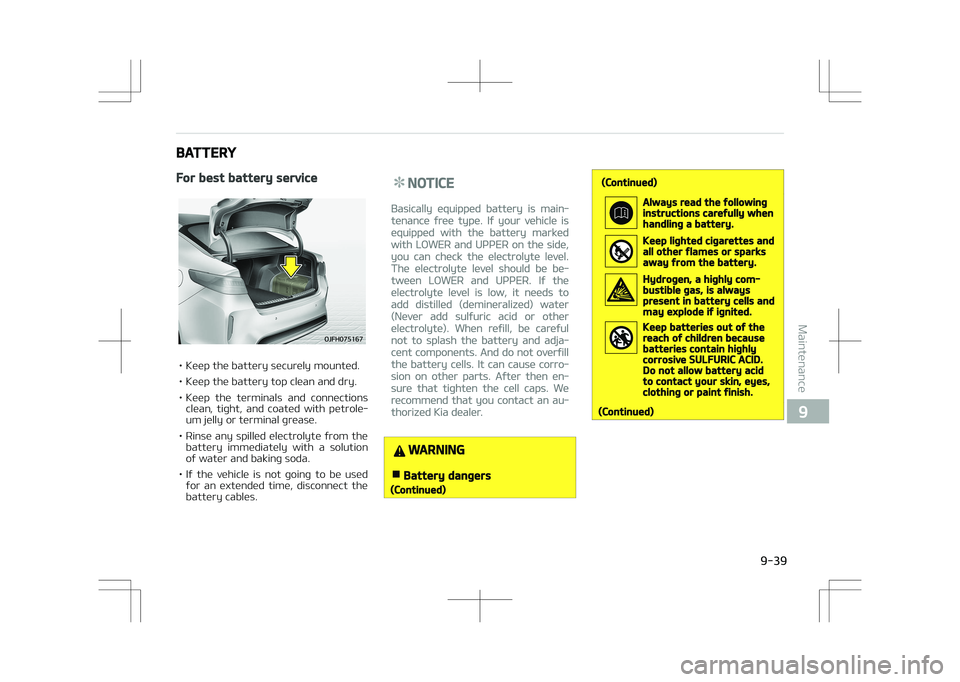

BATTERY
For best battery service
• Keep the battery securely mounted.
• Keep the battery top clean and dry.
• Keep the terminals and connectionsclean, tight, and coated with petrole‐
um jelly or terminal grease.
• Rinse any spilled electrolyte from the battery immediately with a solution
of water and baking soda.
• If the vehicle is not going to be used for an extended time, disconnect the
battery cables.
NOTICE
Basically equipped battery is main‐
tenance free type. If your vehicle is
equipped with the battery marked
with LOWER and UPPER on the side,
you can check the electrolyte level.
The electrolyte level should be be‐
tween LOWER and UPPER. If the
electrolyte level is low, it needs to
add distilled (demineralized) water
(Never add sulfuric acid or other
electrolyte). When refill, be careful
not to splash the battery and adja‐
cent components. And do not overfill
the battery cells. It can cause corro‐
sion on other parts. After then en‐
sure that tighten the cell caps. We
recommend that you contact an au‐
thorized Kia dealer.
WARNING
nBattery dangers
(Continued)
(Continued)
Always read the followinginstructions carefully whenhandling a battery.
Keep lighted cigarettes andall other flames or sparksaway from the battery.
Hydrogen, a highly com‐bustible gas, is alwayspresent in battery cells andmay explode if ignited.
Keep batteries out of thereach of children becausebatteries contain highlycorrosive SULFURIC ACID.Do not allow battery acidto contact your skin, eyes,clothing or paint finish.
(Continued)

9-39
9
Maintenance

(Continued)
If any electrolyte gets intoyour eyes, flush your eyeswith clean water for atleast 15 minutes and getimmediate medical atten‐tion.If electrolyte gets on yourskin, thoroughly wash thecontacted area. If you feelpain or burning sensation,get medical attention im‐mediately.
Wear eye protection whencharging or working near abattery. Always provideventilation when workingin an enclosed space.
An inappropriately dis‐posed battery can beharmful to the environ‐ment and human health.Dispose the battery ac‐cording to your local law(s)or regulation.
(Continued)
(Continued)
The battery contains lead.Do not dispose of it afteruse. We recommend thatyou contact an authorizedKia dealer.
•When lifting a plastic-cased bat‐tery, excessive pressure on thecase may cause battery acid toleak, resulting in personal injury.Lift with a battery carrier or withyour hands on opposite corners.
•Never attempt to recharge thebattery when the battery cablesare connected.
•The electrical ignition systemworks with high voltage. Nevertouch these components with theengine running or the ignitionswitched on.
Failure to follow the above warningscan result in serious bodily injury ordeath.
CAUTION
•When you don’t use the vehicle fora long time in the low temperaturearea, separate the battery andkeep it indoors.
•Always charge the battery fully toprevent battery case damage inlow temperature area.
•If you connect unauthorized elec‐tronic devices to the battery, thebattery may be discharged. Neveruse unauthorized devices.

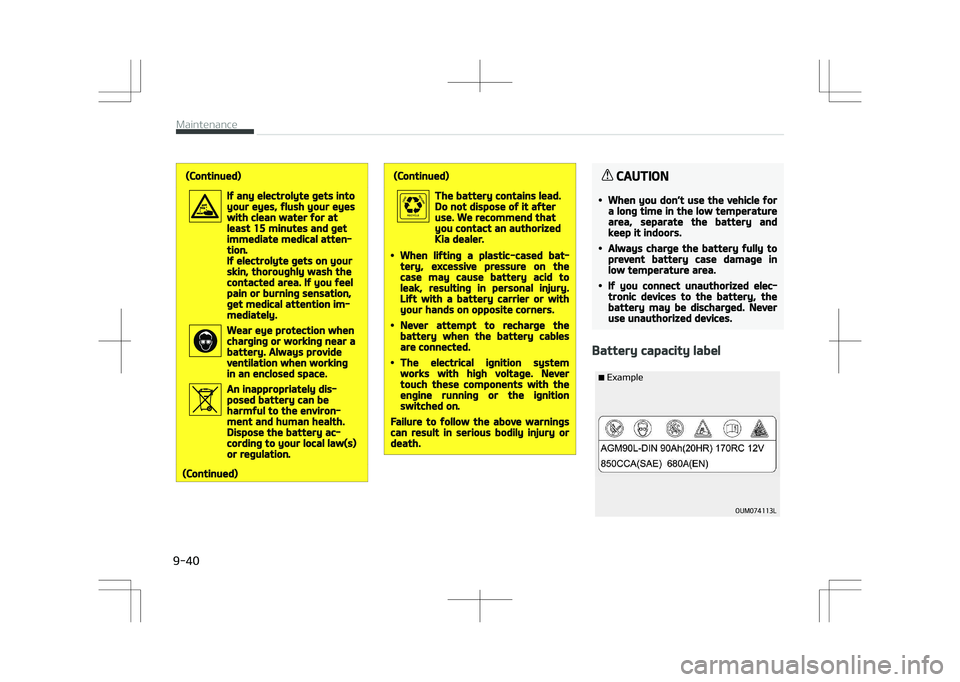

Battery capacity label
&YBNQMF
06.-
Maintenance
9-40

❈The actual battery label in the vehi‐
cle may differ from the illustration.
1. AGM90L-DIN : The Kia model name
of battery
2. 90Ah(20HR) : The nominal capacity (in Ampere hours)
3. 170RC : The nominal reserve ca‐ pacity (in min.)
4. 12V : The nominal voltage
5. 850CCA (SAE) : The cold-test cur‐ rent in amperes by SAE
6. 680A : The cold-test current in am‐ peres by EN
Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery. • If the battery becomes discharged in a short time (because, for example,the headlights or interior lights were
left on while the vehicle was not in
use), recharge it by slow charging
(trickle) for 10 hours.
• If the battery gradually discharges because of high electric load while
the vehicle is being used, recharge it
at 20-30A for two hours.
WARNING
nRecharging battery
When recharging the battery, ob‐serve the following precautions:•The battery must be removedfrom the vehicle and placed in anarea with good ventilation.
•Do not allow cigarettes, sparks, orflame near the battery.
•Watch the battery during charg‐ing, and stop or reduce the charg‐ing rate if the battery cells begingassing (boiling) violently or if thetemperature of the electrolyte ofany cell exceeds 49°C (120°F).
•Wear eye protection when check‐ing the battery during charging.
•Disconnect the battery charger inthe following order.1.Turn off the battery chargermain switch.
2.Unhook the negative clampfrom the negative battery ter‐minal.
3.Unhook the positive clamp fromthe positive battery terminal.
WARNING
•Before performing maintenance orrecharging the battery, turn off allaccessories and stop the engine.
•The negative battery cable mustbe removed first and installed lastwhen the battery is disconnected.
•Operation related to the battery isrecommended to an authorized Kiadealer.
CAUTION
•Keep the battery away from wa‐ter or any liquid.
•For your safety, we recommendthat you use parts for replace‐ment from an authorized Kia deal‐er.
Reset items
Items should be reset after the battery
has been discharged or the battery has been disconnected. • Auto up/down window (if equipped)
• Sunroof (if equipped)
• Trip computer

9-41
9
Maintenance

• Climate control system
• Integrated Memory System (if equip‐ped)
• Audio (if equipped)
Maintenance
9-42

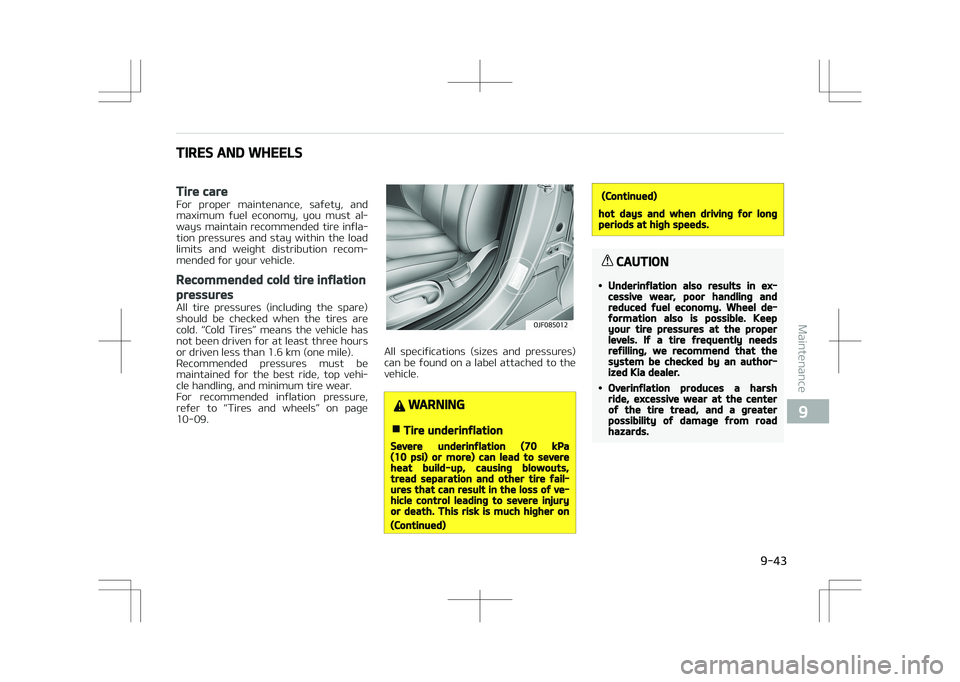

TIRES AND WHEELS

Tire care
For proper maintenance, safety, and
maximum fuel economy, you must al‐
ways maintain recommended tire infla‐ tion pressures and stay within the load
limits and weight distribution recom‐
mended for your vehicle.
Recommended cold tire inflation
pressures
All tire pressures (including the spare)
should be checked when the tires are cold. L

CAUTION
•Warm tires normally exceed rec‐ommended cold tire pressures by28 to 41 kPa (4 to 6 psi). Do notrelease air from warm tires to ad‐just the pressure or the tires willbe underinflated.
•Be sure to reinstall the tire infla‐tion valve caps. Without the valvecap, dirt or moisture could get intothe valve core and cause air leak‐age. If a valve cap is missing, in‐stall a new one as soon as possi‐ble.
WARNING
nTire inflation
Overinflation or underinflation canreduce tire life, adversely affect ve‐hicle handling, and lead to suddentire failure. This could result in lossof vehicle control and potential in‐jury.
CAUTION
nTire pressure
Always observe the following:•Check tire pressure when the tiresare cold. (After vehicle has beenparked for at least three hours orhasn't been driven more than1.6 km (one mile) since startup.)
•Check the pressure of your sparetire each time you check the pres‐sure of other tires.
•Never overload your vehicle. Becareful not to overload a vehicleluggage rack if your vehicle isequipped with one.
•Worn, old tires can cause acci‐dents. If your tread is badly worn,or if your tires have been dam‐aged, replace them.

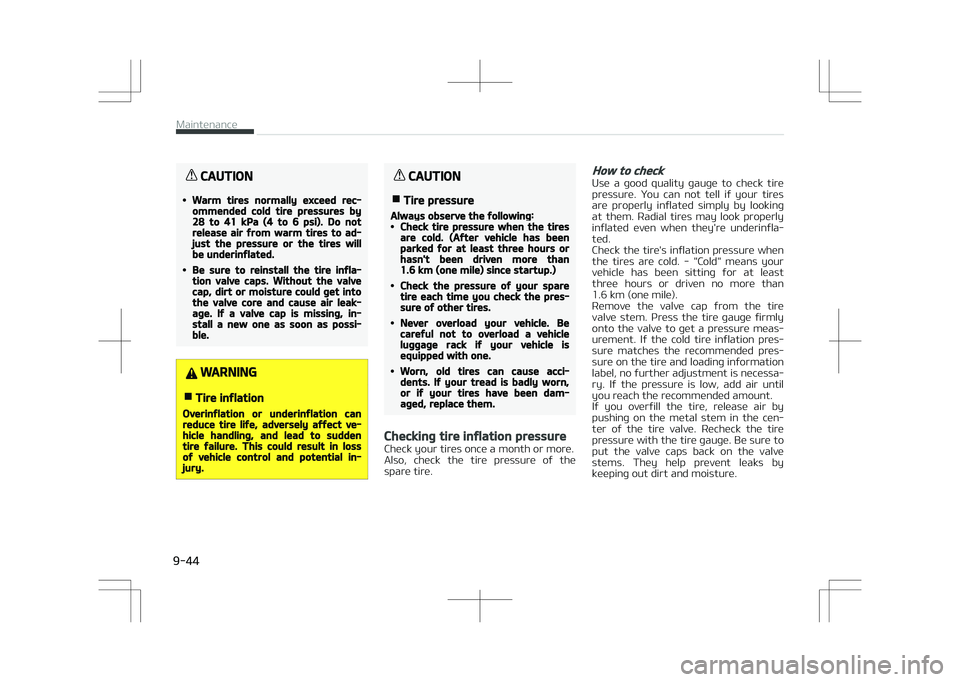

Checking tire inflation pressure
Check your tires once a month or more.
Also, check the tire pressure of the
spare tire.
How to check
Use a good quality gauge to check tire
pressure. You can not tell if your tires are properly inflated simply by looking
at them. Radial tires may look properly
inflated even when they're underinfla‐ ted.
Check the tire's inflation pressure when
the tires are cold. - "Cold" means your
vehicle has been sitting for at least three hours or driven no more than
1.6 km (one mile).
Remove the valve cap from the tire
valve stem. Press the tire gauge firmly onto the valve to get a pressure meas‐
urement. If the cold tire inflation pres‐
sure matches the recommended pres‐ sure on the tire and loading information
label, no further adjustment is necessa‐
ry. If the pressure is low, add air until
you reach the recommended amount.
If you overfill the tire, release air by pushing on the metal stem in the cen‐
ter of the tire valve. Recheck the tire
pressure with the tire gauge. Be sure to put the valve caps back on the valve
stems. They help prevent leaks by
keeping out dirt and moisture.
Maintenance
9-44

WARNING
•Inspect your tires frequently forproper inflation as well as wearand damage. Always use a tirepressure gauge.
•Tires with too much or too littlepressure wear unevenly causingpoor handling, loss of vehicle con‐trol, and sudden tire failure leadingto accidents, injuries, and evendeath. The recommended cold tirepressure for your vehicle can befound in this manual and on thetire label located on the driver'sside center pillar.
•Worn tires can cause accidents.Replace tires that are worn, showuneven wear, or are damaged.
•Remember to check the pressureof your spare tire. Kia recom‐mends that you check the spareevery time you check the pressureof the other tires on your vehicle.

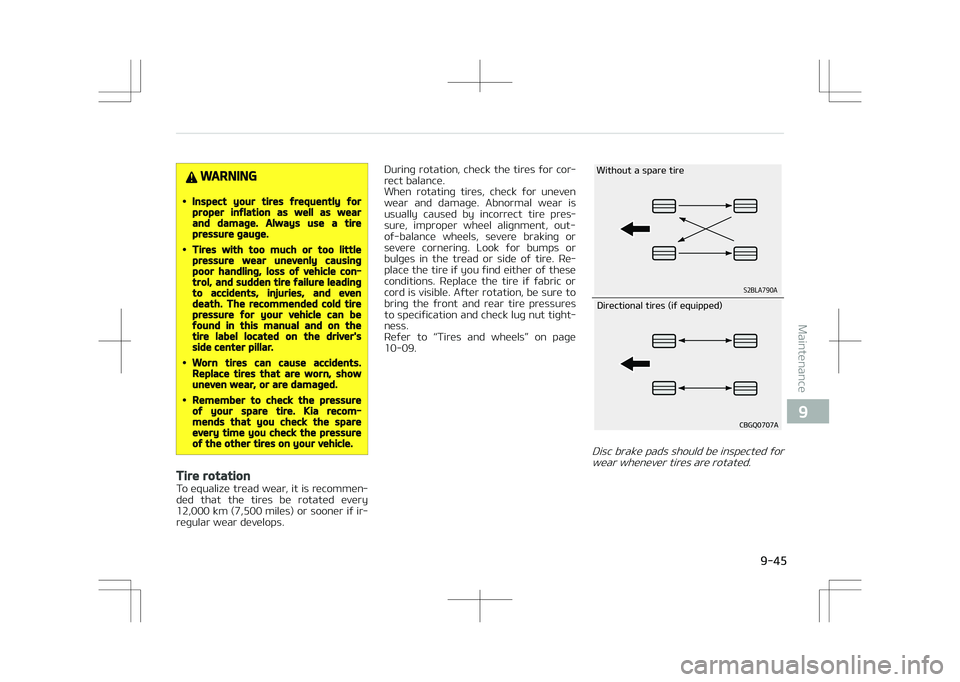

Tire rotation
To equalize tread wear, it is recommen‐
ded that the tires be rotated every 12,000 km (7,500 miles) or sooner if ir‐
regular wear develops. During rotation, check the tires for cor‐
rect balance.
When rotating tires, check for uneven wear and damage. Abnormal wear is
usually caused by incorrect tire pres‐
sure, improper wheel alignment, out- of-balance wheels, severe braking or
severe cornering. Look for bumps or
bulges in the tread or side of tire. Re‐ place the tire if you find either of these
conditions. Replace the tire if fabric or
cord is visible. After rotation, be sure to bring the front and rear tire pressures
to specification and check lug nut tight‐
ness.
Refer to L

NOTICE
Rotate radial tires that have an
asymmetric tread pattern only from
front to rear and not from right to
left.
WARNING
•Do not use the compact spare tire(if equipped) for tire rotation.
•Do not mix bias ply and radial plytires under any circumstances.This may cause unusual handlingcharacteristics that could result indeath, severe injury, or propertydamage.
Wheel alignment and tire
balance
The wheels on your vehicle were
aligned and balanced carefully at the factory to give you the longest tire life
and best overall performance.
In most cases, you will not need to have
your wheels aligned again. However, if
you notice unusual tire wear or your vehicle pulling one way or the other,
the alignment may need to be reset. If you notice your vehicle vibrating
when driving on a smooth road, your wheels may need to be rebalanced.
CAUTION
Improper wheel weights can damageyour vehicle's aluminum wheels. Useonly approved wheel weights.

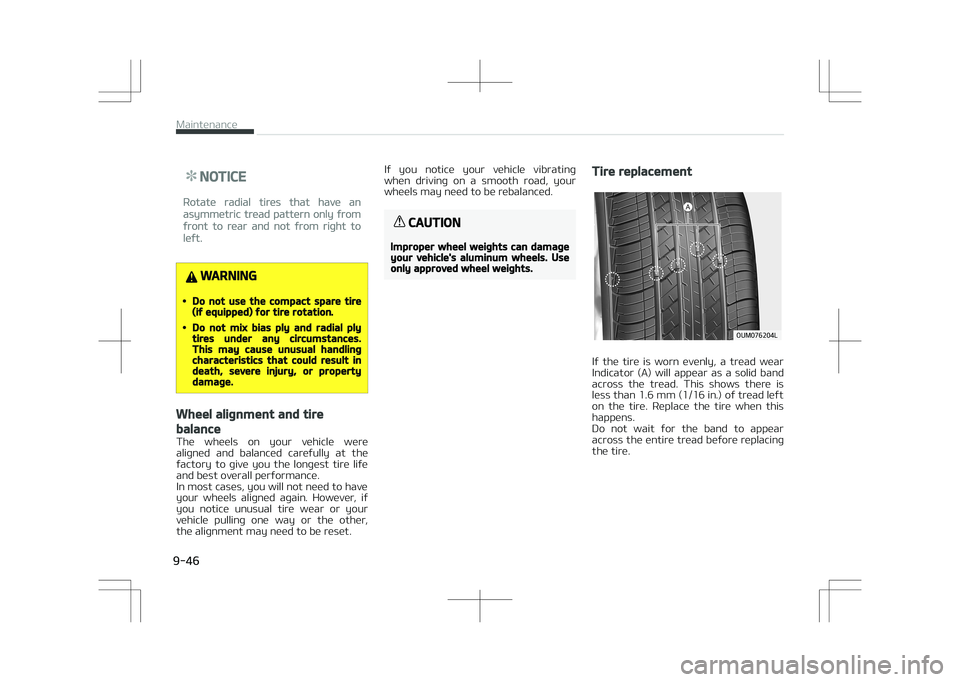

Tire replacement
06.-
If the tire is worn evenly, a tread wear
Indicator (A) will appear as a solid band across the tread. This shows there is
less than 1.6 mm (1/16 in.) of tread left
on the tire. Replace the tire when this
happens.
Do not wait for the band to appear across the entire tread before replacing
the tire.
Maintenance
9-46

NOTICE
We recommend that when replacing
tires, use the same originally sup‐
plied with the vehicles.
If not, that affects driving perform‐
ance.
CAUTION
When replacing the tires, recheckand tighten the wheel nuts afterdriving about 50 km (31 miles) andrecheck after driving about 1,000 km(620 miles).If the steering wheel shakes or thevehicle vibrates while driving, thetire is out of balance. Align the tirebalance. If the problem is not solved,we recommend that you contact anauthorized Kia dealer.
WARNING
nReplacing tires
(Continued)
(Continued)
To reduce the chance of serious orfatal injuries from an accidentcaused by tire failure or loss of vehi‐cle control:•Replace tires that are worn, showuneven wear, or are damaged.Worn tires can cause loss of brak‐ing effectiveness, steering control,and traction.
•Do not drive your vehicle with toolittle or too much pressure in yourtires. This can lead to uneven wearand tire failure.
•When replacing tires, never mix ra‐dial and bias-ply tires on the samecar. You must replace all tires (in‐cluding the spare) if moving fromradial to bias-ply tires.
•Using tires and wheels other thanthe recommended sizes couldcause unusual handling character‐istics and poor vehicle control, re‐sulting in a serious accident.
(Continued)
(Continued)
•Wheels that do not meet Kia’sspecifications may fit poorly andresult in damage to the vehicle orunusual handling and poor vehiclecontrol.
•The ABS works by comparing thespeed of the wheels. The tire sizeaffects wheel speed. When replac‐ing tires, all 4 tires must use thesame size originally supplied withthe vehicle. Using tires of a differ‐ent size can cause the ABS (Anti-lock Brake System) and ESC (Elec‐tronic Stability Control) to work ir‐regularly.
Wheel replacement
When replacing the metal wheels for
any reason, make sure the new wheels are equivalent to the original factory
units in diameter, rim width and offset.
WARNING
A wheel that is not the correct sizemay adversely affect wheel and
(Continued)

9-47
9
Maintenance
