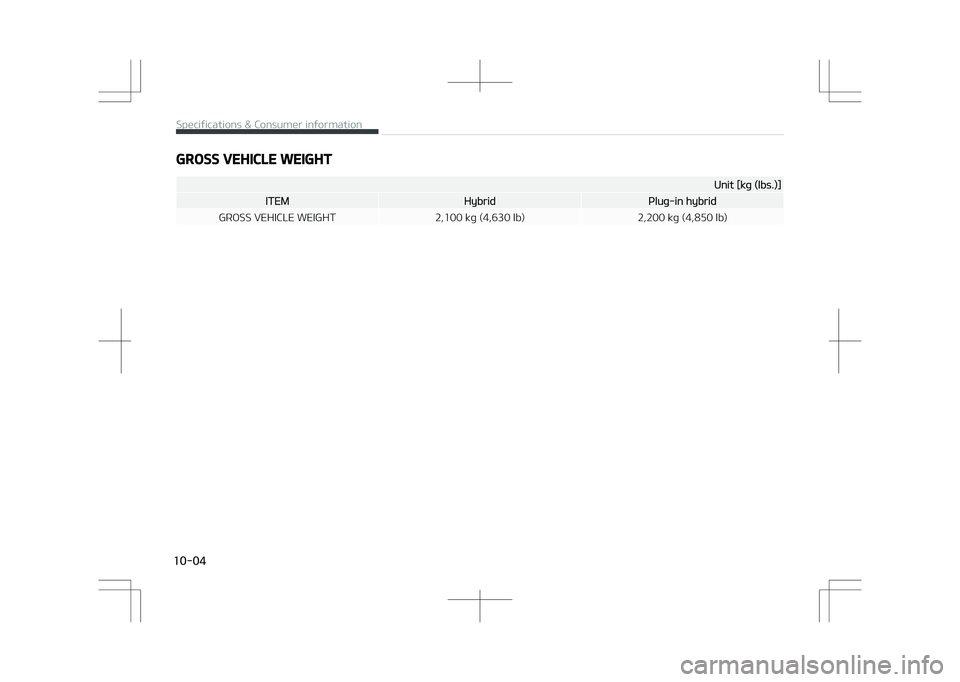

GROSS VEHICLE WEIGHT
Unit [kg (lbs.)]
ITEMHybridPlug-in hybrid
GROSS VEHICLE WEIGHT 2,100 kg (4,630 lb) 2,200 kg (4,850 lb)

Specifications & Consumer information
10-04

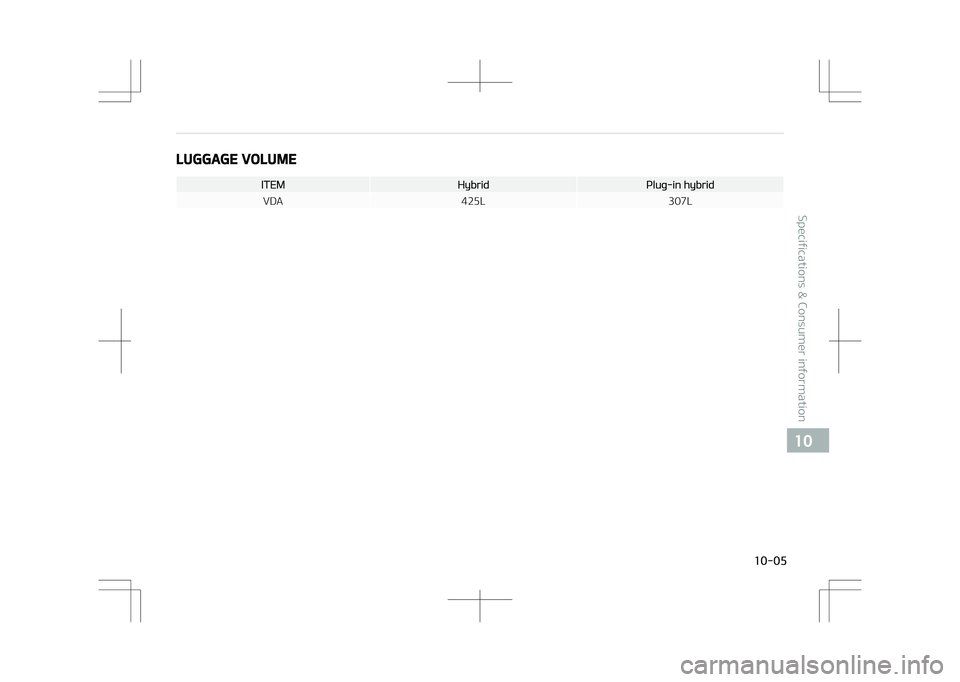

LUGGAGE VOLUME
ITEMHybridPlug-in hybrid
VDA 425L 307L


10-05
10
Specifications & Consumer information

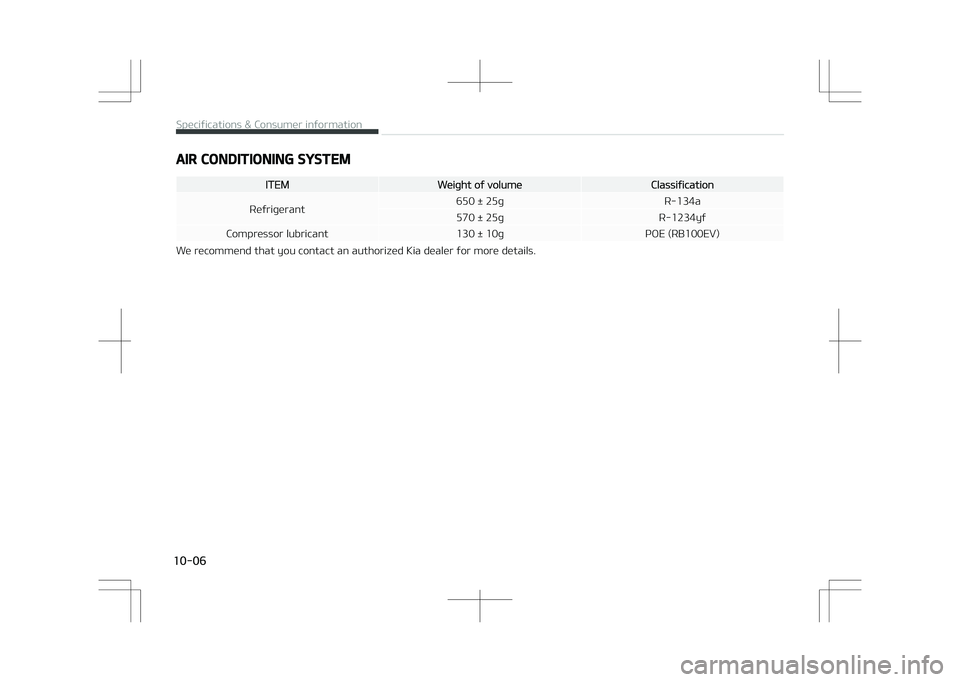

AIR CONDITIONING SYSTEM
ITEMWeight of volumeClassification
Refrigerant 650 ± 25g R-134a
570 ± 25g R-1234yf
Compressor lubricant 130 ± 10g POE (RB100EV)
We recommend that you contact an authorized Kia dealer for more details.
Specifications & Consumer information
10-06

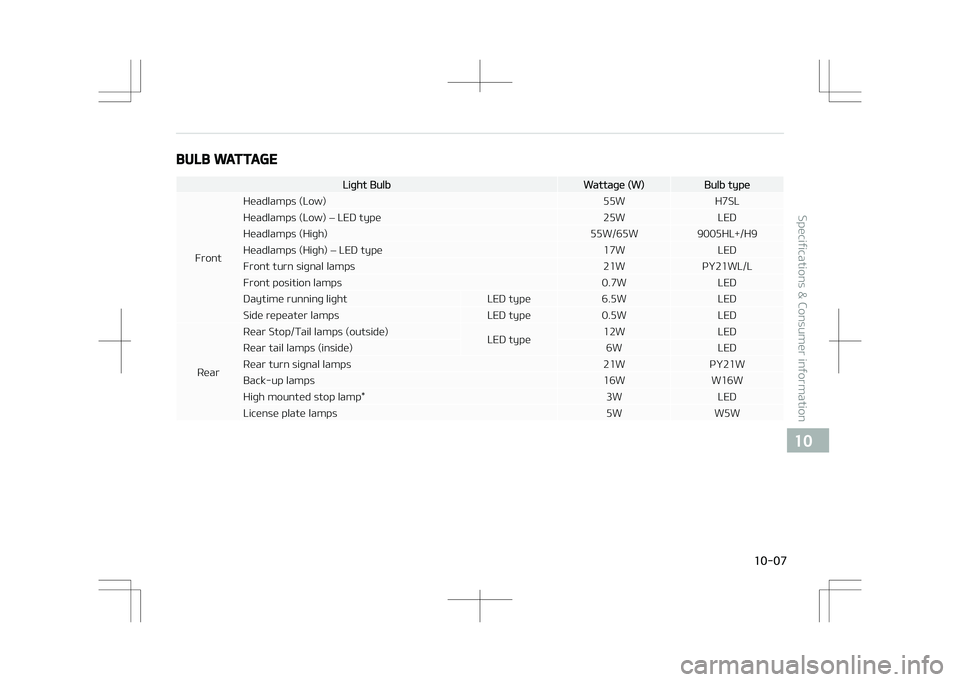

BULB WATTAGE
Light BulbWattage (W)Bulb type
Front Headlamps (Low)
55W H7SL
Headlamps (Low) – LED type 25W LED
Headlamps (High) 55W/65W 9005HL+/H9
Headlamps (High) – LED type 17W LED
Front turn signal lamps 21W PY21WL/L
Front position lamps 0.7W LED
Daytime running light LED type 6.5W LED
Side repeater lamps LED type 0.5W LED
Rear Rear Stop/Tail lamps (outside)
LED type12W LED
Rear tail lamps (inside) 6W LED
Rear turn signal lamps 21W PY21W
Back-up lamps 16W W16W
High mounted stop lamp* 3W LED
License plate lamps 5W W5W

10-07
10
Specifications & Consumer information

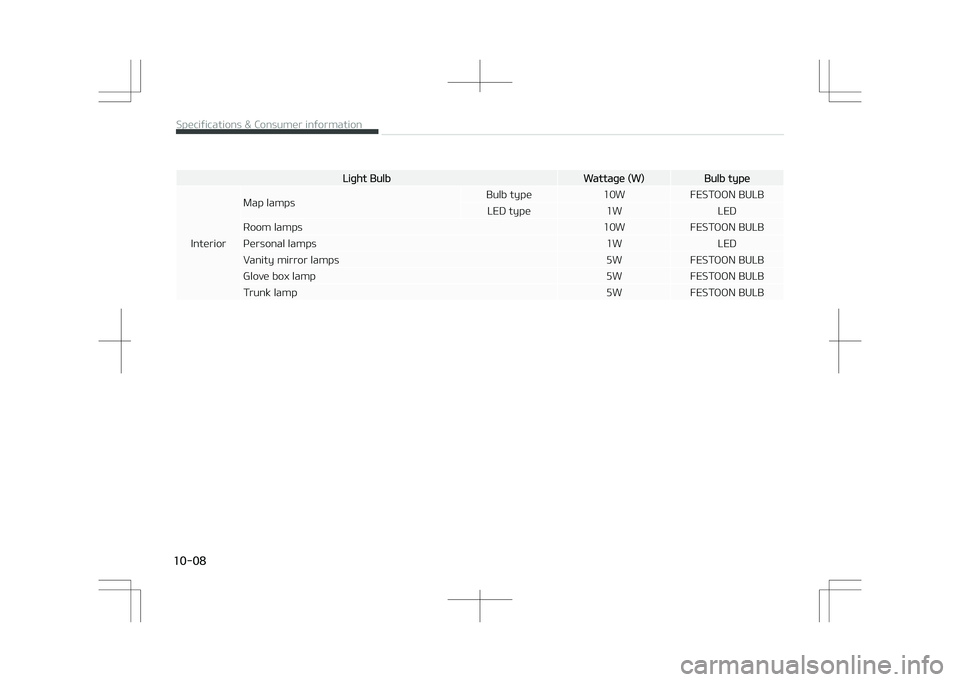

Light BulbWattage (W)Bulb type
Interior Map lamps
Bulb type 10W FESTOON BULB
LED type 1W LED
Room lamps 10W FESTOON BULB
Personal lamps 1W LED
Vanity mirror lamps 5W FESTOON BULB
Glove box lamp 5W FESTOON BULB
Trunk lamp 5W FESTOON BULB

Specifications & Consumer information
10-08

TIRES AND WHEELS
ItemTire sizeWheelsize
Load capacitySpeed capacityInflation pressure [bar(psi, kPa)]Wheel lugnut torque[Kgf·m(lbf·ft,N·m)]
Normal loadMaximum load
LI *1KgSS *2Km/hFrontRearFrontRear
Full size tire 205/65
R16 *3
6.5J × 16 95 690 H 210 2.4 (35,
240) 2.4 (35,
240) 2.4 (35,
240) 2.4 (35,
240) 9~11
(65~79,
88~107)
215/55
R17 7.0J × 17 94 670 V 240 2.4 (35,
240) 2.4 (35,
240) 2.4 (35,
240) 2.4 (35,
240)
*1 Load Index
*2 Speed Symbol
*3 Only for Hybrid vehicle. Not for Plug-in hybrid vehicle
NOTICE
•We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.
•When driving in high altitude grades, it is natural for the atmospheric pressure to decrease.
Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5 psi/km

10-09
10
Specifications & Consumer information

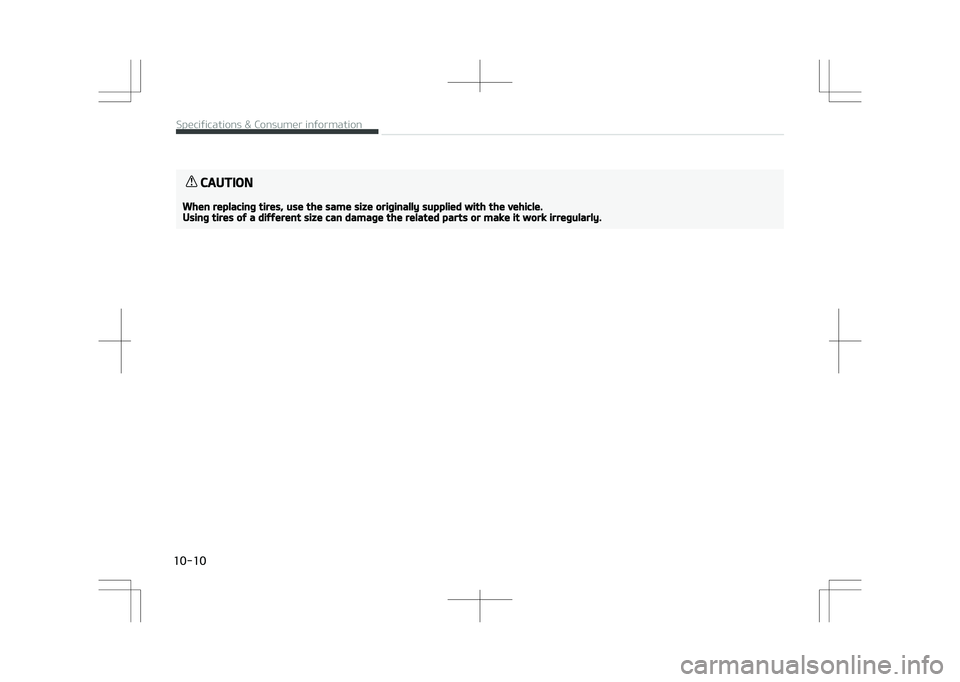

CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make it work irregularly.

Specifications & Consumer information
10-10

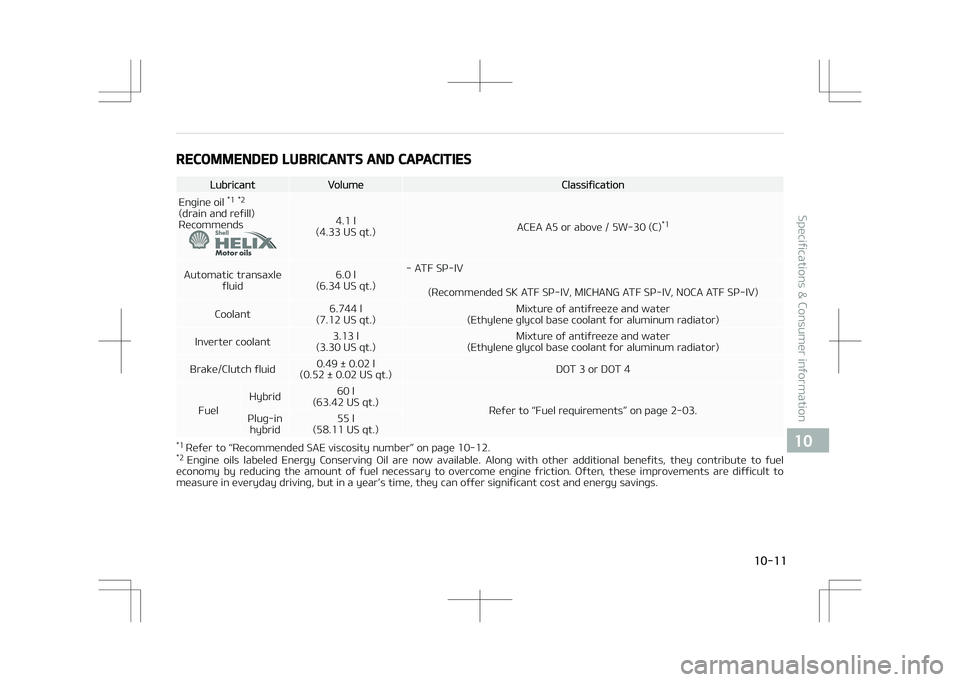

RECOMMENDED LUBRICANTS AND CAPACITIES
LubricantVolumeClassification
Engine oil *1
*2
(drain and refill)
Recommends
4.1 l
(4.33 US qt.) ACEA A5 or above / 5W-30 (C)
*1
Automatic transaxle fluid 6.0 l
(6.34 US qt.) - ATF SP-IV
(Recommended SK ATF SP-IV, MICHANG ATF SP-IV, NOCA ATF SP-IV)
Coolant 6.744 l
(7.12 US qt.) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Inverter coolant 3.13 l
(3.30 US qt.) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake/Clutch fluid 0.49 ± 0.02 l
(0.52 ± 0.02 US qt.) DOT 3 or DOT 4
Fuel Hybrid
60 l
(63.42 US qt.) Refer to L

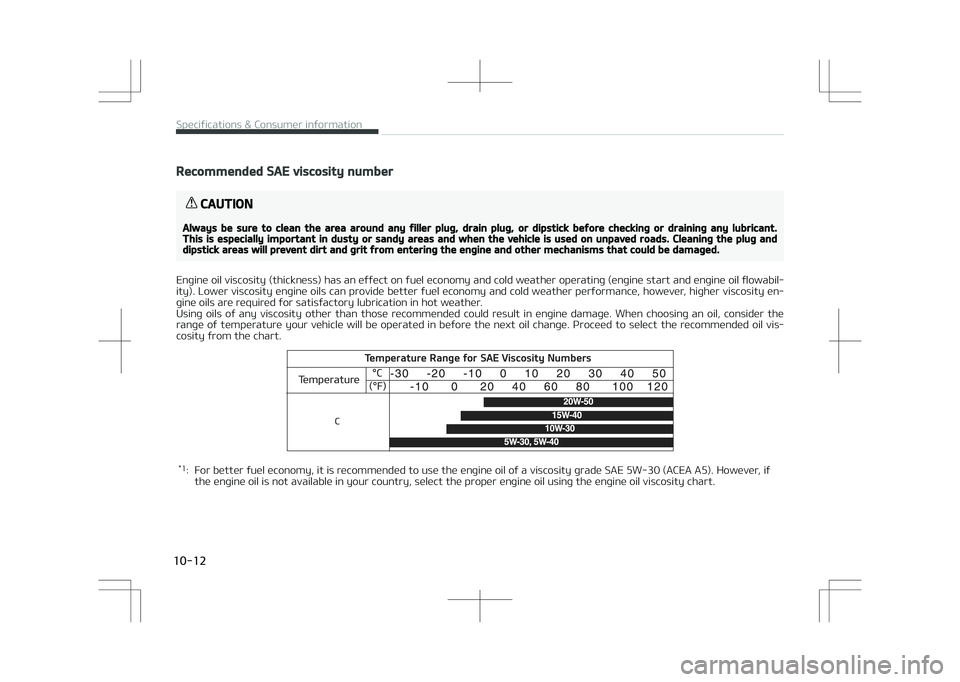

Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining any lubricant.This is especially important in dusty or sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug anddipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil flowabil‐
ity). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however, higher viscosity en‐ gine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in engine damage. When choosing an oil, consider the
range of temperature your vehicle will be operated in before the next oil change. Proceed to select the recommended oil vis‐ cosity from the chart.
5FNQFSBUVSF
3BOHF
GPS
4"&
7JTDPTJUZ
/VNCFST
5FNQFSBUVSFFú$
Fú'

$
*1 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-30 (ACEA A5). However, if
the engine oil is not available in your country, select the proper engine oil using the engine oil viscosity chart.

Specifications & Consumer information
10-12

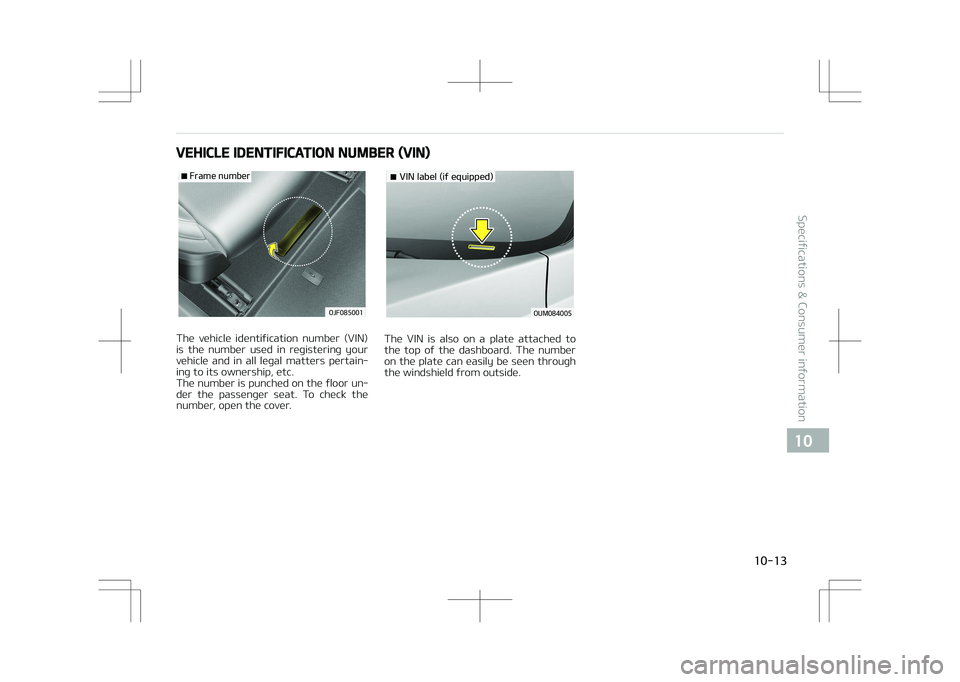

VEHICLE IDENTIFICATION NUMBER (VIN)
'SBNF
OVNCFS
0+'
The vehicle identification number (VIN)
is the number used in registering your vehicle and in all legal matters pertain‐
ing to its ownership, etc.
The number is punched on the floor un‐
der the passenger seat. To check the number, open the cover.
7*/
MBCFM
JG
FRVJQQFE

06.
The VIN is also on a plate attached to
the top of the dashboard. The number on the plate can easily be seen through
the windshield from outside.

10-13
