technical data KIA PICANTO 2006 Owners Manual

633
In case of an emergency
1 23456789

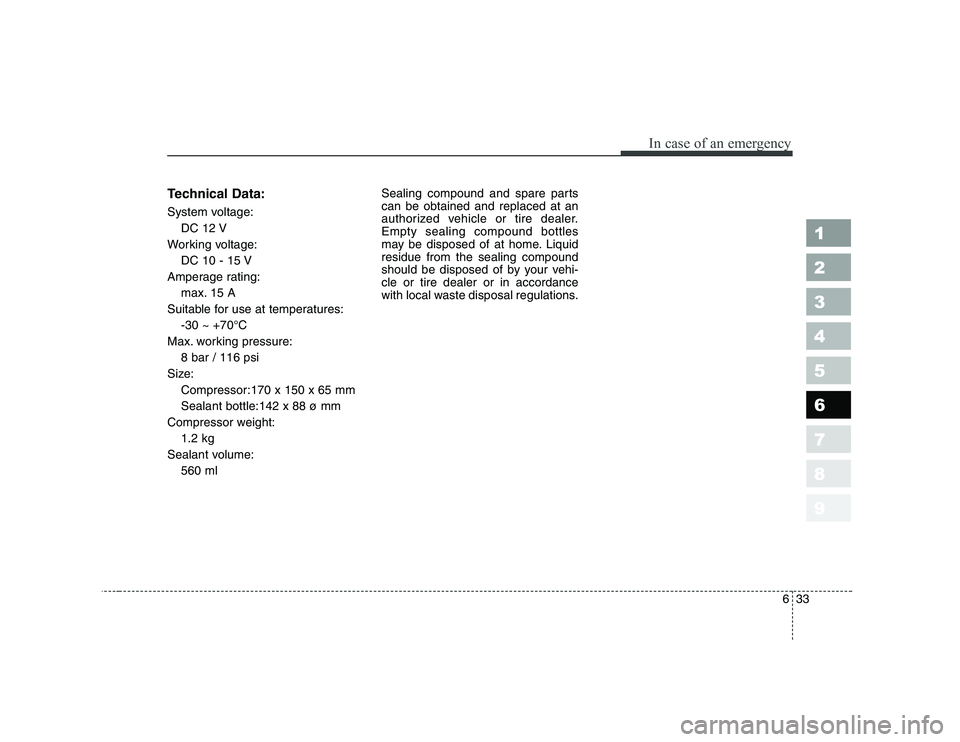

Technical Data:
System voltage:DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating:
max. 15 A
Suitable for use at temperatures:
-30 ~ +70°C
Max. working pressure: 8 bar / 116 psi
Size: Compressor:170 x 150 x 65 mm Sealant bottle:142 x 88 ø mm
Compressor weight:
1.2 kg
Sealant volume: 560 ml Sealing compound and spare parts can be obtained and replaced at an
authorized vehicle or tire dealer.Empty sealing compound bottles
may be disposed of at home. Liquidresidue from the sealing compound
should be disposed of by your vehi-cle or tire dealer or in accordance
with local waste disposal regulations.
