Features of your vehicle
152
4
When using the sunvisor for the side
window, you can use the secondary
sunvisor (6) for the front window. Power outlet
The power outlet is designed to pro-
vide power for mobile telephones or
other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 10
amps with the engine running.
CAUTION
- Vanity mirror
lamp
If you use the vanity mirrorlamp, turn off the lamp beforereturning the sunvisor to its original position. It could resultin battery discharge and possi-ble sunvisor damage.
WARNING
For your safety, do not obstruct
your vision when using the sun-
visor.
OKH042239
OKH042240
■ Center
■Rear
CAUTION
Use the power outlet only
when the engine is runningand remove the accessory plug after use. Using theaccessory plug for prolongedperiods of time with the engine off could cause thebattery to discharge.
Only use 12V electric acces- sories which are less than 10Ain electric capacity.
Adjust the air-conditioner or heater to the lowest operatinglevel when using the poweroutlet.
Close the cover when not in use.
Some electronic devices can cause electronic interferencewhen plugged into a vehicle’spower outlet. These devicesmay cause excessive audiostatic and malfunctions in other electronic systems ordevices used in your vehicle.

4153
Features of your vehicle
Seat warmerWARNING
Do not put a finger or a foreign
element (pin, etc.) into a power
outlet and do not touch with a
wet hand. You may get an elec-
tric shock.
OKH032034/OKH032042
■ Rear seat (if equipped) (Type A)
■Rear seat (if equipped) (Type B)
OKH032075L/OKH032013
■Front seat (Type A)
■Front seat (Type B)
The seat warmer is provided to warm the seats during cold weather. With
the engine start/stop button in the ON position, push the switch to warm theseat.

Features of your vehicle
154
4
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the "OFF" position.
Each time you press the switch,
the temperature setting of the seat
will change as follows :
When pressing the switch for more than 1.5 seconds with the seat
warmer operating, the seat warmer
will turn OFF.
The seat warmer defaults to the OFF position whenever the engine
start/stop button is turned on. You can activate or deactivate the
rear seat warmer button by using the
REAR LOCK button on the rear arm-
rest or “System Settings” in
AVN(Audio, Video, and Navigation).
Detailed information for “System
Settings” is described in a separate-
ly supplied manual. If the rear seat
warmer button has deactivated
through AVN, you can reactivate the
rear seat warmer button only through
AVN.
✽✽ NOTICE
With the seat warmer switch in ON
position, the heating system in the
seat turns off or on automatically
depending on the seat temperature.
CAUTION - Seat damage
When cleaning the seats, do
not use an organic solventsuch as paint thinner, ben- zene, alcohol and gasoline.Doing so may damage the sur-face of the heater or seats.
To prevent overheating the seat warmer, do not place any-thing on the seats that insu-lates against heat, such asblankets, cushions or seat covers on the seats while theseat warmer is in operation.
Do not place heavy or sharp objects on the seat. Thosethings may damage the seat warmer system.
Be careful not to spill liquid such as water or beverages onthe seat. If you spill some liq-uid, wipe the seat with a dry towel. Before using the seatwarmer, dry the seat com-pletely.
Do not change the seat cover. It may damage the seat warmeror airventilation system.
OFF HIGH( ) MIDDLE( ) LOW( )

4155
Features of your vehicle
Air ventilation seat (if equipped)
The air ventilation is provided to cool
the seats during hot weather by
blowing air through small vent holes
on the surface of the seats and seat-
backs. While the engine is running,
press the switch to cool the seat.When the operation of the air ventila-
tion is not needed, keep the switchesin the OFF position.
Each time you press the switch,
the airflow will change as follows:
When pressing the switch for more than 1.5 seconds with the seat
cooler operating, the seat cooler
will turn OFF.
When the air ventilation seat is turned on, the seat may get cooler
after about 5 minutes.
Because the air ventilation uses the air in the vehicle, cooling effi-
ciency depends on the tempera-
ture of the air. In order to improve
cooling efficiency, use the air con-
ditioning system together.
The air ventilation seat defaults to the OFF position whenever the
ignition switch is turned to the ONposition.
OFF HIGH( ) MIDDLE( ) LOW( )

OKH032014
OKH032043
■Front seat
■Rear seat
WARNING - Seat warmer
burns
Passengers should use extreme caution when using seat warm-
ers due to the possibility of
excess heating or burns. The
occupants must be able to feelif the seat is becoming toowarm and to turn the seat
warmer off. The seat warmer
may cause burns even at low
temperatures, especially if used
for long periods of time.
In particular, the driver must
exercise extreme care for the
following types of passengers:
1. Infants, children, elderly or disabled persons, or hospital outpatients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or sleepiness (sleeping pills,
cold tablets, etc.)

Features of your vehicle
156
4
You can activate or deactivate the
rear air ventilation button by using
the REAR LOCK button on the rear
armrest or “System Settings” in
AVN(Audio, Video, and Navigation).
Detailed information for “System
Settings” is described in a sepa-
rately supplied manual. If the rear
air ventilation button has deactivat-
ed through AVN, you can reactivate
the rear air ventilation button only
through AVN.CAUTION - Air intake
There is an air intake for the rear
air ventilation at the lower partof the rear center seatback. If the air intake is blocked, effi-ciency of the rear air ventilationwill be lower. Be careful not toblock the air intake.
CAUTION - Seat damage
When cleaning the seats, do
not use an organic solventsuch as paint thinner, ben- zene, alcohol and gasoline.Doing so may damage the airventilation seat.
Do not place heavy or sharp objects on the seat. Thosethings may damage the airventilation seat.
Be careful not to spill liquid such as water or beverages onthe seat. If you spill some liquid, wipe the seat with a dry towel.Before using the air ventilationseat, dry the seat completely.
Do not change the seat cover. It may damage the seat warmeror airventilation system.

4157
Features of your vehicle
Clock
You can set the clock by using the
AVN (Audio or Navigation)
For the details, refer to the AVN man- ual.Clothes hanger (if equipped)
To use the hanger, pull down the
upper portion of hanger.Floor mat anchor(s) (if equipped) When using a floor mat on the front
floor carpet, make sure it attaches to
the floor mat anchor(s) in your vehi-
cle. This keeps the floor mat from
sliding forward.
OVI049140
CAUTION
Do not hang heavy clothes,
since those may damage thehook.
OXM043309
WARNING
Do not adjust the clock while
driving. You may lose your steer-
ing control and cause an acci-
dent that results in severe per-
sonal injury or death.
WARNING
Do not hang other objects except
clothes. In an accident it may
cause vehicle damage or person-
al injury.

Features of your vehicle
158
4
Rear mirror (if equipped)
To use the rear mirror, press the
cover and it will slowly open and the
mirror lamp will turn on. Bag hanger (if equipped)
Pull the strap (1) to hang a bag on the hook (2).
When you are not use the hook, fold the hook.
OKH042289
CAUTION
Close the mirror cover securely.
If the mirror cover is not closed,the lamp will stay on and could result in battery discharge andpossible mirror damage.
OKH042242
CAUTION
Do not hang heavy things, since those may damage the hook.
WARNING
The following must be observed when installing ANY floor mat
to the vehicle.
Ensure that the floor mats are securely attached to the vehi-
cle's floor mat anchor(s)
before driving the vehicle.
Do not use ANY floor mat that cannot be firmly attached to
the vehicle's floor mat anchors.
Do not stack floor mats on top of one another (e.g. all-weath-er rubber mat on top of a car-
peted floor mat). Only a singlefloor mat should be installed
in each position.
IMPORTANT - Your vehicle was
manufactured with driver's side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal opera-
tion, we recommend that the Kia
floor mat designed for use in
your vehicle be installed.

4159
Features of your vehicle

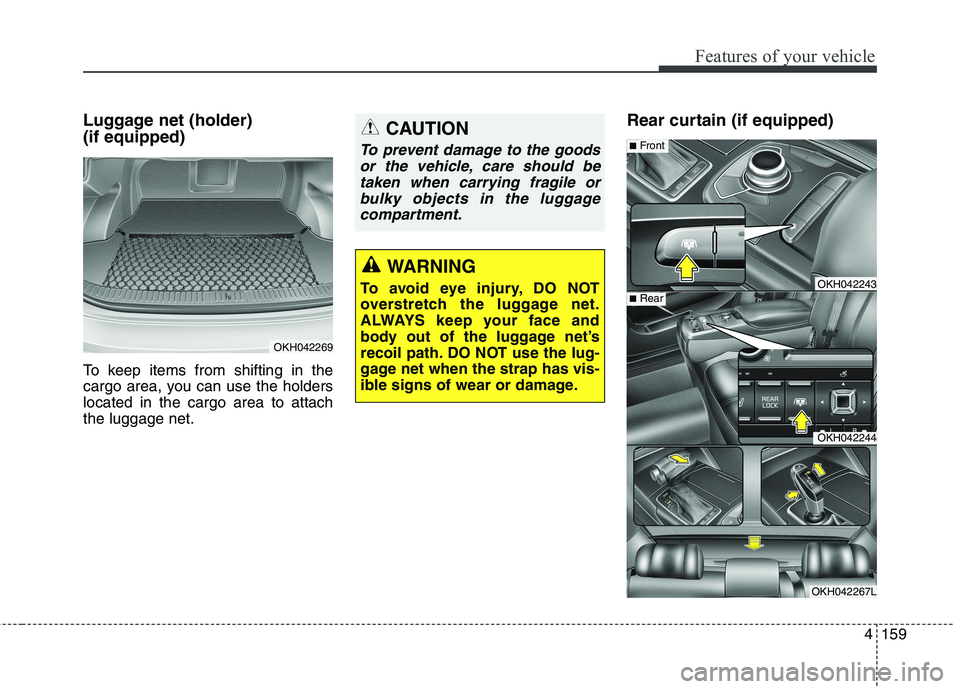

Luggage net (holder) (if equipped)
To keep items from shifting in the
cargo area, you can use the holderslocated in the cargo area to attachthe luggage net.Rear curtain (if equipped)
OKH042269
CAUTION
To prevent damage to the goods
or the vehicle, care should betaken when carrying fragile or bulky objects in the luggagecompartment.
WARNING
To avoid eye injury, DO NOT
overstretch the luggage net.
ALWAYS keep your face and
body out of the luggage net’s
recoil path. DO NOT use the lug-
gage net when the strap has vis-
ible signs of wear or damage.OKH042243
OKH042244
OKH042267L
■ Rear
■Front

Features of your vehicle
160
4
To fold the rear curtain, press the
button. To unfold the rear curtain,
press the button again.
The rear curtain will fold automatical-
ly when you shift the shift lever into R
(Reverse) and unfold automatically
when you shift the shift lever from R
(Reverse) into P (Park).
After the rear curtain is folded by shift-
ing the shift lever into R (Reverse) and
drive more than 20 km/h with the shift
lever in D (Drive), the rear curtain will
unfold automatically.
You can activate or deactivate the
rear curtain button on the rear arm-
rest by using the REAR LOCK button
on the rear armrest or “System
Settings” in AVN(Audio, Video, and
Navigation).
Detailed information for “System
Settings” is described in a separately
supplied manual.
If the rear curtain button has deacti-
vated through AVN, you can reacti-
vate the rear curtain button only
through AVN. Side curtain (if equipped)
To use the side curtain:
1. Lift the curtain by the hook (1).
2. Hang the curtain on both sides of
the hook.
3. Pull the curtain backward by the hook (2).
4. Hang the curtain on the hook.CAUTION
Do not pull or fold the rear cur- tain by hand. It could causemotor failure.
OKH042268

4161
Features of your vehicle
Aux, USB and iPod®
port
If your vehicle has an aux and/or
USB (universal serial bus) port or
iPod ®
port, you can use an aux port
to connect audio devices a USB port
to plug in a USB, and an iPod ®
port to
plug in an iPod ®
.✽✽ NOTICE
When using a portable audio device
connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of the
portable audio device.
❈ iPod ®
is a trademark of Apple Inc. Audio / Video / Navigation sys-
tem (AVN)
Detailed information for the AVN sys-
tem is described in a separately sup-
plied manual.
MULTIMEDIA SYSTEM
OKH042270
OKH042248
OKH042276
■■■■TTTTyyyyppppeeee AAAA
■■■■ TTTTyyyyppppeeee BBBB
