Safety features of your vehicle
6
3
Seatback angle
Push the upper part of the control
switch forward or backward to move
the seatback to the desired angle.
Release the switch once the seatreaches the desired position.
Seat cushion height (if equipped)
Push the front portion of the control
switch up to raise or down to lower
the front part of the seat cushion.
Push the rear portion of the control
switch up to raise or down to lowerthe height of the seat cushion.
Release the switch once the seatreaches the desired position.
Lumbar support (for driver’s seat)
The lumbar support can be adjusted
by pressing the lumbar support
switch. Press the front portion of the
switch (1) to increase support or the
rear portion of the switch (2) to
decrease support.
To move the support position up or
down, press the switch (3) or (4).
Release the switch once the seat reaches the desired position.
OKH032006OKH032007OKH032005
Page 22 of 486

37
Safety features of your vehicle
Driver position memory sys- tem
A driver position memory system is
provided to store and recall the driver
seat, outside rearview mirror and
steering wheel positions with a sim-
ple button operation. By saving thedesired positions into the system
memory, different drivers can reposi-
tion the driver seat, outside rearview
mirror and steering wheel based
upon their driving preference.Storing positions into memoryusing the buttons on the door
Storing driver’s seat positions
1. Shift the shift lever into P while the engine start/stop button is ON.
2. Adjust the driver seat, outside rearview mirror and steering
wheel to positions comfortable for
the driver.
3. Press SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 5 seconds after
pressing the SET button. The sys-tem will beep twice when the
memory has been successfullystored.
OKH042039
WARNING
Never attempt to operate the
driver position memory system
while the vehicle is moving. This could result in loss of con-
trol, and an accident causing
death, serious injury, or property
damage.
Page 23 of 486

Safety features of your vehicle
8
3
Recalling positions from memory
1. Shift the shift lever into P while the
engine start/stop button is ON.
2. To recall the position in memory, press the desired memory button
(1 or 2). The system will beep
once, then the driver seat, outside
rearview mirror and steeringwheel will automatically adjust to
the stored positions.
Adjusting one of the control knobs for
the driver seat, outside rearview mir-
ror and steering wheel while the sys-tem is recalling the stored positions
will cause the movement for that
component to stop and move in thedirection that the control knob is
moved. Other components will con-
tinue to the recalled position.Easy access function
The steering wheel will move away
from the driver and the seat will
move rearward, when the engine
start/stop button is turned to the OFF
position and front driver’s door isopened.
The steering wheel will move toward
the driver and the seat will move for-
ward, when the engine start/stop but-
ton is turned to the ACC position or
when you insert the smart key into
the smart key holder with the shift
lever in the P position.
✽✽ NOTICE
You can activate or deactivate the
easy access function in the instru-
ment cluster.
If you want detailed informations,
refer to the chapter 4.
Headrest-front
The driver's and front passenger's seats are equipped with a headrest
for the occupant's safety and com-
for t.
The headrest not only provides com-
fort for the driver and front passen-
ger, but also helps to protect the
head and neck in the event of a colli-sion.
WARNING
Use caution when recalling
adjustment memory while sit-
ting in the vehicle. Push the seat
position control knob to the
desired position immediately if
the seat moves too far in anydirection.
OBH038075L

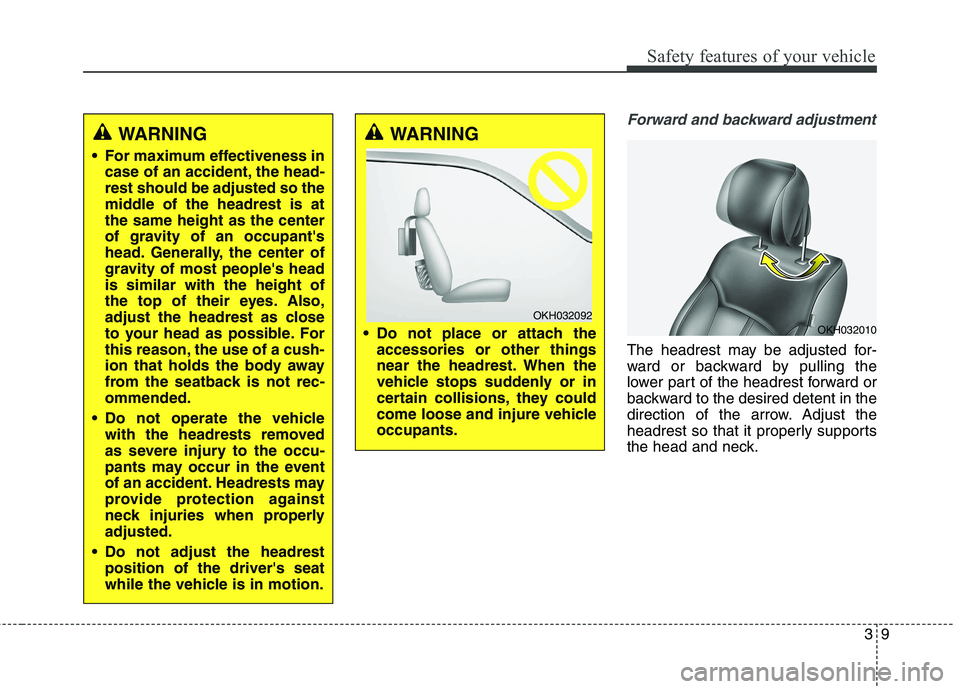

Page 24 of 486

39
Safety features of your vehicle
Forward and backward adjustment
The headrest may be adjusted for-
ward or backward by pulling the
lower part of the headrest forward or
backward to the desired detent in the
direction of the arrow. Adjust the
headrest so that it properly supports
the head and neck.
WARNING
For maximum effectiveness in case of an accident, the head- rest should be adjusted so the
middle of the headrest is atthe same height as the center
of gravity of an occupant's
head. Generally, the center of
gravity of most people's headis similar with the height of
the top of their eyes. Also,
adjust the headrest as close
to your head as possible. For
this reason, the use of a cush-
ion that holds the body away
from the seatback is not rec-ommended.
Do not operate the vehicle with the headrests removed
as severe injury to the occu-
pants may occur in the event
of an accident. Headrests may
provide protection against
neck injuries when properlyadjusted.
Do not adjust the headrest position of the driver's seat
while the vehicle is in motion.WARNING
Do not place or attach the accessories or other things
near the headrest. When the
vehicle stops suddenly or in
certain collisions, they could
come loose and injure vehicleoccupants.
OKH032092OKH032010
Page 25 of 486

Safety features of your vehicle
10
3
Adjusting the height up and down
- manual
To raise the headrest, pull it up to the
desired position (1). To lower theheadrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desiredposition (3).
Removal and installation - manual
To remove the headrest, raise it as far as it can go then press the release
button (1) while pulling upward (2).
To reinstall the headrest, put the headrest poles (3) into the holes
while pressing the release button (1).
Then adjust it to the appropriateheight.
Adjusting the height up and down- power
Push the control switch up to raise or
down to lower the headrest. Release
the switch once the headrest reach-es the desired position.
OKH032008OKH032009OKH032011
Page 26 of 486

311
Safety features of your vehicle
Removal - power
To remove the headrest, raise it as
far as it can go by pulling the switchup (1) then pull the headrest up (2).
To reinstall the headrest, put the headrest poles (3) into the holes
then pull the switch down (4) until the
headrest move to the lowest position.
To install the headrest securely,
move the headrest up and down 2 or
3 times by pulling the switch up and
down.
Electronic active headrest
The electronic active headrest is
designed to trigger the headrest for-
ward and upward when impact sen-
sor detects a rear impact. This helps
to prevent the driver's and front pas-
senger’s heads from moving back-
ward and thus helps minimize neck
injuries.
OKH032012
WARNING
If you don't install the headrest
securely, the active headrest
may not operate normally. When
reinstalling the headrest, install
it securely as procedures.
OBH038069
WARNING
Do not operate the vehicle with
the headrests removed as
severe injury to the occupants
may occur in the event of an
accident. Headrests may pro-
vide protection against neck
injuries when properly adjusted.
WARNING
Make sure the headrest locks in position after adjusting it to
properly protect the occupants.
CAUTION
The active headrest is a safety device to reduce injuries from arear impact. Do not hit or pull the headrest intentionally.
Page 27 of 486

Safety features of your vehicle
12
3
Rear seat adjustment
The rear seat can be adjusted by
using the control switches located on
the door.Forward, backward and seatback
angle (for power seat)
Push the control switch forward or
backward to move the seat to the
desired position. Release the switchonce the seat reaches the desiredposition.
WARNING
The power seat is operable with
the engine start/stop button in
OFF.
Therefore, children should never
be left unattended in the vehicle.
CAUTION
The power seat is driven by an electric motor. Stop operatingonce the adjustment is com-pleted. Excessive operationmay damage the electrical equipment.
When in operation, the power seat consumes a large amountof electrical power. To preventunnecessary charging system drain, don’t adjust the powerseat longer than necessarywhile the engine is not running.
(Continued)
(Continued)
Do not operate two or more power seat control switches atthe same time. Doing so may result in power seat motor orelectrical component malfunc-tion.
WARNING
Use extreme caution so that hands or other objects are not
caught in the seat mechanisms
while the seat is moving. Do not adjust the seat while
wearing seat belts. Moving the
seat cushion forward may
cause strong pressure on theabdomen.
WARNING
Do not operate the rear power
seat while the child seat isinstalled.
OKH032035
Page 28 of 486

313
Safety features of your vehicle
Easy access switch (for power seat)
Your vehicle features easy access
system to provide convenient access
for rear passengers. When opening
the rear door, the rear seats will
move rearward automatically to
make passenger get off easily. This
easy access system will operate only
when the control switch is in "ON"position.
Additional switches for adjustingthe front passenger seat
Front passenger’s seat
The switch is located on the left side
of the front passenger’s seatback.
To adjust the position of front pas-
senger’s seat ;
Press the control switch forward (1)
or rearward (2)to move the seat tothe desired position.
Press the control switch forward (3)
or rearward (4) to move the seatback
to the desired angle.
Do not use these switches while the front passenger seat is occupied. Rear seat - for fixed type
The switch is located in the armrest of the rear seat.
To adjust the position of front pas-
senger’s seat ;
Press the control switch forward (1)
or rearward (2)to move the seat tothe desired position.
Press the control switch forward (3)
or rearward (4) to move the seatback
to the desired angle.
Do not use these switches while the front passenger seat is occupied.
OKH032036OKH032022
■
Front passenger’s seat
OKH032023
■ Rear seat (fixed type)
Page 29 of 486

Safety features of your vehicle
14
3
Rear relaxation seat system
(for rear right passenger’s seat) (for power type)
The rear relaxation seat system pro-
vides the passenger’s comfort.
The front passenger seat will move
forward and the seatback will fold for-
ward to provide space. The rear right
side passenger seat seatback will
lean towards the back of the vehicle.
But if the front passenger’s side door is opened, the rear relaxation seat
system will not operate. Front passenger side walk-in seat
Press and hold the switch (1).
The seat will move forward and the
seatback will fold automatically. After
the operation is completed, a beep
will sound once.
Press and hold the switch (2).
The seat and seatback will move to
its standard position. After the opera-tion is completed, a beep will sound
once. If the seat reaches the desired posi-
tion, release the switch.Rear relaxation seat system
Press and hold the switch (3).
The front passenger seat will move
forward and the seatback will fold
automatically. Then the rear right
side passenger seat seatback will
lean towards the back of the vehicle.
After the operation is completed, a
beep will sound once.
Press and hold the switch (4). The front passenger seat and the
rear right side passenger seat will
move to its standard position. After
the operation is completed, a beepwill sound. If the seat reaches the desired posi-
tion, release the switch.
OVI039062OKH032077
OKH032037
■
Rear seat (power)
Page 30 of 486

315
Safety features of your vehicle
Lumbar support
The lumbar support can be adjusted
by pushing the lumbar support
switch.
Push the lever to left side(1) increase
support or push the lever to the right
side (2) to decrease support.
To move the support position up or
down,
push the lever upside (3) or down side(4).
Armrest
To use the armrest, pull it forward
from the seatback.
Carrying long / narrow cargo (for fixed seat)
Additional cargo space is provided to
accommodate long/narrow cargo
(skis, poles, etc.) not able to fit prop-
erly in the trunk when closed.
1. Pull the armrest down.
2. Pull the cover down while pushing the release lever down.
OKH032032OKH032027
OKH032076
