KIA QUORIS 2015 Owners Manual

Maintenance
64
7

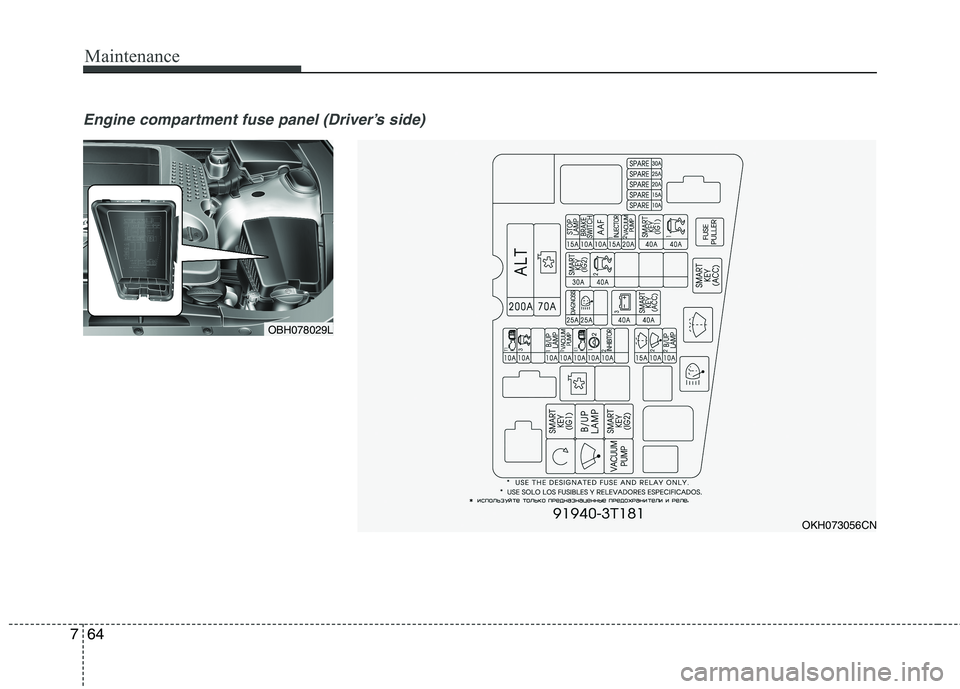

Engine compartment fuse panel (Driver’s side)
OBH078029L
OKH073056CN

765
Maintenance

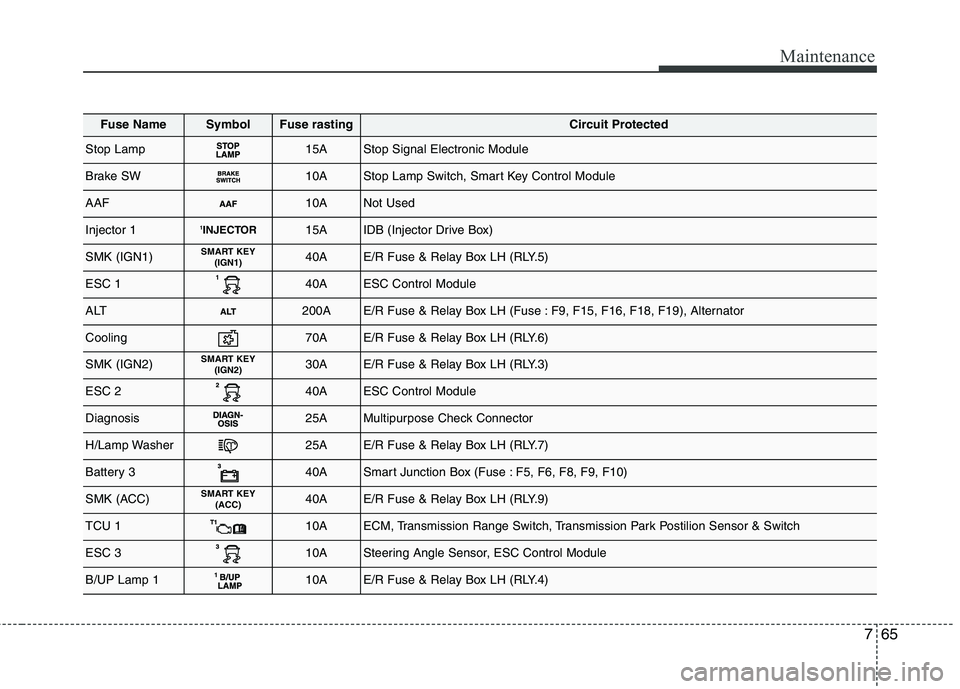

Fuse NameSymbolFuse rastingCircuit Protected
Stop Lamp15AStop Signal Electronic Module
Brake SW10AStop Lamp Switch, Smart Key Control Module
AAF10ANot Used
Injector 11INJECTOR15AIDB (Injector Drive Box)
SMK (IGN1)SMART KEY
(IGN1)40AE/R Fuse & Relay Box LH (RLY.5)
ESC 140AESC Control Module
ALT200AE/R Fuse & Relay Box LH (Fuse : F9, F15, F16, F18, F19), Alternator
Cooling70AE/R Fuse & Relay Box LH (RLY.6)
SMK (IGN2)SMART KEY(IGN2)30AE/R Fuse & Relay Box LH (RLY.3)
ESC 240AESC Control Module
Diagnosis25AMultipurpose Check Connector
H/Lamp Washer25AE/R Fuse & Relay Box LH (RLY.7)
Battery 340ASmart Junction Box (Fuse : F5, F6, F8, F9, F10)
SMK (ACC)SMART KEY (ACC)40AE/R Fuse & Relay Box LH (RLY.9)
TCU 110AECM, Transmission Range Switch, Transmission Park Postilion Sensor & Switch
ESC 310ASteering Angle Sensor, ESC Control Module
B/UP Lamp 110AE/R Fuse & Relay Box LH (RLY.4)

Maintenance
66
7

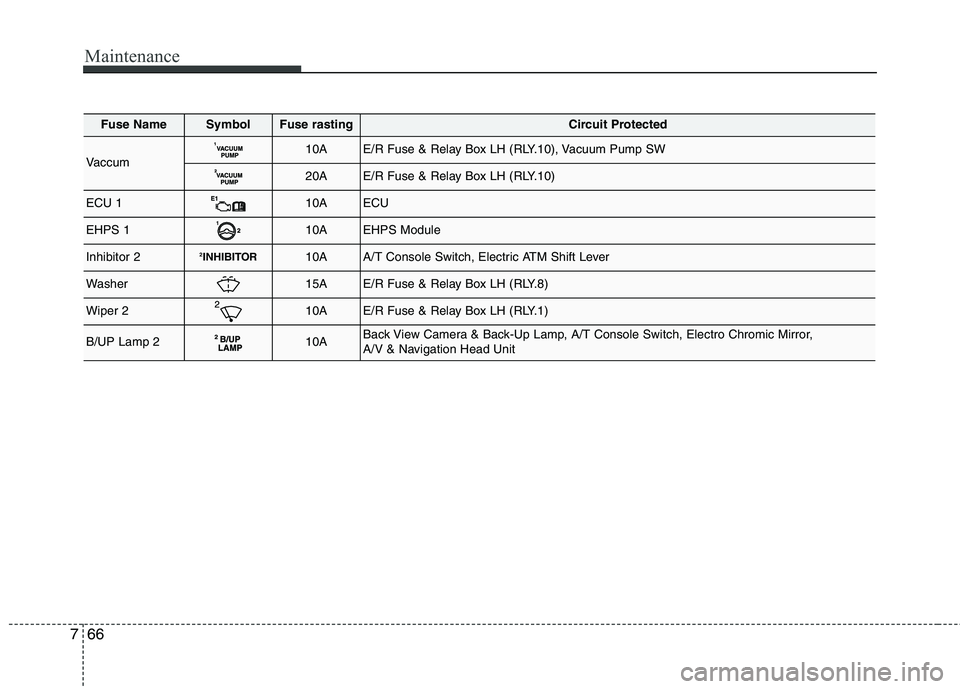

Fuse NameSymbolFuse rastingCircuit Protected
Vaccum10AE/R Fuse & Relay Box LH (RLY.10), Vacuum Pump SW
20AE/R Fuse & Relay Box LH (RLY.10)
ECU 110AECU
EHPS 110AEHPS Module
Inhibitor 22
INHIBITOR10AA/T Console Switch, Electric ATM Shift Lever
Washer15AE/R Fuse & Relay Box LH (RLY.8)
Wiper 210AE/R Fuse & Relay Box LH (RLY.1)
B/UP Lamp 210ABack View Camera & Back-Up Lamp, A/T Console Switch, Electro Chromic Mirror,
A/V & Navigation Head Unit

767
Maintenance

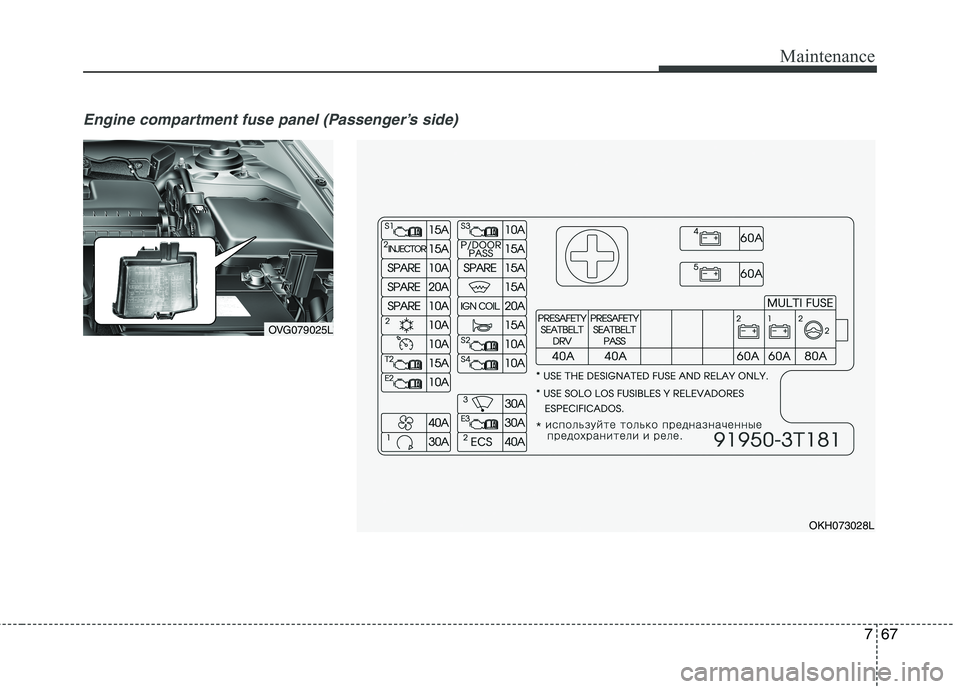

Engine compartment fuse panel (Passenger’s side)
OVG079025L
OKH073028L

Maintenance
68
7

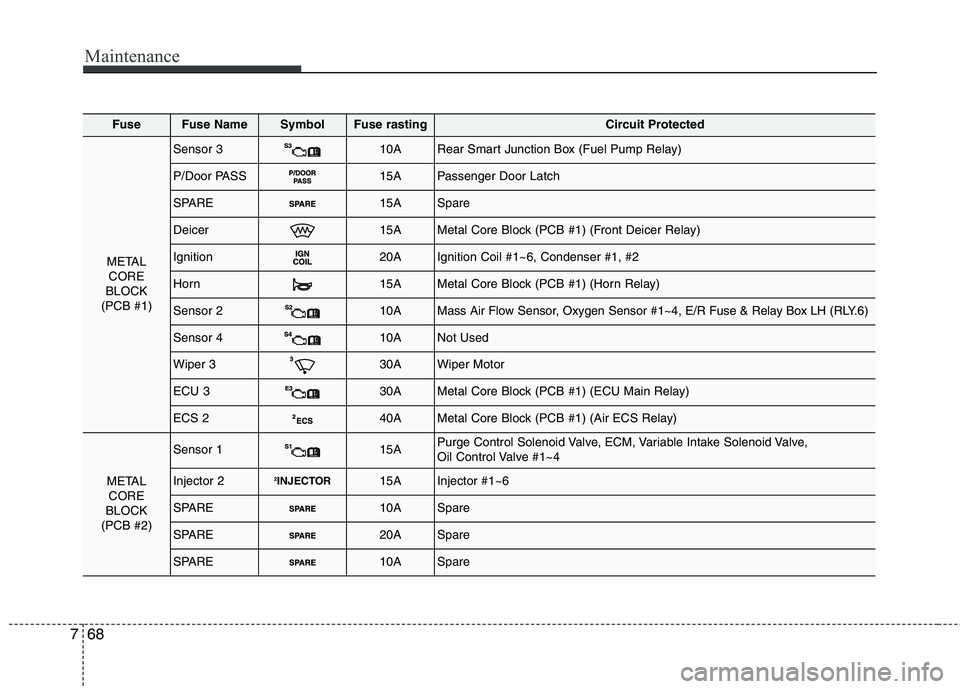

FuseFuse NameSymbolFuse rastingCircuit Protected
METAL
CORE
BLOCK
(PCB #1)
Sensor 310ARear Smart Junction Box (Fuel Pump Relay)
P/Door PASS15APassenger Door Latch
SPARE15ASpare
Deicer15AMetal Core Block (PCB #1) (Front Deicer Relay)
Ignition20AIgnition Coil #1~6, Condenser #1, #2
Horn15AMetal Core Block (PCB #1) (Horn Relay)
Sensor 210AMass Air Flow Sensor, Oxygen Sensor #1~4, E/R Fuse & Relay Box LH (RLY.6)
Sensor 410ANot Used
Wiper 330AWiper Motor
ECU 330AMetal Core Block (PCB #1) (ECU Main Relay)
ECS 240AMetal Core Block (PCB #1) (Air ECS Relay)
METAL CORE
BLOCK
(PCB #2)
Sensor 115APurge Control Solenoid Valve, ECM, Variable Intake Solenoid Valve,
Oil Control Valve #1~4
Injector 22 INJECTOR15AInjector #1~6
SPARE10ASpare
SPARE20ASpare
SPARE10ASpare

769
Maintenance

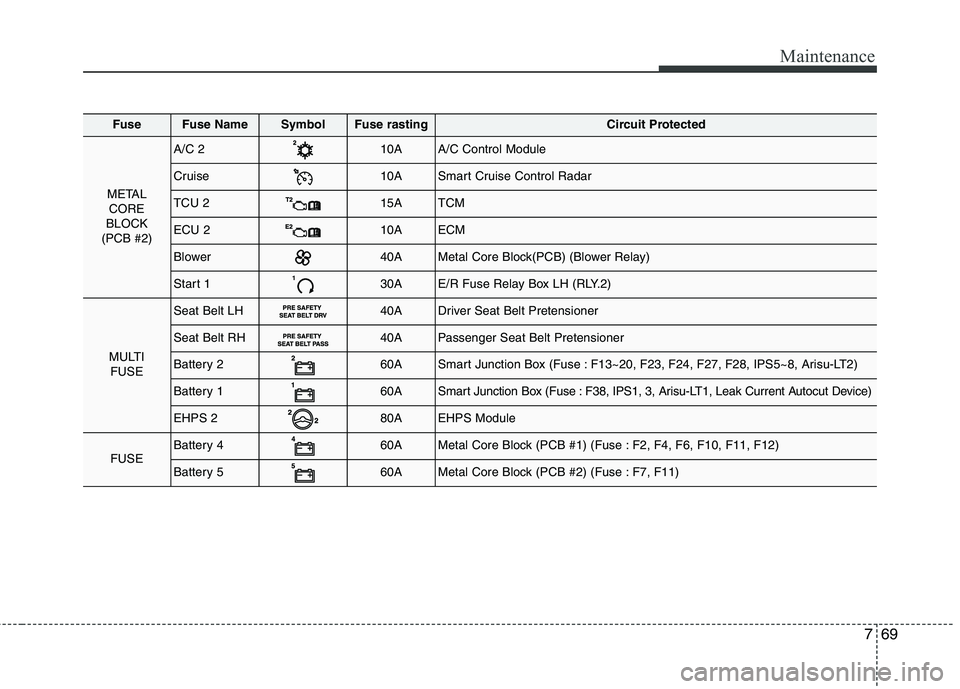

FuseFuse NameSymbolFuse rastingCircuit Protected
METALCORE
BLOCK
(PCB #2)
A/C 210AA/C Control Module
Cruise10ASmart Cruise Control Radar
TCU 215ATCM
ECU 210AECM
Blower40AMetal Core Block(PCB) (Blower Relay)
Start 130AE/R Fuse Relay Box LH (RLY.2)
MULTI FUSE
Seat Belt LH40ADriver Seat Belt Pretensioner
Seat Belt RH40APassenger Seat Belt Pretensioner
Battery 260ASmart Junction Box (Fuse : F13~20, F23, F24, F27, F28, IPS5~8, Arisu-LT2)
Battery 160ASmart Junction Box (Fuse : F38, IPS1, 3, Arisu-LT1, Leak Current Autocut Device)
EHPS 280AEHPS Module
FUSEBattery 460AMetal Core Block (PCB #1) (Fuse : F2, F4, F6, F10, F11, F12)
Battery 560AMetal Core Block (PCB #2) (Fuse : F7, F11)

Maintenance
70
7

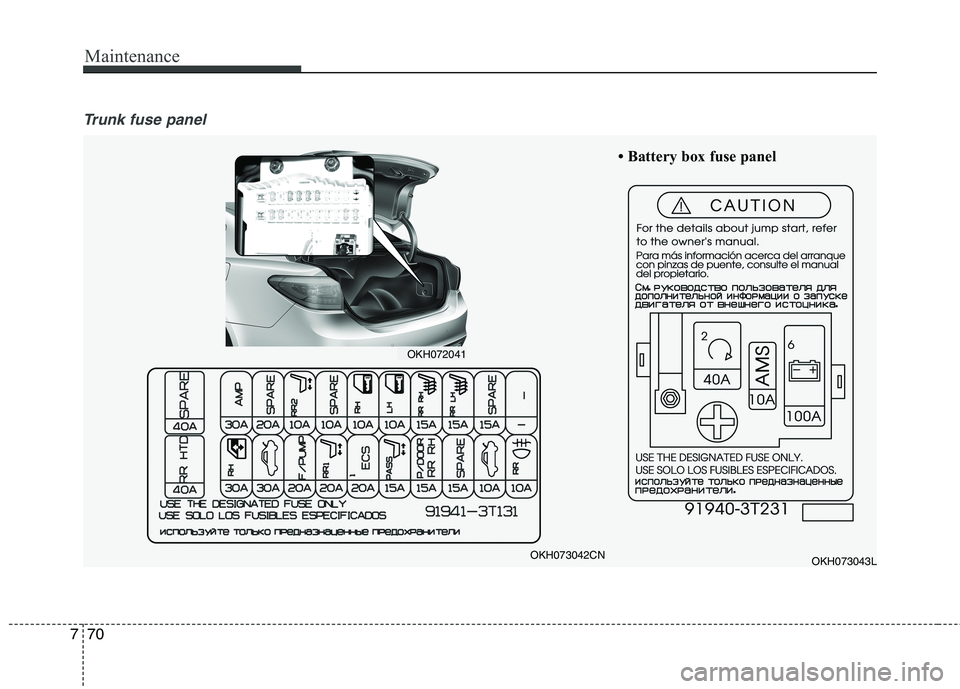

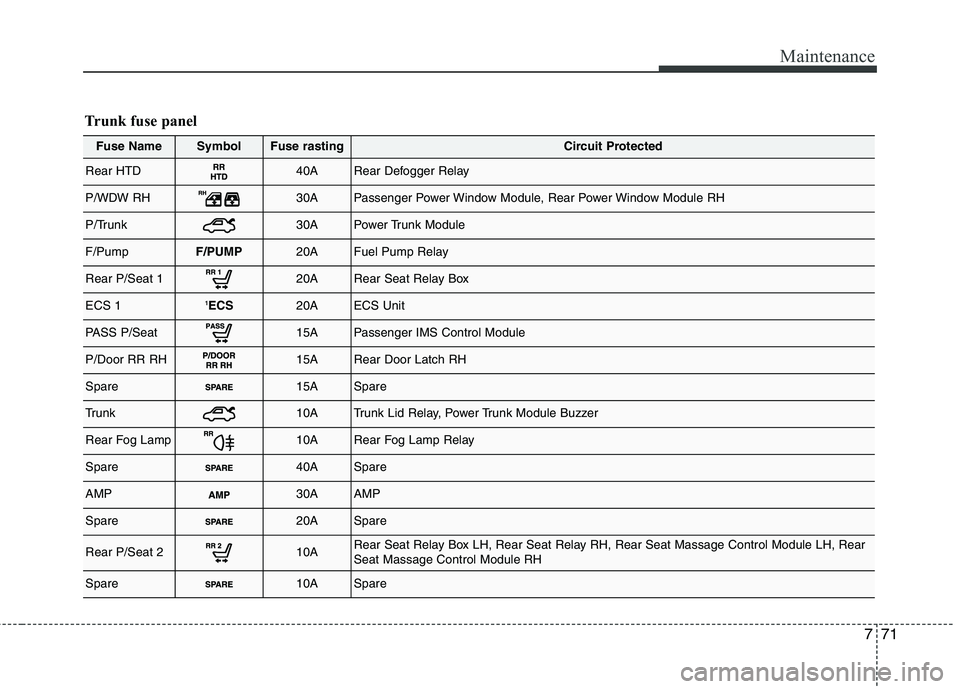

Trunk fuse panel
OKH073043L
 Battery box fuse panelOKH073042CN
OKH072041

771
Maintenance
Fuse NameSymbolFuse rastingCircuit Protected
Rear HTD40ARear Defogger Relay
P/WDW RH30APassenger Power Window Module, Rear Power Window Module RH
P/Trunk30APower Trunk Module
F/PumpF/PUMP20AFuel Pump Relay
Rear P/Seat 120ARear Seat Relay Box
ECS 11ECS20AECS Unit
PASS P/Seat15APassenger IMS Control Module
P/Door RR RH15ARear Door Latch RH
Spare15ASpare
Trunk10ATrunk Lid Relay, Power Trunk Module Buzzer
Rear Fog Lamp10ARear Fog Lamp Relay
Spare40ASpare
AMP30AAMP
Spare20ASpare
Rear P/Seat 210ARear Seat Relay Box LH, Rear Seat Relay RH, Rear Seat Massage Control Module LH, Rear Seat Massage Control Module RH
Spare10ASpare
Trunk fuse panel

Maintenance
72
7

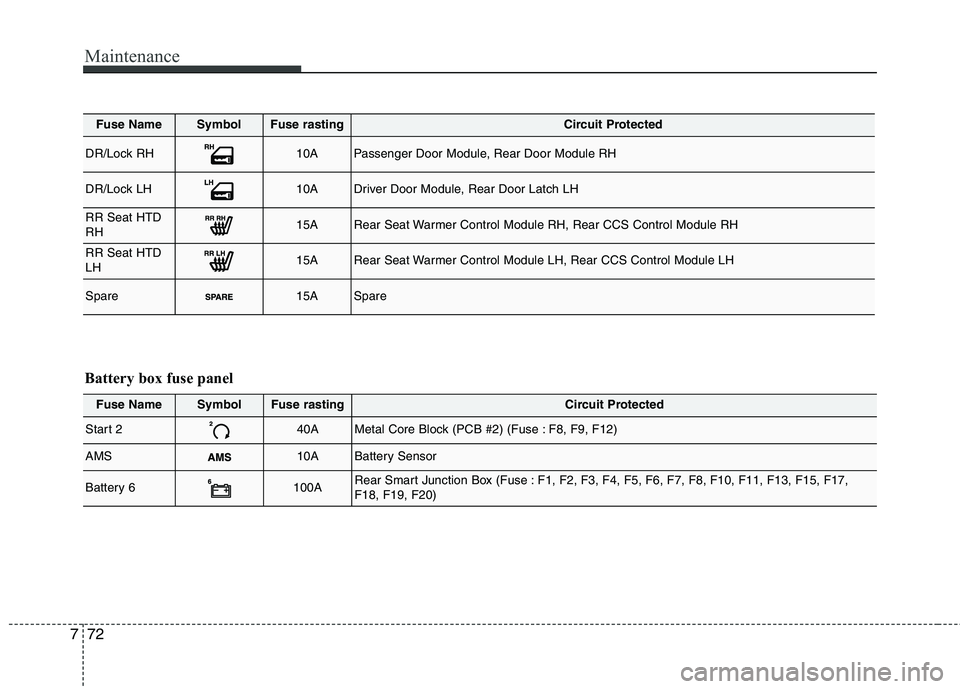

Fuse NameSymbolFuse rastingCircuit Protected
DR/Lock RH10APassenger Door Module, Rear Door Module RH
DR/Lock LH10ADriver Door Module, Rear Door Latch LH
RR Seat HTD RH15ARear Seat Warmer Control Module RH, Rear CCS Control Module RH
RR Seat HTD LH15ARear Seat Warmer Control Module LH, Rear CCS Control Module LH
Spare15ASpare
Fuse NameSymbolFuse rastingCircuit Protected
Start 240AMetal Core Block (PCB #2) (Fuse : F8, F9, F12)
AMS10ABattery Sensor
Battery 6100ARear Smart Junction Box (Fuse : F1, F2, F3, F4, F5, F6, F7, F8, F10, F11, F13, F15, F17, F18, F19, F20)
Battery box fuse panel

773
Maintenance

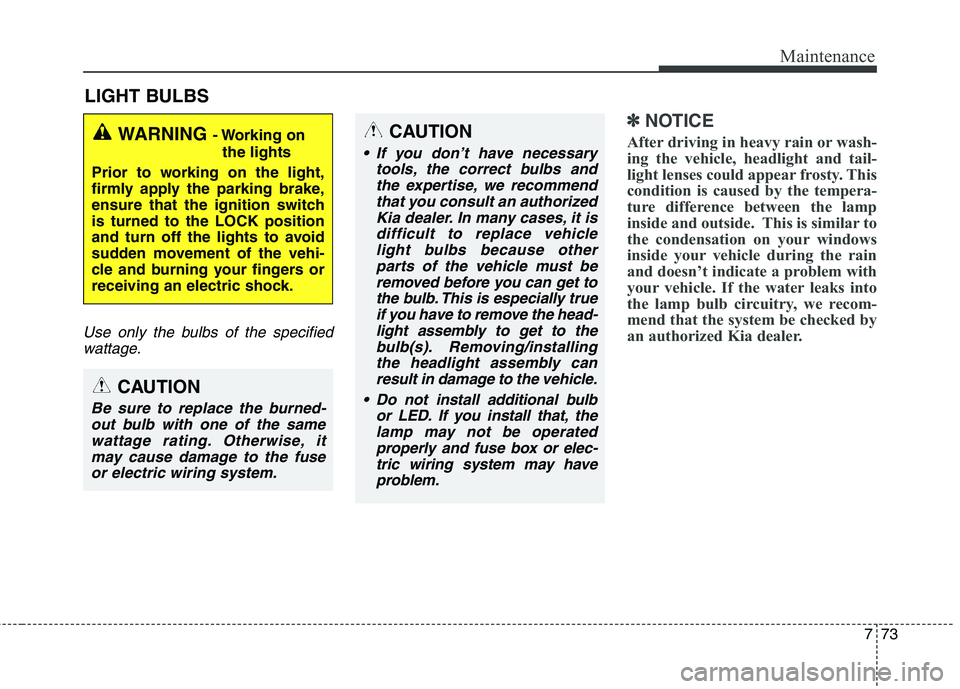

LIGHT BULBS
Use only the bulbs of the specifiedwattage.
✽✽ NOTICE
After driving in heavy rain or wash-
ing the vehicle, headlight and tail-
light lenses could appear frosty. This
condition is caused by the tempera-
ture difference between the lamp
inside and outside. This is similar to
the condensation on your windows
inside your vehicle during the rain
and doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, we recom-
mend that the system be checked by
an authorized Kia dealer.WARNING - Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switchis turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, it may cause damage to the fuseor electric wiring system.
CAUTION
If you don’t have necessary tools, the correct bulbs andthe expertise, we recommend that you consult an authorizedKia dealer. In many cases, it isdifficult to replace vehicle light bulbs because otherparts of the vehicle must beremoved before you can get to the bulb. This is especially trueif you have to remove the head-light assembly to get to the bulb(s). Removing/installingthe headlight assembly canresult in damage to the vehicle.
Do not install additional bulb or LED. If you install that, thelamp may not be operatedproperly and fuse box or elec-tric wiring system may have problem.
