KIA QUORIS 2017 Owners Manual

89
Specifications & Consumer information

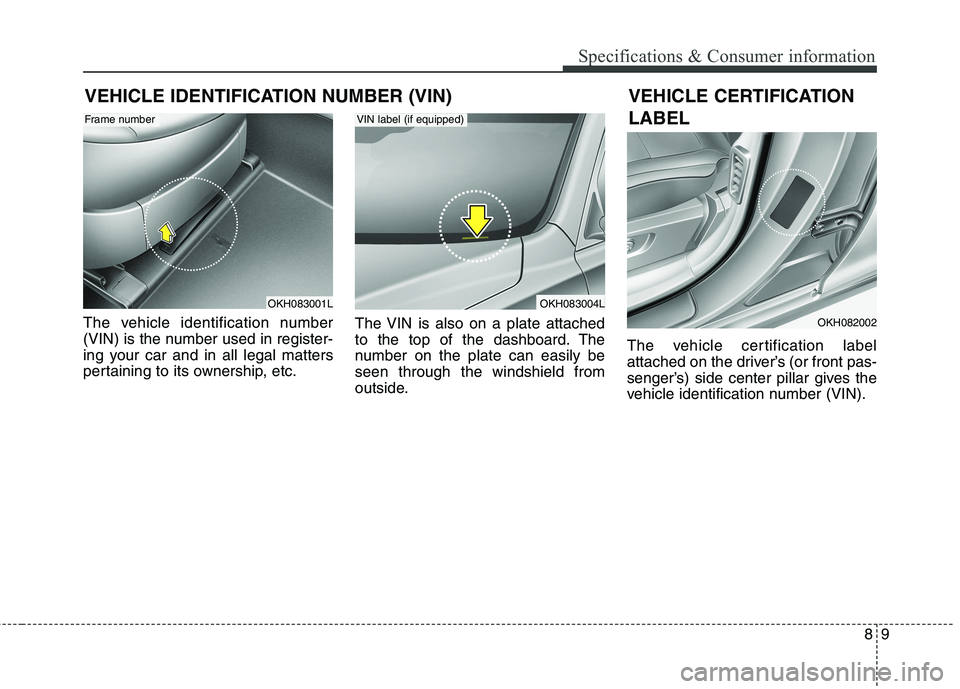

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windshield from
outside.
The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side center pillar gives the
vehicle identification number (VIN).
OKH083001LOKH083004L
VIN label (if equipped)Frame number
OKH082002
VEHICLE CERTIFICATION LABEL

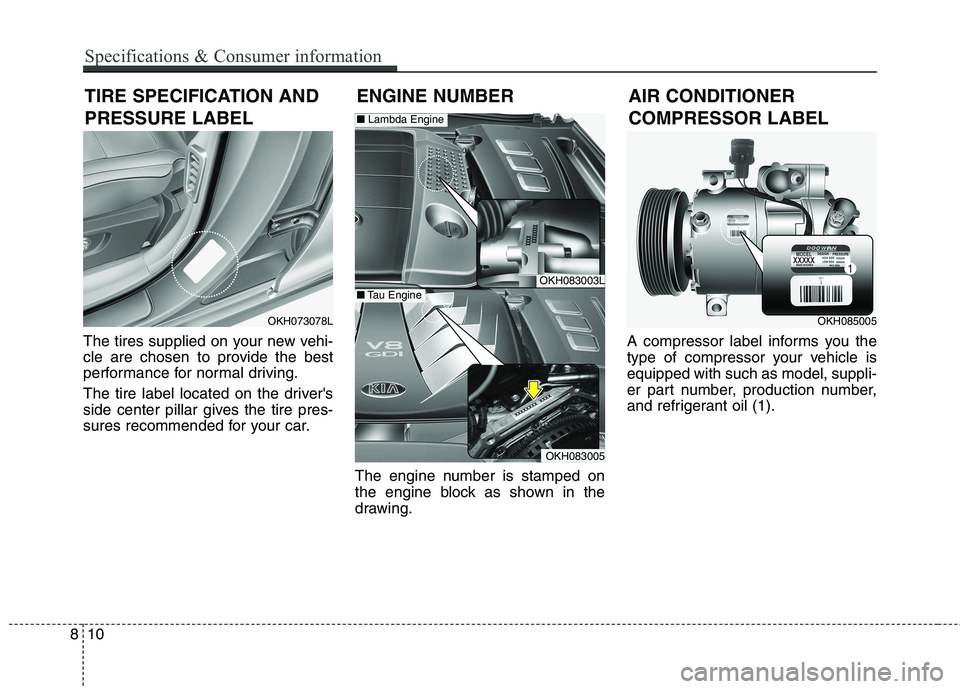

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.A compressor label informs you the
type of compressor your vehicle isequipped with such as model, suppli-
er part number, production number,
and refrigerant oil (1).
TIRE SPECIFICATION AND PRESSURE LABEL
OKH073078L
ENGINE NUMBER AIR CONDITIONER
COMPRESSOR LABELOKH085005
810
Specifications & Consumer information
OKH083003L
OKH083005
■Lambda Engine
■Tau Engine

811
Specifications & Consumer information

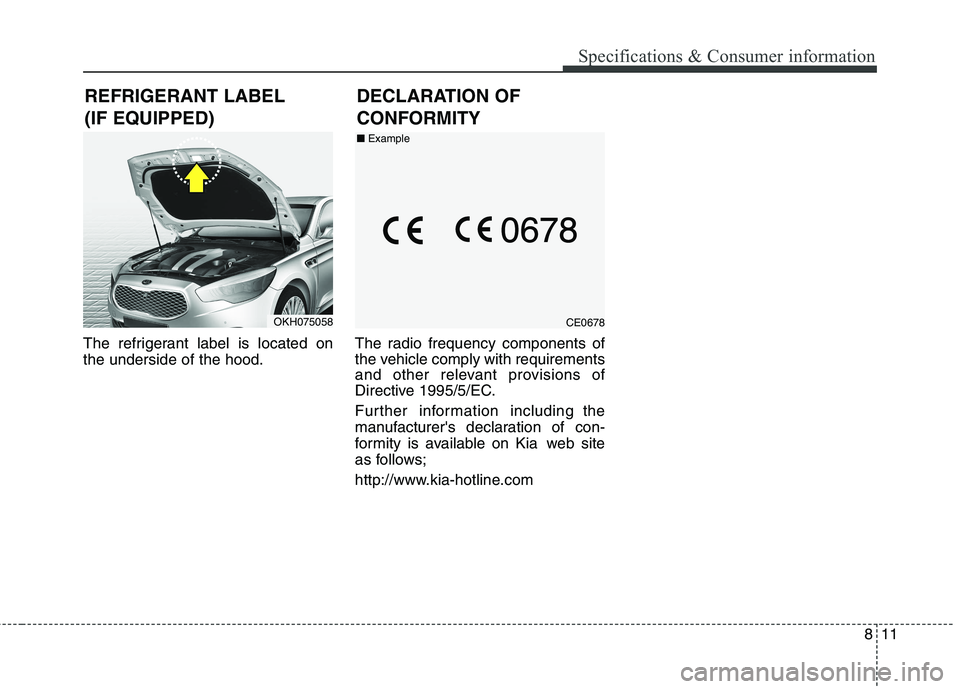

The refrigerant label is located on the underside of the hood.The radio frequency components of
the vehicle comply with requirements
and other relevant provisions of
Directive 1995/5/EC.
Further information including the
manufacturer's declaration of con-
formity is available on Kia web site
as follows;
http://www.kia-hotline.com
OKH075058DECLARATION OF CONFORMITYCE0678
■
Example
REFRIGERANT LABEL
(IF EQUIPPED)

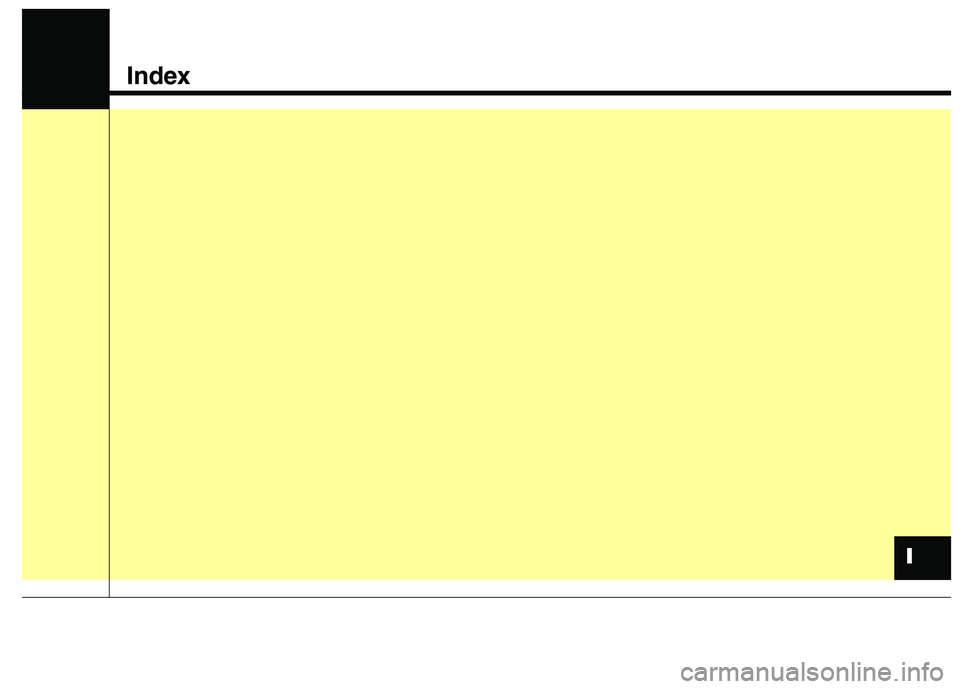

Index
II

Index
2
I

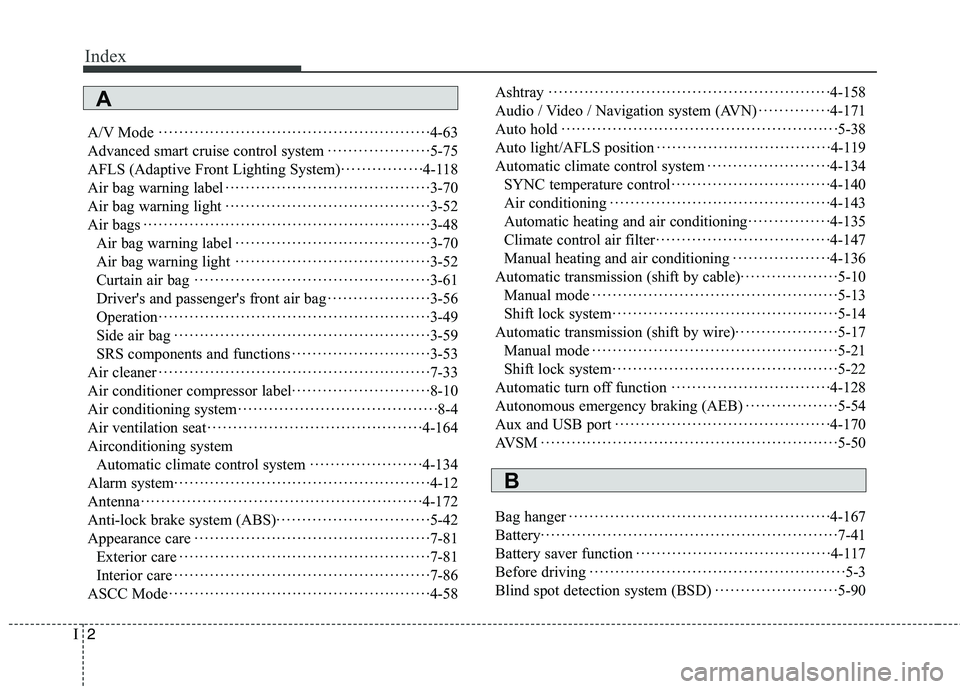

A/V Mode

I3
Index
Bluetooth ®
Wireless Technology hands-free

Index
4
I
Display illumination, see instrument panel illumination

I5
Index

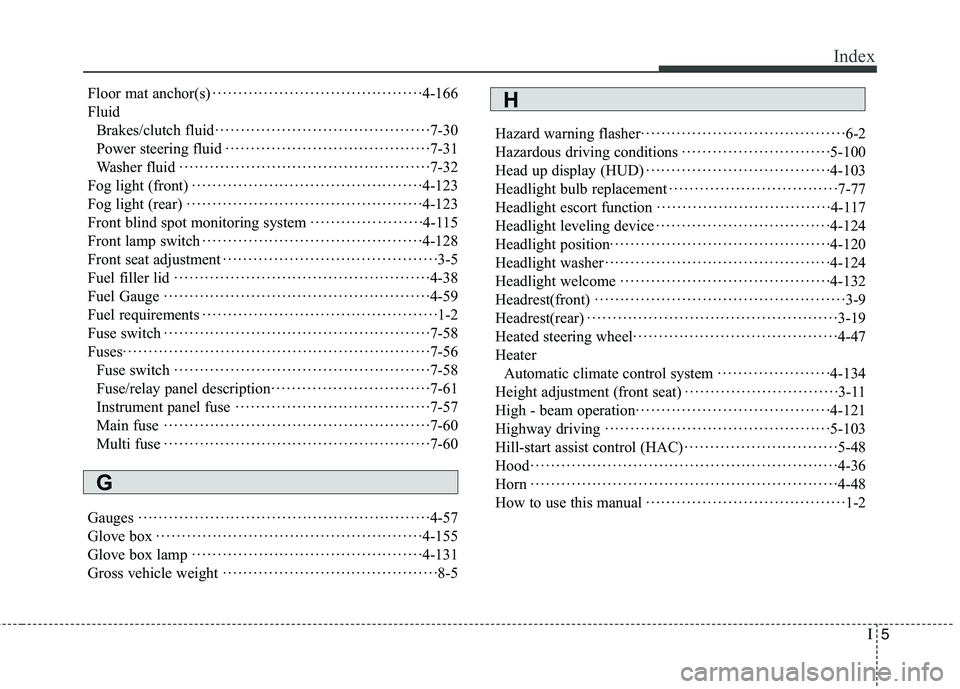

Floor mat anchor(s)

Index
6
I

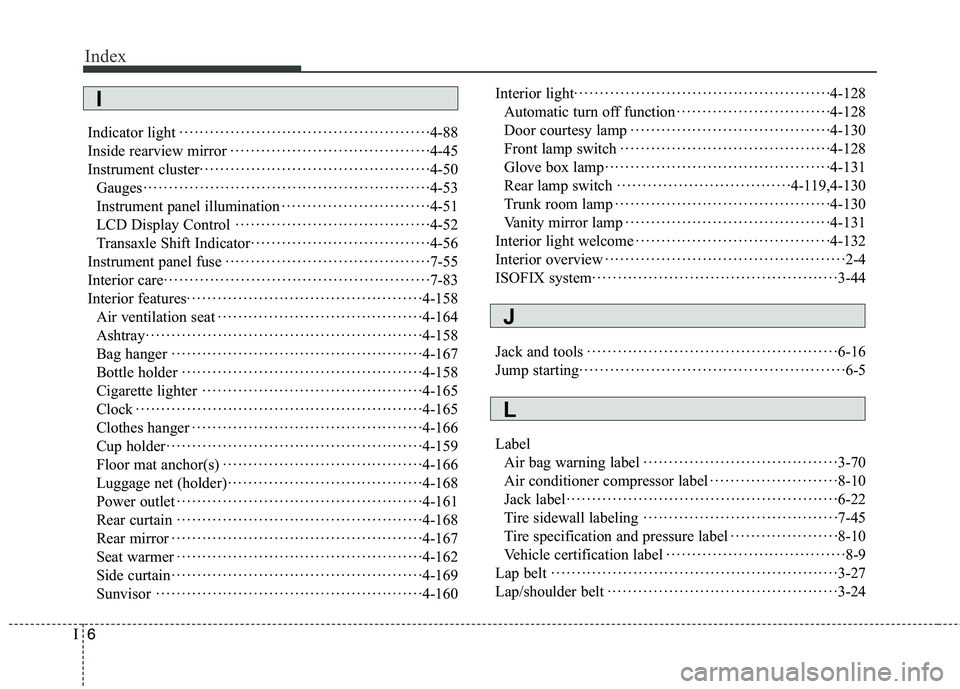

Indicator light

I7
Index
LCD display
