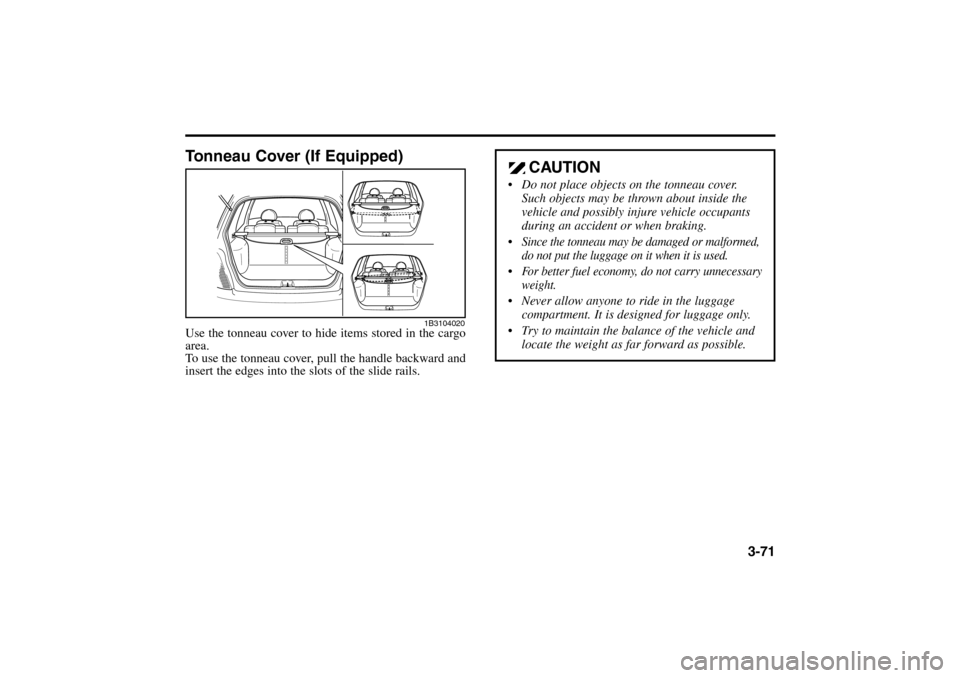

Tonneau Cover (If Equipped)Use the tonneau cover to hide items stored in the cargo
area.
To use the tonneau cover, pull the handle backward and
insert the edges into the slots of the slide rails.
CAUTION
 Do not place objects on the tonneau cover.
Such objects may be thrown about inside the
vehicle and possibly injure vehicle occupants
during an accident or when braking.

Since the tonneau may be damaged or malformed,
do not put the luggage on it when it is used.

For better fuel economy, do not carry unnecessary
weight.
 Never allow anyone to ride in the luggage
compartment. It is designed for luggage only.
 Try to maintain the balance of the vehicle and
locate the weight as far forward as possible.
1B3104020
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 71

4-1

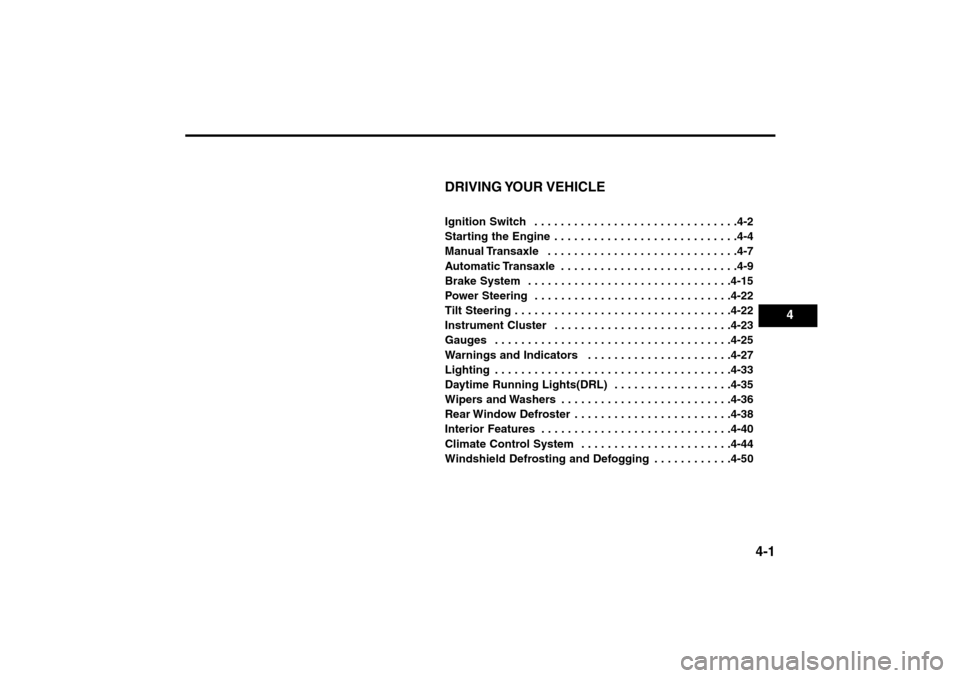

DRIVING YOUR VEHICLEIgnition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Manual Transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Automatic Transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
Brake System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-15
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-22
Tilt Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-22
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . .4-23
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-25
Warnings and Indicators . . . . . . . . . . . . . . . . . . . . . .4-27
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-33
Daytime Running Lights(DRL) . . . . . . . . . . . . . . . . . .4-35
Wipers and Washers . . . . . . . . . . . . . . . . . . . . . . . . . .4-36
Rear Window Defroster . . . . . . . . . . . . . . . . . . . . . . . .4-38
Interior Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-40
Climate Control System . . . . . . . . . . . . . . . . . . . . . . .4-44
Windshield Defrosting and Defogging . . . . . . . . . . . .4-50
4
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 1

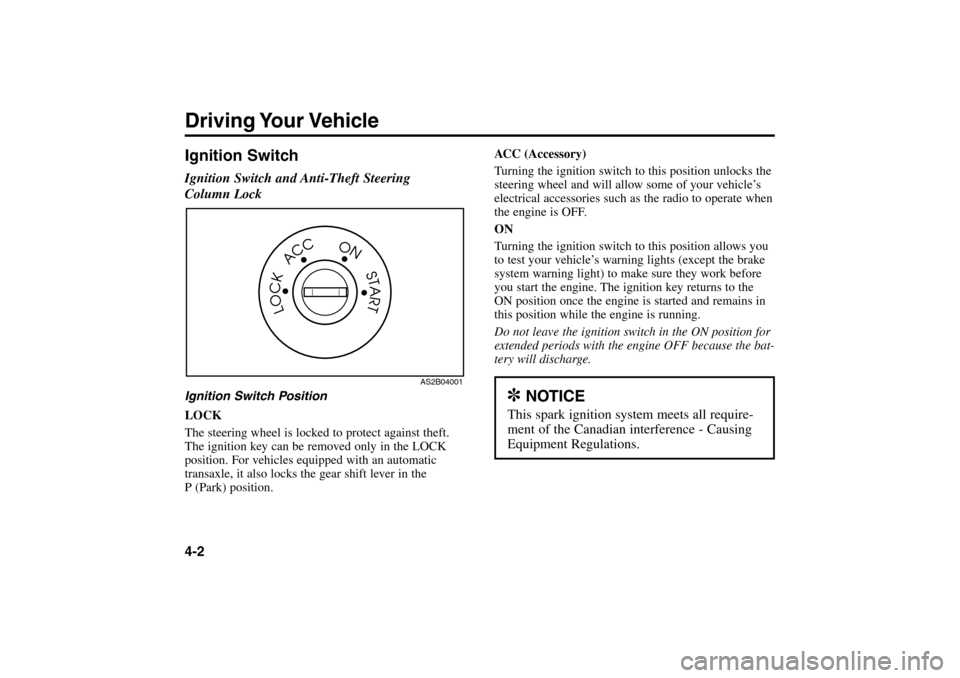

Ignition SwitchIgnition Switch and Anti-Theft Steering
Column LockIgnition Switch Position
LOCK
The steering wheel is locked to protect against theft.
The ignition key can be removed only in the LOCK
position. For vehicles equipped with an automatic
transaxle, it also locks the gear shift lever in the
P (Park) position.
ACC (Accessory)
Turning the ignition switch to this position unlocks the
steering wheel and will allow some of your vehicle’s
electrical accessories such as the radio to operate when
the engine is OFF.
ON
Turning the ignition switch to this position allows you
to test your vehicle’s warning lights (except the brake
system warning light) to make sure they work before
you start the engine. The ignition key returns to the
ON position once the engine is started and remains in
this position while the engine is running.
Do not leave the ignition switch in the ON position for
extended periods with the engine OFF because the bat-
tery will discharge.
Driving Your Vehicle4-2
AS2B04001
✽
NOTICE
This spark ignition system meets all require-
ment of the Canadian interference - Causing
Equipment Regulations.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 2

START
Turn the ignition key to the START position to start the
engine. The engine will crank until you release the key,
then it returns to the ON position. Also, the brake
warning indicator illuminates to check the bulb in this
position.
Difficulty in turning the ignition key to the START posi-
tion can be caused by pressure on the switch from the
steering column. To allow the ignition key to turn,
move the steering wheel right or left to release the ten-
sion and then turn the key.
Automatic Transaxle
When turning the ignition switch to the LOCK posi-
tion, the shift lever must be in the P (Park) position.
Manual Transaxle
When turning the ignition switch to the LOCK posi-
tion, push the key inward at the ACC position and turn
the key toward the LOCK position.
4-3
WARNING
• Never turn the ignition switch to LOCK or
ACC while the vehicle is moving. This could
result in loss of directional control and
braking function, which could cause an
immediate accident.
 Never reach for the ignition switch, or any
other controls, through the steering wheel
while the vehicle is in motion. Failure to
observe this warning can result in loss of
vehicle steering and braking control, which
may result in an accident.
✽
NOTICE
For safety, the engine will not start if the
clutch pedal is not depressed fully on manual
transaxle equipped models.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 3

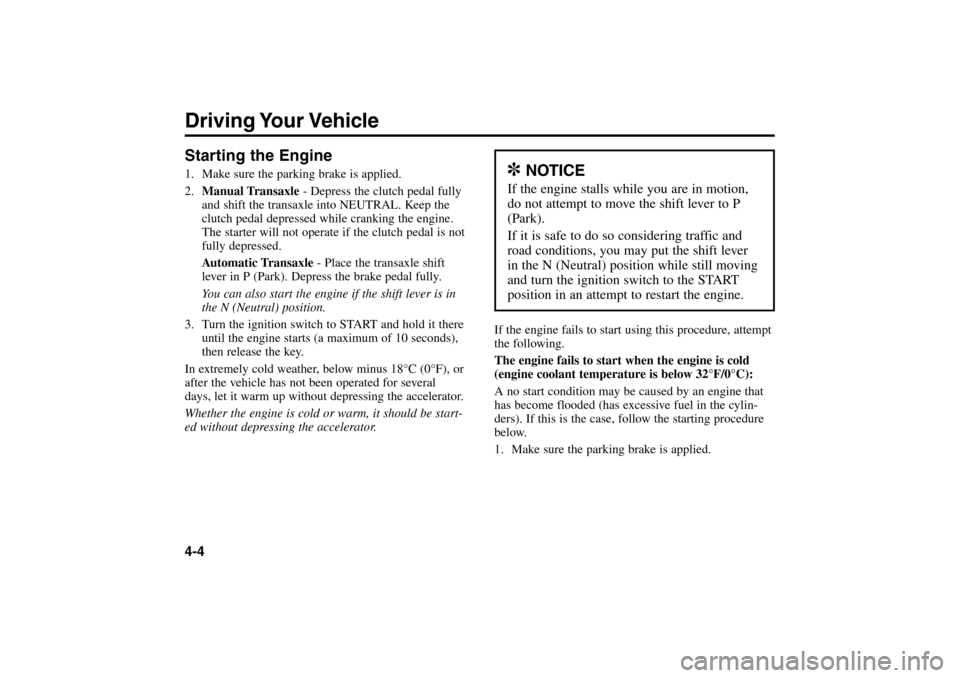

Starting the Engine1. Make sure the parking brake is applied.
2.Manual Transaxle- Depress the clutch pedal fully
and shift the transaxle into NEUTRAL. Keep the
clutch pedal depressed while cranking the engine.
The starter will not operate if the clutch pedal is not
fully depressed.
Automatic Transaxle- Place the transaxle shift
lever in P (Park). Depress the brake pedal fully.
You can also start the engine if the shift lever is in
the N (Neutral) position.
3. Turn the ignition switch to START and hold it there
until the engine starts (a maximum of 10 seconds),
then release the key.
In extremely cold weather, below minus 18°C (0°F), or
after the vehicle has not been operated for several
days, let it warm up without depressing the accelerator.
Whether the engine is cold or warm, it should be start-
ed without depressing the accelerator.If the engine fails to start using this procedure, attempt
the following.
The engine fails to start when the engine is cold
(engine coolant temperature is below 32°F/0°C):
A no start condition may be caused by an engine that
has become flooded (has excessive fuel in the cylin-
ders). If this is the case, follow the starting procedure
below.
1. Make sure the parking brake is applied.Driving Your Vehicle4-4
✽
NOTICE
If the engine stalls while you are in motion,
do not attempt to move the shift lever to P
(Park).
If it is safe to do so considering traffic and
road conditions, you may put the shift lever
in the N (Neutral) position while still moving
and turn the ignition switch to the START
position in an attempt to restart the engine.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 4

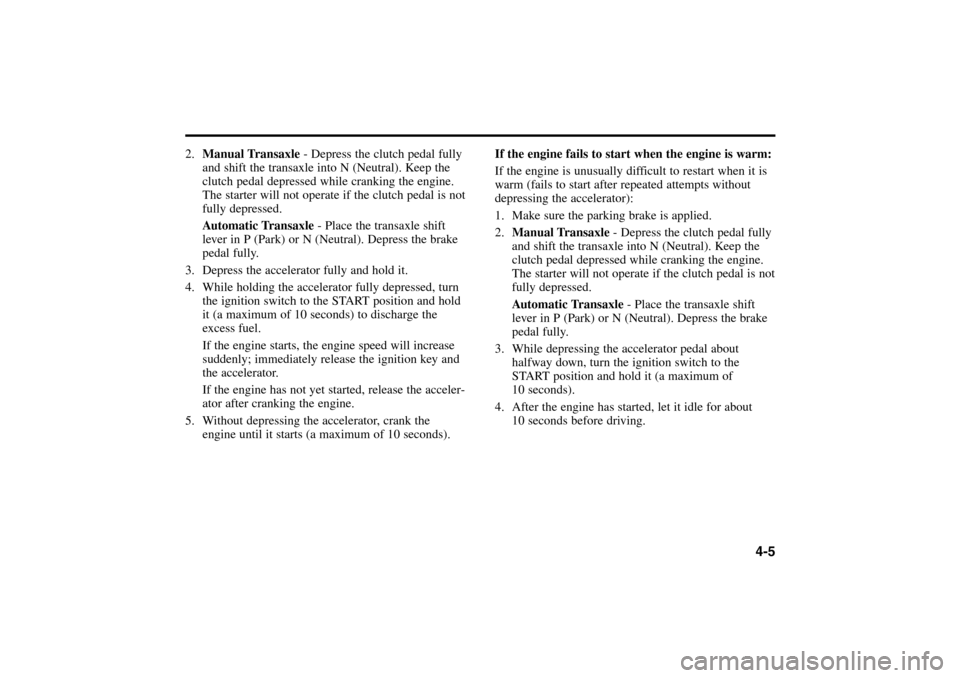

2.Manual Transaxle - Depress the clutch pedal fully
and shift the transaxle into N (Neutral). Keep the
clutch pedal depressed while cranking the engine.
The starter will not operate if the clutch pedal is not
fully depressed.
Automatic Transaxle- Place the transaxle shift
lever in P (Park) or N (Neutral). Depress the brake
pedal fully.
3. Depress the accelerator fully and hold it.
4. While holding the accelerator fully depressed, turn
the ignition switch to the START position and hold
it (a maximum of 10 seconds) to discharge the
excess fuel.
If the engine starts, the engine speed will increase
suddenly; immediately release the ignition key and
the accelerator.
If the engine has not yet started, release the acceler-
ator after cranking the engine.
5. Without depressing the accelerator, crank the
engine until it starts (a maximum of 10 seconds).If the engine fails to start when the engine is warm:
If the engine is unusually difficult to restart when it is
warm (fails to start after repeated attempts without
depressing the accelerator):
1. Make sure the parking brake is applied.
2.Manual Transaxle- Depress the clutch pedal fully
and shift the transaxle into N (Neutral). Keep the
clutch pedal depressed while cranking the engine.
The starter will not operate if the clutch pedal is not
fully depressed.
Automatic Transaxle- Place the transaxle shift
lever in P (Park) or N (Neutral). Depress the brake
pedal fully.
3. While depressing the accelerator pedal about
halfway down, turn the ignition switch to the
START position and hold it (a maximum of
10 seconds).
4. After the engine has started, let it idle for about
10 seconds before driving.
4-5
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 5

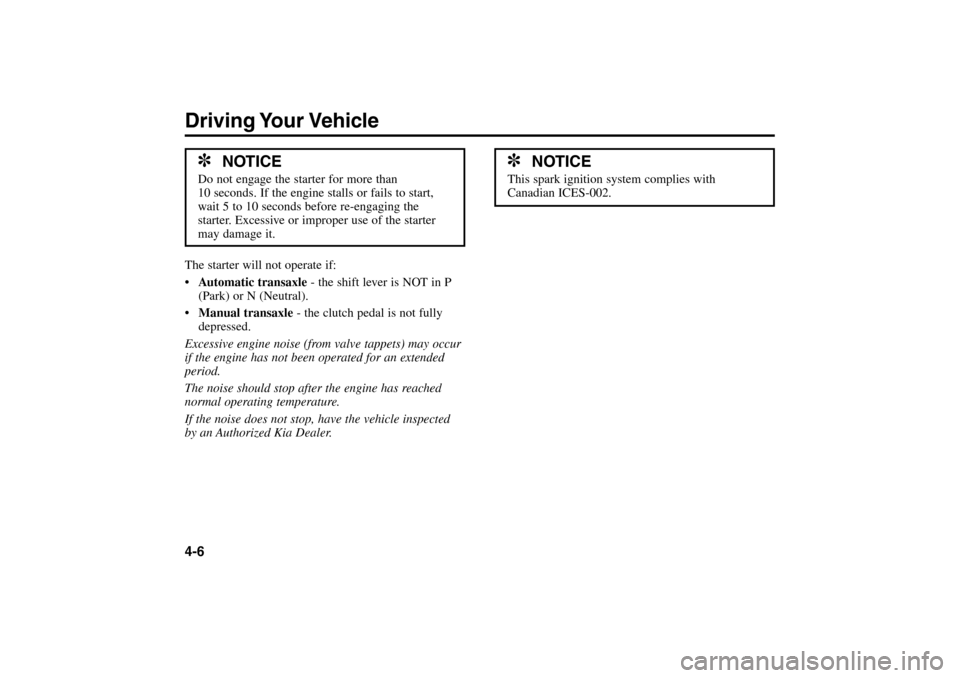

The starter will not operate if:
Automatic transaxle - the shift lever is NOT in P
(Park) or N (Neutral).
Manual transaxle- the clutch pedal is not fully
depressed.
Excessive engine noise (from valve tappets) may occur
if the engine has not been operated for an extended
period.
The noise should stop after the engine has reached
normal operating temperature.
If the noise does not stop, have the vehicle inspected
by an Authorized Kia Dealer.Driving Your Vehicle4-6
✽
NOTICE
Do not engage the starter for more than
10 seconds. If the engine stalls or fails to start,
wait 5 to 10 seconds before re-engaging the
starter. Excessive or improper use of the starter
may damage it.
✽
NOTICE
This spark ignition system complies with
Canadian ICES-002.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 6

4-7

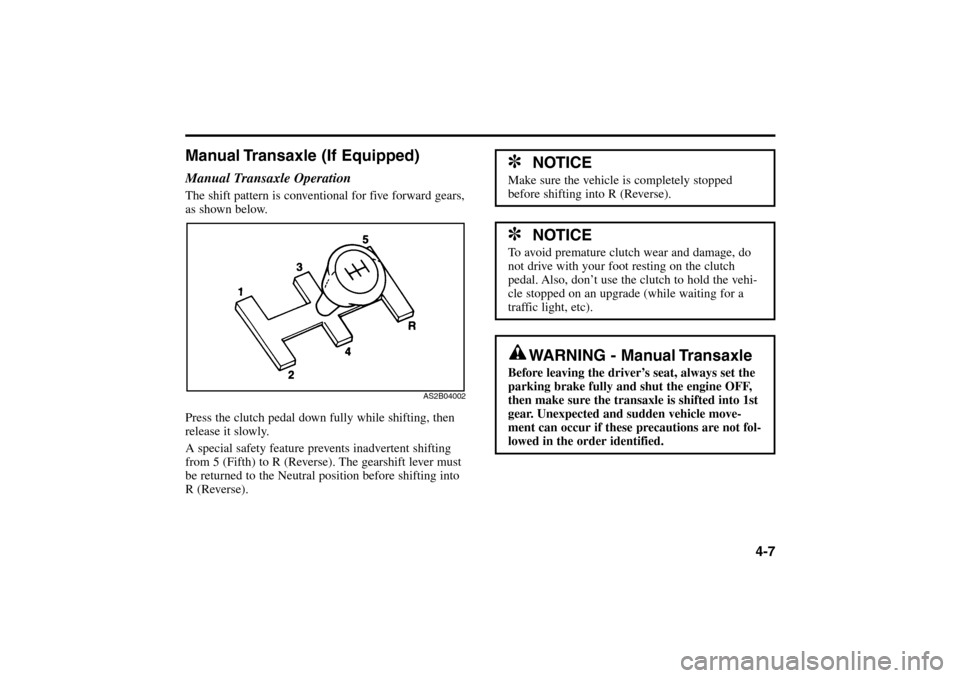

Manual Transaxle (If Equipped)Manual Transaxle OperationThe shift pattern is conventional for five forward gears,
as shown below.
Press the clutch pedal down fully while shifting, then
release it slowly.
A special safety feature prevents inadvertent shifting
from 5 (Fifth) to R (Reverse). The gearshift lever must
be returned to the Neutral position before shifting into
R (Reverse).
✽
NOTICE
To avoid premature clutch wear and damage, do
not drive with your foot resting on the clutch
pedal. Also, don’t use the clutch to hold the vehi-
cle stopped on an upgrade (while waiting for a
traffic light, etc).✽
NOTICE
Make sure the vehicle is completely stopped
before shifting into R (Reverse).
WARNING - Manual Transaxle
Before leaving the driver’s seat, always set the
parking brake fully and shut the engine OFF,
then make sure the transaxle is shifted into 1st
gear. Unexpected and sudden vehicle move-
ment can occur if these precautions are not fol-
lowed in the order identified.
AS2B04002
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 7

For the best fuel economy, the following shift points
are recommended:
Downshifting
When you must slow down in heavy traffic or while
driving up steep hills, downshift before the engine
starts to “labor.’’ Downshifting reduces the chance of
stalling and gives better acceleration when you again
need to increase your speed. When the vehicle is trav-
eling down steep hills, downshifting one gear level
helps maintain safe speed and prolongs brake life.
Driving Your Vehicle4-8
Shift Points km/h (mph)
1st to 2nd 19 (12)
2nd to 3rd 32 (20)
3rd to 4th 50 (31)
4th to 5th 63 (39)

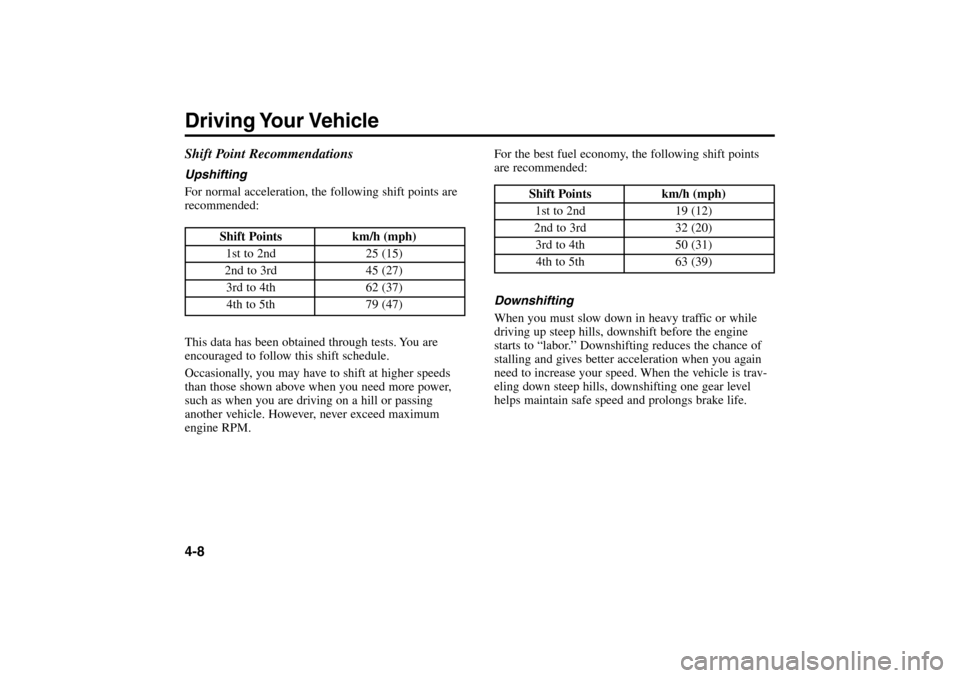

Shift Point RecommendationsUpshifting
For normal acceleration, the following shift points are
recommended:
This data has been obtained through tests. You are
encouraged to follow this shift schedule.
Occasionally, you may have to shift at higher speeds
than those shown above when you need more power,
such as when you are driving on a hill or passing
another vehicle. However, never exceed maximum
engine RPM.Shift Points km/h (mph)
1st to 2nd 25 (15)
2nd to 3rd 45 (27)
3rd to 4th 62 (37)
4th to 5th 79 (47)
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 8

4-9

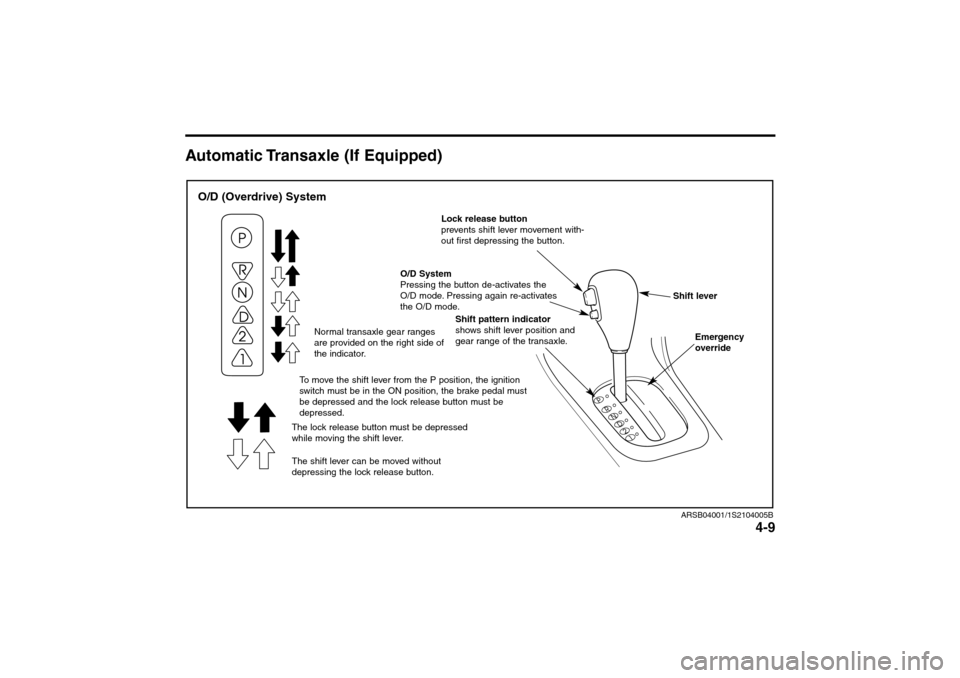

Automatic Transaxle (If Equipped)
ARSB04001/1S2104005B
Normal transaxle gear ranges
are provided on the right side of
the indicator.
To move the shift lever from the P position, the ignition
switch must be in the ON position, the brake pedal must
be depressed and the lock release button must be
depressed.
The lock release button must be depressed
while moving the shift lever.
The shift lever can be moved without
depressing the lock release button.Lock release button
prevents shift lever movement with-
out first depressing the button.
O/D System
Pressing the button de-activates the
O/D mode. Pressing again re-activates
the O/D mode.
Emergency
override
O/D (Overdrive) System
Shift lever
Shift pattern indicator
shows shift lever position and
gear range of the transaxle.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 9
