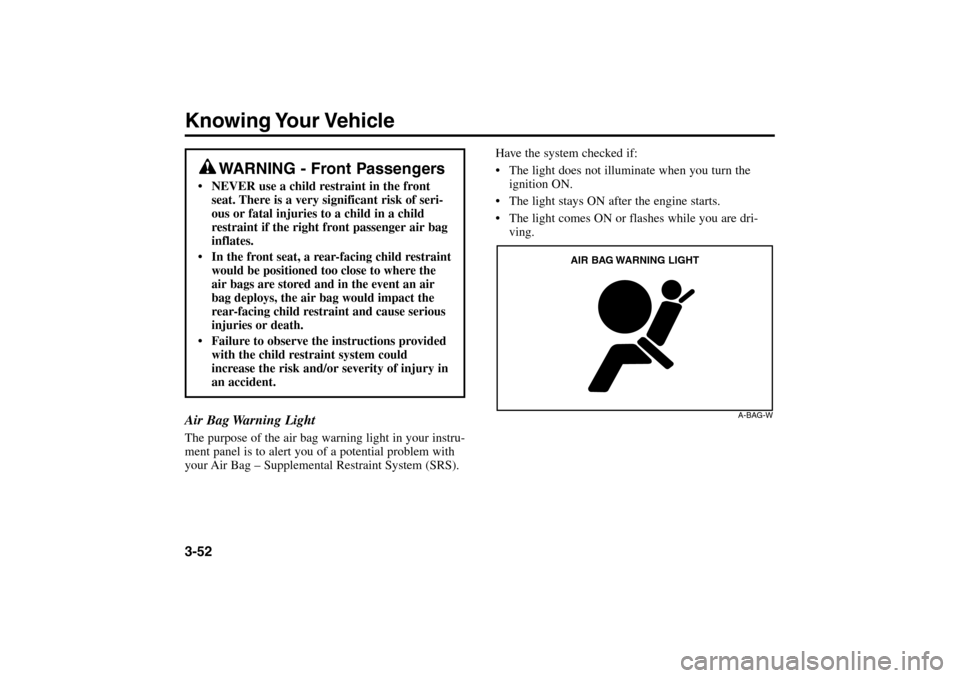

Knowing Your Vehicle3-52 Air Bag Warning LightThe purpose of the air bag warning light in your instru-
ment panel is to alert you of a potential problem with
your Air Bag – Supplemental Restraint System (SRS).
WARNING - Front Passengers
 NEVER use a child restraint in the front
seat. There is a very significant risk of seri-
ous or fatal injuries to a child in a child
restraint if the right front passenger air bag
inflates.

In the front seat, a rear-facing child restraint
would be positioned too close to where the
air bags are stored and in the event an air
bag deploys, the air bag would impact the
rear-facing child restraint and cause serious
injuries or death.
 Failure to observe the instructions provided
with the child restraint system could
increase the risk and/or severity of injury in
an accident.
Have the system checked if:
 The light does not illuminate when you turn the
ignition ON.
 The light stays ON after the engine starts.
 The light comes ON or flashes while you are dri-
ving.
A-BAG-W
AIR BAG WARNING LIGHT
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 52

Knowing Your Vehicle3-60
(Continued)
 Do not get back into a vehicle once you have
begun refueling. Do not touch, rub or slide
against any item or fabric (polyester, satin,
nylon, etc.) capable of producing static elec-
tricity. Static electricity discharge can ignite
fuel vapors resulting in explosion. If you
must re-enter the vehicle, you should once
again eliminate potentially dangerous static
electricity discharge by touching a metal part
of the vehicle, away from the fuel filler neck,
nozzle or other gasoline source.
 When using a portable fuel container be sure
to place the container on the ground prior to
refueling. Static electricity discharge from the
container can ignite fuel vapors causing a
fire. Once refueling has begun, contact with
the vehicle should be maintained until the
filling is complete. Use only portable fuel con-
tainers designed to carry and store gasoline.
 Do not use cellular phones around a gas sta-
tion or while refueling any vehicle. Electric
current and/or electronic interference from
cellular phones can potentially ignite fuel
vapors causing a fire.
(Continued)
(Continued)
If you must use your cellular phone, use it in a
place away from the gas station.
 When refueling always shut the engine off.
Sparks produced by electrical components
related to the engine can ignite fuel vapors
causing a fire. Always insure that the engine
is OFF before and during refueling. Once
refueling is complete, check to make sure
the fuel filler cap and door are securely
closed, before starting the engine.
 Do not light any fire around a gas station.
DO NOT use matches or a lighter and DO
NOT SMOKE or leave a lit cigarette in your
vehicle while at a gas station especially dur-
ing refueling. Automotive fuel is highly
flammable and can, when ignited, result in
explosion by flames.
 If a fire breaks out during refueling, leave
the vicinity of the vehicle, and immediately
contact the manager of the gas station or
contact the police and local fire department.
Follow any safety instructions they provide.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 60

4-11
Transaxle Ranges
O/D (OVERDRIVE) SYSTEM
Pressing the O/D system button cancels and engages
the overdrive system. When the O/D system is can-
celled (button is depressed), the O/D OFF indicator
illuminates and the transaxle gear range is limited to
1st through 3rd. The transaxle will not shift to 4th gear
until the O/D system button is again depressed.
When the ignition is switched OFF, the O/D OFF mode
is automatically cancelled.
WARNING - Automatic
Transaxle
 Before leaving the driver’s seat, always
make sure the shift lever is in the P (PARK)
position; then set the parking brake fully
and shut the engine off. Unexpected and
sudden vehicle movement can occur if these
precautions are not followed in the order
identified.
O/D OFF indicator
This indicator light illuminates in the instrument panel
when the O/D mode is cancelled.
NORMAL OPERATION
P (Park)
This position locks the transaxle and prevents the front
wheels from rotating. Always come to a complete stop
before shifting into this position.
✽
NOTICE
If the O/D OFF indicator flashes, it indicates an
electrical problem with the transaxle. Should this
occur, have the vehicle checked by an Authorized
Kia Dealer as soon as possible.
WARNING
Shifting into P (Park) while the vehicle is in
motion will cause the front wheels to lock and
you will lose driving control of the vehicle.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 11

Parking on Curbed Streets When parking your vehicle on an uphill grade, park
as close to the curb as possible and turn the front
wheels away from the curb so that the front wheels
will contact the curb if the vehicle moves backward.
 When parking your vehicle on a downhill grade,
park as close to the curb as possible and turn the
front wheels toward the curb so that the front wheels
will contact the curb if the vehicle moves forward.
4-21
Check the brake warning light each time you start the
engine. The light is located in the instrument panel.
This warning light will be illuminated when the igni-
tion switch in ON or START and the parking brake is
set.
Before driving, be sure the parking brake is fully
released and the brake warning light is off.
If the brake warning light remains on after the parking
brake is released, there may be a malfunction in the
brake system. Immediate attention is necessary.
If at all possible, cease driving the vehicle immediate-
ly. If that is not possible, use extreme caution in oper-
ating the vehicle and only drive it until you reach the
first safe location or a repair shop.
AS2B04009
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 21

4-27 Instrument Panel Illumination (If equipped)
When the vehicle’s parking lights or headlights are
ON, rotate the illumination control knob to adjust the
instrument panel illumination intensity.
Warnings and IndicatorsWarning Lights/Audible IndicatorsChecking Operation
All the warning lights are checked by turning the igni-
tion switch ON (you do not need to start the engine).
Any light that does not come ON should be checked
by an Authorized Kia Dealer.
After starting the engine, check to make sure that all
warning lights are OFF. If any are still ON, this indi-
cates a situation that needs attention. When releasing
the parking brake, the brake system warning light
should go OFF.Parking Brake and Brake Fluid
Warning Parking Brake Warning
This light comes ON when the parking brake is applied
with the ignition switch in the START or ON position.
The warning light should go OFF when the parking
brake is released.
2FDA407
BRAKE
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 27

Driving Your Vehicle4-28Low Brake Fluid Level Warning
If the warning light remains ON when the parking
brake is released, it may indicate that the brake fluid
level in the reservoir is low.
If the warning light remains ON:
1. Drive to the nearest safe location and carefully stop
your vehicle.
2. With the engine stopped, check the brake fluid level
immediately and add fluid as required. All brake
components should also be checked immediately
for fluid leaks.
3. If leaks are found, if the warning light remains ON,
or if the brakes do not operate properly, do not
drive the vehicle. Have it towed to an Authorized
Kia Dealer for a brake system inspection and nec-
essary repairs.To check bulb operation, the warning light illuminates
when the ignition switch is in the ON position.
Safety Belt Warning As a reminder to the driver and passenger, safety belt
warning light will illuminate for approximately 6 sec-
onds each time you turn the ignition switch ON.
If the driver’s lap/shoulder belt is not fastened when
the key is turned ON, a chime sounds for approximate-
ly six seconds and the safety belt warning light illumi-
nates for approximately six seconds. If the system does
not operate as described, see an Authorized Kia Dealer
for assistance.Air Bag Warning This warning light will remain ON for approximately
6 seconds each time you turn the ignition switch ON.
If the system does not operate as described or if the
light comes on while the vehicle is being driven, see an
Authorized Kia Dealer for immediate assistance.Charging System Warning This warning light indicates a malfunction of either the
generator or electrical charging system.
–
+
WARNING - Brake Warning
Lights
Driving the vehicle with a warning light ON is
dangerous. If the brake warning light remains
ON, have the brakes checked and repaired
immediately.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 28

4-29
If the warning light illuminates while driving:
1. Drive to the nearest safe location and carefully stop
your vehicle.
2. With the engine OFF, check the generator drive belt
for looseness or breakage.
3. If the belt is adjusted properly, a problem exists
somewhere in the electrical charging system. Have
an Authorized Kia Dealer locate and correct the
problem as soon as possible.Engine Oil Pressure Warning This warning light indicates the engine oil pressure is
low.
If the warning light comes ON while driving:
1. Drive safely to the side of the road and stop.
2. With the engine OFF, check the engine oil level. If
the level is low, add oil as required.
If the warning light remains ON after adding oil or if
oil is not available, call an Authorized Kia Dealer.Low Fuel Level Warning This warning light indicates the fuel tank is near
empty. The warning light will come on when the fuel
level has dropped to about 9 liters (2.4 US gal.).
Refuel as soon as possible.
✽
NOTICE
Do not drive the vehicle with a loose or broken
generator belt; the engine could be damaged by
overheating because this belt also drives the water
pump.
✽
NOTICE
 If the engine is not stopped as soon as possible,
severe engine damage could result.
 Do not drive the vehicle when the Engine Oil
Pressure Warning Light is ON.
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 29

Driving Your Vehicle4-30Continuously ON :
If the CHECK ENGINE light comes ON while driving
and illuminates continuously, a potential problem has
been discovered in the ECS or one of the exhaust sys-
tem components. Generally, the vehicle will continue
to be driveable but it should be checked by an autho-
rized Kia dealer as soon as possible. This condition is
unlikely to lead to engine damage unless a decrease in
vehicle power or poor running conditions is immedi-
ately apparent.
Malfunction Indicator The CHECK ENGINE or malfunction indicator light is
installed in your vehicle's instrument panel and
responds to signals from the vehicle's On Board
Diagnostic (OBD -II) System. The OBD-II System
monitors the performance of the vehicle's Emission
Control System (ECS), which is designed to reduce the
amount of air pollutants in engine exhaust to the levels
required by government regulations.
When you first start the engine, the CHECK ENGINE
light will illuminate briefly as a system check to con-
firm that the OBD-II System is operating properly. As
the engine starts, this light turns off. However, if at
any time the OBD-II system detects a faulty signal or
determines that the ECS is not performing to specifica-
tion, the CHECK ENGINE light will illuminate contin-
uously or flash.
CHECK
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 30

4-31 Flashing ON and OFF :
If the CHECK ENGINE light begins to flash ON and
OFF, a more serious problem with the ECS or exhaust
system component has been detected. If this happens,
and there is no degradation to performance, the vehicle
is still driveable (avoid high speeds) but should be
checked by an authorized Kia dealer at your earliest
possible convenience. If the flashing CHECK
ENGINE light is accompanied by a decrease in power
or poor running conditions, safely stop the vehicle and
immediately contact Kia Roadside Assistance.
Note that the CHECK ENGINE light will illuminate
for a problem like a loose or missing gas cap, but will
not illuminate as a result of low engine oil or coolant,
low automatic transaxle fluid or engine overheating.
The driver will be alerted to these conditions by other
indicators on the instrument panel.
CAUTION
 Prolonged driving with the On Board
Diagnostic System Malfunction Indicator Light
()illuminated may cause damage to the
emission control systems which could effect
driveability and/or fuel economy.
 If the On Board Diagnostic System
Malfunction Indicator Light () begins to
flash ON and OFF, potential catalytic convert-
er damage is possible which could result in
loss of engine power. Have the On Board
Diagnostic System inspected as soon as possi-
ble by an authorized Kia dealer.
CHECK
CHECK
CHECK
CHECK
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 31

4-33 Door Ajar Warning
This warning light comes on when a door is not closed
securely with the ignition switch in any position.Anti-Lock Brake System (ABS)
Warning Light (if equipped)This light illuminates when you start the engine. The
light will go off if the ABS system is operating nor-
mally. Also, this light comes on if the key is turned to
ON, and then goes off in 2-3 seconds if the system is
operating normally.
If this warning light illuminates while the vehicle is
being driven, have the vehicle checked by an autho-
rized Kia Dealer as soon as possible.Rear Window Defroster Indicator This light comes on when the rear defroster is ON.Rear Hatch Warning Light
(5 door-if equipped)This warning light comes on when a rear hatch is not
closed securely with the ignition switch in any posi-
tion.
AS2B04020
LightingLighting ControlTo turn the lights on, twist the knob on the end of the
control lever which is located on the steering column
to the left of the steering wheel.
First position
Tail, parking, license and sidemarker lights and instru-
ment panel lights ON.
Second position
Head, tail, parking, license and sidemarker lights and
instrument panel lights ON.
ABS
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 33
